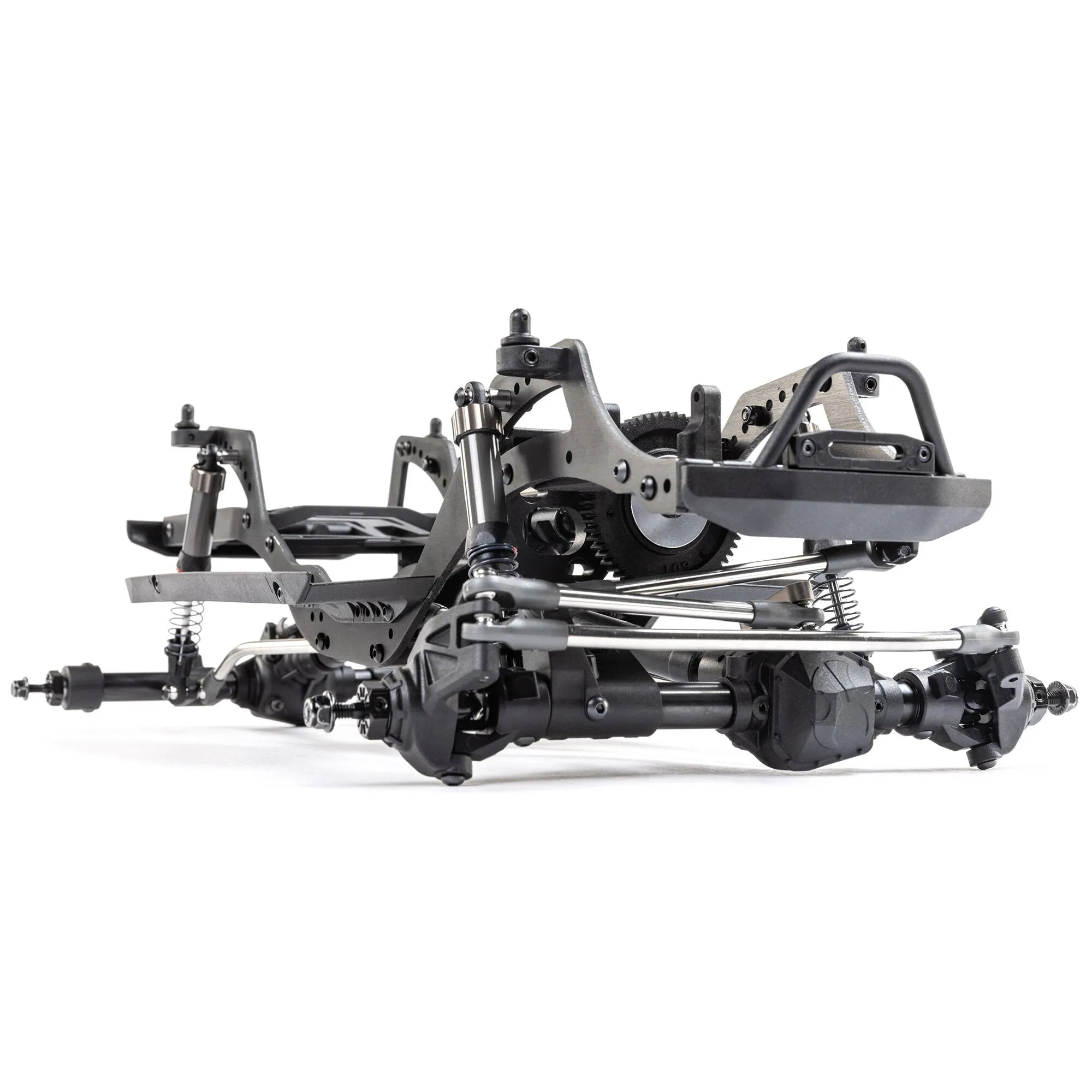

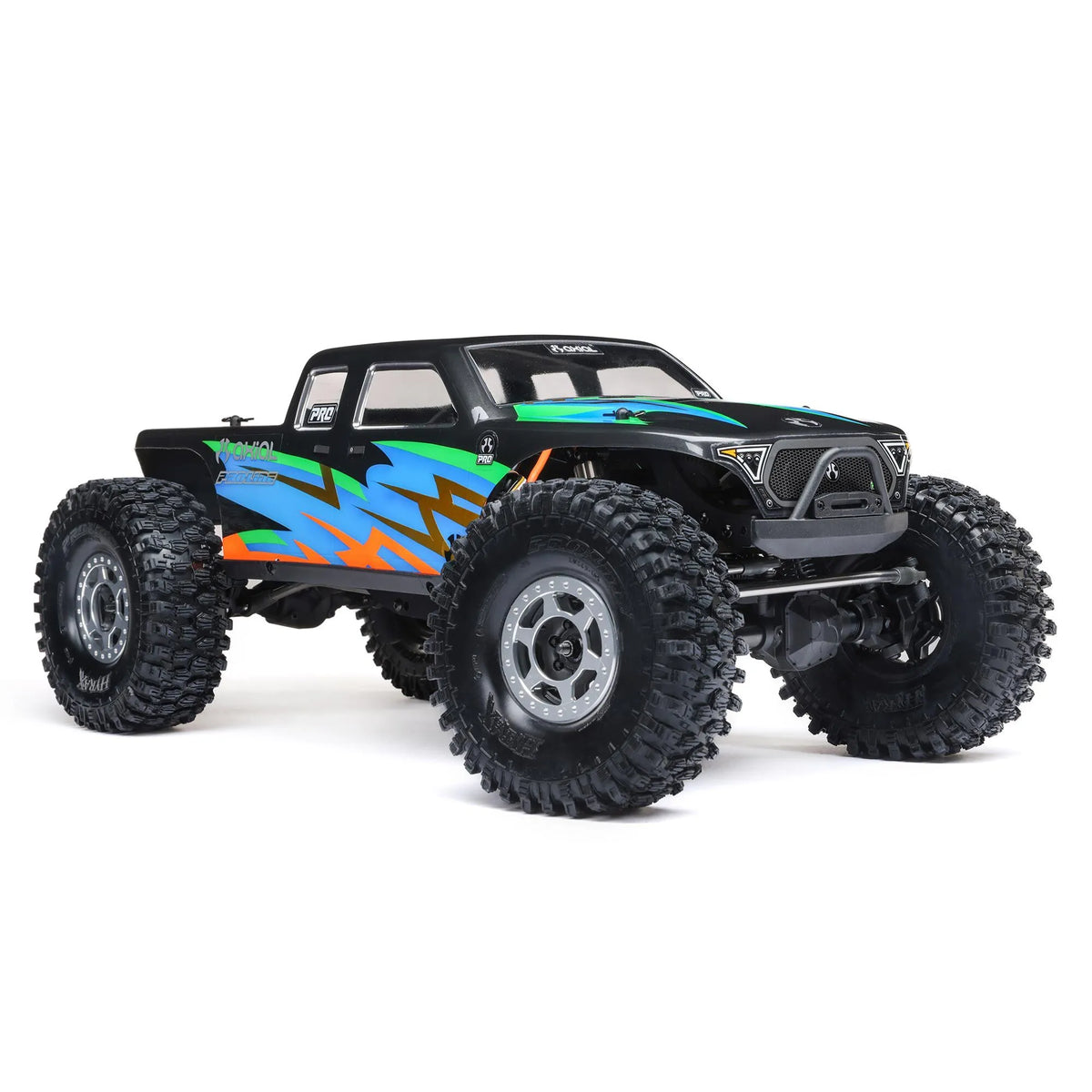

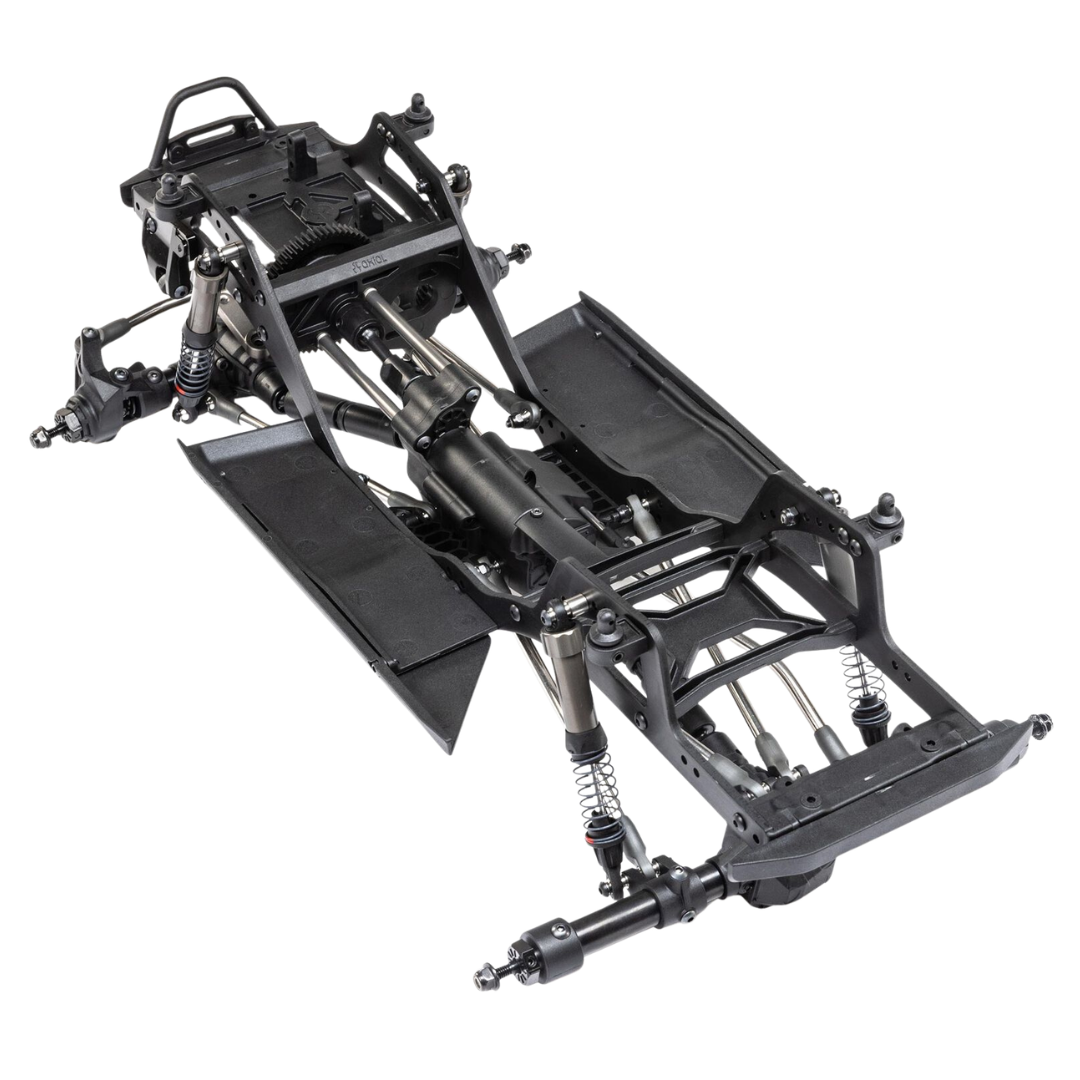

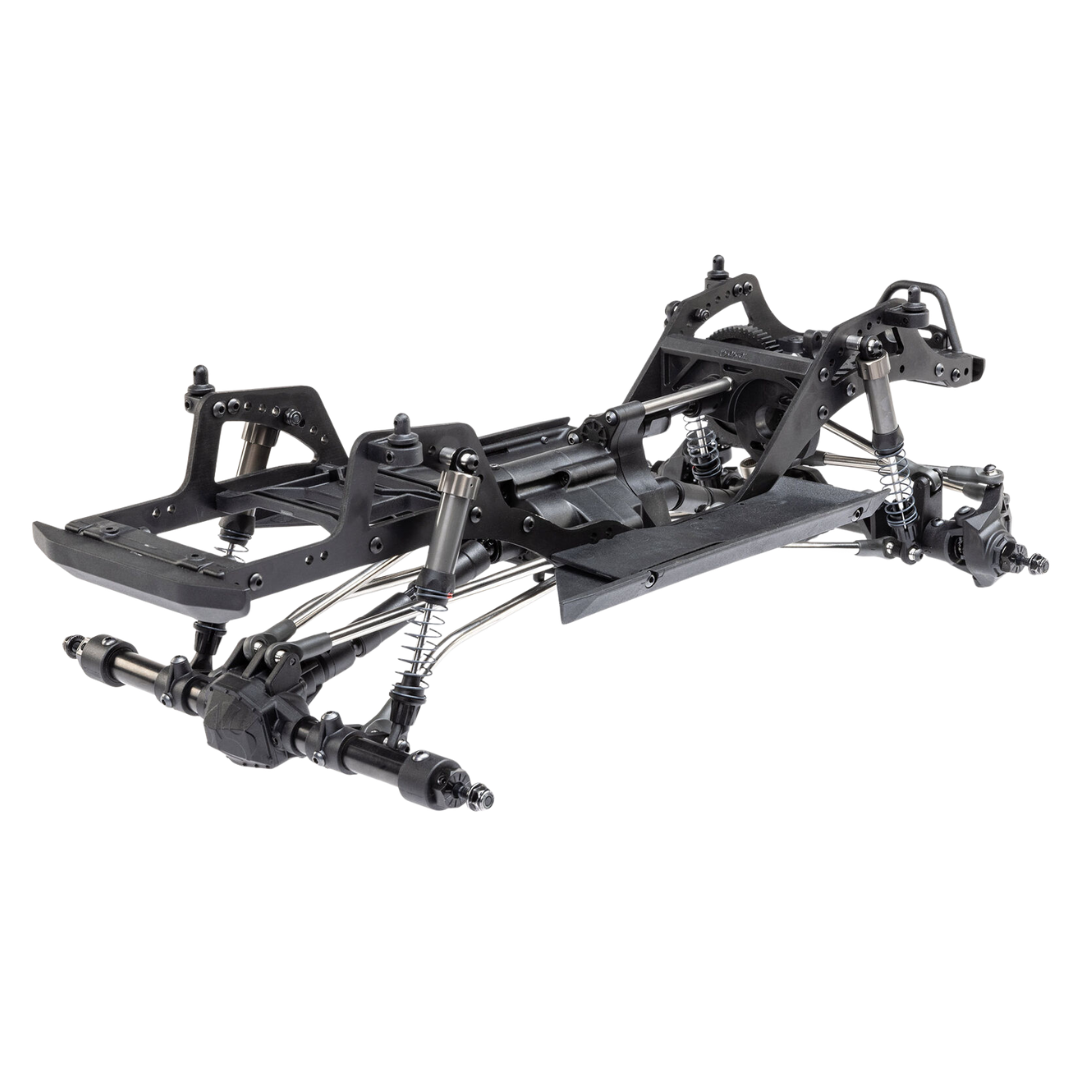

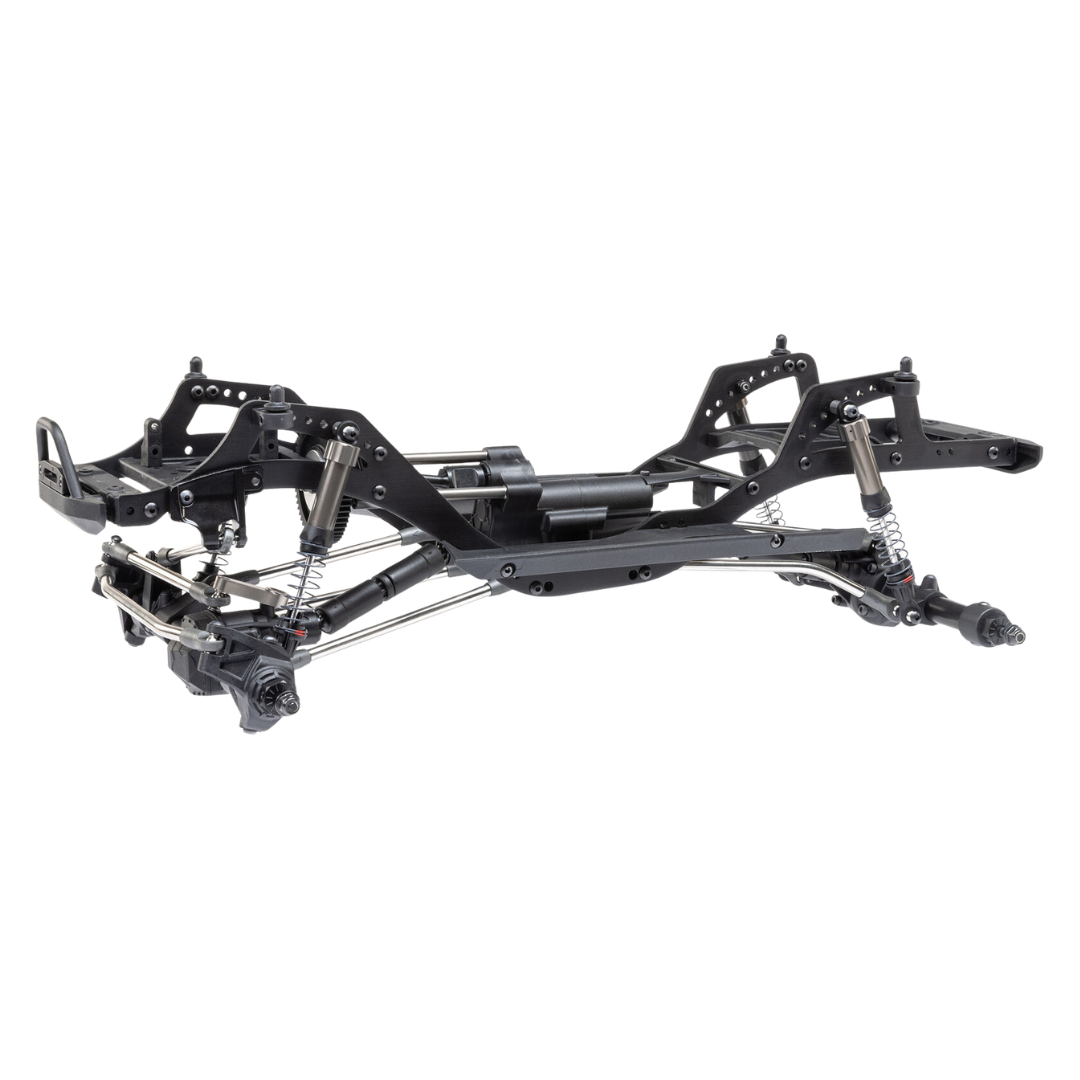

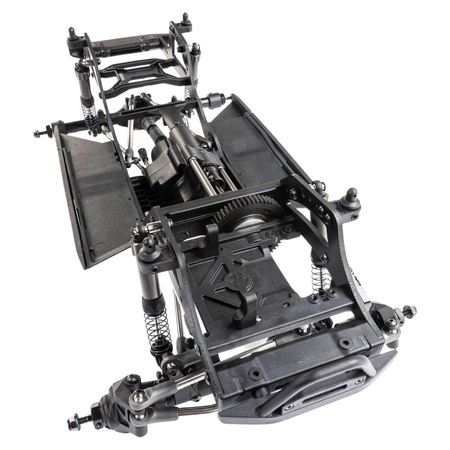

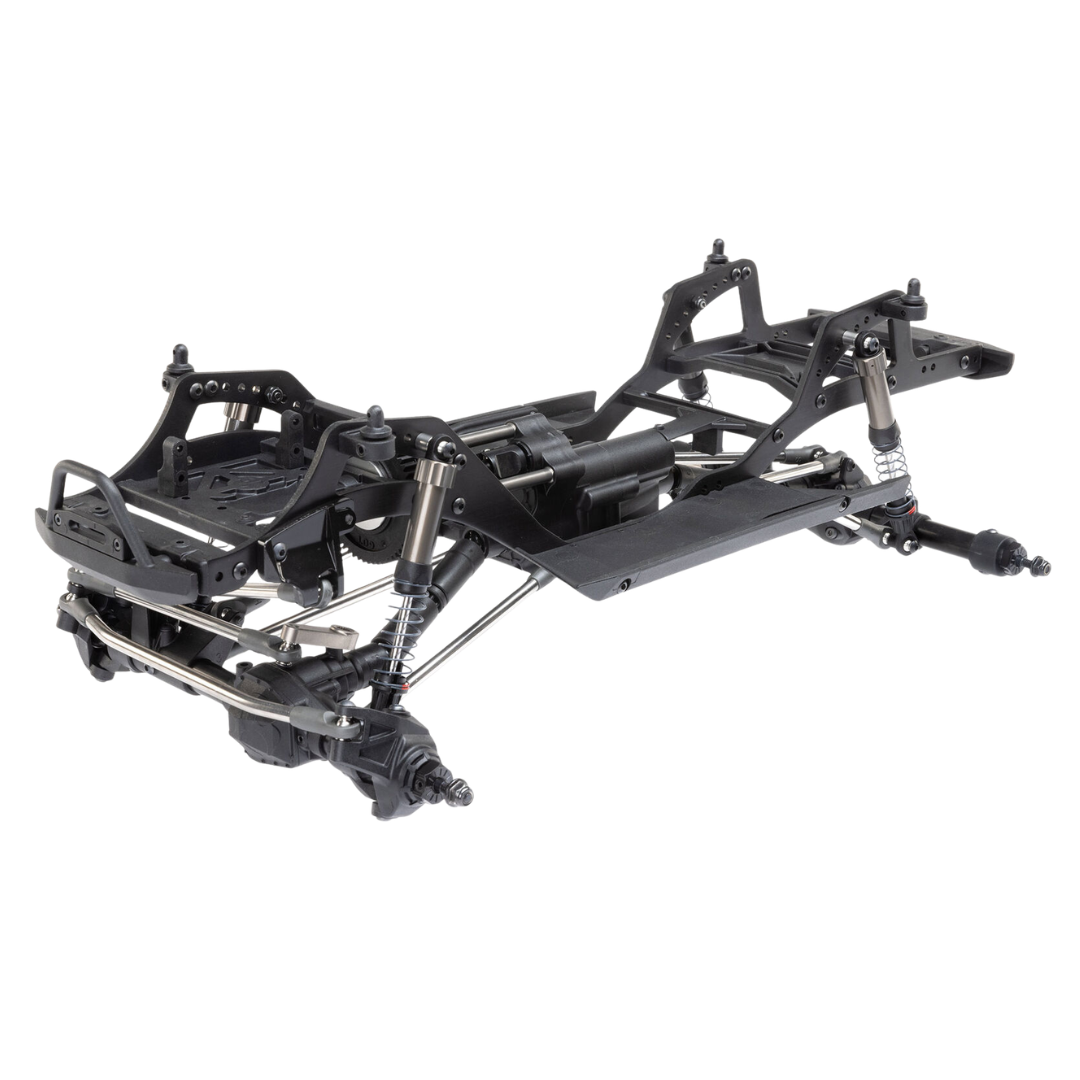

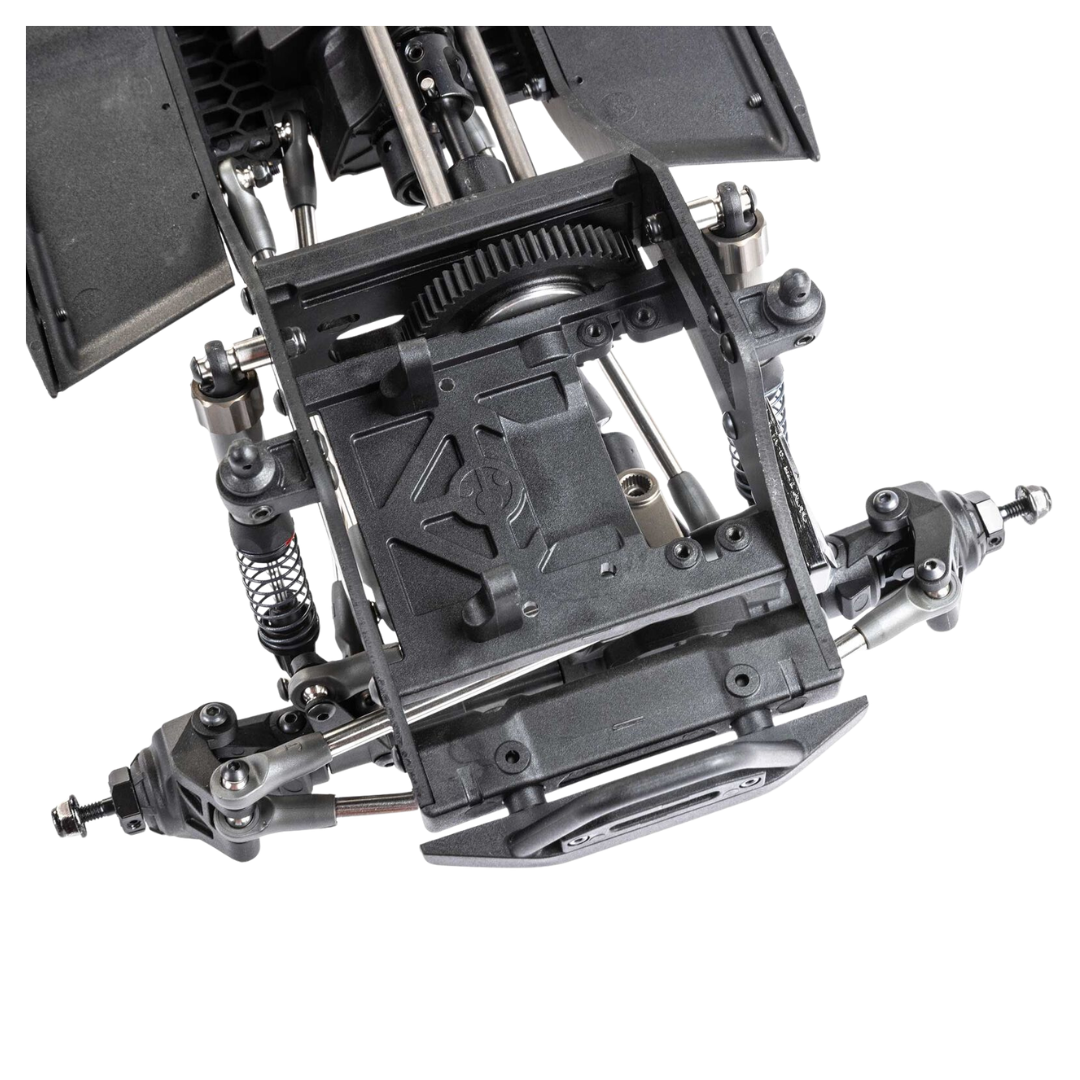

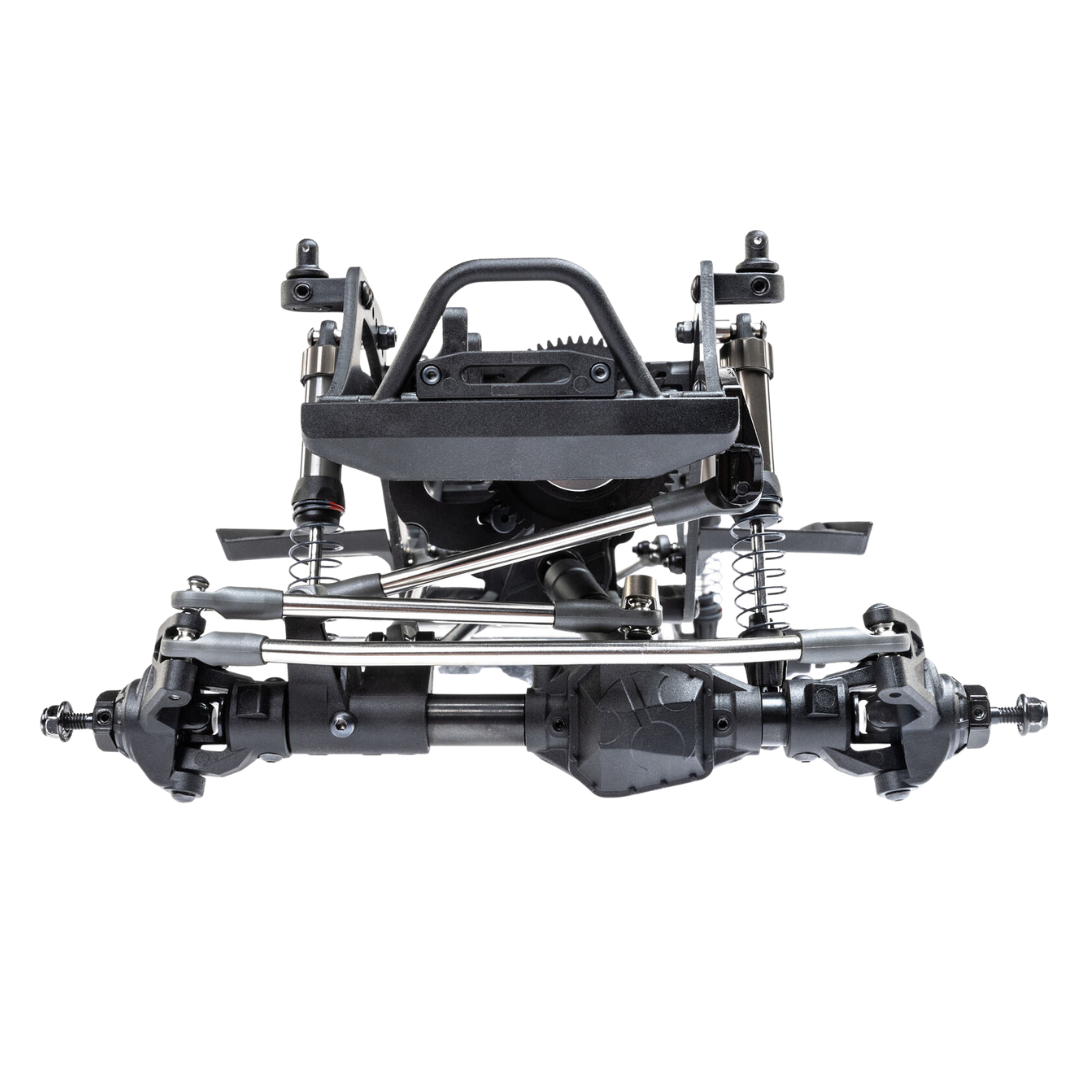

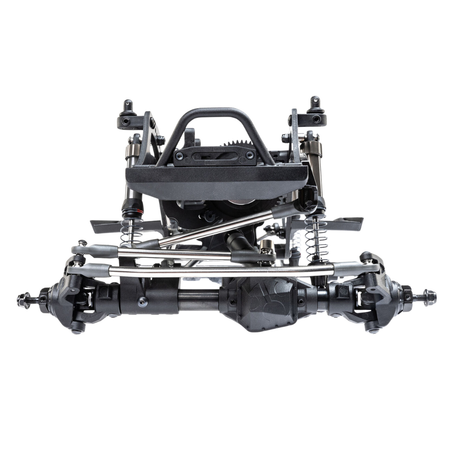

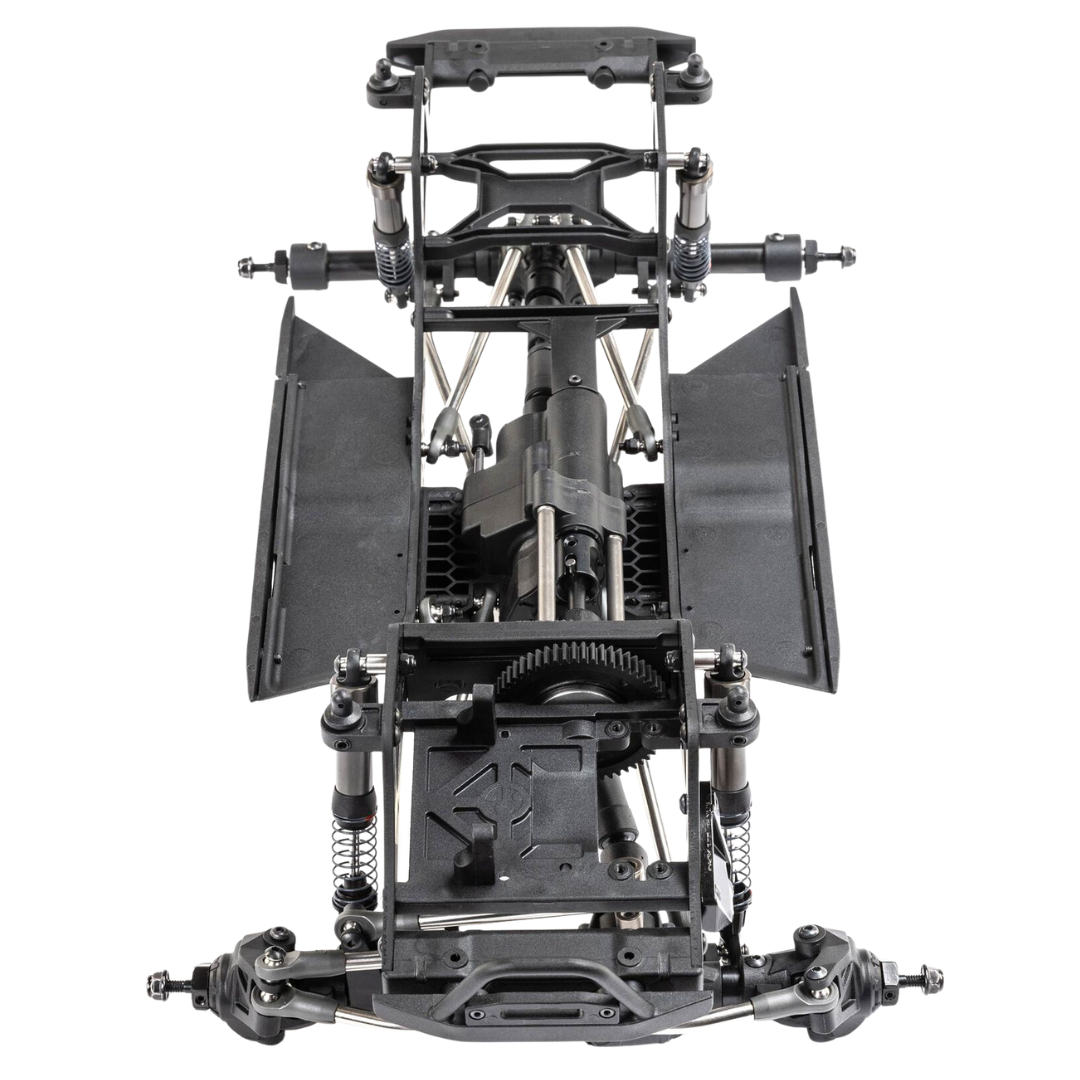

Axial SCX10 Pro Scaler 1/10th Scale 4x4 RC Rock Crawler Competition Kit AXI03028

Only 1 left
SKU: AXI03028
$679.95
Sale $729.95 $679.95

Need some help? call us! ph: 07 3265 4547

The SCX10 Pro 4WD is a competition ready kit that delivers top level performance, convenience and value for money. For drivers who push their cars to the edge this kit has many advantages and innovations but is also a great drive for those wanting a quality RC crawler.

Features

  • Easily build a competition-ready scale crawler with plenty of innovations that have not been offered before in a comp-ready kit
  • Compared to buying components separately the Pro kit saves you plenty of money and time

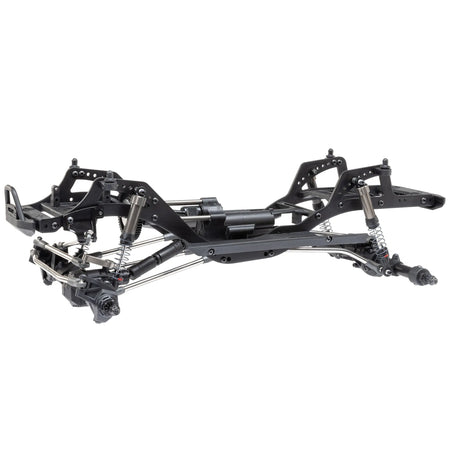

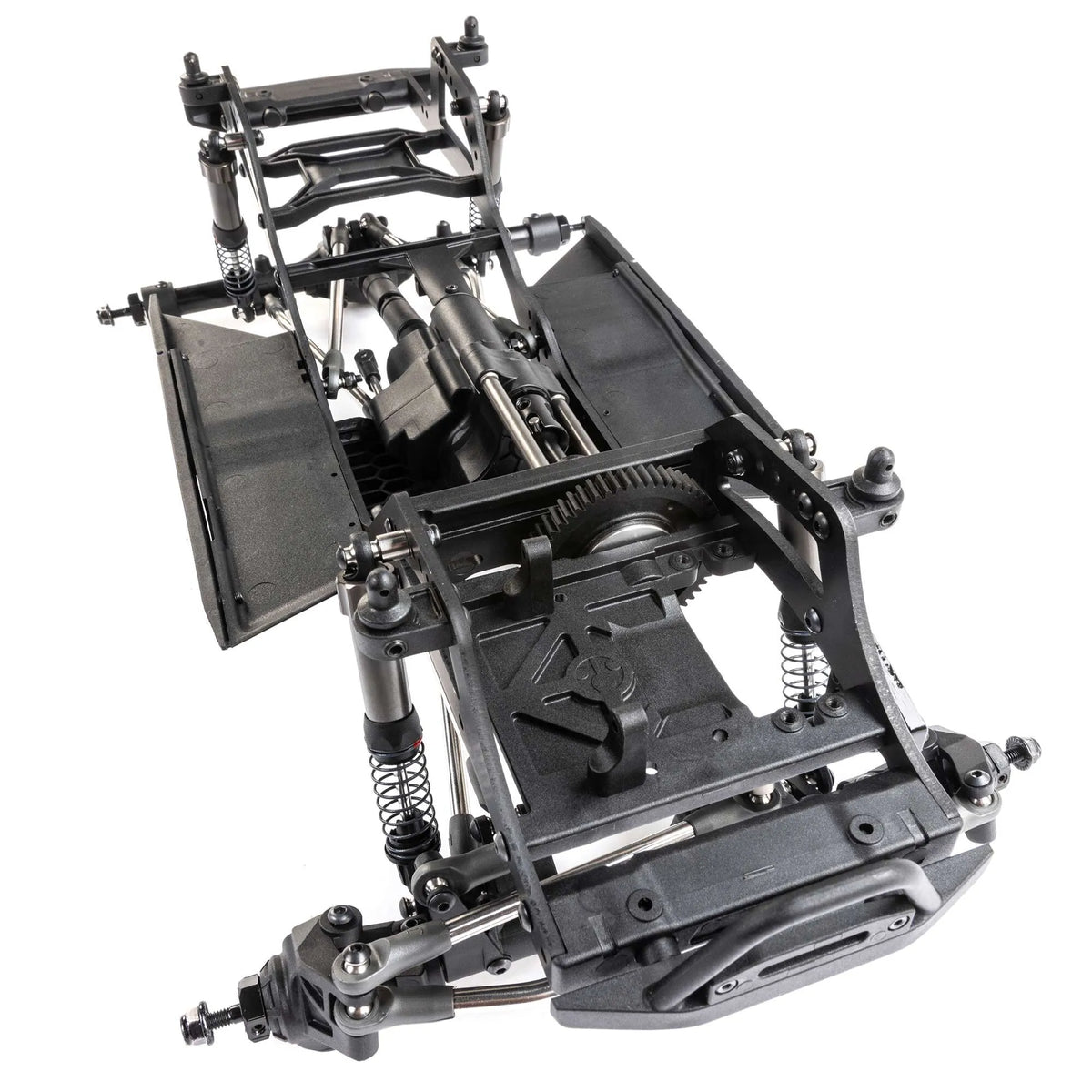

  • More adjustable, lower and lighter the chassis is designed for competition and to optimise side hilling, break-over and climbing performance

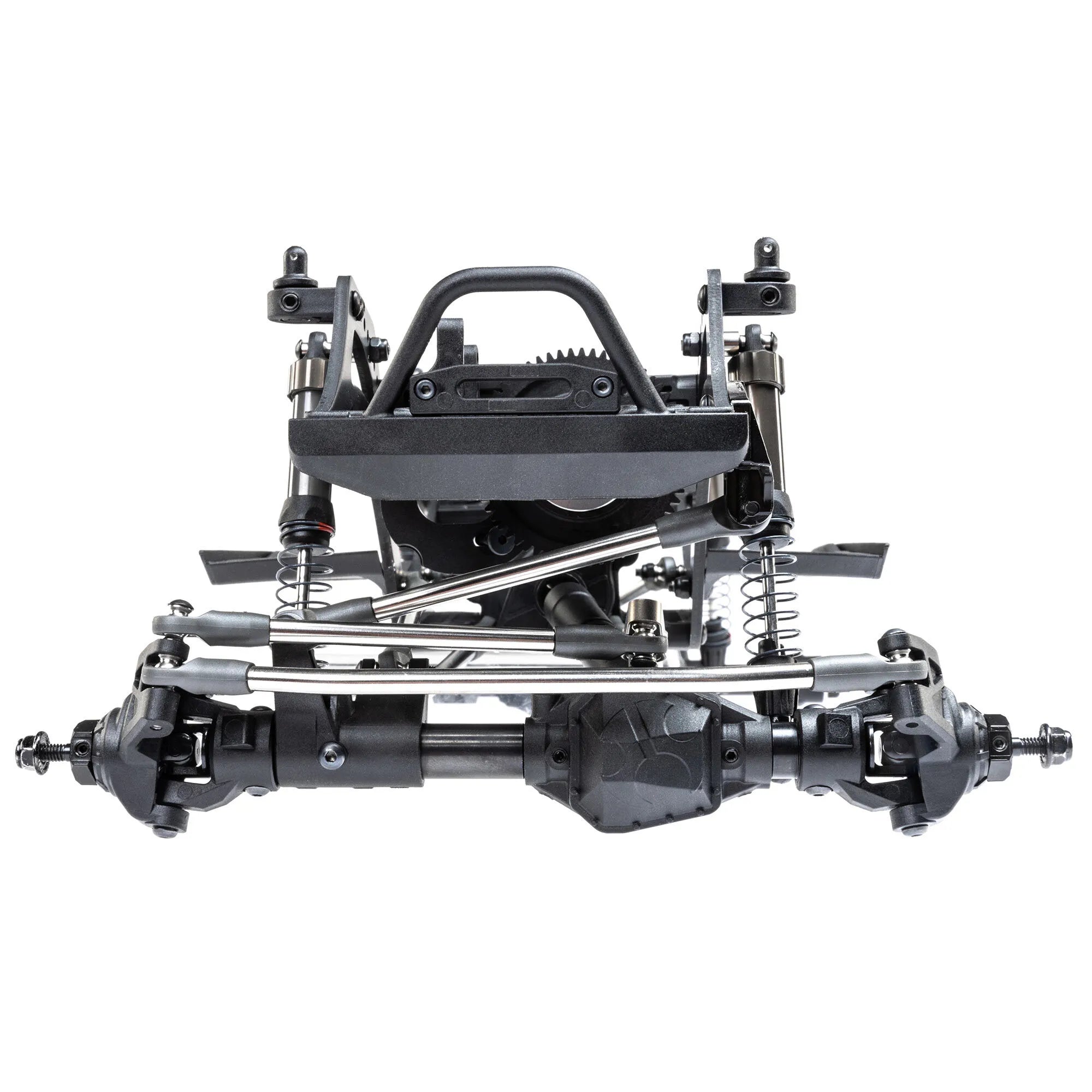

  • Steel tube axles are multi-piece in order to accommodate an axle-mounted servo (AMS) or you can opt for a chassis-mounted servo (CMS)

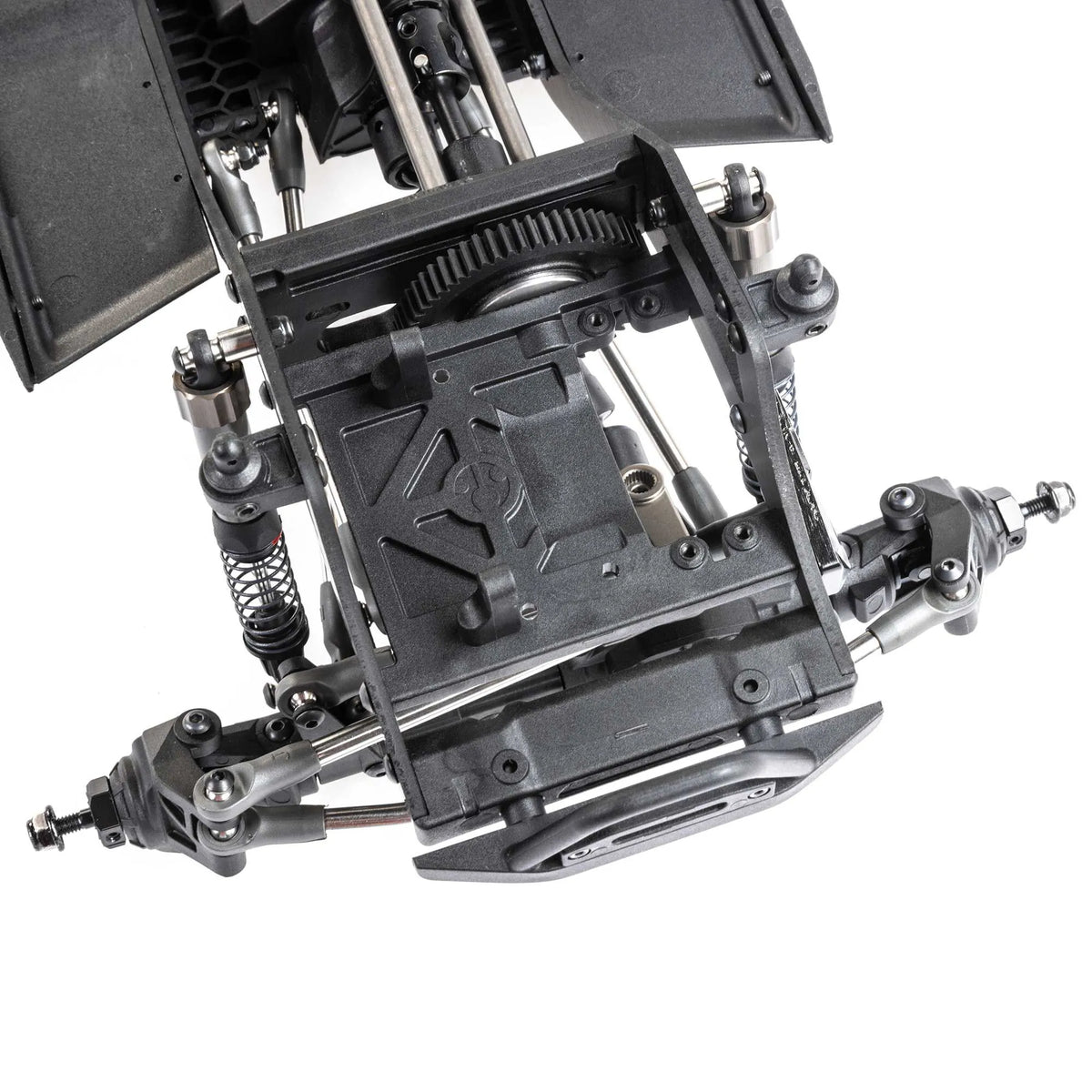

  • Improved balance and excellent weight distribution from the forward and low motor position
  • The rear axle can be underdriven via servo or you can manually lock the rear axle in 1:1 or underdrive
  • New smooth body 96mm aluminium oil-filled shocks
  • With designer Wyatt Mellon driving the Pro has already won and placed at multiple events

Specifications

  • Shock Type: 2.9" - 3.8" (74-96mm) Aluminum Oil filled
  • Product Weight: 3lbs (1.4kg) Without Components
  • Servos: Sold Separately
  • Speed Control: Sold Separately
  • Ball Bearings: Complete Vehicle
  • Drivetrain: 4WD
  • Brakes: Integral with ESC
  • Charger: Sold Separately
  • Scale: 1/10
  • Approximate Assembly Time: 5-7 Hours
  • Body: Not Included
  • Ground Clearance: 2.25" (57.1mm)
  • Product Width: 9.25" (235 mm)
  • Steering Type: 2WS
  • Vehicle Type: Rock Crawler
  • Chassis: Aluminum Plate
  • Internal Gear Ratio: 10.26:1, 15.33:1
  • Motor Size: 540/550 recommended
  • Pinion: 13T
  • Product Height: 7" (178 mm)
  • Completion Level: Kit
  • Final Drive Ratio: 38.46:1, 57.50:1
  • Power Type: Electric
  • Product Length: 16.65" (423 mm)
  • Radio: Sold Separately
  • Differential: Locked
  • Wheelbase: 12.5" (318 mm)
  • Suspension: 3-Link/4-Link
  • Battery: Sold Separately
  • Wheel Hex Size: 12mm
  • Gear Pitch: 32-Pitch

Receiver: Sold Separately
