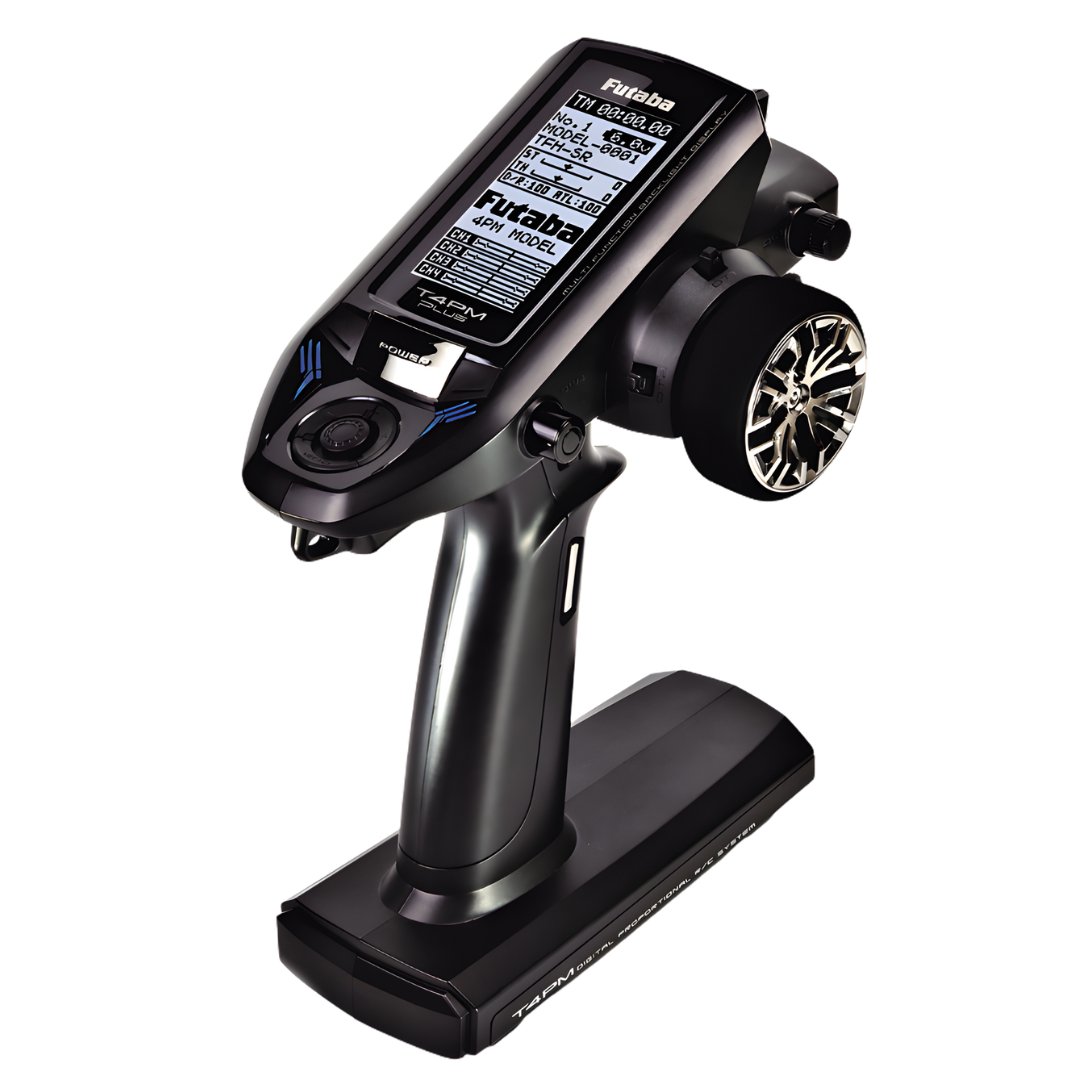

Futaba 4PMP 2.4GHz Transmitter with 2 x R334SBSE Receivers FUT4PMPR334SBSE

The Futaba 4PMP is a high-performance 2.4GHz radio system designed for serious RC racers and enthusiasts. It combines the blazing-fast response of T-FHSS SR mode with flexible programming features, making it ideal for on-road, off-road, drifting, and crawling applications. This version includes two R334SBSE SR-capable receivers, providing outstanding control, telemetry, and flexibility across multiple models.

Features

• Supports T-FHSS SR (Super Response), T-FHSS (with telemetry), S-FHSS, and Mini-Z systems
• Includes 2 x R334SBSE receivers with SR mode compatibility
• 40-model memory with model naming and copy function
• Telemetry-enabled T-FHSS system for real-time data monitoring
• ESC-Link function for Futaba electronic speed controller tuning
• S.Bus servo adjustment (wired or wireless via R334SBSE)
• Gyro mixing, steering mixing, brake mixing, dual ESC mixing, 4WS, CPS lighting control, and more
• Lap timer with 100-lap memory, race timer, fuel alerts, and up timer
• Adjustable throttle/steering speed and acceleration control
• Digital trims and function-assignable switches/dials
• Adjustable trigger position and spring tension
• Mechanical ATL for brake travel adjustment

Transmitter Specifications

• Frequency: 2.4GHz (T-FHSS SR / T-FHSS / S-FHSS / Mini-Z compatible)
• Communication: One-way operating system
• Operating Range: Up to 100m (except Mini-Z mode)
• Power Requirement: 3 x AA batteries (4.5V)
• Current Drain: 150mA or less
• RF Output Power: 100mW EIRP
• Antenna: 1/2λ di-pole

Receiver Specifications (R334SBSE)

• System: T-FHSS SR
• Voltage Range: 3.7V – 7.4V DC
• Dimensions: 33.9 x 22.3 x 11.3 mm
• Weight: 7.5 g

Includes

• 1 x Futaba 4PMP Transmitter
• 2 x R334SBSE SR Receivers
• 1 x Dry battery holder
• 1 x Mini screwdriver
