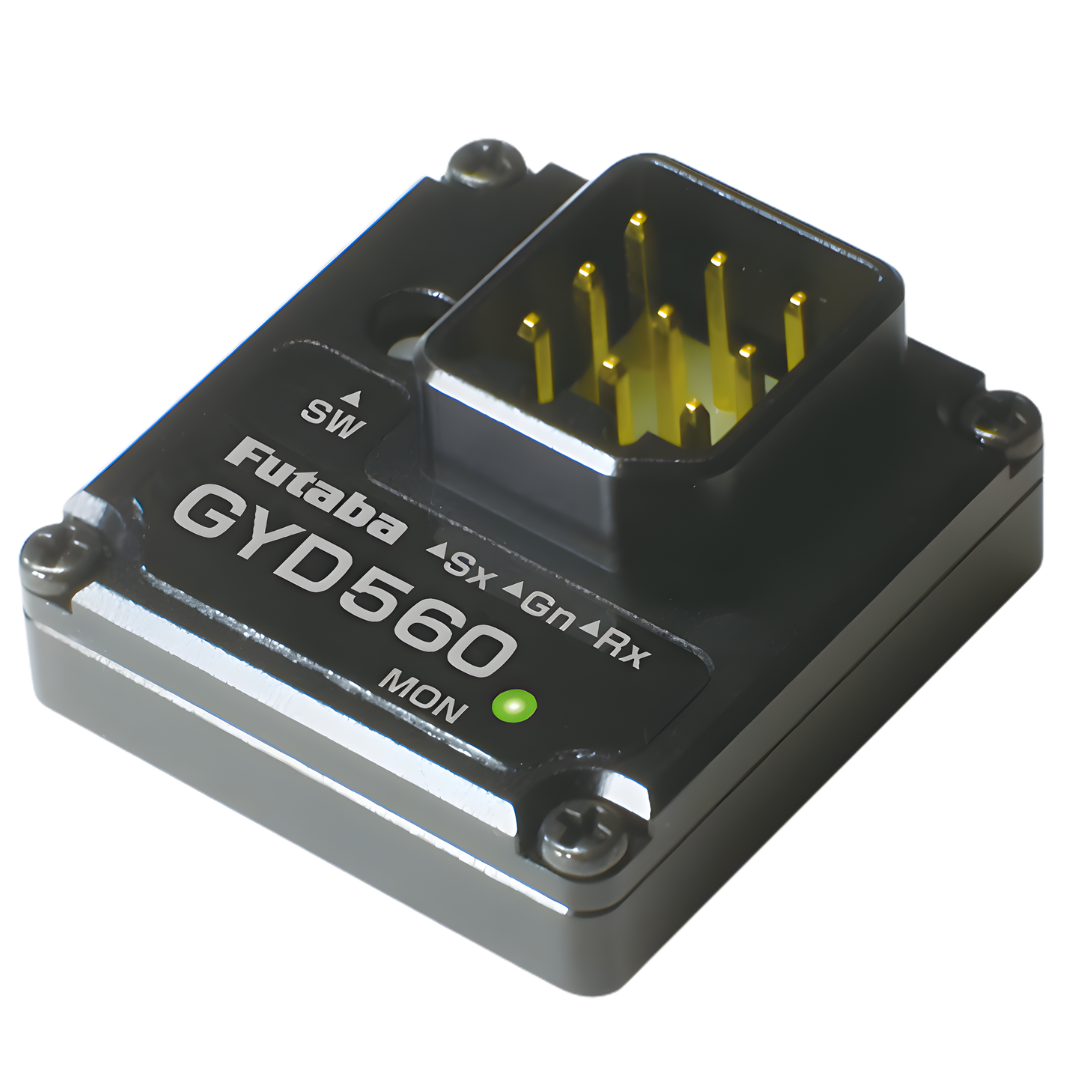

Futaba GYD560 S.BUS AVCS 1/10 Drift Car Gyro Aluminium FUTGYD560

The Futaba GYD560 is a compact aluminium drift car gyro for 1/10 RC drift cars, giving drivers precise steering correction, AVCS control and advanced tuning options for slick, carpet and drift surfaces.

This sensor-integrated gyro is designed for RC drift steering control and supports S.BUS, S.BUS2 and conventional PWM systems. With SR/UR mode support, remote gain control, tail slide speed adjustment and gyro curve tuning, the GYD560 suits serious drift setups where steering response and chassis stability need fine adjustment.

Features

• RC Drift Specific Design: Developed for steering control in 1/10 RC drift cars on slick, carpet and drift surfaces
• AVCS Gyro Control: Helps provide stable steering correction for smoother and more controlled drifting
• SR/UR Mode Support: Compatible with Futaba high-speed response systems for fast steering response when used with suitable Futaba equipment
• Integrated Vibration Sensor: Uses a vibration gyro sensor to detect angular velocity during drift driving
• Aluminium Case: Lightweight, rigid case helps transmit chassis movement accurately to the internal sensor
• S.BUS And S.BUS2 Compatible: Can be used with S.BUS, S.BUS2 and conventional systems depending on receiver setup
• Remote Gain Control: Allows gyro sensitivity adjustment from a compatible transmitter with a 3-channel or higher system
• Advanced Drift Tuning: Supports tail slide speed, gyro curve, left and right endpoint, damper and stick priority adjustments
• Wireless Adjustment Support: Compatible wireless adjustment is available with supported Futaba F-4G systems and required software updates
• Compact Lightweight Design: Small 20.7 x 21.7 x 10.6mm size and 5.4g weight make installation easier in tight drift chassis layouts

Specifications

• Brand: Futaba
• Model: GYD560
• SKU: FUTGYD560
• Futaba Product Code: 01102415-1
• Product Type: RC drift car steering gyro
• Scale Use: 1/10 RC drift cars
• Case Material: Aluminium
• Detection Method: Vibration gyro sensor
• Operating Voltage: DC 3.5V to 8.4V
• Current Consumption: 30mA with servo not connected
• Operating Temperature: -10°C to +45°C
• Dimensions: 20.7 x 21.7 x 10.6mm, excluding protrusions
• Weight: 5.4g
• Command Protocol: PWM, S.BUS and S.BUS2
• Servo Compatibility: Futaba HPS, Futaba BLS and compatible digital servos only
• Modes: Normal and AVCS
• Wireless Setting Compatibility: Futaba T10PX, T6PV, R404SBS and R404SBS-E with compatible software
• Intended Use: Steering control and gyro tuning for RC drift cars

Includes

• 1 x Futaba GYD560 drift car steering gyro

FAQ

Is the Futaba GYD560 designed for RC drift cars? Yes. The Futaba GYD560 is designed specifically for steering control in 1/10 RC drift cars on slick, carpet and drift surfaces.

Can the GYD560 be used with analogue servos? No. The Futaba GYD560 is for Futaba HPS, Futaba BLS and compatible digital servos only. Analogue servos cannot be used.

Do I need a Futaba transmitter to use this gyro? The GYD560 can be used with S.BUS, S.BUS2 and conventional systems, but wireless adjustment requires a compatible Futaba F-4G system such as T10PX or T6PV with an R404SBS or R404SBS-E receiver and compatible software.

Can gyro gain be adjusted from the transmitter? Yes. Remote gain adjustment is supported when using a transmitter and receiver system with 3 or more channels and suitable steering angle adjustment on the gain channel.

Important Notes

• Compatible digital servo required.
• Analogue servos are not compatible and should not be used with this gyro.
• Wireless adjustment requires a compatible Futaba F-4G transmitter and receiver system with the required software update.
• Remote gain adjustment requires a transmitter and receiver with 3 or more channels.
• Install the gyro securely on a flat chassis surface away from excess vibration, heat and moving parts.
• Check your transmitter, receiver and servo manuals before setup to confirm compatibility.
