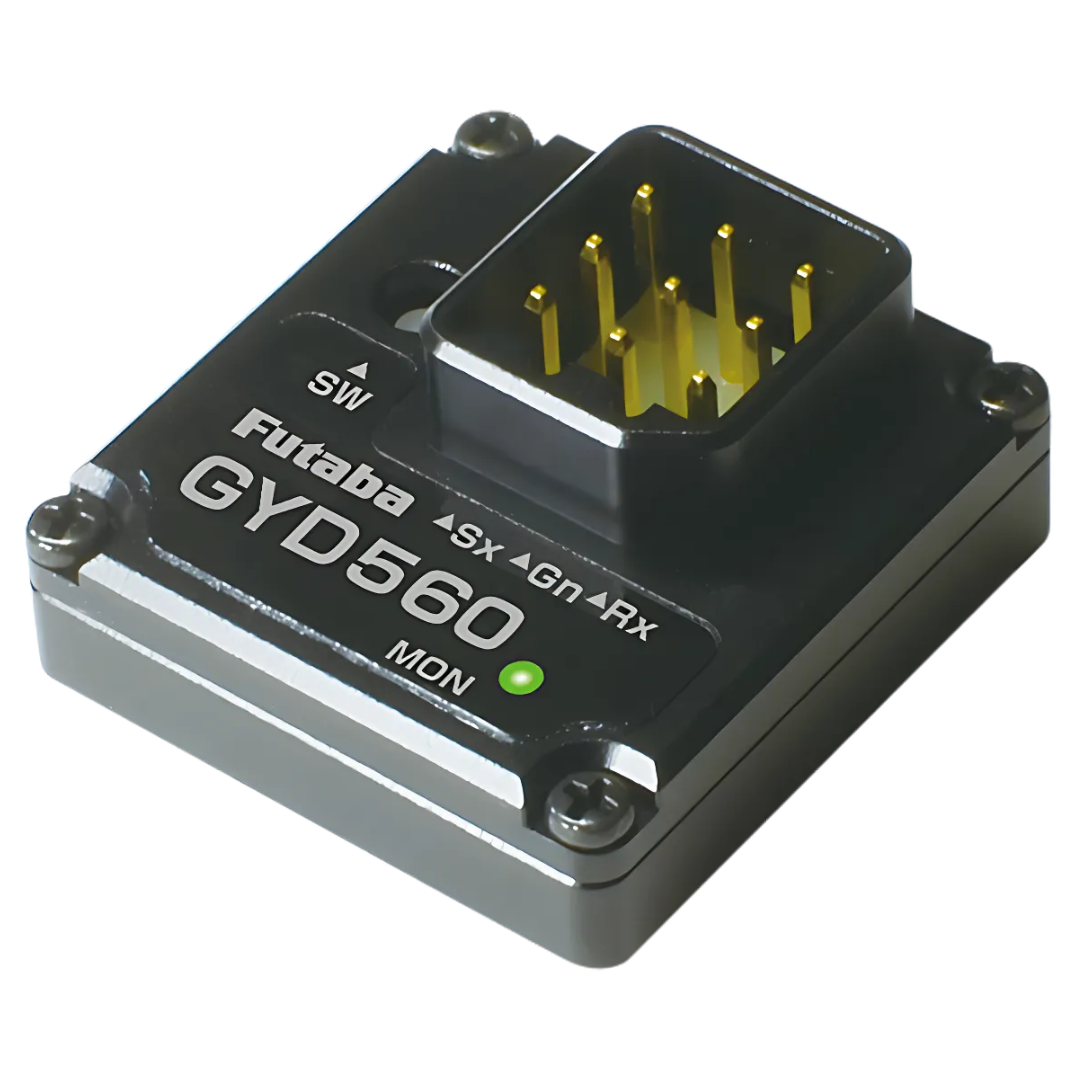

Futaba GYD560 Drift Gyro Sensor Integrated For RC Car Black GYD560

The Futaba GYD560 is a high-performance sensor-integrated drift gyro designed specifically for RC drift cars. With advanced adjustment functions, compact aluminium housing, and compatibility with digital servos, it provides precise control and smooth drifting performance.

Features

• Sensor-integrated design for high precision angular velocity detection
• Compatible with high-speed F-4G UR mode servos
• Remote gain function enables gyro sensitivity control via transmitter
• Special drift settings minimise surface interference for better control
• Ultra-compact and lightweight with high-density component mounting
• Durable aluminium case ensures accurate movement transmission
• Supports S.BUS and S.BUS2 systems
• Multiple tuning options: AVCS/Normal mode, damper, endpoint and gain adjustment
• Wireless adjustment available via supported F-4G transmitters

Specifications

• Detection Method: Vibration gyro sensor
• Operating Voltage: DC 3.5 V to 8.4 V
• Current Consumption: 30mA (without servo connection)
• Operating Temperature: -10℃ to +45℃
• Dimensions: 20.7 x 21.7 x 10.6 mm (excluding protrusions)
• Weight: 5.4 g
• Servo Compatibility: Digital servos only (Futaba HPS/BLS)

Includes

• Futaba GYD560 Drift Gyro
• Instruction Manual

Important Notes

• Wireless setting functionality is only available with compatible F-4G systems (T10PX, T6PV, R404SBS, R404SBS-E)
• Software update may be required for wireless adjustment support
• Not compatible with analog servos
