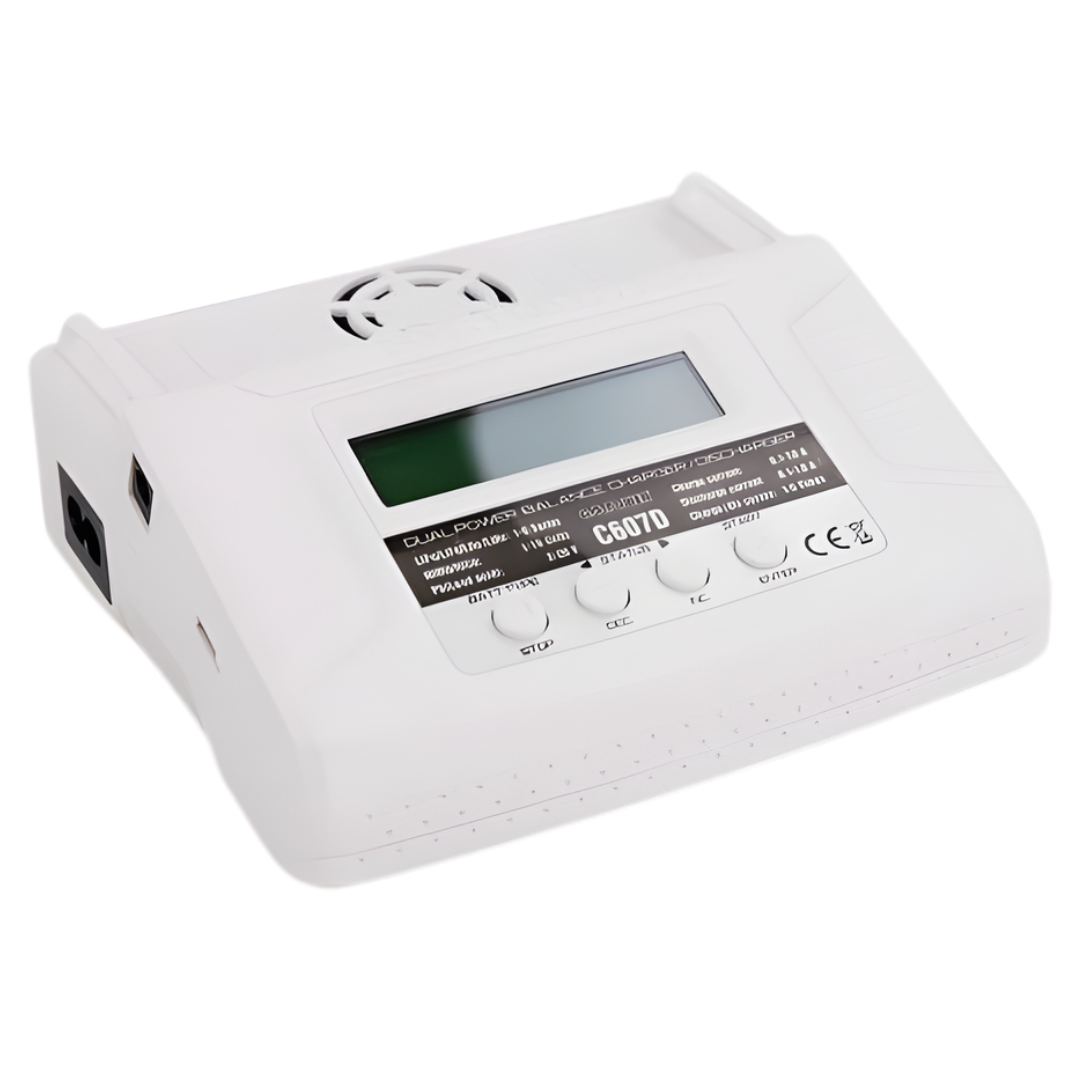

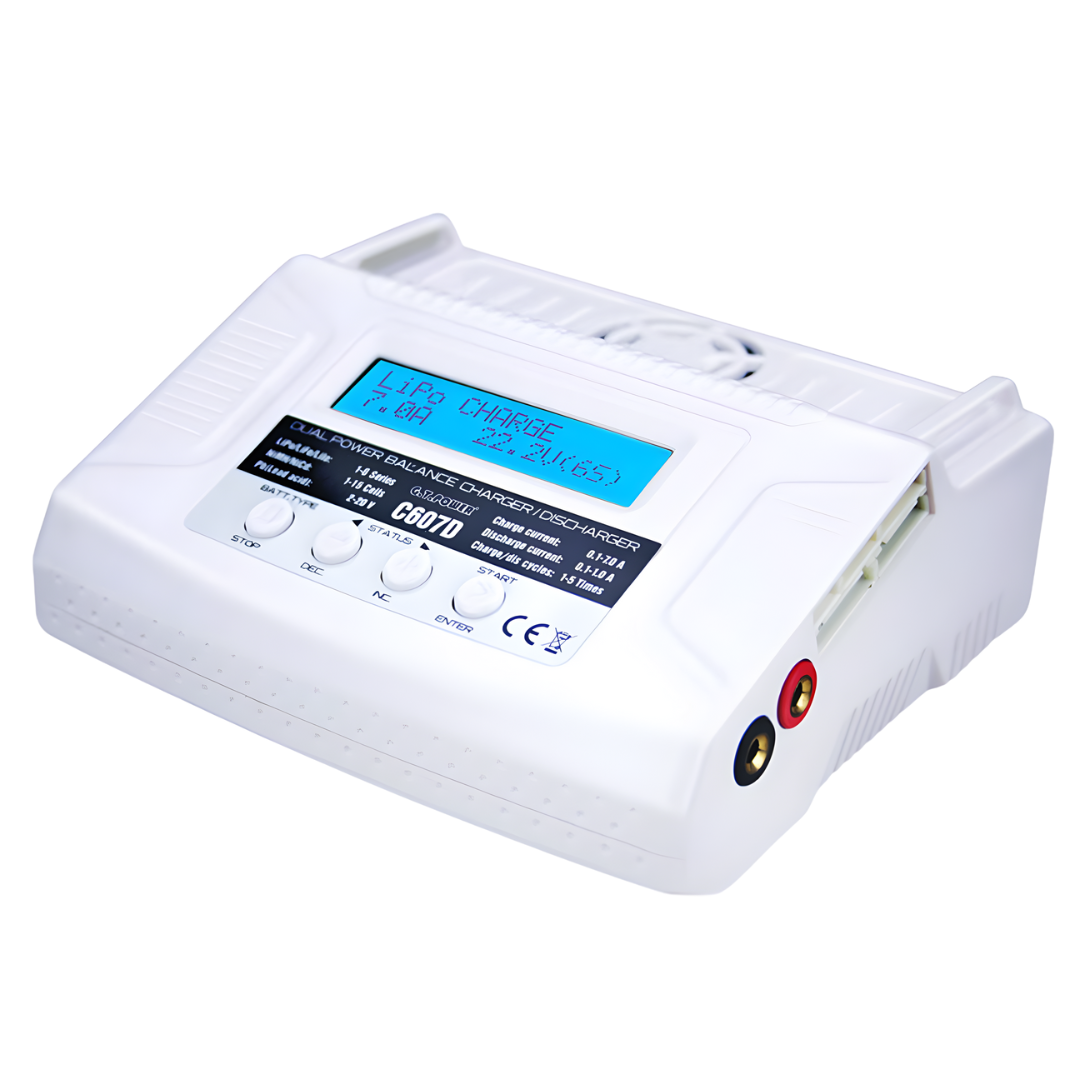

GT Power C607D AC/DC Multi Chemistry Charger 7A 80W GT-C607D

The GT Power C607D is an 80W AC/DC multi-chemistry charger and discharger for RC batteries, supporting up to 6S lithium packs, 15-cell NiMH/NiCd and 20V lead-acid batteries with balance charging, storage, fast-charge and discharge functions

Features

• Microprocessor-controlled AC/DC charger and discharger
• Maximum 80W charging power
• Maximum 7A charge current
• Built-in balance charging for lithium batteries up to 6S
• Supports LiPo LiFe Li-Ion and LiHV battery chemistries
• Supports NiMH and NiCd packs from 1 to 15 cells
• Supports 2V to 20V Pb lead-acid batteries
• Fast Balance Storage and Discharge lithium charge modes
• Cycle charge and discharge function for supported battery types
• Five battery memory profiles
• Individual cell monitoring
• Capacity limit and input power monitoring functions
• Temperature monitoring support
• Two-line backlit LCD display
• Can operate from mains AC power or a suitable DC source

Specifications

• Brand: GT Power
• Model: C607D
• Product Type: AC/DC Multi Chemistry Battery Charger and Discharger
• AC Input: 100V to 240V
• DC Input: 10V to 18V
• Maximum Charge Power: 80W
• Charge Current: 0.1A to 7.0A
• Maximum Discharge Power: 5W
• Discharge Current: 0.1A to 1.0A
• Balancing Current: 300mA Per Cell
• LiPo LiFe Li-Ion LiHV: 1S to 6S
• NiMH NiCd: 1 to 15 Cells
• Pb Lead Acid: 2V to 20V
• Balance Connector: JST-XH up to 6S
• Cycle Count: Up to 5 Cycles
• Dimensions: 136 x 127 x 56mm
• Weight: Approximately 400g
• Barcode: 1010000169
• Manufacturer Part Number: GT-C607D

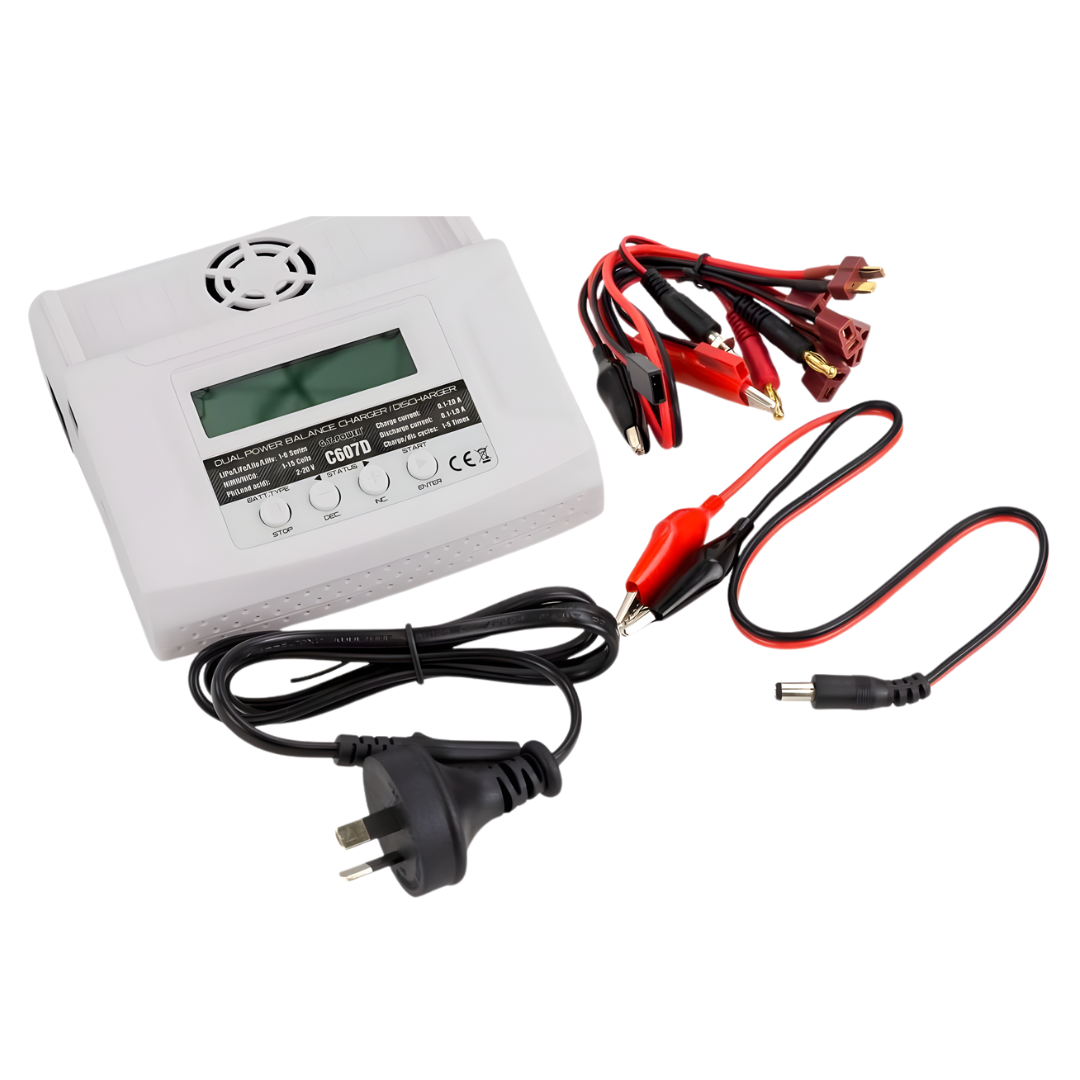

Includes

• 1 x GT Power C607D Charger
• 1 x Alligator Clip DC Input Cable
• 1 x Alligator Clip to Deans-Style Charge Lead
• 1 x Mini JST to Deans-Style Charge Lead
• 1 x Female Servo Connector to Deans-Style Charge Lead
• 1 x Glow Plug Connector to Deans-Style Charge Lead
• 1 x 4mm Banana Plug to Deans-Style Charge Lead
• 1 x Australian AC Mains Lead
• 1 x Instruction Manual

FAQ

Can the GT Power C607D charge 6S LiPo batteries? Yes, the charger supports lithium battery packs up to 6S and includes a built-in JST-XH balancing system

Can the C607D charge LiHV batteries? Yes, current Australian GT Power distributor and retailer listings specifically include LiHV support from 1S to 6S

Can the GT Power C607D run from both AC and DC power? Yes, it accepts 100V to 240V AC mains input or a suitable 10V to 18V DC supply for field charging

Does the charger include discharge and storage modes? Yes, supported functions include balance charging fast charging storage charging discharge and cycle operation

Important Notes

• Maximum charge current is limited by the charger's 80W output so the full 7A setting may not be available with higher-voltage battery packs
• Always select the correct battery chemistry cell count and charge current before starting a charge
• Use balance charging for multi-cell lithium batteries where appropriate
• Charge lithium batteries in a suitable fire-resistant location and follow the battery manufacturer's charging limits
