Tamiya Toyota Celica GT-Four ST205 TT-02 1/10 4WD RC Car Kit 58743

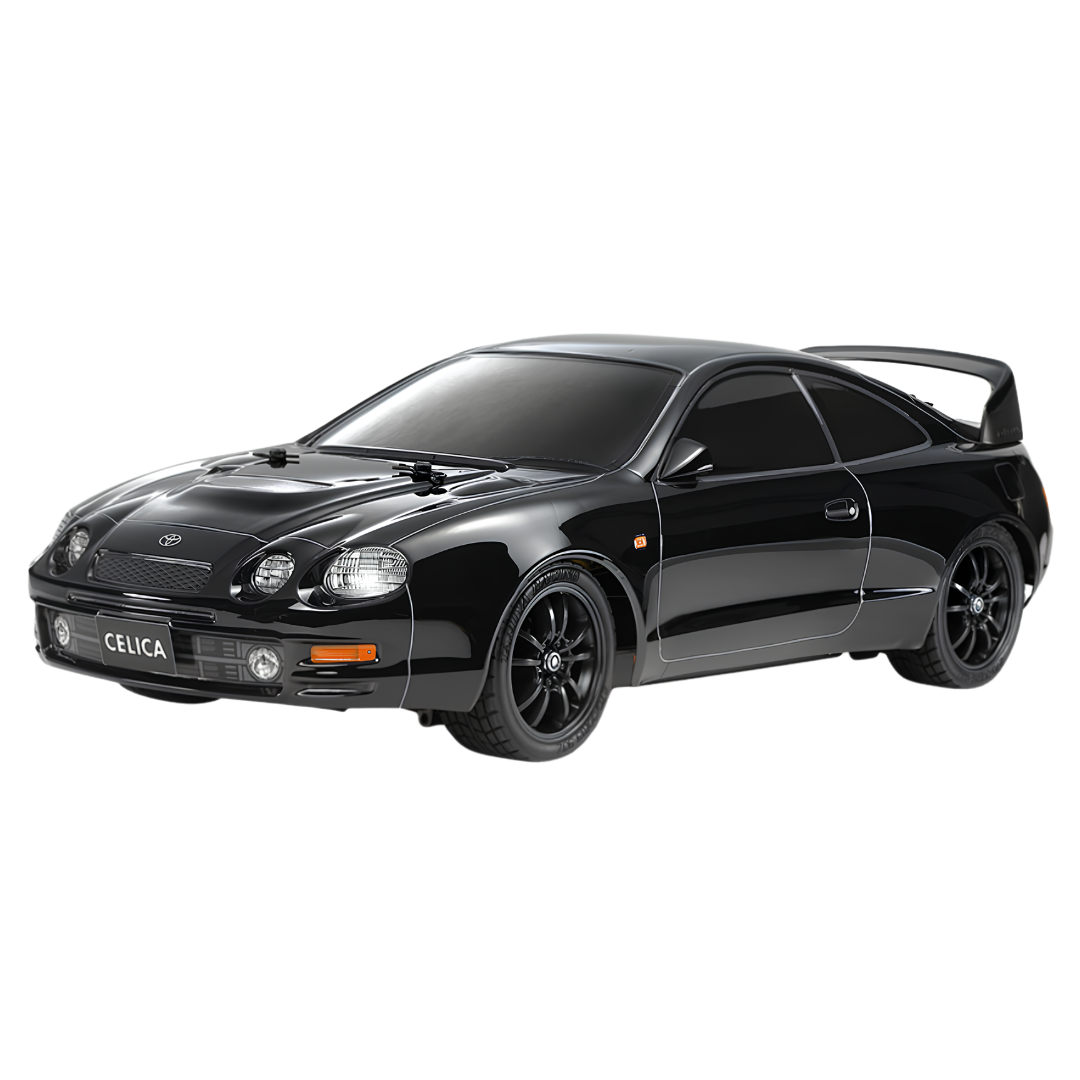

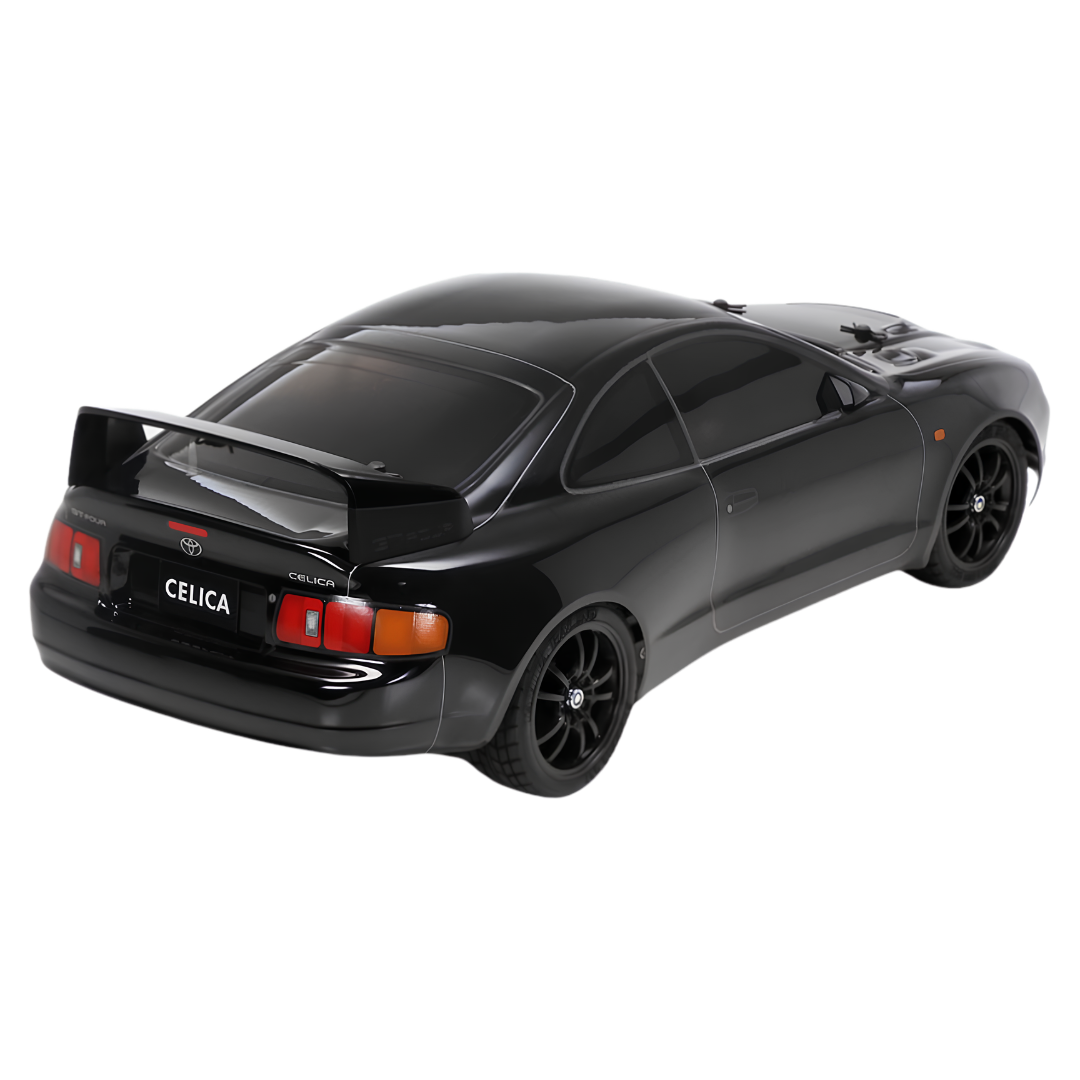

Recreate one of Toyota's most recognisable 1990s performance cars with the Tamiya Toyota Celica GT-Four ST205 RC assembly kit. The detailed polycarbonate body captures the sixth-generation Celica's curved profile, four round headlights, bonnet openings and distinctive raised rear spoiler.

Underneath is Tamiya's versatile TT-02 touring-car chassis. Its shaft-driven four-wheel-drive system, balanced battery and motor layout, independent double-wishbone suspension and enclosed gearboxes make it approachable for first-time kit builders while offering a broad selection of optional performance upgrades.

The kit includes a 540-size brushed motor and an electronic speed controller. A compatible radio system, steering servo, battery, charger, body paint, tools and assembly are required before driving.

Features

• Officially licensed Toyota Celica GT-Four ST205 body design
• Detailed recreation of the sixth-generation Celica performance coupe
• Durable 1.0mm clear polycarbonate body
• Separate moulded components add scale body detail

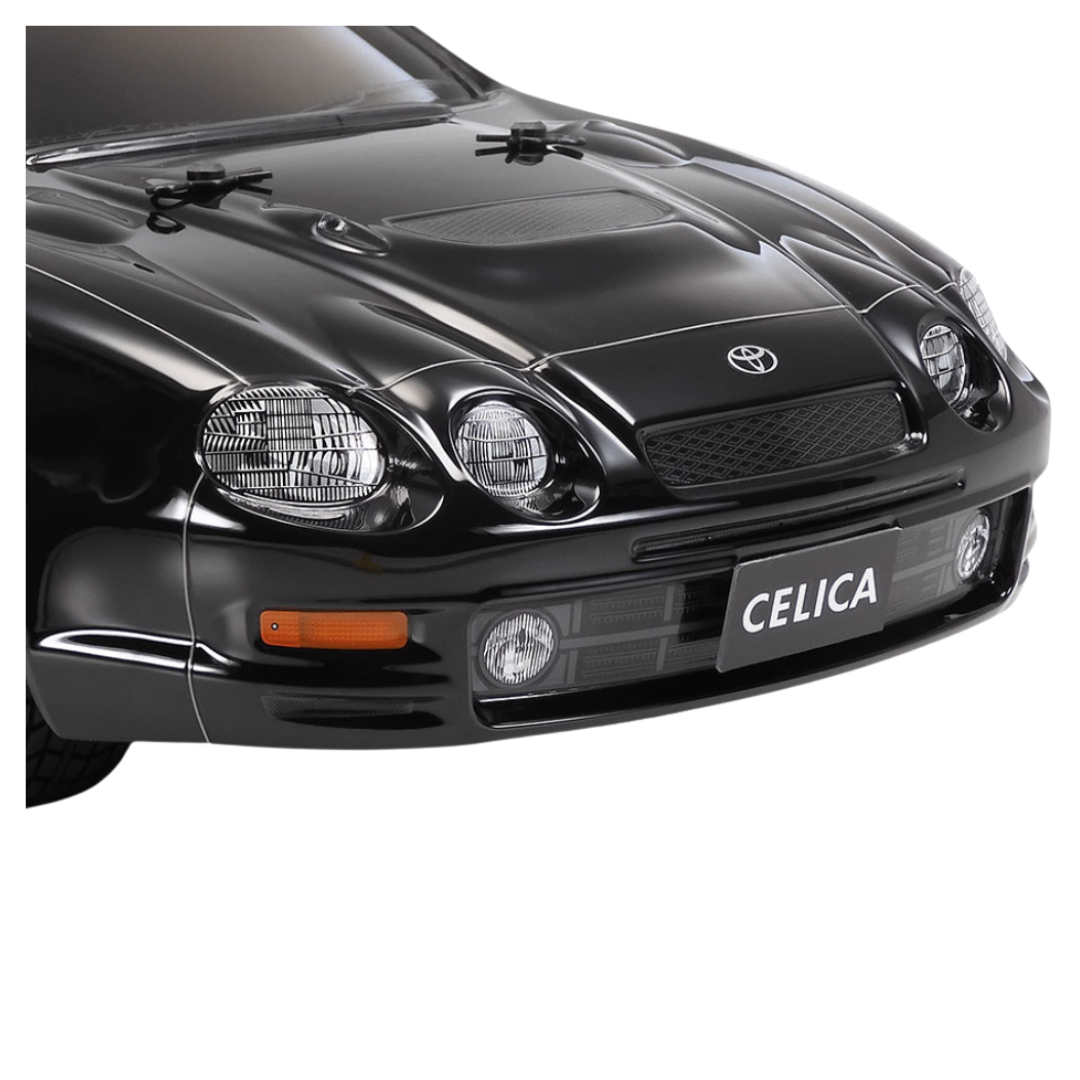

• Distinctive four-headlight front styling

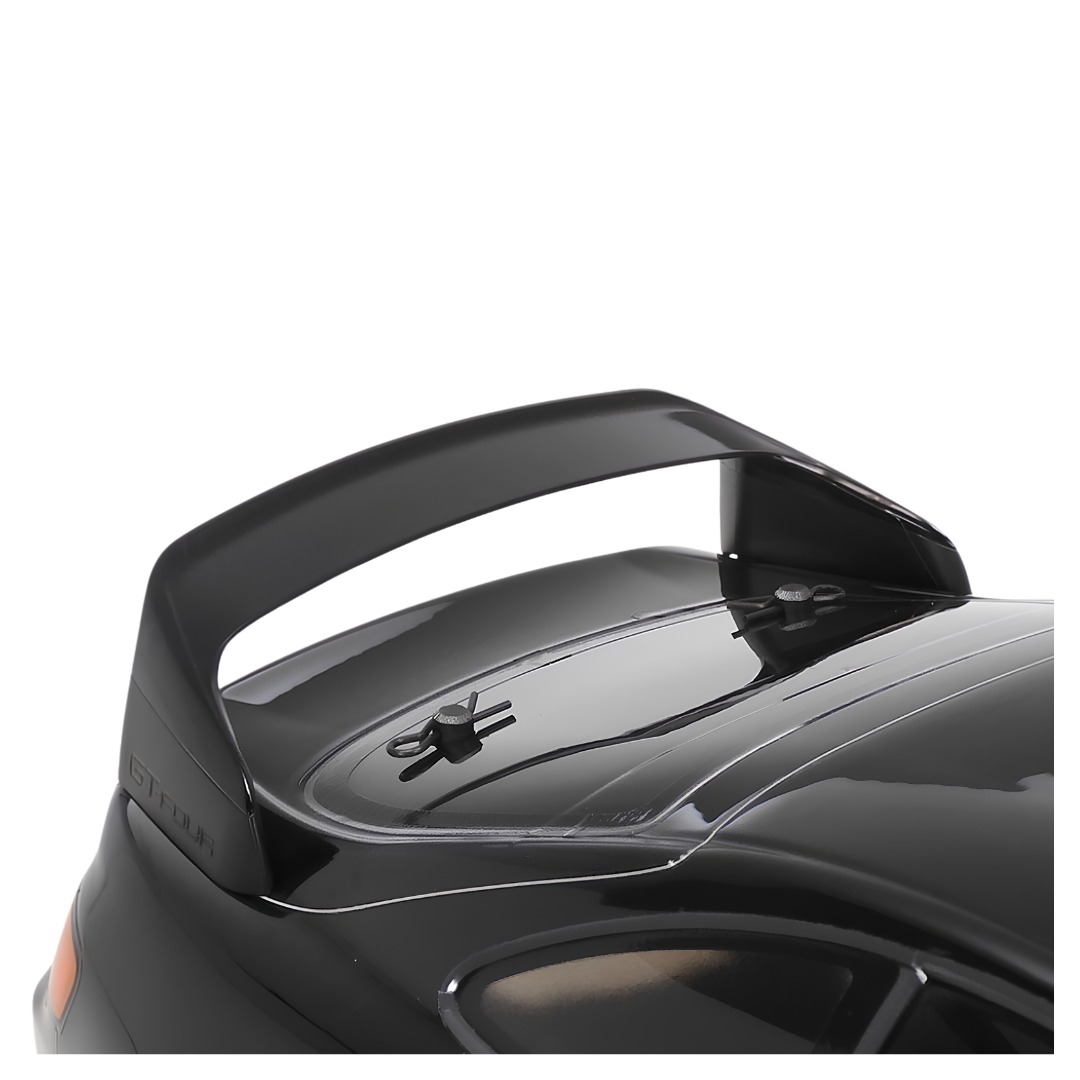

• Raised rear spoiler recreates the sought-after Japanese-market appearance
• Window masking stickers and vehicle graphics included
• Beginner-friendly TT-02 touring-car chassis
• Shaft-driven four-wheel drive provides dependable traction
• Longitudinal battery and motor layout supports balanced handling
• Enclosed front and rear gearboxes simplify maintenance
• Front and rear four-bevel gear differentials
• Independent double-wishbone suspension on all four wheels
• Identical left and right suspension arms and uprights simplify assembly
• Three-piece steering tie-rod system
• Brake disc-style wheel hubs add scale detail
• Gunmetal 10-spoke wheels
• Treaded semi-pneumatic racing radial tyres
• 540-size brushed motor included
• Electronic speed controller included
• Wide range of optional TT-02 tuning and replacement parts available

Specifications

• Brand: Tamiya
• Model: Toyota Celica GT-Four ST205
• Manufacturer Part Number: 58743
• Product Type: On-road RC car assembly kit
• Scale: 1/10
• Chassis: TT-02
• Drive Type: Shaft-driven four-wheel drive
• Length: 451mm
• Width: 186mm
• Height: 134mm
• Wheelbase: 257mm
• Frame Type: Bathtub chassis
• Body Material: 1.0mm clear polycarbonate
• Motor: Type 540 brushed motor
• Electronic Speed Controller: Included
• Differentials: Front and rear four-bevel plastic gear differentials
• Suspension: Four-wheel independent double wishbone
• Dampers: Front and rear friction dampers
• Steering: Three-piece tie-rod system
• Standard Gear Ratio: 8.27:1
• Optional Gear Ratios: Nine additional ratios from 11.38:1 to 7.28:1 with separately sold pinions
• Wheel Colour: Gunmetal
• Wheel Design: 10-spoke
• Front Tyre Size: Approximately 27mm wide × 67mm diameter
• Rear Tyre Size: Approximately 27mm wide × 67mm diameter
• Tyre Type: Treaded racing radial
• Construction Type: Assembly kit

Compatibility

• Compatible two-channel surface transmitter and receiver systems
• Requires a standard-size steering servo suitable for a 1/10 touring car
• Designed for a compatible 7.2V NiMH or 7.4V 2S battery pack
• Compatible with a wide range of TT-02 replacement and optional upgrade parts
• Additional gear ratios are available using compatible optional motor pinions

Includes

• 1 × Tamiya Toyota Celica GT-Four ST205 polycarbonate body
• 1 × Tamiya TT-02 chassis assembly kit
• 1 × Type 540 brushed motor
• 1 × Electronic speed controller
• 1 × Set of gunmetal 10-spoke wheels
• 1 × Set of treaded racing radial tyres
• 1 × Vehicle sticker sheet
• 1 × Window masking sheet
• 1 × Assembly hardware set
• 1 × Instruction manual

Required to Complete

• Two-channel surface transmitter and compatible receiver
• Standard-size steering servo
• Compatible 7.2V NiMH or 7.4V 2S battery pack
• Compatible battery charger
• Tamiya PS paint or another paint suitable for polycarbonate bodies
• AA batteries for the transmitter
• Basic RC assembly and body-finishing tools

FAQ

Is the Tamiya Toyota Celica GT-Four ready to run? No. This is an assembly kit. The chassis, drivetrain, suspension, body and electronics must be assembled before the model can be driven.

Does kit 58743 include an ESC? Yes. The export-market kit includes an electronic speed controller. The precise ESC model may vary according to distributor, market or production batch.

Does it include a motor? Yes. A Type 540 brushed motor is included.

Are the transmitter, receiver and steering servo included? No. A compatible two-channel surface radio system and a standard-size steering servo are required separately.

Is the body painted? No. The Celica body is supplied in clear polycarbonate and requires painting. Window masks and exterior stickers are included.

Which paint should I use? Use Tamiya PS-series paint or another paint specifically formulated for flexible polycarbonate RC bodies. Standard hard-plastic paint may crack or peel when the body flexes.

Is the body pre-cut? Body preparation may include trimming, drilling and finishing as shown in the instruction manual. Review the supplied body instructions before painting or cutting.

What type of battery does the TT-02 use? The chassis is commonly used with compatible 7.2V NiMH stick packs or 7.4V 2S LiPo packs. Confirm the battery dimensions, connector and included ESC specifications before ordering.

Can I use a 2S LiPo battery? Only when the included ESC supports LiPo operation and has correctly configured low-voltage protection. Check the instructions supplied with the ESC before connecting a LiPo battery.

Is the TT-02 suitable for beginners? Yes. Its symmetrical suspension components, enclosed gearboxes and straightforward layout make it a popular first touring-car kit. Careful assembly and adult assistance may still be required.

Does the TT-02 include ball bearings? Standard TT-02 kits typically use plastic or metal bushings in several locations. A complete compatible ball-bearing set is a popular first upgrade because it can reduce drivetrain friction.

Does it have oil-filled shocks? No. The standard kit uses friction dampers. Compatible oil-filled dampers are available separately for improved suspension control.

Can the gearing be changed? Yes. The standard ratio is 8.27:1, and nine additional ratios can be achieved using compatible optional pinion gears.

Can I install a faster motor? The TT-02 supports many upgrade options, but the selected motor must be compatible with the ESC, gearing, battery and drivetrain. Monitor motor and ESC temperature after changing the power system or gearing.

What are the most useful first upgrades? Common upgrades include a complete ball-bearing set, oil-filled dampers, an aluminium centre driveshaft and adjustable steering components. The best upgrade depends on whether the car is intended for casual driving, display or club racing.

Is this suitable for off-road driving? The standard Celica TT-02 is configured as an on-road touring car. It is best used on smooth sealed surfaces and should not be confused with the raised TT-02 rally configurations.

Is the model waterproof? Waterproofing depends on the electronics installed. Unless every component is specifically rated for wet use, avoid standing water and dry the chassis thoroughly after damp conditions.

Important Notes

• This product is an assembly kit and is not ready to run.
• The body is supplied clear and requires painting, trimming and sticker application.
• Use paint formulated specifically for polycarbonate RC bodies.
• The electronic speed controller is included with the export-market package, but the exact ESC model may vary.
• A transmitter, receiver, steering servo, battery, charger, transmitter batteries, paint and tools are required separately.
• Confirm battery connector and chemistry compatibility with the supplied ESC.
• Enable suitable low-voltage protection when using a LiPo battery.
• Do not overtighten screws installed into plastic components.
• Apply grease only where specified in the Tamiya instruction manual.
• Check steering direction, throttle direction, gear operation and wheel rotation before the first run.
• Set the transmitter failsafe before operating the vehicle.
• Adult supervision is recommended for younger builders.
