Traxxas Funco Pro Scale Sand Car LED Light Kit 10996

The Traxxas 10996 Pro Scale LED Light Kit is a complete lighting upgrade for the Traxxas Funco Pro Scale Sand Car, adding front and rear light bars, left and right side pod lights and a high-voltage power amplifier with selectable lighting modes and functional brake and reverse lighting.

Features

• Complete Pro Scale Lighting System: Designed specifically for the Traxxas Funco Pro Scale Sand Car
• Front LED Light Bar: Adds powerful forward illumination and scale detail
• Rear LED Light Bar: Provides integrated tail, brake and reverse lighting functions
• Side Pod Lights: Includes dedicated left and right LED pod lights
• High-Voltage Power Amplifier: Controls and distributes power to the lighting system through the vehicle electronics
• Three Lighting Modes: Amplifier provides selectable Low Beam, High Beam and Daytime operating modes
• Automatic Brake Lights: Rear brake lights illuminate when braking
• Automatic Reverse Lights: Reverse lights activate when the vehicle is driven in reverse
• Factory-Style Installation: Includes dedicated mounts, wiring harnesses, covers and installation hardware for an integrated appearance
• Expandable System: Designed to integrate with compatible Traxxas Sand Car chassis lighting accessories
• Traxxas Link Support: Additional amplifier functions and settings can be accessed through the Traxxas Link App when using the required compatible TQi radio equipment and Wireless Module

Specifications

• Brand: Traxxas
• Product Type: Pro Scale LED Light Kit
• Compatibility: Traxxas Funco Pro Scale Sand Car
• Light Types: Front Light Bar / Rear Light Bar / Left and Right Side Pod Lights
• Lighting Modes: Low Beam / High Beam / Daytime
• Functional Rear Lighting: Tail / Brake / Reverse
• Power Control: High-Voltage Power Amplifier
• Colour: Black Housings
• Manufacturer Part Number: 10996
• Product Code: 10996
• Barcode / UPC: 020334045140

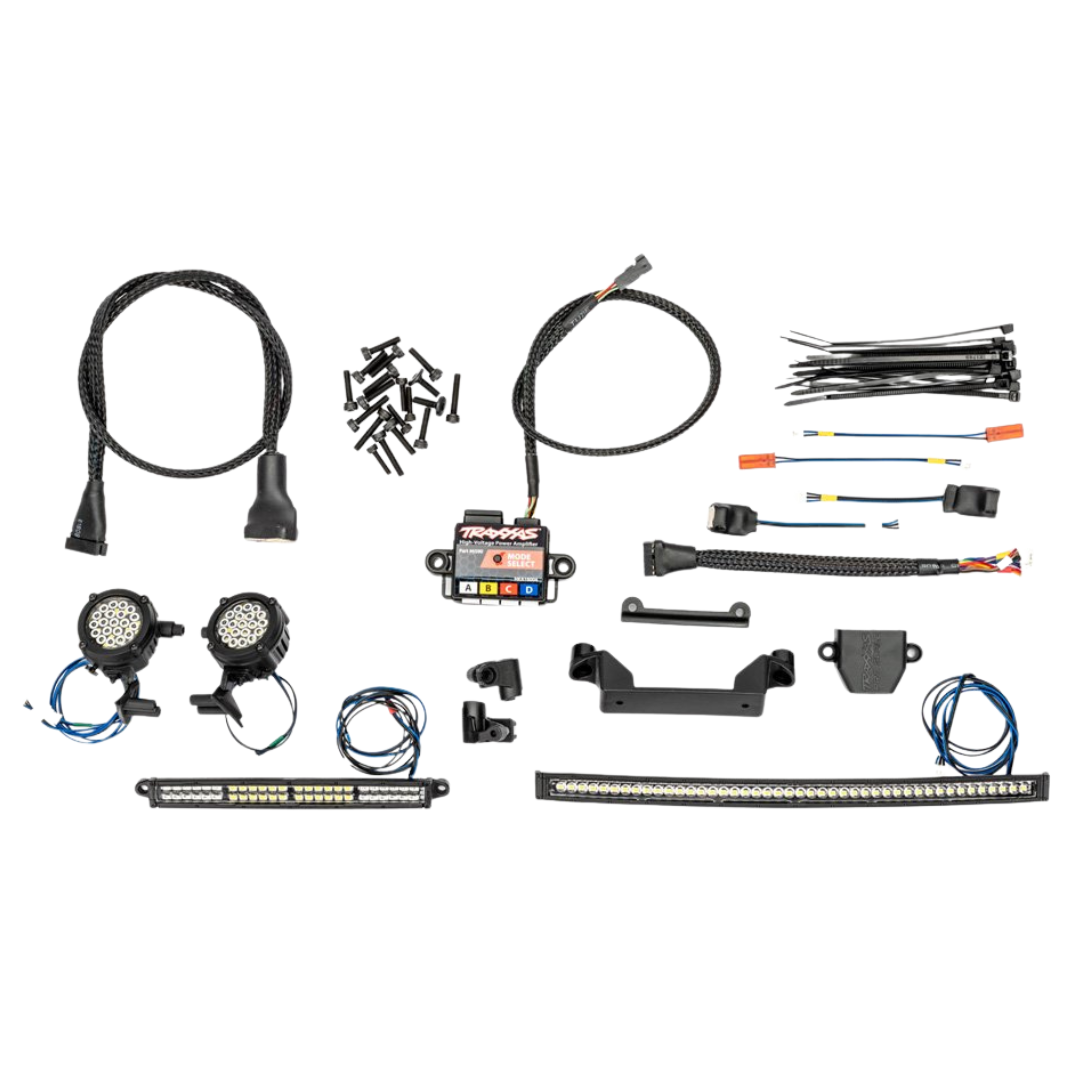

Includes

• 1 x High-Voltage Power Amplifier
• 1 x Front LED Light Bar
• 1 x Rear LED Light Bar
• 1 x Left Rear Light Bar Mount
• 1 x Right Rear Light Bar Mount
• 1 x Left Side Pod LED Light
• 1 x Right Side Pod LED Light
• 1 x Long Extension Harness
• 1 x Short Extension Harness
• 1 x Body Cage Mount Cover
• 1 x Power Amplifier Chassis Mount
• 1 x Extension Harness Cover
• 2 x 2-in-1 Wire Harnesses
• 2 x LED Power Harnesses
• Installation Screws and Zip Ties

FAQ

Does Traxxas 10996 fit other Traxxas models? Traxxas 10996 is specifically designed for the Funco Pro Scale Sand Car. The mounts, wiring and amplifier installation are matched to that vehicle, so it should not be assumed to fit other Traxxas platforms.

Does the Traxxas 10996 kit include the high-voltage power amplifier? Yes. The complete 10996 kit includes the high-voltage power amplifier along with the front light bar, rear light bar, side pod lights, wiring and installation hardware.

Does the rear light bar have brake and reverse lights? Yes. The Pro Scale amplifier controls functional tail lights, brake lights and reverse lights as part of the rear lighting system.

Are there different lighting modes? Yes. The amplifier's Mode Select button cycles between Low Beam, High Beam and Daytime modes.

Is installation completely bolt-on? Most components use dedicated mounting locations, but the official instructions require minor body modification for the side pod lights. Two small 4.35mm mounting holes are made on each side using the supplied templates. A tapered body reamer and suitable 2.0mm and 2.5mm hex tools are required separately.

Can the lighting system be controlled through the Traxxas Link App? Additional power-amplifier settings and functions can be accessed through the Traxxas Link App when the vehicle is equipped with a compatible TQi transmitter and Traxxas Link Wireless Module 6511, sold separately.

Important Notes

• Designed specifically for the Traxxas Funco Pro Scale Sand Car
• Minor body modification is required to install the side pod lights
• Tapered body reamer, 2.0mm hex wrench and 2.5mm hex wrench are required for installation and are not included
• Disconnect the vehicle battery before connecting the high-voltage power amplifier to the ESC
• TQi transmitter and Traxxas Link Wireless Module 6511 are required separately for Traxxas Link App amplifier adjustment
• Funco Sand Car and other separately available lighting accessories are not included
