Tamiya Volvo FH16 Globetrotter 750 8x4 Tow Truck Silver Edition 1/14 RC Kit 47528-000

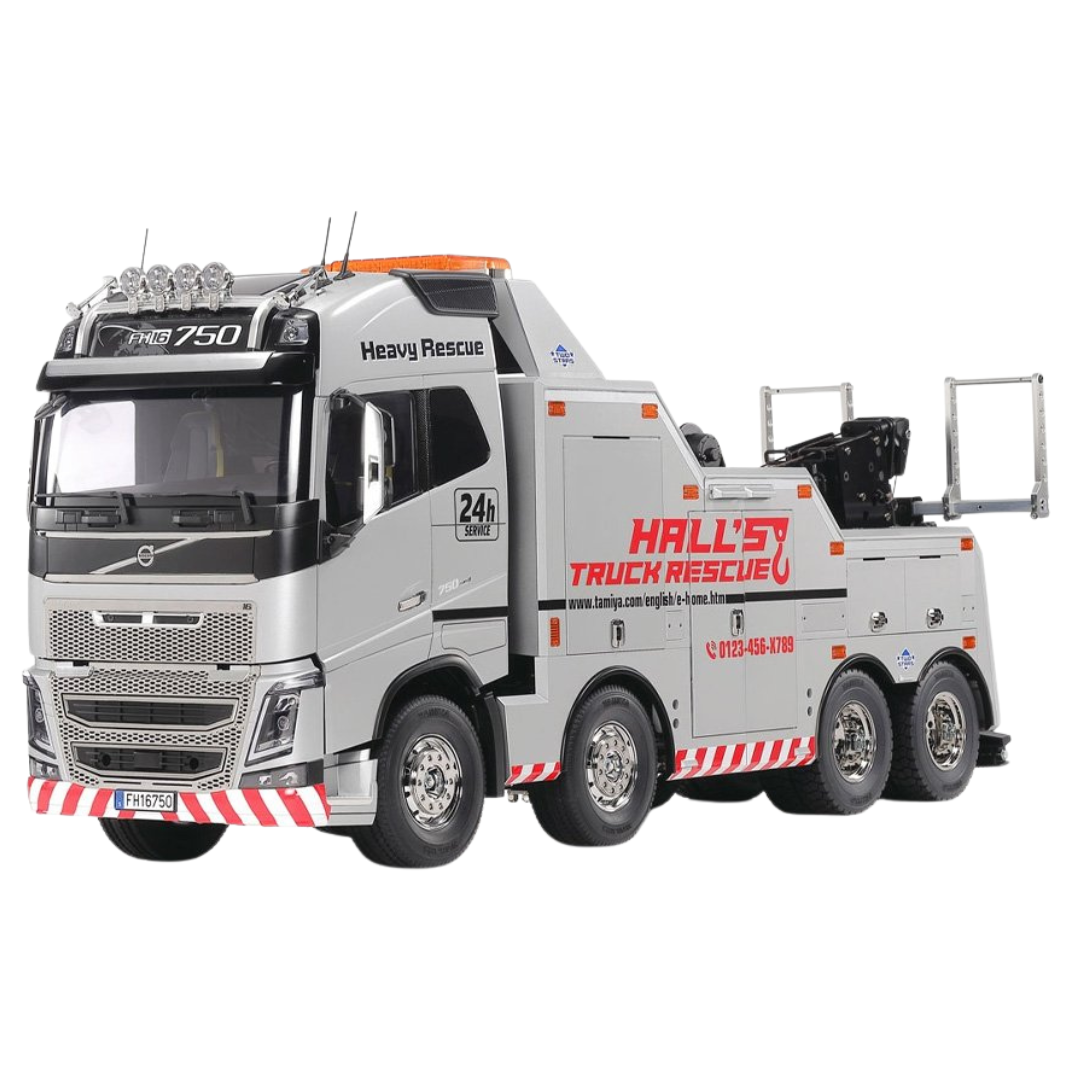

The limited-edition Tamiya Volvo FH16 Globetrotter 750 8x4 Tow Truck Silver Edition is a highly detailed 1/14 scale RC assembly kit recreating Volvo's imposing heavy-recovery vehicle. Based on the FH Series introduced in 2012, the model captures the distinctive FH16 Globetrotter 750 cab, four-axle 8x4 chassis and elaborate towing equipment with exceptional mechanical and scale realism.

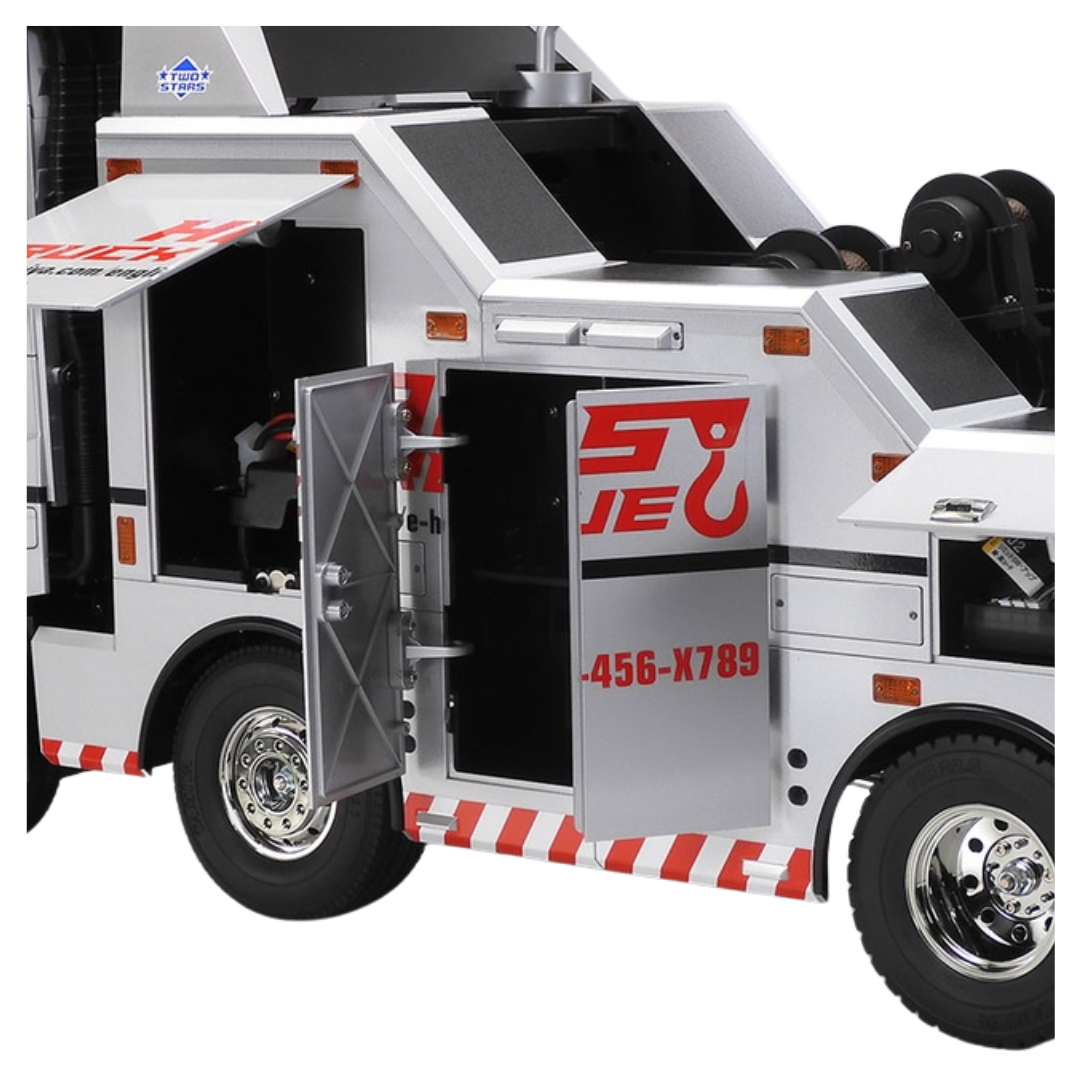

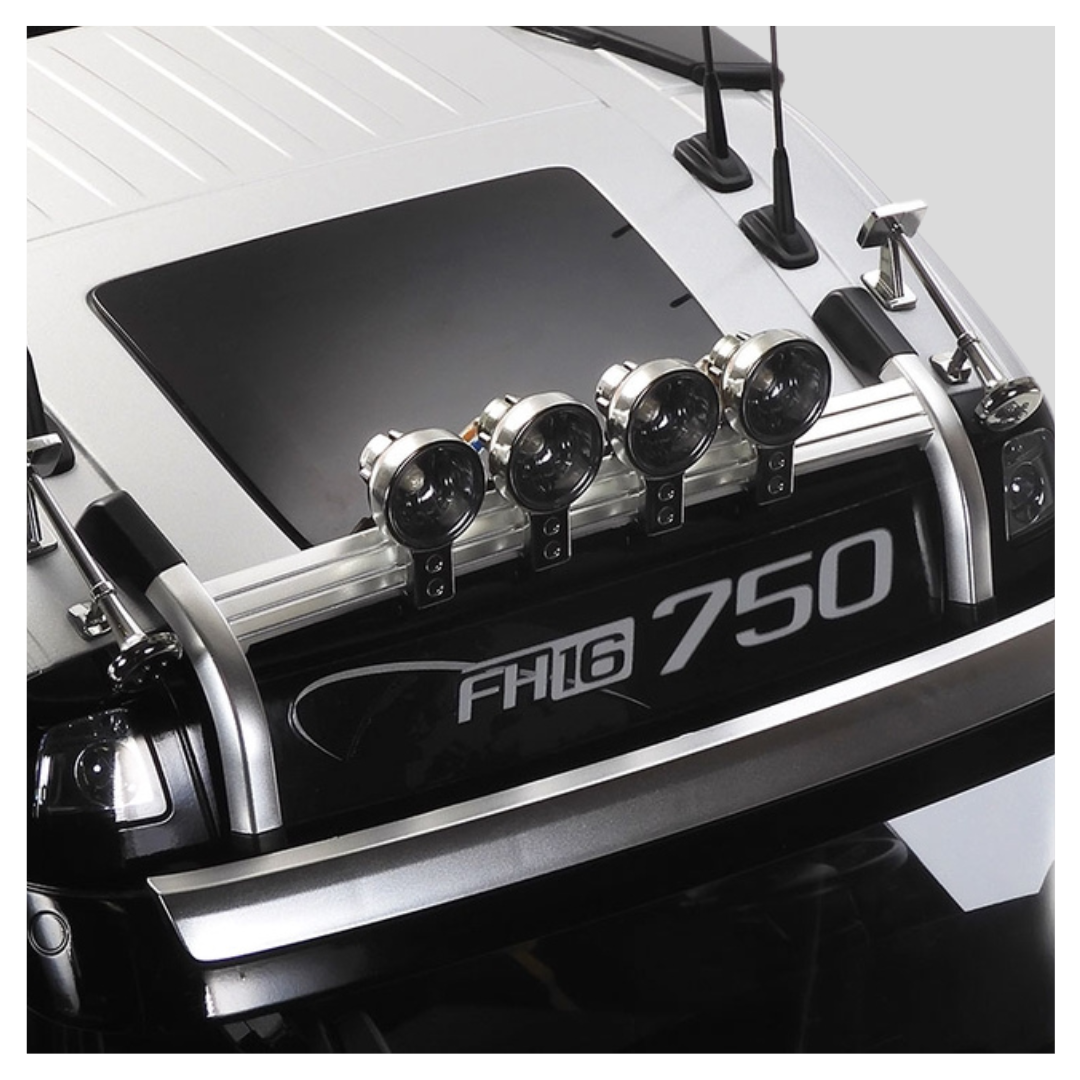

The ABS cab and body components are factory finished in silver with a durable gloss urethane topcoat, reducing the amount of body painting required during assembly. Detailed elements include a stainless-steel photo-etched front grille, opening cab doors, a realistic interior, plated roof accessories and a functional tow-truck body with manually adjustable recovery equipment.

A front-mounted Tamiya TR Mighty-Tuned 35T motor drives both rear axles through a three-speed transmission. When assembled with the required radio equipment, gear changes can be controlled from the transmitter for realistic low-speed towing and on-road operation.

Features

• Limited-edition 1/14 scale Volvo FH16 Globetrotter 750 tow-truck assembly kit
• Factory-painted silver ABS cab and body components
• Gloss urethane topcoat provides a durable, high-quality finish
• Licensed Volvo FH16 Globetrotter 750 8x4 body design
• Detailed interior with opening cab doors

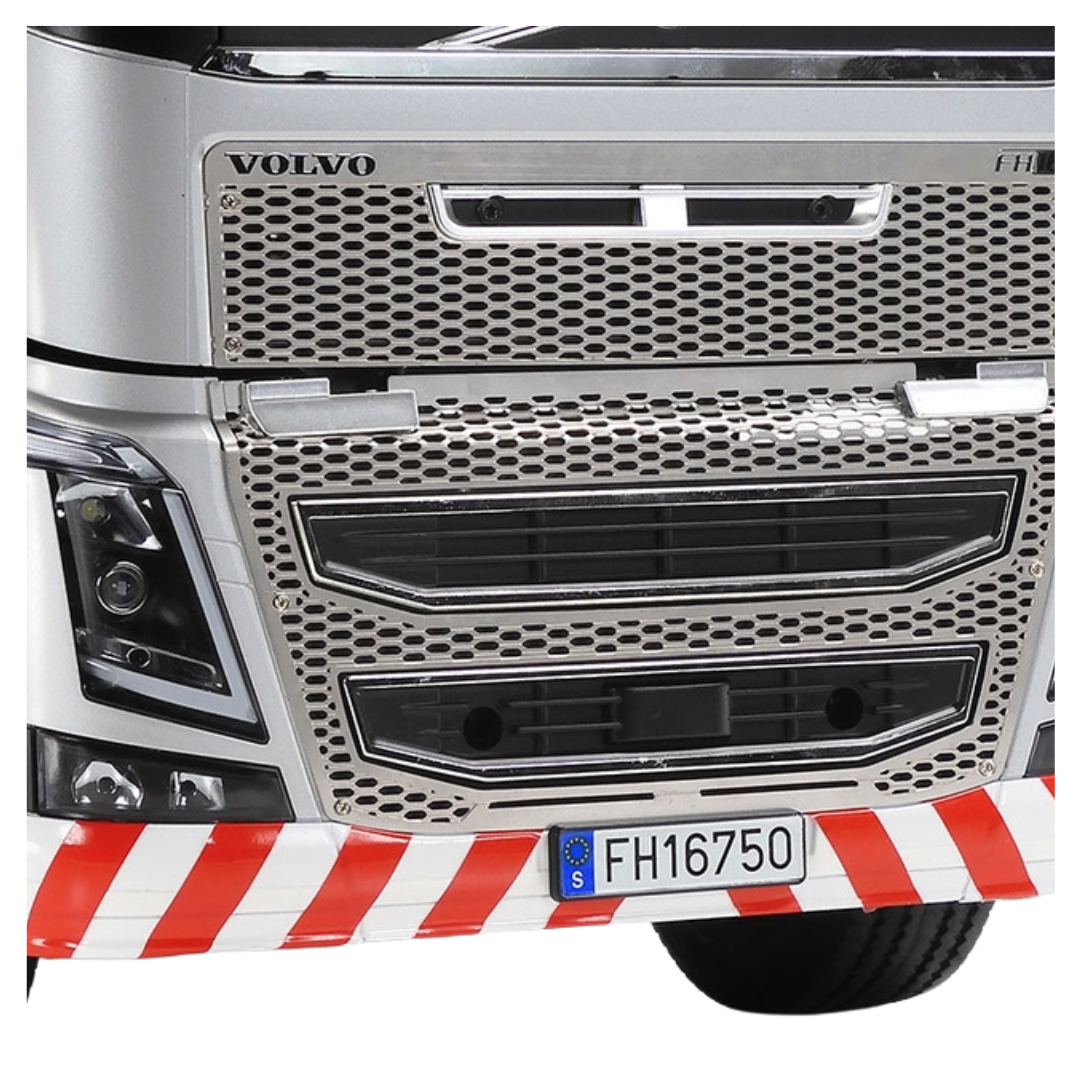

• Stainless-steel photo-etched front grille

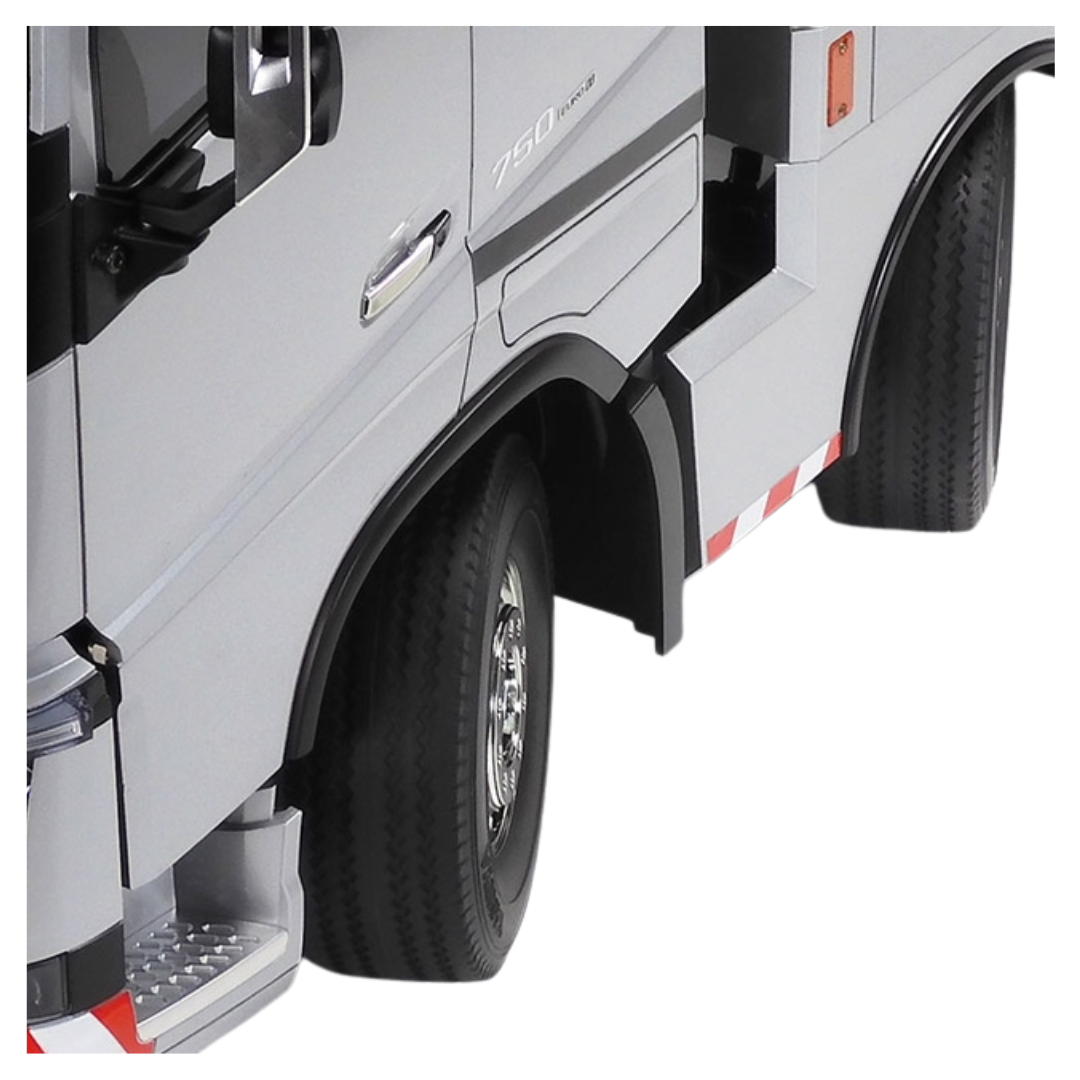

• Realistic 8x4 layout with twin steering front axles
• Both rear axles are driven for dependable towing performance
• Front-mounted TR Mighty-Tuned 35-turn brushed motor
• Three-speed transmission with transmitter-operated gear changes

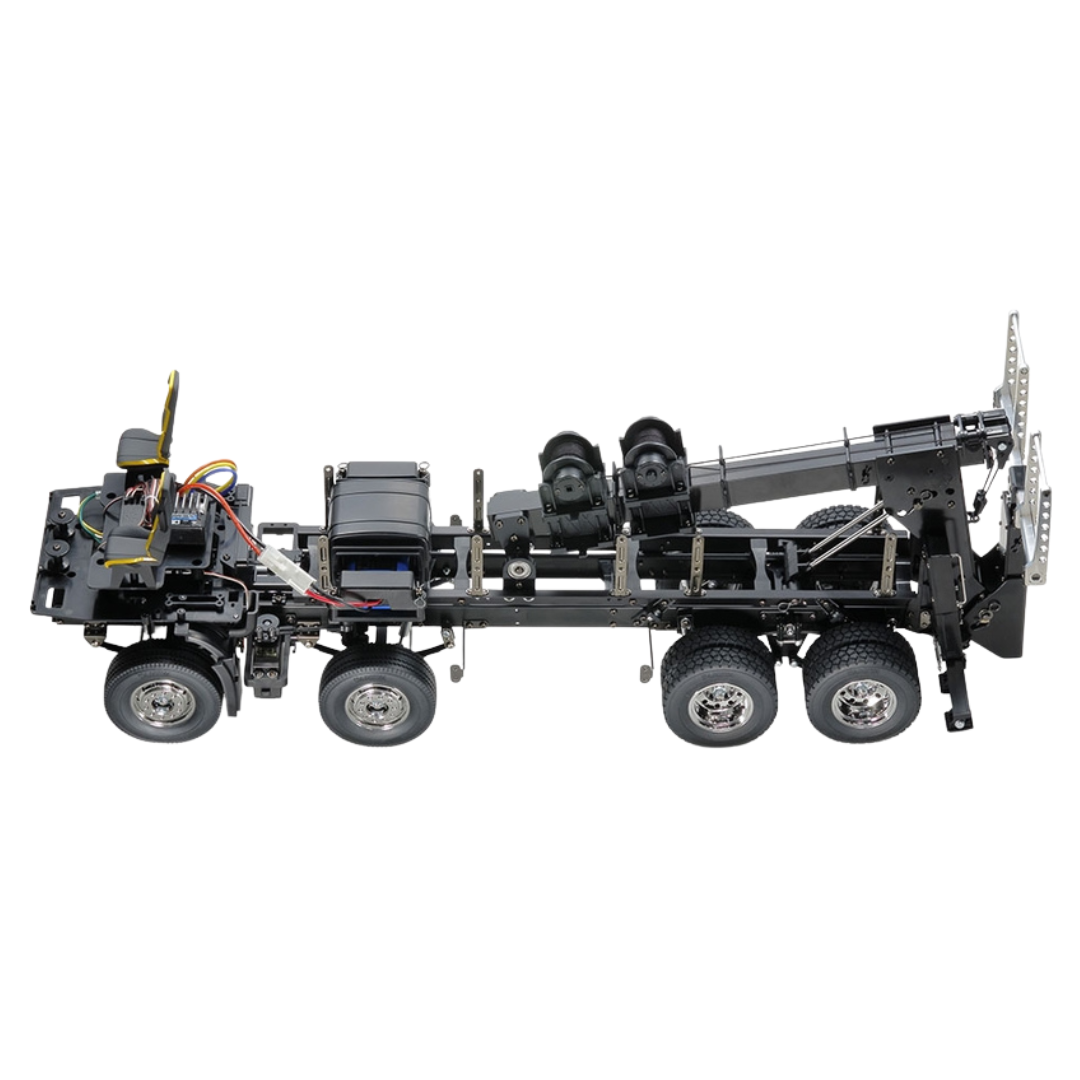

• Aluminium ladder-frame side channels with reinforced plastic crossmembers

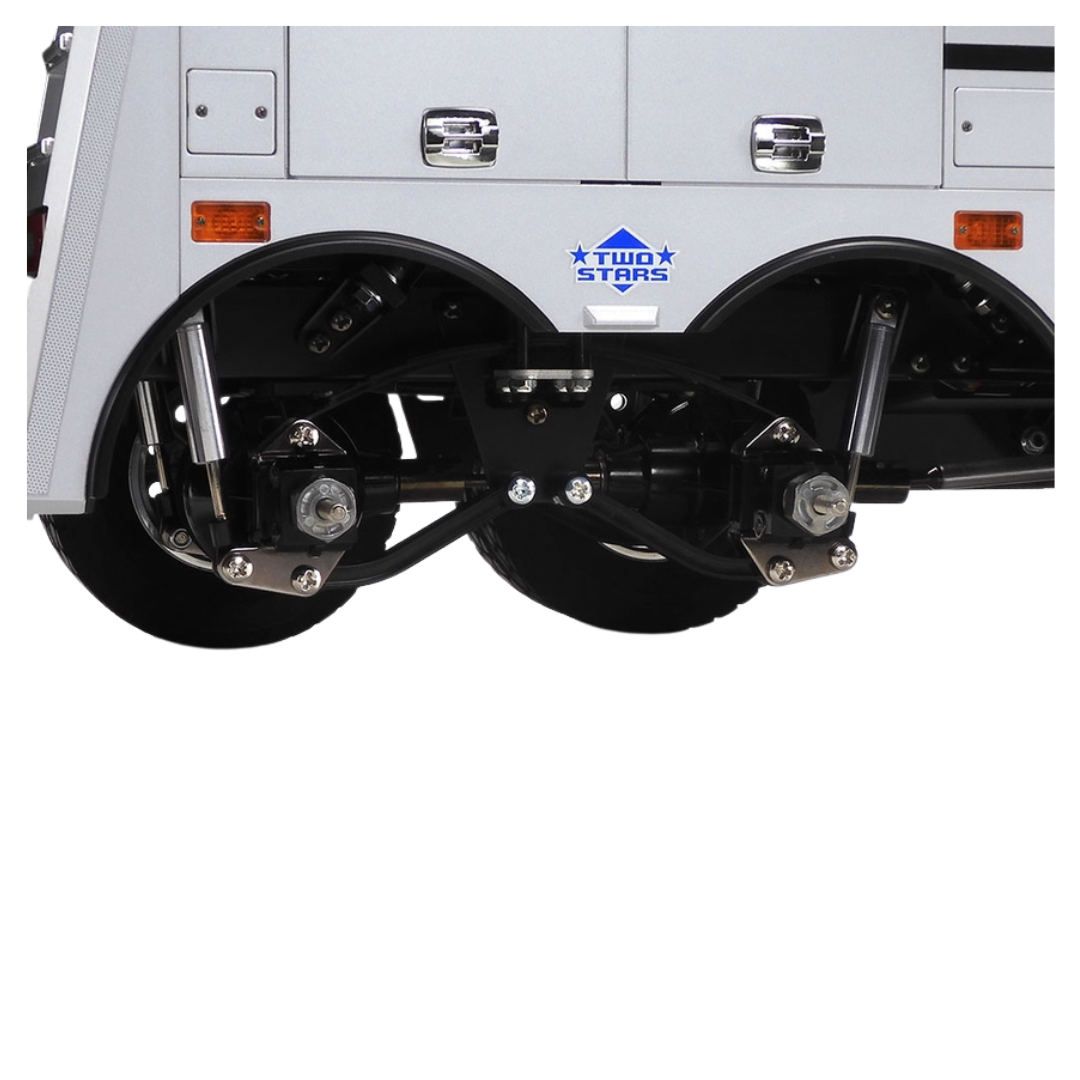

• Metal leaf-spring suspension with friction dampers
• Rear double tyres recreate the appearance of a full-size heavy truck
• Detailed towing mechanism incorporates numerous metal components

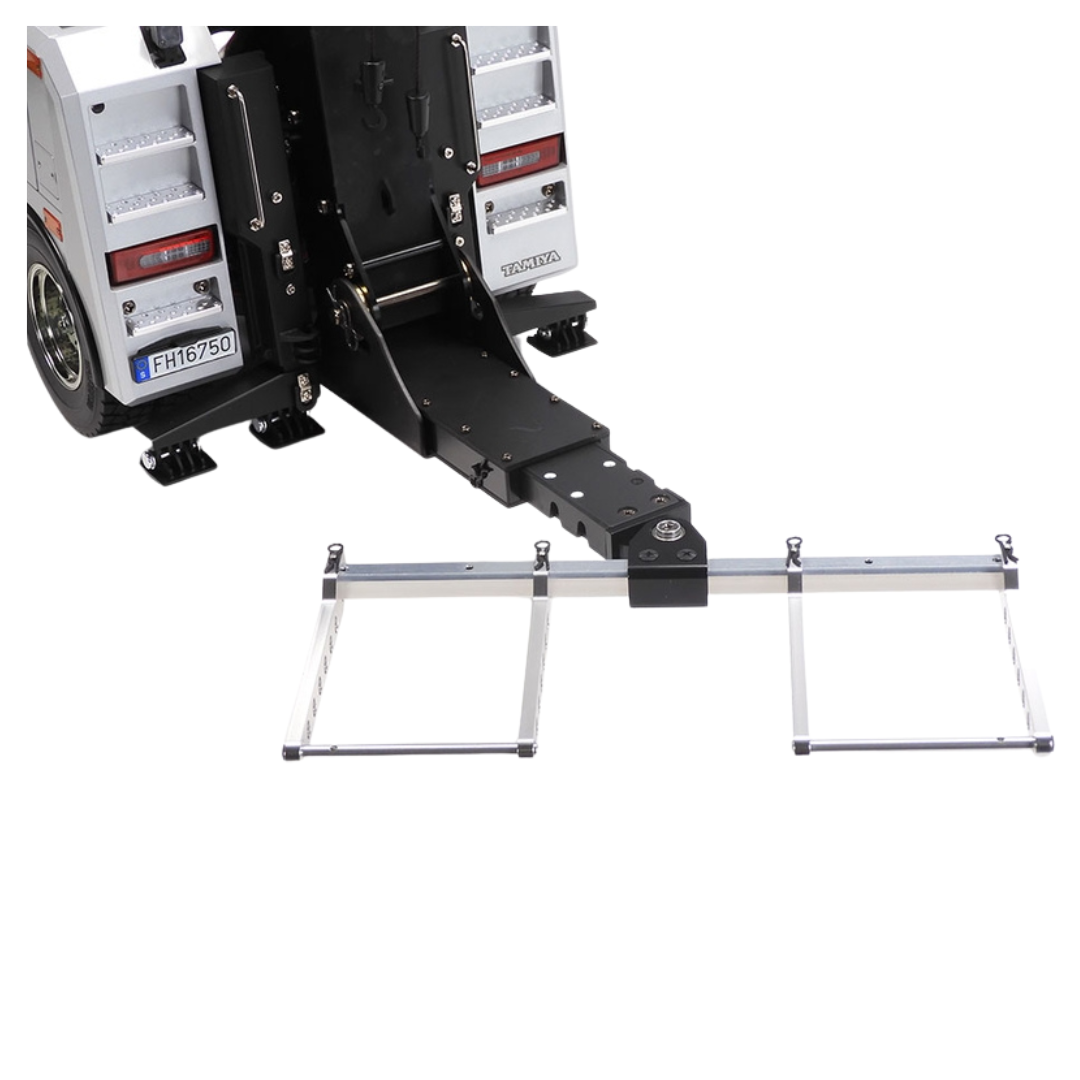

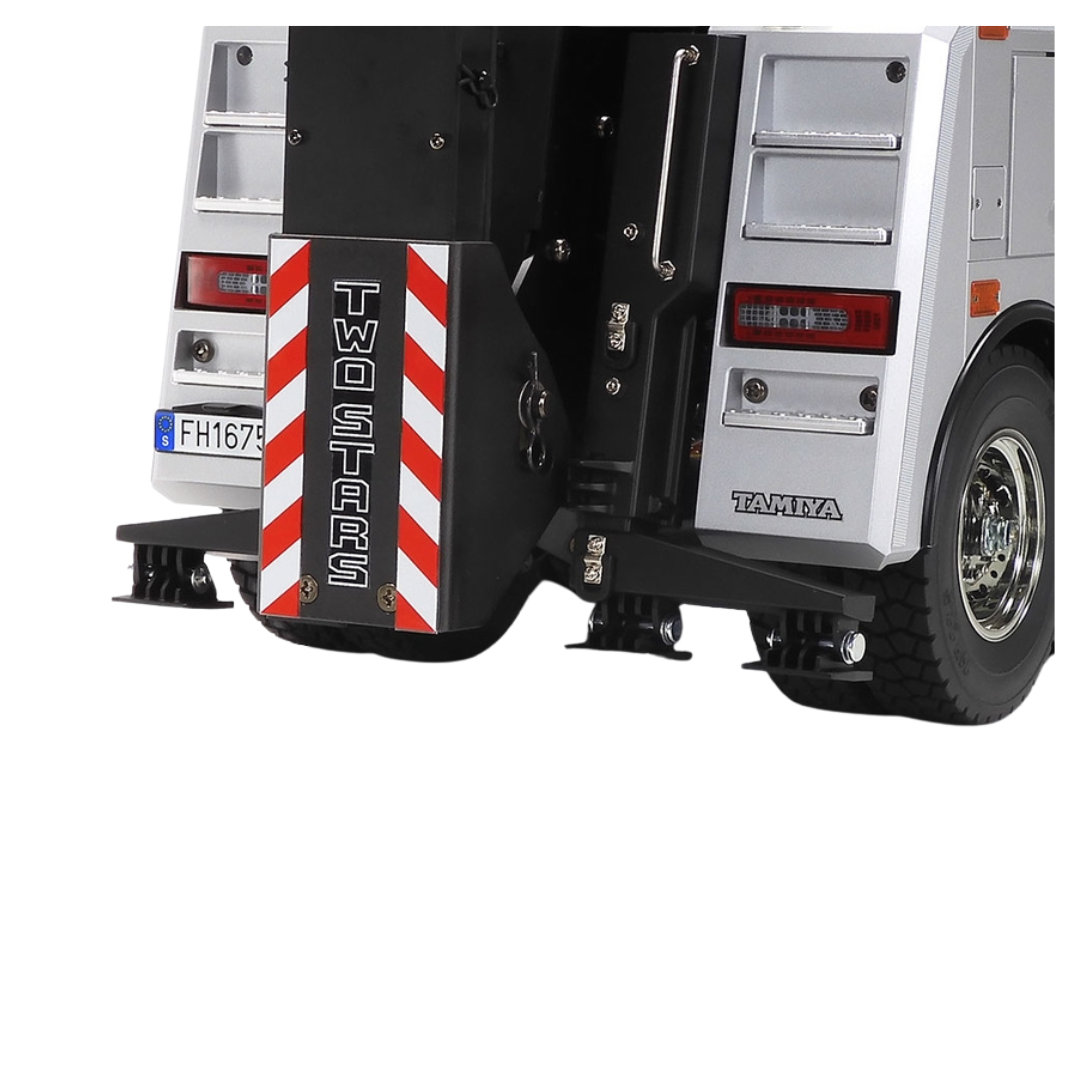

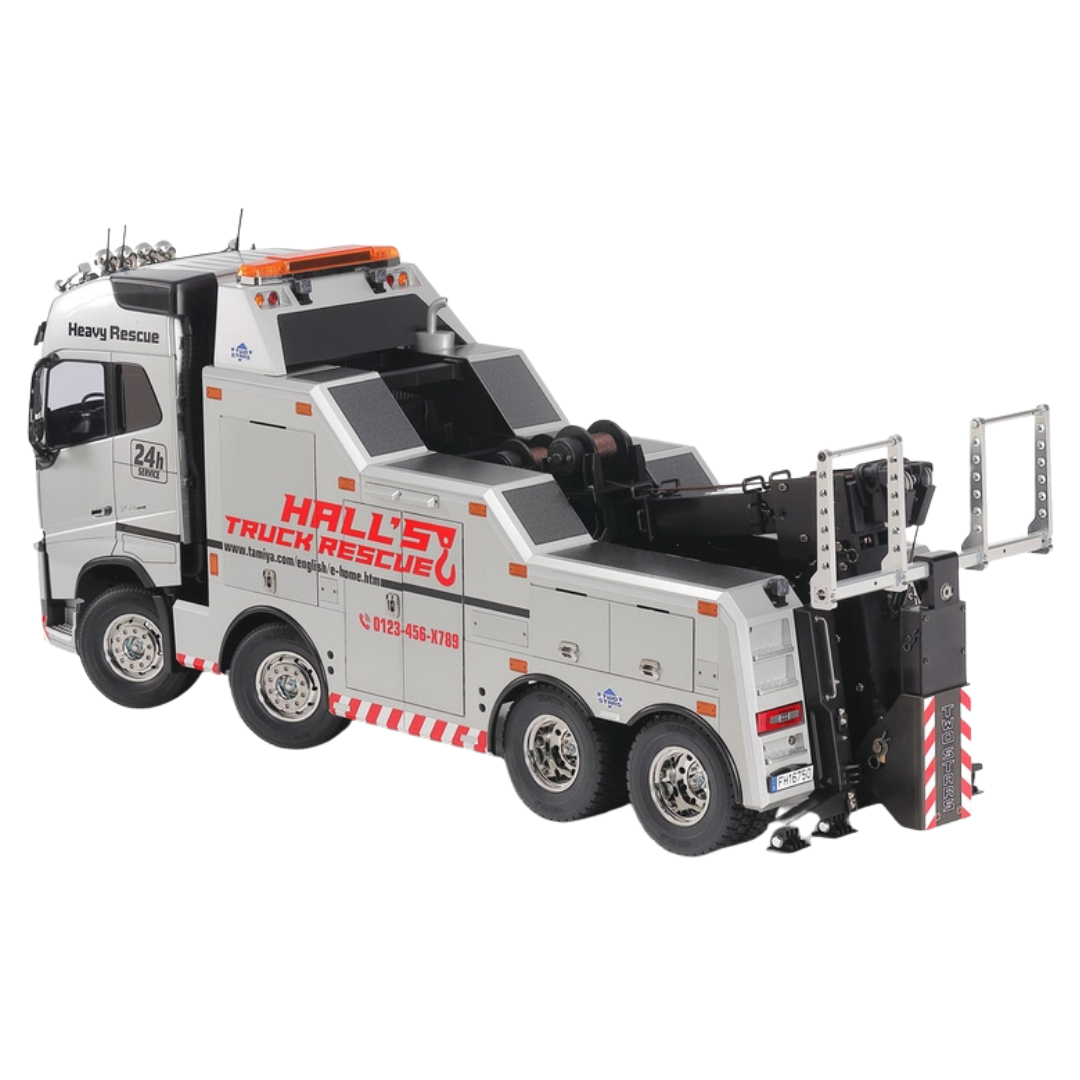

• Manually adjustable winch boom, underlift and outriggers

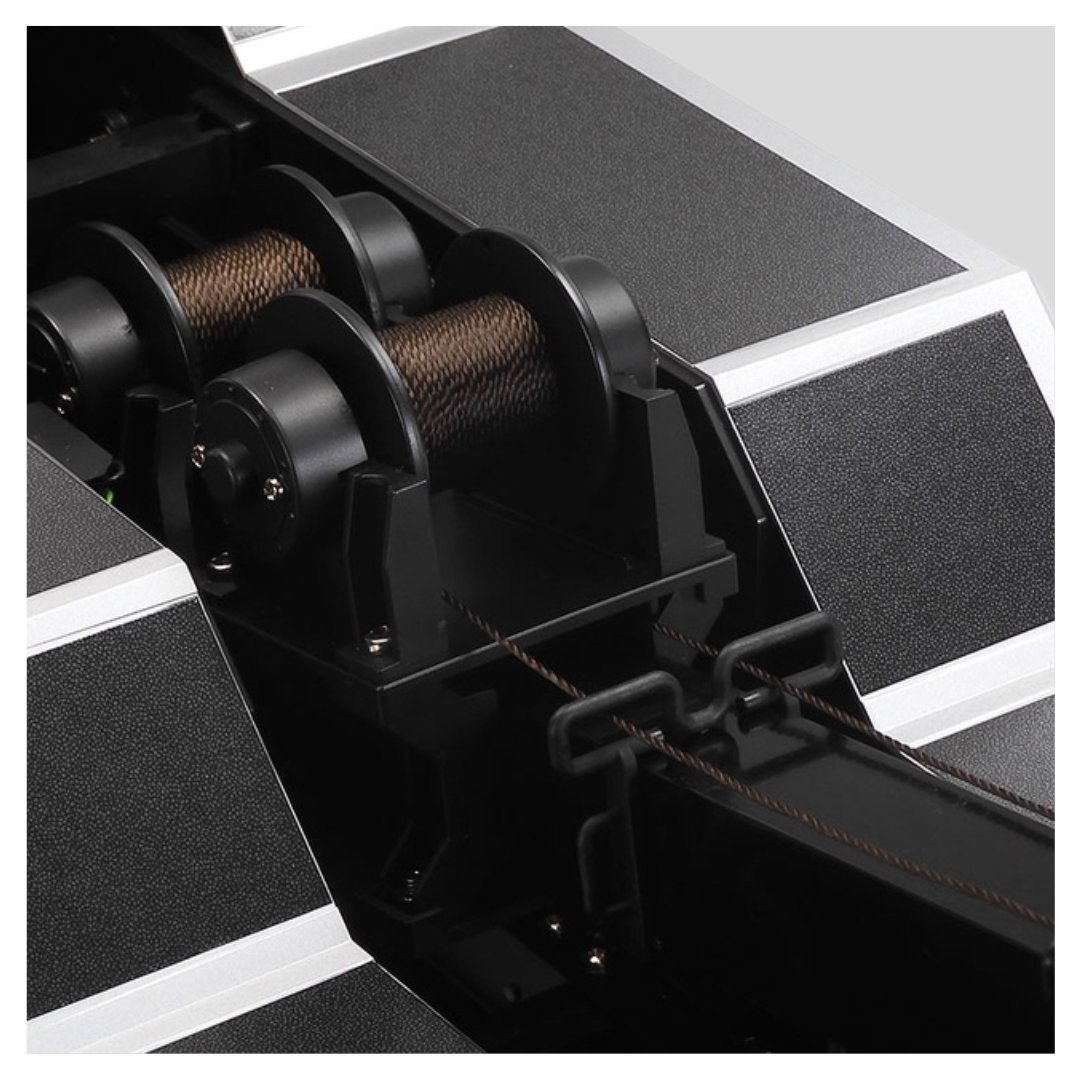

• Dual winches recreated with supplied cable material
• Capable of towing compatible 1/14 scale Tamiya tractor trucks when correctly assembled and equipped
• Compatible with optional Tamiya electric actuator and multifunction systems

Specifications

• Brand: Tamiya
• Product: Volvo FH16 Globetrotter 750 8x4 Tow Truck Silver Edition
• Manufacturer Part Number: 47528
• Product Code: 47528-000
• Barcode: 4950344475285
• Product Type: Electric RC assembly kit
• Scale: 1/14
• Drive Configuration: 8x4
• Driven Axles: Twin rear axles
• Steering: Twin steering front axles
• Motor: Tamiya TR Mighty-Tuned 35T brushed motor
• Transmission: Three-speed manual transmission with transmitter-controlled shifting
• Gear Ratio, First Gear: 32.49:1
• Gear Ratio, Second Gear: 17.76:1
• Gear Ratio, Third Gear: 10.66:1
• Chassis: Ladder frame with aluminium side channels and plastic crossmembers
• Suspension: Front and rear leaf springs
• Dampers: Aluminium-finish friction dampers
• Differentials: Three-bevel differential gears
• Wheelbase: 155 + 245 + 103mm
• Front Track: 155mm
• Rear Track: 138mm with double tyres
• Front Tyre Size: 30mm wide × 85mm diameter
• Rear Tyre Size: 22mm wide × 84mm diameter
• Assembled Length: 732mm
• Assembled Width: 199mm
• Assembled Height: 309mm
• Approximate Completed Weight: 5.9kg with RC equipment and battery installed
• Cab and Body Finish: Pre-painted silver with gloss urethane topcoat
• Assembly Required: Yes

Includes

• 1 × Tamiya Volvo FH16 Globetrotter 750 8x4 Tow Truck Silver Edition assembly kit
• 1 × TR Mighty-Tuned 35T brushed motor
• Three-speed transmission components
• Painted silver ABS cab and tow-truck body components
• Stainless-steel photo-etched front grille components
• Manual winch boom, underlift and outrigger components
• Assembly hardware, decals and illustrated instructions

Required to Complete

• Compatible four-channel RC transmitter and receiver system with slide trims and self-neutral sticks
• 2 × compatible servos
• Compatible brushed electronic speed controller or Tamiya MFC unit
• Compatible 7.2V battery pack
• Compatible battery charger
• AA batteries for the transmitter
• Tamiya paints and modelling supplies for window frames and other detail parts
• Assembly tools

Optional Upgrades

• Tamiya 56553 Electric Actuator Set for 1/14 Scale RC Tow Truck
• Tamiya 56523 Tractor Truck Multi-Function Control Unit MFC-03

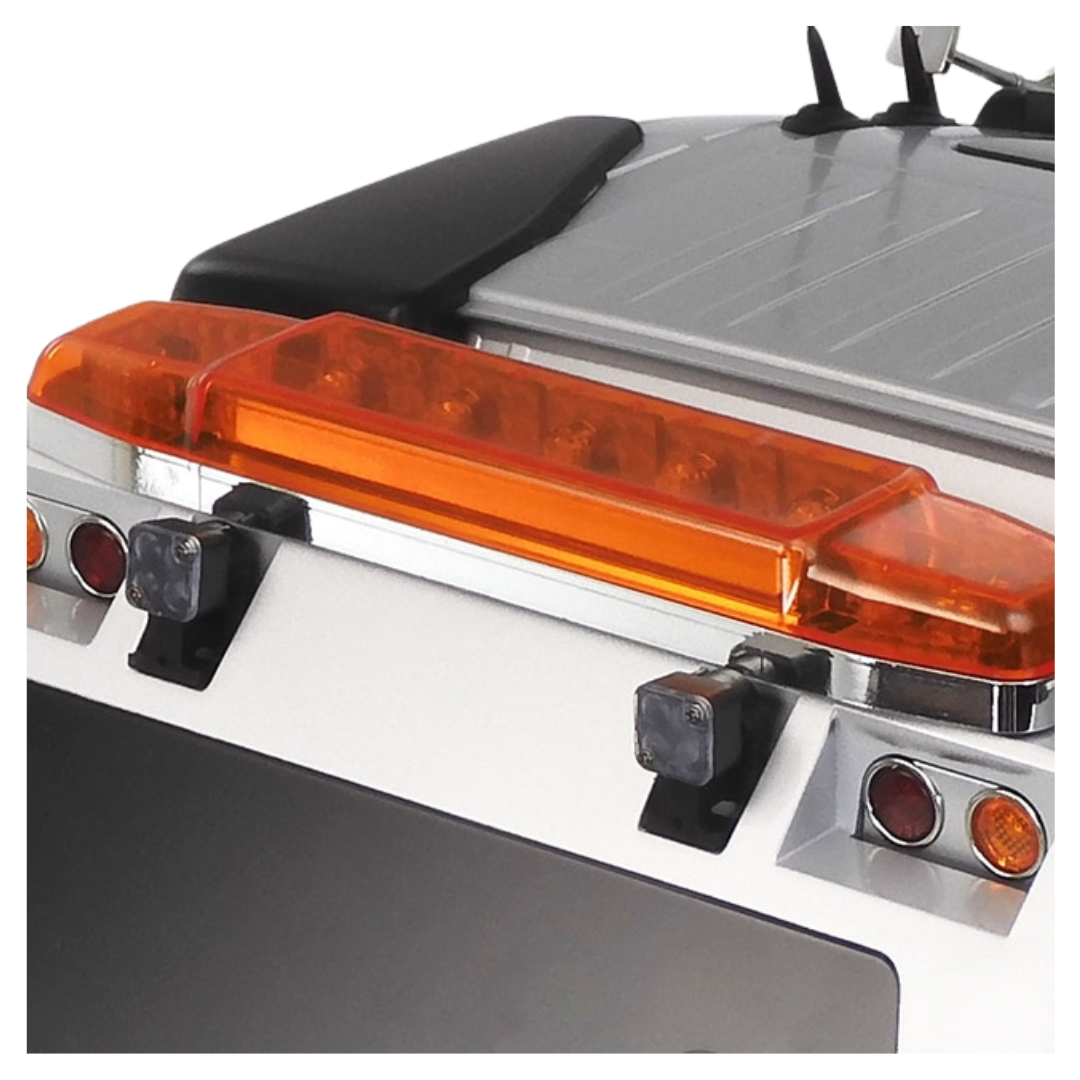

• Compatible Tamiya LED lighting components
• Long-cable 3mm LEDs required for certain rear-light functions when using an MFC unit

FAQ

Is this a ready-to-run RC truck? No. This is an unassembled model kit that requires construction, RC electronics, a battery, charger and additional modelling supplies before operation.

Is the body already painted? The main ABS cab and body components are factory painted silver and protected by a gloss urethane topcoat. Smaller details, including areas such as the window frames, still require finishing during assembly.

Is the model 1/10 or 1/14 scale? This truck is 1/14 scale. References describing it as a 1/10 scale model are incorrect.

Does the kit include a motor? Yes. A Tamiya TR Mighty-Tuned 35-turn brushed motor is included.

Are the radio system and servos included? No. A compatible four-channel radio system and two servos are required separately.

Can the transmission be shifted from the transmitter? Yes. When correctly assembled with a suitable four-channel radio system and shift servo, the three-speed transmission can be operated from the transmitter.

Are the towing functions radio controlled? The standard winch boom, underlift and outriggers are manually operated. The separately available Tamiya 56553 Electric Actuator Set allows selected lifting functions to be controlled electronically.

What does the optional MFC-03 add? The Tamiya MFC-03 can add synchronised engine sounds, gear-change sounds, lighting, vibration and other operational effects. Additional LEDs may be required for some lighting functions.

Can it tow other Tamiya RC trucks? The model is designed to tow compatible 1/14 scale Tamiya tractor trucks when properly assembled, equipped and operated on a suitable surface.

Important Notes

• This is a complex model assembly kit intended for experienced builders.
• The completed model shown in promotional images may include separately purchased electronics, lighting and optional accessories.
• Main cab and body parts are pre-painted, but detail painting is still required.
• Radio system, receiver, servos, speed controller, battery and charger are not included.
• The electric actuator set and MFC-03 multifunction unit are optional and sold separately.
• Confirm that the selected radio equipment supports steering, throttle and three-speed transmission operation.
• Availability and arrival dates can vary by country and distributor.
