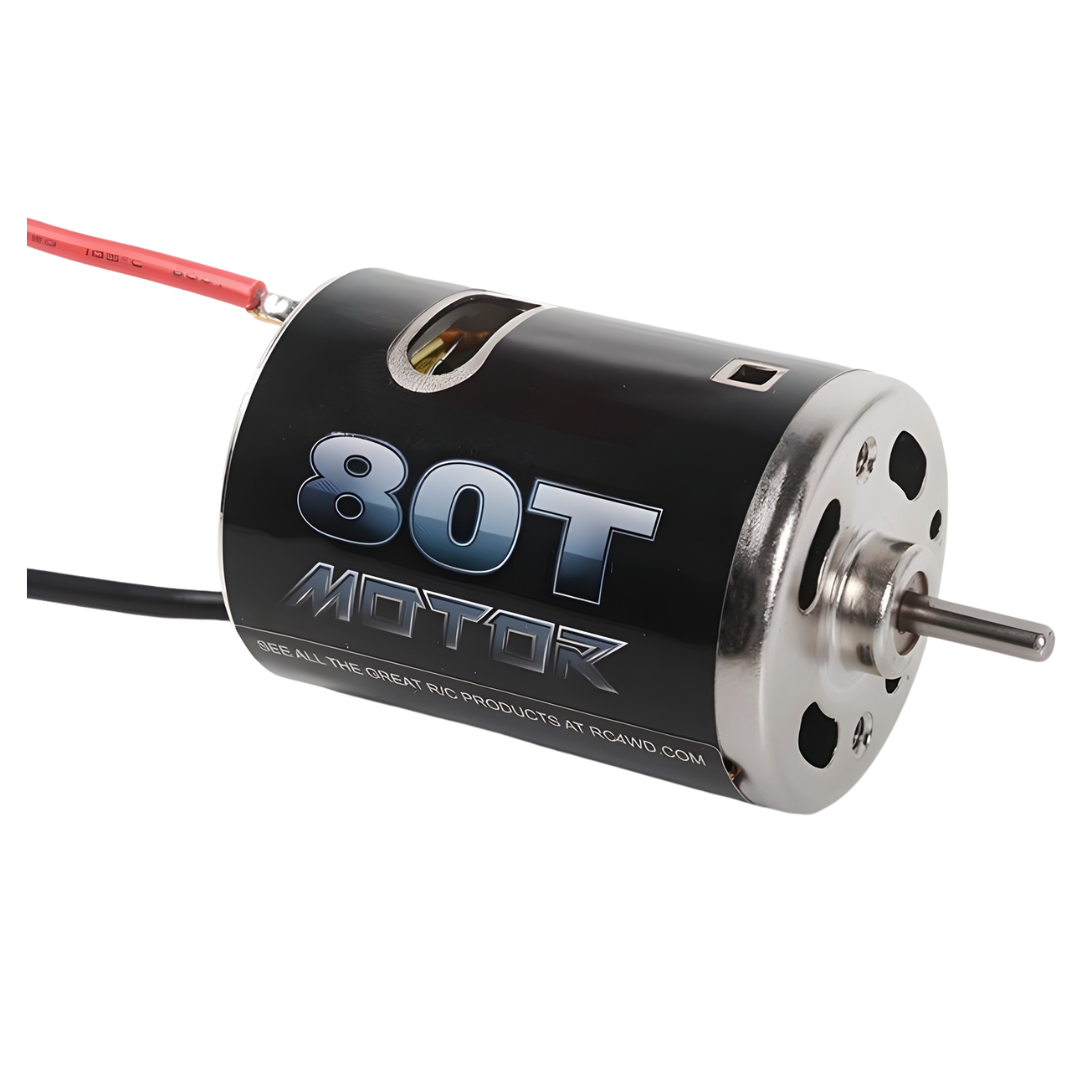

RC4WD 80T 540 RC Crawler Brushed Motor Z-E0001

The RC4WD 540 80T Brushed Crawler Motor is designed for extreme low speed control and high torque performance in scale crawler applications. Built with a durable chrome plated steel case and high torque magnet design, this motor is tuned specifically for rock crawling and precision trail driving.

Features

• 540 size brushed crawler motor designed for scale trucks
• 80 turn winding for maximum torque and precise low speed control
• Durable chrome plated steel motor case
• Built in capacitor helps minimise electrical interference
• High torque magnet and rotor construction
• Compact motor design suitable for many crawler platforms
• Polished bushings for smooth operation

Specifications

• Motor Type: Brushed
• Motor Size: 540
• Turns: 80T
• Body Diameter: 35.5 mm
• Motor Length: 50 mm
• Output Shaft Diameter: 3.1 mm
• Output Shaft Length: 11 mm
• Operating Voltage: 2.4V – 30V
• No Load RPM @ 7.2V: 5500 RPM ±10%
• No Load Current @ 7.2V: 0.45 A
• Max Efficiency RPM @ 7.2V: 4450 RPM ±10%
• Max Efficiency Current @ 7.2V: 1.38 A
• Operating Temperature Range: -30°C to 80°C
• Motor End Play: 0.50 mm max
• Noise Level: < 60 dB
• SKU: ZE0001

Includes

• 1 x RC4WD 540 80T Brushed Crawler Motor
