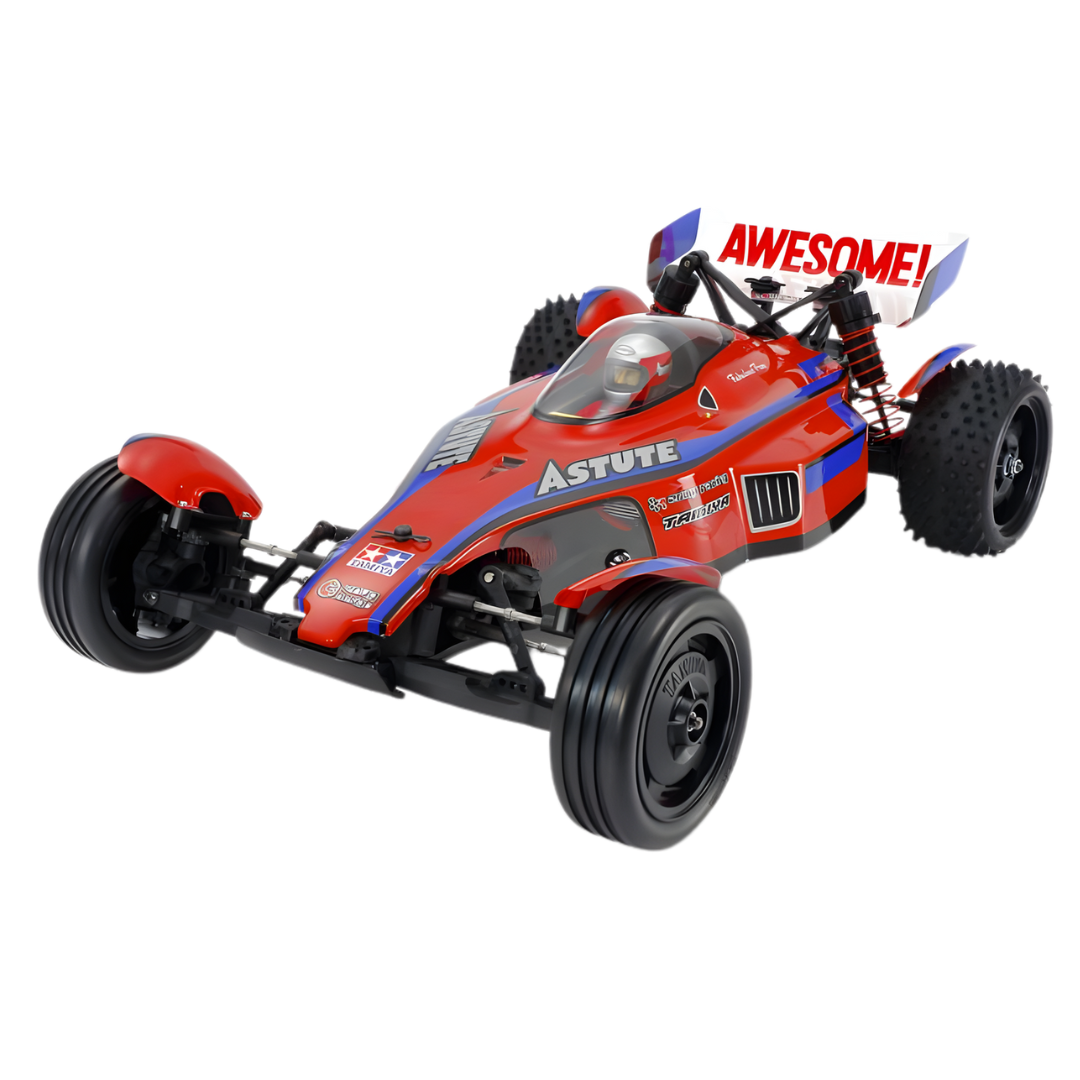

Tamiya Astute 2022 RC Off-Road Buggy 1/10 2WD TD2 Kit 58697-000

The Tamiya Astute 2022 is a 1/10 scale 2WD RC off-road buggy kit for hobbyists seeking a low-profile TD2 platform with tunable suspension geometry and a detailed assembly experience.

The rear-wheel-drive TD2 chassis places the motor transversely at the centre and the battery across the rear of the chassis to support balanced handling and rear-wheel traction. Its inboard front suspension, ball differential, full ball-bearing drivetrain and CVA oil dampers provide a modern foundation for off-road driving and setup adjustment.

Features

• TD2 Chassis: Rear-wheel-drive monocoque platform with a slim and low-profile layout
• Balanced Equipment Positioning: Midship transverse motor layout and rear-mounted transverse battery position
• Inboard Front Suspension: Angled front CVA dampers and suspension arms with a 25-degree skid angle
• Independent Suspension: Four-wheel double wishbone suspension with adjustable turnbuckle upper arms
• Ball Differential: Sealed rear gearbox contains a tunable ball differential to manage wheel slip
• Full Ball Bearings: Ball bearings are supplied throughout the drivetrain for reduced friction
• CVA Oil Dampers: Oil-filled dampers provide controlled suspension movement over uneven surfaces
• Adjustable Rear Wing: High and low wing stays are included for changing the rear wing position
• Polycarbonate Body: Low-profile clear body designed by Kota Nezu of znug design
• Detailed Cockpit: Includes a driver figure, aircraft-inspired canopy and individual front and rear fenders
• Off-Road Tyres: Ribbed front tyres support steering response while square-spike rear tyres provide traction
• Star-Dish Wheels: Black wheels are supplied, with hex-drive mounting used at the front
• High-Torque Servo Saver: Included steering protection helps reduce impact loads transferred to the servo

Specifications

• Brand: Tamiya
• Model: Astute 2022
• Manufacturer Part Number: 58697
• OZRC SKU: 58697-000
• Barcode: 4950344586974
• Scale: 1/10
• Product Type: Electric RC off-road buggy assembly kit
• Chassis: TD2
• Drive Type: 2WD rear-wheel drive
• Frame: One-piece plastic monocoque bathtub frame
• Length: 387 mm
• Width: 246 mm
• Height: 125 mm with the low wing stays fitted
• Wheelbase: 284 mm
• Front Tread: 215 mm
• Rear Tread: 205 mm
• Front Tyre Size: 27 mm wide × 79 mm diameter
• Rear Tyre Size: 41 mm wide × 82 mm diameter
• Suspension: Four-wheel independent double wishbone
• Dampers: CVA oil-filled dampers
• Differential: Ball differential
• Steering: Three-piece steering tie-rod system
• Spur Gear: 70 tooth
• Included Pinion Gear: 17 tooth
• Standard Gear Ratio: 10.71:1
• Bearings: Full ball-bearing set
• Body Material: Clear polycarbonate
• Wheel Colour: Black

Includes

• Unassembled Tamiya Astute 2022 TD2 chassis kit
• Clear polycarbonate body and rear wing
• Driver figure and cockpit components
• Front and rear individual fender components
• High and low rear wing stays
• Black star-dish front and rear wheels
• Ribbed front and square-spike rear tyres
• Ball differential components and differential grease
• Full ball-bearing set
• CVA oil damper components and damper oil
• 17-tooth pinion gear
• High-torque servo saver
• Sticker sheet and masking stickers
• Assembly hardware and instructions

FAQ

Is the Tamiya Astute 2022 ready to run? No. The Astute 2022 is an assembly kit that requires construction, body finishing and installation of separately purchased electronics.

What is required to complete the Astute 2022? A two-channel transmitter and receiver, compatible low-profile steering servo, Type 540 motor, matching electronic speed controller, 7.2–7.4-volt battery, charger and transmitter batteries are required separately.

Can a standard-size steering servo be used? No. The TD2 chassis requires a compatible low-profile steering servo. OZRC recommends checking the servo dimensions before purchase.

Does the body come painted? No. The clear polycarbonate body requires painting and finishing. Use paint made specifically for polycarbonate, such as the Tamiya PS range.

Important Notes

• This product is an unassembled RC buggy kit and is not supplied ready to run
• Motor, electronic speed controller, radio equipment, steering servo, battery and charger are not included
• A compatible low-profile steering servo is required because a standard-size servo does not fit the TD2 chassis
• The body is supplied clear and unpainted; the model shown in manufacturer images has been painted and assembled
• Tamiya PS polycarbonate paint is required for the body; the illustrated colour scheme uses PS-5 Black and PS-60 Bright Mica Red
• RC tyre cement and general model-building tools should be prepared for assembly
• The electronic speed controller must be compatible with the selected motor and battery type
