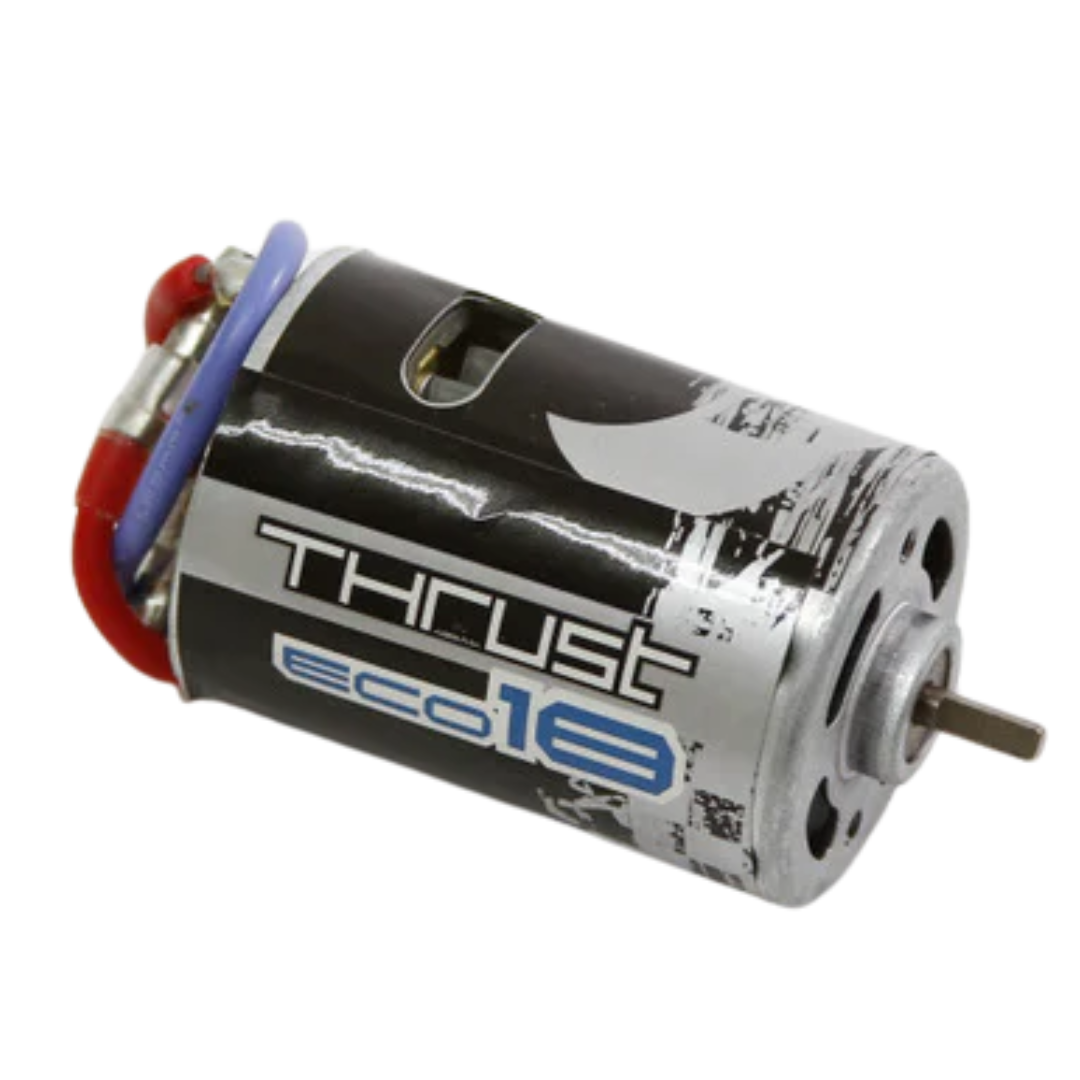

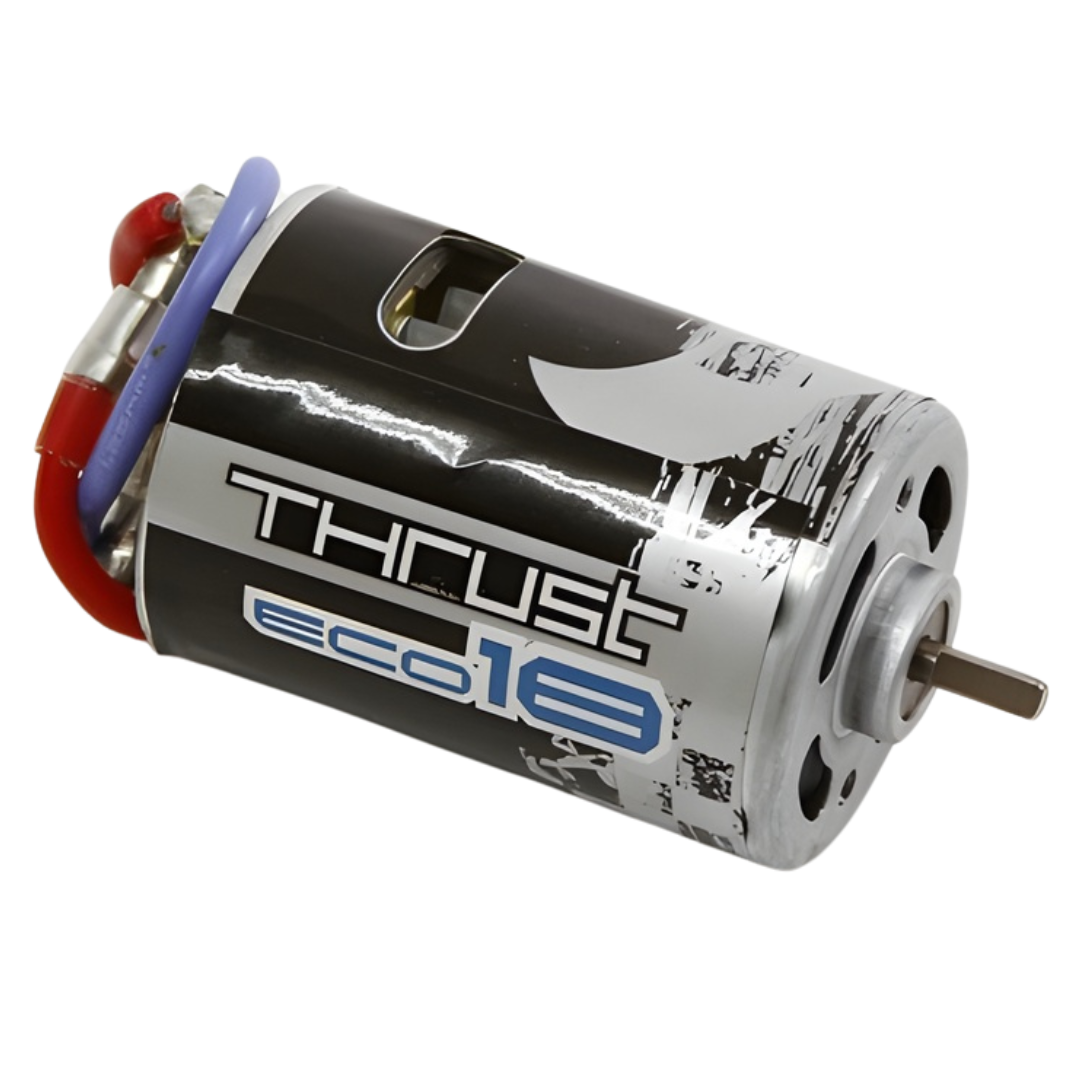

Absima Thrust Eco 540 Brushed Motor 18T 7.2V AB2310061

The Absima Thrust Eco 18T is a 540-size brushed motor for compatible RC vehicles, offering a simple cost-effective power option with a nominal 7.2V operating specification and approximately 28000rpm no-load speed

Features

• 18-turn brushed motor design
• Standard 540-size motor format
• Approximately 28000rpm no-load speed
• 12A specified current rating
• Designed around a 7.2V operating voltage
• Suitable as a replacement or upgrade motor where an 18T 540 brushed motor is supported
• Simple brushed construction works with compatible brushed ESCs

Specifications

• Brand: Absima
• Series: Thrust Eco
• Product Type: Brushed Motor
• Motor Size: 540
• Turns: 18T
• No-Load Speed: Approximately 28000rpm
• Current: 12A
• Operating Voltage: 7.2V
• Motor Length: 54mm
• Motor Diameter: 35.7mm
• Shaft Length: 8.6mm
• Shaft Diameter: 3.19mm
• Barcode: 4250650901851
• Manufacturer Part Number: AB2310061

Includes

• 1 x Absima Thrust Eco 18T 540 Brushed Motor

FAQ

Is the Absima Thrust Eco 18T brushed or brushless? It is a brushed 540-size motor and requires a compatible brushed electronic speed controller

What voltage is the Absima 18T Thrust Eco designed for? Absima specifies a 7.2V operating voltage for part 2310061

How fast does the Absima Thrust Eco 18T motor spin? Absima specifies approximately 28000rpm under no-load conditions

Will this motor fit any 1/10 RC car? No, confirm the vehicle supports a 540-size brushed motor and check the motor turn limit gearing shaft dimensions and ESC compatibility before installation

Important Notes

• Use only with a brushed ESC rated for an 18T motor or lower turn count as required
• Confirm motor mounting shaft dimensions gearing and voltage compatibility before installation
• Monitor motor and ESC temperatures after changing gearing or motor specification
