Absima Wheel Basic RC Starter Set CR4S-V2 2.4GHz Radio 6kg Servo AB2200010

The Absima Wheel Basic RC Starter Set AB2200010 is a radio control and steering servo package designed for completing compatible RC car kits that are supplied without electronics, providing a 4-channel 2.4GHz transmitter, waterproof receiver, 6kg steering servo and transmitter batteries.

Features

• RC Kit Completion Package: Combines the radio control system and steering servo needed for compatible RC car builds that do not include these components.
• CR4S-V2 4-Channel Transmitter: Wheel-style 2.4GHz radio controller provides proportional steering and throttle control with additional channels for compatible accessories.
• 2.4GHz Radio System: Provides a reliable radio connection between the transmitter and receiver for controlling compatible RC vehicles.
• Waterproof Mini Receiver: Compact receiver design is suitable for installation in RC vehicle chassis where space may be limited.
• Steering and Throttle Reverse: Allows the direction of steering and throttle operation to be changed to match the vehicle's setup.
• Steering and Throttle Trim: Provides adjustments for centring the steering and setting the correct neutral throttle position.
• Dual Rate Adjustment: Allows steering travel and maximum throttle output to be limited to suit driver experience and vehicle handling.
• Beginner Mode: Offers reduced control sensitivity or output limits to make learning RC driving more manageable.
• Failsafe Function: Provides a configurable safety response in the event of a radio signal interruption.
• S60PH 6kg Steering Servo: Includes a steering servo designed for 4.8V to 6.0V operation with plastic gears and a 25T output spline.
• Transmitter Batteries Included: Four AA LR06 alkaline batteries are supplied for powering the radio transmitter.
• Versatile Kit Application: Suitable for selected Absima, Tamiya and other compatible RC car kits requiring a separate radio system and steering servo.

Specifications

• Brand: Absima
• Product Name: RC Starter Set Wheel Basic
• Manufacturer Part Number: 2200010
• SKU: AB2200010
• EAN: 4250650964832
• Product Type: RC Radio Control and Steering Servo Starter Set
• Intended Use: Completing Compatible RC Car Kits
• Radio Transmitter Model: Absima CR4S-V2
• Transmitter Type: Wheel-Style
• Radio Frequency: 2.4GHz
• Radio Channels: 4
• Transmitter Functions: Steering and Throttle Reverse, Trim, Dual Rate, Beginner Mode and Failsafe
• Receiver Type: Waterproof Mini Receiver
• Steering Servo Model: Absima S60PH
• Steering Servo Rating: 6kg Class
• Servo Operating Voltage: 4.8–6.0V
• Servo Gear Material: Plastic
• Servo Output Spline: 25T
• Transmitter Battery Type: AA LR06 Alkaline
• Transmitter Battery Quantity: 4
• Compatibility: RC Vehicle Kits Supporting Standard Radio Receivers and Compatible Steering Servo Installations

Includes

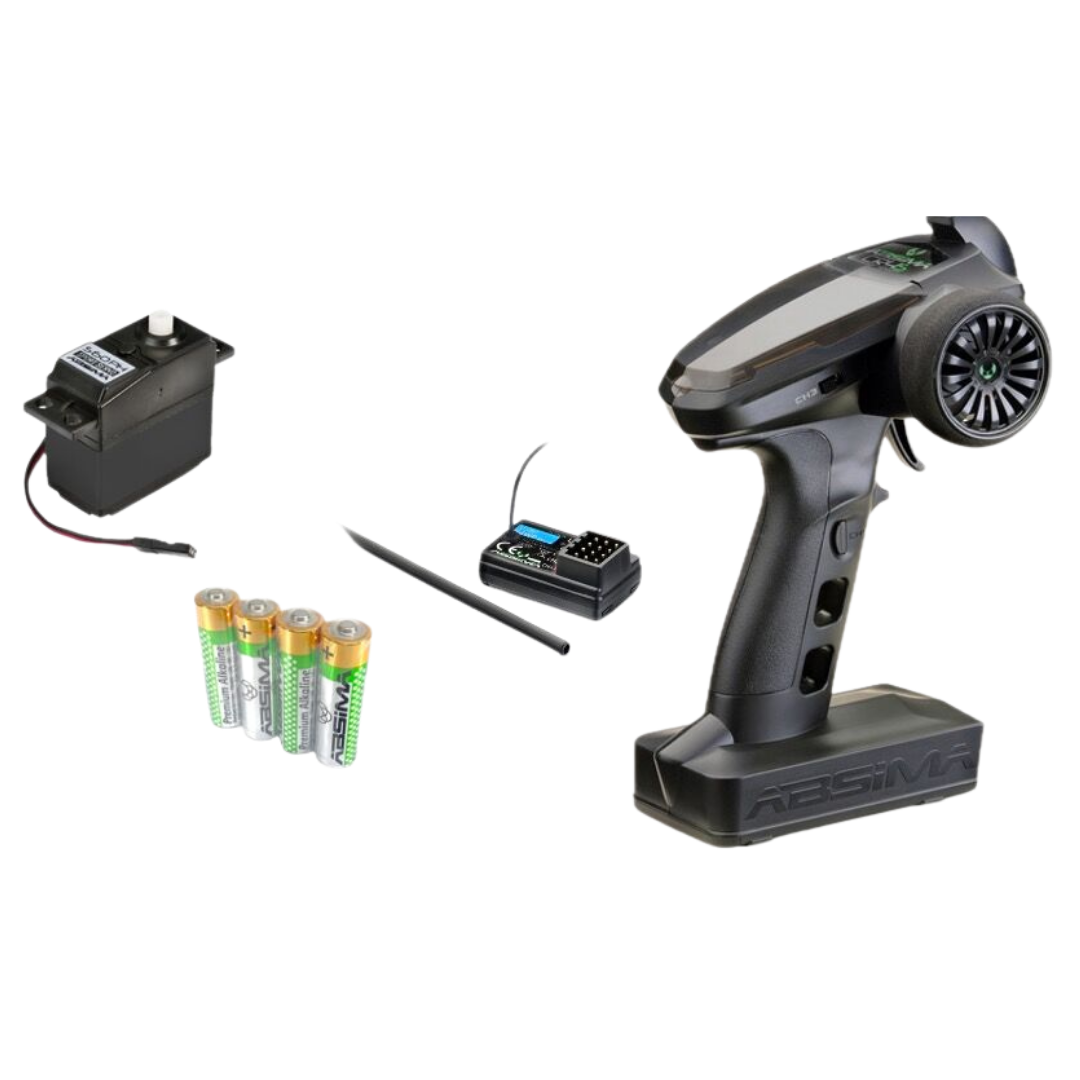

• 1 x Absima CR4S-V2 4-Channel 2.4GHz Wheel Transmitter
• 1 x Compatible Waterproof 2.4GHz Mini Receiver
• 1 x Absima S60PH 6kg Steering Servo
• 4 x AA LR06 Alkaline Transmitter Batteries

FAQ

What is included in the Absima Wheel Basic RC Starter Set? The Absima AB2200010 includes a CR4S-V2 4-channel 2.4GHz transmitter, compatible waterproof mini receiver, S60PH 6kg steering servo and four AA alkaline transmitter batteries.

Does the Wheel Basic starter set include a motor, ESC, battery or charger? No. The Absima Wheel Basic set supplies the radio equipment, steering servo and transmitter batteries only. A suitable motor, electronic speed controller, vehicle battery and charger must be purchased separately if they are not already included with the RC car kit.

Can this starter set be used with a Tamiya RC car kit? Yes, the Absima Wheel Basic set can be used with compatible Tamiya RC car kits that require a separate radio system and steering servo. OZRC recommends checking the kit's servo mounting, electronic speed controller and receiver power requirements before purchasing.

What does the beginner mode do? The CR4S-V2 transmitter includes a beginner mode and dual rate adjustments that allow control output to be limited. These functions can help new drivers manage steering and throttle response while learning to operate an RC vehicle.

Important Notes

• This is an electronics starter set, not a complete RC car or complete power system.
• A motor, electronic speed controller, vehicle battery and charger are not included and may be required separately depending on the RC kit.
• The included S60PH steering servo operates at 4.8–6.0V. Confirm the receiver power supply or ESC BEC output is suitable before installation.
• Check servo dimensions, mounting arrangement, spline compatibility and suitable steering torque for the intended vehicle.
• The receiver is described as waterproof by the manufacturer. This does not mean that the included steering servo or other vehicle electronics are waterproof.
• Not suitable for children under 14 years of age without adult supervision. Contains small parts.
