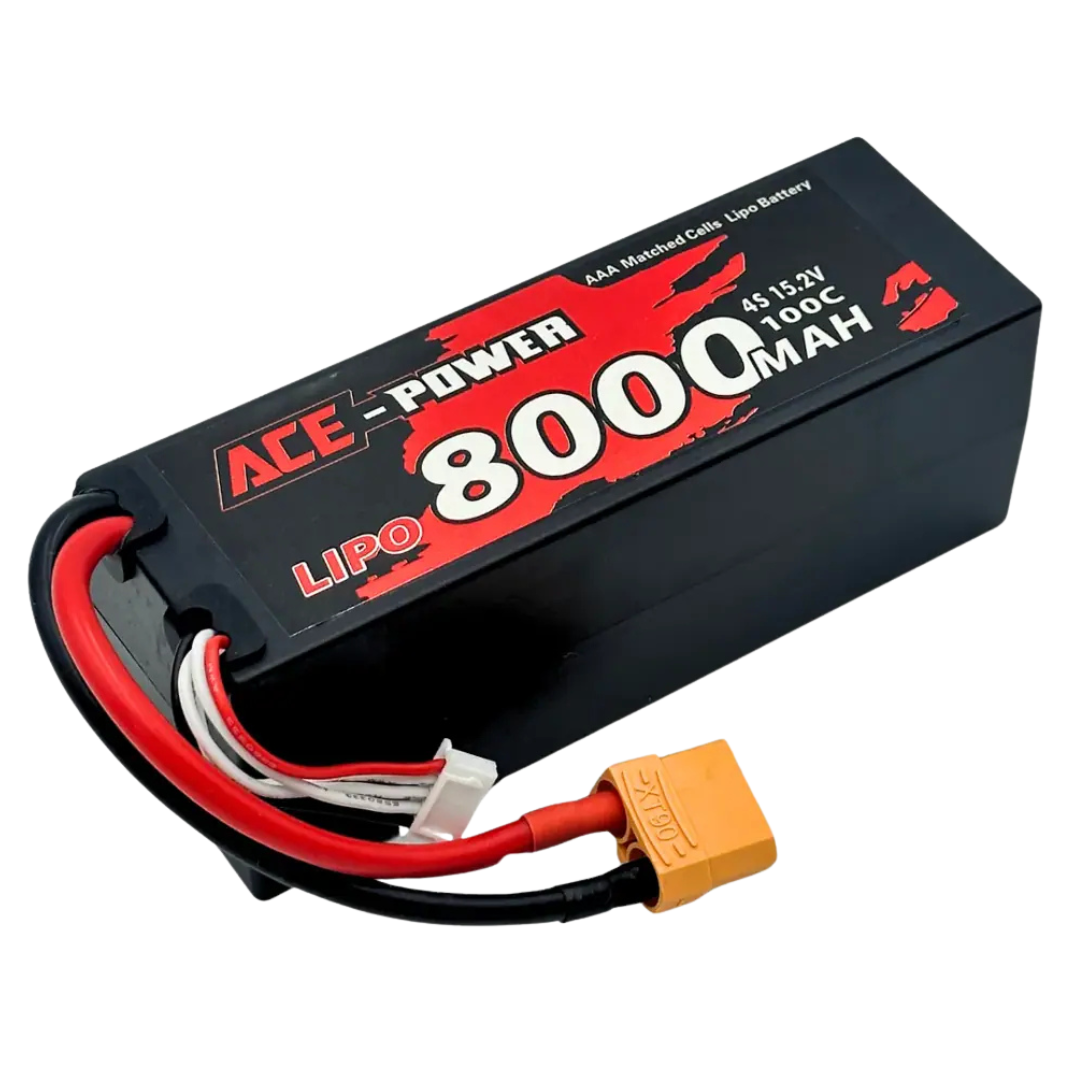

Ace Power 8000mAh 4S 100C 15.2V LiHV Battery XT90 ACE8000HC1004SXT90

Only 2 left
SKU: ACE8000HC1004SXT90
(0)
$165.00
Checking status...

CALL US EMAIL US
Ask the experts Staff
SHIPPING CALCULATOR
Regular shipping only, Express not available for this item.

More from Ace Power

Ace HW Brushless Combo 3000KV 60A ESC 3652SL Motor HWAP60BL3000
Ace HW Brushless Combo 3000KV 60A ESC 3652SL Motor HWAP60BL3000 $142.45
Ace Power 6S 22.2V 5400mAh 60C Soft Case LiPo Battery EC5 ACE5400SC606EC5
Ace Power 6S 22.2V 5400mAh 60C Soft Case LiPo Battery EC5 ACE5400SC606EC5 $158.00
Ace Power 2S 5200mAh 50C 7.4V Hard Case LiPo Battery Deans ACE5200HC502SDEAN
Ace Power 2S 5200mAh 50C 7.4V Hard Case LiPo Battery Deans ACE5200HC502SDEAN $60.00
View All Ace Power

The Ace Power 8000mAh 4S 100C LiHV Battery is a 15.2V hard-case RC battery with an XT90 connector, designed for compatible high-power cars, boats, helicopters and aircraft requiring a large-capacity 4S high-voltage pack.

Features

  • 8000mAh Capacity: High-capacity pack provides extended runtime for compatible RC applications
  • 4S High-Voltage Power: 15.2V nominal configuration provides a high-voltage alternative to conventional 14.8V 4S LiPo packs
  • 100C Discharge Rating: Designed for demanding RC power systems requiring high current delivery
  • Hard Case Construction: Protective outer case helps shield the battery during demanding vehicle use
  • XT90 Connector: Factory-fitted high-current connector provides direct compatibility with suitable RC electronics
  • Multi-Purpose RC Use: Listed for compatible cars, boats, helicopters and aircraft
  • Large-Capacity Format: Suitable for applications where battery space and vehicle weight capacity allow the 8000mAh pack size

Specifications

  • Brand: Ace Power
  • Product Type: RC LiHV Battery
  • Battery Chemistry: High-Voltage Lithium Polymer / LiHV
  • Capacity: 8000mAh
  • Nominal Voltage: 15.2V
  • Cell Count: 4S
  • Discharge Rating: 100C
  • Case Type: Hard Case
  • Connector: XT90
  • Length: 137mm
  • Width: 36mm
  • Height: 48mm
  • Weight: Approximately 640g
  • Applications: RC Car / Boat / Helicopter / Aircraft
  • Manufacturer Part Number: ACE8000HC1004SXT90
  • Barcode / EAN: 6836575860094

Includes

  • 1 x Ace Power 8000mAh 15.2V 4S 100C LiHV Hard Case Battery with XT90 Connector

FAQ

What is the difference between a 15.2V 4S LiHV battery and a 14.8V 4S LiPo? A 4S LiHV battery has a higher nominal cell voltage than a conventional 4S LiPo. A charger with the correct LiHV charging mode is required when charging the battery to its full high-voltage specification.

Will this Ace Power battery fit any 4S RC vehicle? No. The vehicle must support a 4S high-voltage battery, an XT90 connector and a pack measuring approximately 137 x 36 x 48mm. OZRC recommends checking the vehicle electronics and battery tray before ordering.

What charger is required for this battery? A balance charger compatible with 4S LiHV batteries is required to charge the pack to its full high-voltage specification. Always select the correct battery chemistry and cell count before charging.

Important Notes

  • Confirm that the RC vehicle and electronics support a 15.2V nominal 4S LiHV battery before use
  • Check the 137 x 36 x 48mm battery dimensions and XT90 connector against the vehicle before ordering
  • Use a balance charger with the correct LiHV charging mode when charging to the full high-voltage specification
  • Charger is not included
  • Do not charge or use a battery that is swollen, punctured or otherwise damaged
  • Always follow the battery and charger manufacturer's charging, storage and handling instructions
