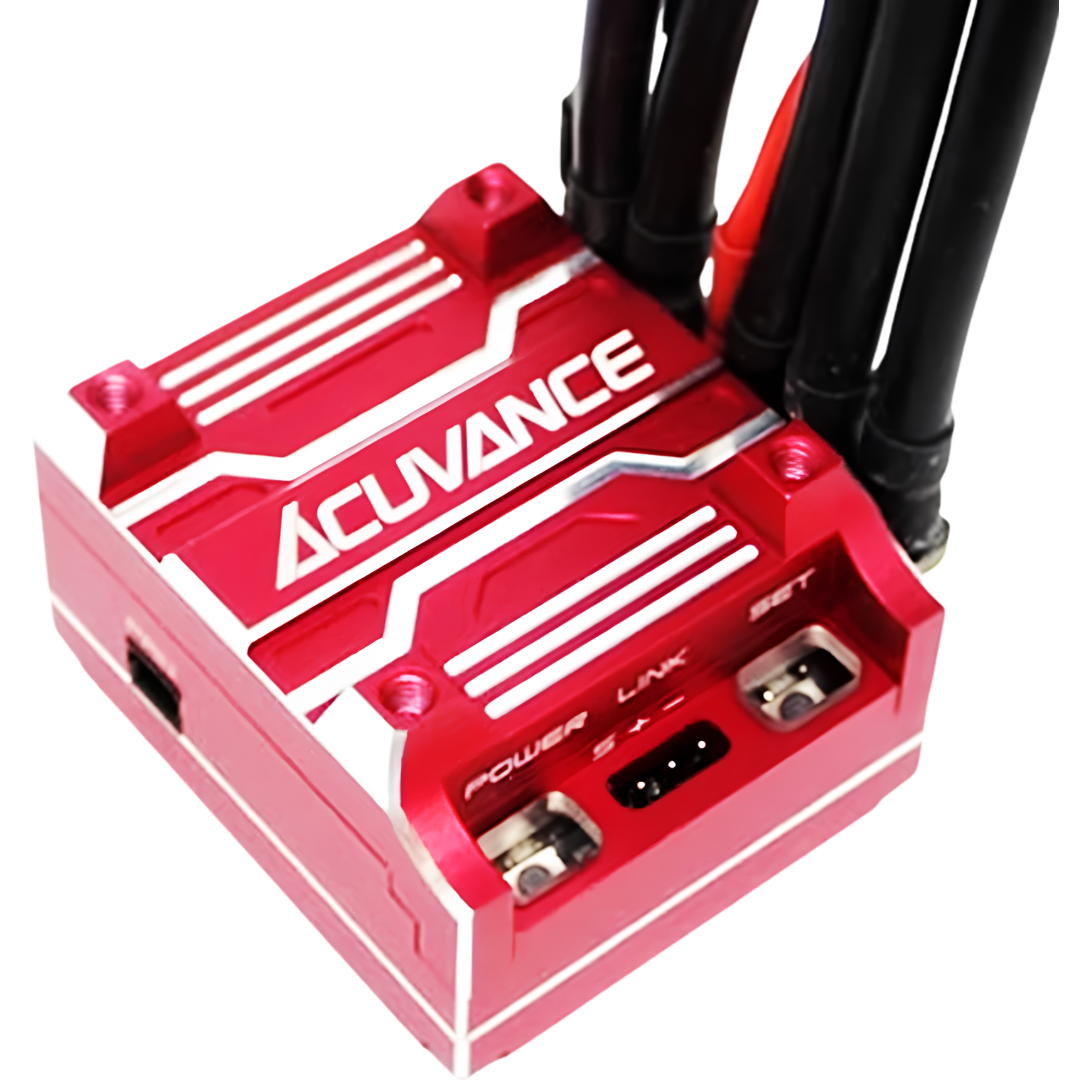

Acuvance XARVIS XX Sensored Brushless 1/10 RC Drift ESC Red XARVIS-XX/RD

The Acuvance XARVIS XX is a high-performance sensored brushless electronic speed controller developed for precise 1/10 RC drift applications. Its advanced power delivery smooth throttle response and extensive tuning support provide the control required for competitive driving.

Features

• High-performance FET technology delivers strong output and efficient operation
• Reverse-polarity protection circuit helps protect the ESC from incorrect battery connection
• Alert LED indicates when reverse polarity is detected
• Switchable 6.0V or 7.4V BEC output supports a wide range of receivers and servos
• Two dedicated power terminals support compatible Acuvance cooling fans
• Acuvance 3D bridge design raises the cooling fan above the ESC for improved airflow
• Dedicated capacitor terminal allows easier installation and wiring
• Onboard setting button provides access to basic adjustments
• Compatible with optional TAO III Smart Access for expanded tuning options
• Supports compatible Futaba S.BUS transmitter programming with the required adapter and firmware
• LED indicator confirms when boost and turbo functions are disabled

Specifications

• Brand: Acuvance
• Model: XARVIS XX
• Product Type: Sensored brushless electronic speed controller
• Input Voltage: 6.0V to 8.5V
• Compatible Motor: Sensored brushless motor
• Motor Turn Limit: No limit when boost and turbo are disabled
• Continuous and Peak Current: Up to the maximum current supplied by the battery
• Power Cable Size: AWG 12
• BEC Output: 6.0V at 5A or 7.4V at 5A
• Dimensions: 30.5 x 35.0 x 20.5mm excluding protrusions
• ESC Weight: 47.2g
• Colour: Red
• SKU: XARVIS-XX/RD

Includes

• 1 x Acuvance XARVIS XX ESC
• 1 x 200mm flexible black sensor cable
• 1 x 200mm black receiver cable
• 2 x Double-sided mounting tape pieces
• 1 x Heat-shrink tube for silicone cable
• 2 x 4mm high-current battery connectors
• 1 x Instruction manual

Important Notes

• TAO III Smart Access Futaba S.BUS adapters and other programming accessories are sold separately
• Only compatible Acuvance fans should be connected to the dedicated ESC fan terminals
• Firmware updates may be required to access selected programming and transmitter communication functions
