ARRMA Adjustable Aluminium Steering Link Set Suits GRANITE and TYPHON GROM ARA340208

Upgrade or replace the steering linkage on a compatible ARRMA GROM vehicle with the genuine ARRMA ARA340208 Adjustable Steering Link Set. The threaded anodised aluminium turnbuckles allow the front toe angle to be adjusted, helping owners fine-tune steering response and wheel alignment.

The set also includes a durable composite steering servo link, precision-manufactured pivot balls and the required cap-head mounting screws. It is suitable for replacing damaged factory steering links or adding adjustment to supported GRANITE GROM and TYPHON GROM models.

Features

• Genuine ARRMA adjustable steering link set
• Threaded anodised aluminium turnbuckles
• Allows front toe-angle adjustment
• Helps fine-tune steering response and wheel alignment
• Strong composite servo link for long-lasting durability
• Precision manufactured for consistent steering operation
• Includes pivot balls and mounting screws
• Ideal replacement for bent, damaged or non-adjustable factory links
• Suitable for compatible ARRMA GROM vehicles

Specifications

• Brand: ARRMA
• Product: Adjustable Steering Link Set
• Manufacturer Part Number: ARA340208
• Product Type: Adjustable steering linkage
• Steering Link Material: Anodised aluminium
• Servo Link Material: Composite
• Adjustment: Front toe angle
• Turnbuckle Quantity: 2
• Servo Link Quantity: 1
• Barcode: 5052127047074

Compatibility

• ARRMA GRANITE GROM ARA2102T1
• ARRMA GRANITE GROM ARA2102T2
• ARRMA GRANITE GROM ARA2102T3
• ARRMA TYPHON GROM ARA2106
• ARRMA TYPHON GROM ARA2106T1
• ARRMA TYPHON GROM ARA2106T2
• Other ARRMA GROM vehicles that specify ARA340208 in the official parts list or exploded diagram

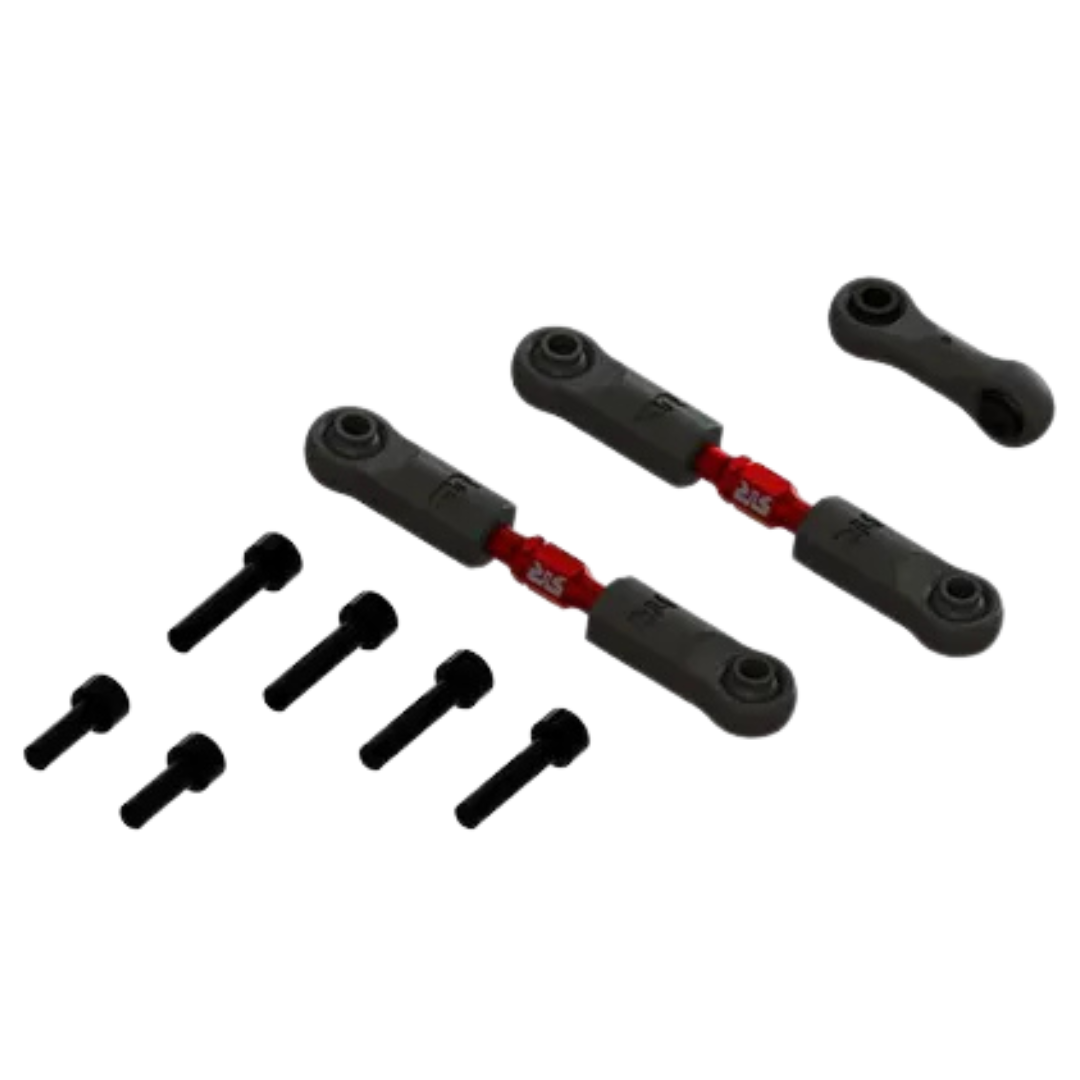

Includes

• 2 × Anodised aluminium adjustable steering links
• 1 × Composite steering servo link
• 2 × M2.5 × 8mm cap-head screws
• 4 × M2.5 × 12mm cap-head screws
• 2 × 4.8 × 4.9 × 2.5mm pivot balls
• 4 × 5.3 × 5.9 × 2.5mm pivot balls

FAQ

What can be adjusted with ARA340208? The threaded aluminium steering links allow the front toe angle to be adjusted. This changes the direction the front wheels point relative to each other when viewed from above.

Does the set include two steering turnbuckles? Yes. It includes two adjustable anodised aluminium steering links, one for each front wheel.

Is the steering servo link included? Yes. A composite steering servo link and its matching pivot balls and mounting screws are included.

Does ARA340208 fit the GRANITE GROM ARA2102? It is compatible with the listed ARA2102T1, ARA2102T2 and ARA2102T3 GRANITE GROM variants. Confirm the part number in the diagram for any other version.

Does it fit the TYPHON GROM? Yes. It is compatible with the listed ARA2106, ARA2106T1 and ARA2106T2 TYPHON GROM models.

Are the links made entirely from aluminium? The two adjustable steering turnbuckles are aluminium. The included steering servo link is made from durable composite material.

How should the toe angle be set? Begin with both steering links adjusted to equal lengths and use the vehicle manual’s factory alignment as the baseline. Make small, equal adjustments and check that the steering remains centred and moves freely.

Do the links need to be removed for adjustment? Adjustment may be possible while installed, depending on tool access. Ensure the turnbuckles are rotated in the correct direction and avoid forcing the rod ends against their normal range of movement.

Will this set repair steering play? It can replace worn or damaged links and pivot balls, but steering play may also come from worn hubs, servo-saver components, bellcranks or servo gears. Inspect the complete steering system during installation.

Important Notes

• Confirm ARA340208 in your vehicle manual or exploded parts diagram before purchasing.
• Record or measure the original steering-link lengths before removing the factory parts.
• Adjust both sides evenly to avoid incorrect wheel alignment.
• Ensure the servo is centred before setting the final steering-link lengths.
• Check that the steering moves through its full range without binding.
• Do not overtighten screws installed into composite components.
• Wheels, hubs, steering bellcranks, servo and installation tools are not included.
