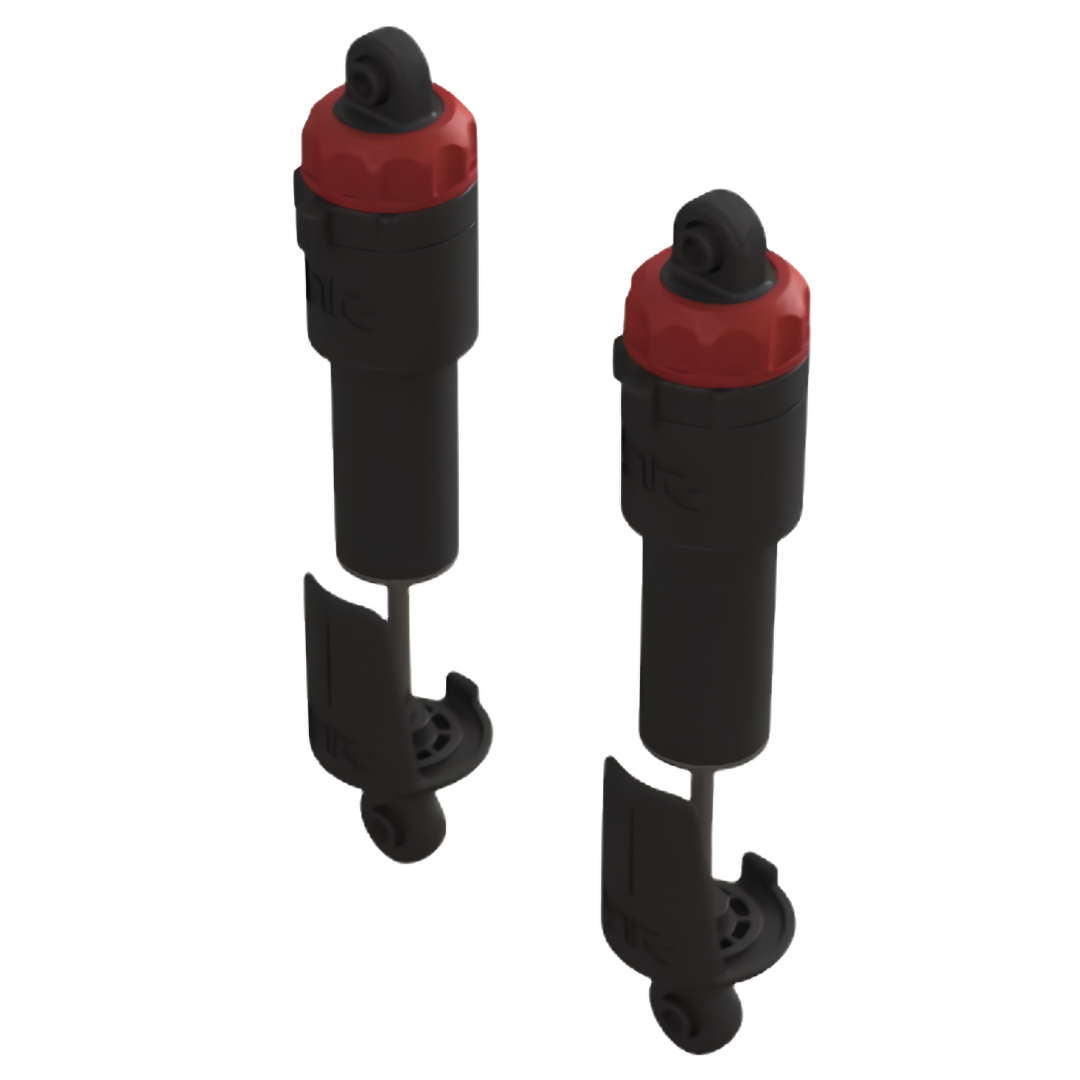

ARRMA Complete Rear Shock Set 116mm 500cSt Suits GORGON ARA330756
Couldn't load pickup availability
Restore the rear suspension performance of your ARRMA GORGON with this genuine ARRMA complete shock absorber set. Designed as a direct factory replacement, the pair of composite oil-filled shocks is supplied assembled and ready for installation.
Each shock features an 11mm bore, 116mm overall length and factory-specification 500cSt silicone shock oil. Replacing worn, leaking or damaged rear shocks helps restore consistent damping, ride height and handling across dirt, gravel, grass and other common bashing surfaces.
Features
- Genuine ARRMA replacement suspension part
- Designed for the rear suspension of compatible ARRMA GORGON vehicles
- Supplied as a matched pair of complete shock absorbers
- Factory-assembled for quick installation
- Composite shock bodies provide durable everyday performance
- Oil-filled design provides controlled suspension damping
- Pre-filled with factory-specification 500cSt silicone shock oil
- 11mm shock bore
- 116mm overall shock length
- Ideal for replacing worn, leaking, bent or impact-damaged rear shocks
- Helps restore factory suspension response and vehicle handling
Specifications
- Brand: ARRMA
- Product: Complete Rear Shock Set
- Manufacturer Part Number: ARA330756
- Product Type: Oil-filled RC shock absorbers
- Position: Rear
- Shock Body Material: Composite
- Shock Bore: 11mm
- Overall Length: 116mm
- Shock Oil: 500cSt silicone oil
- Assembly: Pre-assembled and oil-filled
- Quantity: 2 shock absorbers
Compatibility
- ARRMA GORGON 2WD vehicles using rear shock set ARA330756
- May also suit later ARRMA vehicles that list ARA330756 in their official exploded parts diagram
Includes
- 2 × ARRMA complete 116mm rear shock absorbers
FAQ
Does ARA330756 include one shock or two? The package contains two complete shock absorbers for the rear of the vehicle.
Are the shocks supplied assembled? Yes. The shocks are supplied assembled and oil-filled for straightforward installation.
What shock oil is used? The shocks are filled with 500cSt silicone shock oil, matching the published factory specification.
What size are the shocks? Each shock has an 11mm bore and an overall length of approximately 116mm.
Will these fit the front of the ARRMA GORGON? ARA330756 is identified as the rear shock set in the GORGON exploded view. Use the separately listed front shock part number when replacing the front suspension.
Do I need to add shock oil before installation? No. The shocks are supplied oil-filled. Check each shock for smooth operation and confirm that no oil has leaked during storage or transport before fitting.
When should RC shocks be replaced? Replacement may be required when a shock body, shaft, cap or mounting eye is damaged, when oil leakage continues after servicing, or when damping remains inconsistent between the left and right sides.
Should both rear shocks be replaced together? Replacing both as a matched pair helps maintain consistent rear suspension damping and ride height, particularly when the existing shocks have significant wear.
Important Notes
- Confirm ARA330756 in your vehicle manual or exploded parts diagram before ordering.
- This set is intended for the rear suspension position on compatible ARRMA GORGON vehicles.
- Inspect the shock mounting screws, suspension arms and shock towers for damage before installation.
- Check that both shocks move smoothly through their full travel after fitting.
- Do not overtighten the mounting screws, as the shock eyes must remain free to pivot.
- Vehicle, tools and additional suspension components are not included.
