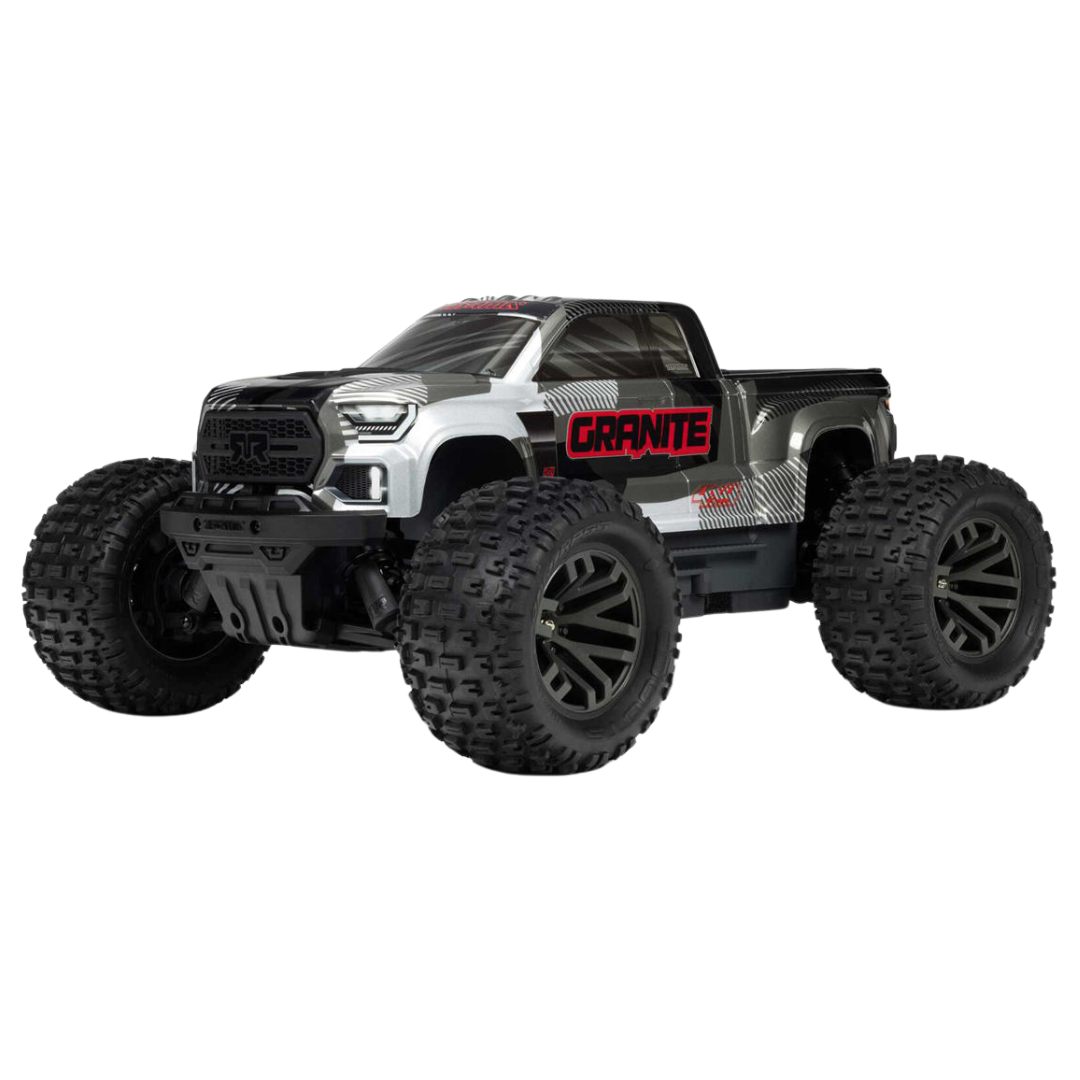

ARRMA GRANITE 223S BLX V4 RC Monster Truck 1/10 4X4 RTR Gunmetal ARA4302V4T3

The ARRMA GRANITE 223S BLX V4 is a ready-to-run 1/10 scale brushless RC monster truck for drivers who want beginner-friendly control with the option to progress to powerful 3S performance.

Install a compatible 2S hardcase LiPo battery for more manageable performance and speeds exceeding 56km/h, then move to a 3S battery to unlock its 80km/h-plus potential. The included Spektrum SLT3 transmitter offers selectable 50%, 75% and 100% throttle limits, allowing the truck’s performance to be matched to the driver’s experience.

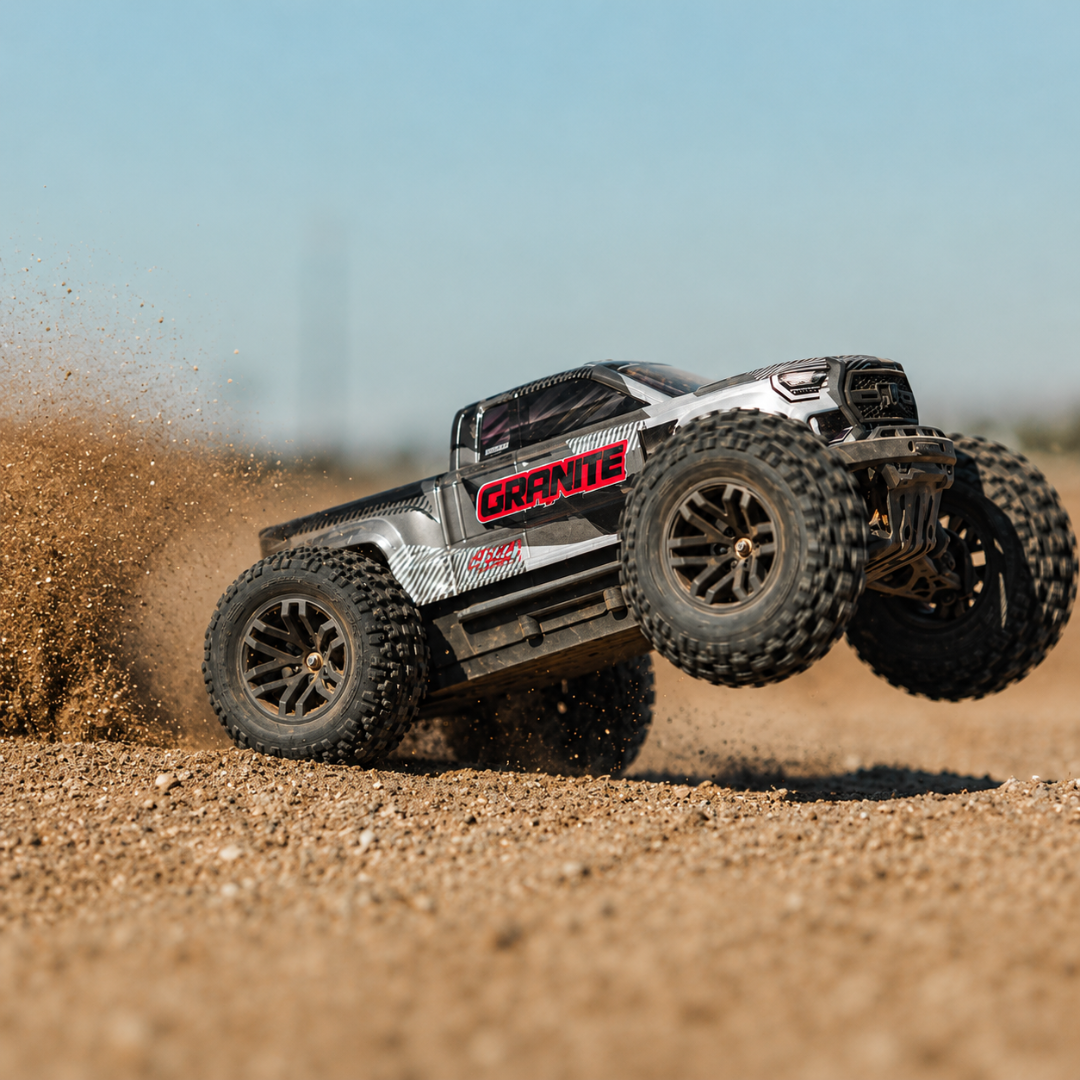

Spektrum Dynamic Stability Control provides four selectable assistance modes to help maintain direction on loose or slippery surfaces. A heavy-duty 4X4 drivetrain, metal-gear centre differential, independent suspension and adjustable oil-filled shocks prepare the GRANITE for dirt, gravel, short grass, jumps and general off-road bashing.

Features

• 2S and 3S Compatibility: Progress from manageable 2S performance to full 3S speed without replacing the electronics
• 35+ MPH on 2S: Capable of speeds exceeding approximately 56km/h with a suitable 2S LiPo battery
• 50+ MPH on 3S: Capable of speeds exceeding approximately 80km/h with a suitable 3S LiPo battery
• Spektrum 3100kV Brushless Motor: Delivers strong acceleration and high-speed off-road performance
• 35mm Motor Cooling Fan: Helps manage motor temperature during demanding driving
• Spektrum SLT 80A 2-in-1 Unit: Combines the waterproof brushless ESC and receiver
• Dynamic Stability Control: Four selectable DSC modes provide steering assistance when required
• Selectable Throttle Limiting: Choose 50%, 75% or 100% maximum throttle from the transmitter
• Spektrum SLT3 Radio: Included 2.4GHz three-channel transmitter provides reliable control
• Spektrum S662 Steering Servo: Waterproof digital servo with metal gears and a 25-tooth output spline
• Heavy-Duty 4X4 Drivetrain: Transfers brushless power to all four wheels
• All-Metal Centre Differential: Distributes power between the front and rear drivetrains
• Removable Centre Differential Module: Designed to simplify routine servicing

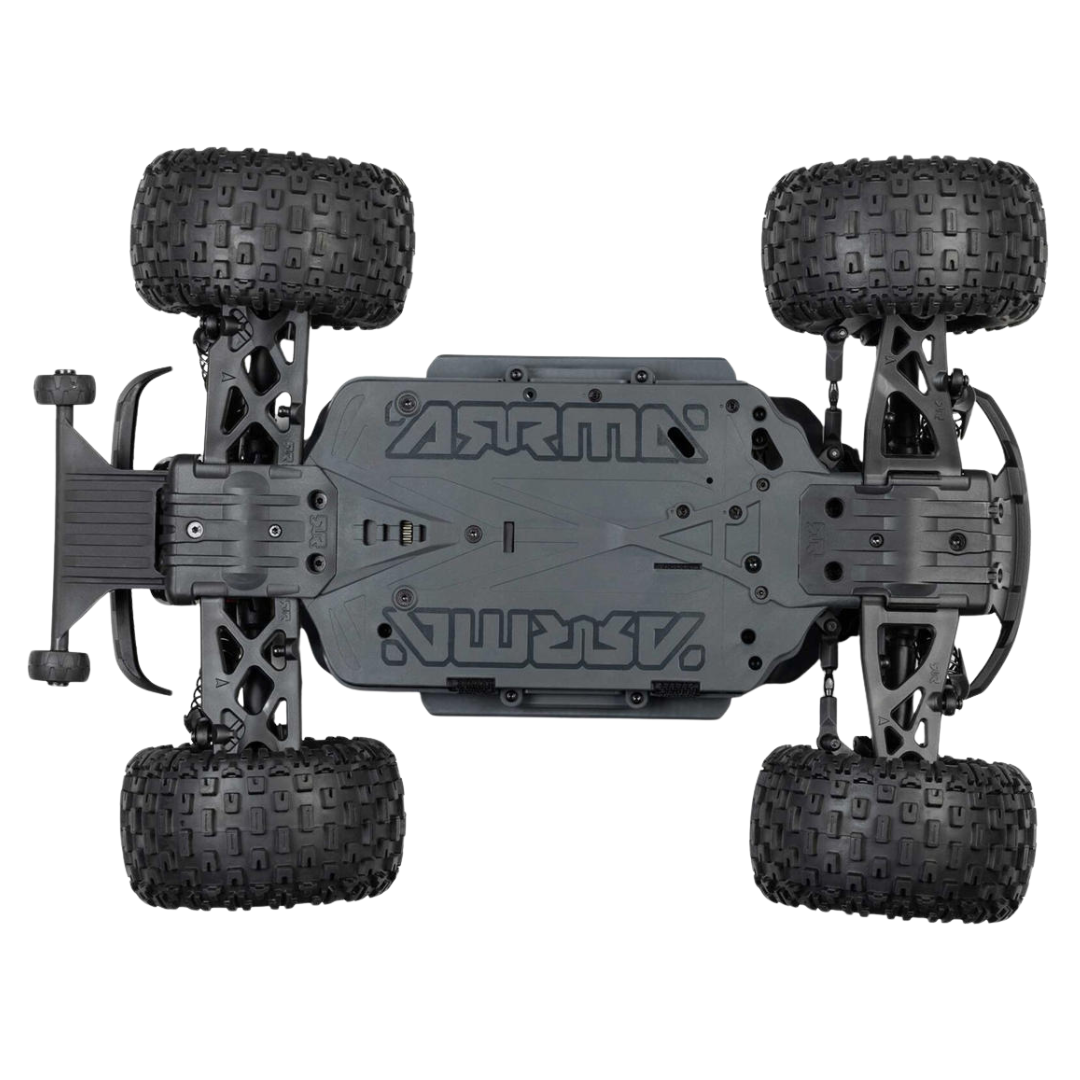

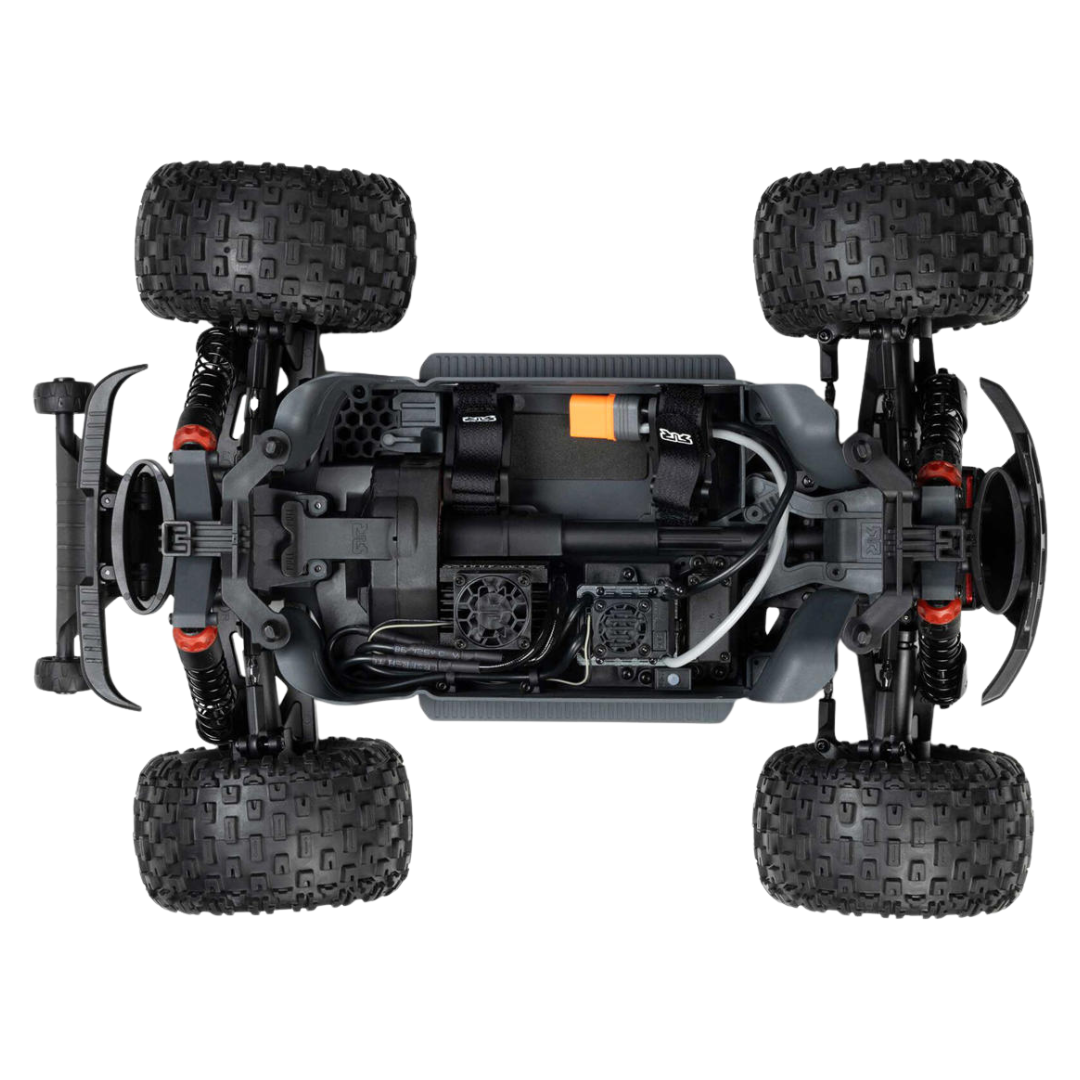

• Ventilated Composite Chassis: Combines structural strength with improved airflow
• Raised Chassis Side Guards: Help reduce dirt and debris entering the chassis tub
• Centre Driveshaft Stone Guard: Helps prevent stones from interfering with the centre driveline
• Independent All-Terrain Suspension: Allows each wheel to react separately over rough surfaces
• Adjustable Oil-Filled Shocks: Provide controlled damping for bumps, jumps and landings

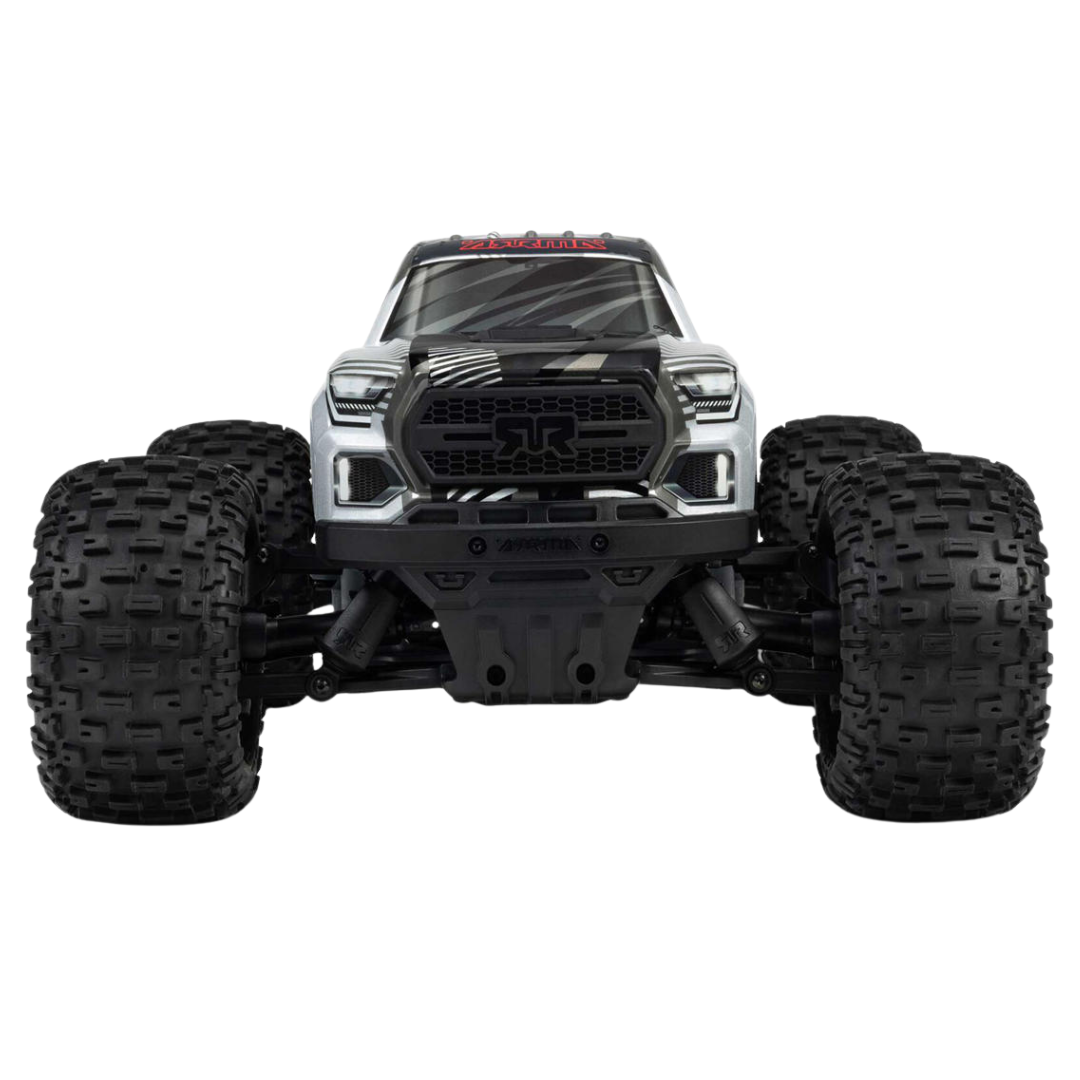

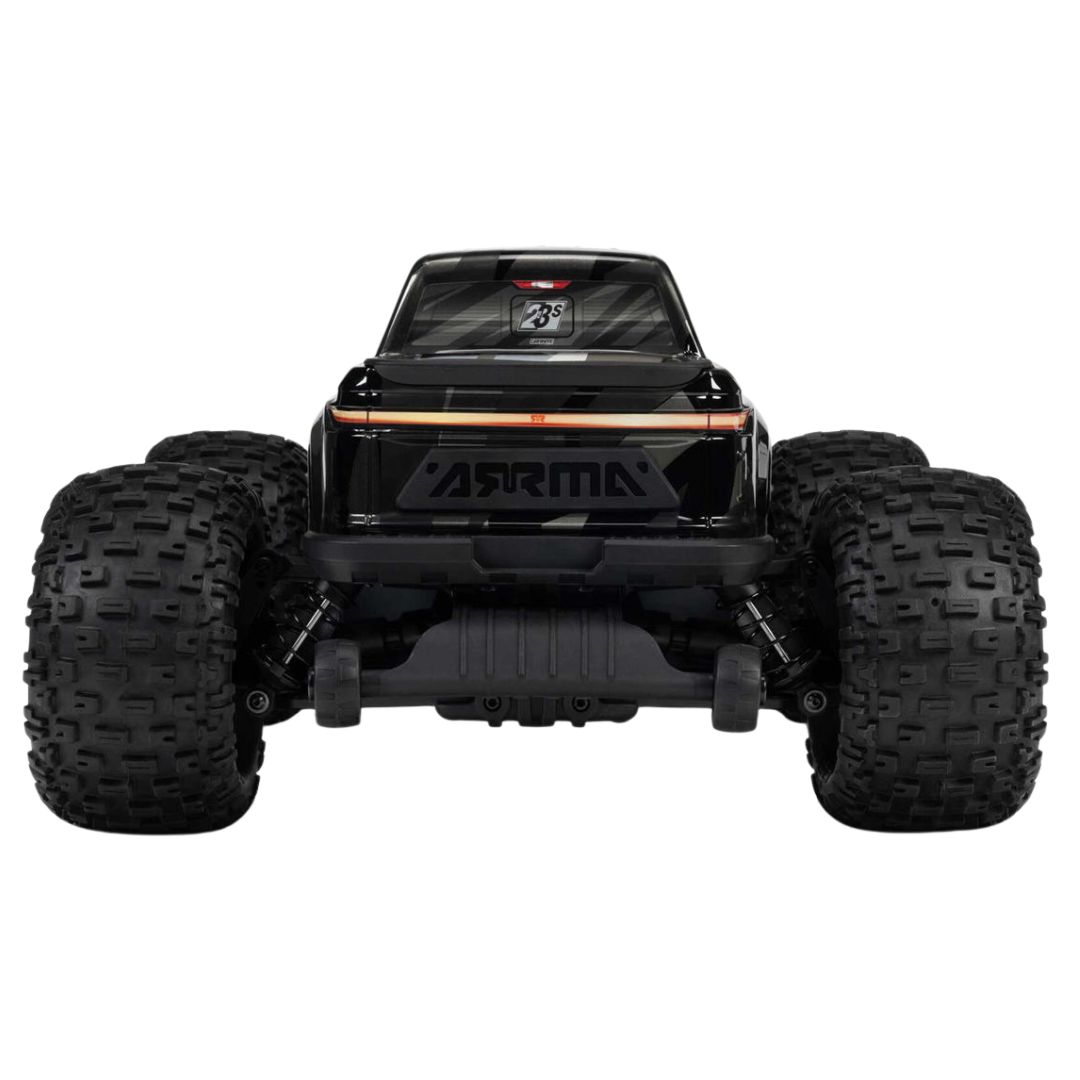

• Impact-Absorbing Bumpers: Help protect the chassis during front and rear impacts

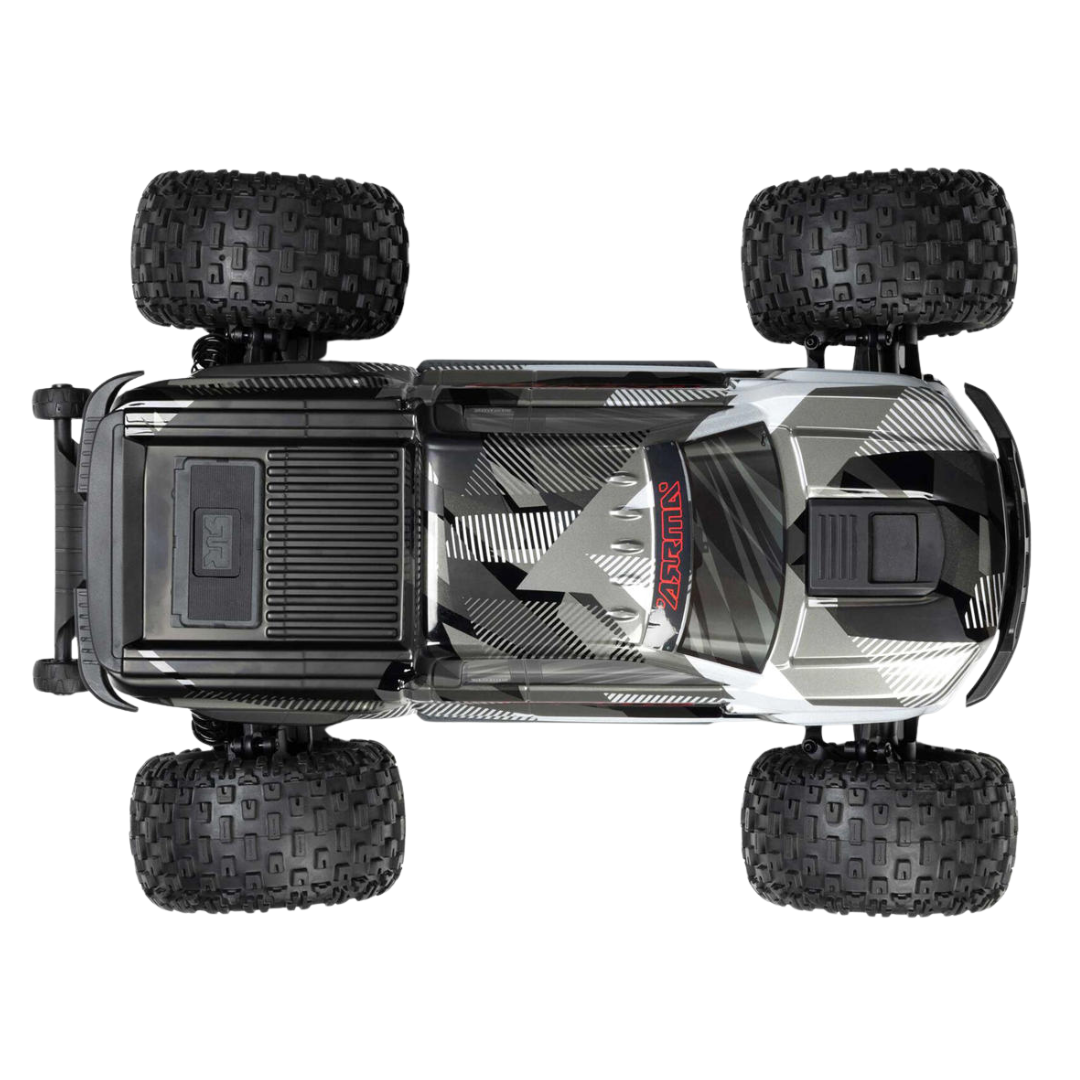

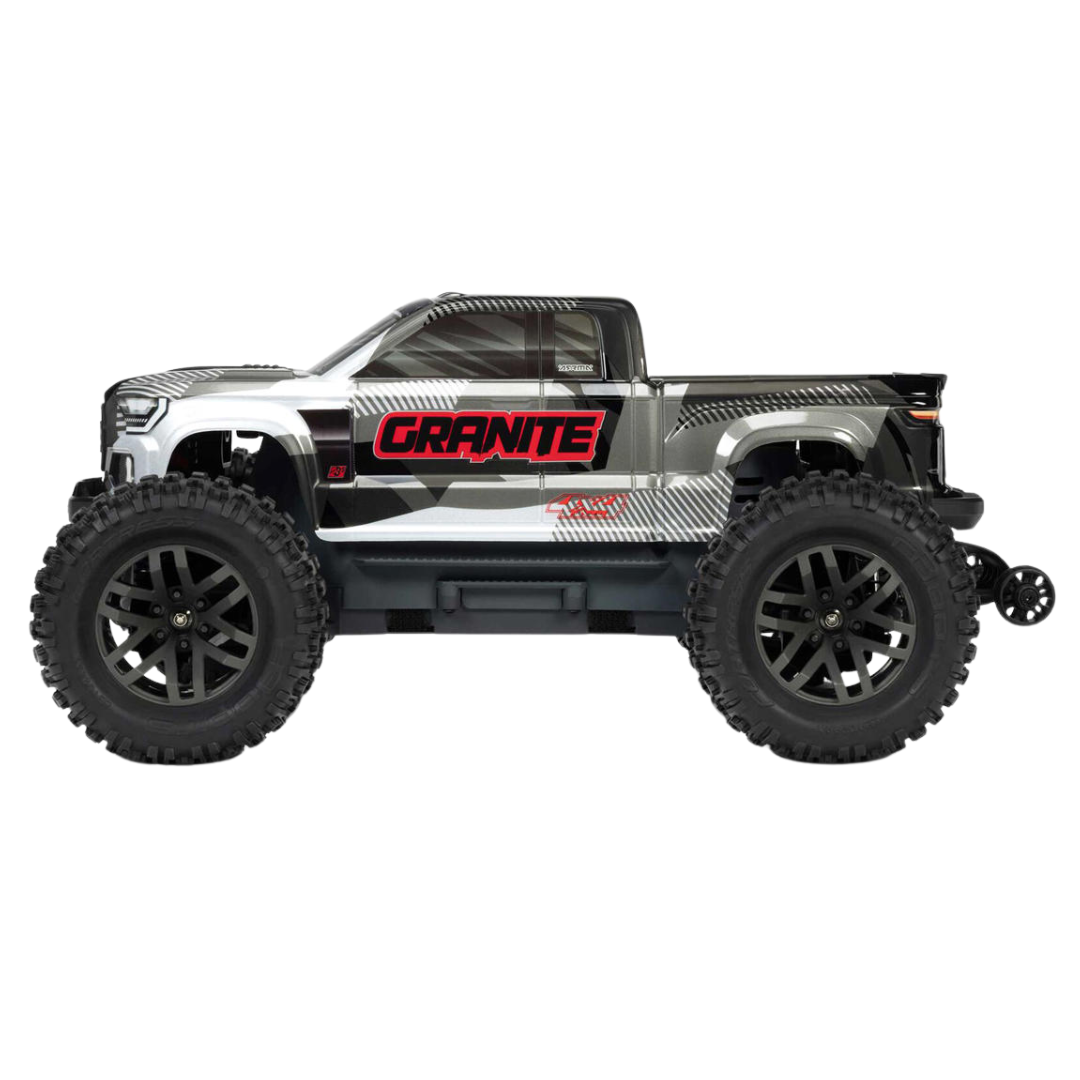

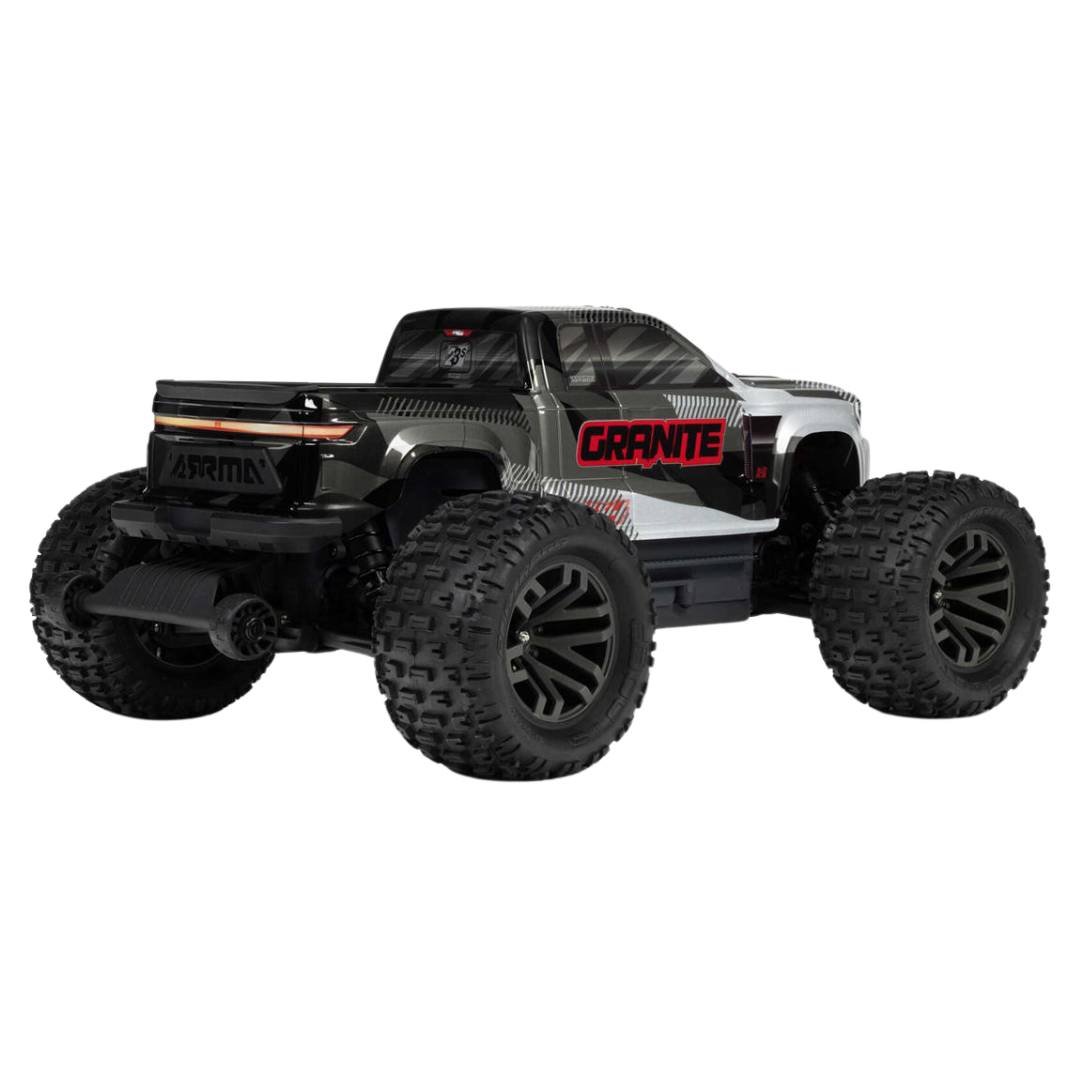

• Gunmetal Body: Supplied painted, decaled and trimmed
• Hidden Clipless Body Retention: Provides quick chassis access without exposed body clips
• dBoots Fortress MT Tyres: Aggressive tread provides traction across mixed off-road surfaces
• Multi-Spoke Monster Truck Wheels: Support the wide all-terrain tyres
• Composite Wheelie Bar: Helps control wheelies during hard acceleration
• Water-Resistant Electronics: Designed for varied off-road running conditions
• Ready-to-Run Assembly: Brushless system, radio equipment and steering servo are factory installed
• Transmitter Batteries Included: Four AA batteries are supplied for the SLT3 transmitter

Specifications

• Brand: ARRMA
• Model: GRANITE 223S BLX V4
• Manufacturer Part Number: ARA4302V4T3
• Colour: Gunmetal
• Product Type: Electric RC Monster Truck
• Scale: 1/10
• Completion Level: Ready to run
• Power System: ARRMA 223S
• Power Source: Electric brushless
• Drive System: Shaft-driven 4X4
• Motor: Spektrum 3100kV sensorless brushless motor
• Motor Cooling: 35mm cooling fan
• Electronic Speed Controller: Spektrum SLT 80A waterproof 2-in-1 ESC and receiver
• LiPo Compatibility: 2S or 3S
• Nominal Battery Voltage: 7.4V or 11.1V
• Maximum Battery Input: 3S LiPo
• Battery Connector: IC5
• Battery Tray Dimensions: 139mm × 51mm × 48mm
• Radio System: Spektrum SLT3 2.4GHz three-channel transmitter
• Throttle Limiting: 50%, 75% and 100%
• Stability Assistance: Spektrum Dynamic Stability Control
• DSC Settings: Four selectable modes, including off
• Steering Servo: Spektrum S662 waterproof digital servo
• Servo Gearing: Metal
• Servo Output Spline: 25-tooth
• Centre Differential: All-metal gear differential
• Suspension: Independent all-terrain suspension
• Shock Type: Adjustable oil-filled coilover
• Tyres: dBoots Fortress MT all-terrain tyres
• Wheel Hex: 12mm
• Body: Painted, decaled and trimmed
• Body Mounting: Hidden clipless retention system
• Length: 470mm
• Width: 340mm
• Height: 204mm
• Wheelbase: 284mm
• Approximate Weight: 3.47kg without drive battery
• Maximum Advertised Speed on 2S: Over 56km/h
• Maximum Advertised Speed on 3S: Over 80km/h
• Water Resistance: Yes, subject to the maintenance requirements in the instruction manual

Compatibility

• Compatible with one suitable 2S hardcase LiPo battery for reduced speed and easier control
• Compatible with one suitable 3S hardcase LiPo battery for maximum advertised performance
• Battery must fit within the 139mm × 51mm × 48mm battery tray
• Battery should use an IC5 connector or a correctly rated compatible connection system
• Compatible with selected Spektrum Smart hardcase LiPo batteries equipped with IC5 connectors
• Compatible with LiPo balance chargers rated for the selected 2S or 3S battery
• Compatible with genuine ARRMA GRANITE 223S V4 replacement and upgrade parts
• Replacement bodies must be designed for the GRANITE V4 clipless mounting system
• Replacement wheels and tyres must use compatible 12mm hexes, offset and chassis clearance

Includes

• 1 × ARRMA GRANITE 223S BLX V4 4X4 RTR monster truck in gunmetal
• 1 × Installed Spektrum SLT 80A waterproof 2-in-1 ESC and receiver with DSC
• 1 × Installed Spektrum 3100kV brushless motor
• 1 × Installed 35mm motor cooling fan
• 1 × Installed Spektrum S662 waterproof metal-geared digital steering servo
• 1 × Spektrum SLT3 2.4GHz three-channel transmitter
• 4 × AA transmitter batteries
• 4 × Factory-mounted dBoots Fortress MT tyres and multi-spoke wheels
• 1 × Installed composite wheelie bar
• 1 × 2.0mm hex driver
• 1 × 2.5mm hex driver
• Instruction manual

Required to Complete

• 1 × Compatible 2S or 3S hardcase LiPo battery with IC5 connector
• 1 × Compatible LiPo balance charger

FAQ

Does the ARRMA GRANITE 223S include a battery and charger? No. The truck includes its radio equipment and four AA transmitter batteries, but the main 2S or 3S LiPo battery and charger are sold separately.

What does 223S mean? The 223S power system supports both 2S and 3S LiPo batteries. Drivers can begin with manageable 2S power and progress to 3S without replacing the motor or speed controller.

How fast is the GRANITE 223S? ARRMA advertises speeds exceeding 35mph, or approximately 56km/h, on 2S and more than 50mph, or approximately 80km/h, on 3S. Actual speed varies with battery performance, terrain, temperature and vehicle condition.

Should a beginner use a 2S or 3S battery? A 2S battery is generally the better starting option. Combining 2S power with the transmitter’s 50% throttle setting makes the truck easier to control while the driver develops steering and braking skills.

What does the throttle limiter do? The SLT3 transmitter can restrict maximum throttle to 50% or 75%. Selecting 100% provides the full available output from the installed battery.

What is Dynamic Stability Control? DSC makes automatic steering corrections to help the truck maintain its intended direction on loose or slippery surfaces. The driver remains responsible for steering and throttle.

Can Dynamic Stability Control be switched off? Yes. The system provides four selectable modes, including an off setting for unassisted driving.

What size battery fits the GRANITE? Use a suitable hardcase 2S or 3S LiPo battery no larger than 139mm × 51mm × 48mm. Confirm the battery dimensions and connector before ordering.

Can a softcase LiPo battery be used? ARRMA specifies a hardcase LiPo battery. Its rigid outer casing provides additional physical protection during impacts and off-road operation.

Can the GRANITE use a 4S battery? No. The installed 223S electronics are rated for a maximum of 3S LiPo power.

Can it reach 50mph using a 2S battery? No. ARRMA rates the truck for 35mph-plus on 2S. The 50mph-plus claim requires a suitable 3S LiPo battery.

Does this model use a slipper clutch? The GRANITE 223S V4 uses an easy-to-remove all-metal centre differential rather than a conventional centre slipper assembly.

Can the GRANITE be driven on grass? It is suitable for short, dry grass. Long or thick grass creates considerably more resistance and can quickly increase motor, ESC and battery temperatures.

Are the installed electronics waterproof? The ESC and receiver unit and steering servo are described as waterproof. The truck should not be submerged and must be cleaned and dried after wet or muddy use.

What regular maintenance is required? Inspect the wheel nuts, tyres, suspension, driveshafts and chassis after each session. Remove trapped grass, stones and dirt, and allow the motor, ESC and battery to cool before another run.

Important Notes

• The main drive battery and charger are not included.
• Four AA batteries for the transmitter are included.
• Use one compatible 2S or 3S hardcase LiPo battery with an IC5 connector.
• Confirm that the battery fits within the 139mm × 51mm × 48mm tray before purchase.
• Do not install a 4S battery; the electronics are rated for a maximum of 3S LiPo power.
• The 35mph-plus speed claim applies to operation with a suitable 2S LiPo battery.
• The 50mph-plus speed claim requires a suitable 3S LiPo battery and appropriate running conditions.
• Beginner drivers should start with 2S power and the transmitter’s 50% throttle setting.
• DSC can improve stability but cannot prevent every rollover, collision or loss of control.
• Use a LiPo balance charger suitable for the selected battery’s cell count and connector.
• Never charge a LiPo battery unattended.
• Charge batteries on a non-flammable surface or inside a suitable LiPo charging container.
• Do not use or charge a swollen, damaged, punctured or excessively hot LiPo battery.
• Allow the battery, motor and ESC to cool between demanding runs.
• Monitor temperatures when driving through grass, in hot weather or during repeated full-throttle acceleration.
• Inspect the tyres and wheel nuts before every high-speed session.
• Operate in a clear area away from people, animals, roads, vehicles and fragile property.
• Water-resistant construction does not make the truck suitable for submersion.
• Clean and dry the truck after wet, dusty or muddy operation.
• Avoid salt water because it can rapidly corrode bearings, hardware and electrical connections.
• Manufacturer warranty coverage is subject to applicable regional terms and conditions.
