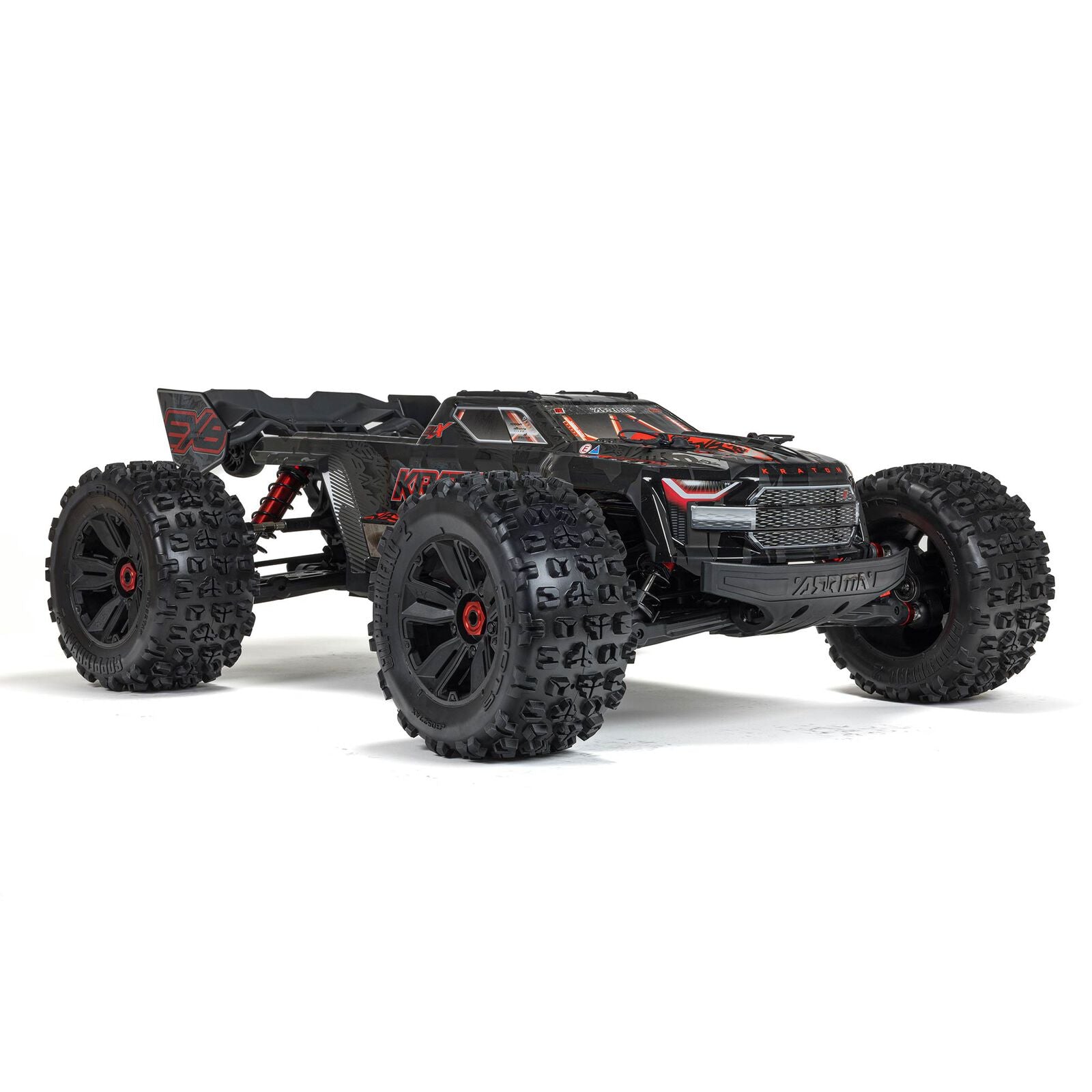

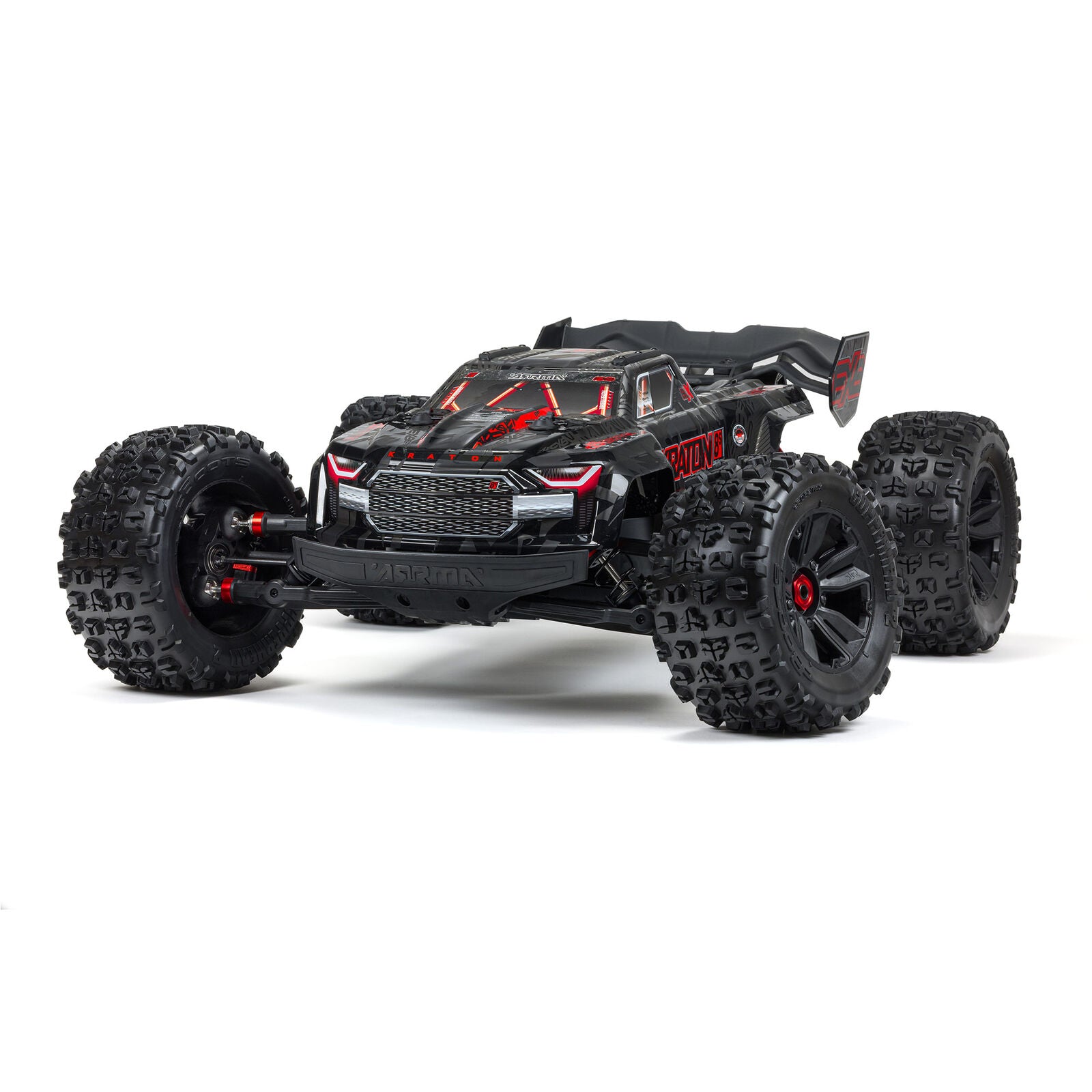

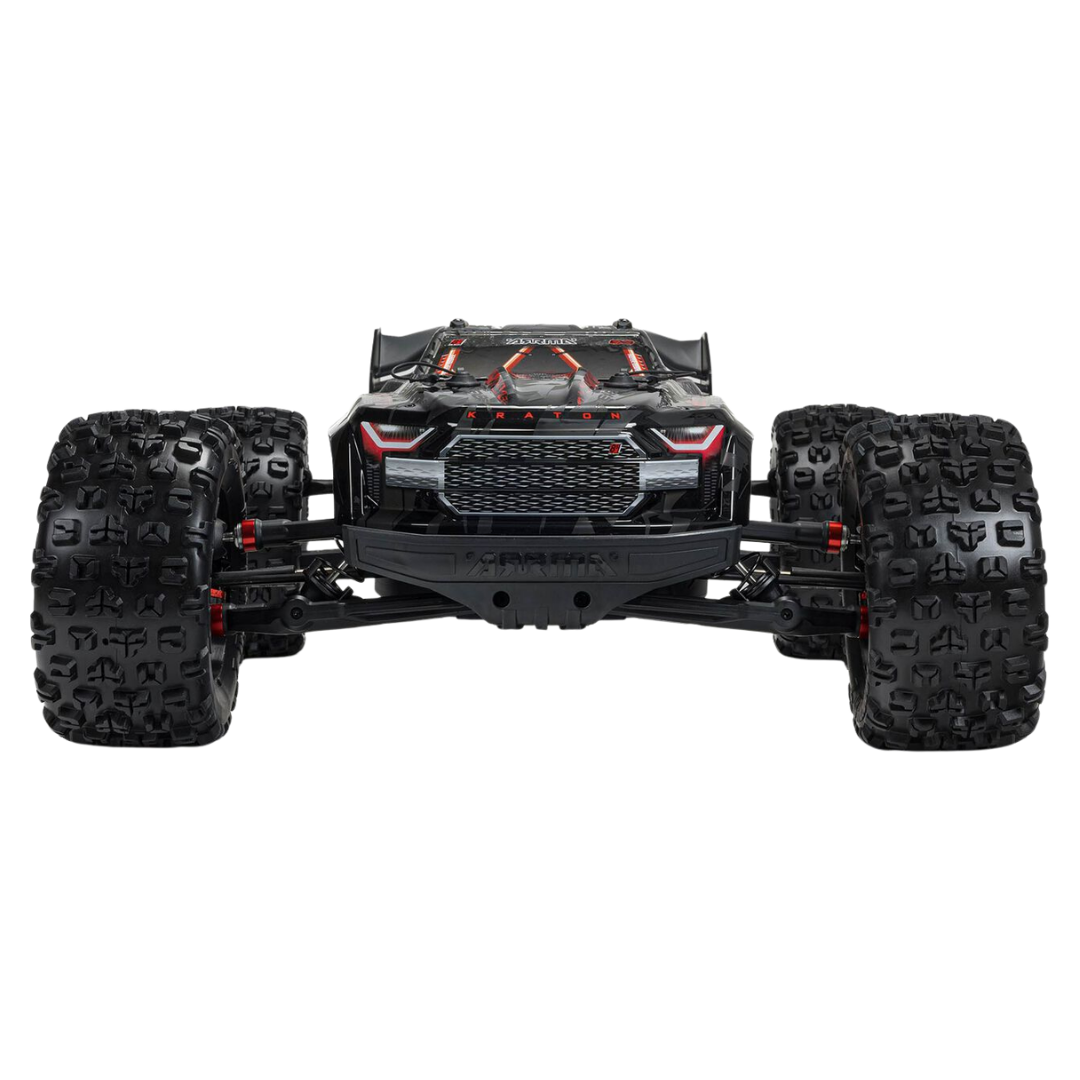

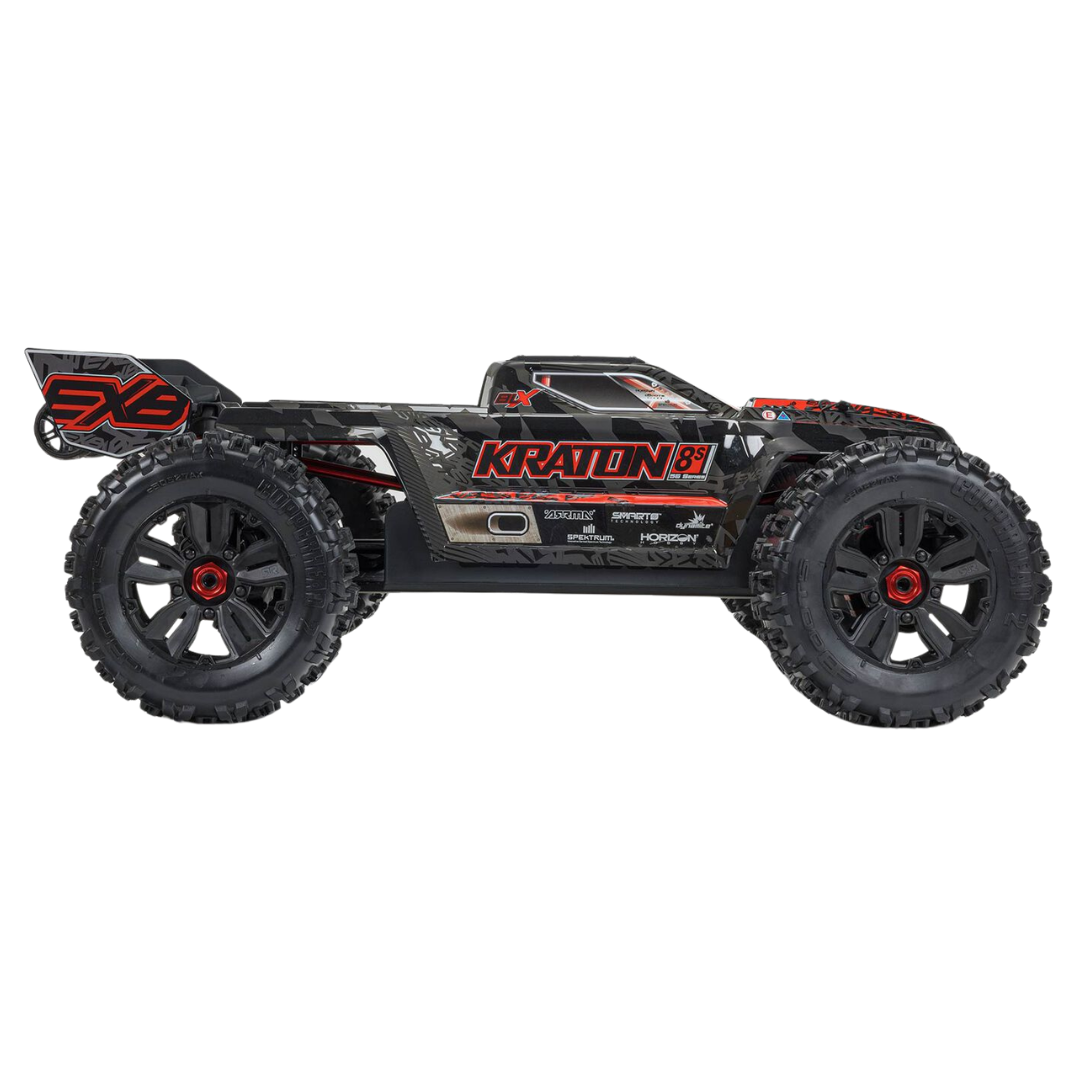

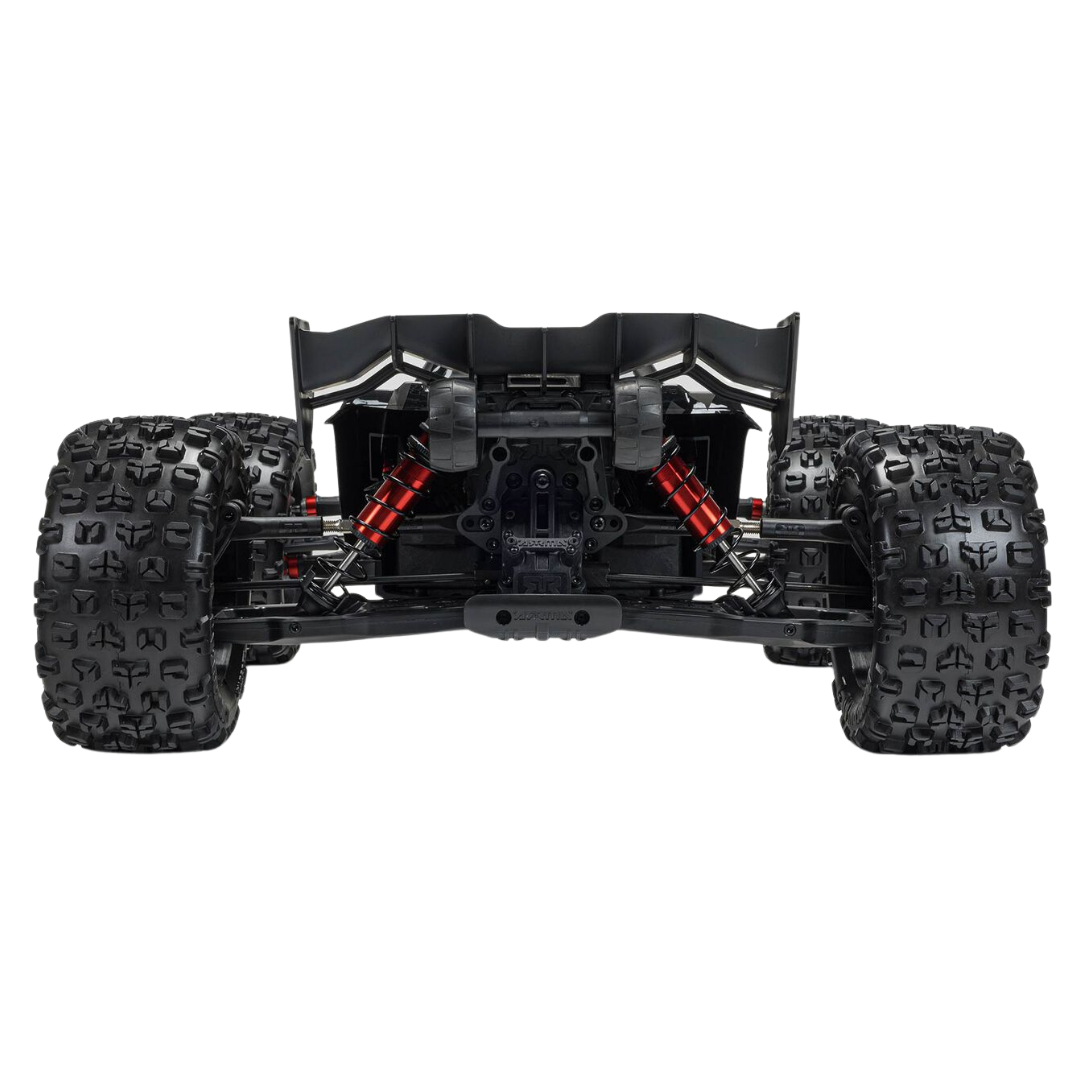

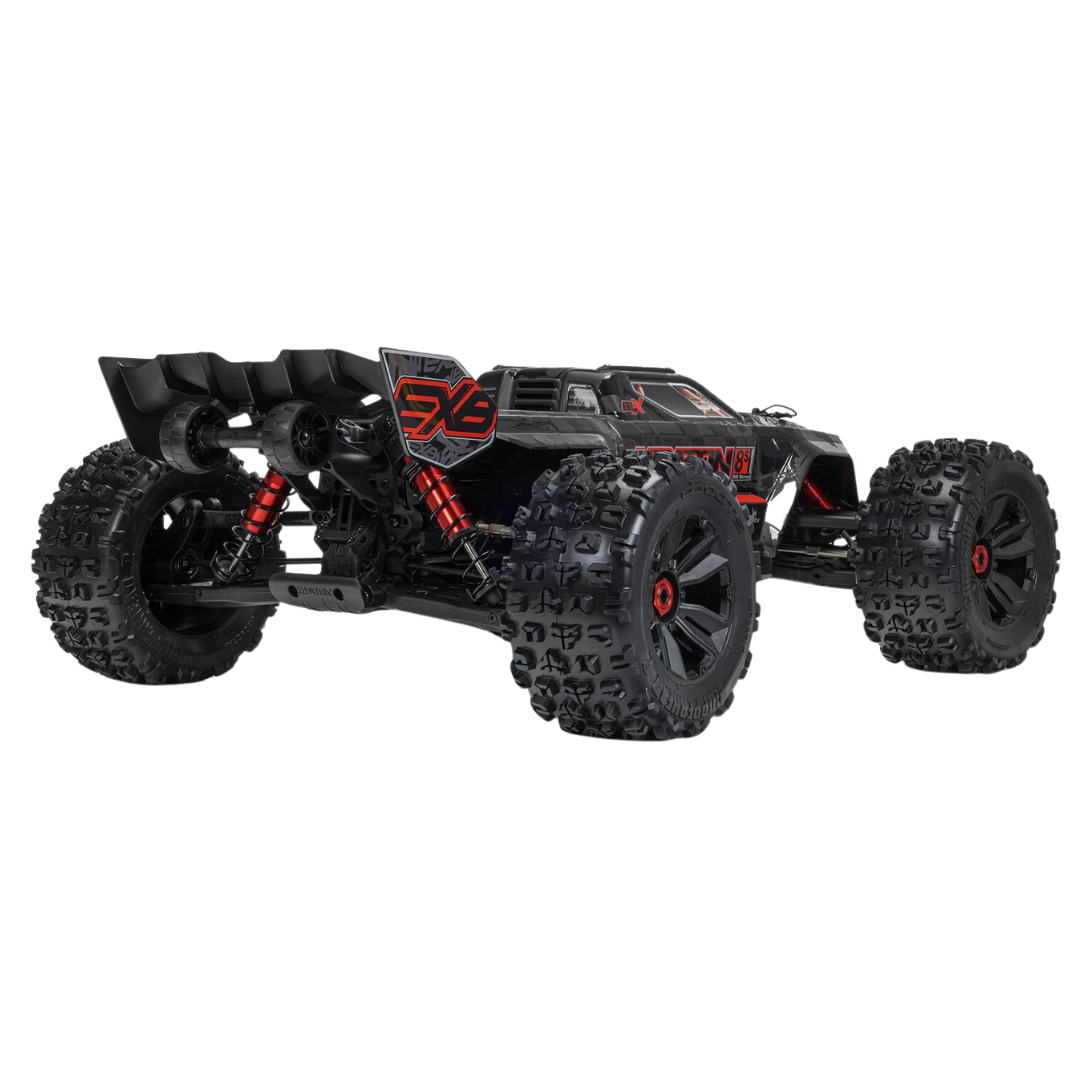

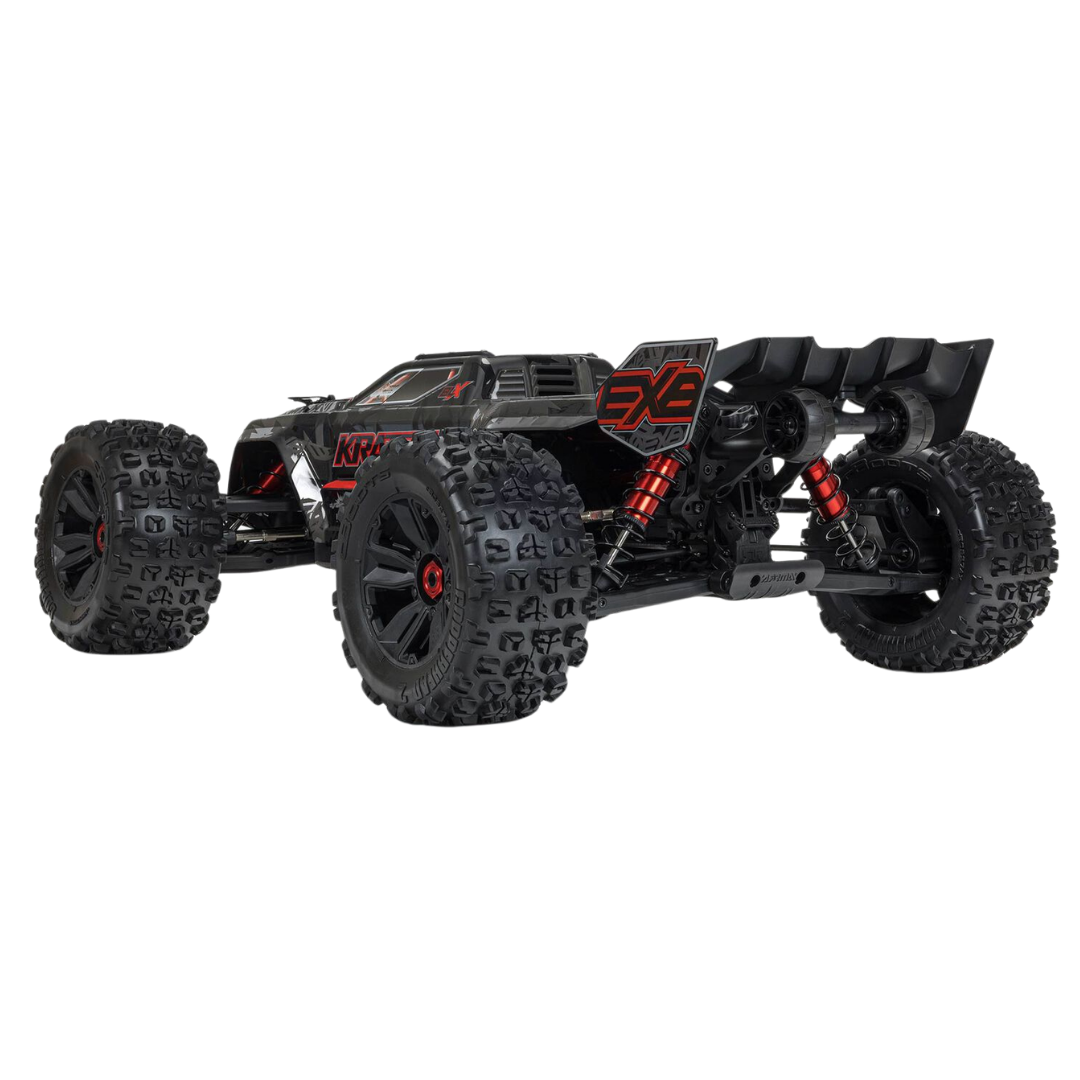

ARRMA KRATON 8S BLX EXB 1/5 4WD RTR Brushless Monster Truck Black ARA5808V2T1

Unleash large-scale RC bashing with the ARRMA KRATON 8S BLX EXB 1/5 4WD RTR Brushless Monster Truck in Black, ARA5808V2T1. Engineered for demanding off-road action, this EXtreme Bash monster truck combines an 8S-capable Spektrum brushless power system, reinforced 7075-T6 aluminium chassis and heavy-duty four-wheel-drive drivetrain.

The Spektrum Firma 5687 1100Kv brushless motor and Firma 160A V2 Smart ESC deliver the high-torque acceleration needed to move this massive 1/5-scale machine. Run two compatible 3S LiPo batteries for 6S operation or two compatible 4S LiPo batteries for full 8S performance.

ARRMA EXtreme Bash engineering includes a 5mm CNC-machined aluminium chassis plate, reinforced chassis components, steel driveshafts and all-metal differential internals. Large dBoots Copperhead 2 Big Block tyres, heavy-duty suspension, an impact-resistant front bumper and a wheelie bar help the KRATON tackle challenging off-road conditions.

The included Spektrum DX3 DSMR 2.4GHz transmitter and SR6200A receiver provide AVC Active Vehicle Control, which can assist with steering and throttle stability. A Spektrum S6510 waterproof steel-gear servo delivers powerful steering response.

This Ready-to-Run monster truck arrives assembled with its brushless electronics and radio system installed. Vehicle batteries and a compatible LiPo charger are required separately.

Features

• Massive 1/5-Scale Monster Truck: Large-scale performance for demanding RC bashing
• 8S-Capable Brushless Power: Supports two matching 3S or two matching 4S LiPo batteries
• Spektrum Firma 5687 1100Kv Brushless Motor: High-torque power for acceleration and off-road driving
• Spektrum Firma 160A V2 Smart ESC: High-current brushless electronic speed control
• Spektrum DX3 DSMR Radio: Included 2.4GHz transmitter for precise vehicle control
• Spektrum SR6200A AVC Receiver: Electronic stability assistance for steering and throttle
• Spektrum S6510 Waterproof Steel-Gear Servo: Heavy-duty steering performance
• EXtreme Bash Construction: Reinforced components engineered for aggressive driving
• 5mm 7075-T6 Aluminium Chassis: CNC-machined chassis plate for strength and rigidity
• Reinforced Chassis Bracing: Additional structural support during demanding use
• Heavy-Duty Steel Driveshafts: Designed to handle high-power brushless operation
• All-Metal Differential Internals: Durable drivetrain construction
• Four-Wheel Drive: Traction across suitable dirt, gravel and off-road surfaces
• Heavy-Duty Independent Suspension: Designed for large-scale off-road bashing
• Oil-Filled Shock Absorbers: Help absorb impacts and maintain vehicle control
• dBoots Copperhead 2 Big Block Tyres: Large off-road tyres for traction on loose and uneven terrain
• 24mm Wheel Hexes: Heavy-duty large-scale wheel mounting
• Wheelie Bar: Helps control the vehicle during hard acceleration
• Impact-Resistant Front Bumper: Additional protection for aggressive driving

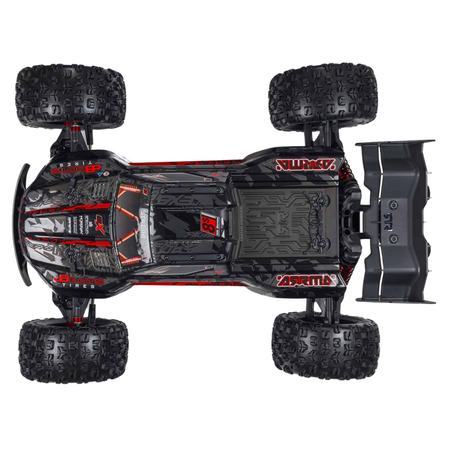

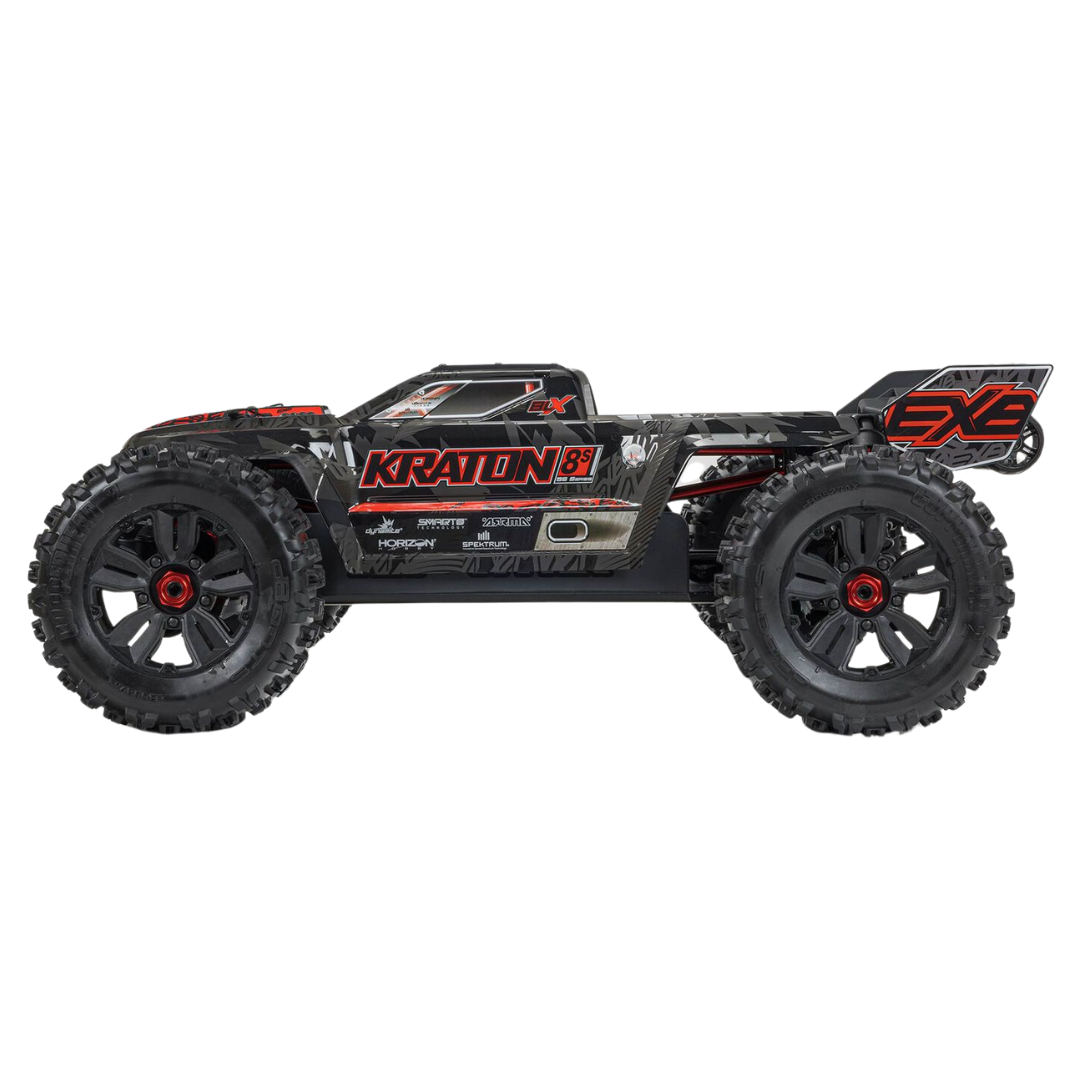

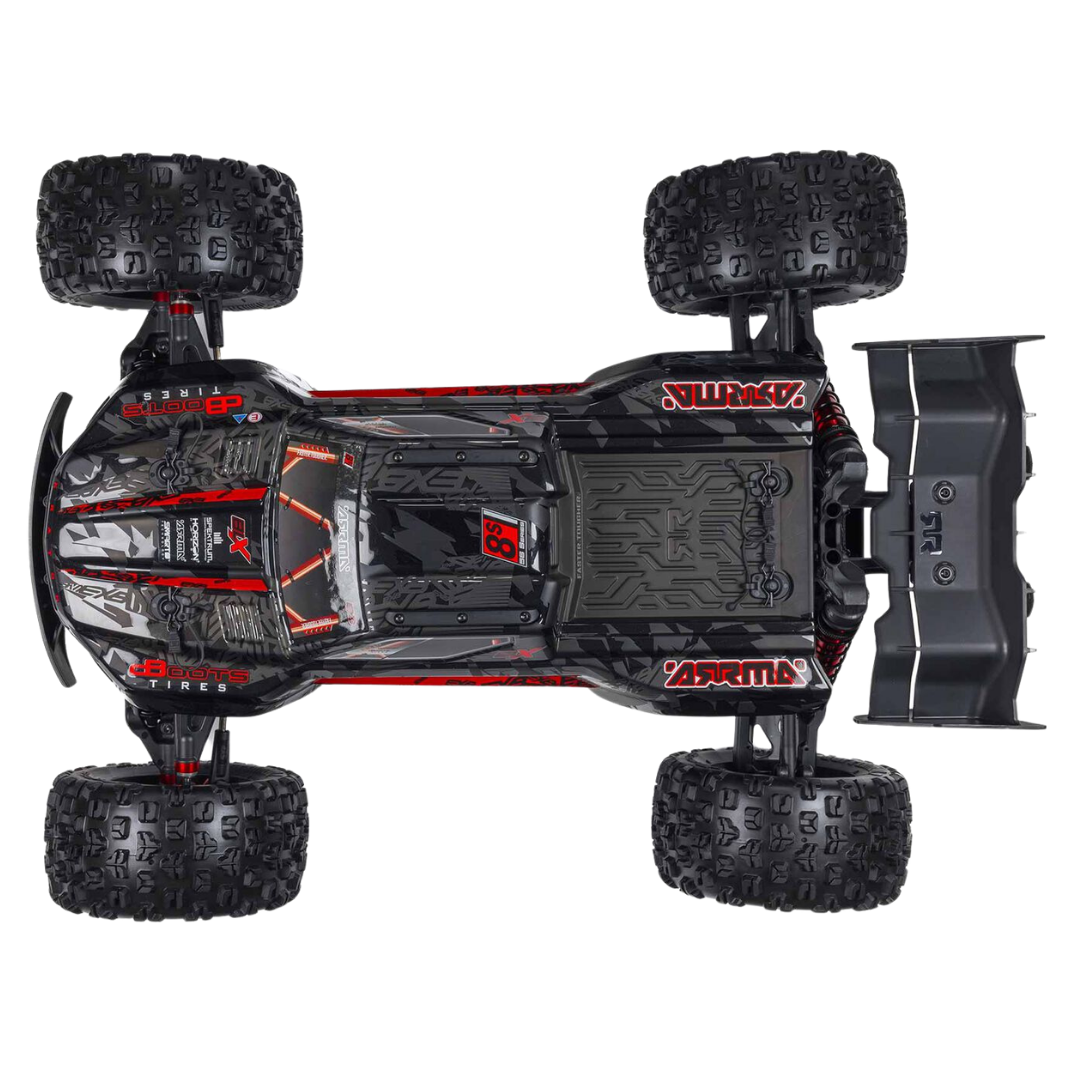

• Black EXB Body: Aggressive KRATON styling with EXtreme Bash graphics
• Ready-to-Run Assembly: Factory-assembled vehicle with installed electronics
• 24mm Wheel Wrench Included: Convenient wheel maintenance

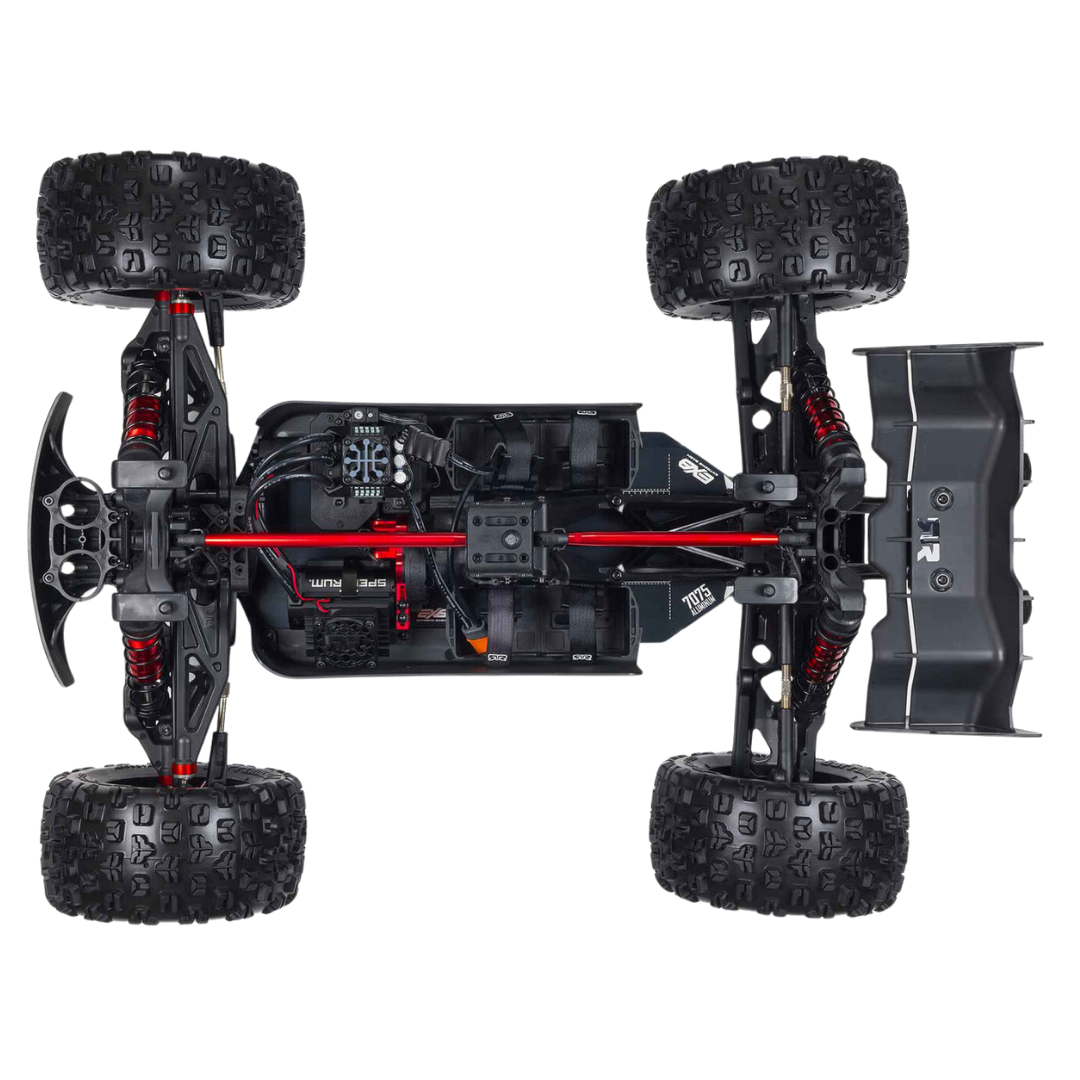

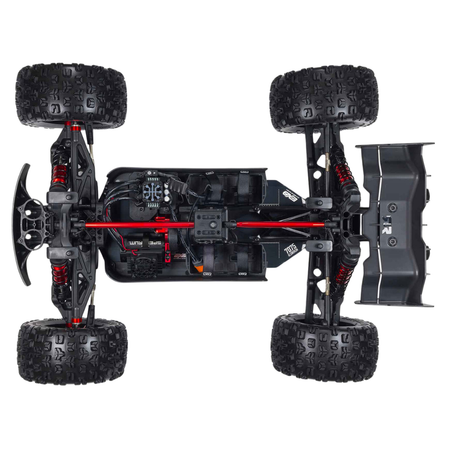

EXtreme Bash Chassis and Drivetrain

The KRATON 8S BLX EXB uses a reinforced 5mm 7075-T6 aluminium chassis plate and heavy-duty drivetrain components to withstand the demands of large-scale brushless bashing. Steel driveshafts and all-metal differential internals help transfer power through the four-wheel-drive system.

Reinforced chassis components, independent suspension and oil-filled shocks support demanding off-road use. As with any high-performance RC vehicle, regular inspection and maintenance are important after hard landings and heavy impacts.

Spektrum AVC Stability Control

The Spektrum DX3 transmitter and SR6200A receiver provide AVC Active Vehicle Control. AVC can apply automatic steering and throttle corrections to help drivers manage wheelspin, slides and changing traction conditions.

AVC assistance can be adjusted to suit driver preference and surface conditions. It is a driving aid rather than a guarantee against loss of control.

Specifications

• Brand: ARRMA
• Manufacturer Part Number: ARA5808V2T1
• Model: KRATON 8S BLX EXB
• Colour: Black
• Scale: 1/5
• Vehicle Type: Brushless Monster Truck
• Assembly Level: Ready-to-Run (RTR)
• Drive Type: 4WD / 4X4
• Power System: Brushless Electric
• Supported Battery Configuration: 2 x 3S LiPo or 2 x 4S LiPo
• Maximum Battery Configuration: 8S LiPo
• Motor: Spektrum Firma 5687 1100Kv Brushless
• ESC: Spektrum Firma 160A V2 Smart ESC
• Transmitter: Spektrum DX3 DSMR 2.4GHz
• Receiver: Spektrum SR6200A with AVC
• Steering Servo: Spektrum S6510 Waterproof Steel-Gear
• Battery Connectors: IC5 / Compatible EC5
• Chassis: 5mm CNC-Machined 7075-T6 Aluminium EXB
• Chassis Reinforcement: EXtreme Bash
• Drivetrain: Heavy-Duty 4WD with Steel Driveshafts
• Differential Construction: All-Metal Internals
• Suspension: Independent
• Shock Absorbers: Oil-Filled
• Tyres: dBoots Copperhead 2 Big Block
• Wheel Hex Size: 24mm
• Front Bumper: Impact-Resistant
• Wheelie Bar: Included
• Vehicle Batteries Included: No
• Battery Charger Included: No

Includes

• 1 x ARRMA KRATON 8S BLX EXB 1/5 4WD RTR Brushless Monster Truck - Black
• 1 x Spektrum Firma 5687 1100Kv Brushless Motor (Installed)
• 1 x Spektrum Firma 160A V2 Smart ESC (Installed)
• 1 x Spektrum SR6200A AVC Receiver (Installed)
• 1 x Spektrum S6510 Waterproof Steel-Gear Steering Servo (Installed)
• 1 x Spektrum DX3 DSMR 2.4GHz Transmitter
• 1 x 24mm Wheel Wrench
• 1 x Product Instruction Manual

Required To Complete

• 2 x Matching 3S LiPo Batteries for 6S Operation, or 2 x Matching 4S LiPo Batteries for 8S Operation
• Suitable IC5 or EC5 Battery Connections
• Compatible LiPo Balance Charger
• 4 x AA Batteries for Transmitter
• Suitable Fire-Resistant LiPo Charging Equipment

FAQ

Is the ARRMA KRATON 8S EXB ready to run? The truck arrives assembled with the motor, ESC, steering servo, receiver and transmitter included. You still need two compatible LiPo batteries, a charger and transmitter AA batteries before driving.

Does the KRATON 8S EXB include batteries? No vehicle batteries are included. Two matching LiPo batteries are required separately.

Does it include a charger? No. A compatible LiPo balance charger is sold separately.

What batteries does the KRATON 8S EXB use? It supports two matching 3S LiPo batteries for 6S operation or two matching 4S LiPo batteries for 8S operation, provided they meet the manufacturer's connector, discharge and fitment requirements.

Can I run it on 6S? Yes. The KRATON 8S EXB can operate using two suitable 3S LiPo batteries.

Can I run it on 8S? Yes. Full 8S operation uses two suitable 4S LiPo batteries.

Can I mix a 3S and a 4S battery? No. Use two appropriately matched batteries of the same chemistry, cell count, capacity and similar condition, charged to equivalent levels.

What connectors does it use? The ESC uses Spektrum IC5 battery connections, compatible with corresponding EC5 connectors.

Will any 4S battery fit? No. Battery dimensions, discharge capability, connector type and physical mounting requirements must all be checked before purchase.

What does EXB mean? EXB stands for EXtreme Bash, ARRMA's designation for reinforced components designed for demanding RC use.

What is special about the EXB chassis? It features a 5mm CNC-machined 7075-T6 aluminium chassis plate with additional reinforcement.

What motor does it have? The truck uses a Spektrum Firma 5687 1100Kv brushless motor.

What ESC is fitted? It includes a Spektrum Firma 160A V2 Smart brushless ESC.

Does it have stability control? Yes. The included Spektrum DX3 transmitter and SR6200A receiver support AVC Active Vehicle Control.

What does AVC do? AVC provides automatic steering and throttle corrections to assist with vehicle control on changing surfaces.

Is the steering servo waterproof? The Spektrum S6510 steering servo is specified as waterproof. This does not make the complete vehicle suitable for submersion.

What tyres are fitted? The KRATON 8S EXB uses large dBoots Copperhead 2 Big Block off-road tyres.

Does it include a wheelie bar? Yes. A wheelie bar is included to help manage hard acceleration.

Can it drive on grass, gravel and dirt? Yes. The KRATON is designed for off-road bashing on suitable surfaces, although excessive debris, deep water and severe impacts can damage components.

Are replacement parts available? ARRMA provides model-specific replacement parts and service information. Use the exact ARA5808V2T1 part number when checking compatibility.

Important Notes

• This listing is for ARRMA KRATON 8S BLX EXB Black, part number ARA5808V2T1
• Vehicle batteries and charger are not included
• Requires two matching 3S or two matching 4S LiPo batteries
• Requires four AA batteries for the transmitter
• Use suitable IC5 or EC5 battery connectors
• Confirm battery dimensions, discharge capability and mounting compatibility before purchasing
• Do not mix batteries with different cell counts, capacities or states of charge
• Use a compatible LiPo balance charger and fire-resistant charging equipment
• Never leave LiPo batteries charging unattended
• Do not exceed the manufacturer's supported 8S configuration
• AVC assists with vehicle stability but cannot prevent collisions
• This large-scale monster truck requires a substantial clear driving area
• Keep away from public roads, traffic, pedestrians and animals
• Inspect tyres, steering, suspension and drivetrain before high-speed driving
• Allow the motor, ESC and batteries to cool after demanding runs
• Follow the manufacturer's instructions for operation and maintenance
