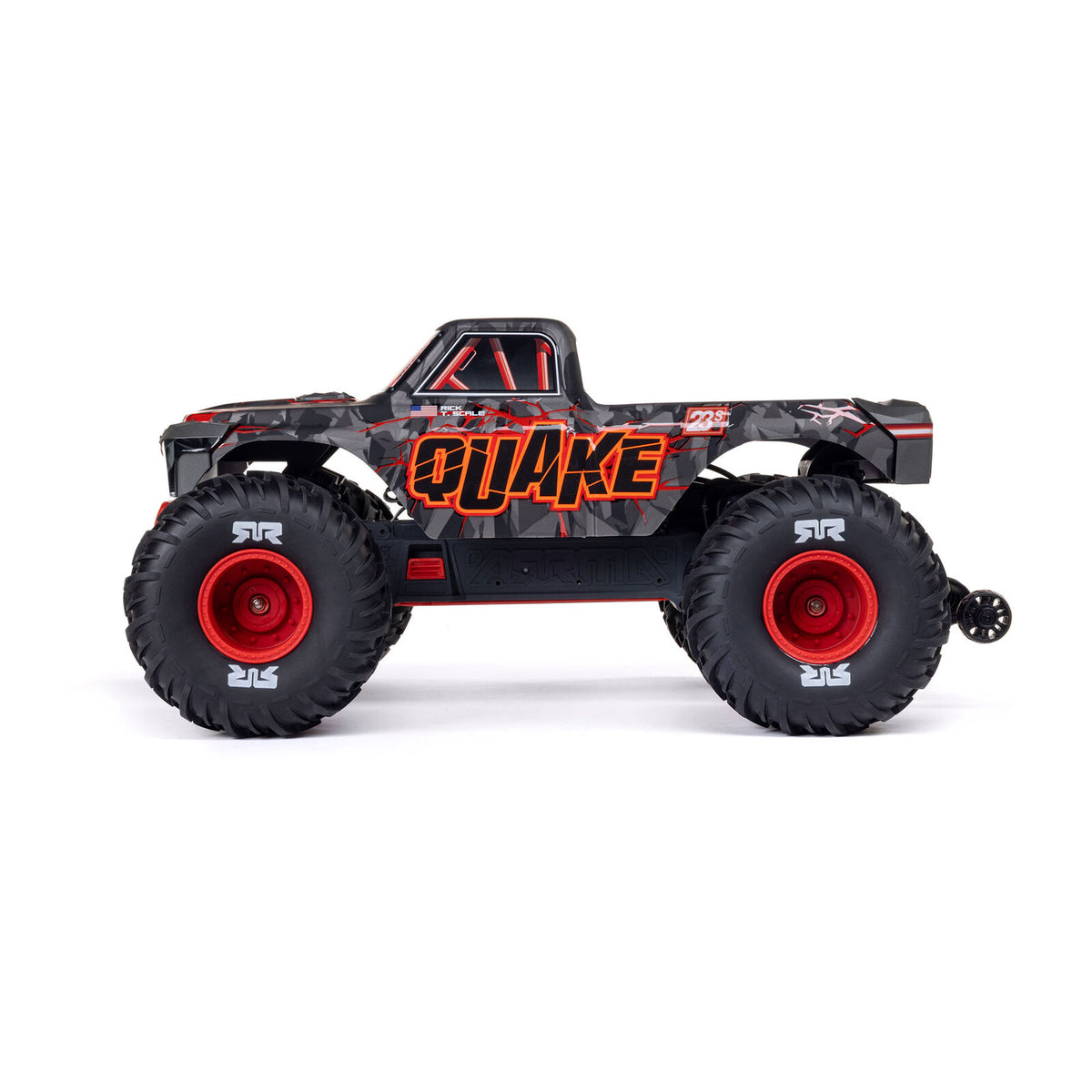

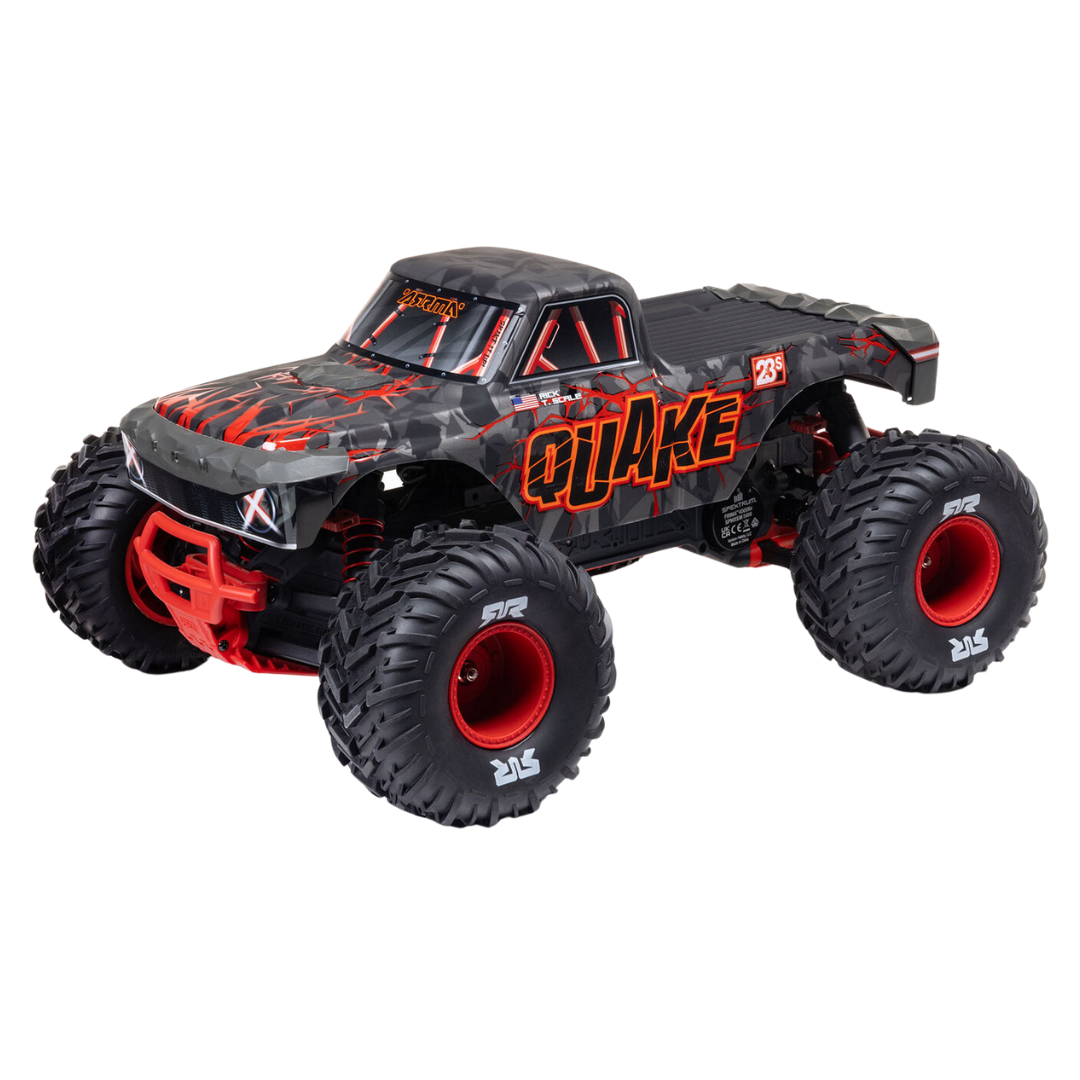

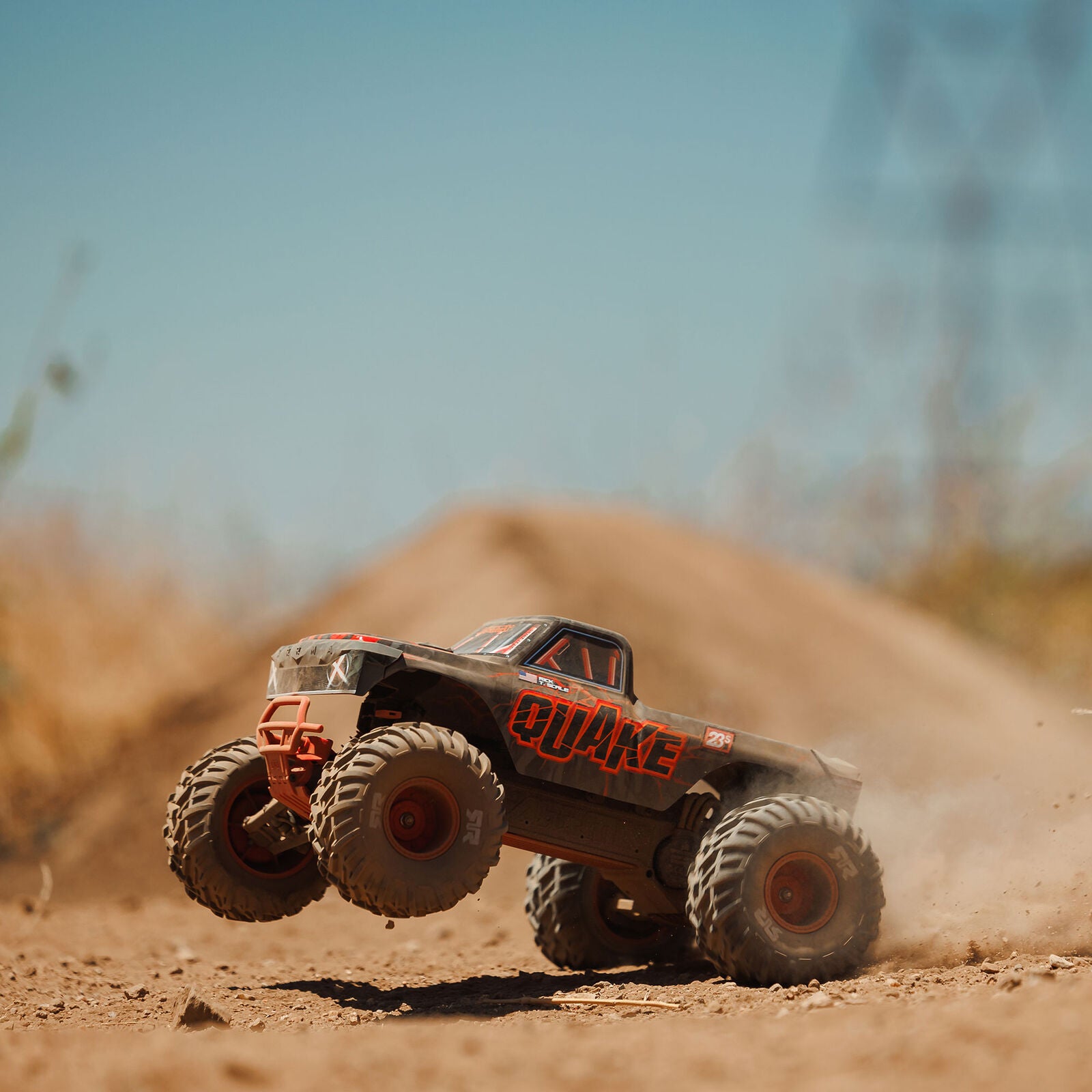

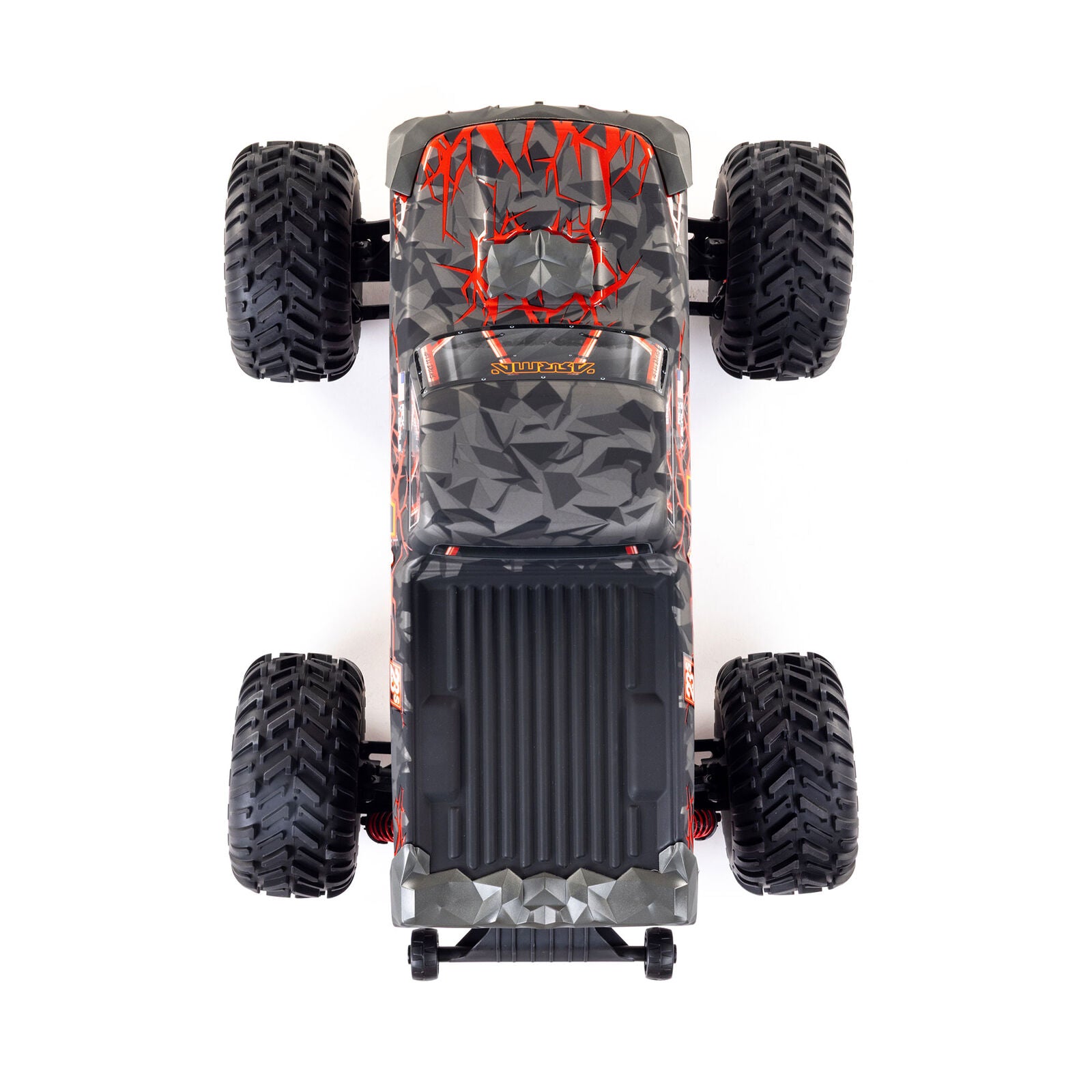

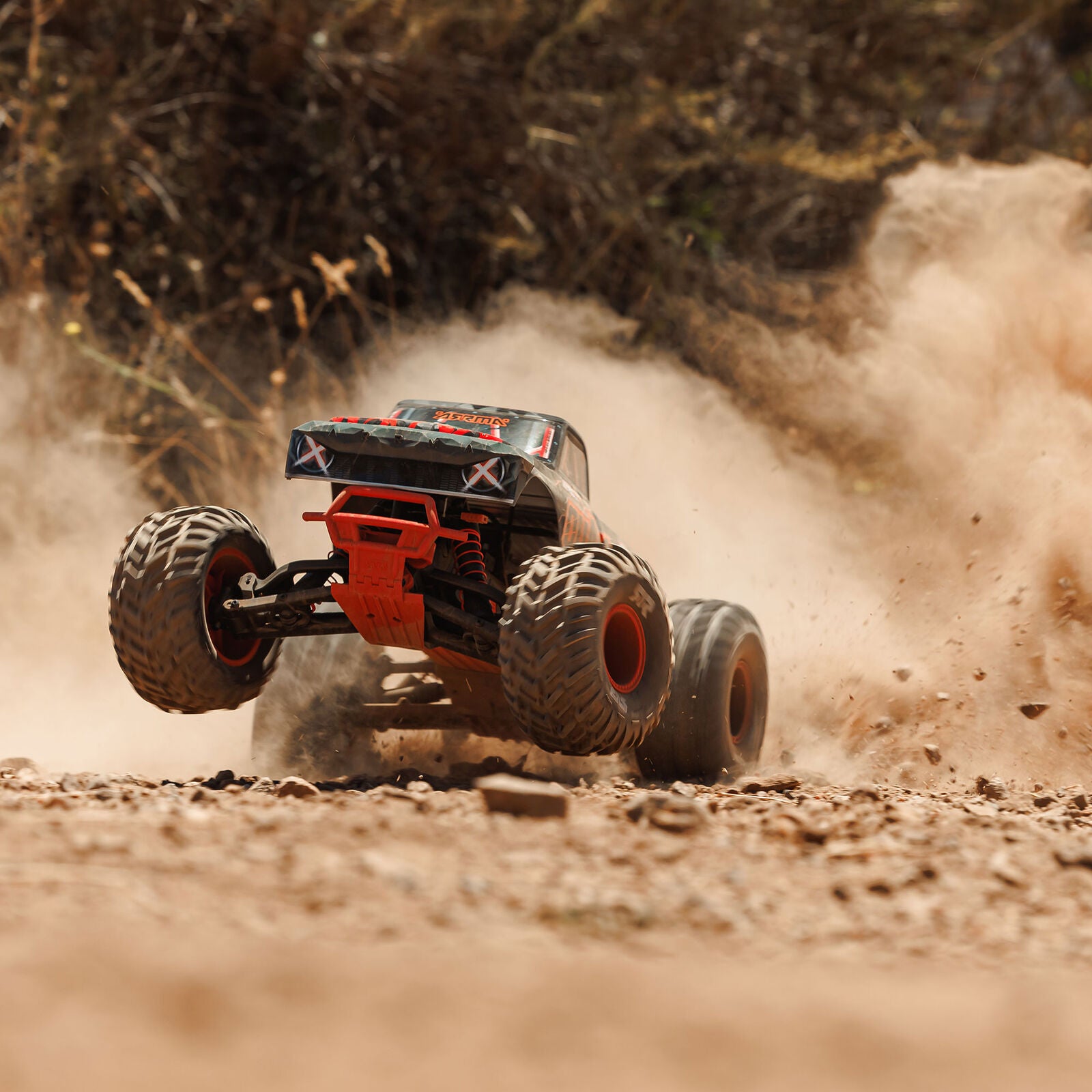

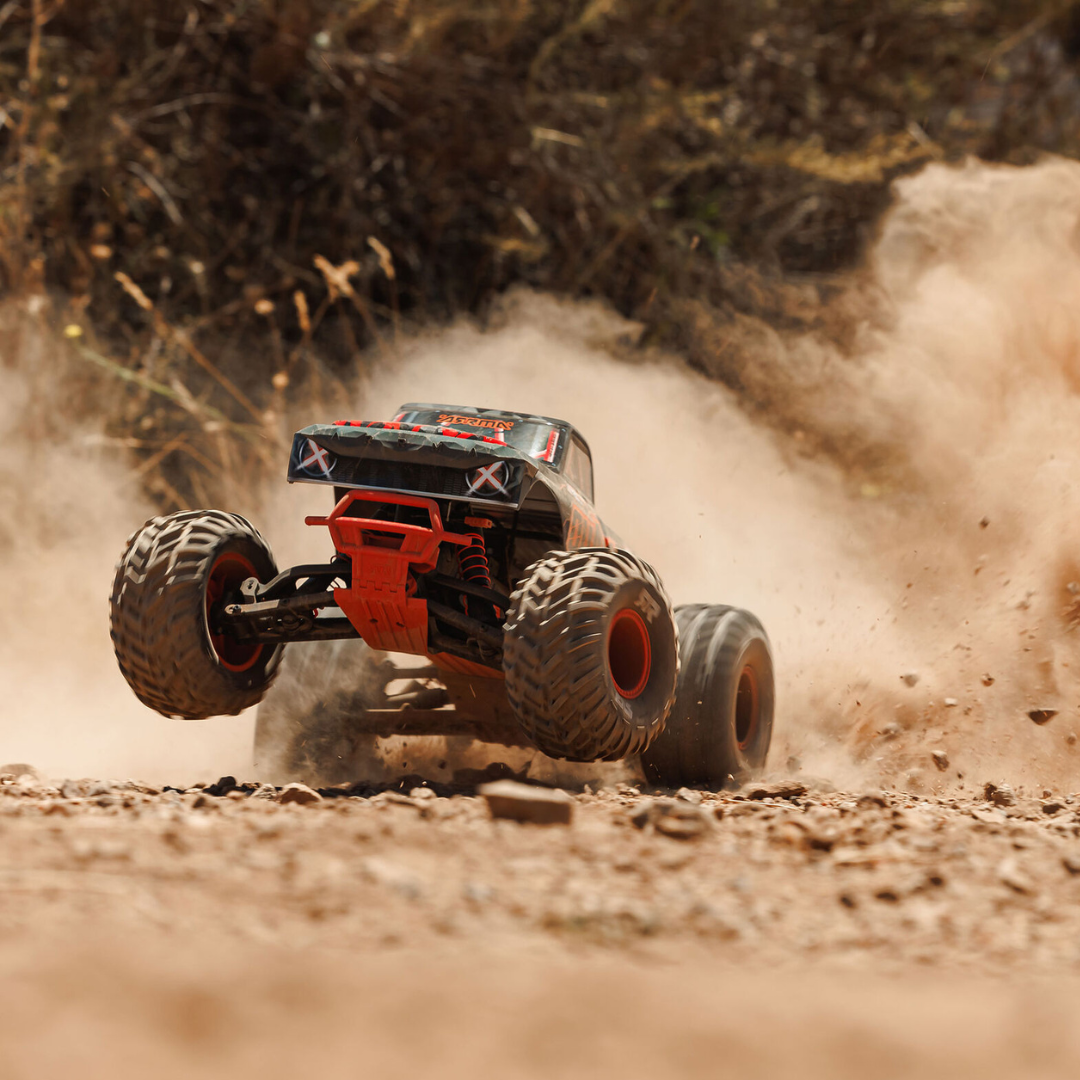

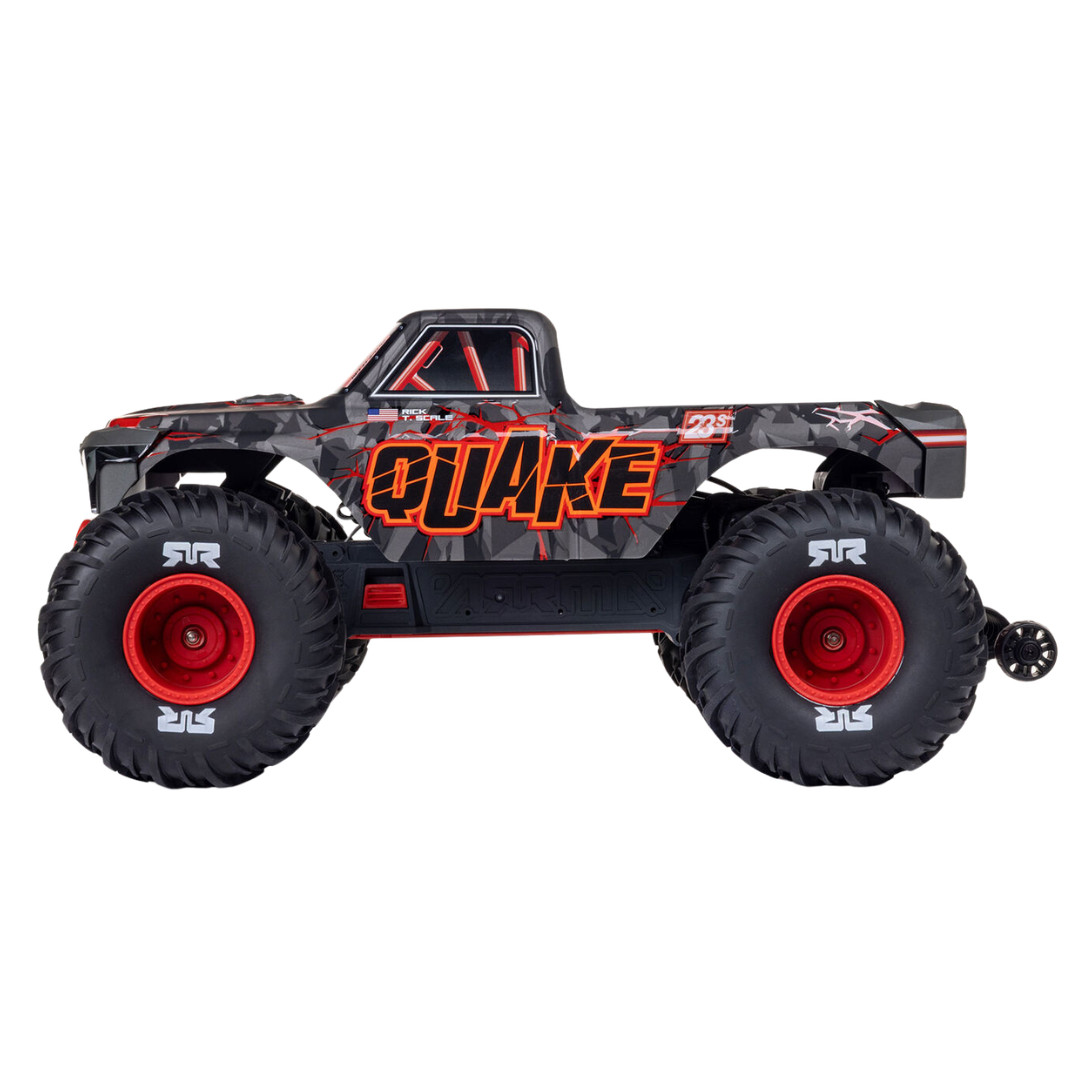

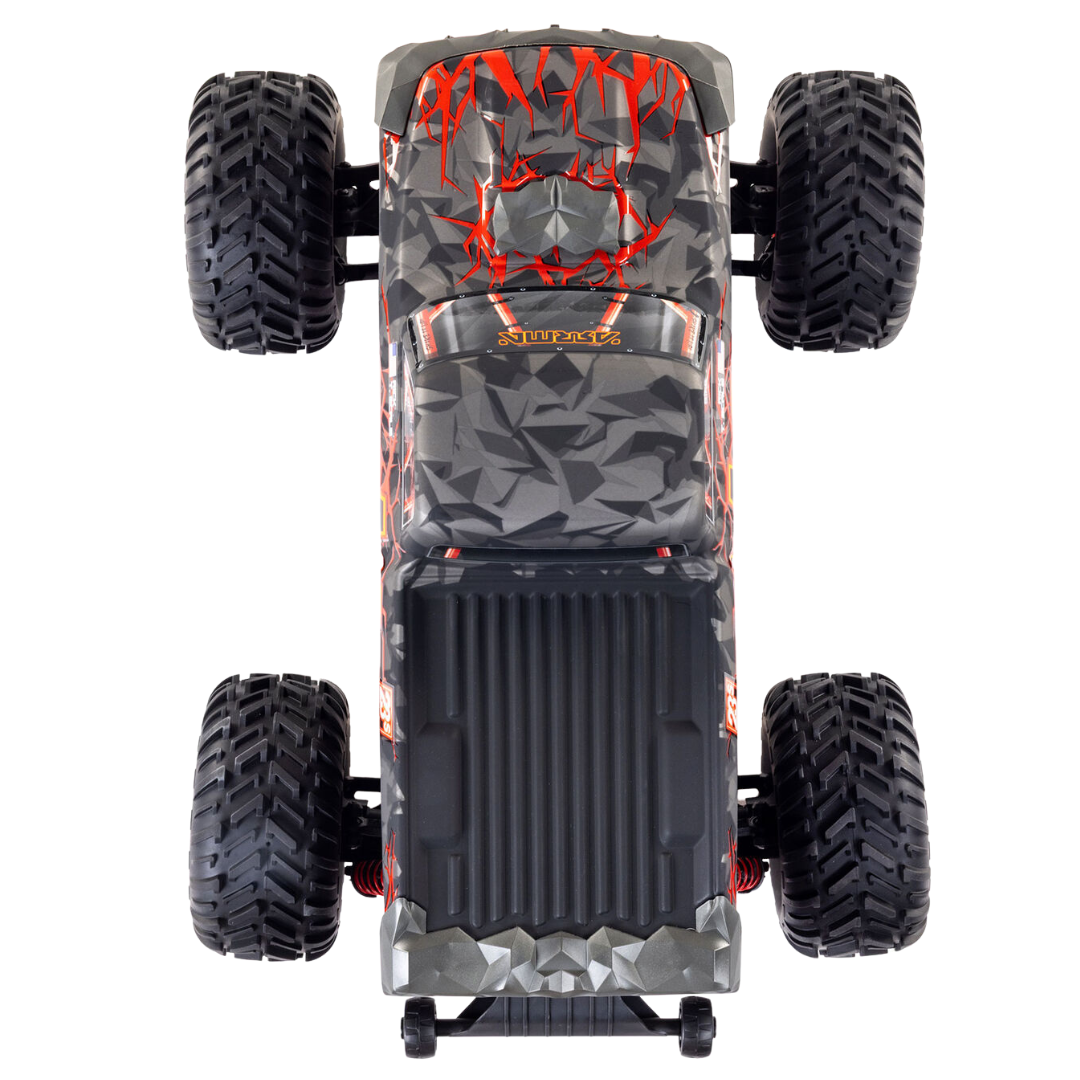

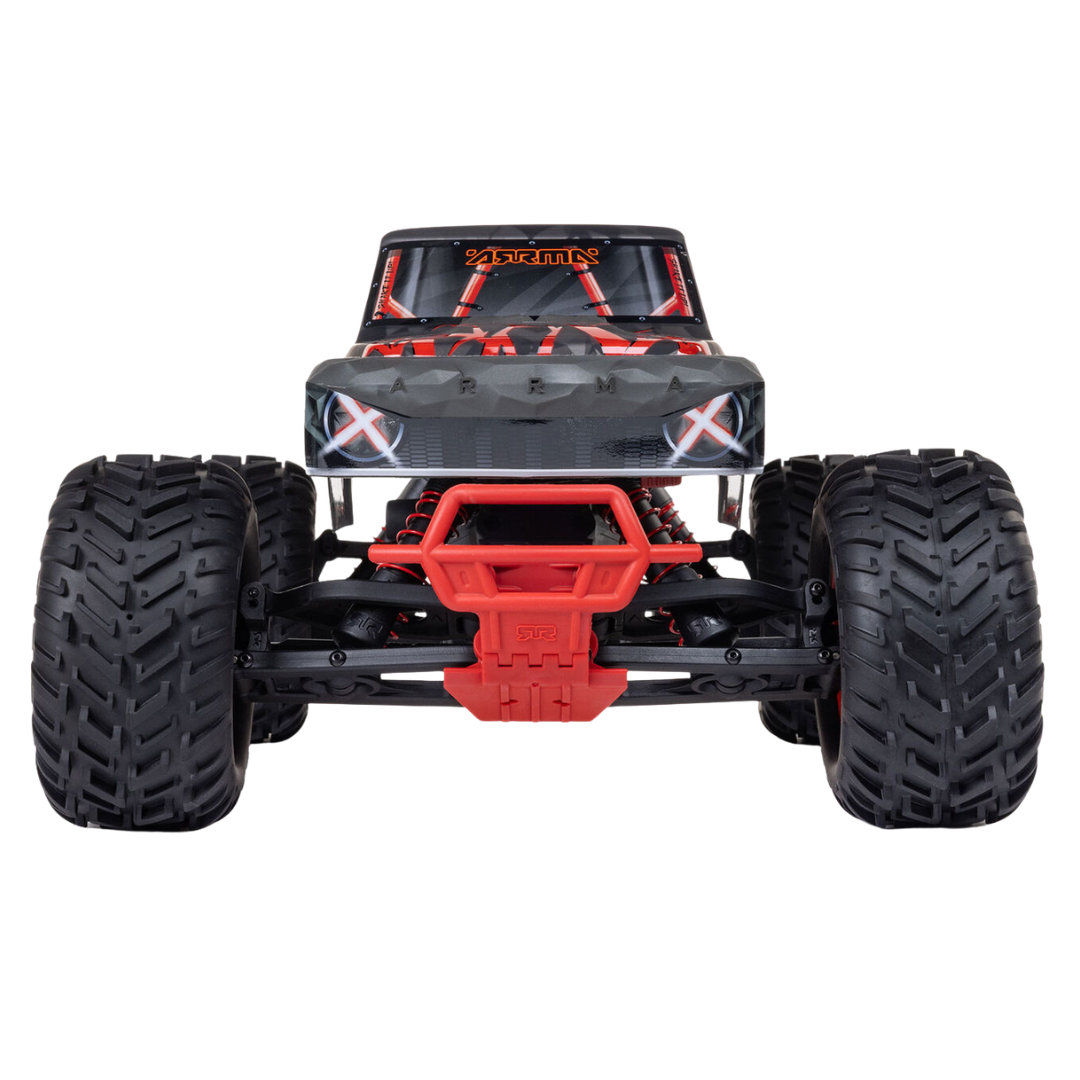

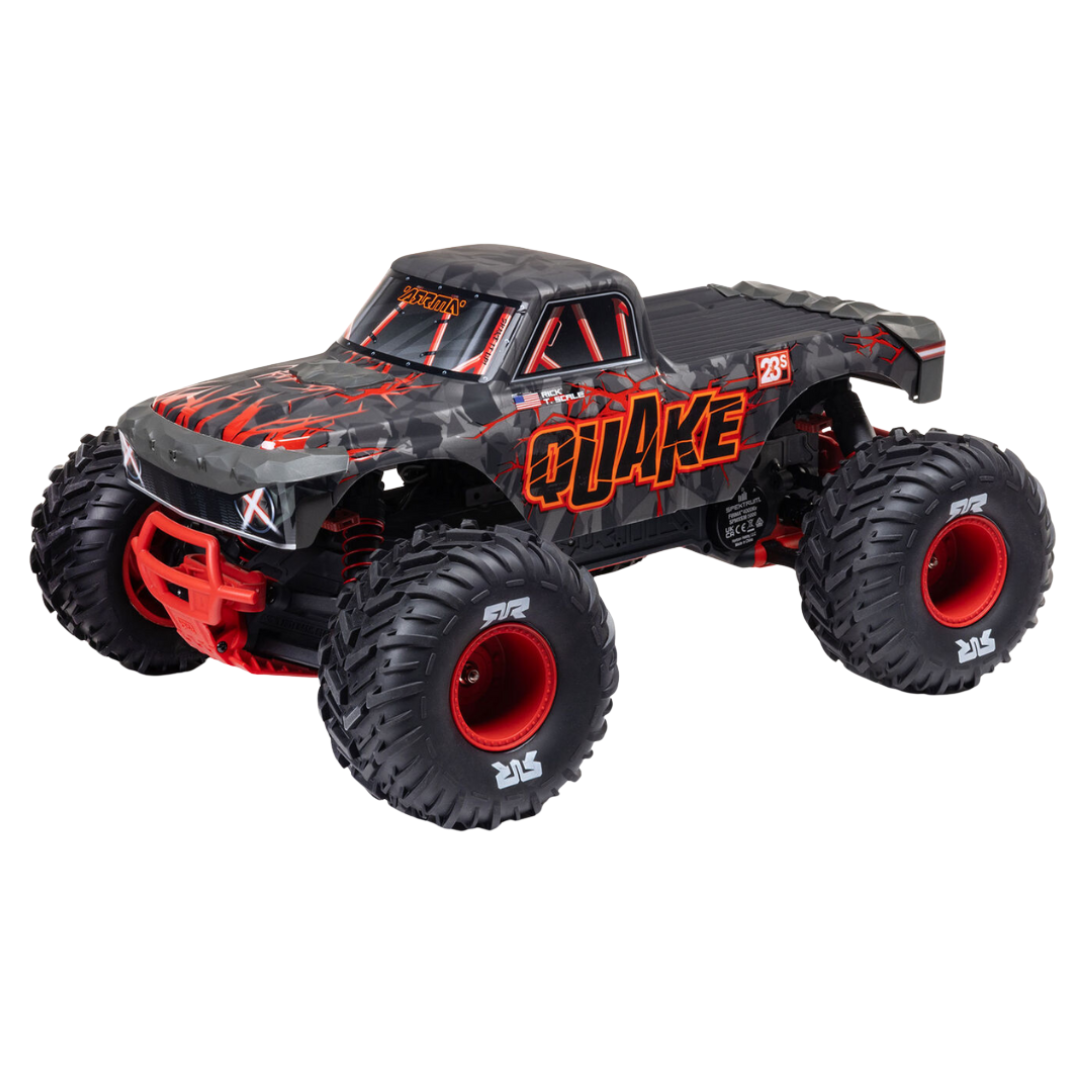

Arrma Quake 223S BLX 1/10 2WD RTR Monster Truck Red 3537T1

The ARRMA ARA3537T1 Quake 223S BLX is a 1/10 scale 2WD brushless RTR monster truck designed for high-speed bashing, wheelies, and off-road fun with 2S or 3S LiPo power.

Features

• 2S And 3S Ready: Run 2S LiPo for controlled bashing or 3S LiPo for 50+mph / 80+km/h speed potential in suitable conditions
• Brushless 223S Power System: Spektrum Firma 3660 4000Kv brushless motor delivers strong performance for 1/10 monster truck driving
• Spektrum DSC Stability Control: Dynamic Stability Control helps correct steering input and supports driver confidence on loose or slippery surfaces
• Throttle Limiting: Spektrum SLT2 transmitter allows 50%, 75%, and 100% throttle settings to suit different driver skill levels
• 2WD Mid-Motor Layout: Rear-wheel-drive platform with mid-motor configuration supports wheelie action and fun monster truck handling
• Heavy-Duty Transmission: Metal-geared differential and wide transmission gears are built for brushless bashing loads
• Waterproof Spektrum Electronics: Spektrum 2-in-1 ESC/receiver and S681 metal gear digital servo are designed for all-weather RC use when maintained correctly

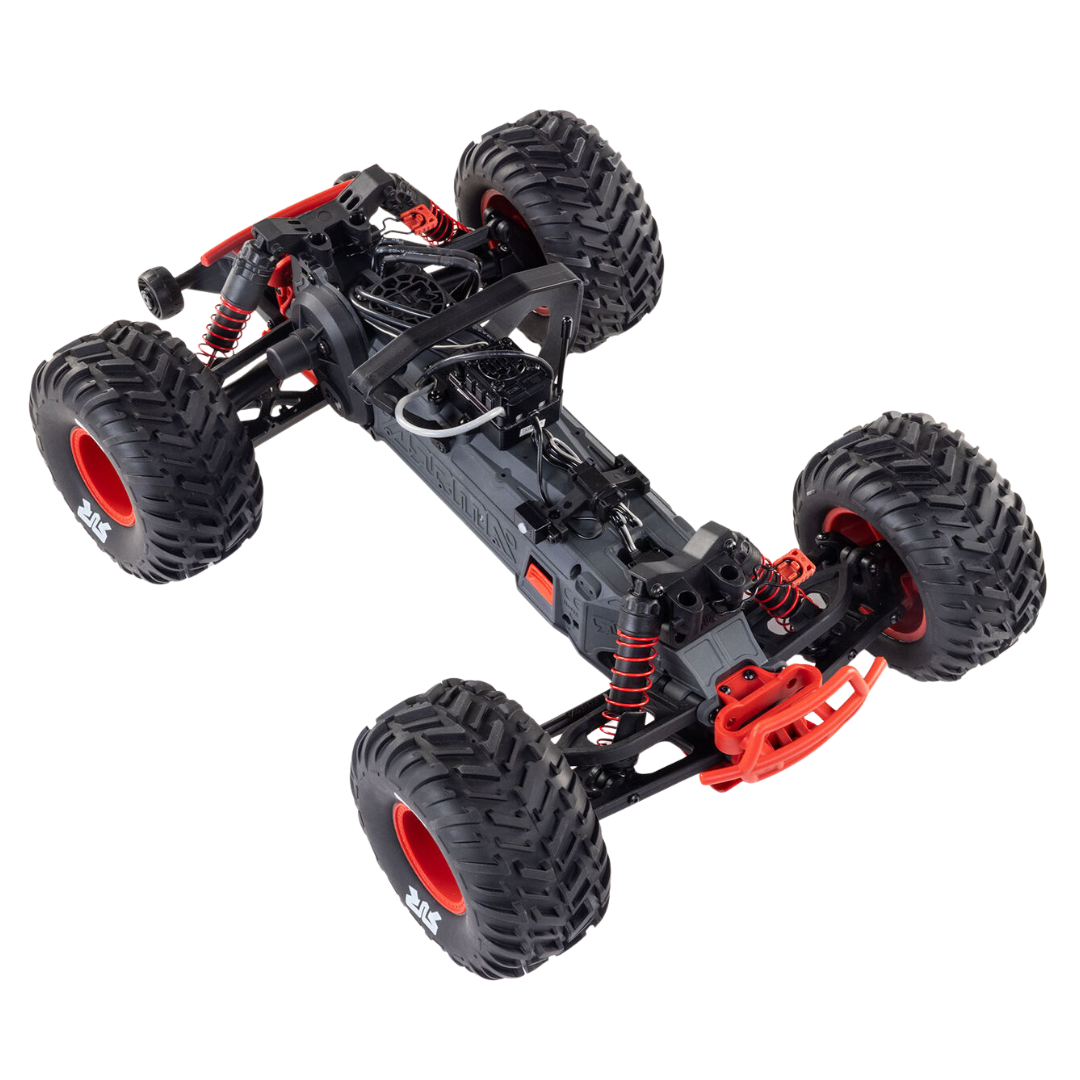

• Bottom-Loading Battery Tray: Battery can be changed from underneath without removing the body
• Clipless Monster Truck Body: Painted, decalled, and trimmed red body uses a clipless mounting system for quick access
• Oil-Filled Coilover Shocks: Adjustable ride height helps tune the truck for different surfaces and driving conditions
• dBoots Cut Chevron Tyres: All-terrain tyres provide grip across dirt, grass, gravel, and general bashing surfaces

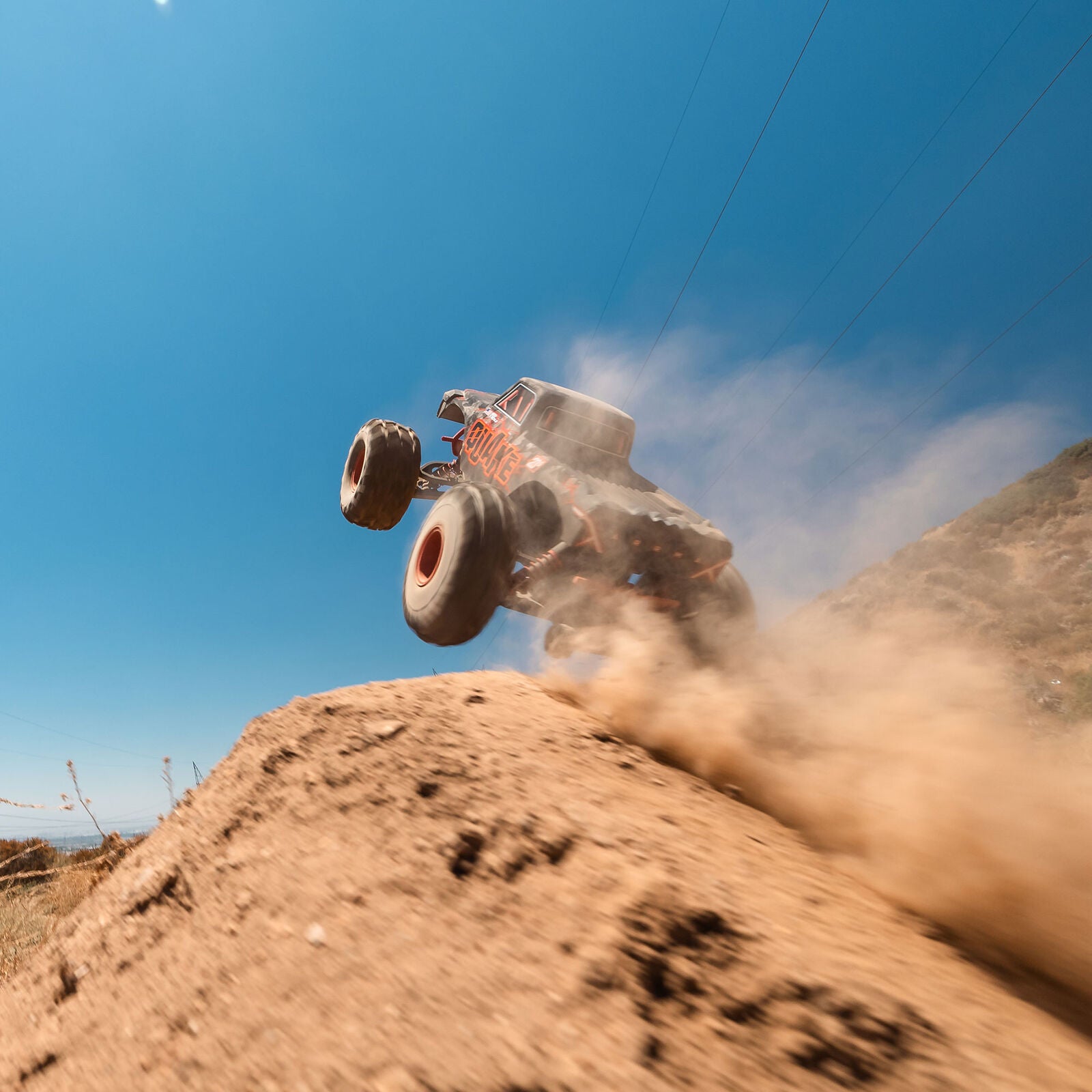

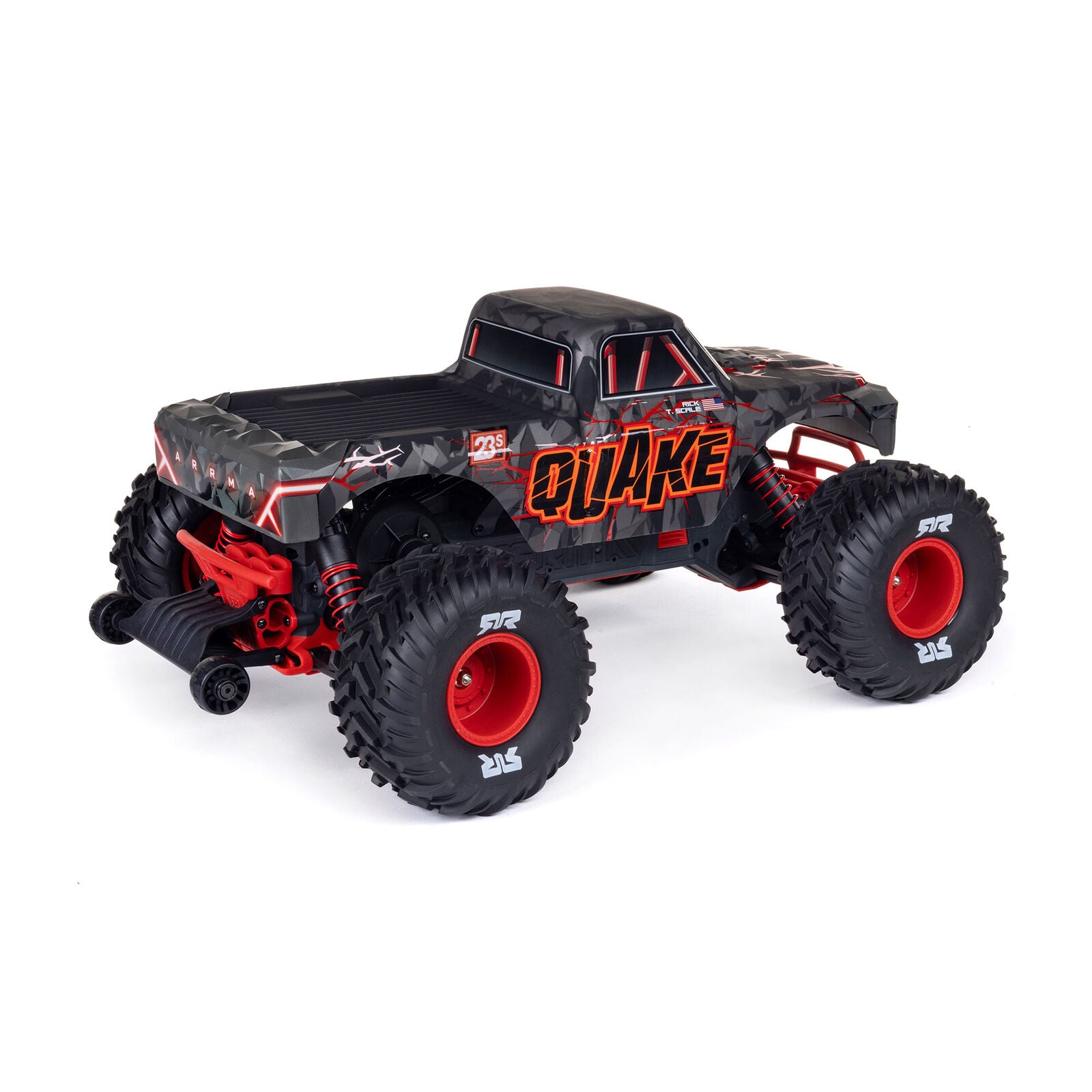

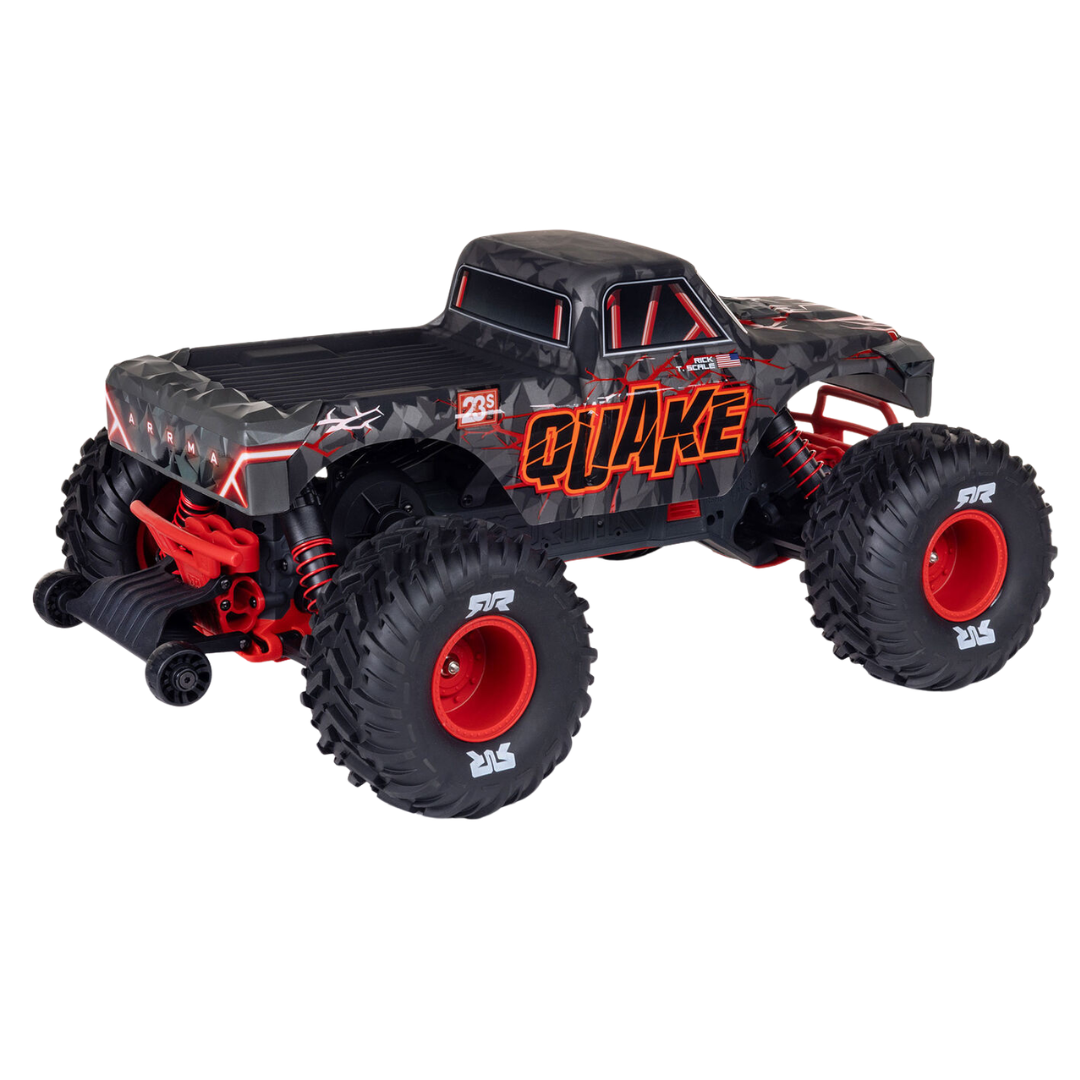

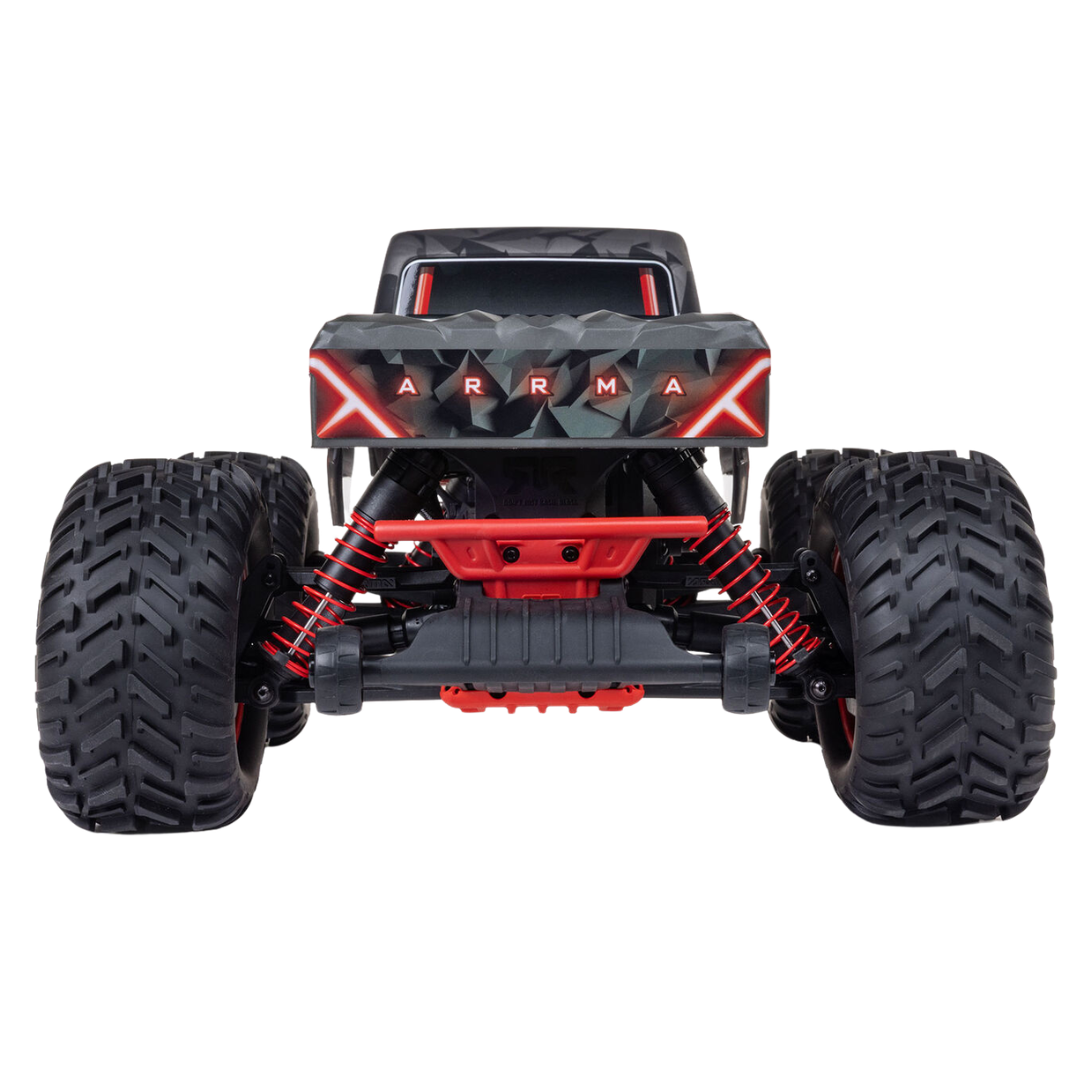

• Wheelie Bar Included: Rear wheelie bar helps support stunt driving and hard acceleration

Specifications

• Brand: ARRMA
• Model: Quake 223S BLX DSC 2WD RTR Brushless Monster Truck
• Part Number: ARA3537T1
• Scale: 1/10 scale
• Vehicle Type: Monster truck
• Colour: Red
• Completion Level: Ready-to-run
• Drive Type: 2WD
• Power Type: Electric brushless
• Power System: 223S
• Motor: Spektrum Firma 3660 4000Kv brushless motor
• ESC / Receiver: Spektrum 4510RX brushless 2-in-1 unit with gyro
• Radio System: Spektrum SLT2 2.4GHz transmitter
• Servo: Spektrum S681 metal gear digital servo
• Battery Compatibility: 2S or 3S hardcase LiPo, sold separately
• ESC Connector Type: IC5
• Maximum Battery Dimensions: 140 x 50 x 35mm
• Top Speed Potential: 50+mph / 80+km/h with suitable 3S LiPo, gearing, surface, and conditions

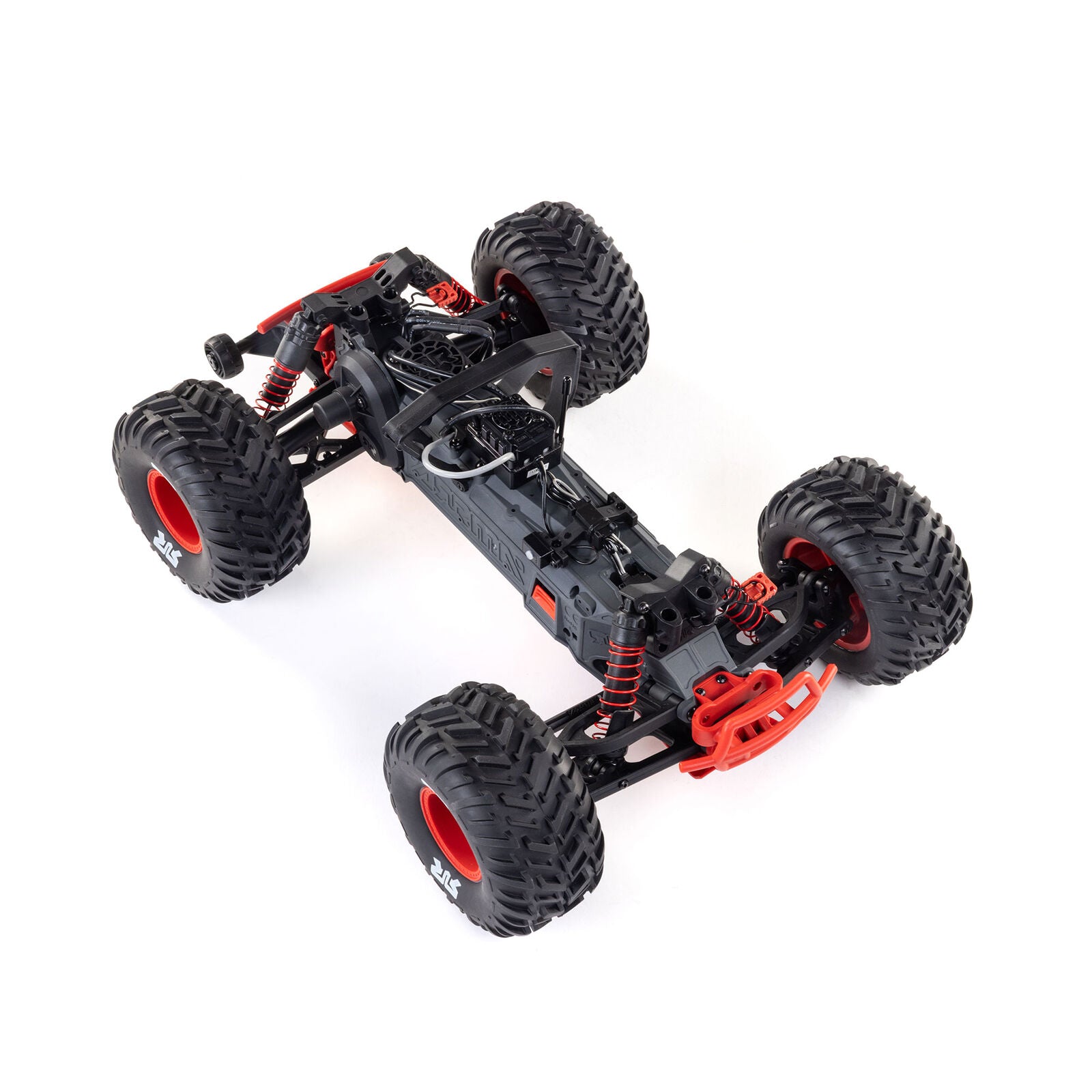

• Chassis: Composite
• Differential: Metal-geared
• Shock Type: Oil-filled coilover
• Tyres: dBoots Cut Chevron
• Wheel Hex Size: 14mm
• Gear Pitch: Mod-0.8
• Pinion Gear: 16T
• Spur Gear: 61T
• Internal Gear Ratio: 3.13
• Final Drive Ratio: 11.93

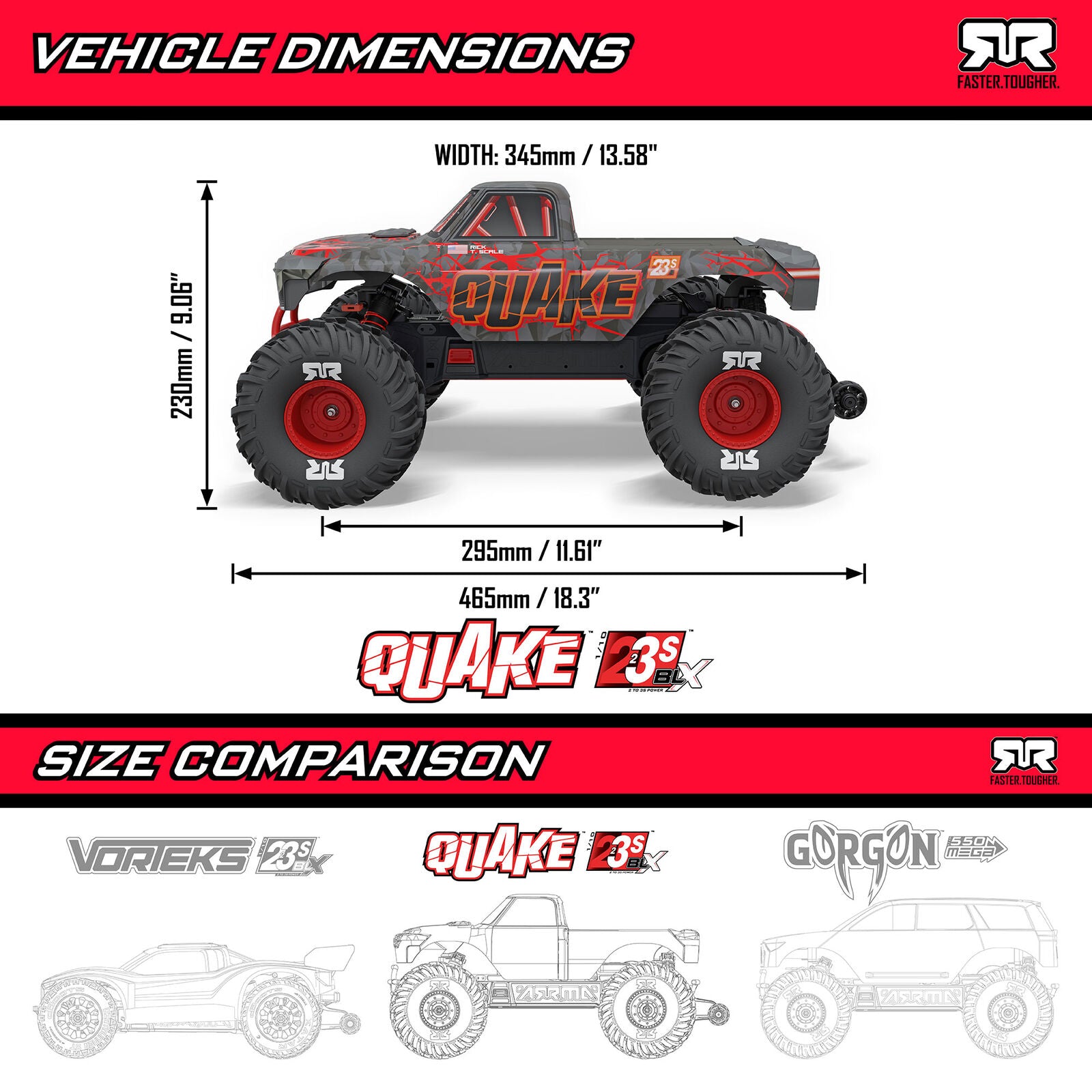

• Length: 465mm
• Width: 345mm
• Height: 230mm
• Wheelbase: 295mm
• Weight: 2.73kg

Includes

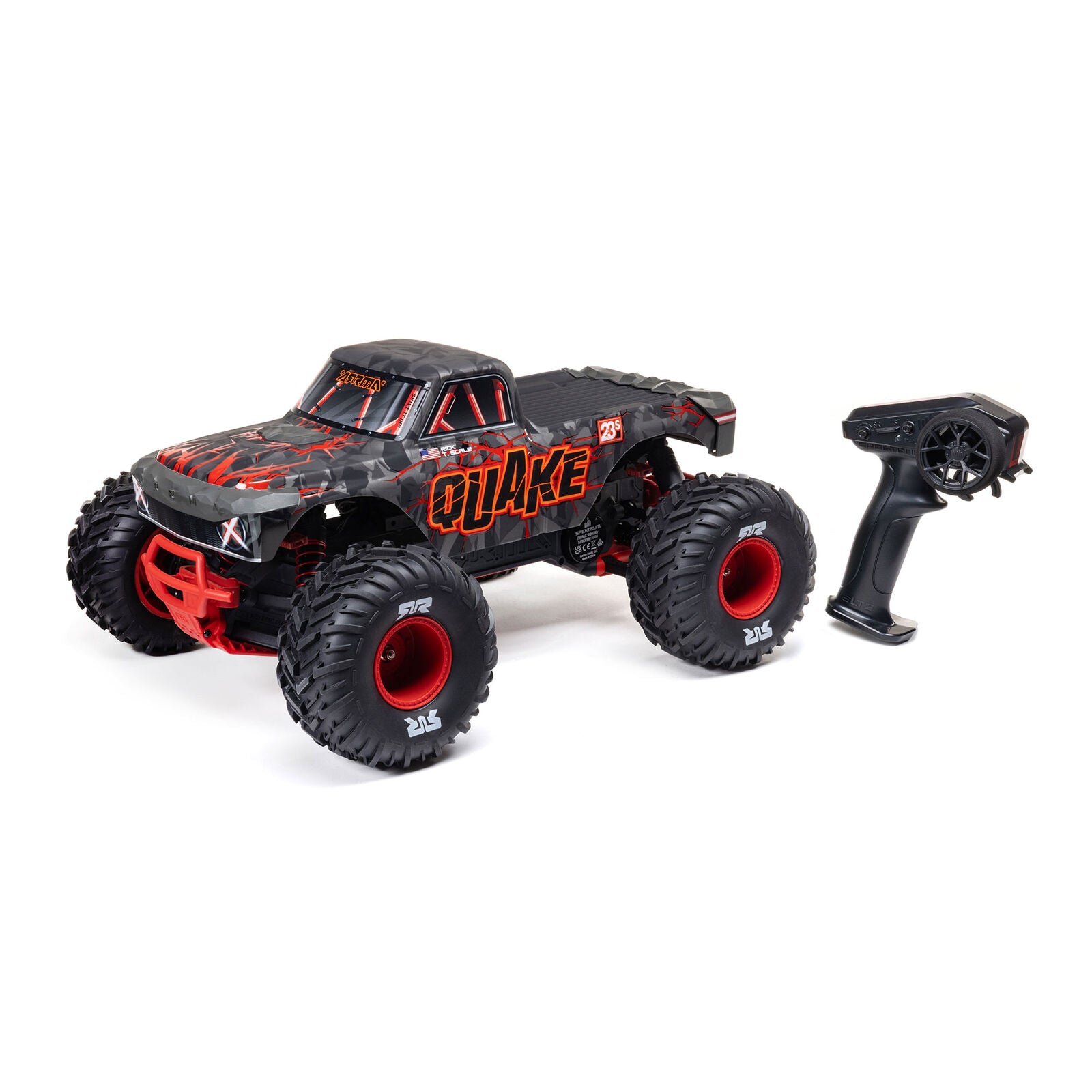

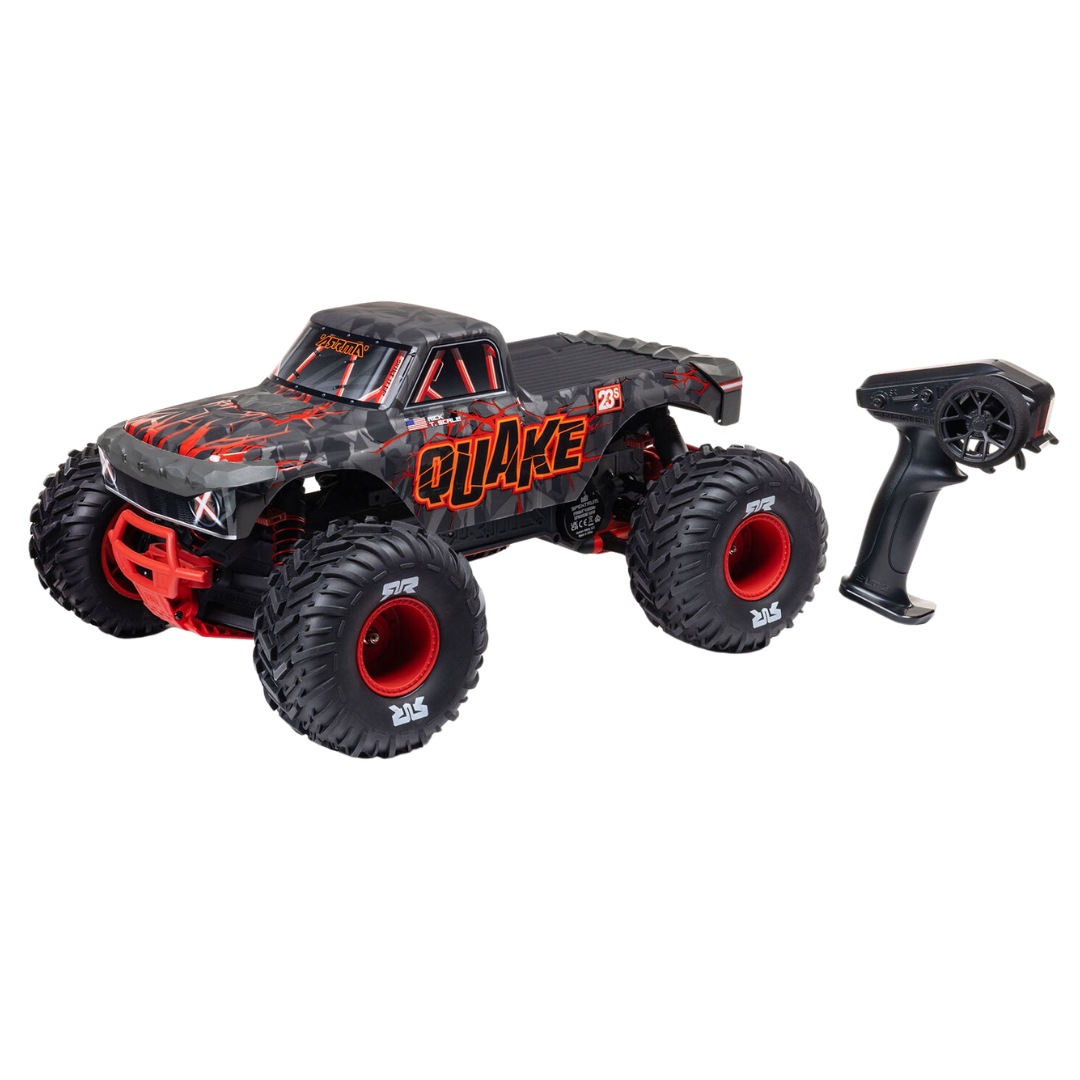

• 1 x ARRMA Quake 223S BLX 1/10 2WD RTR Monster Truck in red
• 1 x Spektrum Firma 3660 4000Kv brushless motor, installed
• 1 x Spektrum 4510RX brushless 2-in-1 ESC/receiver with gyro, installed
• 1 x Spektrum S681 metal gear digital servo, installed
• 1 x Spektrum SLT2 2.4GHz transmitter
• 4 x AA transmitter batteries
• 1 x 2mm hex driver
• 1 x 2.5mm hex driver
• 1 x Wheel wrench / shock tool
• 1 x Instruction manual

Needed To Complete

• 1 x Compatible 2S or 3S hardcase LiPo battery with IC5 connector or suitable adaptor
• 1 x Compatible LiPo balance charger
• 1 x LiPo charging bag or safe charging solution

FAQ

Does the ARRMA Quake 223S include a battery and charger? No. The ARRMA ARA3537T1 includes the truck, transmitter, AA transmitter batteries, basic tools, and manual. A suitable LiPo battery, charger, and LiPo charging bag are required separately.

How fast is the ARRMA Quake 223S? ARRMA lists the Quake 223S with 50+mph / 80+km/h speed potential on suitable 3S LiPo power in the right conditions. Lower speeds are expected on 2S or with throttle limiting enabled.

Can beginners drive the ARRMA Quake 223S? Yes. The Spektrum SLT2 transmitter has 50%, 75%, and 100% throttle limiting, while DSC stability assistance can help newer drivers build control before using full performance.

What battery fits the Quake 223S? The battery tray accepts hardcase 2S or 3S LiPo packs up to 140 x 50 x 35mm. ARRMA lists the ESC connector type as IC5.

Is the ARRMA Quake 223S waterproof? The installed Spektrum electronics are listed as waterproof, but water resistance is not the same as maintenance-free operation. Refer to the manual for waterproofing details, cleaning, and drying after wet use.

Important Notes

• Battery, charger, and LiPo charging bag are required and sold separately.
• Use only compatible 2S or 3S hardcase LiPo batteries within the listed 140 x 50 x 35mm battery tray dimensions.
• Maximum speed depends on battery, charge level, surface, gearing, driving conditions, throttle setting, and vehicle maintenance.
• Always confirm connector type before use. The vehicle is listed with an IC5 ESC connector.
• Refer to the product manual for waterproofing limits, cleaning, drying, and maintenance after wet or dusty running.
• Adult supervision is recommended for younger drivers due to the vehicle’s speed and brushless power.
