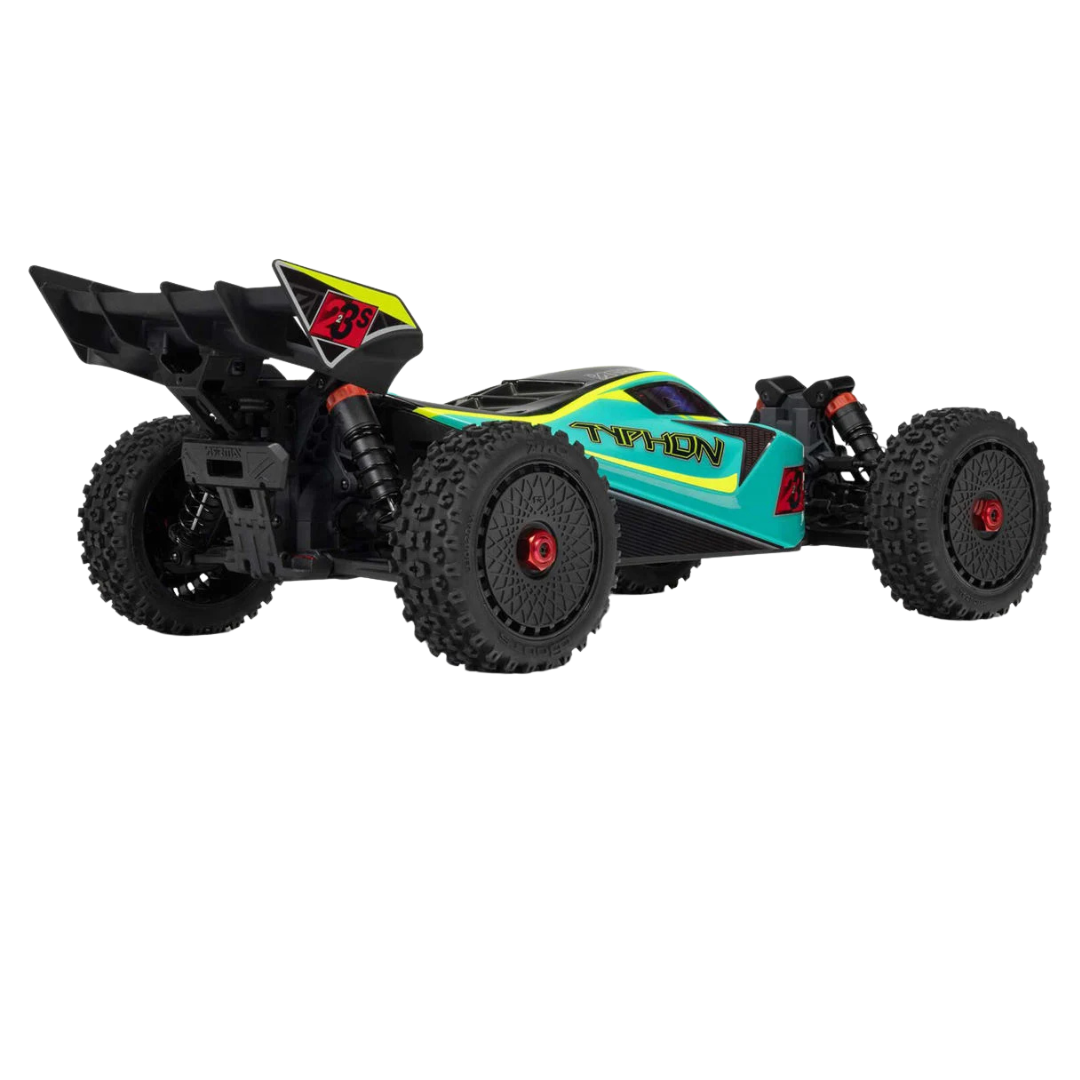

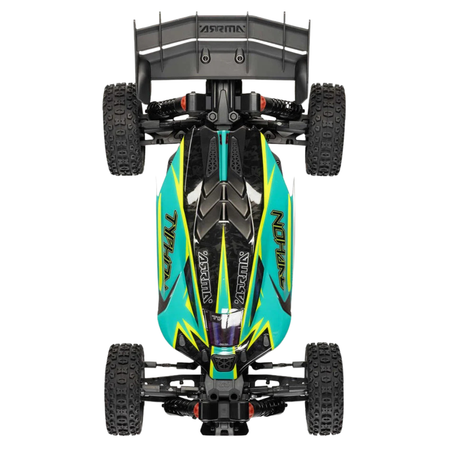

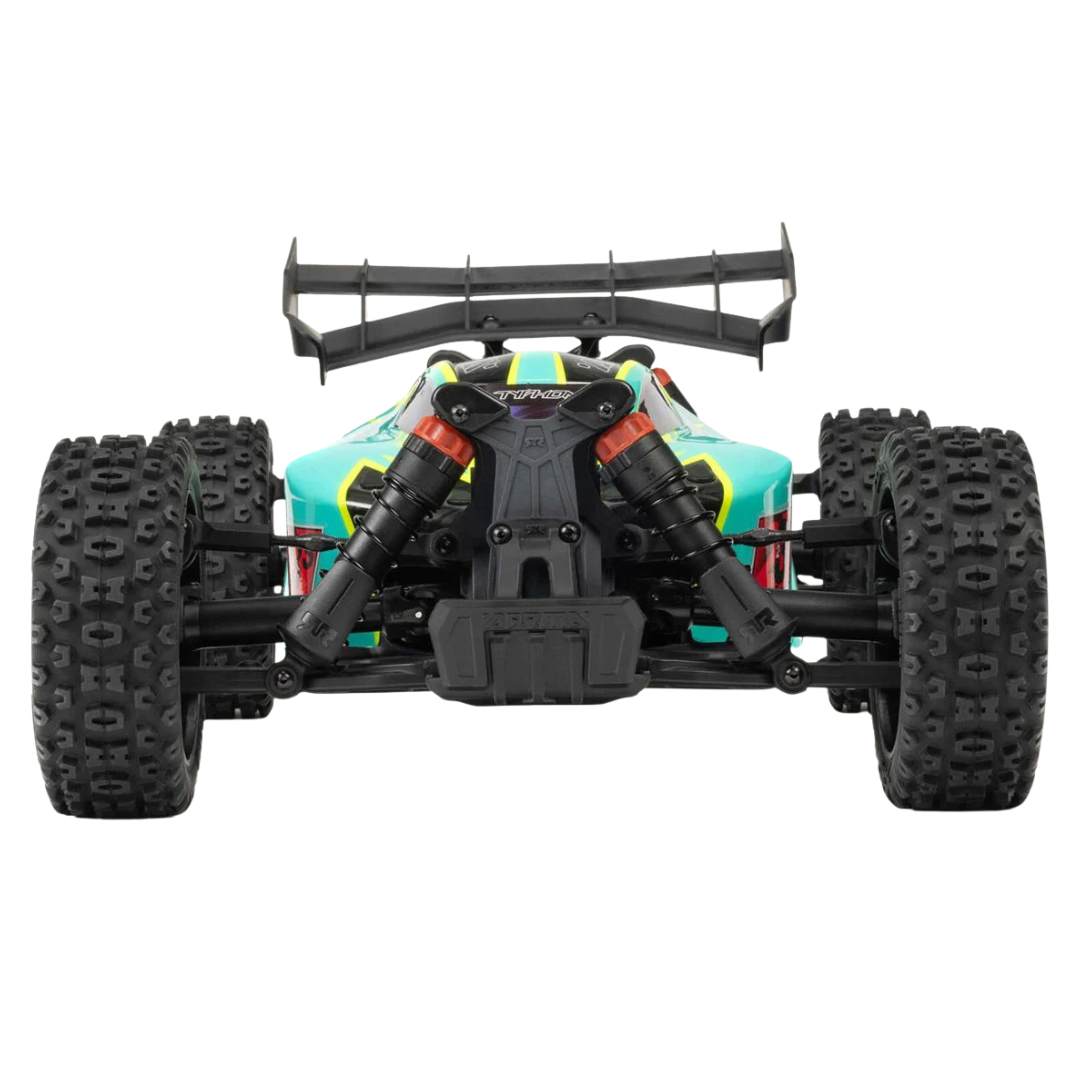

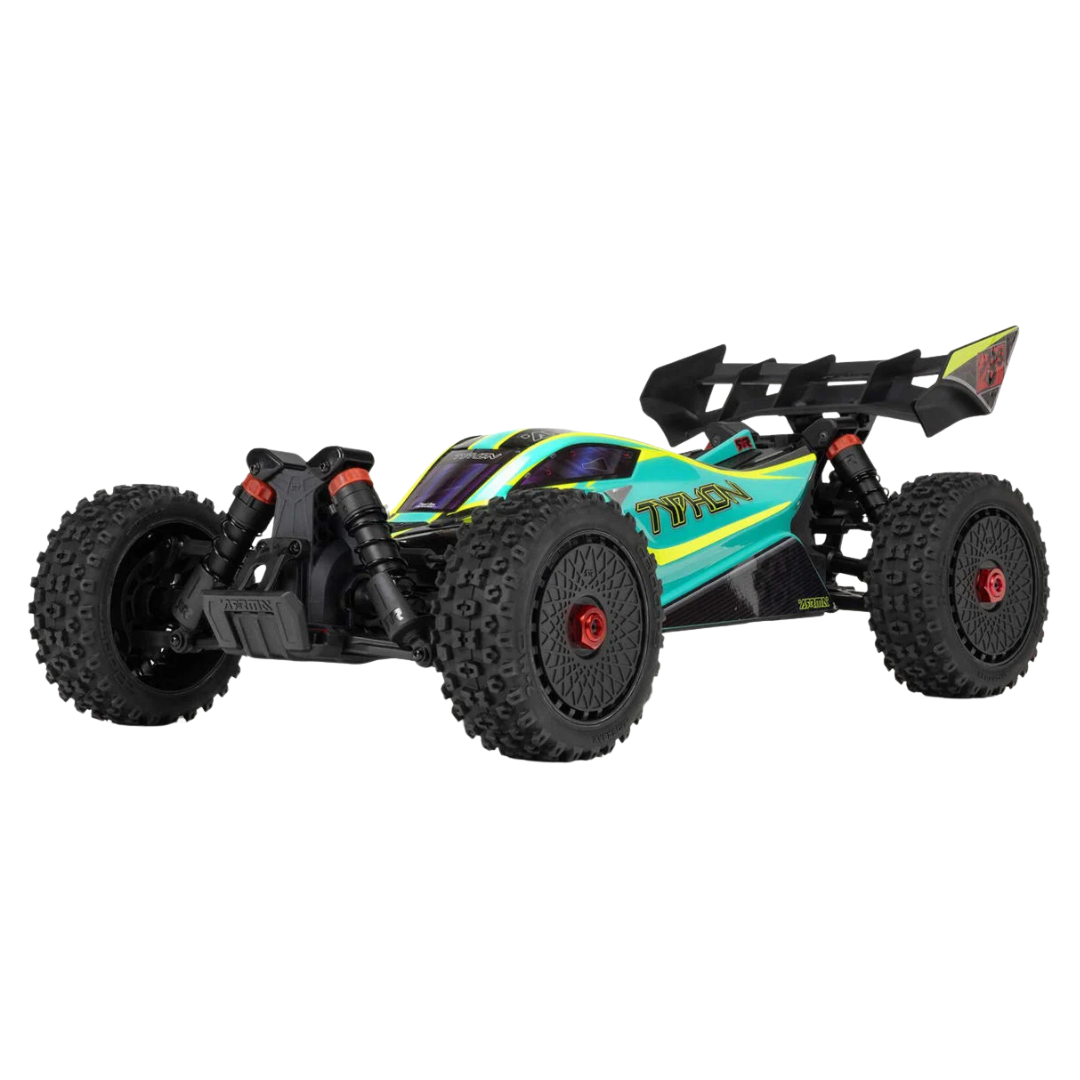

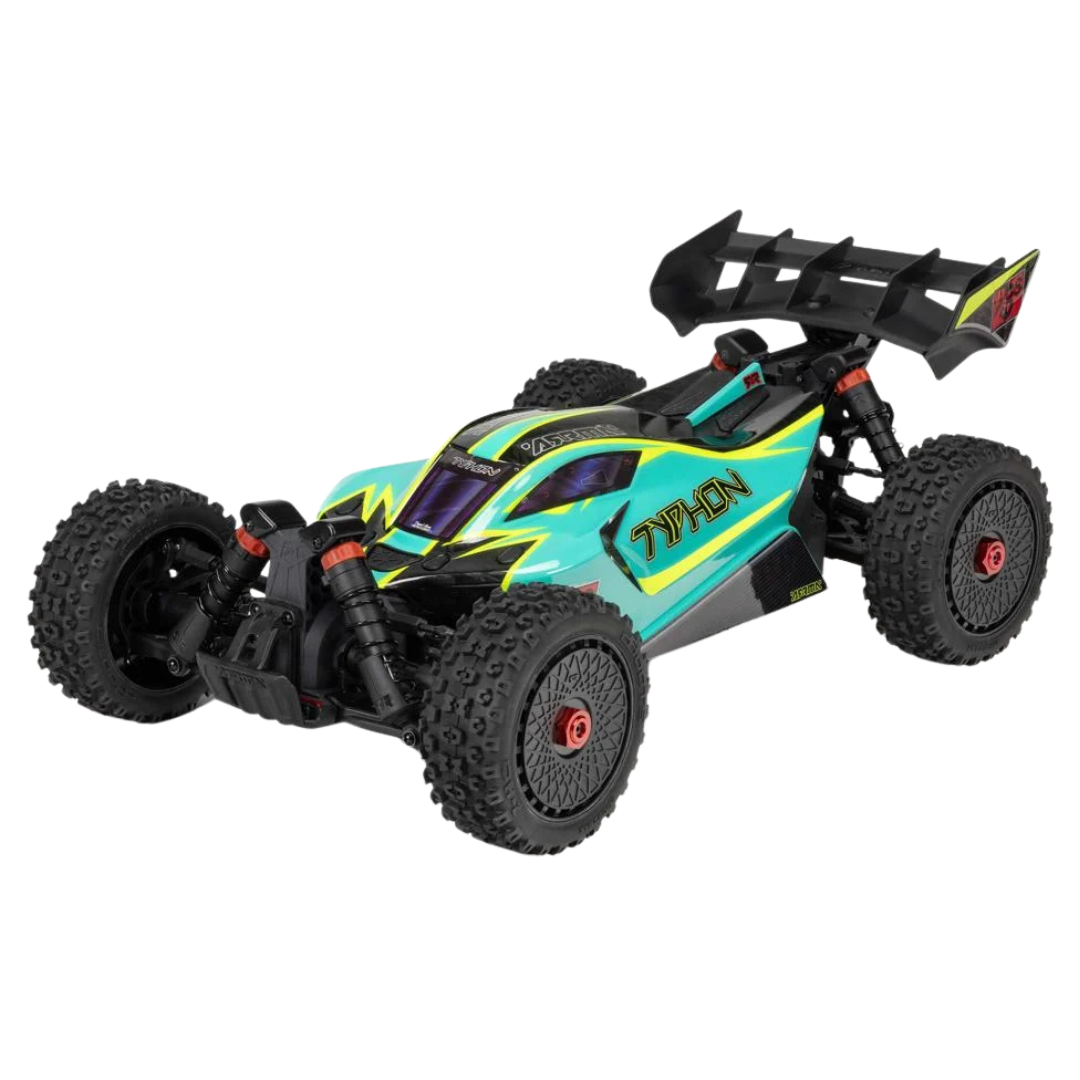

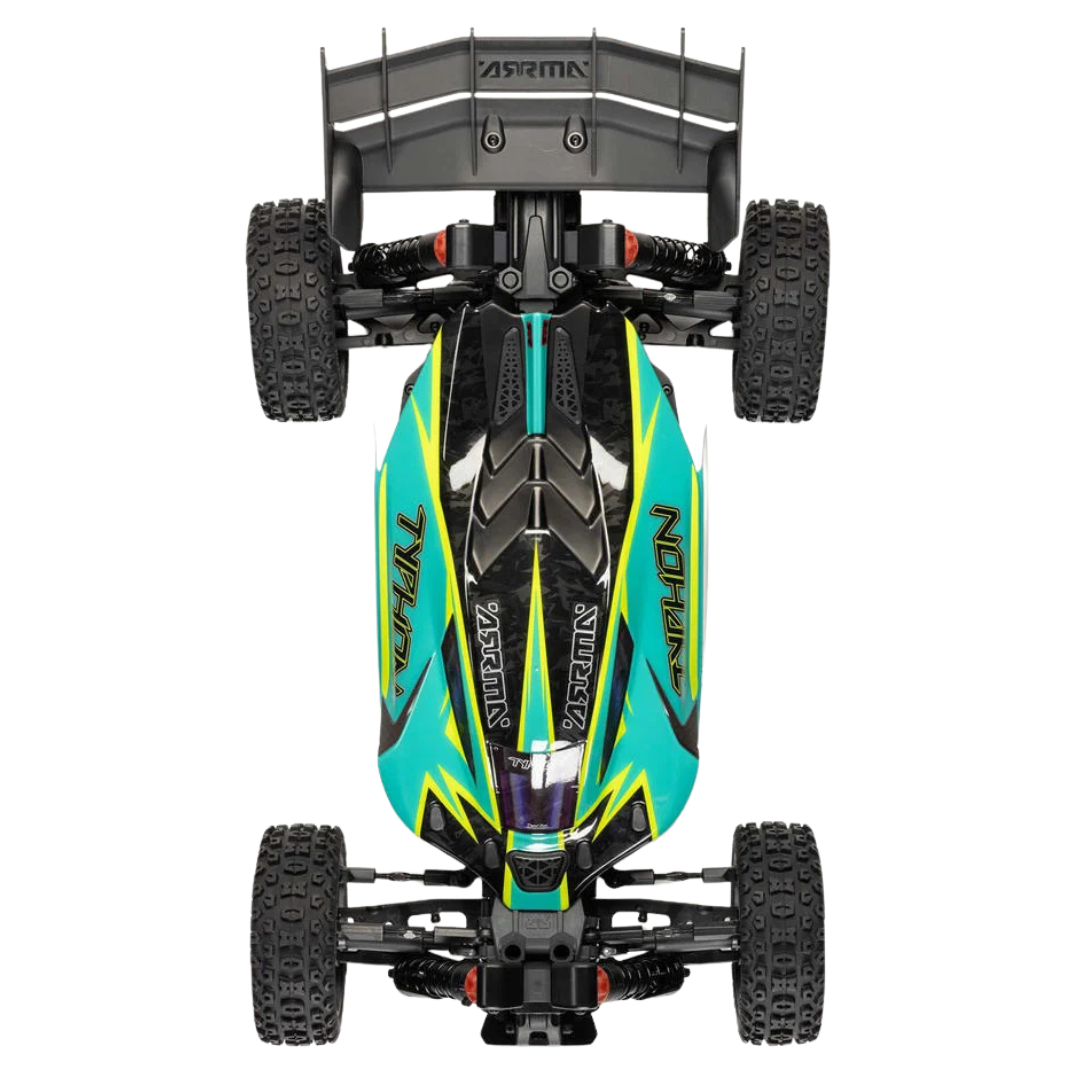

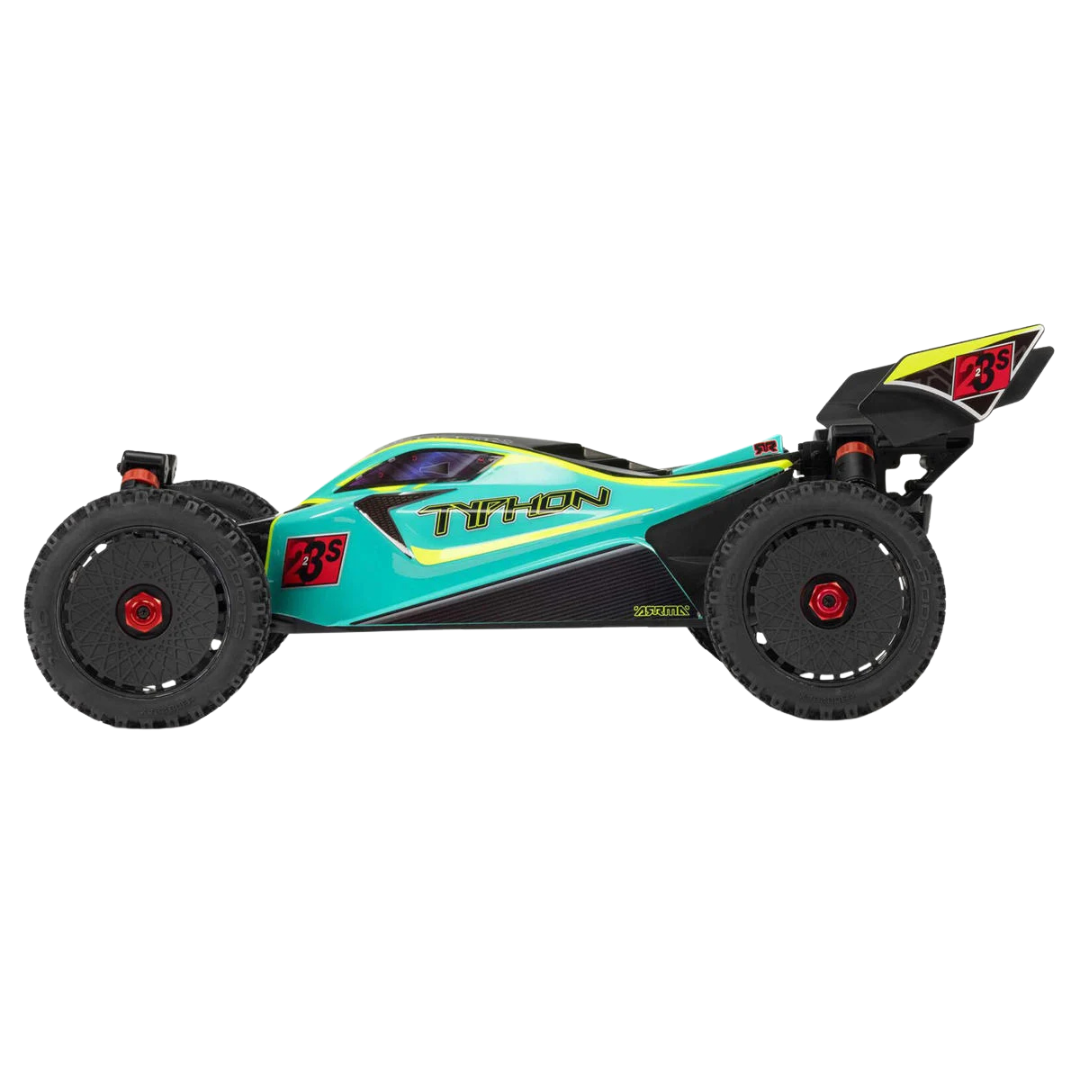

ARRMA TYPHON 223S BLX RC Buggy 1/8 4X4 RTR Green ARA4306V4T1

The ARRMA TYPHON 223S BLX is a 1/8 scale brushless 4X4 RC buggy designed for off-road bashing, high-speed driving and drivers progressing from manageable 2S power to faster 3S performance.

The factory-installed Spektrum 3100kV brushless motor and SLT 80A 2-in-1 ESC and receiver support both 2S and 3S hardcase LiPo batteries. ARRMA rates the TYPHON for speeds above 56km/h on 2S and more than 80km/h on 3S under suitable conditions.

The included Spektrum SLT3 transmitter provides selectable 50%, 75% and 100% throttle limits. Spektrum Dynamic Stability Control adds four selectable assistance modes to help maintain direction on loose or slippery surfaces while the driver develops confidence and control.

Features

• 2S and 3S Brushless Power: Change the buggy’s performance by changing the battery rather than replacing the power system
• 35+ MPH on 2S: Capable of speeds above approximately 56km/h with a suitable 2S LiPo battery
• 50+ MPH on 3S: Capable of speeds above approximately 80km/h with a suitable 3S LiPo battery
• Spektrum 3100kV Brushless Motor: Provides responsive acceleration for off-road bashing and high-speed driving
• 35mm Motor Cooling Fan: Helps manage motor temperature during demanding operation
• Spektrum SLT 80A 2-in-1 Unit: Combines the waterproof brushless ESC and receiver
• Dynamic Stability Control: Four selectable DSC modes provide automatic steering correction when required
• Throttle Limiting: Select 50%, 75% or 100% maximum throttle from the SLT3 transmitter
• Spektrum SLT3 Radio: Included 2.4GHz three-channel transmitter provides reliable control
• Spektrum S662 Steering Servo: Waterproof digital servo with metal gears and a 25-tooth output spline
• Heavy-Duty 4X4 Drivetrain: Transfers brushless power to all four wheels
• All-Metal Centre Differential: Distributes power between the front and rear drivetrains
• Metal Differential Outdrives and Gearbox Internals: Support demanding 2S and 3S operation
• Composite Slider Driveshafts: Provide a durable and serviceable driveline

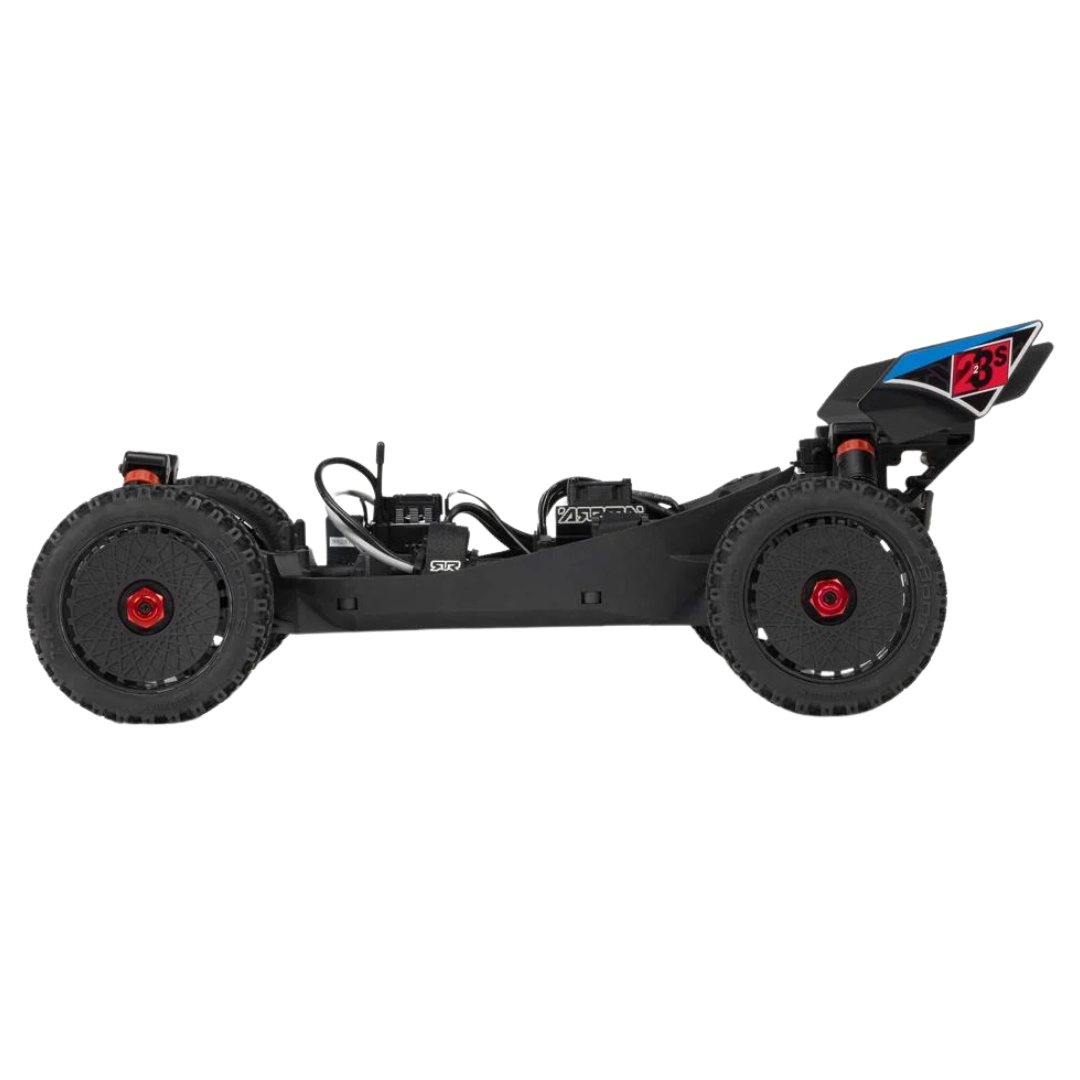

• Ventilated Composite Chassis: Combines structural strength with airflow around the electronics
• Raised Side Guards: Help reduce dirt and debris entering the chassis tub
• Centre Driveshaft Stone Guard: Helps prevent stones from interfering with the centre driveline
• Independent All-Terrain Suspension: Allows each wheel to react separately over uneven surfaces
• Adjustable Oil-Filled Shocks: Provide controlled damping across bumps, jumps and rough terrain
• Composite Shock Towers: Support the suspension while keeping vehicle weight controlled
• Impact-Absorbing Composite Bumpers: Help protect the chassis during front and rear impacts
• Low-Profile Buggy Body: Provides the appearance and reduced centre of gravity expected from a 1/8 buggy
• Clipless Quick-Release Body System: Allows chassis access without conventional loose body clips

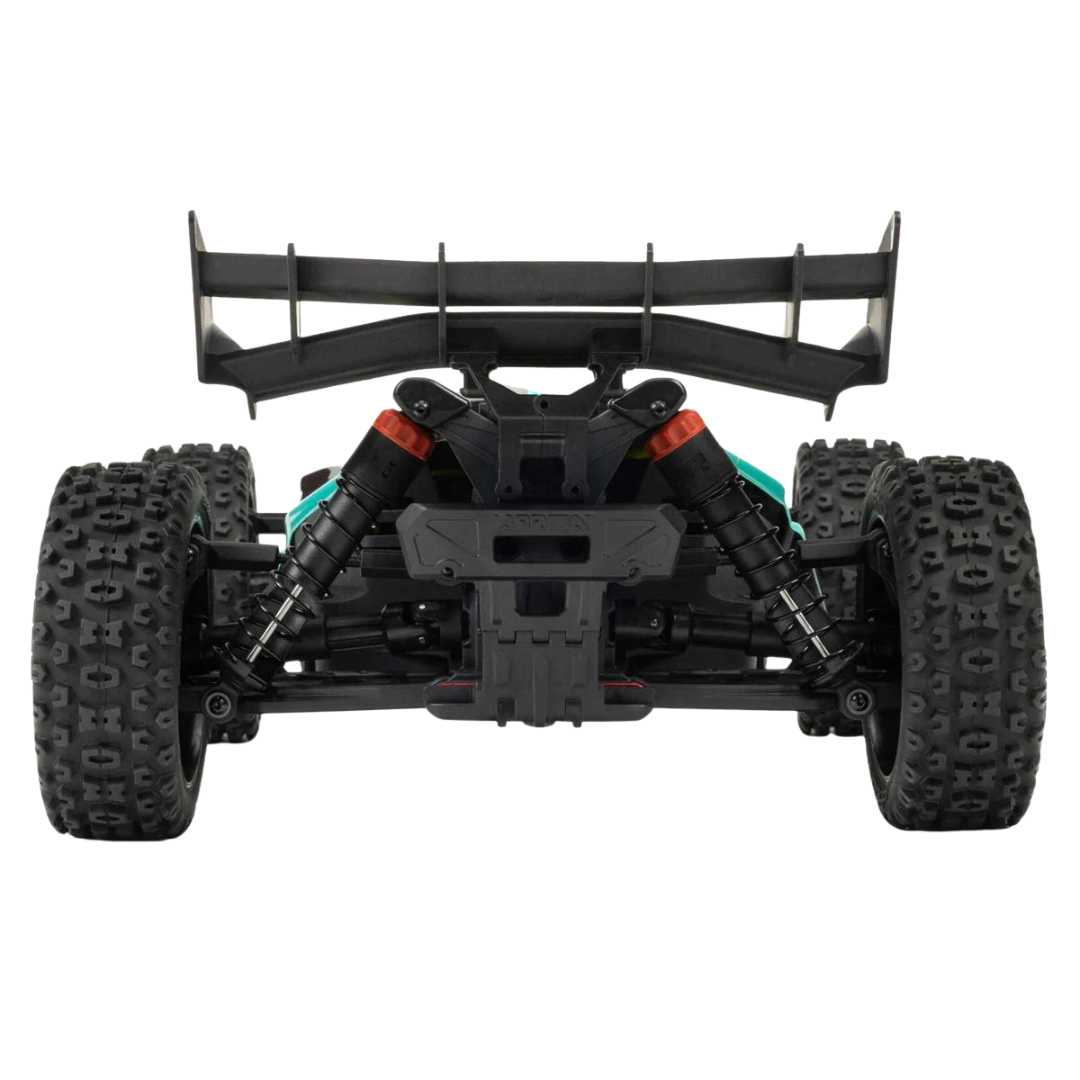

• High-Downforce Rear Wing: Adds stability and complements the buggy-style chassis
• All-Terrain Wheels and Tyres: Designed for dirt, gravel, short grass and mixed bashing surfaces
• Ready-to-Run Assembly: Motor, ESC, receiver, steering servo and radio system are factory installed

Specifications

• Brand: ARRMA
• Model: TYPHON 223S BLX V4
• Manufacturer Part Number: ARA4306V4T1
• Colour: Green
• Product Type: Electric RC Buggy
• Scale: 1/8
• Completion Level: Ready to run
• Power System: ARRMA 223S
• Power Source: Electric brushless
• Drive System: Shaft-driven 4X4
• Motor: Spektrum 3100kV brushless motor
• Motor Cooling: 35mm fan
• Electronic Speed Controller: Spektrum SLT 80A waterproof 2-in-1 ESC and receiver
• Battery Compatibility: One 2S or 3S hardcase LiPo battery
• Nominal Battery Voltage: 7.4V or 11.1V
• Maximum Battery Input: 3S LiPo
• Battery Connector: IC5
• Radio System: Spektrum SLT3 2.4GHz three-channel transmitter
• Throttle Limiting: 50%, 75% and 100%
• Stability Assistance: Spektrum Dynamic Stability Control
• DSC Settings: Four selectable modes including off
• Steering Servo: Spektrum S662 waterproof digital servo
• Servo Gearing: Metal
• Servo Output Spline: 25-tooth
• Centre Differential: All-metal gear differential
• Suspension: Independent all-terrain suspension
• Shock Type: Adjustable oil-filled coilover
• Body Mounting: Clipless quick-release system
• Length: 511mm
• Width: 306mm
• Height: 195mm
• Wheelbase: 328mm
• Approximate Weight: 3.01kg without drive battery
• Maximum Advertised Speed on 2S: Over 56km/h
• Maximum Advertised Speed on 3S: Over 80km/h
• Water Resistance: Yes, subject to the care and maintenance requirements in the instruction manual

Includes

• 1 × ARRMA TYPHON 223S BLX V4 1/8 4X4 RTR RC buggy in green
• 1 × Installed Spektrum SLT 80A waterproof 2-in-1 ESC and receiver with DSC
• 1 × Installed Spektrum 3100kV brushless motor
• 1 × Installed 35mm motor cooling fan
• 1 × Installed Spektrum S662 waterproof metal-geared digital steering servo
• 1 × Spektrum SLT3 2.4GHz three-channel transmitter
• 4 × AA transmitter batteries
• 1 × 2.0mm hex driver
• 1 × 2.5mm hex driver
• Instruction manual

Required to Complete

• 1 × Compatible 2S or 3S hardcase LiPo battery with IC5 connector
• 1 × Compatible LiPo balance charger
• 1 × LiPo charging bag or other suitable fire-resistant charging container

FAQ

Does the ARRMA TYPHON 223S include a battery and charger? No. The transmitter and four AA batteries are included, but the main 2S or 3S hardcase LiPo battery and compatible charger are required separately.

Should a beginner use a 2S or 3S battery? OZRC recommends beginning with a 2S battery and the transmitter set to 50% or 75% throttle. A 3S battery provides substantially greater acceleration and top speed.

What does Dynamic Stability Control do? Spektrum DSC provides automatic steering corrections to help the buggy maintain its intended direction. The system has four selectable modes and can be switched off.

Can the TYPHON 223S use a 4S battery? No. The factory-installed power system is designed for a maximum of one 3S LiPo battery.

Important Notes

• The main drive battery and charger are not included.
• Use one compatible 2S or 3S hardcase LiPo battery with an IC5 connector.
• Do not connect a 4S battery to the factory-installed electronics.
• The 35mph-plus speed claim applies to operation with a suitable 2S LiPo battery.
• The 50mph-plus speed claim requires a suitable 3S LiPo battery and appropriate running conditions.
• Actual speed varies with battery performance, terrain, temperature, gearing and vehicle condition.
• DSC assists steering control but cannot prevent every spin, rollover or collision.
• Long or thick grass places additional load on the motor, ESC and battery and may cause excessive heat.
• Allow the motor, ESC and battery to cool between demanding runs.
• Never charge a LiPo battery unattended.
• Use a compatible balance charger and charge LiPo batteries inside a suitable charging bag or fire-resistant container.
• Do not use or charge a swollen, damaged, punctured or excessively hot LiPo battery.
• Water-resistant electronics do not make the buggy suitable for submersion.
• Clean and dry the buggy after wet, muddy or dusty use.
• Avoid salt water because it can rapidly corrode bearings, hardware and electrical connections.
