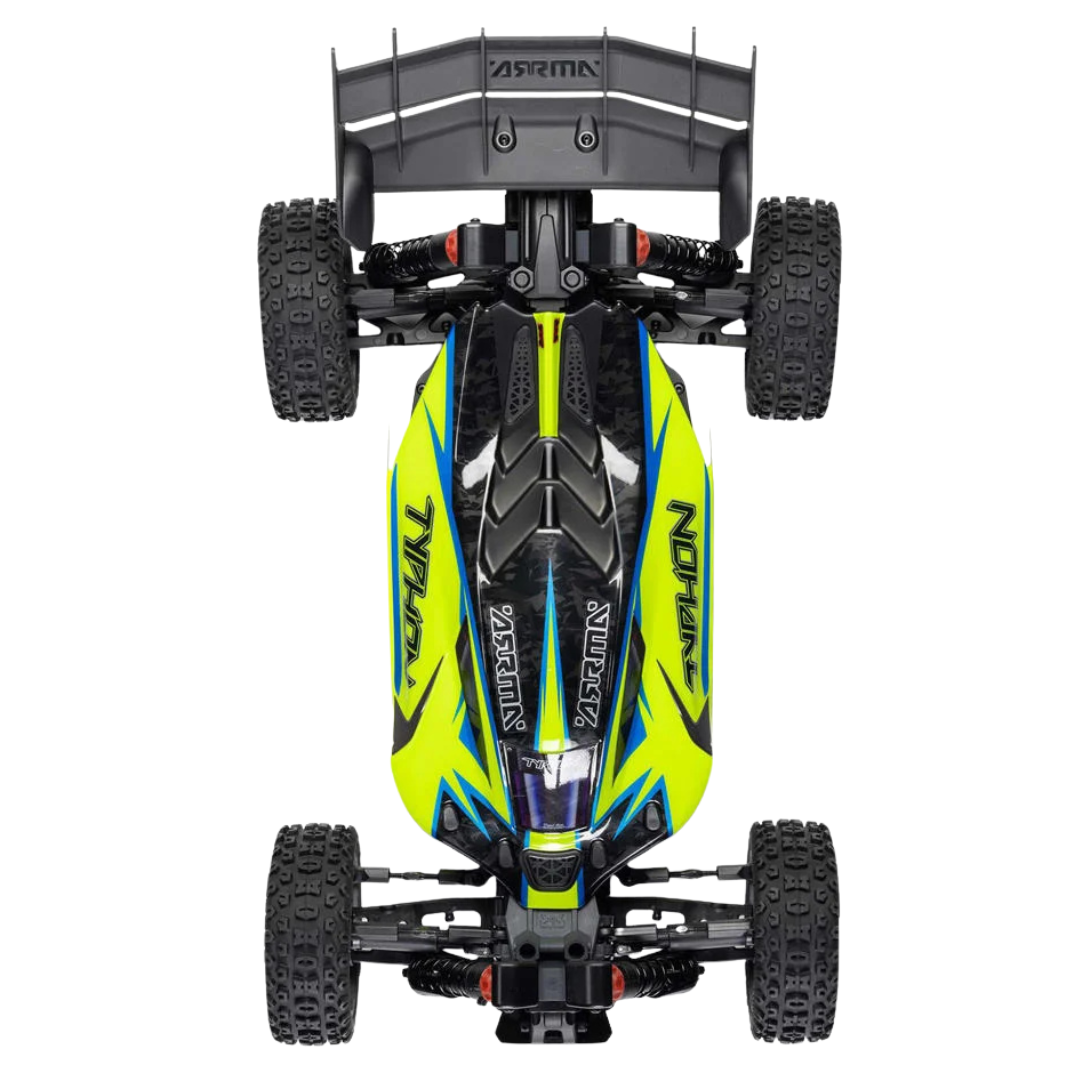

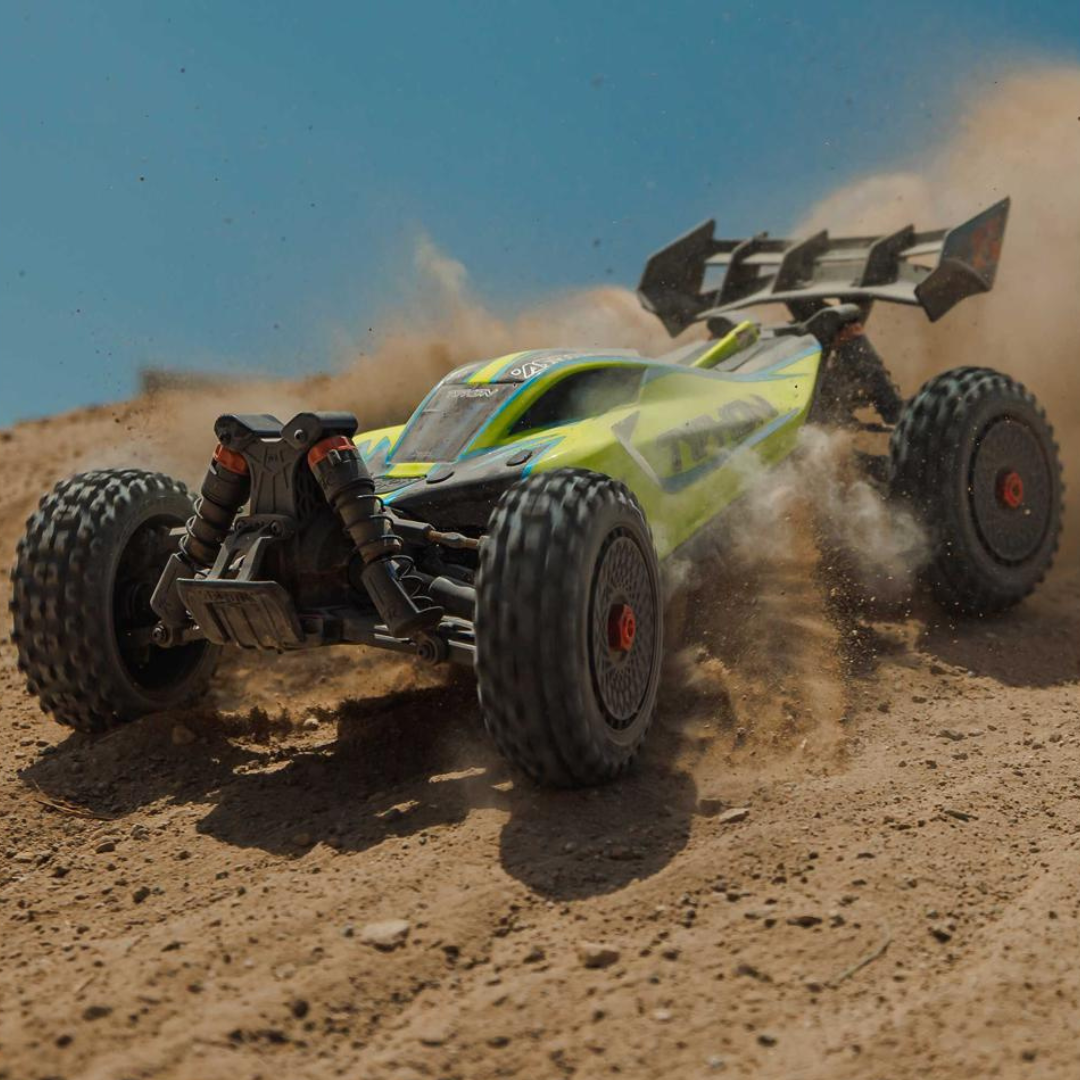

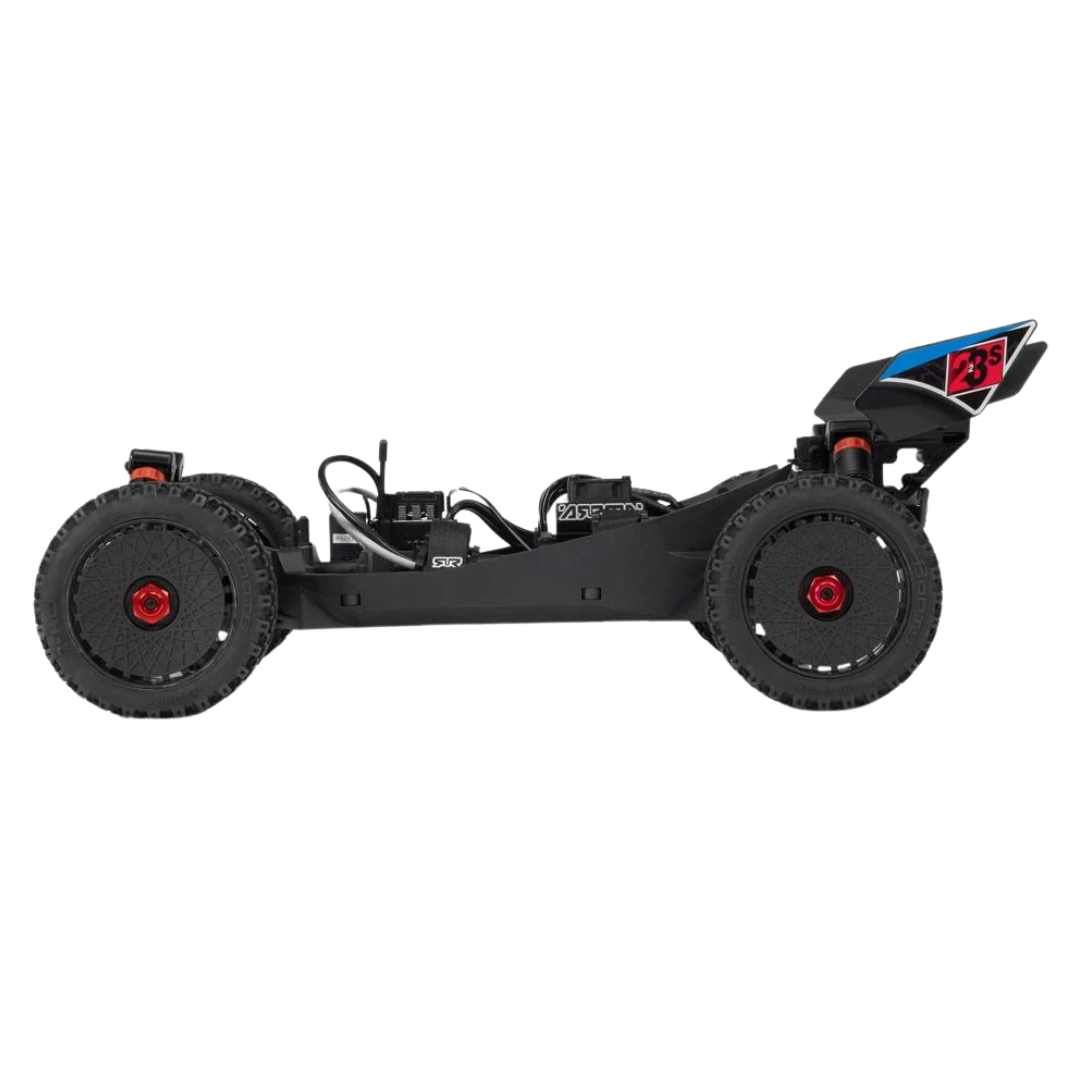

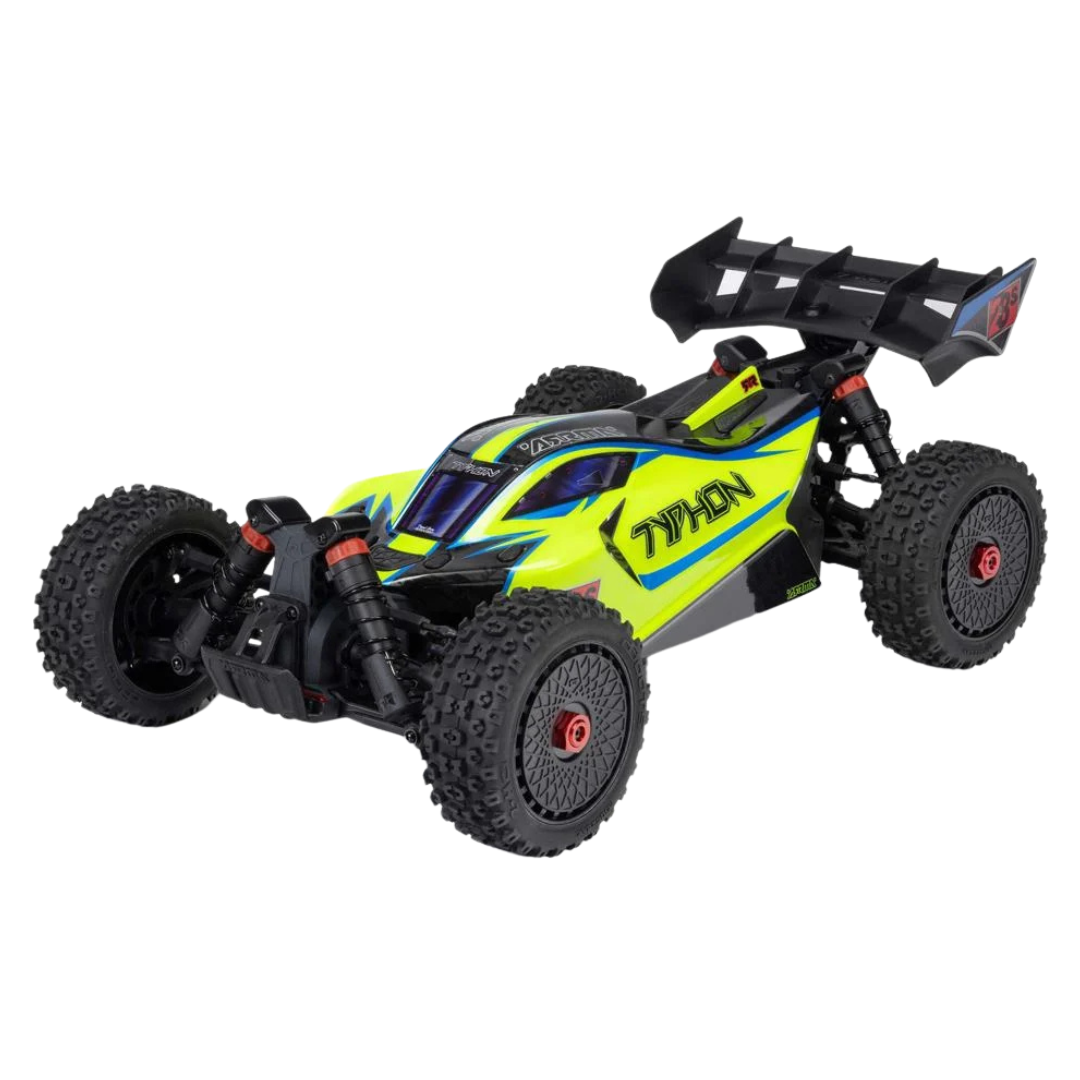

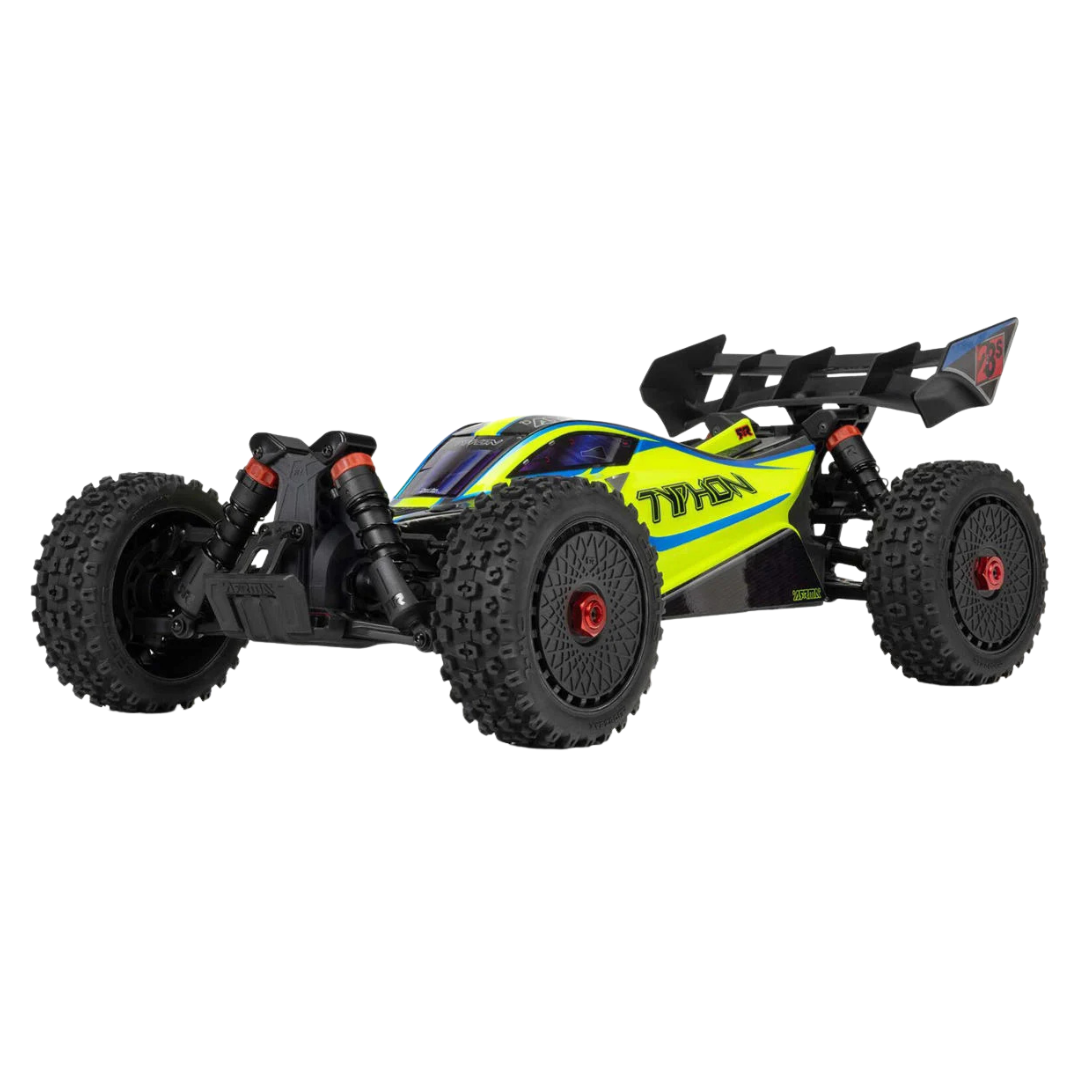

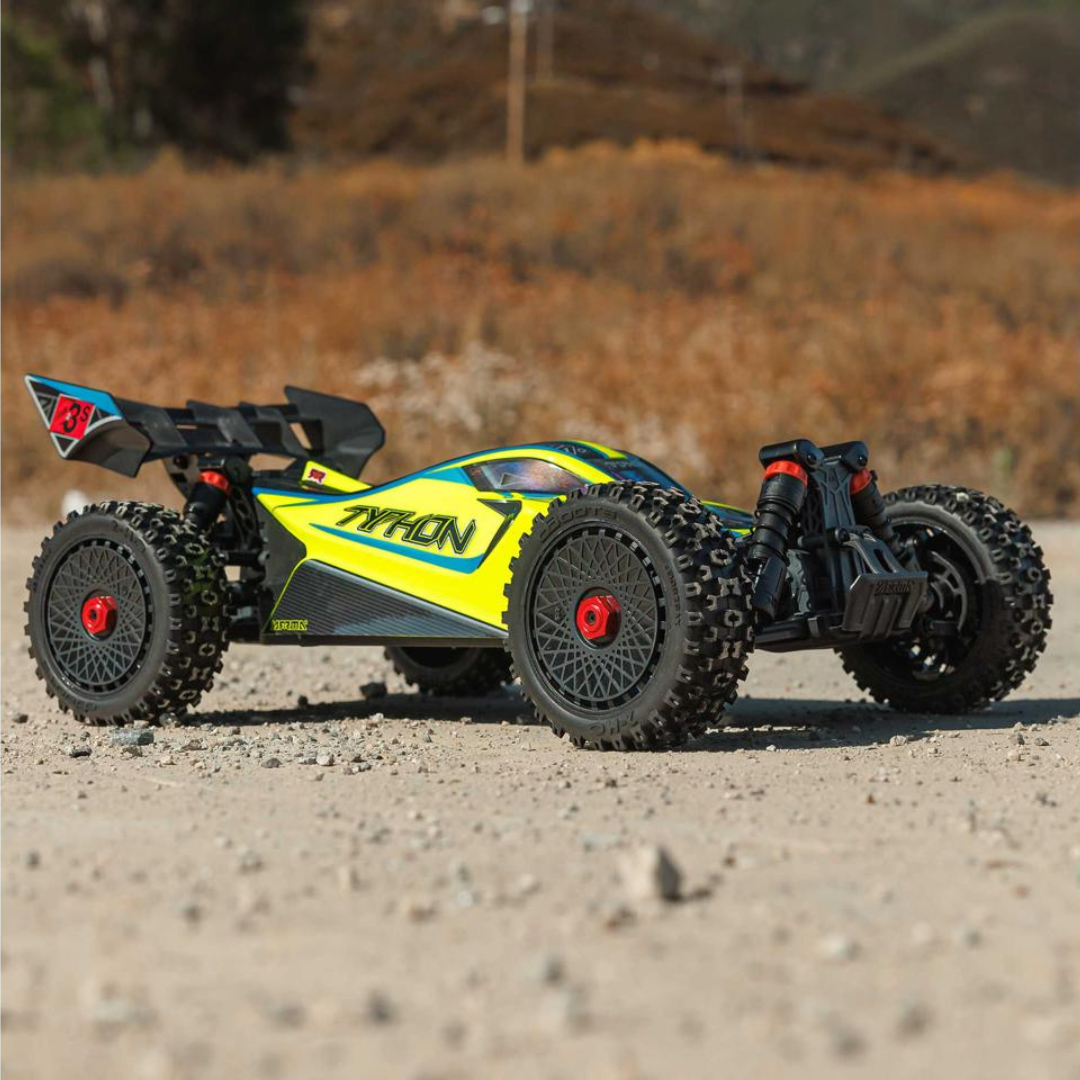

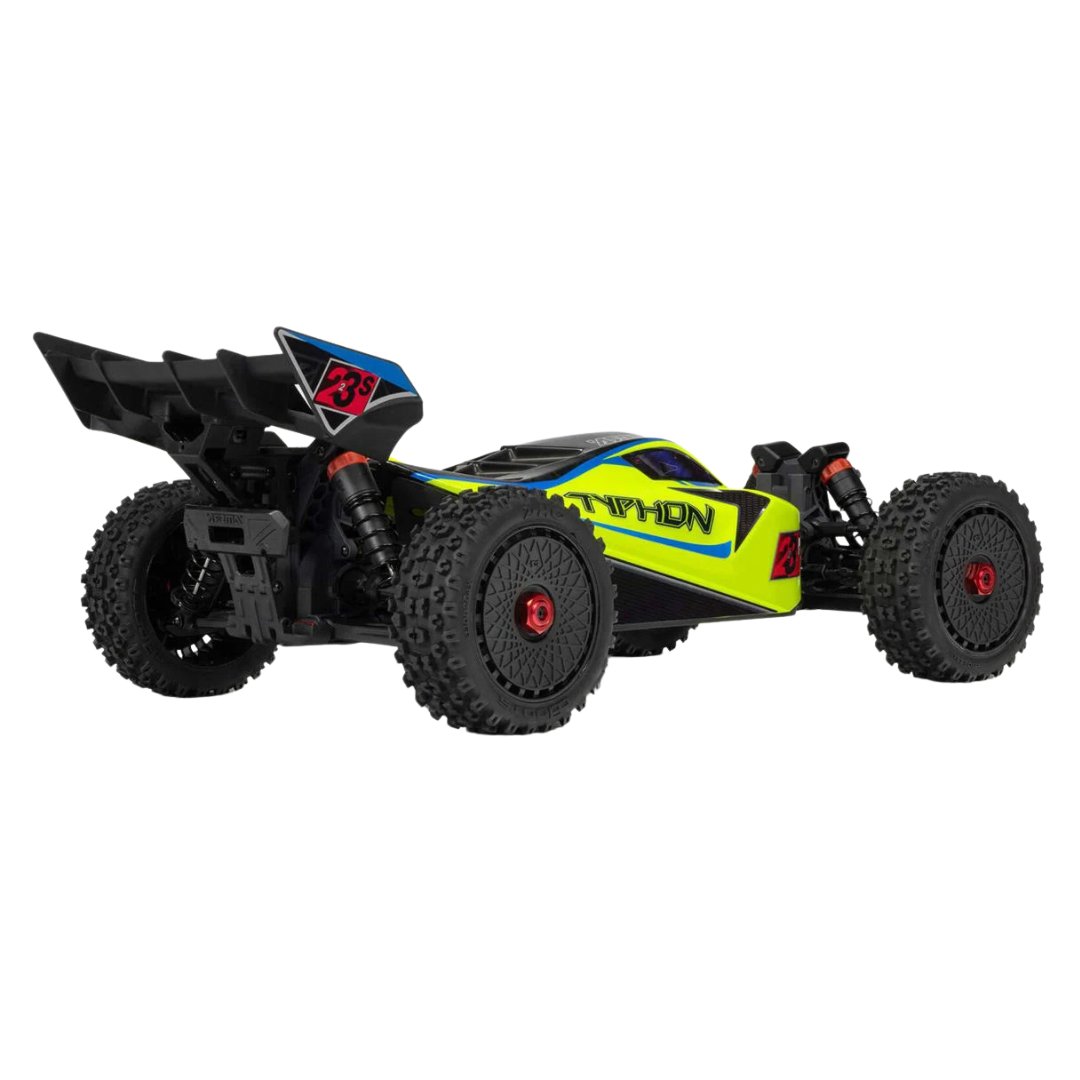

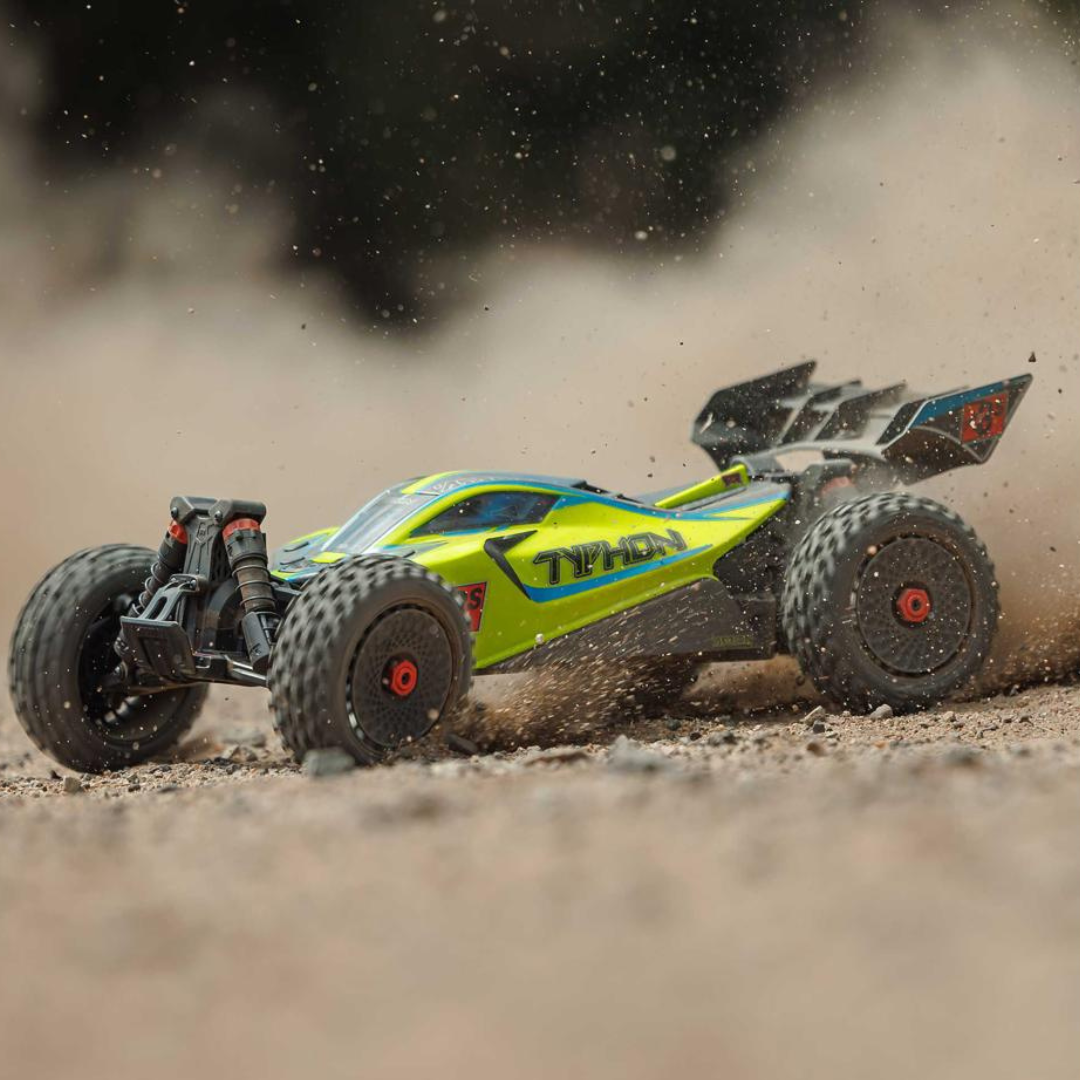

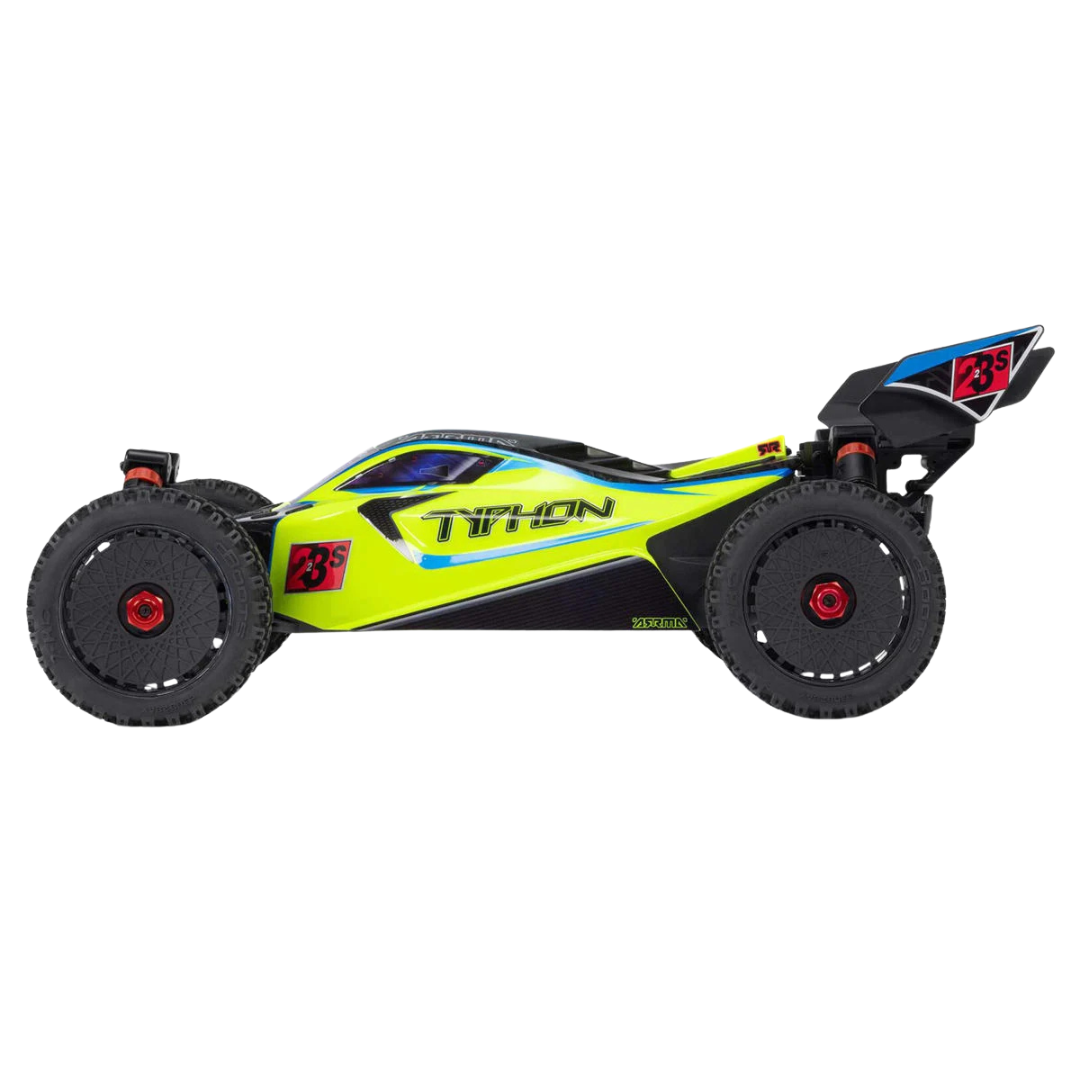

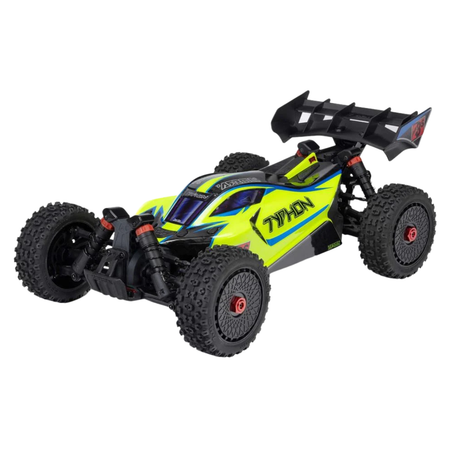

ARRMA TYPHON 223S BLX V4 RC Buggy 1/8 4X4 RTR Yellow ARA4306V4T2

The ARRMA TYPHON 223S BLX V4 is a ready-to-run 1/8 scale brushless RC buggy designed for drivers progressing from manageable 2S performance to faster 3S off-road bashing.

Its factory-installed Spektrum 3100kV brushless motor and SLT 80A 2-in-1 ESC and receiver support compatible 2S and 3S hardcase LiPo batteries. Use 2S power for speeds exceeding approximately 56km/h, then install a 3S battery to unlock the buggy’s advertised 80km/h-plus potential.

The included Spektrum SLT3 transmitter offers selectable 50%, 75% and 100% throttle limits. Spektrum Dynamic Stability Control provides four selectable assistance modes that automatically correct steering when required, helping newer drivers build confidence on loose and slippery surfaces.

A heavy-duty 4X4 drivetrain, all-metal centre differential, independent suspension and adjustable oil-filled shocks prepare the TYPHON for dirt, gravel, trails, short grass and general off-road bashing. Its low-profile yellow buggy body, high-downforce rear wing and clipless retention system combine stable handling with convenient chassis access.

Features

• Progressive 2S and 3S Performance: Increase speed by changing the battery without replacing the factory electronics
• 35+ MPH on 2S: Capable of speeds exceeding approximately 56km/h with a suitable 2S LiPo battery
• 50+ MPH on 3S: Capable of speeds exceeding approximately 80km/h with a suitable 3S LiPo battery
• Spektrum 3100kV Brushless Motor: Provides responsive acceleration and high-speed performance
• 35mm Motor Cooling Fan: Helps manage motor temperature during demanding operation
• Spektrum SLT 80A 2-in-1 Unit: Combines the waterproof brushless ESC and receiver
• Dynamic Stability Control: Four selectable assistance modes provide automatic steering correction
• Selectable Throttle Limiting: Choose 50%, 75% or 100% maximum throttle from the transmitter
• Spektrum SLT3 Radio: Included 2.4GHz three-channel transmitter provides reliable control
• Spektrum S662 Steering Servo: Waterproof digital servo with metal gears and a 25-tooth output spline
• Heavy-Duty 4X4 Drivetrain: Transfers brushless power to all four wheels
• All-Metal Centre Differential: Distributes power between the front and rear drivetrains
• Easy-Access Centre Differential Module: Designed to simplify drivetrain servicing
• Metal Differential Outdrives and Internal Gears: Support demanding brushless operation
• Composite Slider Driveshafts: Provide a durable and serviceable driveline

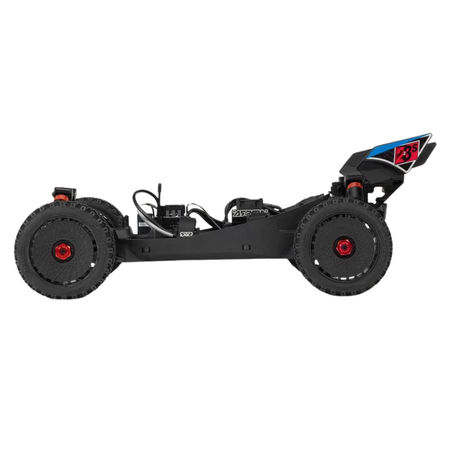

• Ventilated Composite Chassis: Combines structural strength with airflow around the electronics
• Raised Chassis Side Guards: Help reduce dirt and debris entering the chassis tub
• Centre Driveshaft Stone Guard: Helps prevent stones from interfering with the driveline
• Independent All-Terrain Suspension: Allows each wheel to react separately over uneven surfaces

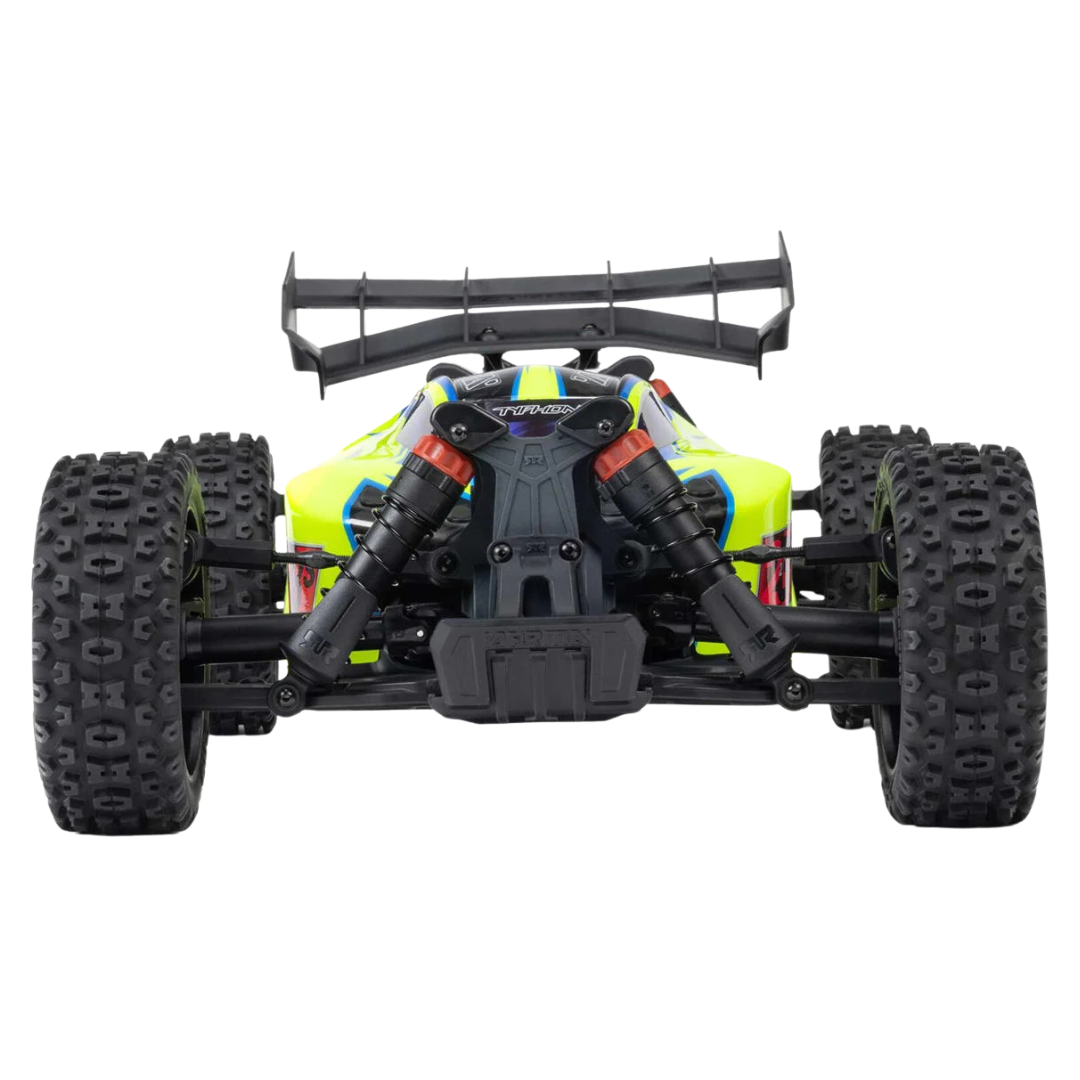

• Adjustable Oil-Filled Shocks: Provide controlled damping across bumps, jumps and rough terrain
• Composite Shock Towers: Support the suspension while keeping vehicle weight controlled
• Impact-Absorbing Composite Bumpers: Help protect the chassis during front and rear impacts
• Low-Profile Buggy Body: Supports a low centre of gravity and distinctive race-buggy appearance
• Yellow Factory Finish: Body is supplied painted, decaled and trimmed
• Clipless Quick-Release Body System: Provides chassis access without conventional loose body clips

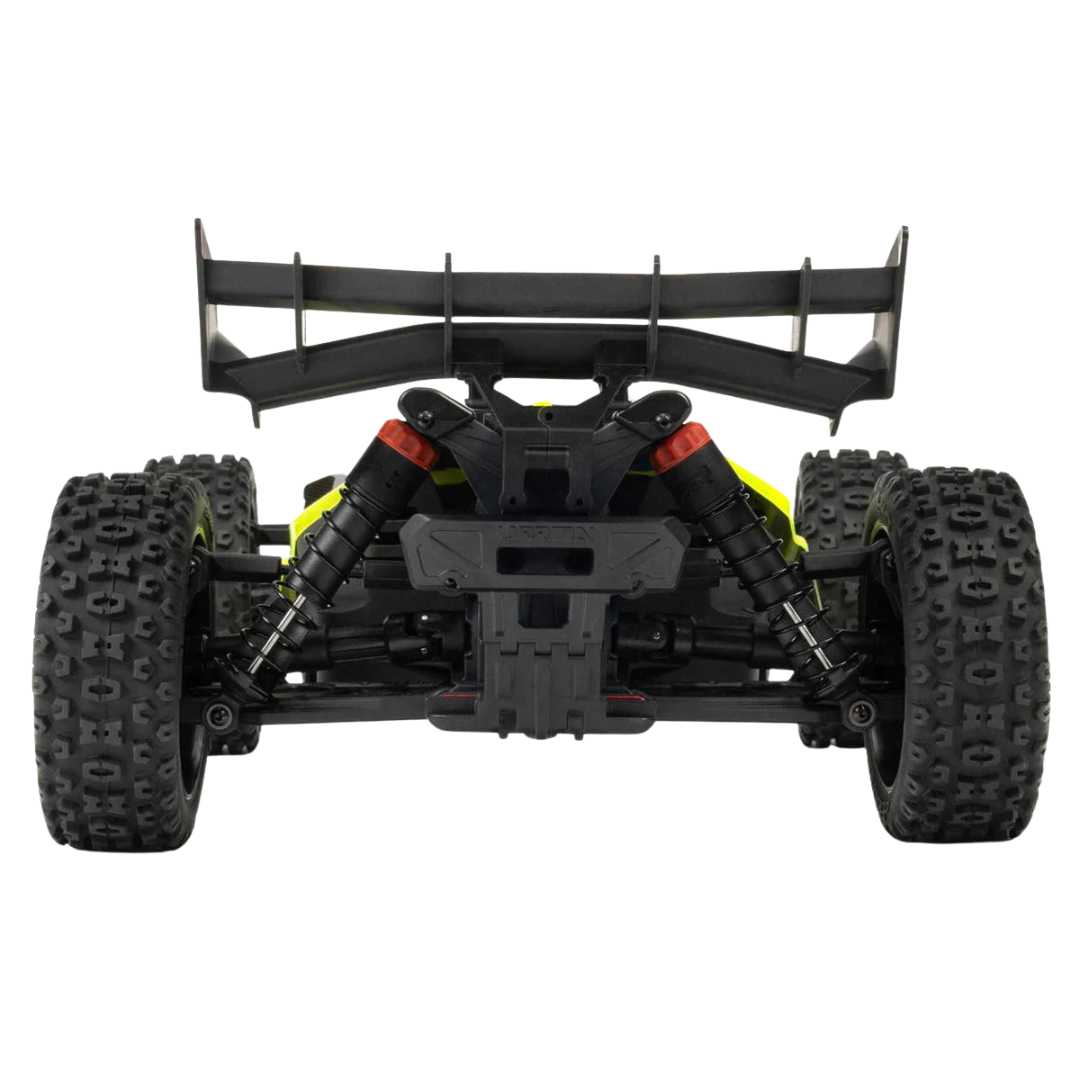

• High-Downforce Rear Wing: Helps improve stability during high-speed driving and jumping
• Narrow Buggy Wheels and Tyres: Support responsive steering and predictable off-road handling
• Water-Resistant Electronics: Designed for varied off-road running conditions
• Ready-to-Run Assembly: Motor, ESC, receiver, steering servo and radio system are factory installed
• Transmitter Batteries Included: Four AA batteries are supplied for the SLT3 transmitter

Specifications

• Brand: ARRMA
• Model: TYPHON 223S BLX V4
• Manufacturer Part Number: ARA4306V4T2
• Colour: Yellow
• Product Type: Electric RC Race Buggy
• Scale: 1/8
• Completion Level: Ready to run
• Power System: ARRMA 223S
• Power Source: Electric brushless
• Drive System: Shaft-driven four-wheel drive
• Motor: Spektrum 3100kV brushless motor
• Motor Cooling: 35mm cooling fan
• Electronic Speed Controller: Spektrum SLT 80A waterproof 2-in-1 ESC and receiver
• Battery Compatibility: One 2S or 3S hardcase LiPo battery
• Nominal Battery Voltage: 7.4V or 11.1V
• Maximum Battery Input: 3S LiPo
• Battery Connector: IC5
• Maximum Battery Dimensions: 165mm × 51mm × 48mm
• Radio System: Spektrum SLT3 2.4GHz three-channel transmitter
• Throttle Limiting: 50%, 75% and 100%
• Stability Assistance: Spektrum Dynamic Stability Control
• DSC Settings: Four selectable modes, including off
• Steering Servo: Spektrum S662 waterproof digital servo
• Servo Gearing: Metal
• Servo Output Spline: 25-tooth
• Centre Differential: All-metal gear differential
• Suspension: Independent all-terrain suspension
• Shock Type: Adjustable oil-filled coilover
• Chassis Material: Ventilated composite
• Body: Painted, decaled and trimmed
• Body Mounting: Clipless quick-release retention system
• Length: 511mm
• Width: 306mm
• Height: 195mm
• Wheelbase: 328mm
• Approximate Product Weight: 3.01kg without drive battery
• Maximum Advertised Speed on 2S: Over 56km/h
• Maximum Advertised Speed on 3S: Over 80km/h
• Water Resistance: Yes, subject to the care and maintenance requirements in the instruction manual

Compatibility

• Compatible with one suitable 2S hardcase LiPo battery for more manageable performance
• Compatible with one suitable 3S hardcase LiPo battery for maximum advertised performance
• Battery must not exceed 165mm × 51mm × 48mm
• Battery should use an IC5 connector or a correctly rated compatible connection system
• Compatible with selected Spektrum Smart hardcase LiPo batteries fitted with IC5 connectors
• Compatible with LiPo balance chargers rated for the selected 2S or 3S battery
• Compatible with genuine ARRMA TYPHON 223S V4 replacement and upgrade parts
• Replacement bodies must be designed for the TYPHON 223S V4 clipless mounting system
• Replacement wheels and tyres must have the correct mounting system, offset, diameter and chassis clearance

Includes

• 1 × ARRMA TYPHON 223S BLX V4 1/8 4X4 RTR RC buggy in yellow
• 1 × Installed Spektrum SLT 80A waterproof 2-in-1 ESC and receiver with DSC
• 1 × Installed Spektrum 3100kV brushless motor
• 1 × Installed 35mm motor cooling fan
• 1 × Installed Spektrum S662 waterproof metal-geared digital steering servo
• 1 × Spektrum SLT3 2.4GHz three-channel transmitter
• 4 × AA transmitter batteries
• 1 × 2.0mm hex driver
• 1 × 2.5mm hex driver
• Instruction manual

Required to Complete

• 1 × Compatible 2S or 3S hardcase LiPo battery with IC5 connector
• 1 × Compatible LiPo balance charger
• 1 × Suitable LiPo charging bag or other fire-resistant charging container

FAQ

Does the ARRMA TYPHON 223S include a battery and charger? No. The buggy includes the transmitter and four AA batteries, but the main 2S or 3S hardcase LiPo battery and compatible charger are sold separately.

What does 223S mean? The 223S power system is designed to operate on either a 2S or 3S LiPo battery. This lets a driver begin with more manageable 2S performance before progressing to 3S.

Should a beginner use a 2S or 3S battery? A 2S battery is generally the better starting option. Combining 2S power with the transmitter set to 50% or 75% throttle makes the buggy easier to control.

How fast is the TYPHON 223S? ARRMA advertises speeds above 35mph, or approximately 56km/h, on 2S and more than 50mph, or approximately 80km/h, on 3S. Actual speed depends on battery performance, terrain, temperature and vehicle condition.

Can it reach 50mph on a 2S battery? No. The 50mph-plus rating requires a suitable 3S LiPo battery. ARRMA rates the buggy for 35mph-plus performance on 2S.

Can the TYPHON 223S use a 4S battery? No. The factory-installed motor and ESC system is rated for a maximum of one 3S LiPo battery.

What size battery fits the TYPHON 223S? Use a suitable 2S or 3S hardcase LiPo battery no larger than 165mm × 51mm × 48mm. Confirm the dimensions and connector before ordering.

Can a softcase LiPo battery be used? ARRMA specifies a hardcase LiPo battery. The rigid casing provides additional physical protection during off-road driving and impacts.

What does the transmitter throttle limiter do? The SLT3 transmitter can limit maximum throttle to 50% or 75%. Selecting 100% makes the full available output of the installed battery accessible.

What does Dynamic Stability Control do? DSC automatically applies steering corrections to help the buggy maintain its intended direction on loose or slippery surfaces. It assists the driver but does not control the throttle or prevent every accident.

Can Dynamic Stability Control be switched off? Yes. Four selectable DSC modes are available, including an off setting for unassisted driving.

Does this model use a centre differential? Yes. The TYPHON 223S V4 uses an all-metal gear centre differential to distribute power between the front and rear drivetrains.

Is the body secured with conventional body clips? No. The body uses a hidden clipless quick-release retention system for convenient chassis access.

Is the TYPHON 223S intended for racing? It uses a race-buggy layout, but it is primarily designed as a durable ready-to-run basher. Eligibility for organised racing depends on the rules used by the individual club or event.

Can the TYPHON be driven on grass? It can be driven on short, dry grass. Long or thick grass creates additional resistance and may quickly increase motor, ESC and battery temperatures.

Can it be driven in wet conditions? The installed ESC/receiver and steering servo are described as waterproof, but the buggy must not be submerged. Clean and dry the vehicle thoroughly after wet or muddy operation.

What routine maintenance is required? Check the wheel fasteners, tyres, shocks, driveshafts and suspension after each session. Remove trapped stones, grass and dirt, inspect for damage and allow the electronics and battery to cool before another run.

Important Notes

• The main drive battery and charger are not included.
• Four AA batteries for the transmitter are included.
• Use one compatible 2S or 3S hardcase LiPo battery with an IC5 connector.
• Confirm that the battery does not exceed 165mm × 51mm × 48mm before purchase.
• Do not connect a 4S battery to the factory-installed electronics.
• The 35mph-plus speed claim applies to operation with a suitable 2S LiPo battery.
• The 50mph-plus speed claim requires a suitable 3S LiPo battery and appropriate running conditions.
• Actual speed varies with battery performance, terrain, temperature and vehicle condition.
• Beginner drivers should start with 2S power and the transmitter set to 50% throttle.
• DSC can improve directional stability but cannot prevent every spin, rollover or collision.
• Use a balance charger suitable for the selected battery’s chemistry, cell count and connector.
• Never charge a LiPo battery unattended.
• Charge LiPo batteries on a non-flammable surface and inside a suitable charging bag or fire-resistant container.
• Do not use or charge a swollen, punctured, damaged or excessively hot LiPo battery.
• Allow the motor, ESC and battery to cool between demanding runs.
• Monitor temperatures when driving through grass, in hot weather or during repeated full-throttle operation.
• Inspect the tyres and wheel fasteners before every high-speed session.
• Operate in a clear area away from people, animals, roads, vehicles and fragile property.
• Water-resistant construction does not make the buggy suitable for submersion.
• Clean and dry the buggy after wet, muddy or dusty operation.
• Avoid salt water because it can rapidly corrode bearings, hardware and electrical connections.
• Manufacturer warranty coverage is subject to applicable regional terms and conditions.
