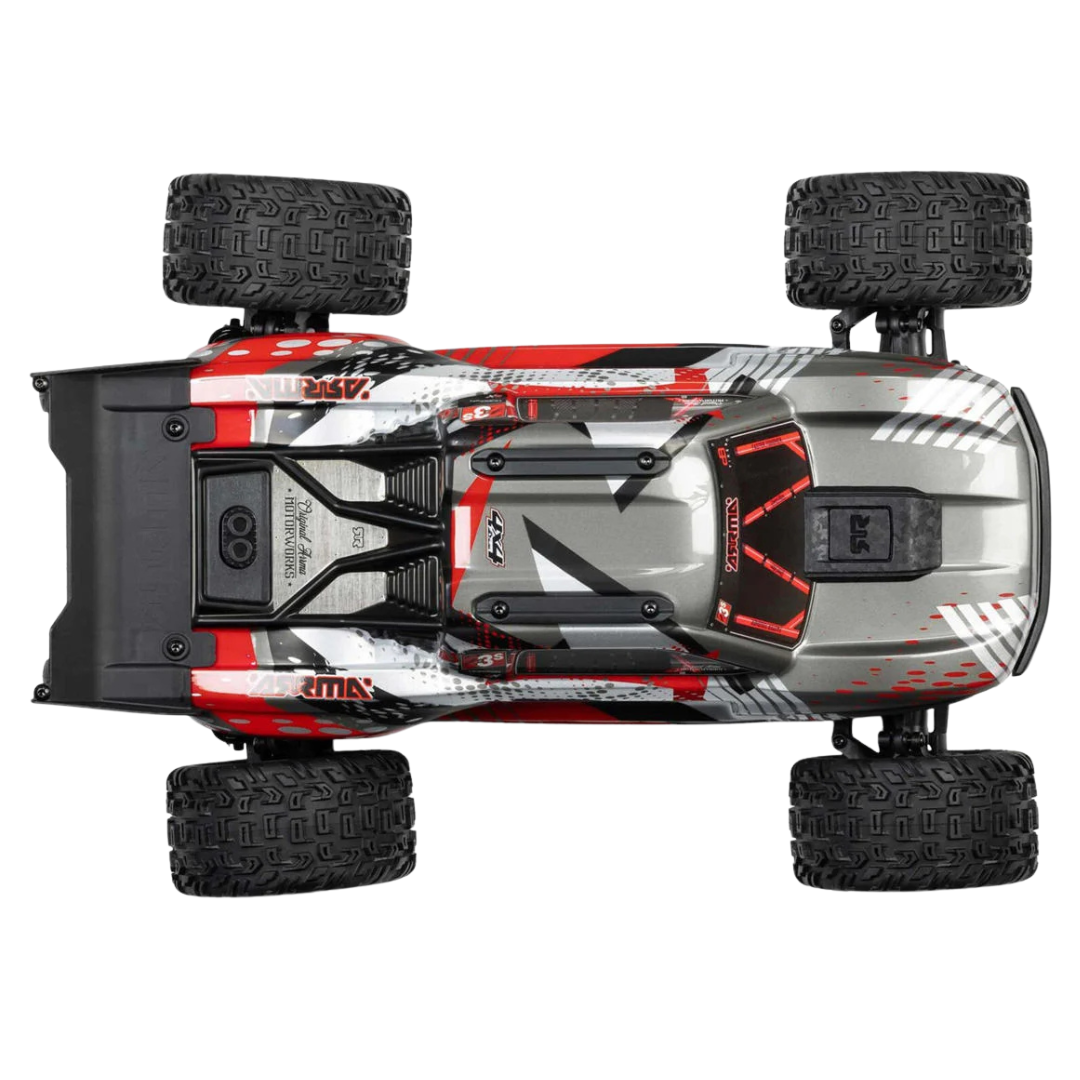

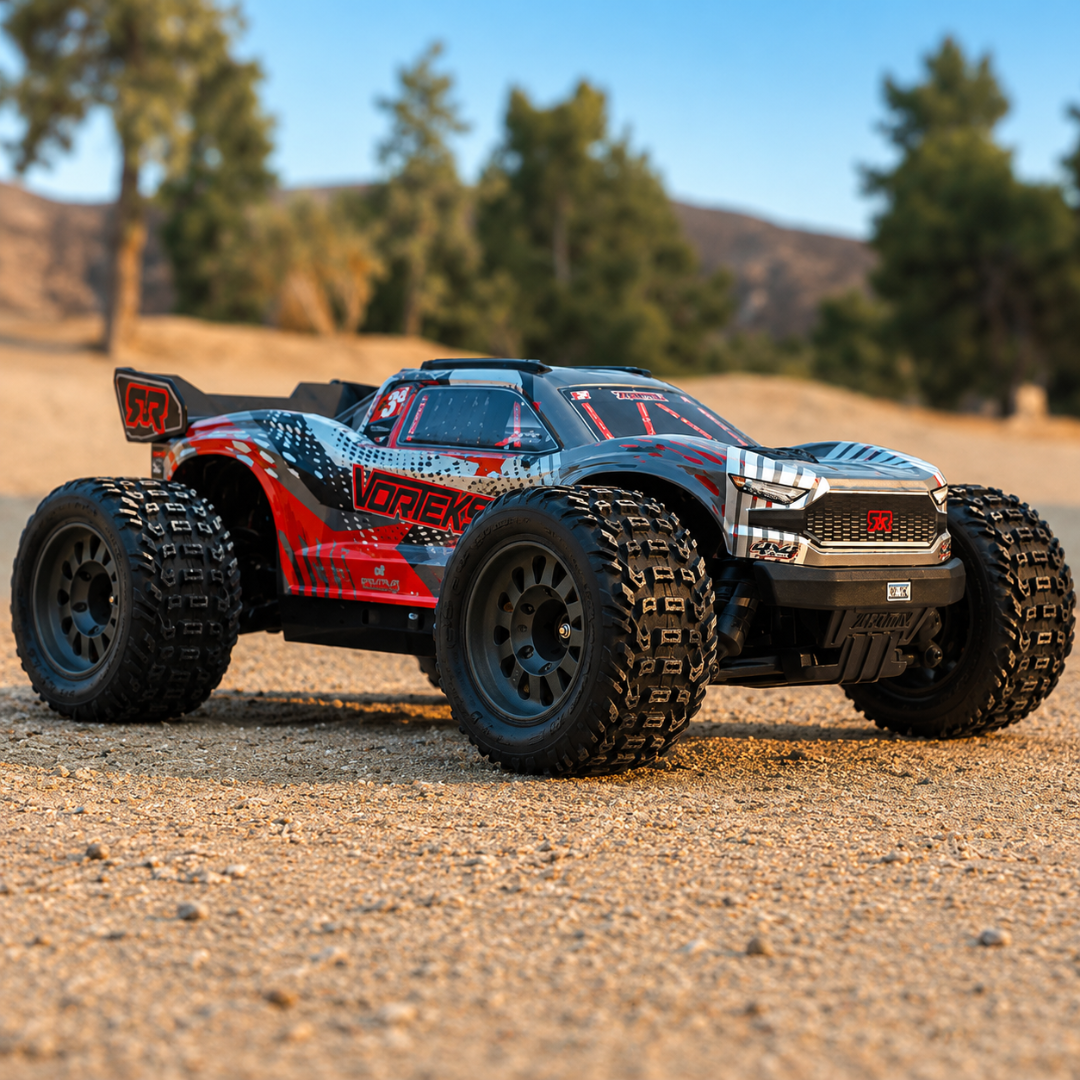

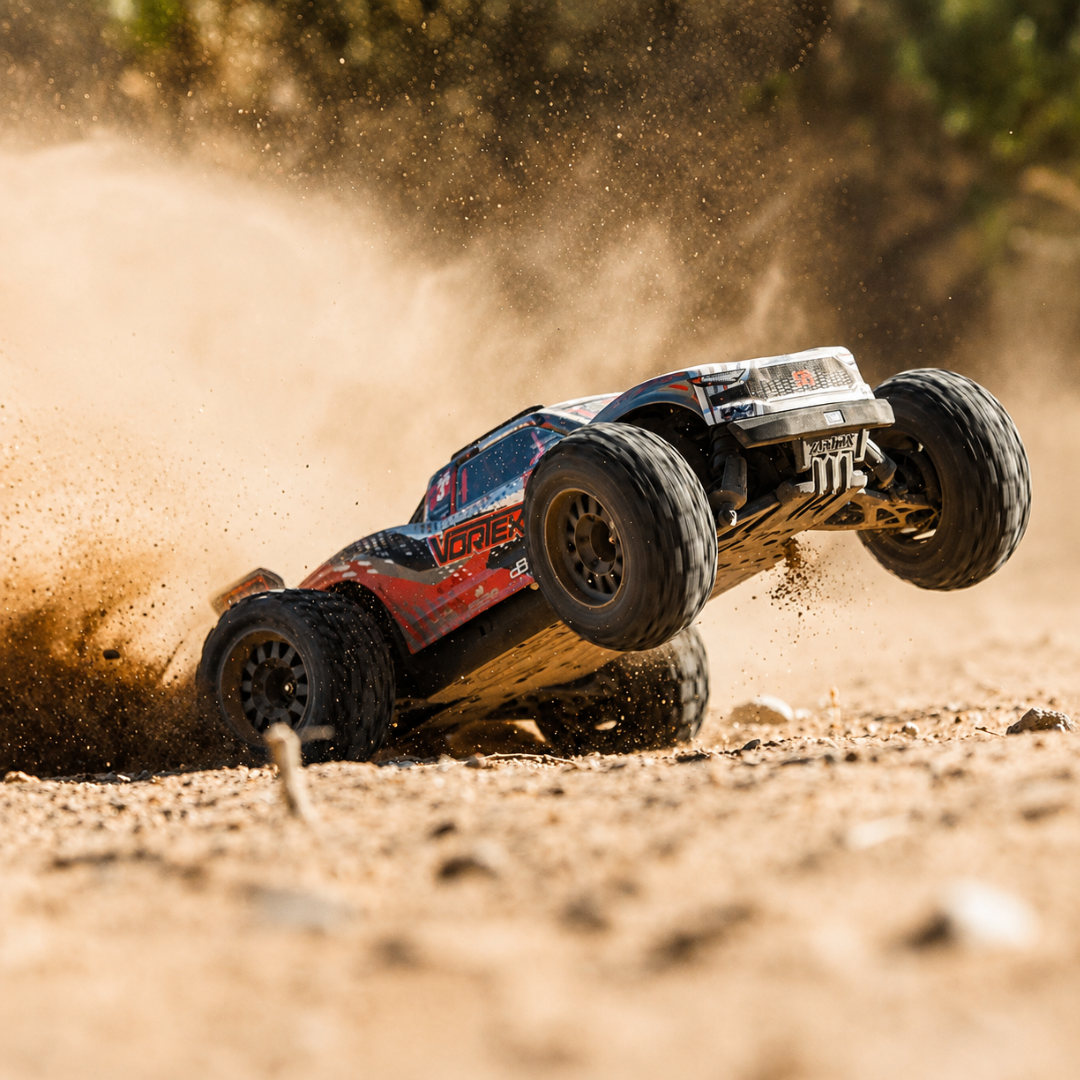

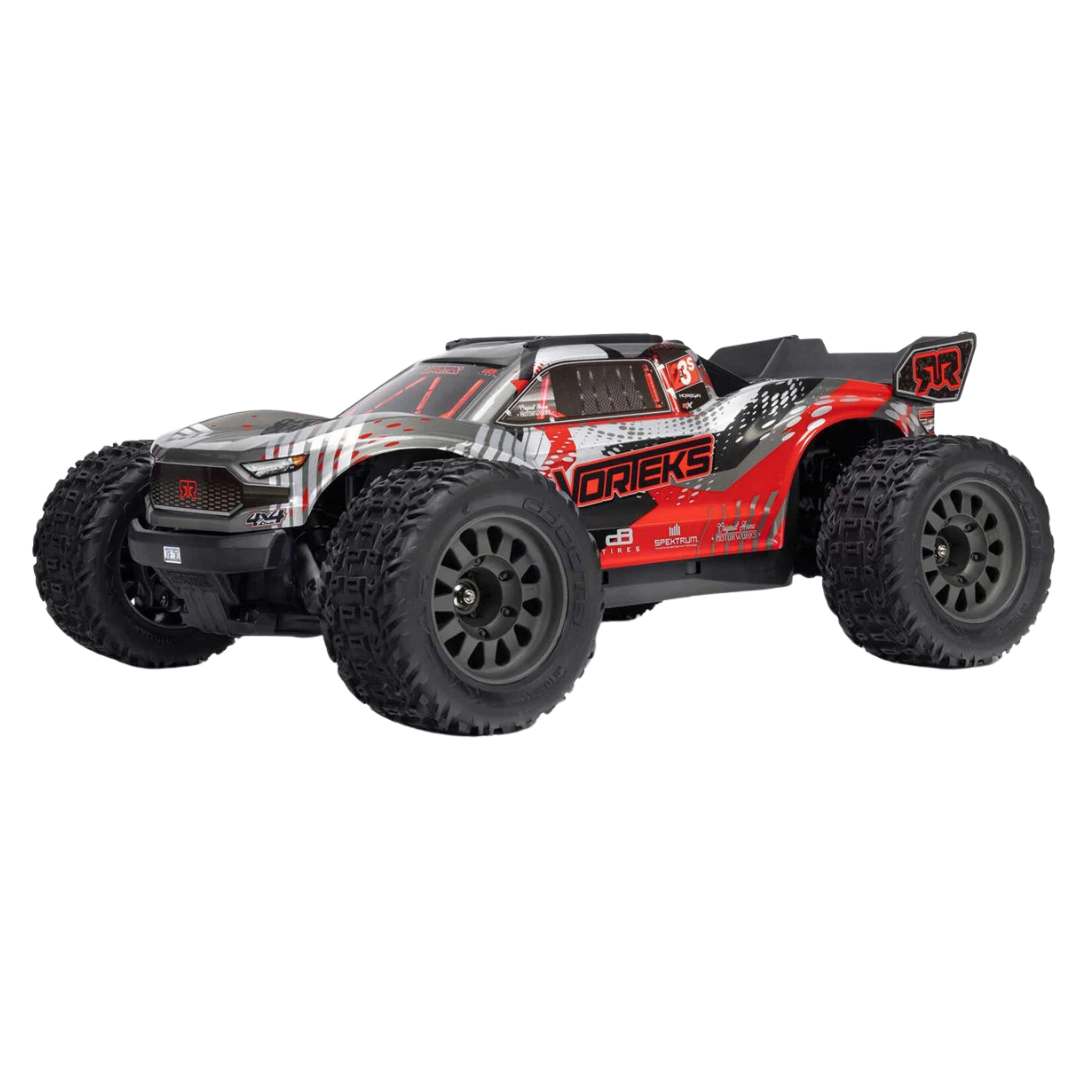

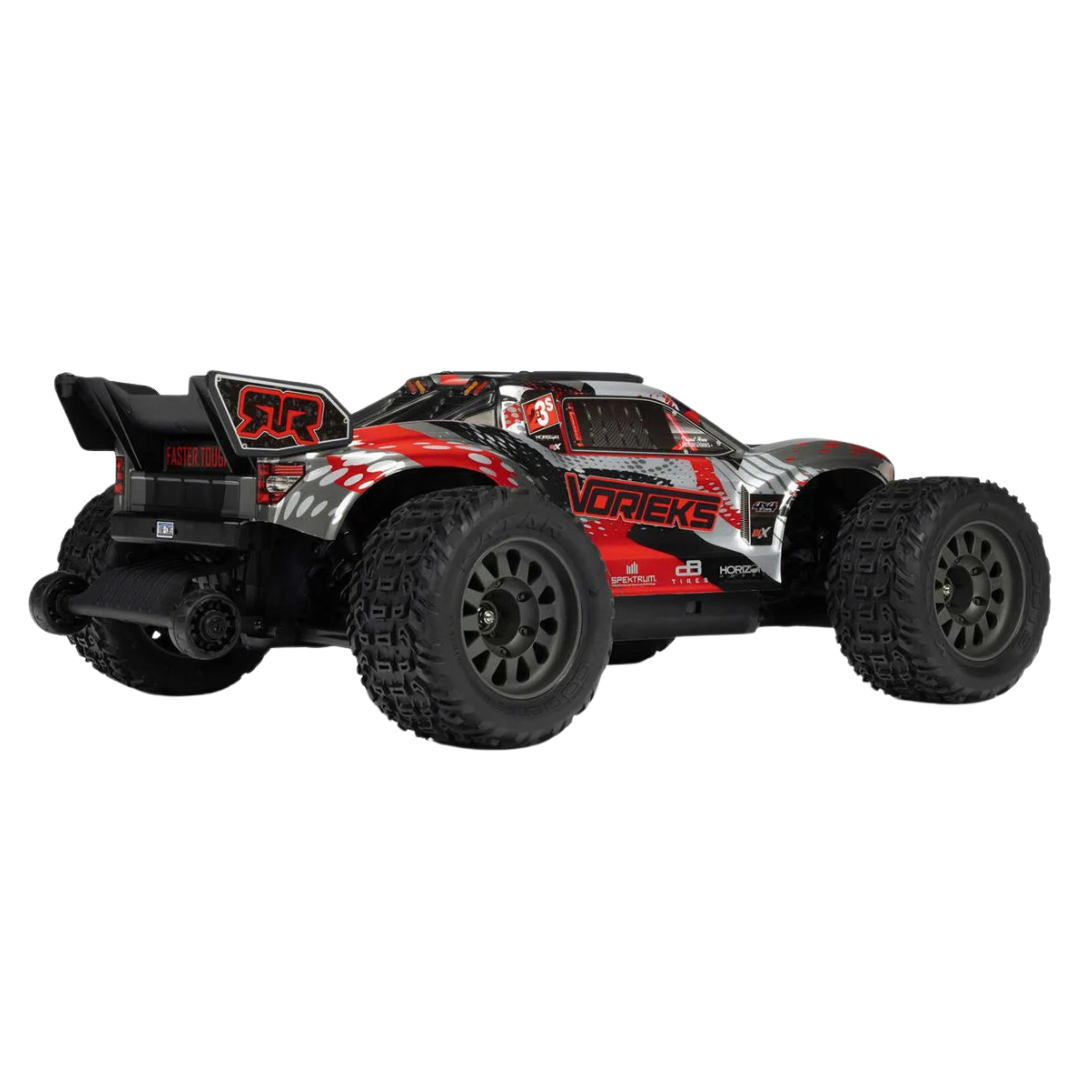

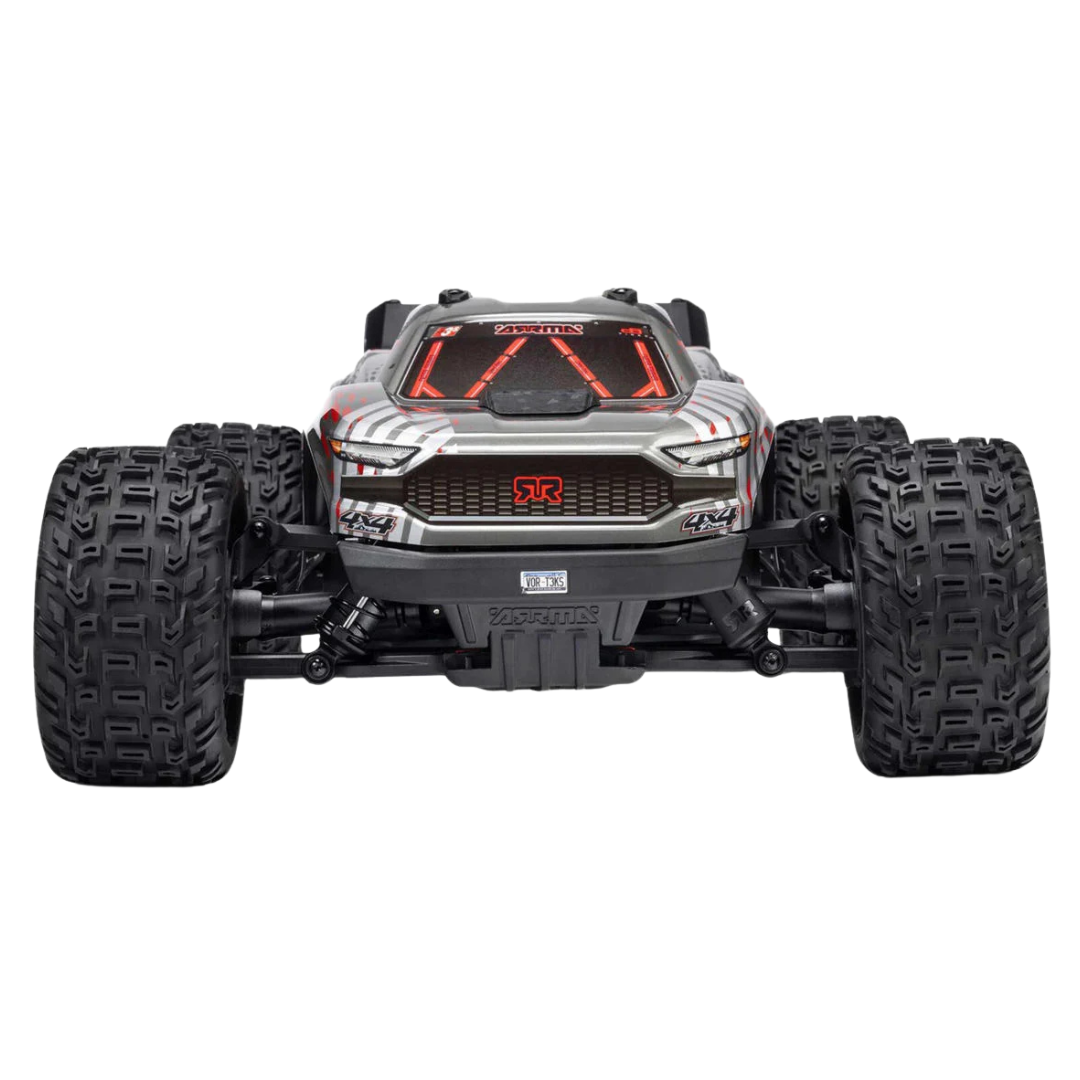

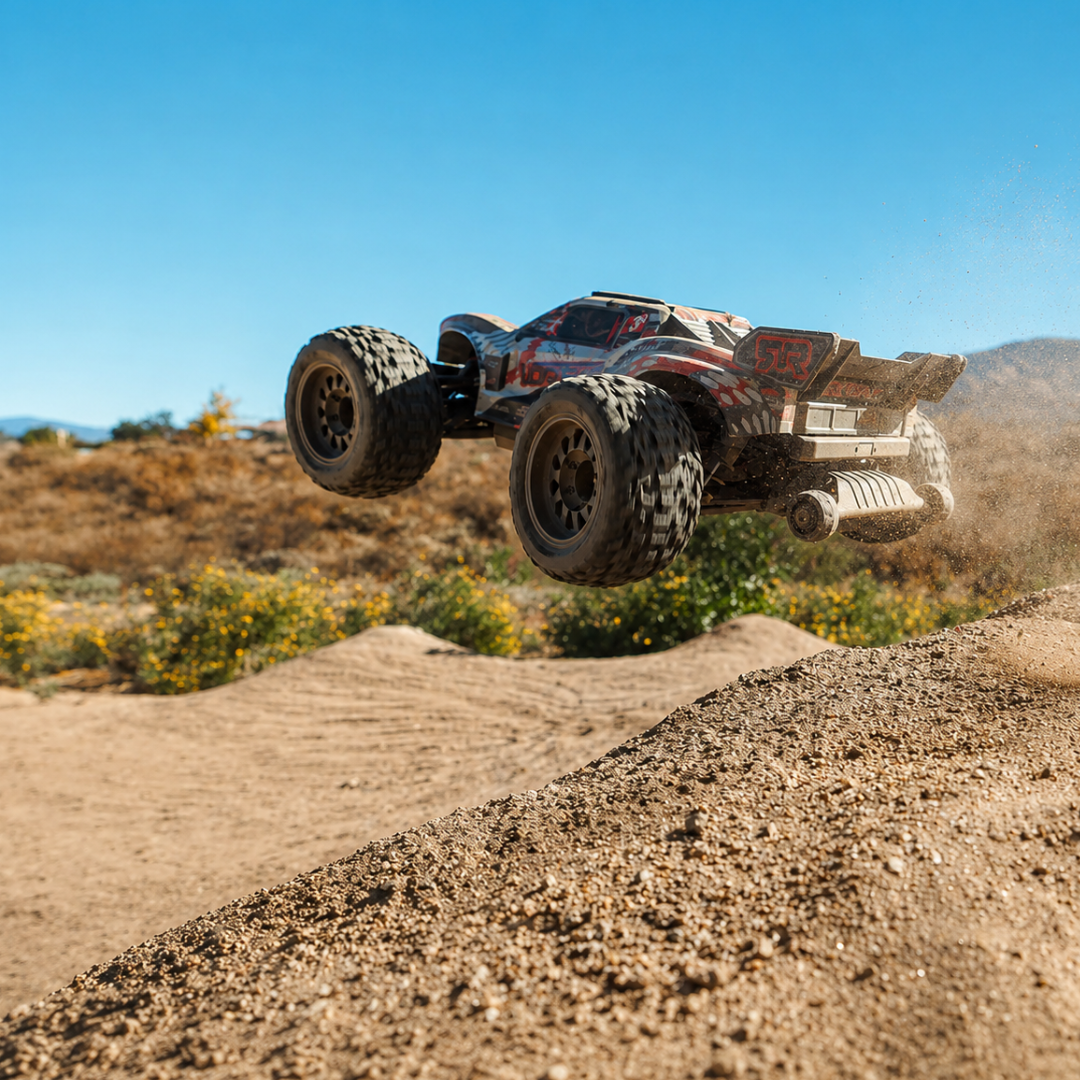

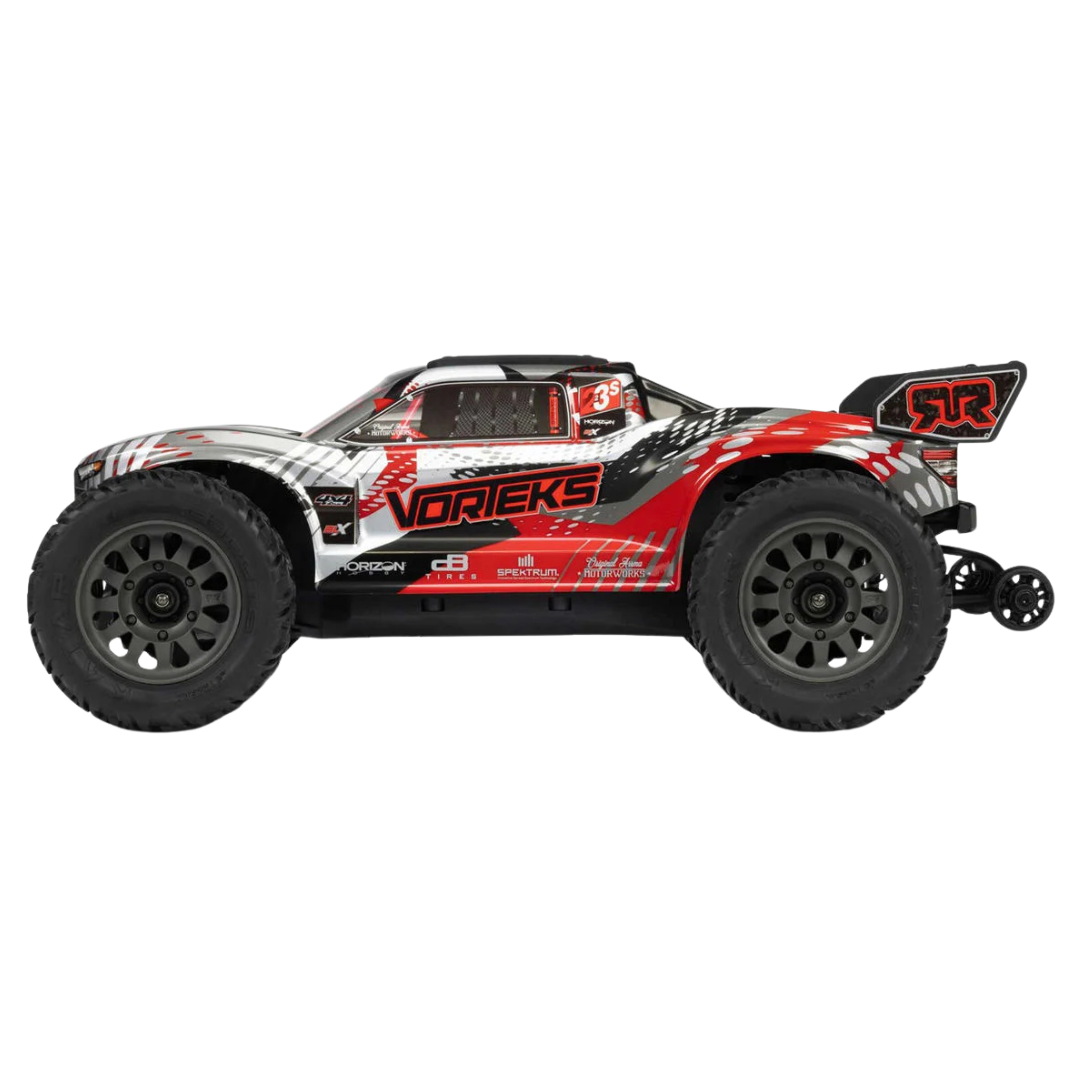

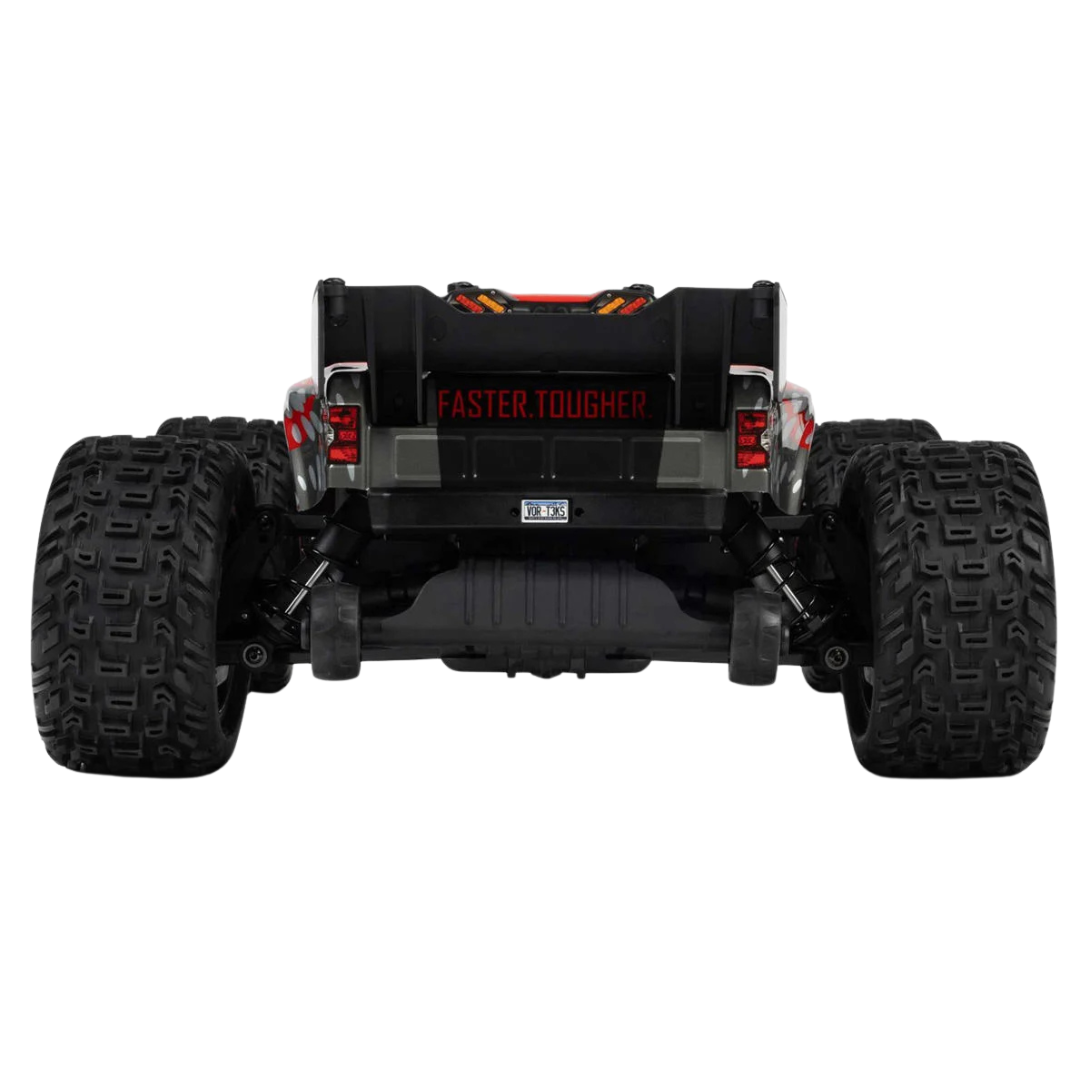

ARRMA VORTEKS 223S BLX 4X4 Brushless RC Stadium Truck RTR Red ARA4305V4T1

The ARRMA VORTEKS 223S BLX V4 is a fast and durable 1/10 scale brushless stadium truck designed to help drivers progress from manageable 2S performance to exhilarating 3S speed without upgrading the vehicle’s electronics.

With a compatible 2S LiPo battery, the VORTEKS delivers speeds above 35mph for confident learning and everyday bashing. Install a suitable 3S LiPo battery to unlock its full 50+mph potential. Spektrum Dynamic Stability Control and transmitter-operated throttle limiting help drivers maintain control as their speed and experience increase.

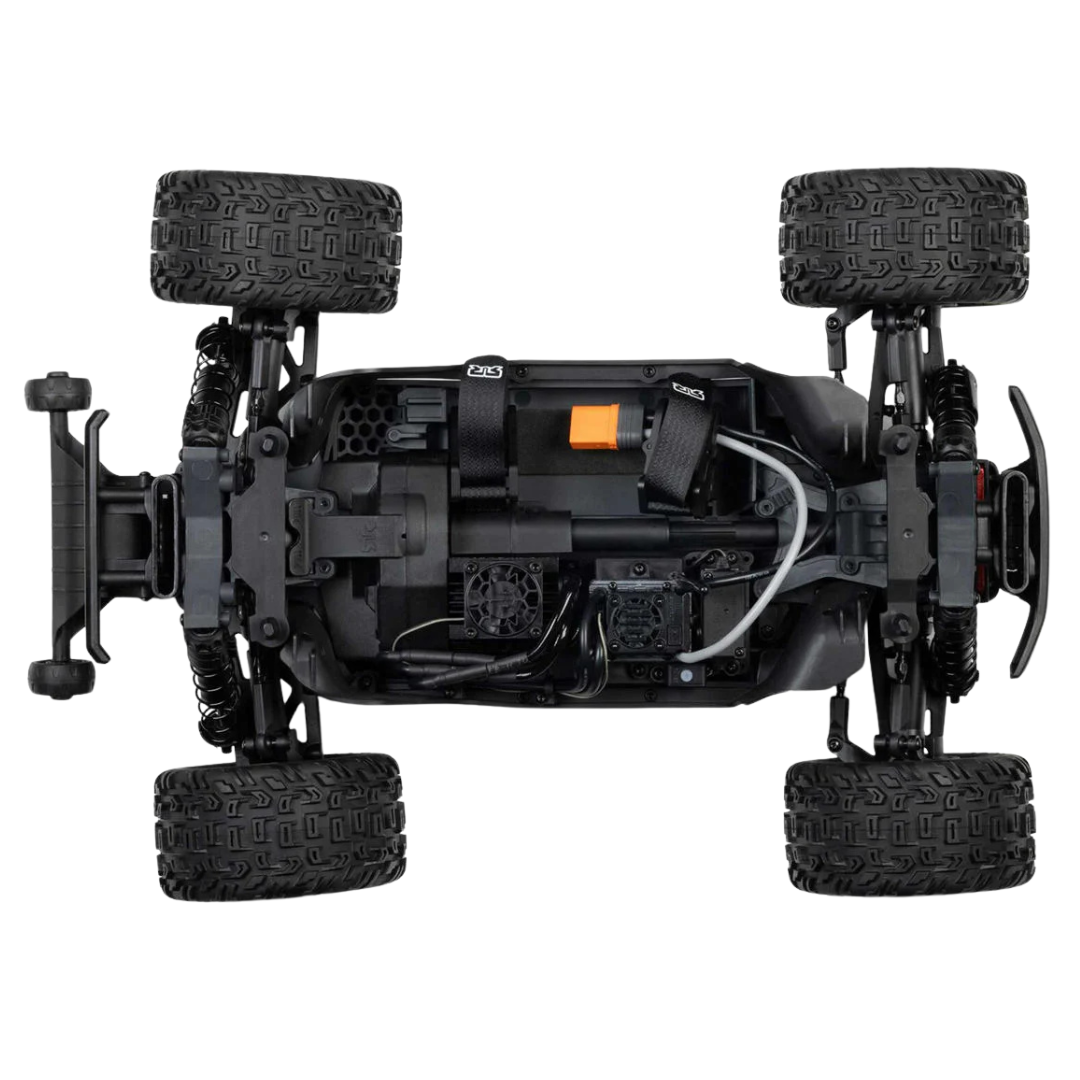

The rugged 4WD drivetrain uses front, centre and rear differentials to distribute power across loose dirt, gravel, grass and sealed surfaces. Oil-filled shocks, adjustable suspension links and wide stadium-truck tyres provide stable handling, while the factory-finished red and silver body completes its aggressive ARRMA appearance.

Features

• Ready-to-run 1/10 scale brushless stadium truck
• Factory-finished red and silver body
• Compatible with 2S and 3S hardcase LiPo batteries
• More than 35mph potential on suitable 2S power
• More than 50mph potential on suitable 3S power
• Spektrum 3100Kv brushless motor
• Spektrum waterproof 80A two-in-one ESC and receiver
• Integrated Dynamic Stability Control with selectable assistance
• Spektrum SLT3 2.4GHz three-channel transmitter
• Selectable 50%, 75% and 100% throttle settings
• Spektrum S662 waterproof metal-geared digital steering servo
• Heavy-duty four-wheel-drive drivetrain
• Front, centre and rear differentials
• Durable composite chassis
• Mid-mounted motor layout
• Oil-filled adjustable coil-over shock absorbers
• Independent front and rear suspension
• Adjustable camber and steering turnbuckles
• Captured hinge pins for dependable suspension retention
• High-traction multi-surface tyres
• Rear wheelie bar helps control hard acceleration
• Front and rear bumpers help absorb impacts
• Hex-head hardware simplifies maintenance
• Four AA transmitter batteries included

Specifications

• Brand: ARRMA
• Model: VORTEKS 223S BLX V4
• Manufacturer Part Number: ARA4305V4T1
• Product Type: Ready-to-run brushless stadium truck
• Scale: 1/10
• Colour: Red and Silver
• Power Type: Electric brushless
• Drive System: 4WD
• Motor Layout: Mid motor
• Motor: Spektrum 3100Kv brushless motor
• Maximum Motor Size: 3660
• Electronic Speed Controller: Spektrum waterproof 80A two-in-one ESC and receiver
• ESC Battery Compatibility: 2S or 3S LiPo
• ESC Connector: IC5
• Dynamic Stability Control: Integrated and adjustable
• Radio System: Spektrum SLT3 2.4GHz three-channel transmitter
• Steering Servo: Spektrum S662 waterproof metal-geared digital servo
• Servo Torque: Approximately 12kg-cm at 6V
• Servo Speed: Approximately 0.14 seconds at 6V
• Differentials: Front, centre and rear
• Shock Absorbers: Oil-filled coil-over shocks
• Suspension: Independent front and rear
• Links: Adjustable turnbuckles
• Hardware: Hex head
• Maximum Speed: More than 50mph or 80km/h with suitable 3S power
• Length: 470mm
• Width: 334mm
• Height: 169mm
• Wheelbase: 284mm
• Ride Height: 40mm
• Approximate Weight: 3.43kg without battery
• Maximum Battery Dimensions: 165 × 51 × 48mm
• Recommended Terrain: Dirt, gravel, grass and sealed surfaces
• Assembly Required: No

Includes

• 1 × ARRMA VORTEKS 223S BLX 4X4 Stadium Truck RTR in Red and Silver
• 1 × Spektrum waterproof 80A two-in-one ESC and receiver with DSC
• 1 × Spektrum 3100Kv brushless motor
• 1 × Spektrum SLT3 2.4GHz transmitter
• 1 × Spektrum S662 waterproof metal-geared digital steering servo
• 4 × AA transmitter batteries
• 1 × Multi-tool
• 2.0mm and 2.5mm hex wrenches
• 1 × Instruction manual

Required to Complete

• Compatible 2S or 3S hardcase LiPo battery
• IC5-compatible connection or suitable approved adaptor
• Compatible LiPo balance charger
• LiPo charging and storage bag

FAQ

Is the ARRMA VORTEKS 223S V4 ready to run? Yes. The truck is factory assembled with its motor, ESC, receiver, servo and radio system installed. A compatible drive battery and charger are required separately.

Does it use an SLT2 or SLT3 transmitter? This V4 model includes the Spektrum SLT3 2.4GHz three-channel transmitter.

What motor and ESC are fitted? The VORTEKS 223S V4 includes a Spektrum 3100Kv brushless motor and waterproof 80A two-in-one ESC and receiver.

Can it run on both 2S and 3S LiPo batteries? Yes. A 2S battery provides more manageable performance, while a suitable 3S battery unlocks the truck’s maximum speed potential.

How fast is the VORTEKS 223S? ARRMA rates it at more than 35mph on suitable 2S power and more than 50mph or 80km/h on suitable 3S power. Actual speed varies with battery specification, gearing, terrain and conditions.

What is Dynamic Stability Control? DSC applies automatic steering corrections to help keep the truck travelling in the intended direction on loose or slippery surfaces. The level of assistance can be adjusted to suit the driver.

Is it suitable for beginners? Yes. The transmitter includes selectable throttle limits, allowing the maximum power to be restricted while a new driver develops control.

Does this model have a centre differential? Yes. The V4 drivetrain uses front, centre and rear differentials for smoother power distribution and improved handling.

Are AA batteries included for the transmitter? Yes. Four AA batteries are included.

What battery size will fit? ARRMA recommends a hardcase battery no larger than approximately 165 × 51 × 48mm. Confirm the connector, voltage and dimensions before purchasing.

Are the electronics waterproof? The installed ESC, receiver and steering servo are waterproof for use in damp conditions, but the vehicle must not be submerged.

Important Notes

• Drive battery, charger and LiPo charging bag are not included.
• Use a compatible 2S or 3S hardcase LiPo battery within the specified battery-tray dimensions.
• The installed power connector is IC5.
• Follow all LiPo battery charging, storage and handling instructions.
• Never charge a LiPo battery unattended or on a combustible surface.
• Waterproof electronics do not make the complete vehicle waterproof.
• Clean and dry the truck after use in wet, dusty or sandy conditions.
• Allow the motor, ESC and battery to cool between runs.
• Maximum speed varies with battery, gearing, tyre condition, surface and ambient temperature.
