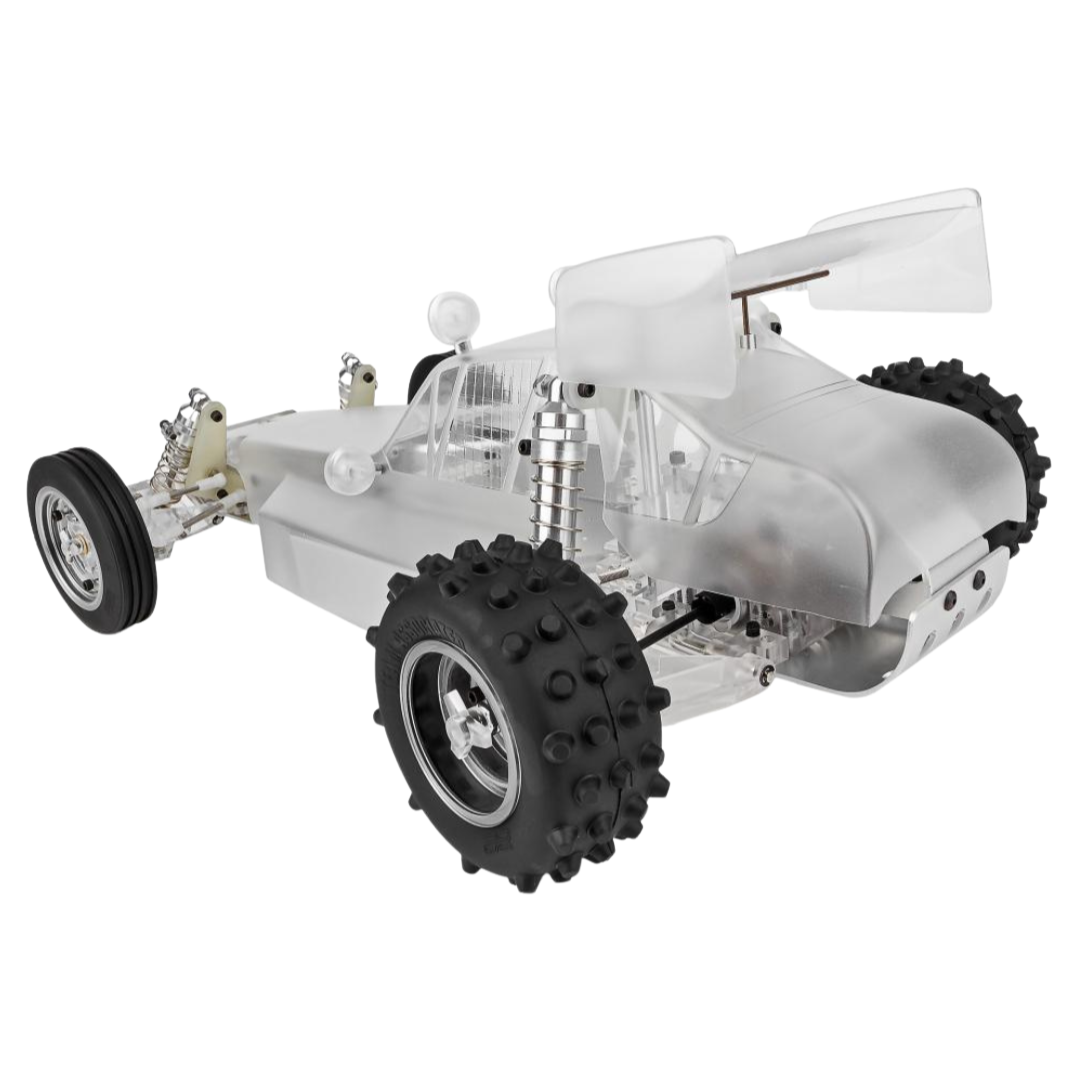

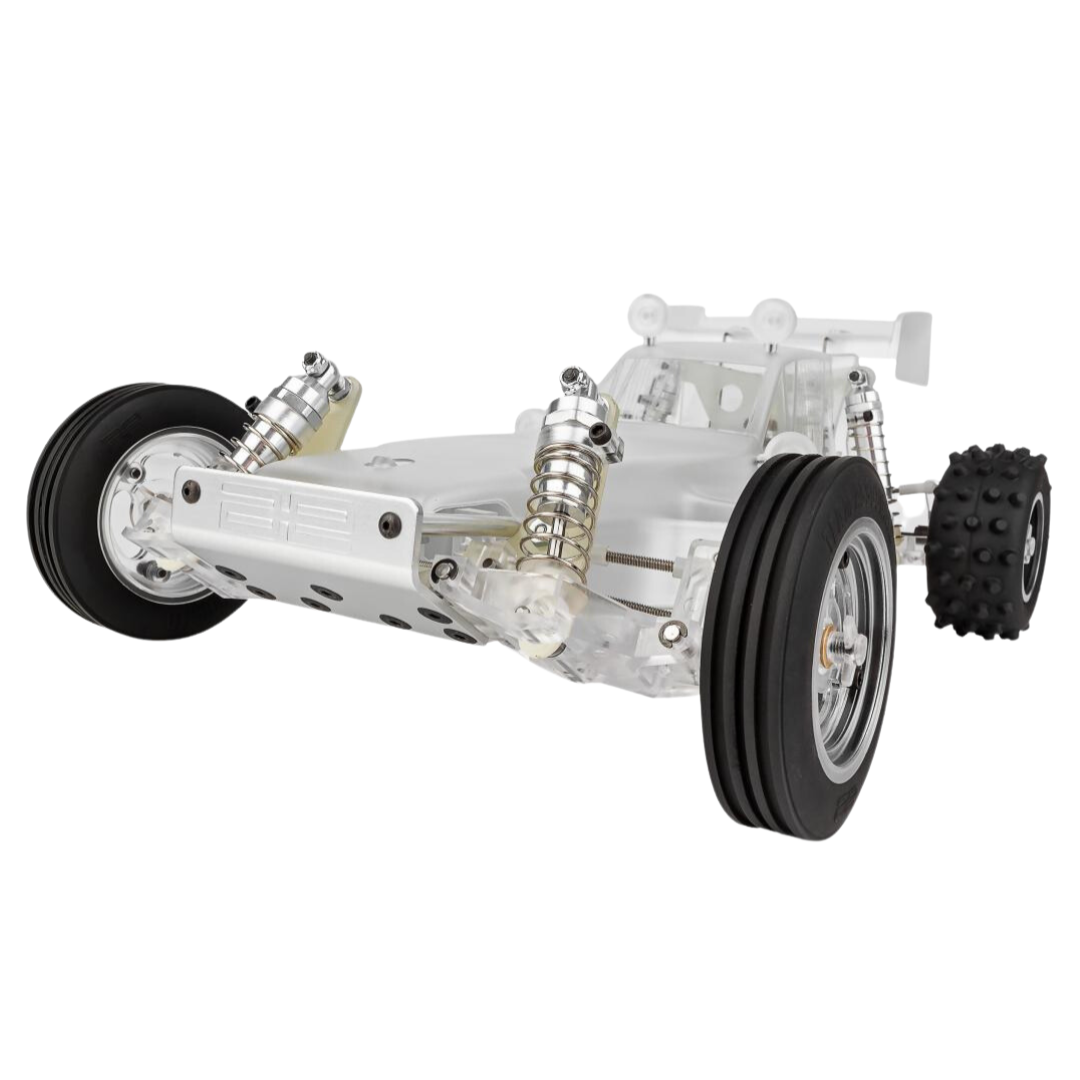

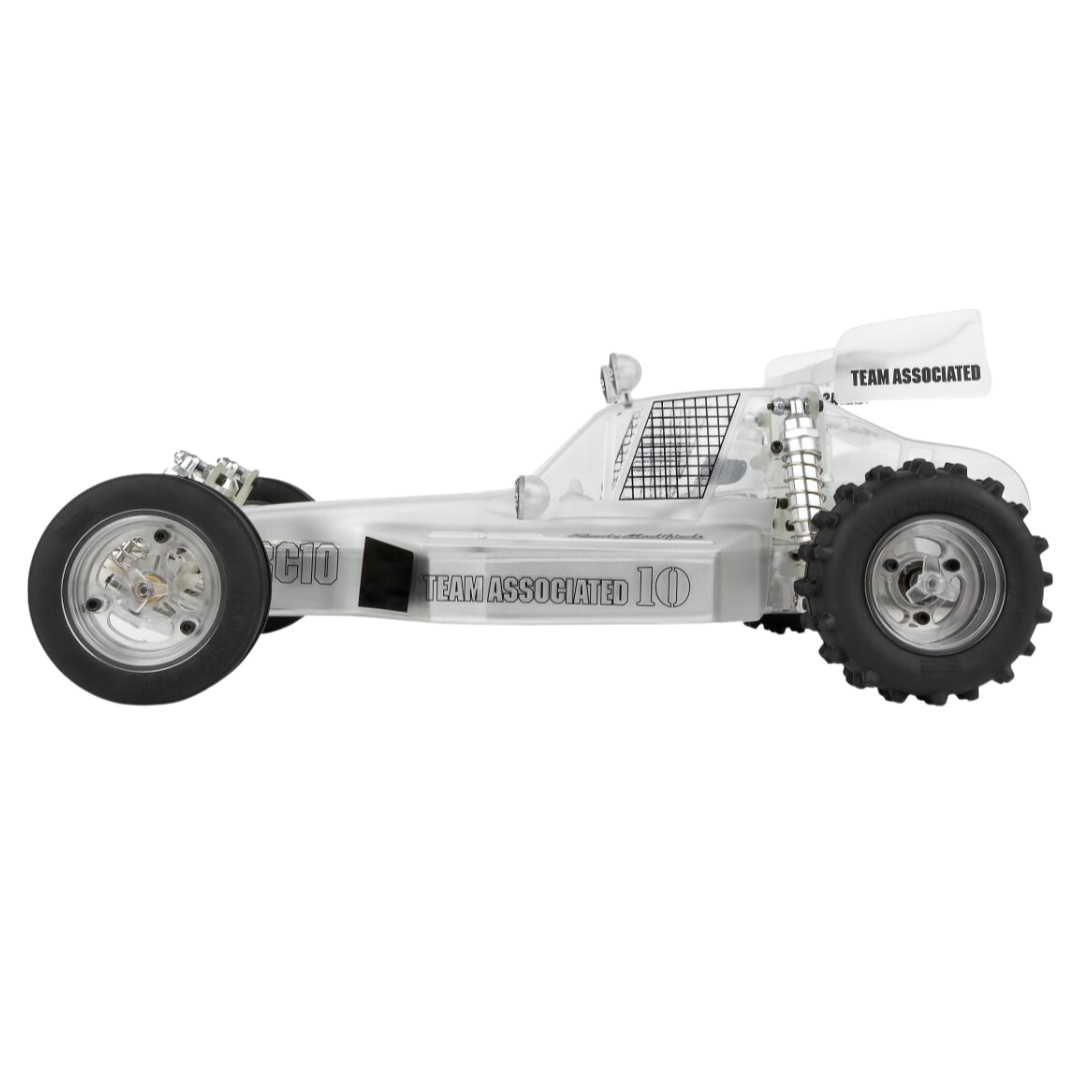

Team Associated RC10 Graphite Edition 1/10 2WD RC Buggy Kit 6030

The Team Associated RC10 Graphite brings back one of the most significant competition versions of the legendary RC10. Based on the RC10 Graphite originally released in 1989, this 1/10 scale 2WD electric buggy kit combines classic Team Associated racing heritage with the distinctive lightweight graphite chassis and competition-developed components that separated the Graphite from the standard RC10.

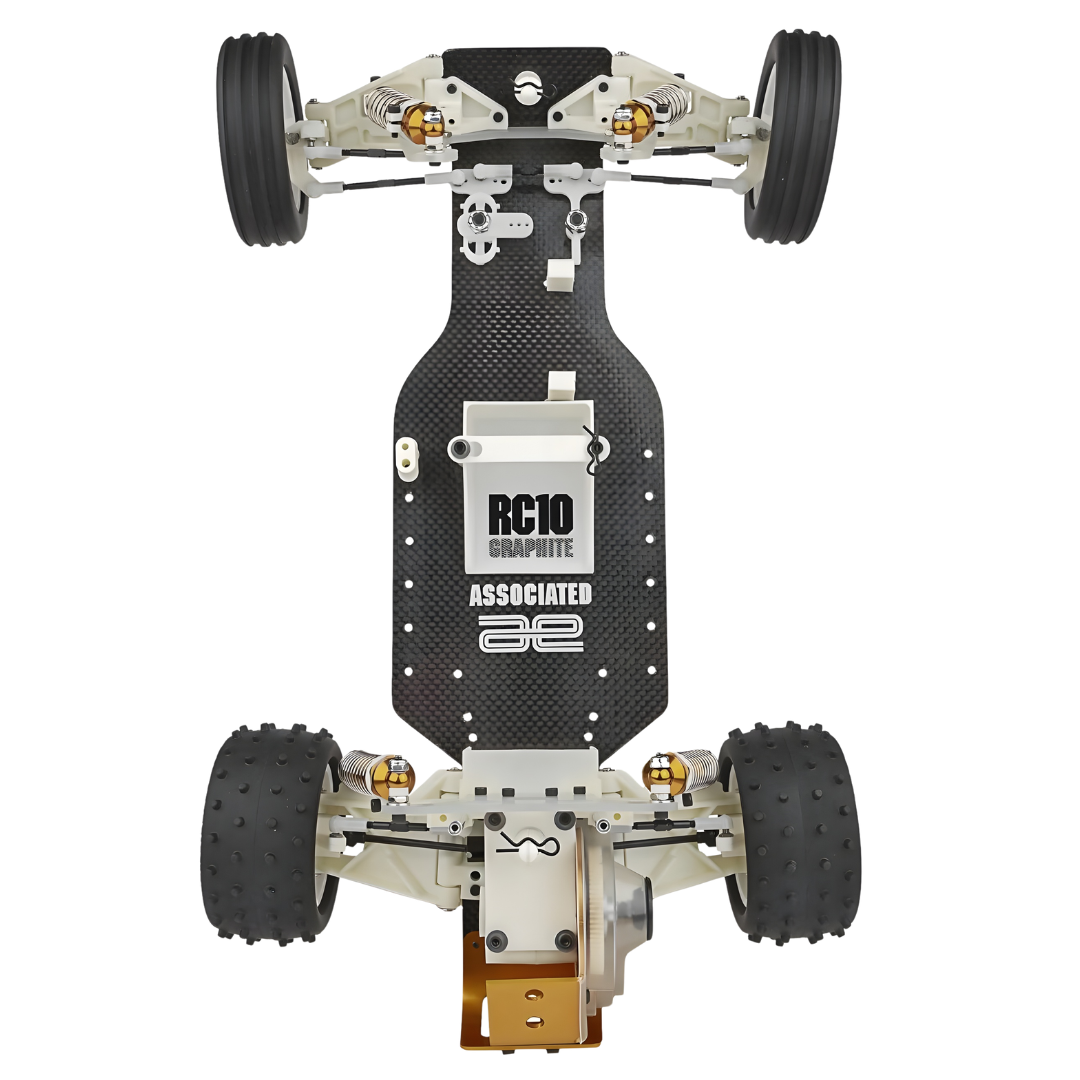

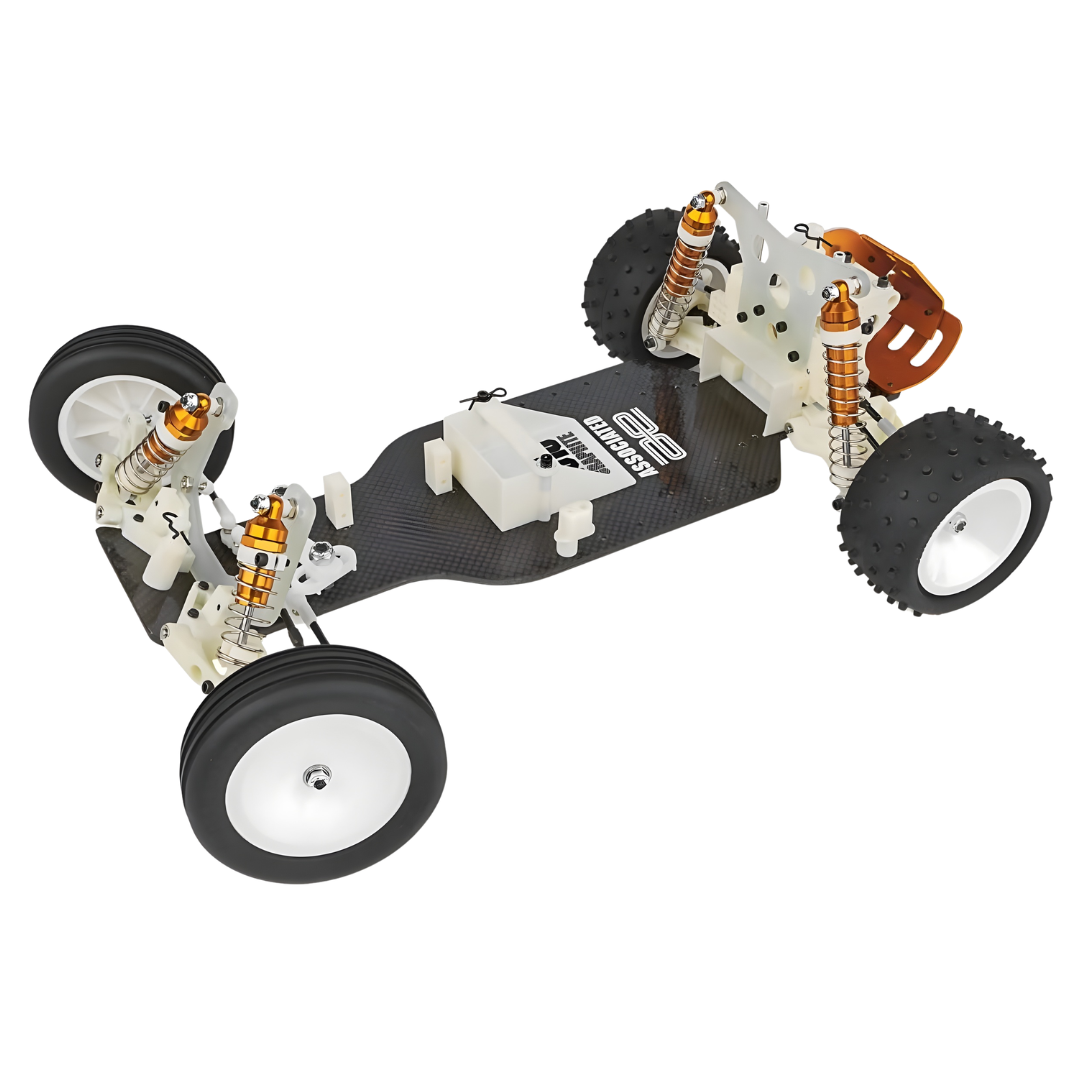

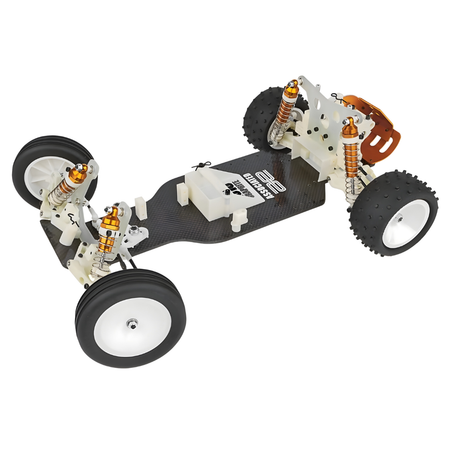

At the heart of the RC10 Graphite is a 2.5mm carbon-fibre graphite chassis engineered to provide high rigidity while reducing weight. Fully adjustable four-wheel independent suspension, long-travel aluminium oil-filled shocks, a sealed six-gear transmission, VariLok adjustable ball differential and universal driveshafts provide the classic competition-focused RC10 driving experience.

This 6030 kit also includes a full set of metal ball bearings, racing wheels with Team Associated TQ tyres and a clear ProTech II body and wing. The chassis accommodates suitable modern 6-cell NiMH and 2S LiPo battery packs, allowing enthusiasts to build the vintage-inspired buggy with contemporary electronics while retaining its classic character.

Features

• 1989 RC10 Graphite Replica: Authentic recreation of the competition-focused RC10 Graphite originally released in 1989
• 2.5mm Graphite Chassis: Lightweight and rigid carbon-fibre graphite chassis provides the defining feature of the Graphite edition
• 1/10 Scale 2WD Platform: Classic rear-wheel-drive electric off-road buggy configuration
• Fully Independent Suspension: Adjustable suspension at all four wheels provides extensive chassis tuning

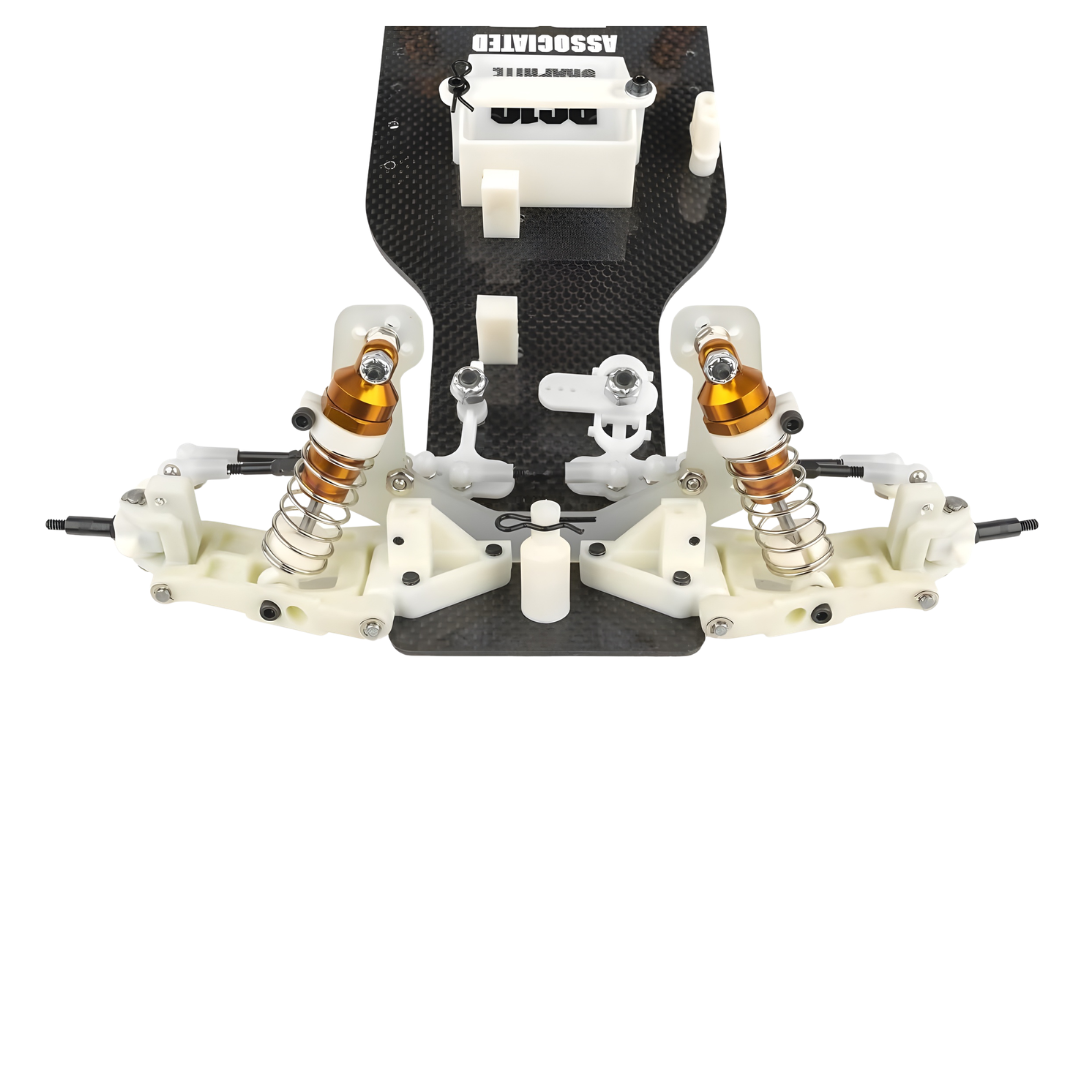

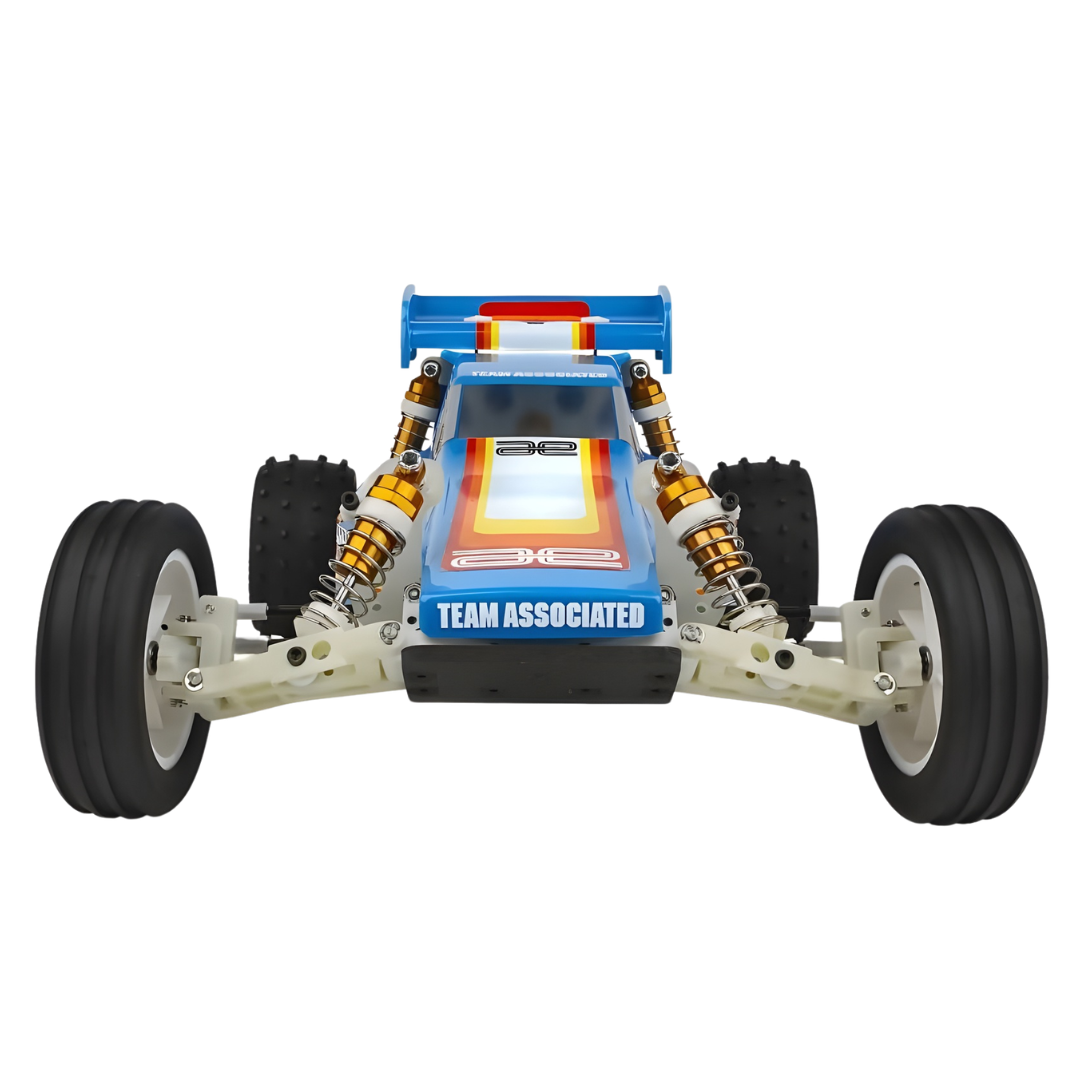

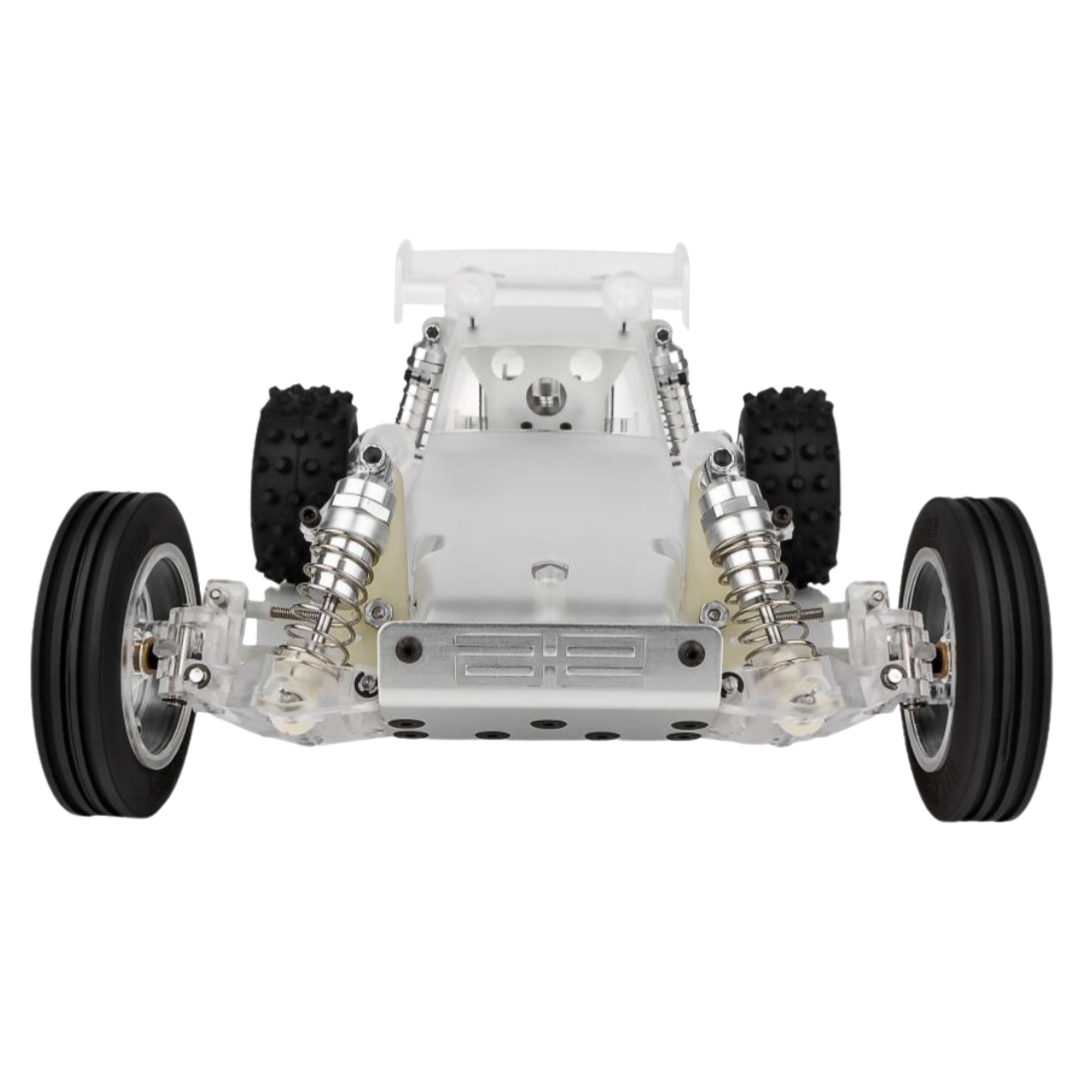

• Wider Front Suspension: Competition-developed front geometry improves stability and handling
• Adjustable Rear Toe-In: Allows rear traction and handling characteristics to be tuned
• Aluminium Racing Shocks: Long-travel, fluid-filled silver-anodised aluminium coil-over shocks provide controlled suspension damping

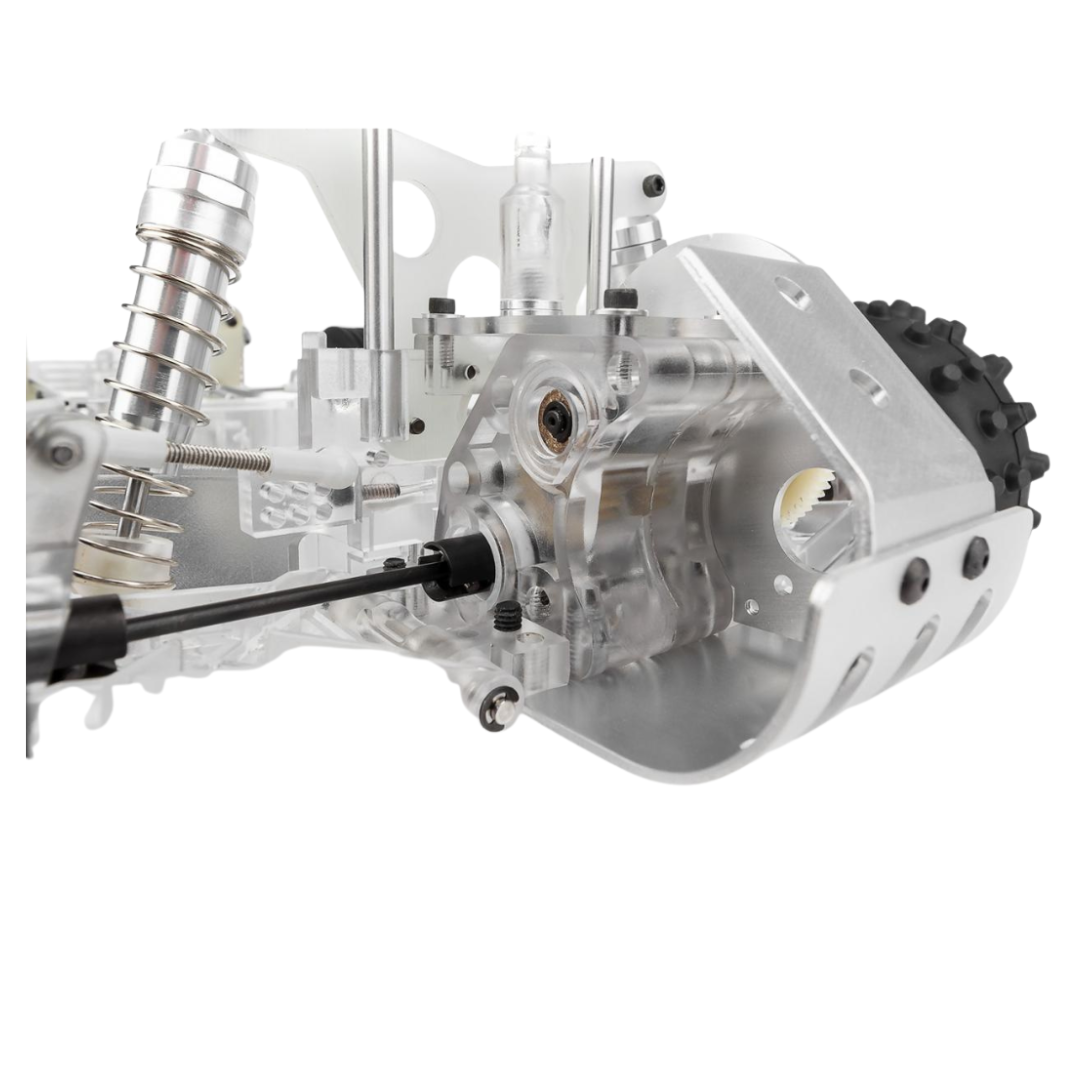

• Sealed Six-Gear Transmission: Low-profile gearbox provides reliable power delivery while maintaining the classic RC10 drivetrain layout
• VariLok Ball Differential: Adjustable ball differential allows drivetrain response and traction characteristics to be tuned
• Universal Driveshafts: Improve drivetrain efficiency and provide smooth power transfer to the rear wheels
• Full Ball Bearings: Kit 6030 includes a complete metal ball-bearing set for smooth drivetrain operation
• Low-Mass Racing Wheels: Front and rear racing wheels reduce rotating mass

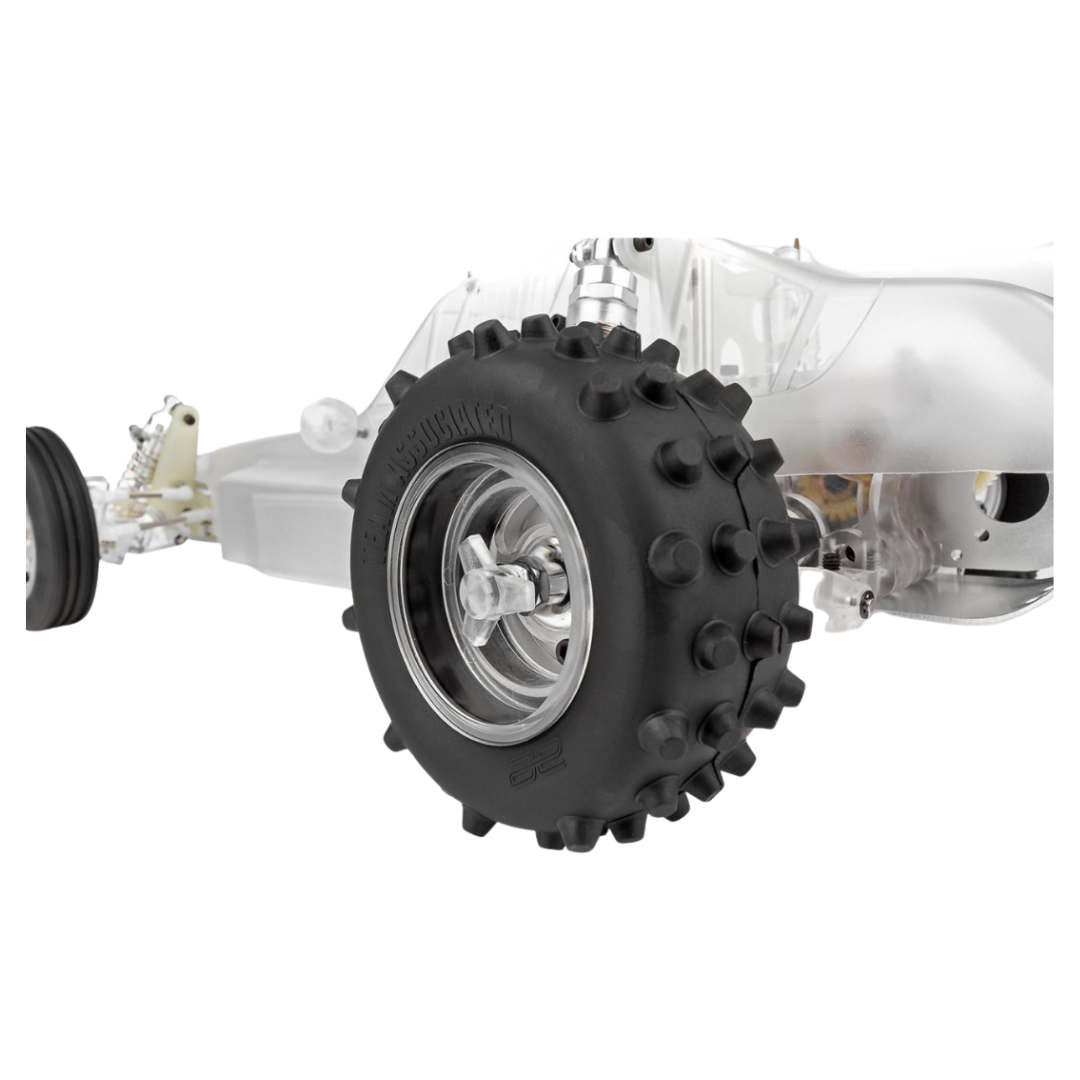

• Team Associated TQ Tyres: Competition-style front and rear tyres complete the vintage racing specification

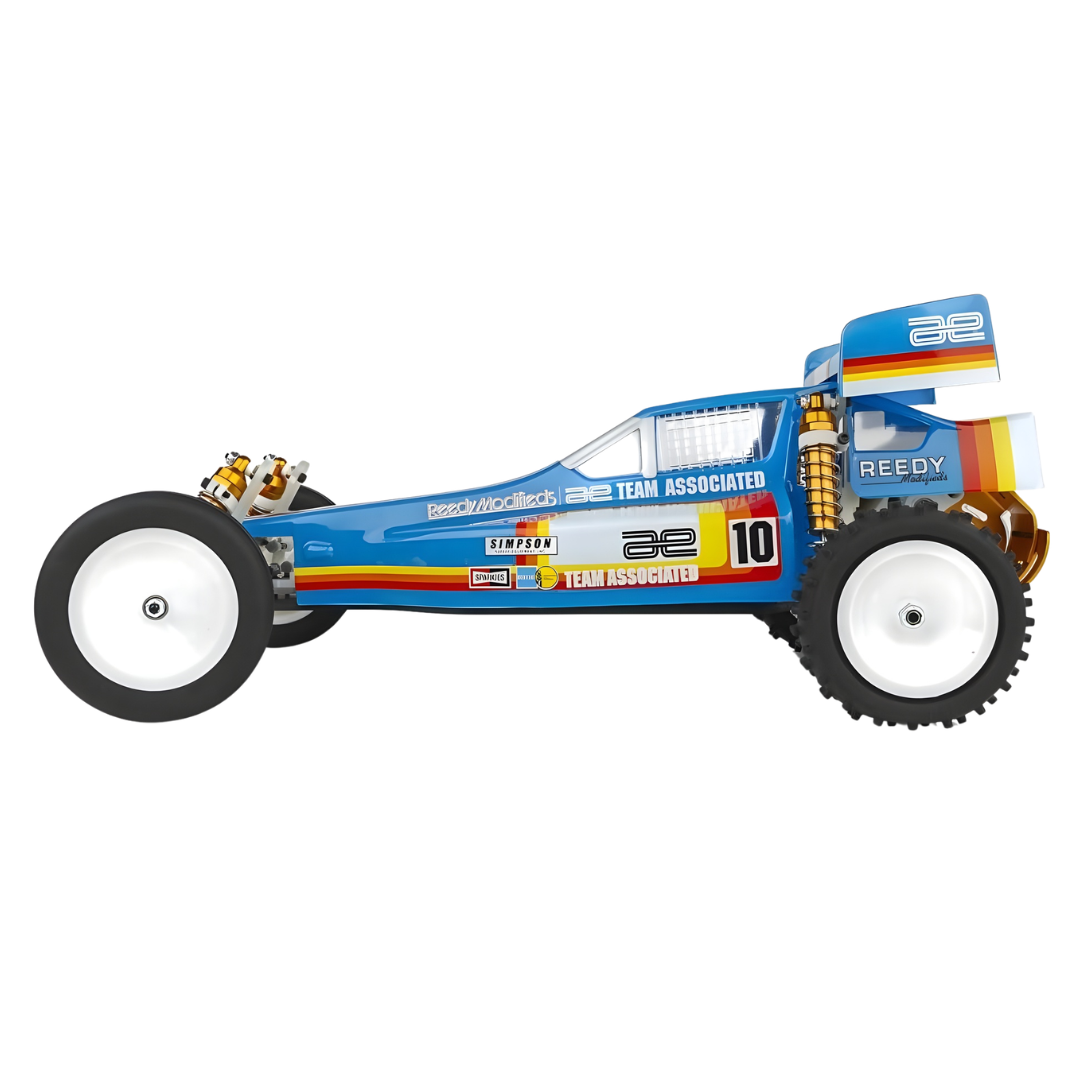

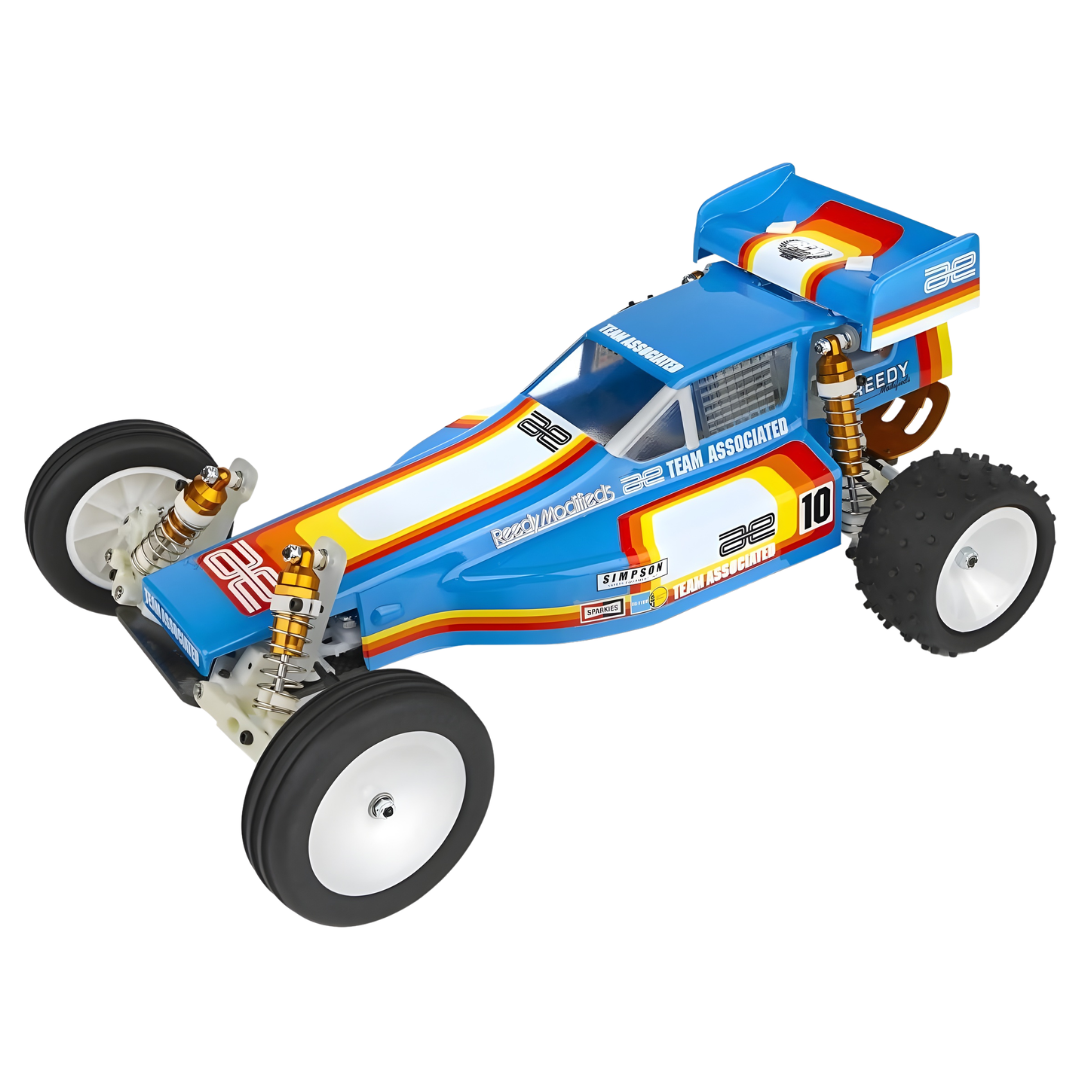

• Clear ProTech II Body: Classic polycarbonate buggy body is supplied clear for custom painting
• Modern Battery Compatibility: Chassis accommodates suitable 6-cell NiMH and 2S LiPo battery packs

Specifications

• Brand: Team Associated
• Model: RC10 Graphite
• Manufacturer Part Number: 6030
• SKU: ASS6030
• UPC: 784695060302
• Product Type: Electric RC Buggy Kit
• Scale: 1/10
• Vehicle Type: Off-Road Racing Buggy
• Completion Level: Kit
• Power Type: Electric
• Drivetrain: 2WD
• Drive Configuration: Rear-Wheel Drive
• Chassis: Carbon-Fibre Graphite
• Chassis Thickness: 2.5mm
• Suspension: Fully Adjustable Four-Wheel Independent
• Shocks: Long-Travel Fluid-Filled Aluminium Coil-Over
• Transmission: Low-Profile Sealed Six-Gear
• Differential: VariLok Adjustable Ball Differential
• Driveshafts: Universal
• Bearings: Full Metal Ball-Bearing Set
• Body: Clear ProTech II Polycarbonate
• Battery Compatibility: 6-Cell NiMH / 2S LiPo

Includes

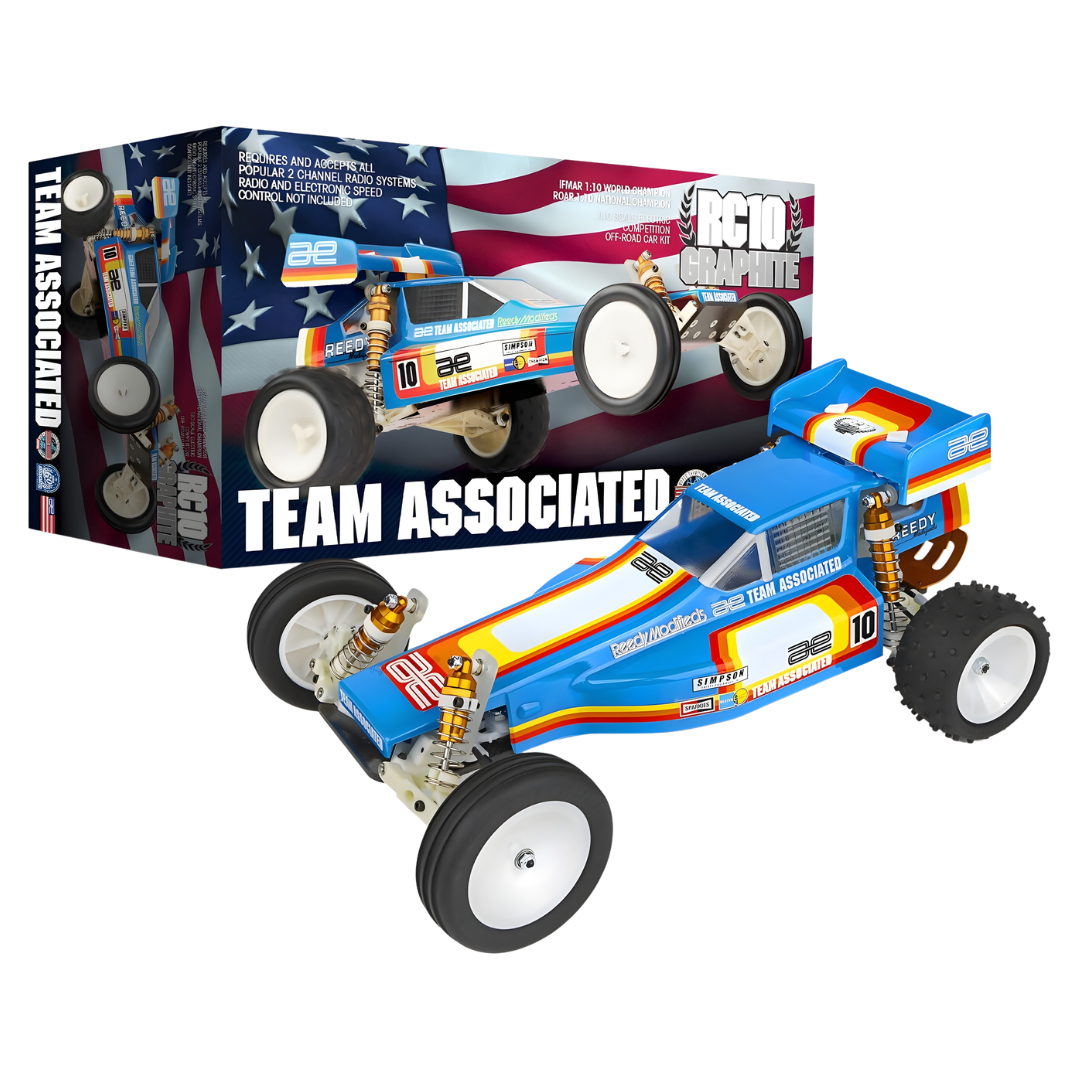

• 1 × Team Associated RC10 Graphite 1/10 2WD Buggy Kit
• 1 × 2.5mm Carbon-Fibre Graphite Chassis
• Fully Adjustable Front and Rear Suspension Components
• Long-Travel Aluminium Oil-Filled Racing Shocks
• VariLok Adjustable Ball Differential
• Sealed Six-Gear Transmission Components
• Universal Rear Driveshafts
• Full Metal Ball-Bearing Set
• Front and Rear Racing Wheels
• Team Associated TQ Front and Rear Tyres
• Clear ProTech II Polycarbonate Body
• Rear Wing
• Kit Hardware and Assembly Components

Required to Complete

• Suitable Electric RC Motor
• Electronic Speed Controller / ESC
• Compatible Pinion Gear
• Steering Servo
• 2-Channel Surface Transmitter
• Compatible Receiver
• Transmitter Batteries
• Suitable 6-Cell NiMH or 2S LiPo Battery
• Compatible Battery Charger
• Polycarbonate-Compatible Body Paint
• Tyre Glue
• Suitable RC Assembly Tools

FAQ

What is the Team Associated RC10 Graphite 6030? It is a modern reproduction of the competition-focused RC10 Graphite originally introduced in 1989. It combines classic RC10 architecture with the distinctive graphite chassis and racing upgrades associated with the original Graphite model.

Is the RC10 Graphite Ready-to-Run? No. This is an unassembled kit. Motor, ESC, steering servo, radio equipment, battery, charger, paint and other completion items must be supplied separately.

What is special about the graphite chassis? The RC10 Graphite uses a 2.5mm carbon-fibre graphite chassis designed to reduce weight while maintaining the rigidity required for precise suspension operation and competitive handling.

Is this based on the original 1989 RC10 Graphite? Yes. Team Associated describes 6030 as an authentic replica of the RC10 Graphite Buggy Kit originally released in 1989.

Does kit 6030 include ball bearings? Yes. The 6030 version includes a full metal ball-bearing set. This is an important distinction from the historical 6025 RC10 Graphite kit, which was supplied without the full bearing set.

What type of differential does it use? The RC10 Graphite uses the VariLok adjustable ball differential. This allows differential action to be tuned to suit driving conditions and setup preferences.

What type of transmission does the RC10 Graphite use? It uses a low-profile sealed six-gear transmission based on the classic RC10 drivetrain design.

Does it have universal driveshafts? Yes. Universal rear driveshafts are included to provide efficient and smooth power transfer.

Does the kit include oil-filled shocks? Yes. Long-travel, fluid-filled silver-anodised aluminium coil-over racing shocks are included.

What battery can I use? The updated chassis is designed to accommodate suitable 6-cell NiMH and 2S LiPo battery packs.

Does the RC10 Graphite include a motor? No. A suitable electric RC motor must be purchased separately.

Are the ESC and radio system included? No. An ESC, steering servo, transmitter and compatible receiver are required separately.

Are wheels and tyres included? Yes. The kit includes front and rear racing wheels together with Team Associated TQ tyres.

Is the body included? Yes. A clear ProTech II polycarbonate body and rear wing are included.

Does the body come painted? No. The body is supplied clear and requires compatible polycarbonate paint to create your preferred colour scheme.

Is this mainly a collector's model or can it be driven? The RC10 Graphite combines strong vintage and collector appeal with a functional RC racing design. It can be completed with modern electronics and driven, although owners interested in preserving its condition may choose lighter recreational use.

Important Notes

• This listing is specifically for Team Associated RC10 Graphite Kit 6030 / ASS6030
• UPC: 784695060302
• This is an unassembled 1/10 scale 2WD electric buggy kit
• Full assembly is required
• Kit 6030 includes a full metal ball-bearing set
• Motor, ESC, pinion gear, steering servo, transmitter, receiver, battery and charger are required separately
• Clear ProTech II body requires polycarbonate-compatible paint
• Tyre glue and suitable assembly tools are required
• Chassis is compatible with suitable 6-cell NiMH and 2S LiPo battery packs
• Confirm battery dimensions, connectors and electronic compatibility before installation
• Follow the Team Associated assembly manual and setup instructions during construction
