Axial SCX10 Flat Bed Vehicle Trailer For 1/10 RC Rock Crawlers Dual Axle AXI-3409

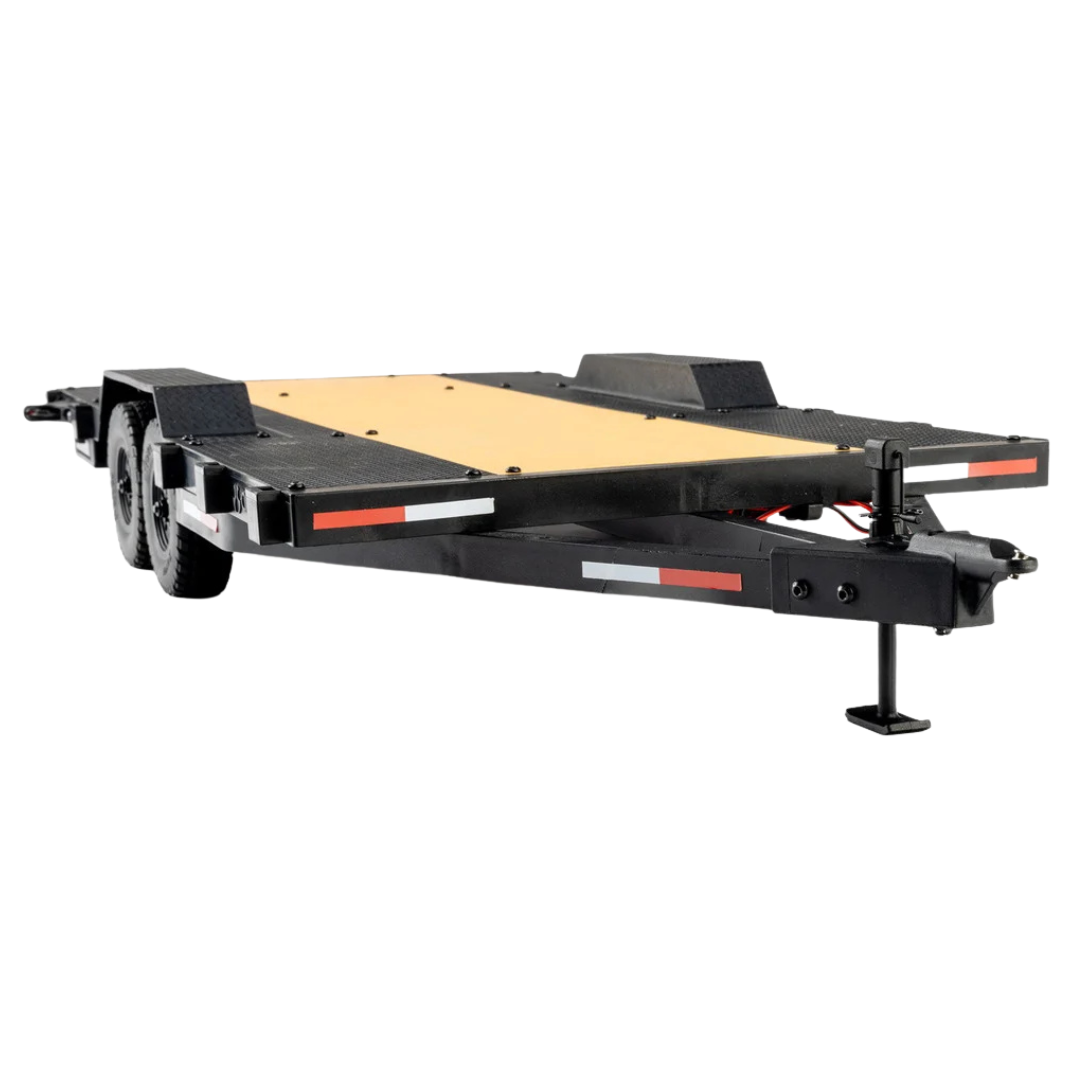

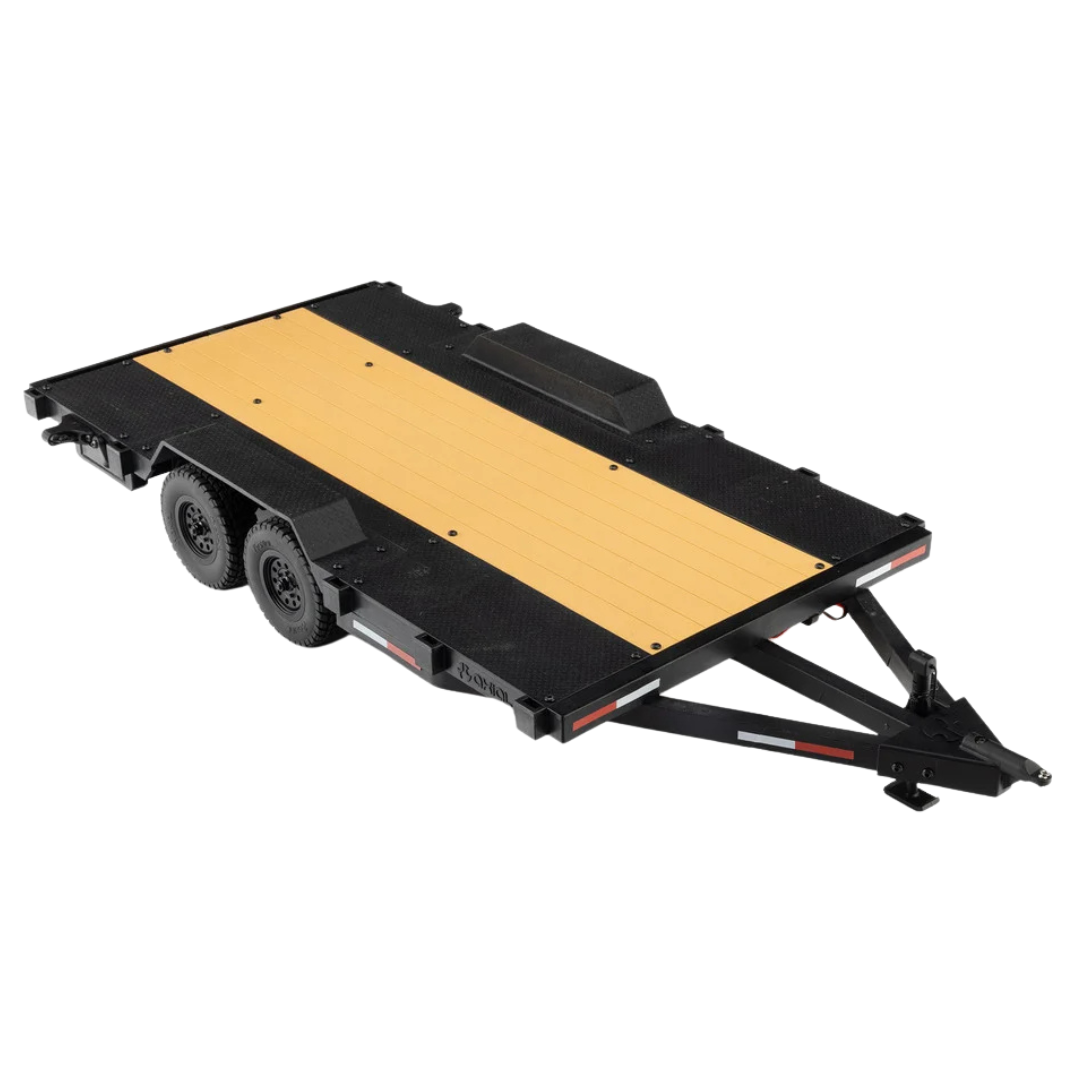

The Axial SCX10 Flat Bed Vehicle Trailer is a functional 1/10 scale dual-axle trailer designed for compatible SCX10 crawlers, giving scale RC enthusiasts a practical way to transport another crawler, touring car or similarly sized vehicle.

The rigid composite trailer combines a diamond-plate deck, adjustable hitch, detachable loading ramps and working LED running lights. Its full-length tongue and independently rotating wheels help it track smoothly behind the tow vehicle, while the adjustable jack supports the trailer during loading, unloading and display.

Features

• Functional 1/10 scale flat bed trailer for scale towing, trail use and vehicle display
• Dual-axle layout supports loads up to 6.8 kg when correctly secured

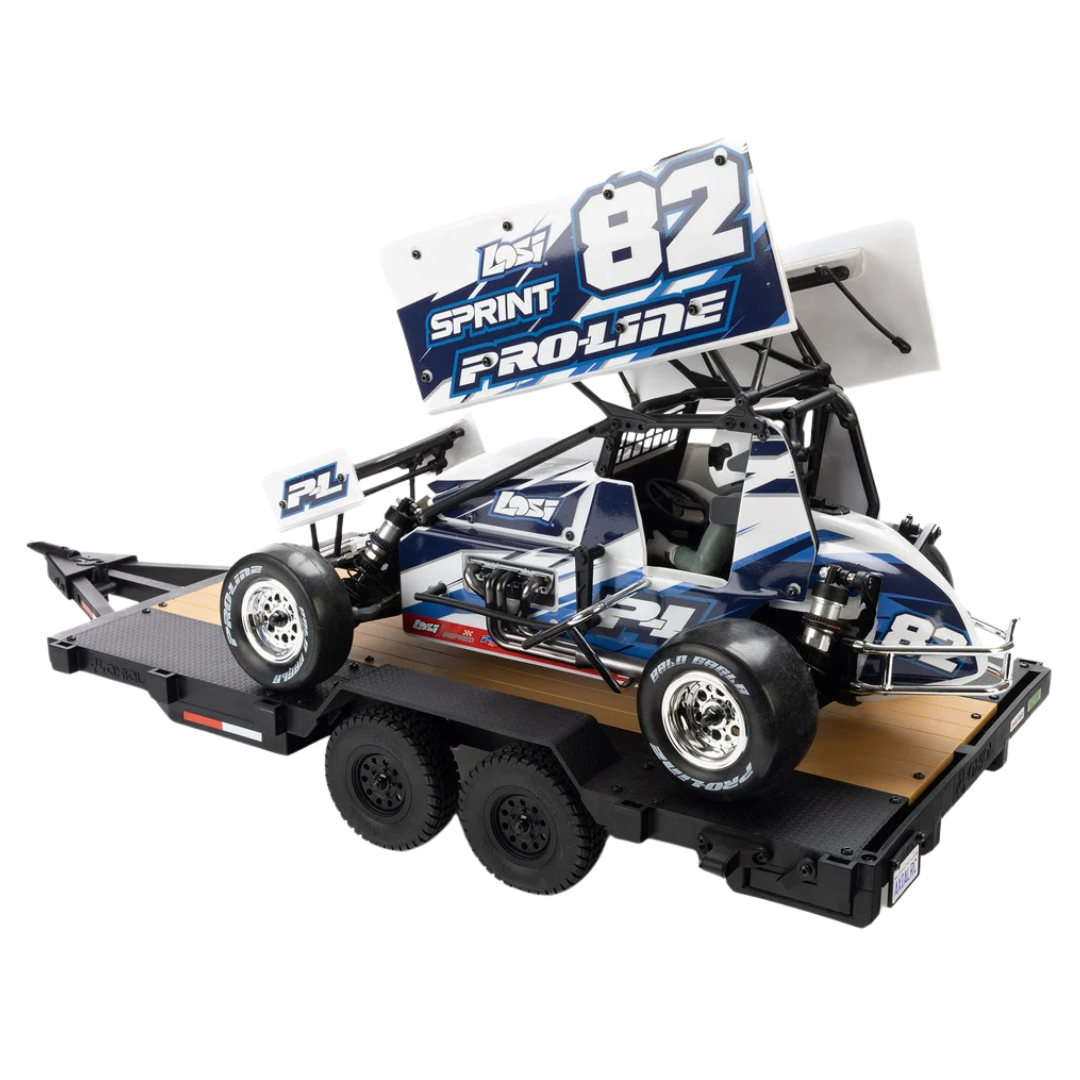

• Suitable for transporting many 1/10 scale crawlers, 200 mm touring cars, Axial UTB10 models and similarly sized vehicles

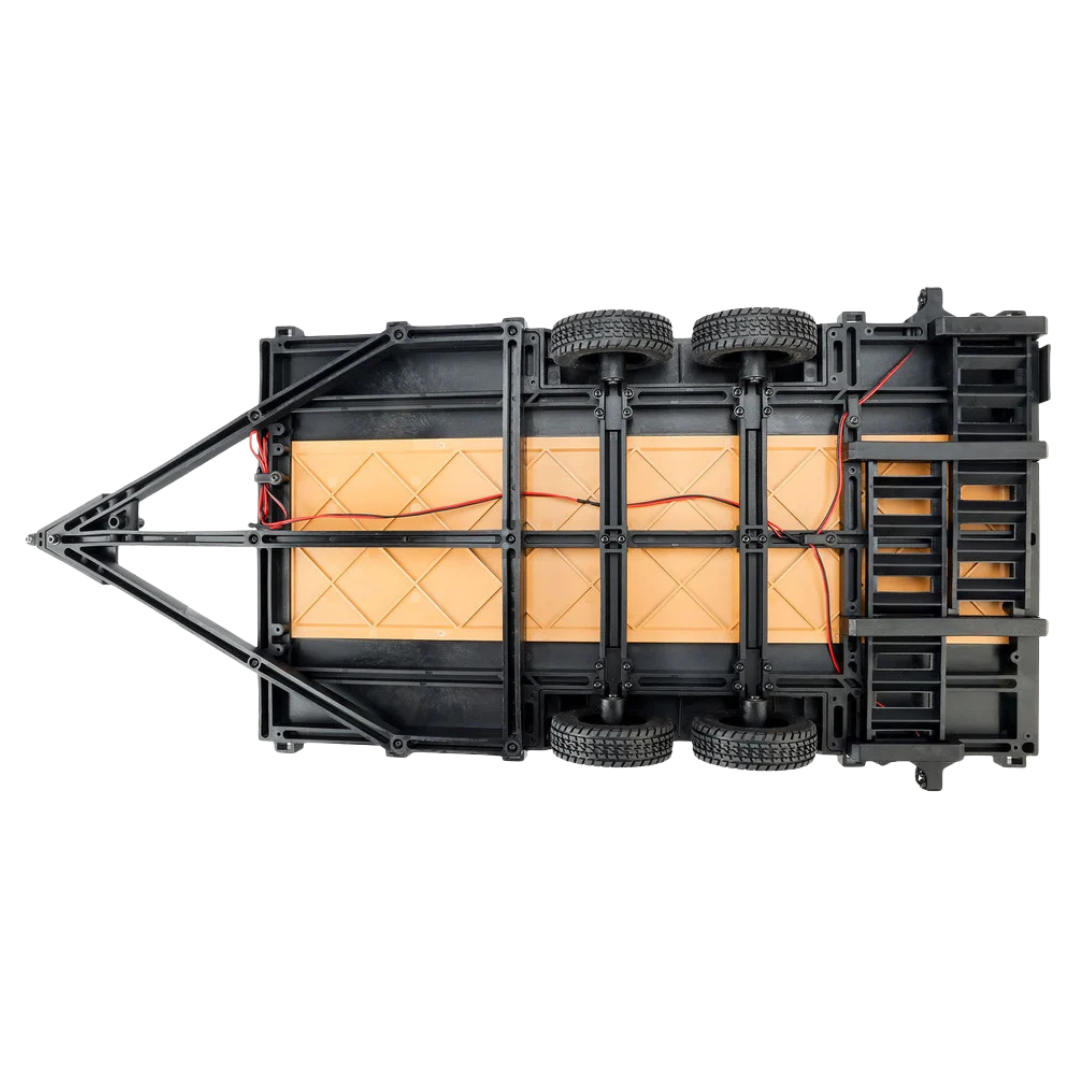

• Rigid injection-moulded composite frame for durability without the weight of a steel trailer

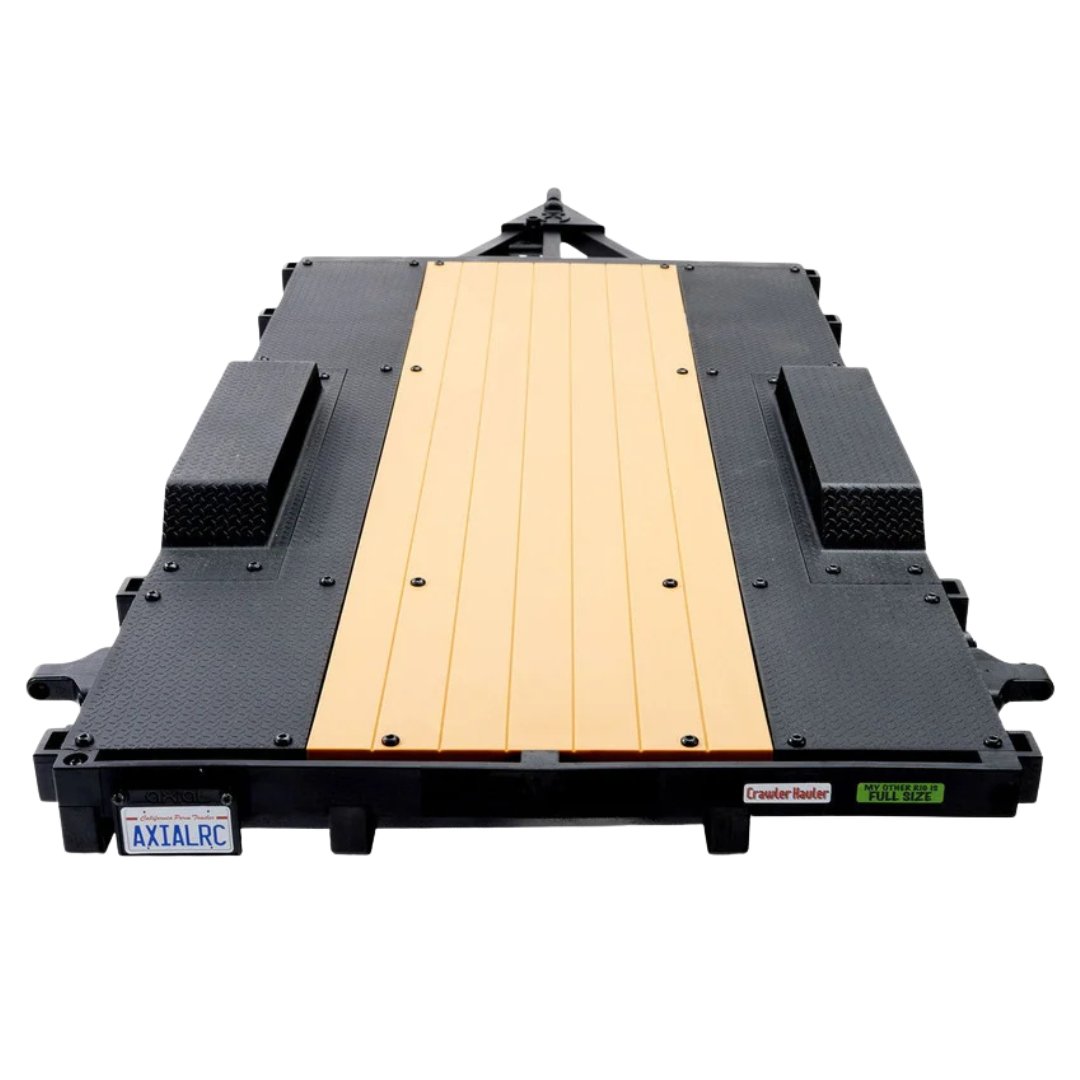

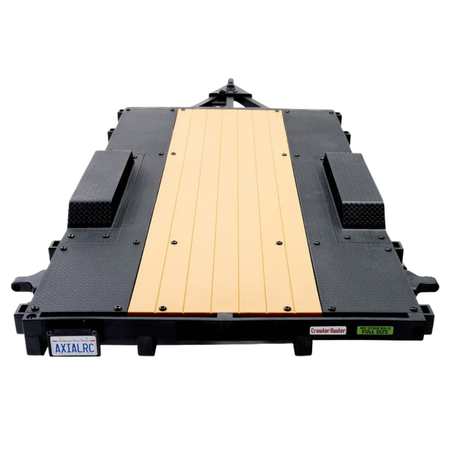

• Diamond-plate textured deck provides additional grip and realistic detailing
• Faux timber centre deck panels add scale appearance while retaining composite durability

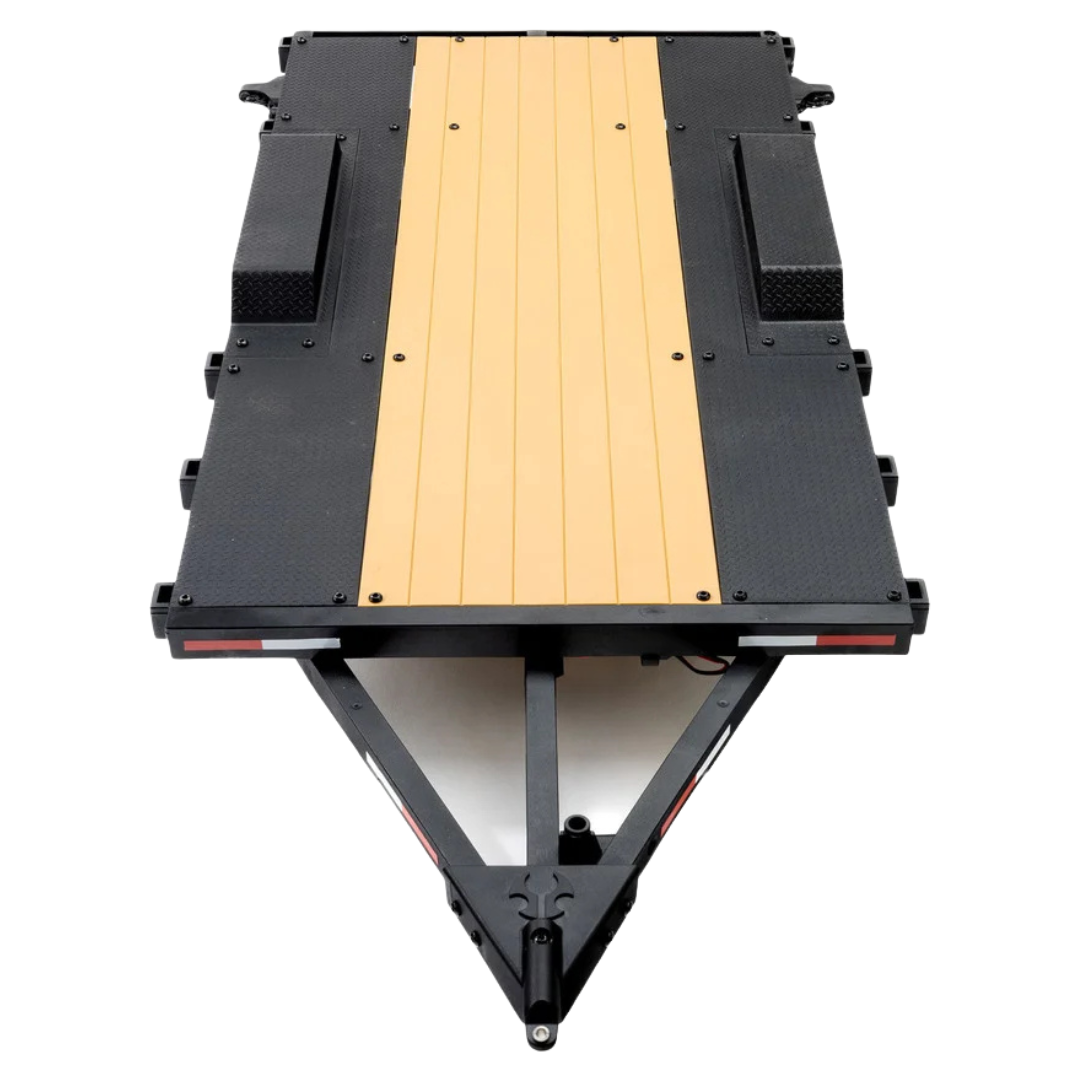

• Full-length trailer tongue helps reduce jack-knifing during forward turns
• Four wheels rotate independently to support tighter turning

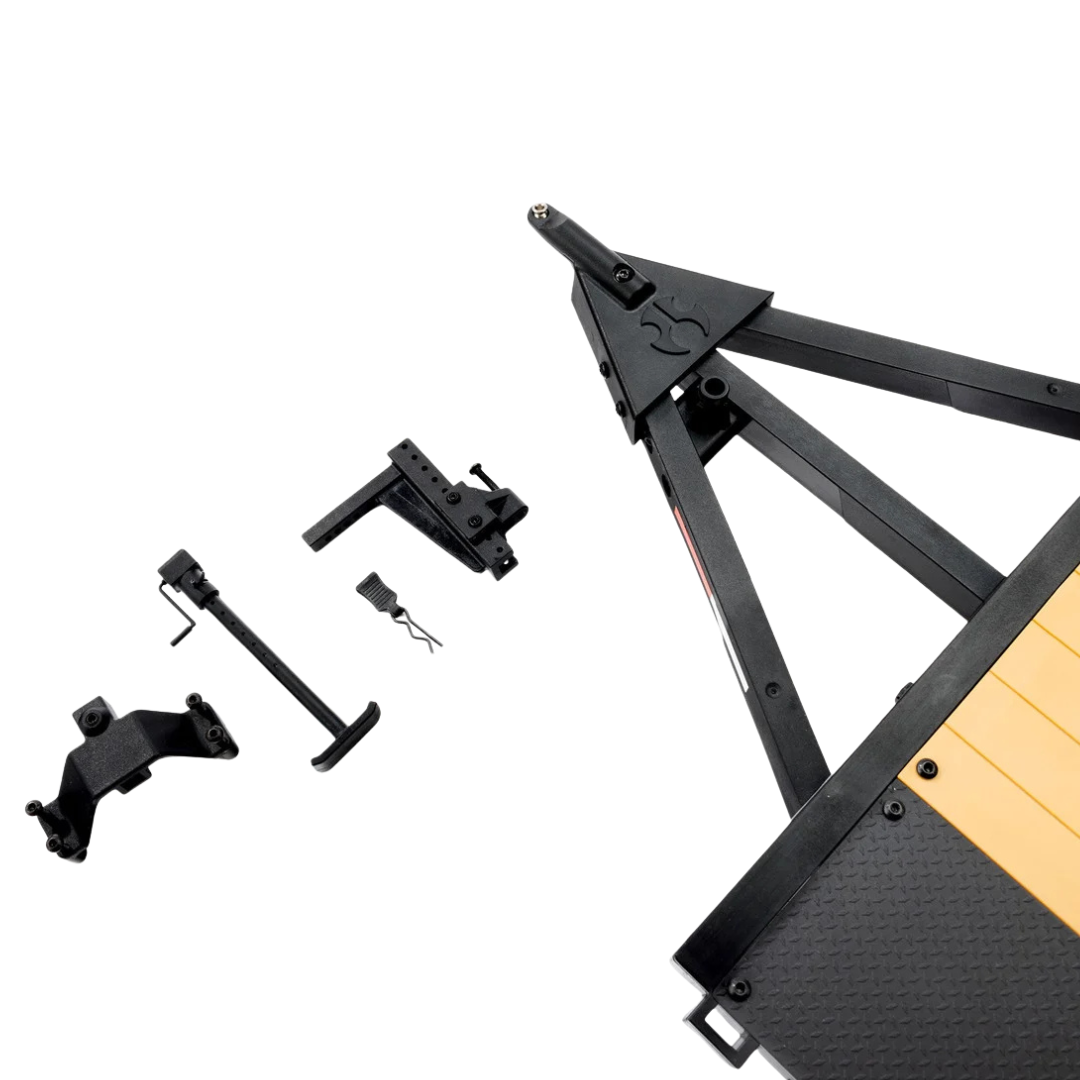

• Vertically adjustable hitch helps match different tow-vehicle ride heights
• 7.5 mm pivot-ball hitch connection

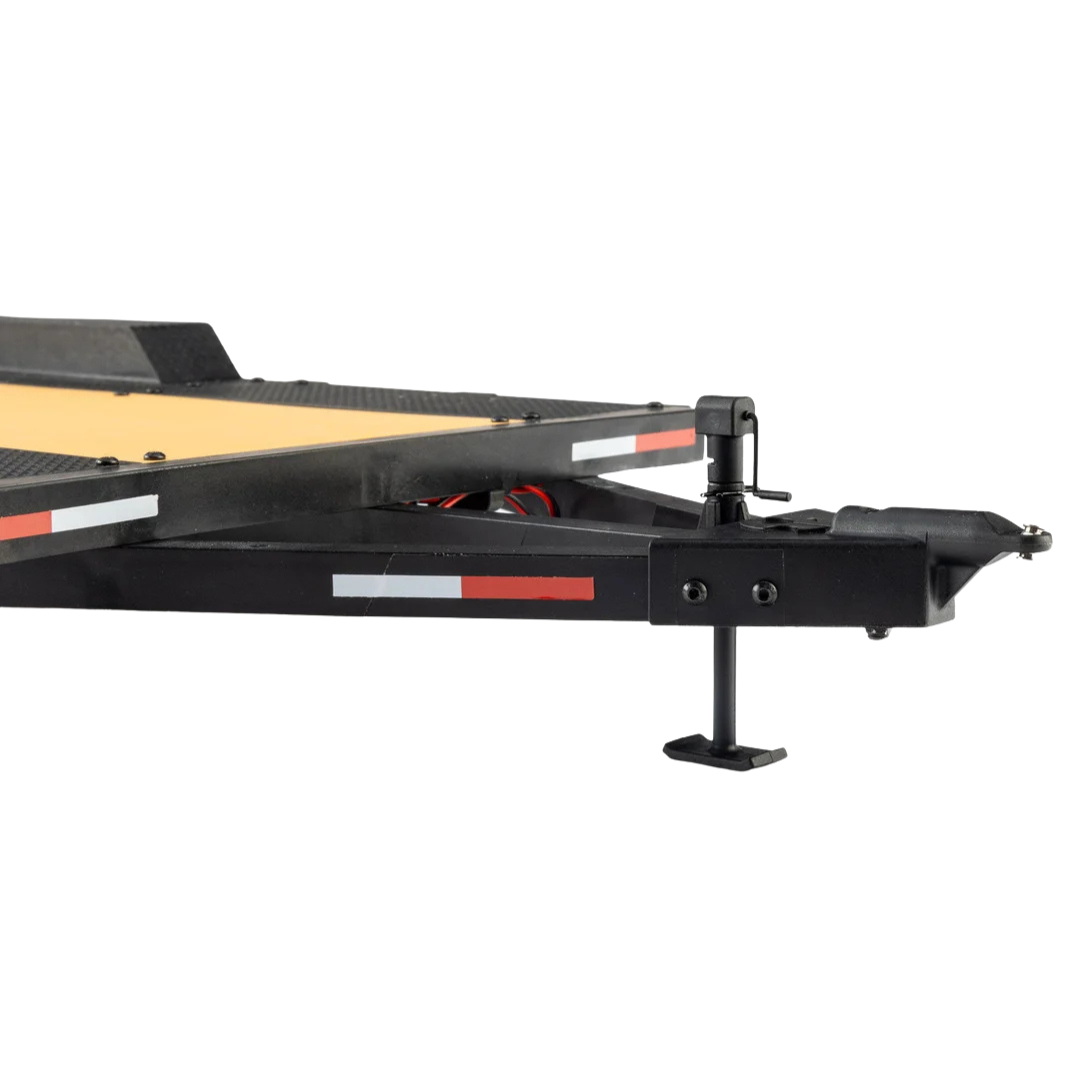

• Adjustable trailer jack supports the tongue during loading and storage

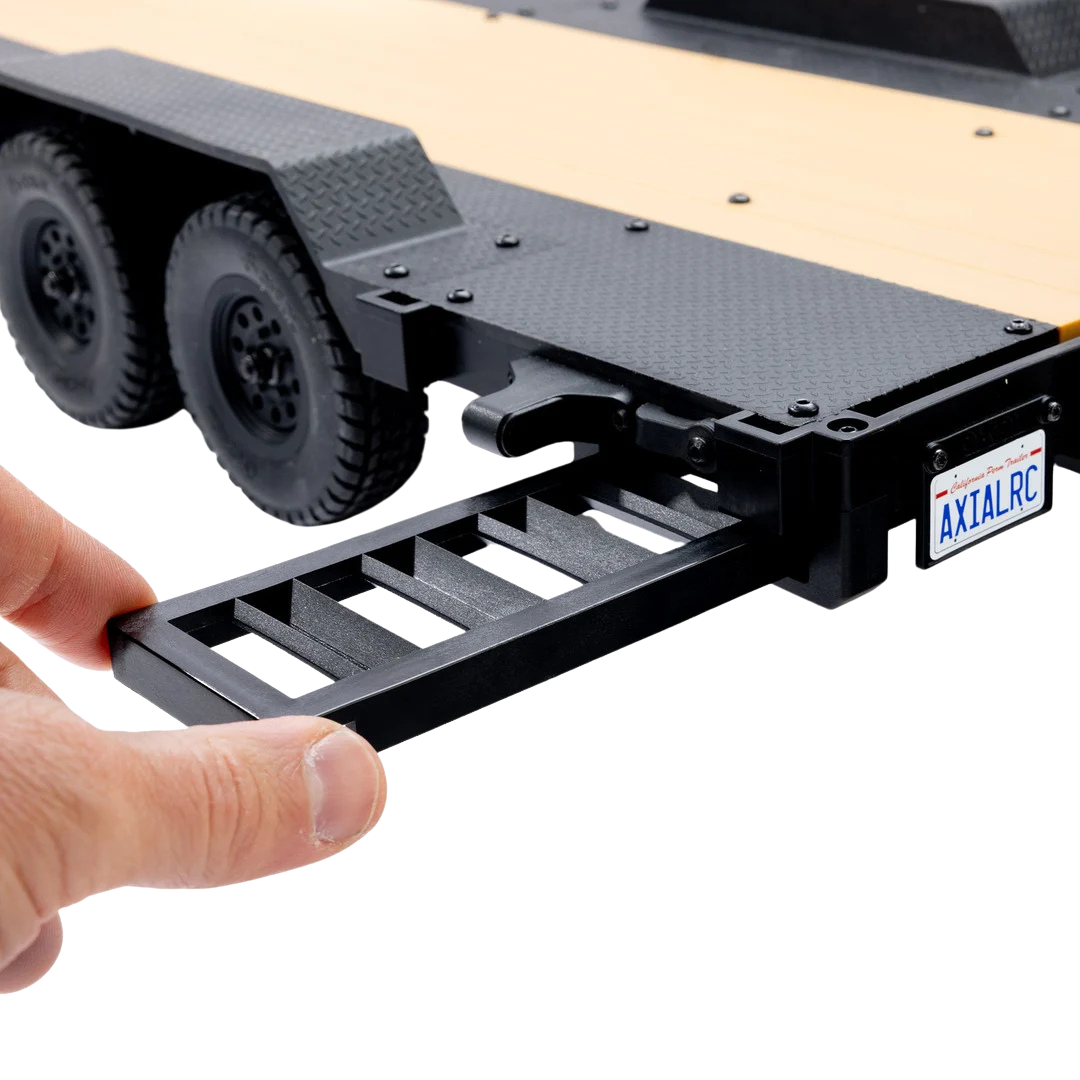

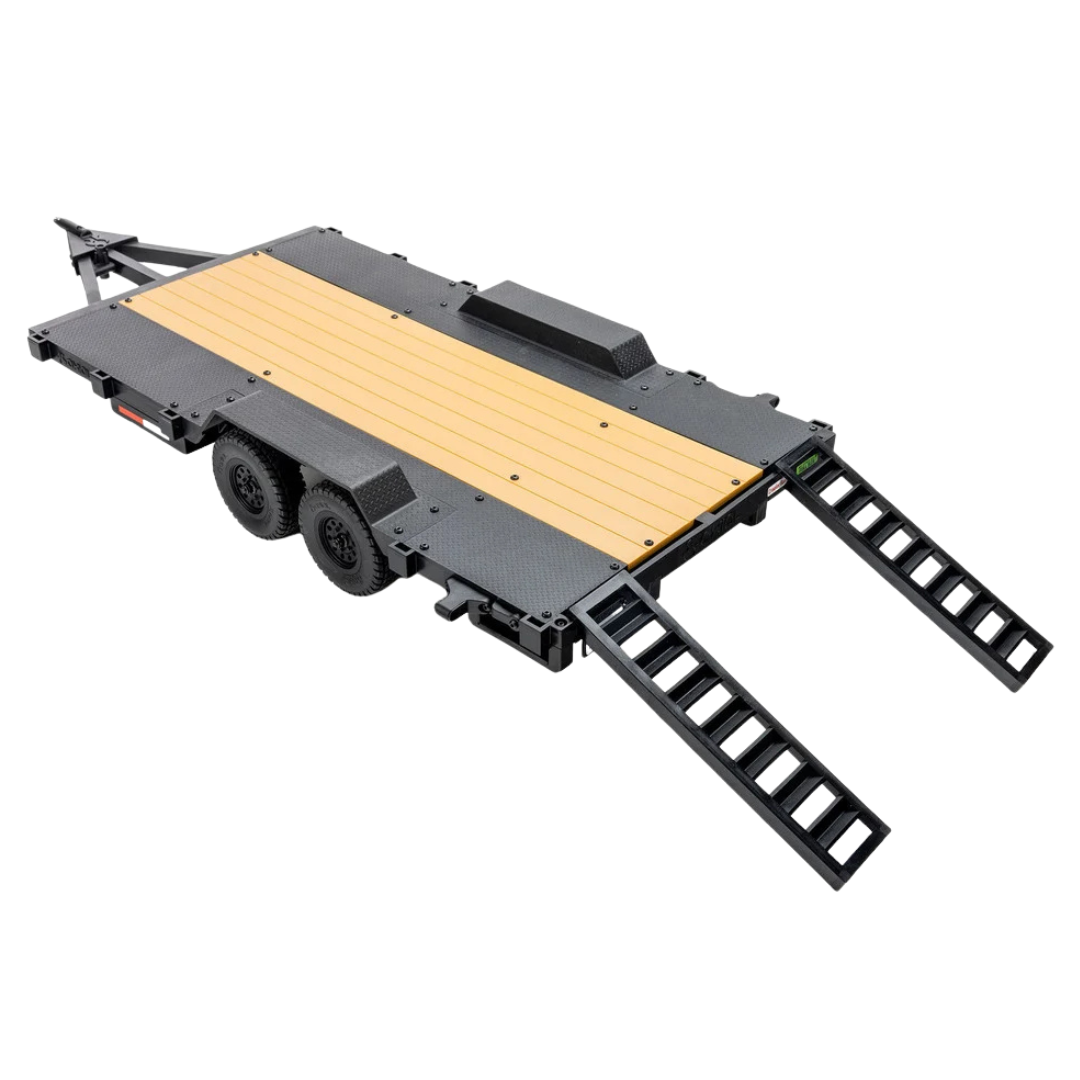

• Two detachable loading ramps stow underneath the rear of the trailer
• Factory-installed 5 mm red LED running lights
• LED lead connects to a compatible lighting system or an available receiver port
• Industry-standard 1.55 inch wheels and tyres allow further customisation
• Integrated mounting points can be used with suitable miniature tie-down straps
• Scale decal sheet includes licence plates, reflector graphics, warning markings and bumper decals

Specifications

• Brand: Axial
• Model: SCX10 Flat Bed Vehicle Trailer
• Manufacturer Part Number: AXI-3409
• Product Type: Flat bed vehicle trailer
• Scale: 1/10
• Axle Configuration: Dual axle
• Frame Material: Injection-moulded composite
• Maximum Recommended Load: 6.8 kg
• Length: 717 mm
• Width: 298 mm
• Height: 101 mm
• Product Weight: 1.995 kg
• Wheel Size: 1.55 inch
• Hitch Type: Adjustable 7.5 mm pivot-ball system
• Hitch Height Positions: Eight
• Hitch Depth Positions: Four
• Lighting: Factory-installed 5 mm red LED running lights
• Deck Finish: Diamond-plate texture with faux timber centre panels

Includes

• 1 x Axial SCX10 Flat Bed Vehicle Trailer
• 1 x Adjustable hitch with 7.5 mm pivot ball
• 1 x SCX10 hitch receiver
• Hitch installation hardware
• 2 x Detachable loading ramps
• 1 x Factory-installed LED running light set
• 1 x Scale decal sheet
• 1 x Product manual

FAQ

Does the Axial SCX10 trailer fit every 1/10 RC crawler? The trailer is designed primarily for compatible Axial SCX10 vehicles and includes SCX10 hitch hardware. Modified SCX10 models and non-Axial crawlers may require a suitable custom hitch or additional installation work.

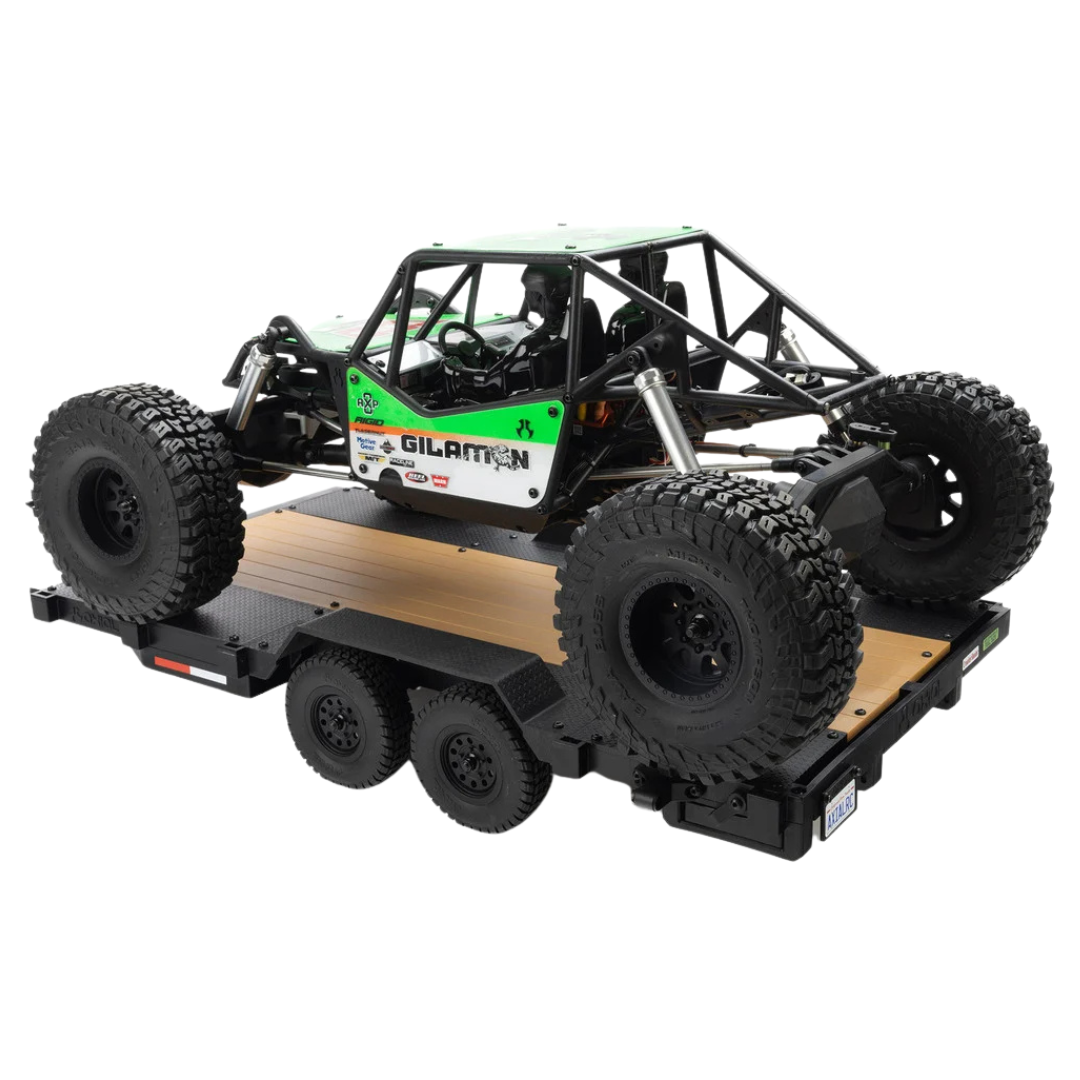

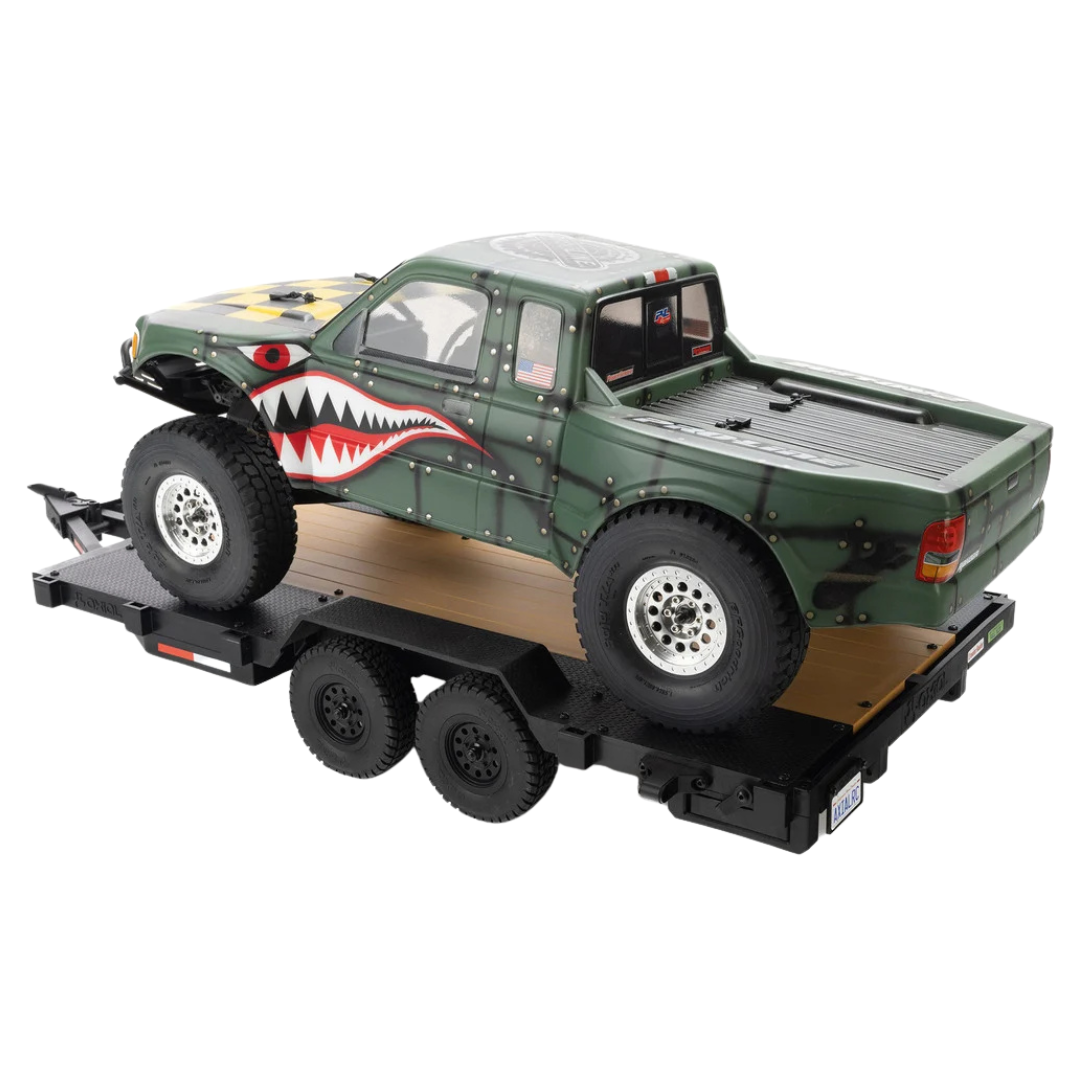

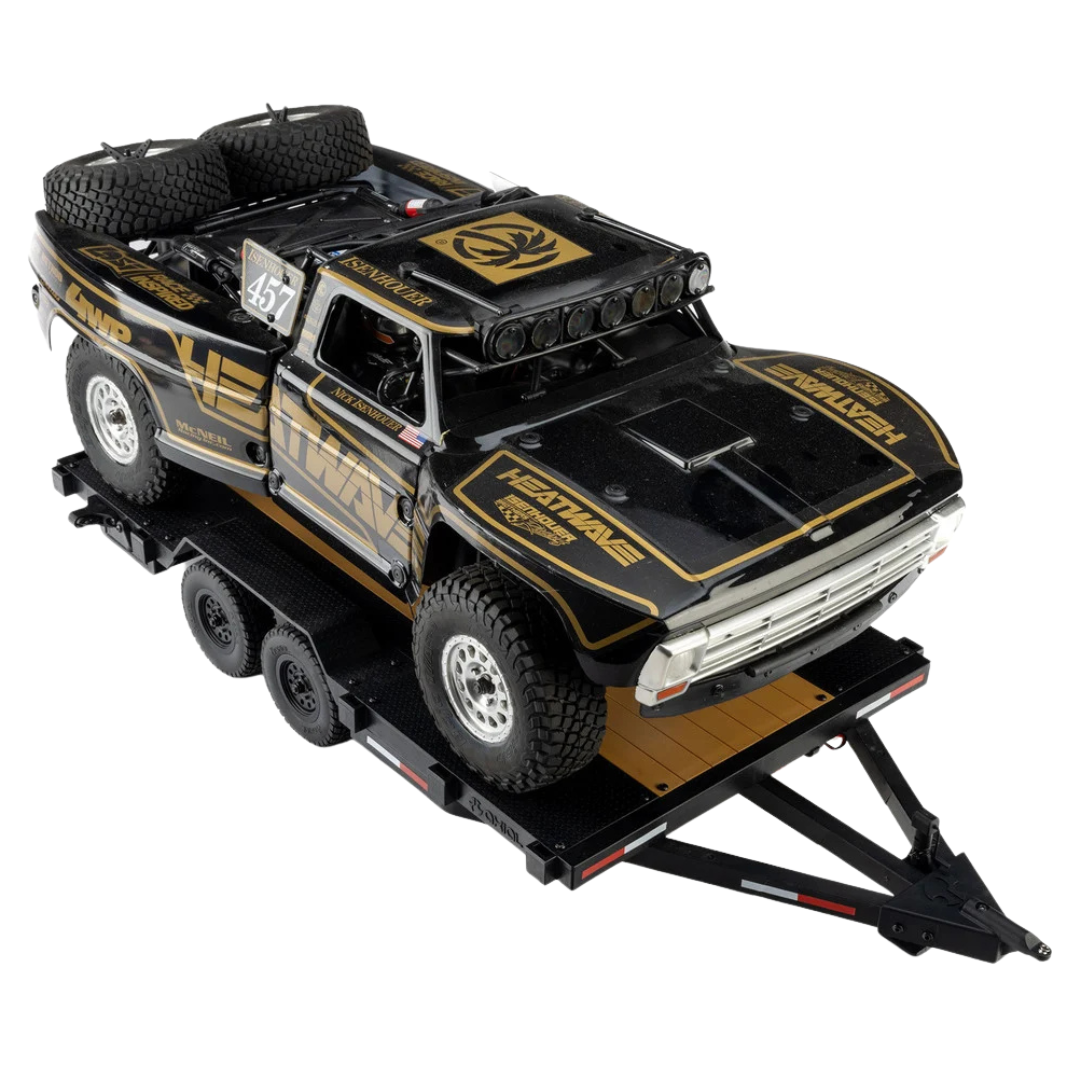

Can the trailer carry a complete 1/10 crawler? Yes. The trailer is designed to transport many 1/10 crawlers and similarly sized vehicles, with a manufacturer-stated maximum load of 6.8 kg. The vehicle must fit within the deck dimensions and be secured before towing.

How are the LED running lights powered? The prewired LED running lights connect to the tow vehicle’s compatible lighting system or an available receiver port. The trailer does not use a separate battery.

Are vehicle tie-down straps included? No. Miniature tow straps, bungee cords or other suitable restraints are required separately to prevent the loaded vehicle from moving on the deck.

Important Notes

• Basic trailer and hitch assembly is required before use.
• Recommended tools include 1.5 mm and 2.0 mm hex drivers plus 5.5 mm and 7.0 mm nut drivers.
• The included hitch receiver is designed for compatible SCX10 installations. Check the rear bumper and chassis arrangement before fitting it to a modified vehicle.
• The trailer should sit level or slightly higher at the front when connected to the tow vehicle.
• An available receiver or lighting-system port is required to operate the LED running lights.
• Tie-down straps are not included. Always secure the loaded vehicle before towing.
• Confirm the loaded vehicle fits safely within the trailer deck before use.
• Raise the adjustable tongue jack to its highest position before towing.
