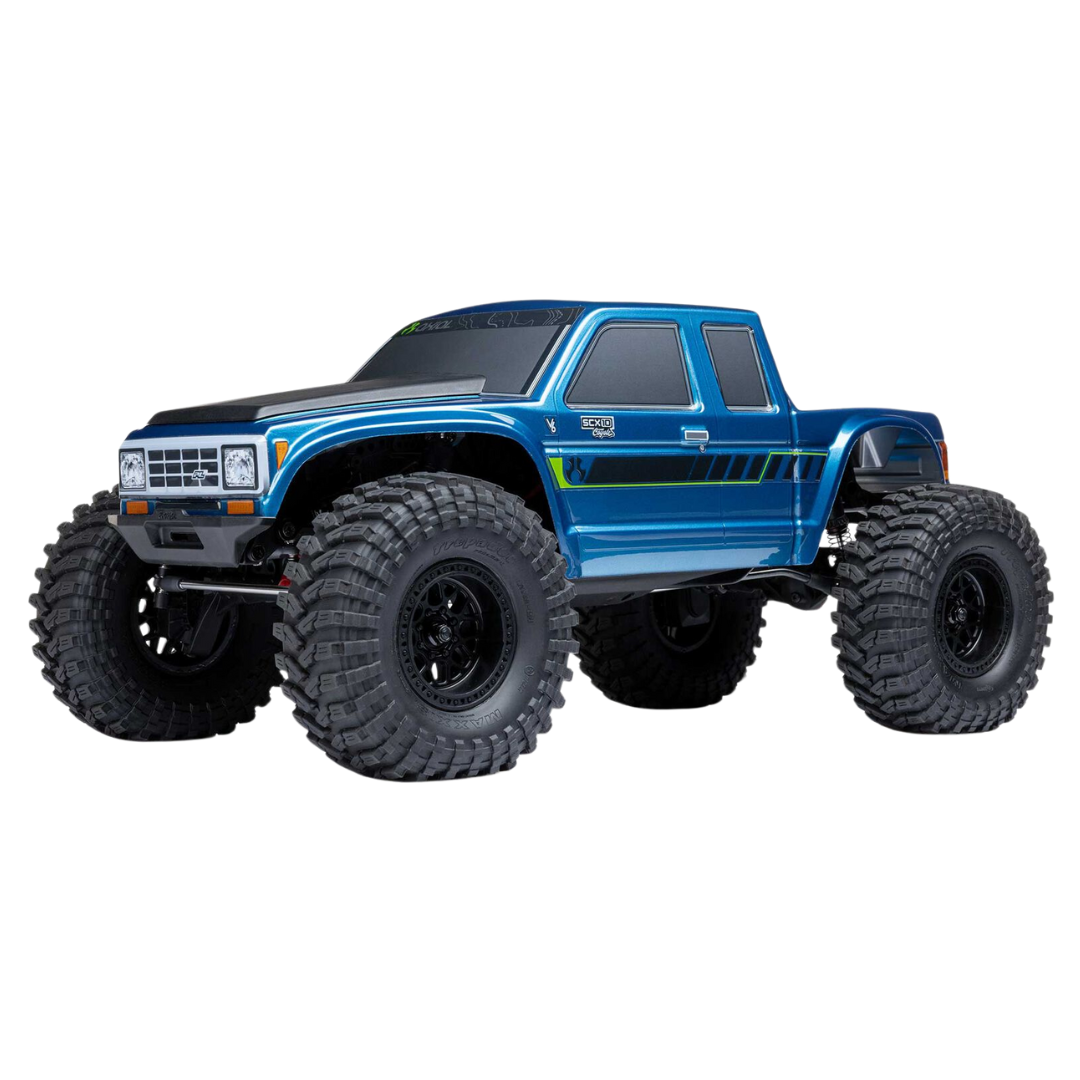

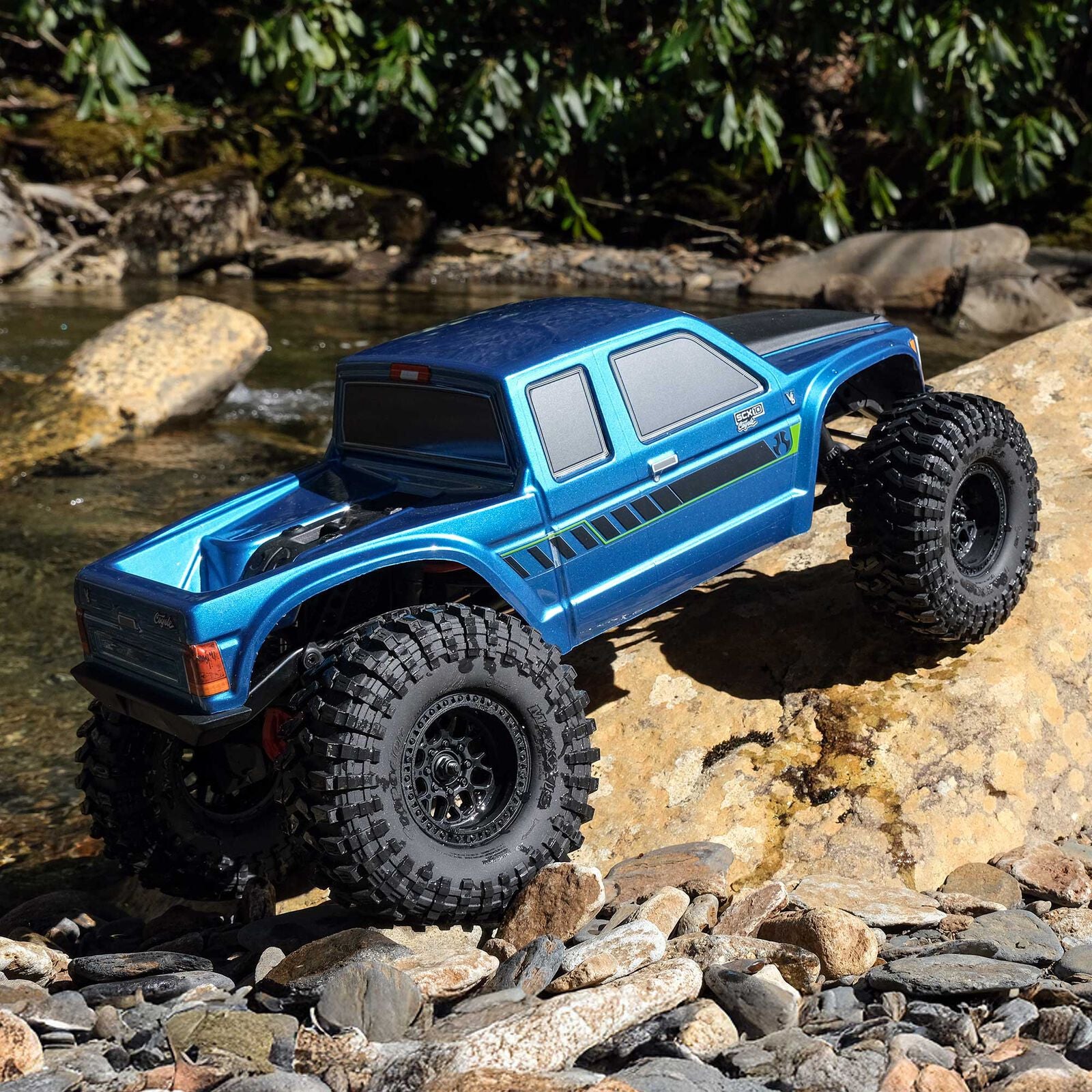

Axial SCX10 III Coyote RC Rock Crawler 1/10 4X4 RTR Blue AXI-2036T2

The Axial SCX10 III Coyote is a 1/10 scale 4X4 RTR brushed RC rock crawler designed for trail driving and comp-style crawling, combining AR45P portal axles, front overdrive gearing and a clipless Pro-Line Coyote body for improved clearance, manoeuvrability and articulation.

Features

• SCX10 III Steel Chassis: One-piece steel C-channel chassis reduces frame flex and improves suspension precision
• AR45P Portal Axles: High-clearance portal axles increase ground clearance at the differentials for navigating uneven terrain
• Front Overdrive Gearing: Front axle overdrive improves climbing performance and manoeuvrability when working through tight gates and obstacles
• LCXU 4WD Transmission: Durable transmission uses all-metal internal gears and a full set of ball bearings
• Pro-Line Coyote Body: Factory-painted polycarbonate body is shaped for tyre clearance, articulation and navigating narrow obstacles

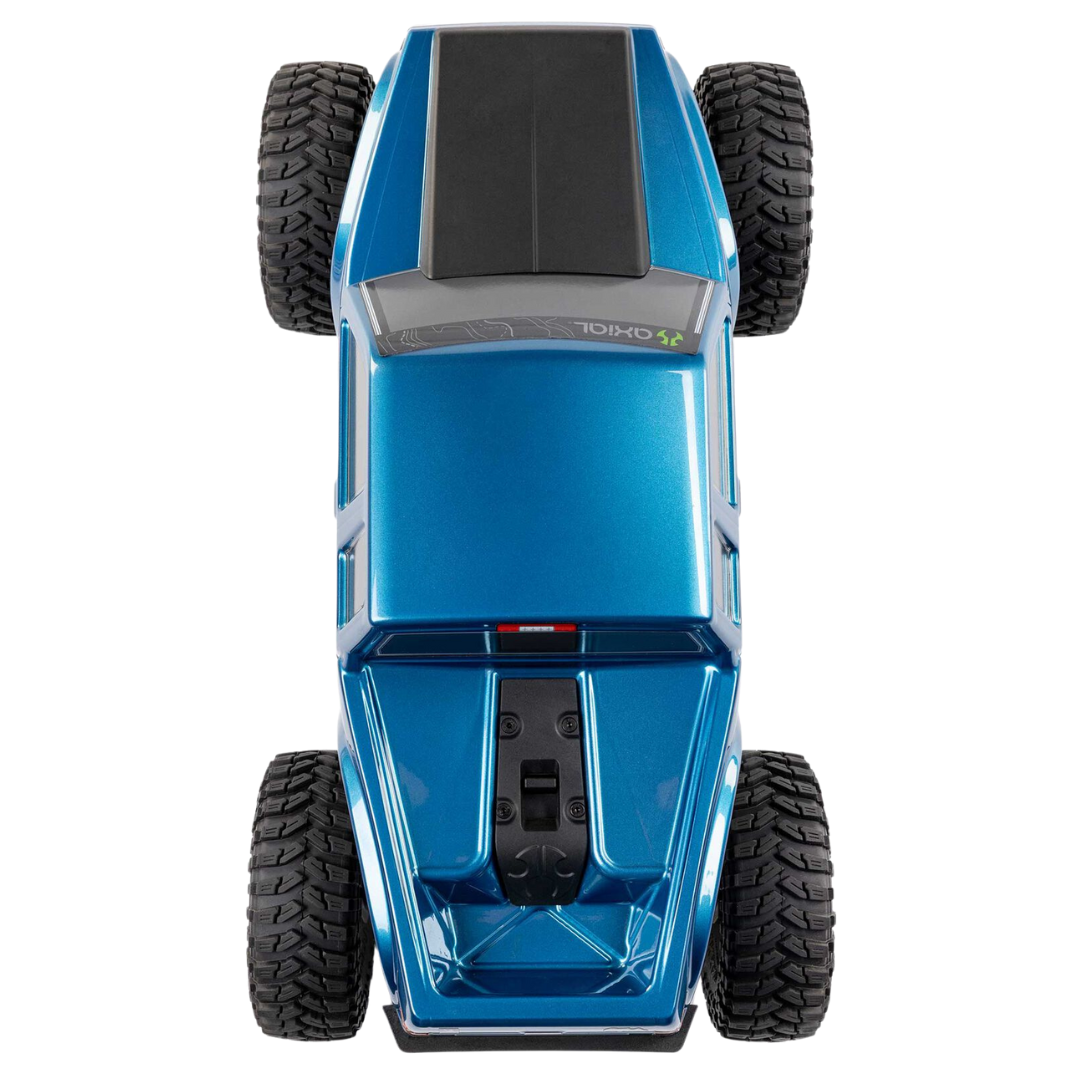

• Clipless Body Mounting: Hinged rear mounting system eliminates visible body clips and allows convenient chassis access
• Multi-Link Solid Axle Suspension: Features 6mm stainless steel links and all-metal pivot balls for off-road durability
• Oil-Filled Coil-Over Shocks: Competition-style suspension provides predictable handling with adjustable shock tower positioning
• Front Battery Position: Battery mount positions the pack ahead of the transmission to improve weight distribution and balance
• Licensed Maxxis Trepador Tyres: Dual-stage open-cell foam inserts combine a soft outer foam with a firmer inner section for grip and sidewall support
• Licensed KMC Grenade Wheels: Lightweight one-piece wheels add realistic scale styling
• 35T Brushed Power: Factory-installed Axial 35T 540 brushed motor provides controlled low-speed performance for crawling and trail driving
• Waterproof Electronics: Spektrum 40A brushed ESC and S664 metal gear steering servo are designed for demanding trail conditions
• Spektrum SLT2 Radio: Included transmitter offers 50%, 75% and 100% throttle settings to help newer drivers progressively build control

Specifications

• Brand: Axial
• Model: SCX10 III Coyote
• Vehicle Type: RC Rock Crawler
• Scale: 1/10
• Drive: 4WD / 4X4
• Completion Level: Ready-To-Run
• Colour: Blue
• Power Type: Electric
• Motor Type: Brushed
• Motor: Axial 35T 540 Brushed
• ESC: Spektrum 40A Waterproof Brushed ESC
• Radio: Spektrum SLT2 2-Channel SLT
• Receiver: Spektrum SR515 DSMR 5-Channel
• Steering Servo: Spektrum S664 Waterproof Metal Gear 25T
• Battery Compatibility: 2S or 3S LiPo
• Battery Connector: IC3
• Transmission: LCXU 4WD
• Axles: AR45P Portal
• Suspension: Multi-link solid axle
• Shock Type: Oil-filled coil-over
• Ball Bearings: Full ball bearings
• Pinion Gear: 14T
• Spur Gear: 25T
• Wheel Hex: 12mm
• Wheelbase: 312mm
• Length: 445mm
• Width: 235mm
• Height: 197mm
• Weight: Approximately 2.38kg with 1300mAh battery
• Tyres: Officially licensed Maxxis Trepador
• Wheels: Officially licensed KMC Grenade
• Body: Factory-painted Pro-Line Coyote polycarbonate body
• Manufacturer Part Number: AXI-2036T2

Includes

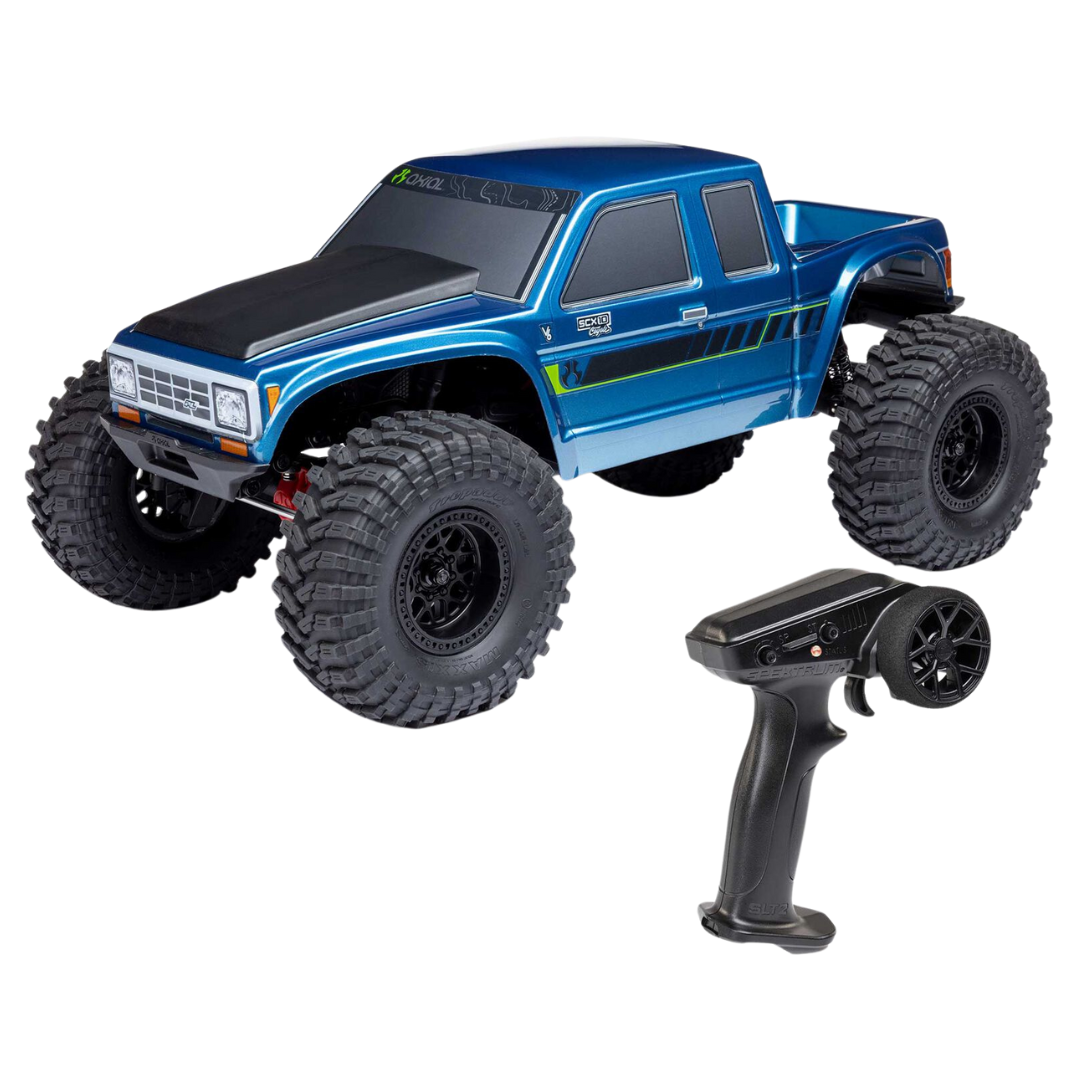

• 1 x Axial SCX10 III Coyote 1/10 4X4 RTR RC Rock Crawler Blue
• 1 x Axial 35T 540 Brushed Motor
• 1 x Spektrum SLT2 2-Channel SLT Transmitter
• 1 x Spektrum SR515 DSMR 5-Channel Receiver
• 1 x Spektrum S664 Waterproof Metal Gear 25T Servo
• 1 x Spektrum 40A Waterproof Brushed ESC
• 4 x AA Transmitter Batteries
• 1 x Instruction Manual

FAQ

Does the Axial SCX10 III Coyote AXI-2036T2 include a battery and charger? No. AXI-2036T2 is supplied as an assembled RTR crawler with the radio system and electronics installed, but a suitable 2S or 3S LiPo battery with IC3 connector and compatible charger are required separately.

Can the Axial SCX10 III Coyote run on both 2S and 3S LiPo? Yes. The factory electronics support 2S and 3S LiPo batteries with an IC3 connector.

What advantage do the portal axles provide? The AR45P portal axles raise the differential housings for increased ground clearance, helping the SCX10 III Coyote move over rocks and uneven terrain with less chance of the axle centre catching.

What does the front overdrive gearing do? The front axle turns slightly faster than the rear to improve climbing behaviour and help the crawler manoeuvre more effectively through tight turns and competition-style gates.

Important Notes

• 2S or 3S LiPo battery with IC3 connector is required and sold separately
• Compatible LiPo charger is required and sold separately
• AXI-2036T2 does not include the drive battery or charger
• Ready-To-Run refers to the assembled vehicle with installed electronics and radio system; the required drive battery and charger must still be added before use
