Axial SCX10 III Jeep CJ-7 V2 RC Crawler 1/10 RTR Red AXI03008V2T1

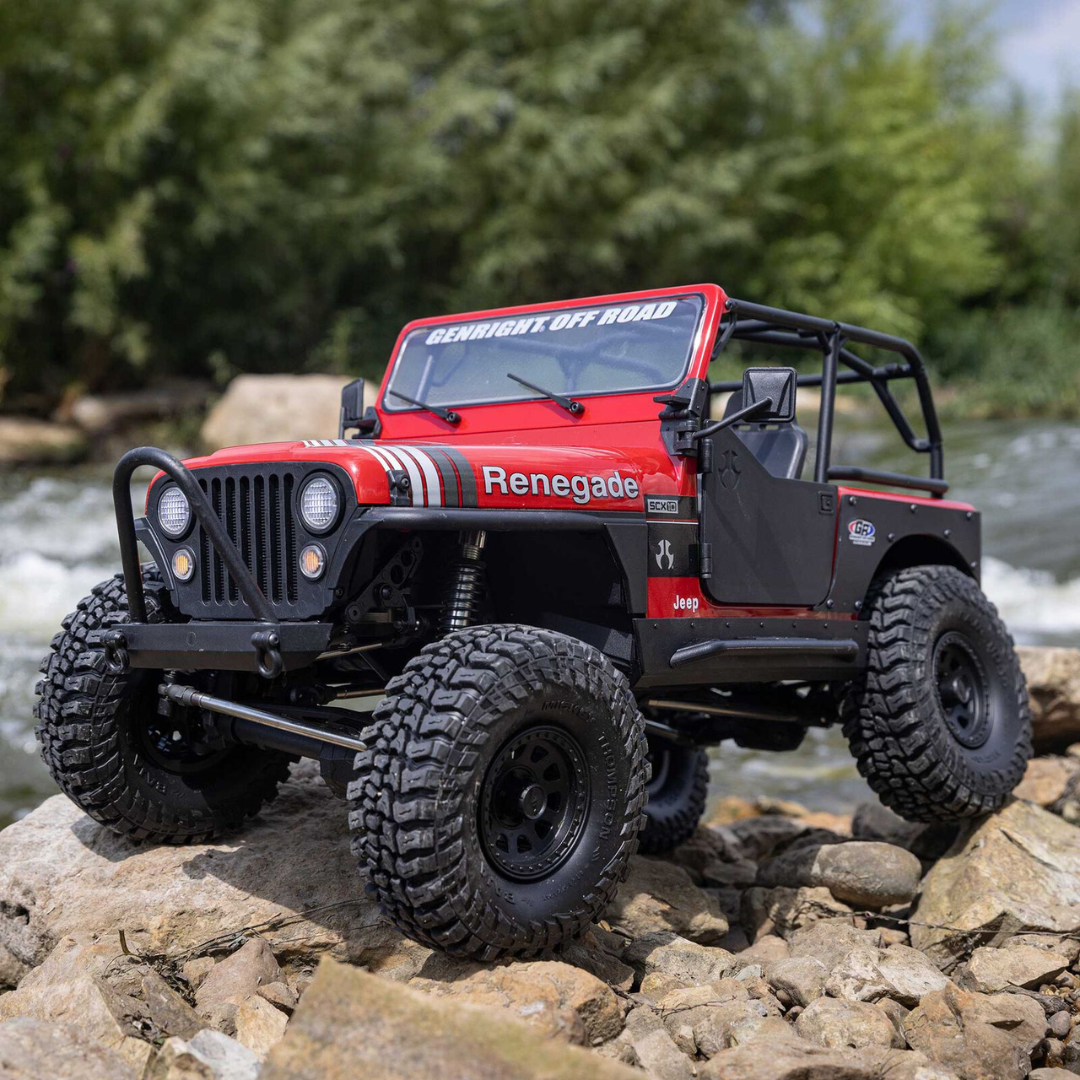

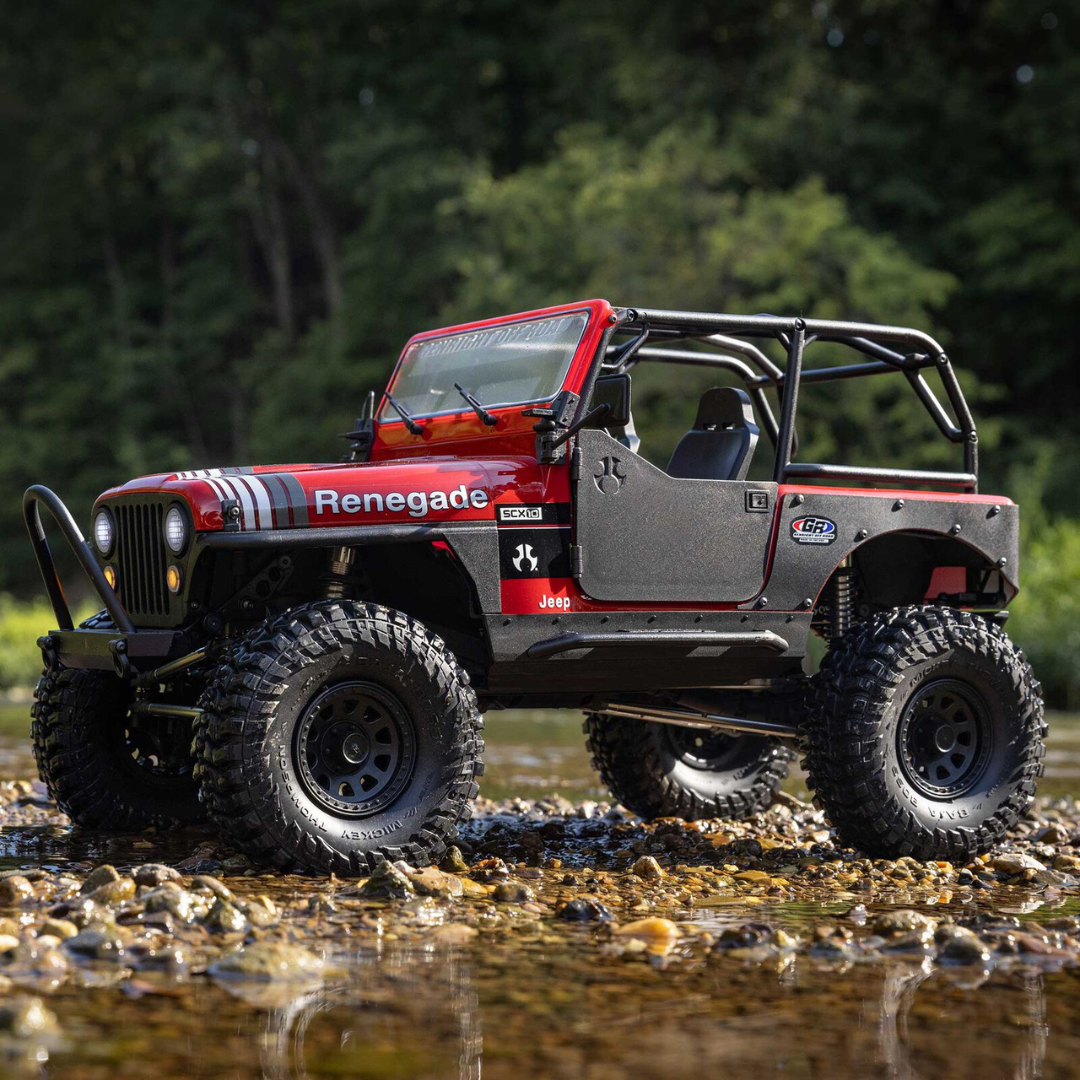

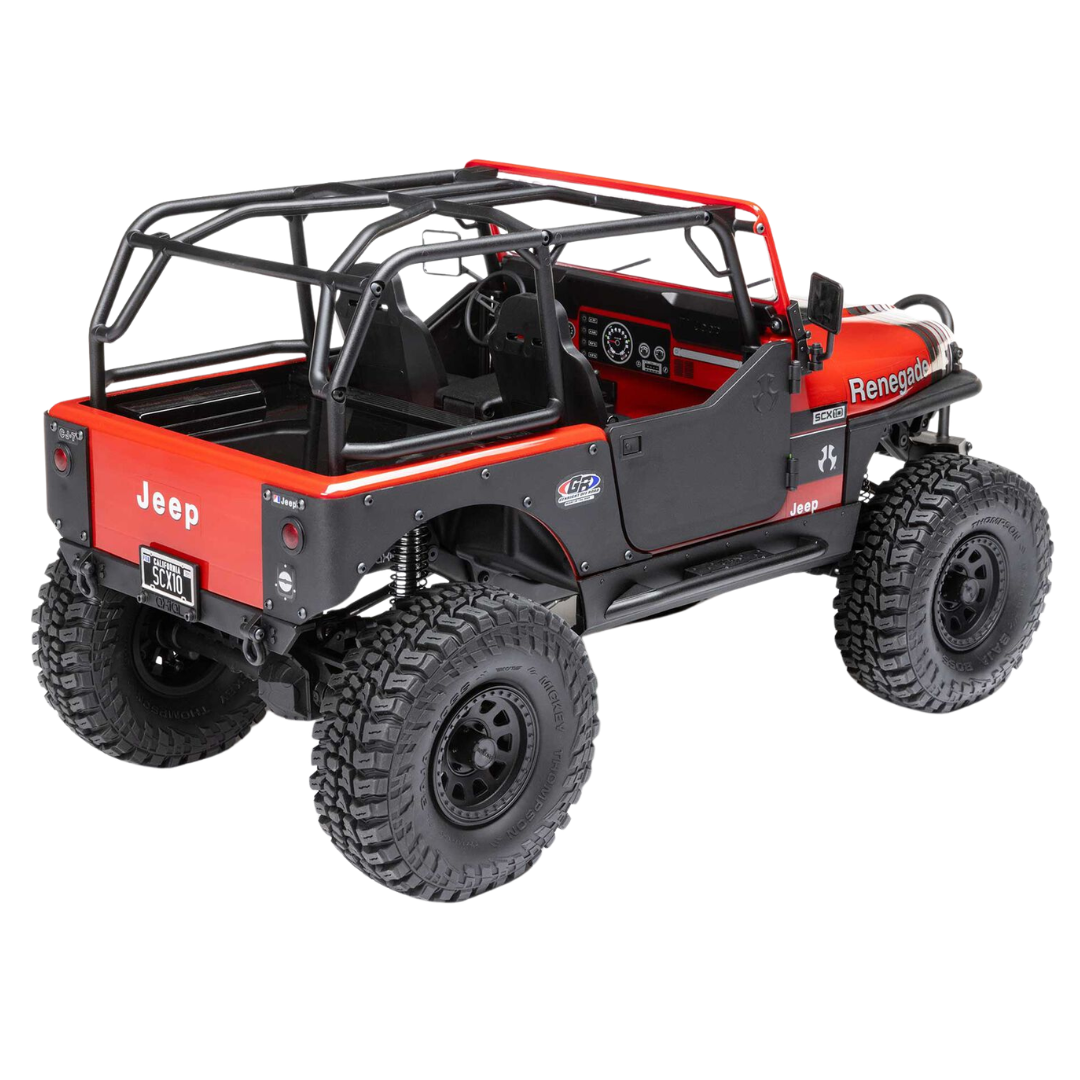

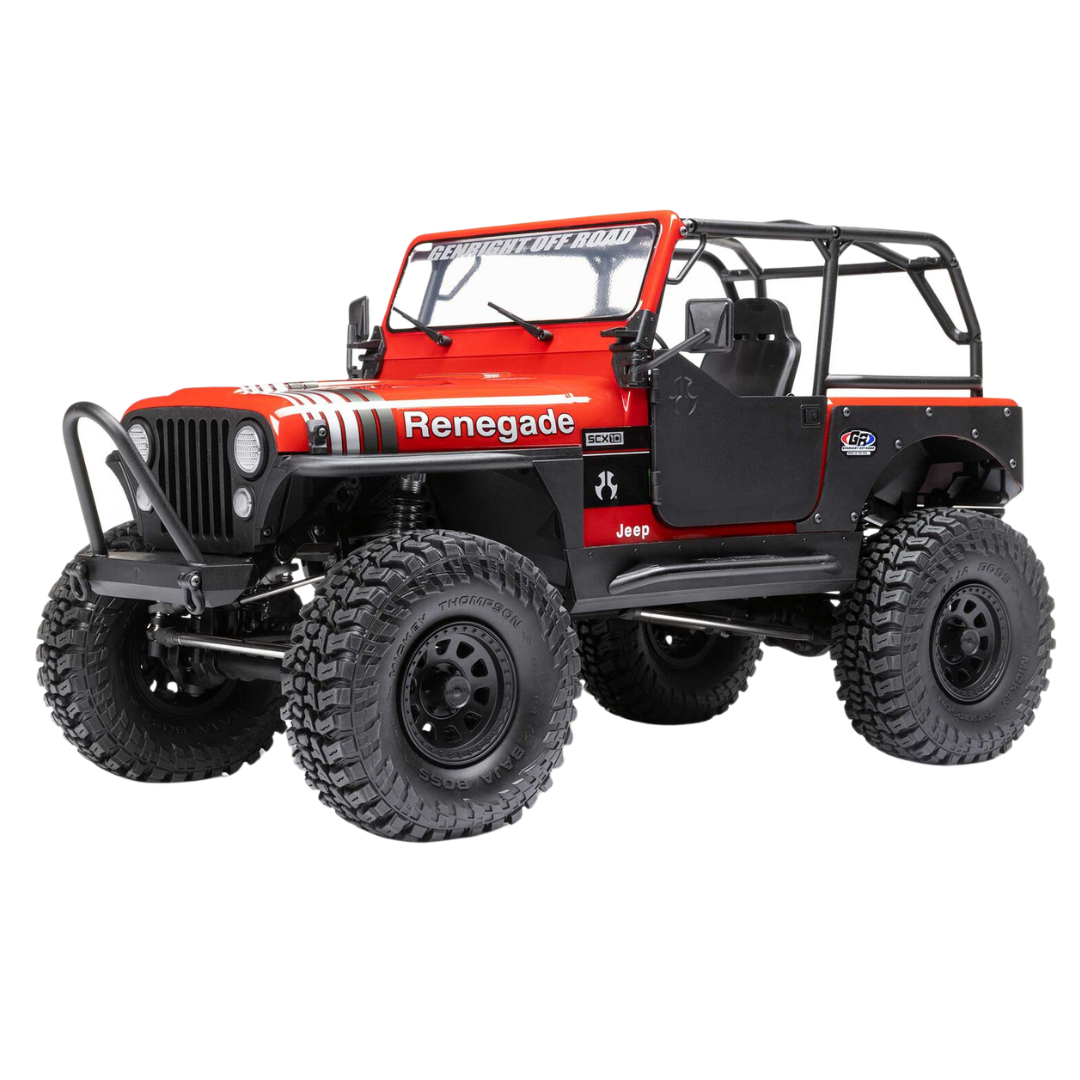

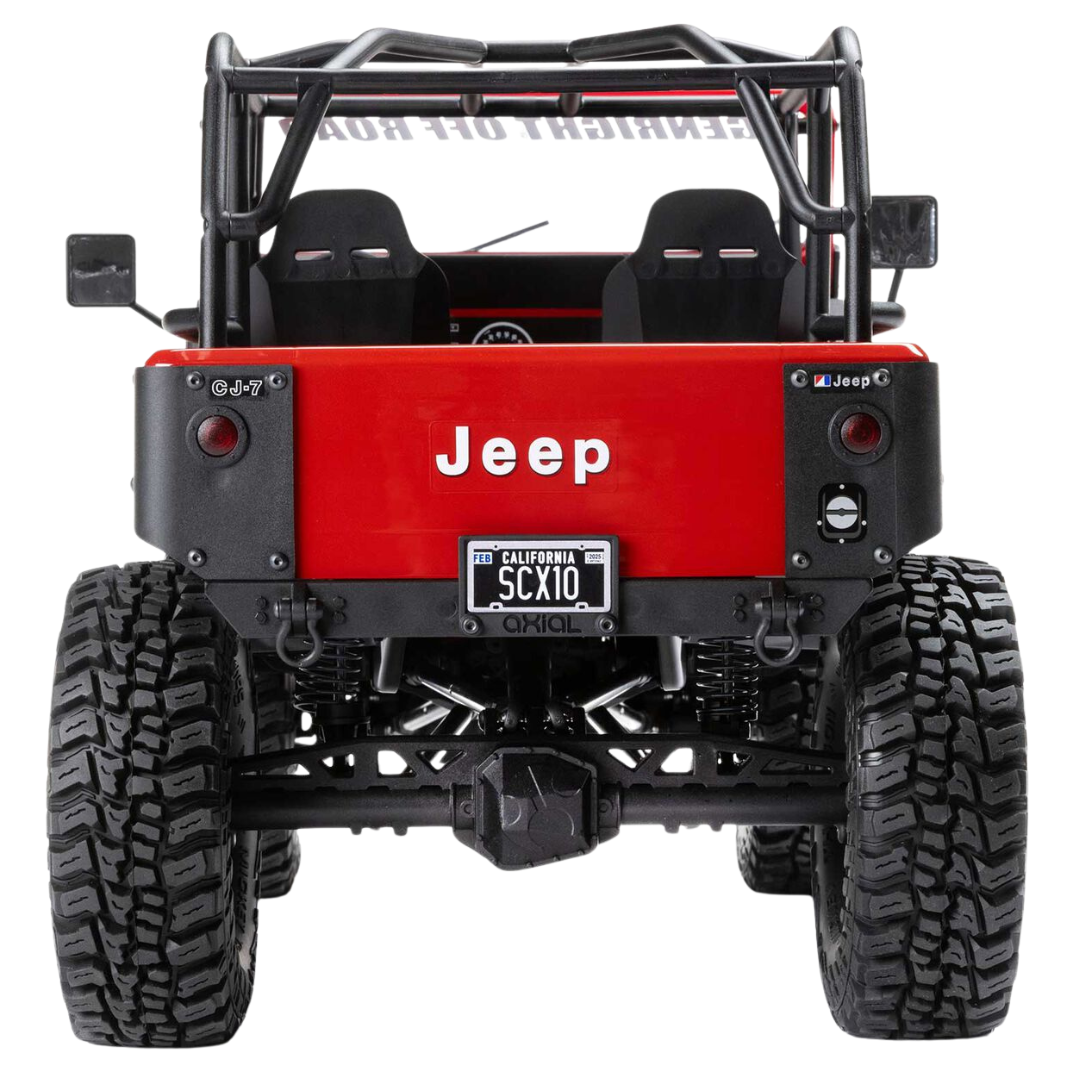

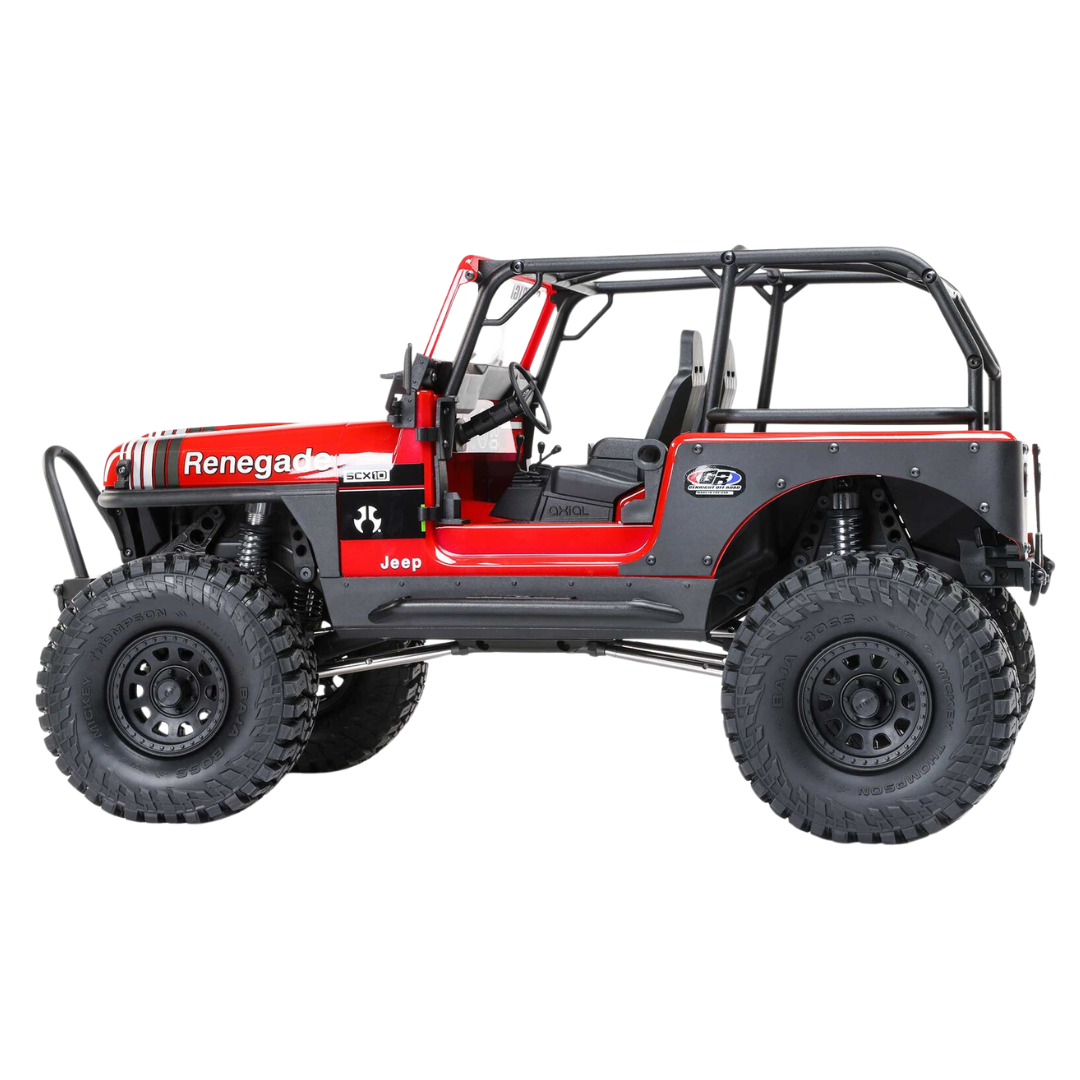

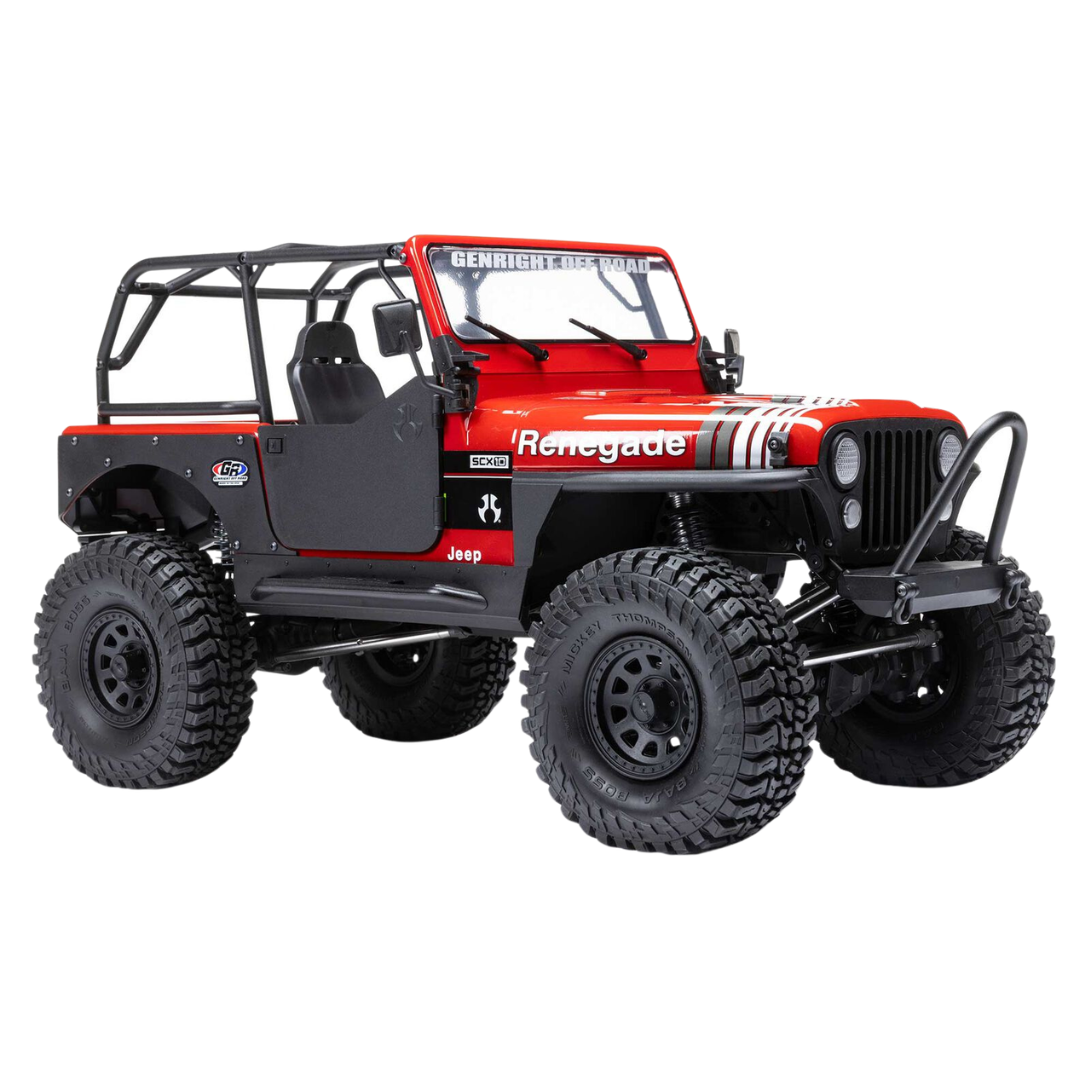

The Axial AXI03008V2T1 SCX10 III Jeep CJ-7 V2 is a 1/10 scale 4WD ready-to-run RC rock crawler combining a fully licensed Jeep CJ-7 body with the proven SCX10 III chassis, transmitter-controlled DIG and upgraded Spektrum electronics. This Red V2 arrives factory assembled with the motor, ESC, receiver, steering servo, DIG servo and radio system installed, requiring only a suitable 2S or 3S LiPo battery and charger.

Features

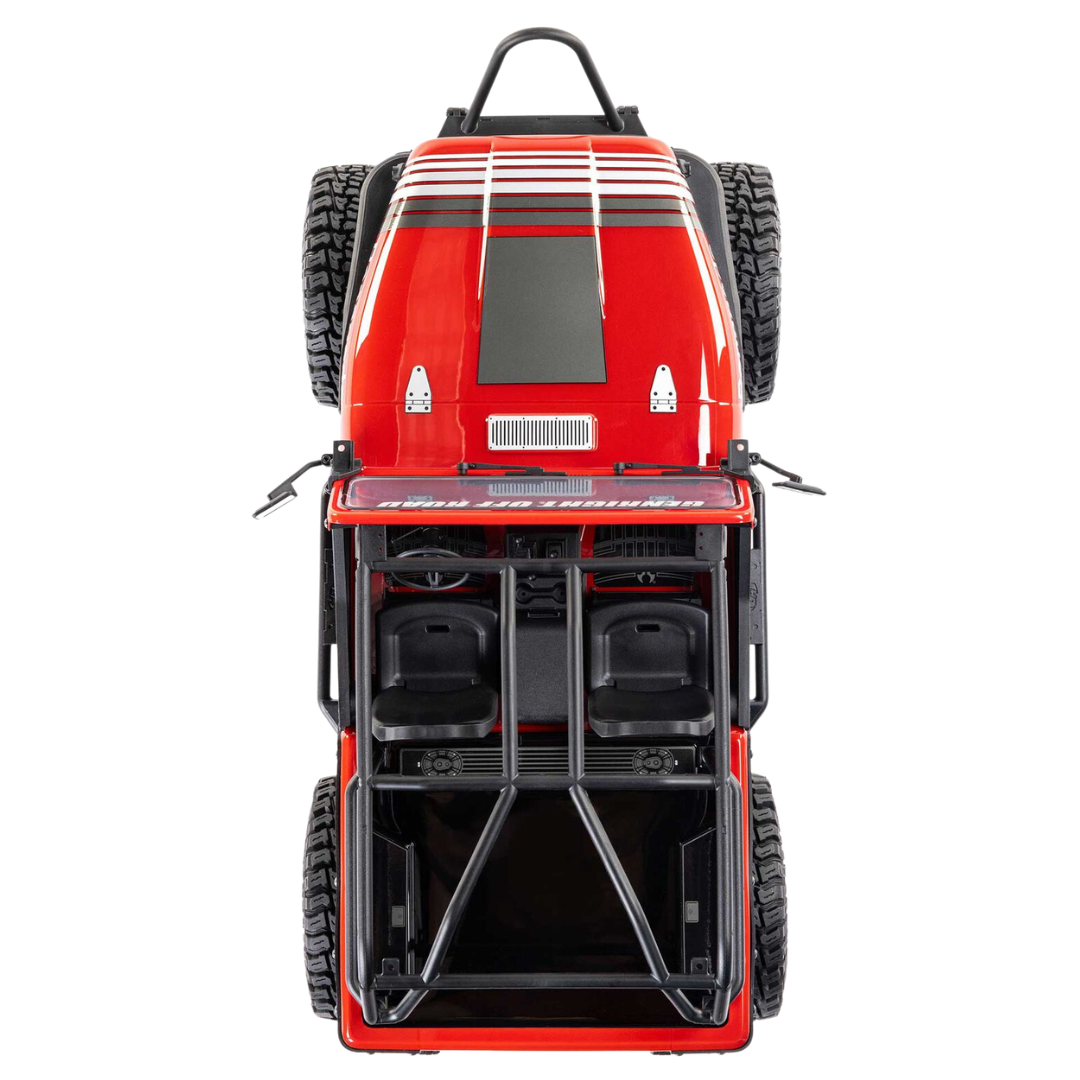

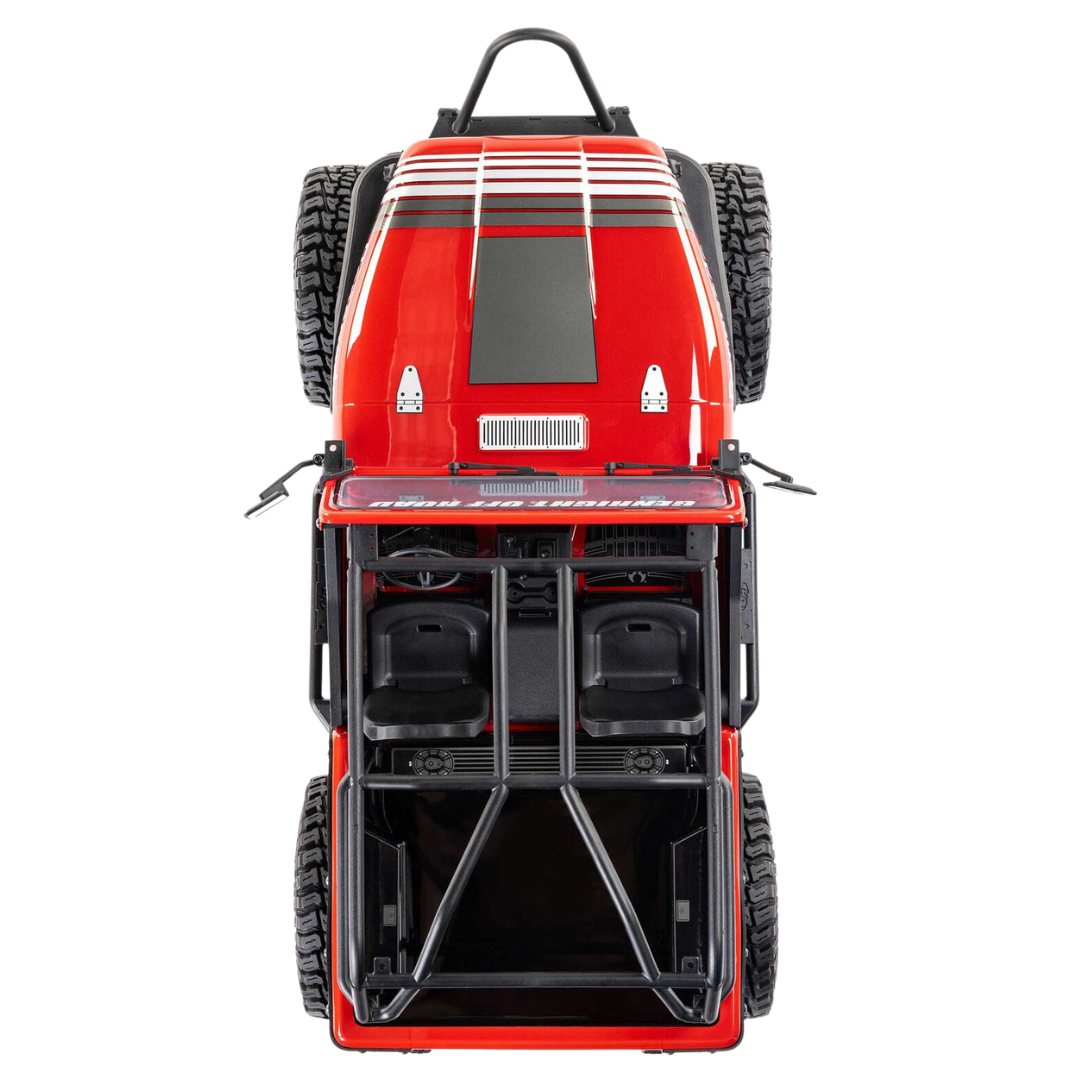

• Officially Licensed Jeep CJ-7: Factory-finished polycarbonate body captures the classic CJ-7 with detailed scale proportions

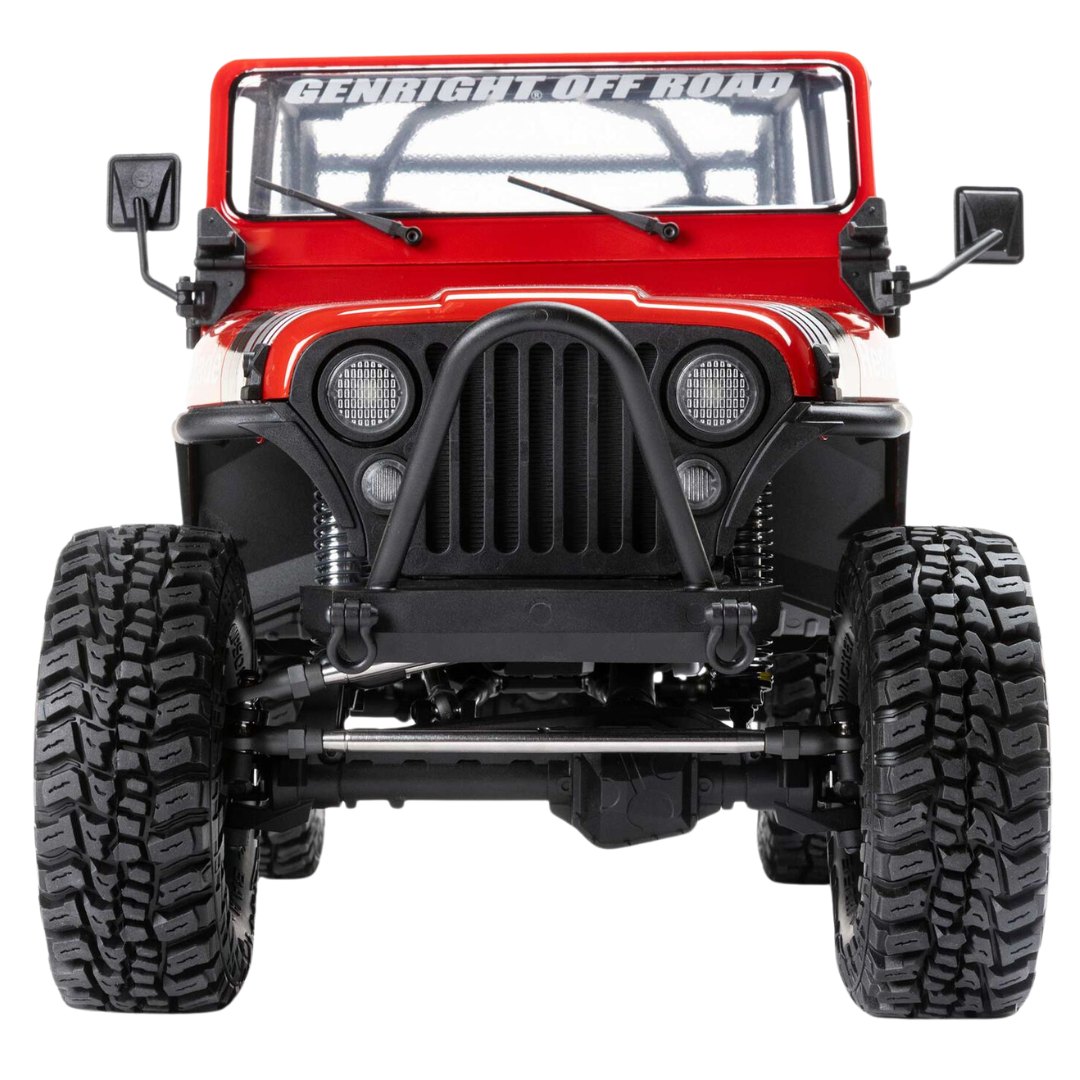

• Licensed Scale Accessories: Features Gen-Right bumpers and body armour, Raceline Daytona beadlock wheels and Mickey Thompson Baja Boss tyres
• Complete Interior: Detailed interior includes an opening centre console, roll cage and additional moulded scale components

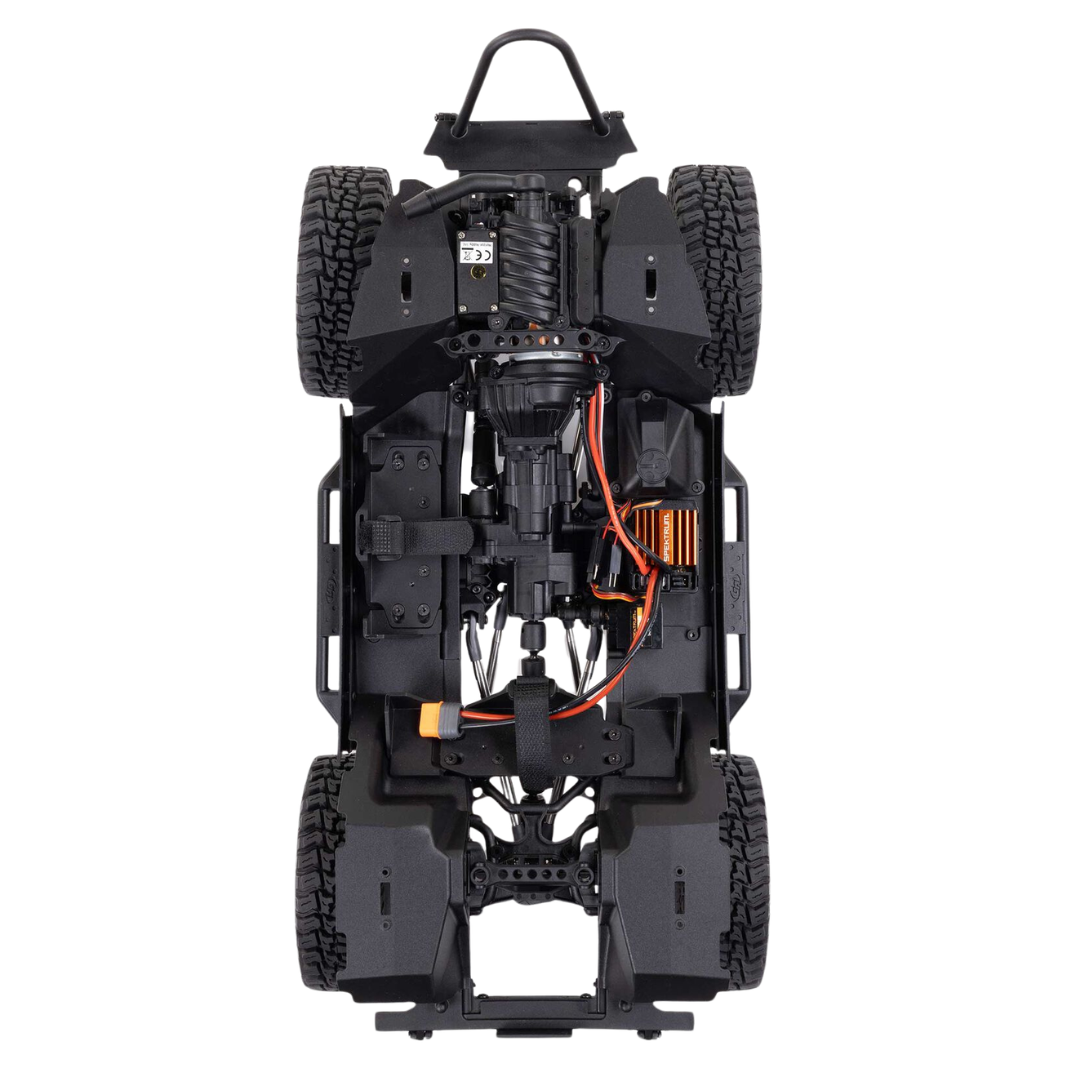

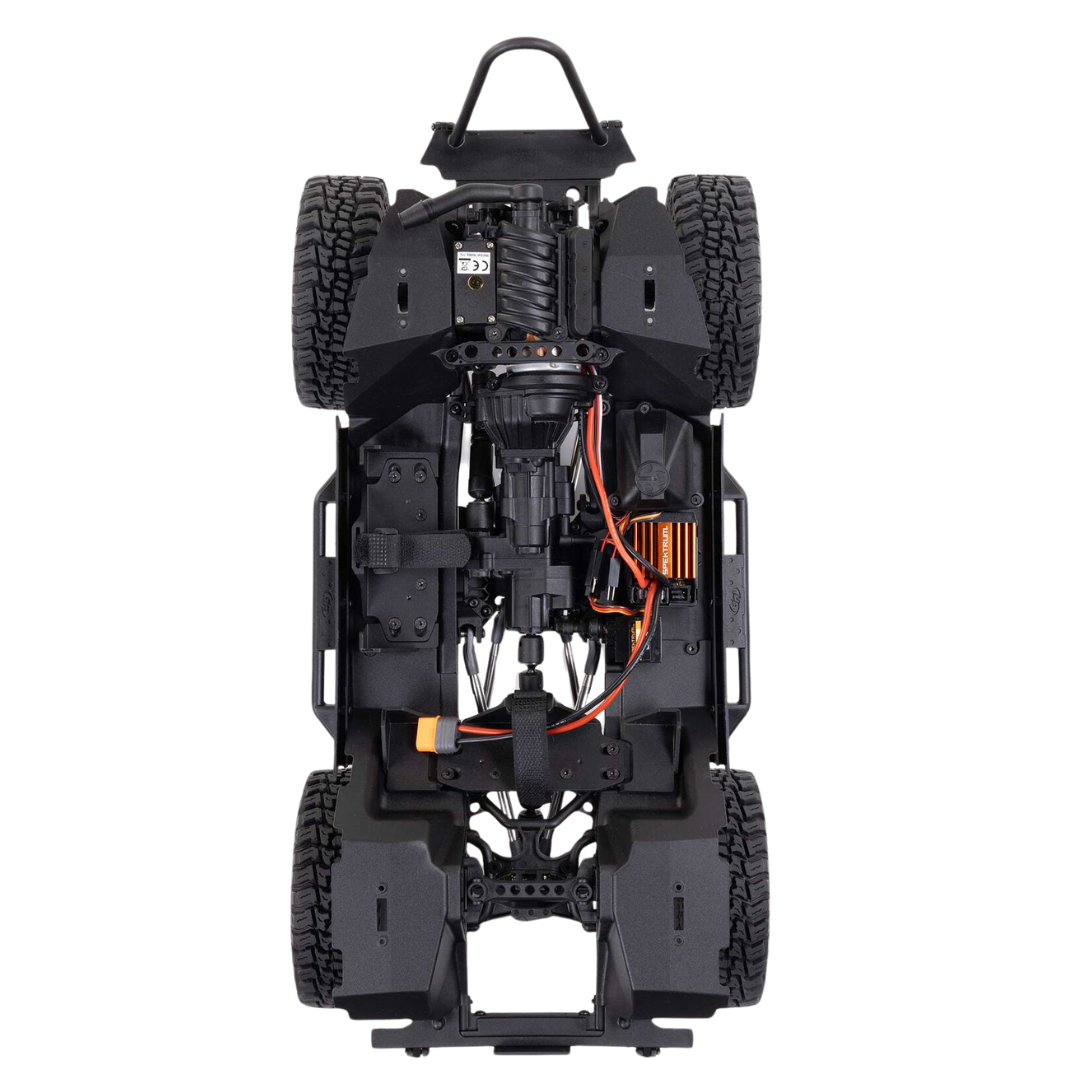

• SCX10 III Chassis: Adjustable steel C-channel chassis provides a strong foundation for trail and crawling use
• Transmitter-Controlled DIG: Locks the rear axle to switch to front-wheel drive for tighter turning and improved control on technical terrain
• AR45 Straight Axles: Standard straight axle design combines scale appearance with proven crawler geometry
• Multi-Link Suspension: Solid axle suspension uses 6mm stainless steel links and all-metal pivot balls
• Adjustable Oil-Filled Shocks: Aluminium threaded shock bodies allow suspension tuning
• All-Metal Transmission Gears: Transmission uses all-metal internal gears with a full set of ball bearings
• 35T Brushed Power: Factory-installed Axial Slickrock 35T 540-size motor provides crawler-focused brushed power
• 2S and 3S LiPo Compatible: Spektrum 40A waterproof brushed ESC supports suitable 2S or 3S LiPo batteries
• Upgraded V2 Electronics: Separate ESC and receiver simplify future electronics upgrades and servicing
• Steel Gear Steering Servo: Spektrum S683 waterproof servo features steel gears and a standard 25T output spline
• Installed DIG Servo: Spektrum SX108 micro metal gear servo operates the transmission DIG function
• Ready-To-Run: Factory assembled with Spektrum SLT3 transmitter and four AA transmitter batteries included

Specifications

• Brand: Axial
• Model: SCX10 III Jeep CJ-7 V2
• Product Type: RC Rock Crawler
• Scale: 1/10
• Completion Level: RTR Ready-To-Run
• Drive System: 4WD
• Power Type: Electric
• Motor Type: Brushed
• Motor: Axial Slickrock 35T 540-Size Brushed Motor
• ESC: Spektrum 40A Waterproof Brushed ESC
• Receiver: Spektrum SR515 DSMR 5-Channel Receiver
• Steering Servo: Spektrum S683 Waterproof Steel Gear 25T Servo
• DIG Servo: Spektrum SX108 Micro Analog Metal Gear Servo
• Radio: Spektrum SLT3 3-Channel SLT 2.4GHz Transmitter
• Battery Compatibility: 2S / 3S LiPo
• Battery Connector: EC3 / IC3 Compatible
• Chassis: Adjustable Steel C-Channel
• Axles: AR45 Standard Straight Axles
• Differentials: Locked
• Suspension: Multi-Link Solid Axle
• Shocks: Oil-Filled Adjustable Aluminium Coil-Over
• Transmission Gears: All-Metal
• Gear Pitch: 32P
• Spur Gear: 52T
• Pinion Gear: 14T
• Final Drive Ratio: 40.49:1 Low / 27.7:1 High
• Internal Gear Ratio: 14.16:1 Low / 9.7:1 High
• Tyres: Licensed Mickey Thompson Baja Boss R30
• Wheels: Licensed Raceline Daytona Beadlock
• Wheel Hex: 12mm
• Wheel Width: 25.4mm / 1.0in
• Body: Factory-Finished Polycarbonate Jeep CJ-7
• Length: 480mm / 18.9in
• Width: 235mm / 9.25in
• Height: 248mm / 9.75in
• Wheelbase: 312mm / 12.3in
• Approximate Weight: 3.12kg / 6.9lb
• Colour: Red
• Manufacturer Part Number: AXI03008V2T1
• SKU: AXI03008V2T1

Includes

• 1 x Axial SCX10 III Jeep CJ-7 V2 1/10 4WD RTR RC Rock Crawler Red
• 1 x Axial Slickrock 35T Brushed Motor Installed
• 1 x Spektrum S683 Waterproof Steel Gear 25T Steering Servo Installed
• 1 x Spektrum SX108 Micro Metal Gear DIG Servo Installed
• 1 x Spektrum 40A Waterproof Brushed ESC Installed
• 1 x Spektrum SR515 DSMR 5-Channel Receiver Installed
• 1 x Spektrum SLT3 3-Channel SLT 2.4GHz Transmitter
• 4 x AA Alkaline Transmitter Batteries
• 1 x Product Manual

Required To Complete

• 1 x Suitable 2S or 3S LiPo Battery with EC3 or IC3 Connector
• 1 x Compatible LiPo Battery Charger

FAQ

Is the Axial SCX10 III Jeep CJ-7 V2 AXI03008V2T1 ready to run? Yes. AXI03008V2T1 is supplied factory assembled with the brushed motor, ESC, receiver, steering servo, DIG servo and Spektrum SLT3 transmitter. A suitable 2S or 3S LiPo battery and compatible charger are required separately.

What battery does the Axial SCX10 III Jeep CJ-7 V2 use? The SCX10 III Jeep CJ-7 V2 supports suitable 2S or 3S LiPo batteries using an EC3 or IC3 connector. The battery is sold separately.

What does DIG do on the SCX10 III Jeep CJ-7? The DIG function locks the rear axle and changes the vehicle to front-wheel drive. This allows a tighter turning radius and can provide additional control when positioning the crawler on technical terrain.

Is the DIG function ready to use? Yes. The Spektrum SX108 micro servo for the DIG function is factory-installed, and the supplied SLT3 transmitter provides third-channel control for DIG operation.

What is upgraded on the SCX10 III Jeep CJ-7 V2? The V2 electronics use a separate Spektrum 40A brushed ESC and SR515 receiver, along with a Spektrum S683 steering servo featuring steel gears and a standard 25T spline. This configuration also provides greater flexibility for future radio and electronics changes.

Does the AXI03008V2T1 have licensed wheels and tyres? Yes. The SCX10 III Jeep CJ-7 V2 uses officially licensed Raceline Daytona beadlock wheels and Mickey Thompson Baja Boss R30 compound tyres.

What is the wheelbase of the Axial SCX10 III Jeep CJ-7 V2? Axial specifies a 312mm / 12.3in wheelbase, with an overall length of 480mm, width of 235mm and height of 248mm.

Important Notes

• Main drive battery is not included
• LiPo battery charger is not included
• Requires a suitable 2S or 3S LiPo battery with EC3 or IC3 connector
• Four AA batteries for the included transmitter are supplied
