Axial SCX10 III V2 Builders Kit 4x4 RC Rock Crawler 1/10 Scale AXI-2755

The Axial SCX10 III V2 Builders Kit is an unassembled 1/10 scale 4WD RC rock crawler kit for hobbyists wanting a custom trail truck platform with proven SCX10 III geometry, durable drivetrain parts and full control over body, wheels, tyres and electronics.

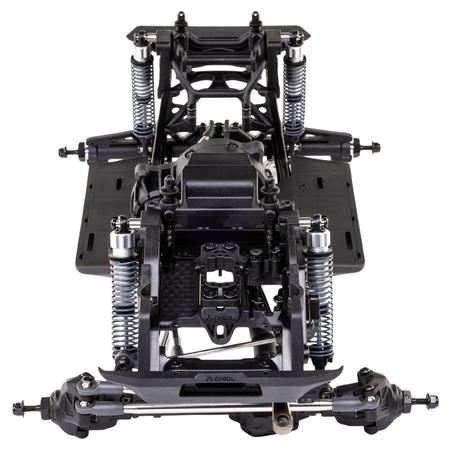

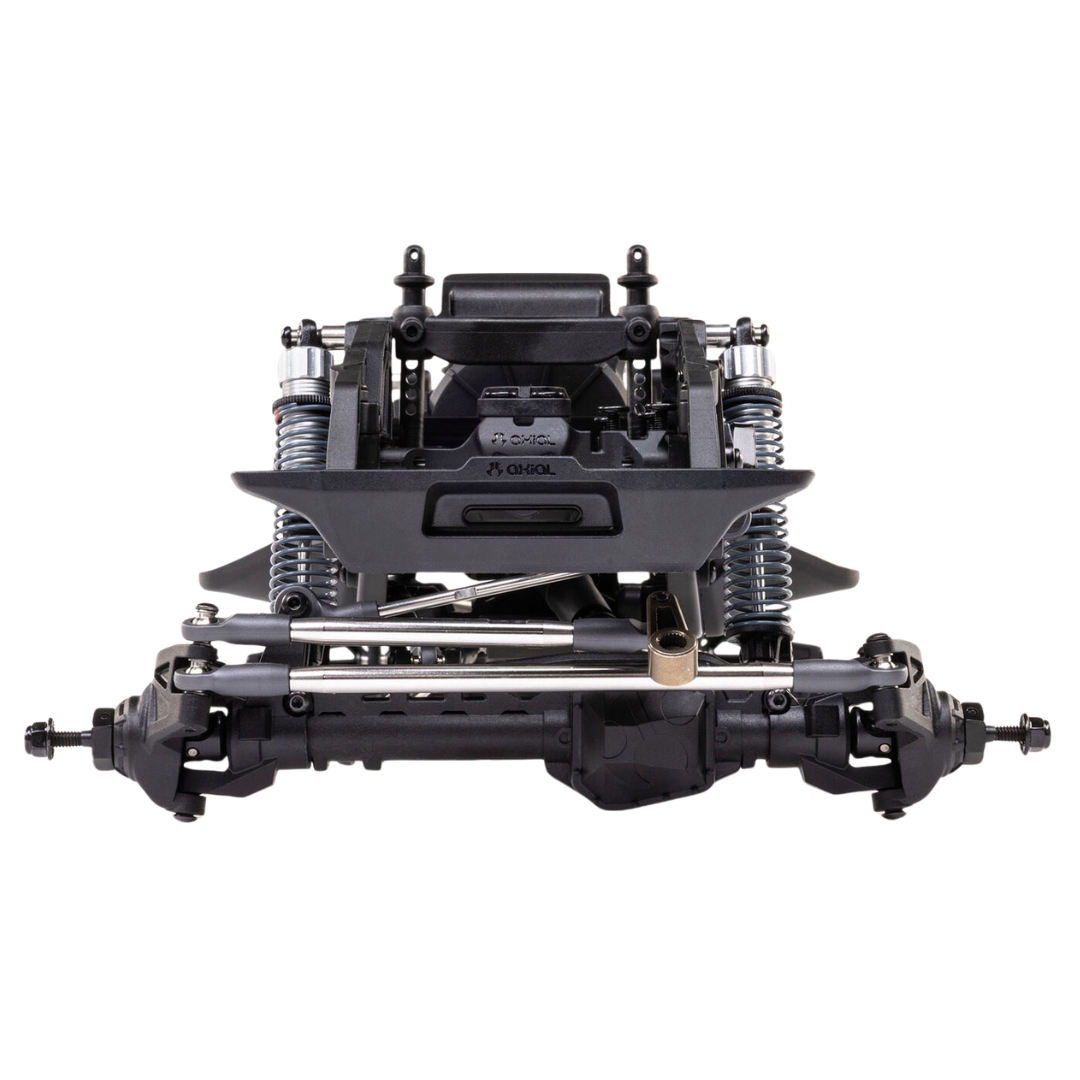

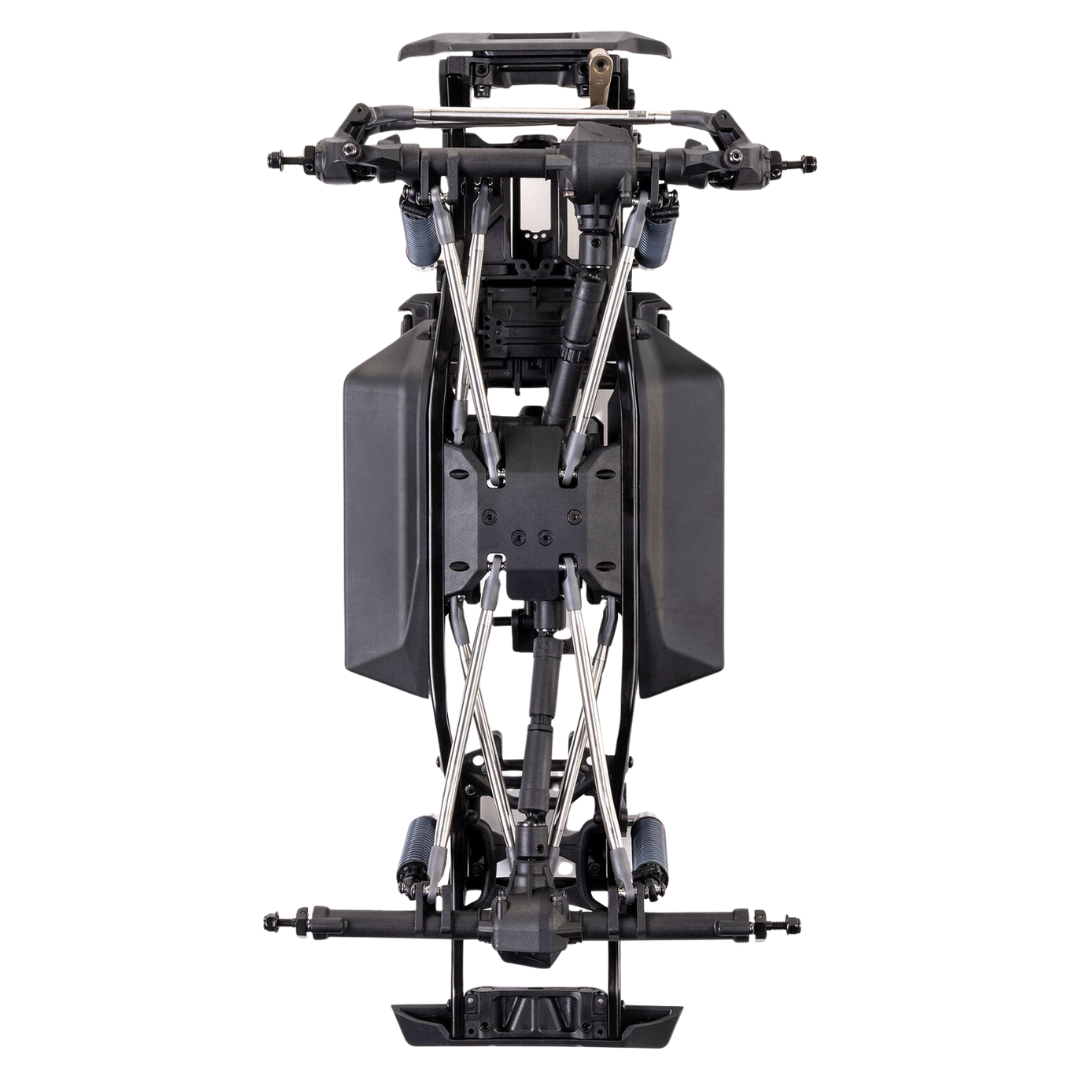

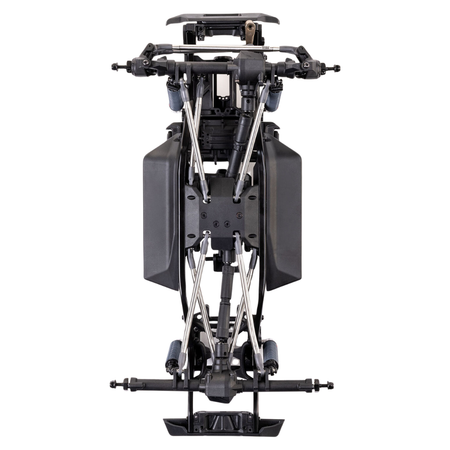

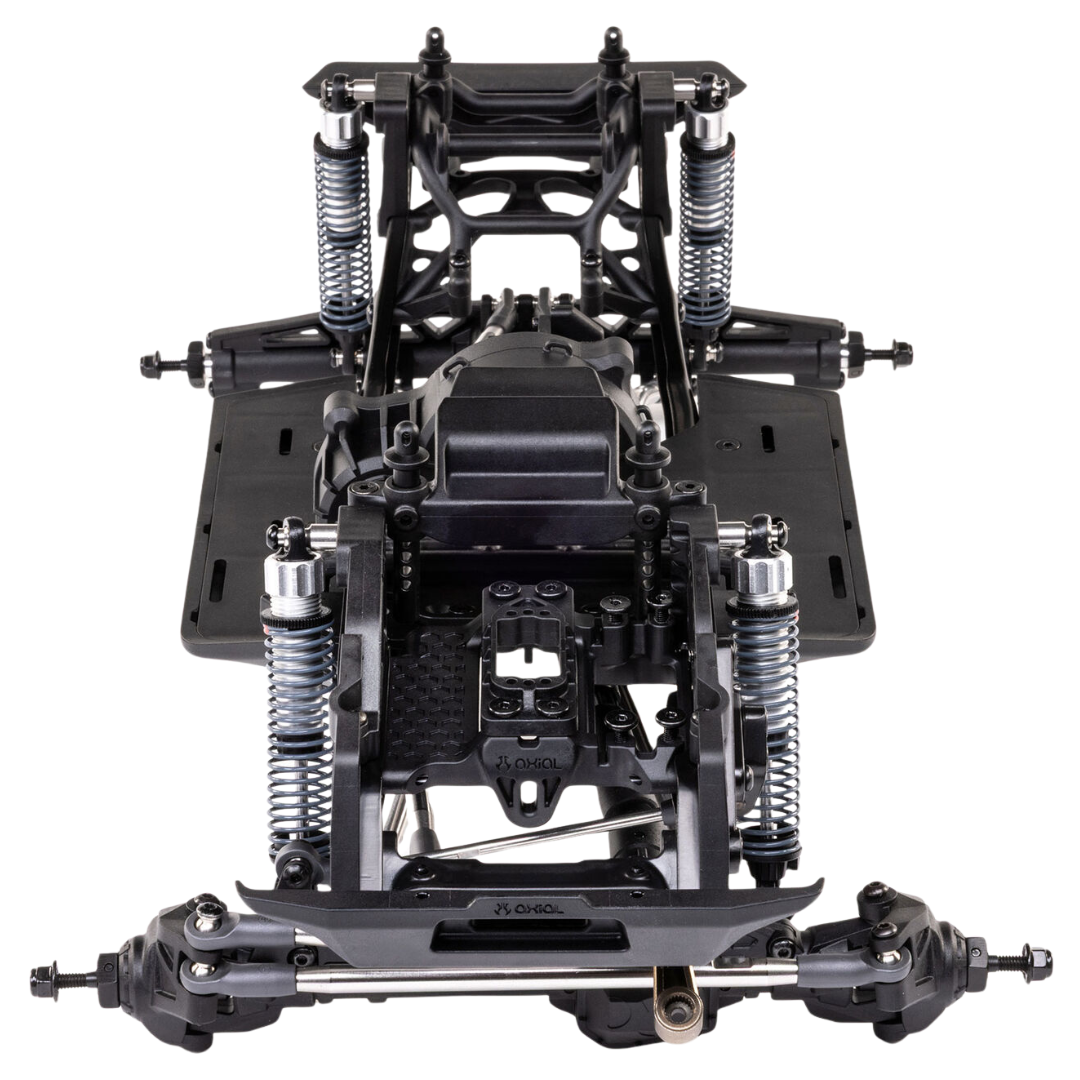

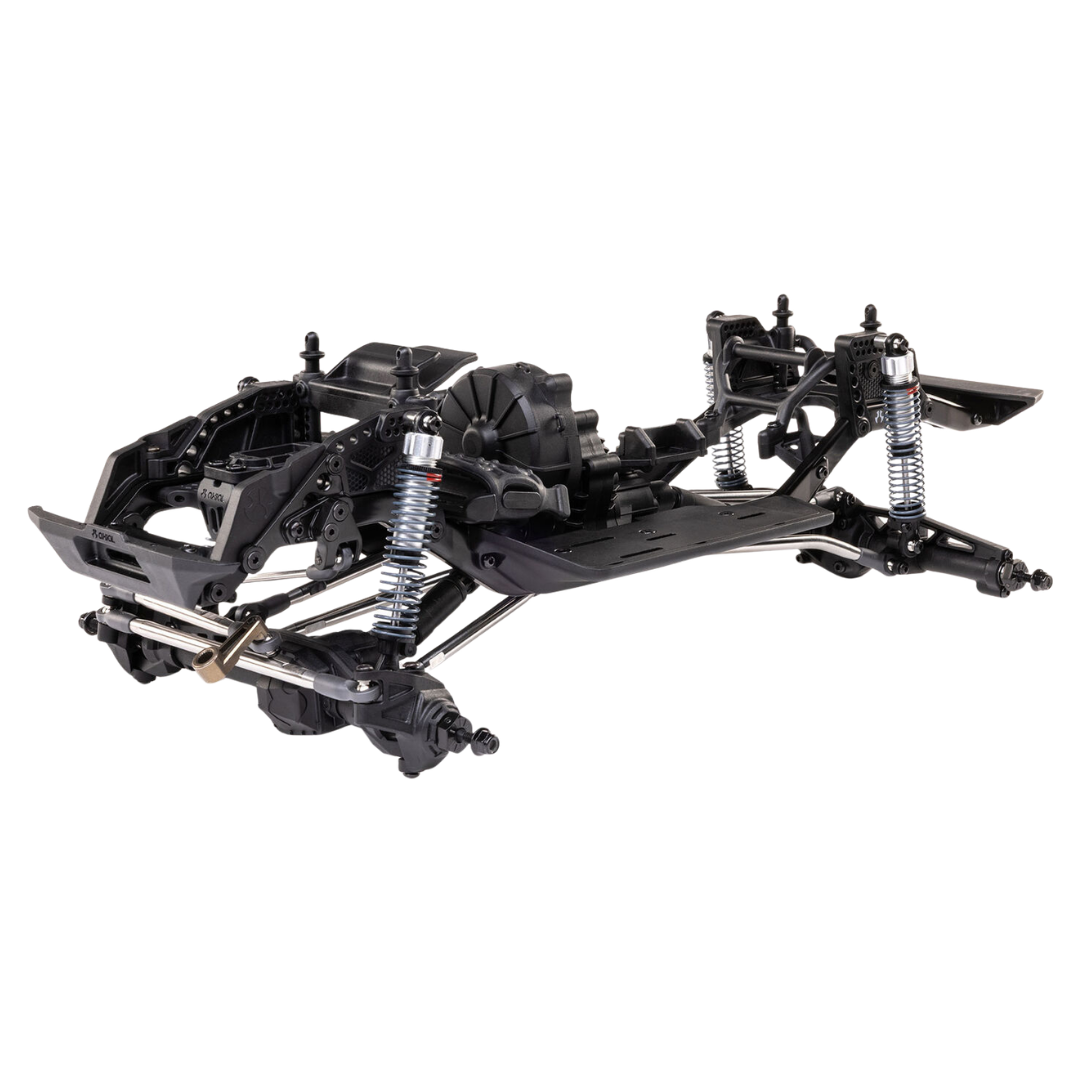

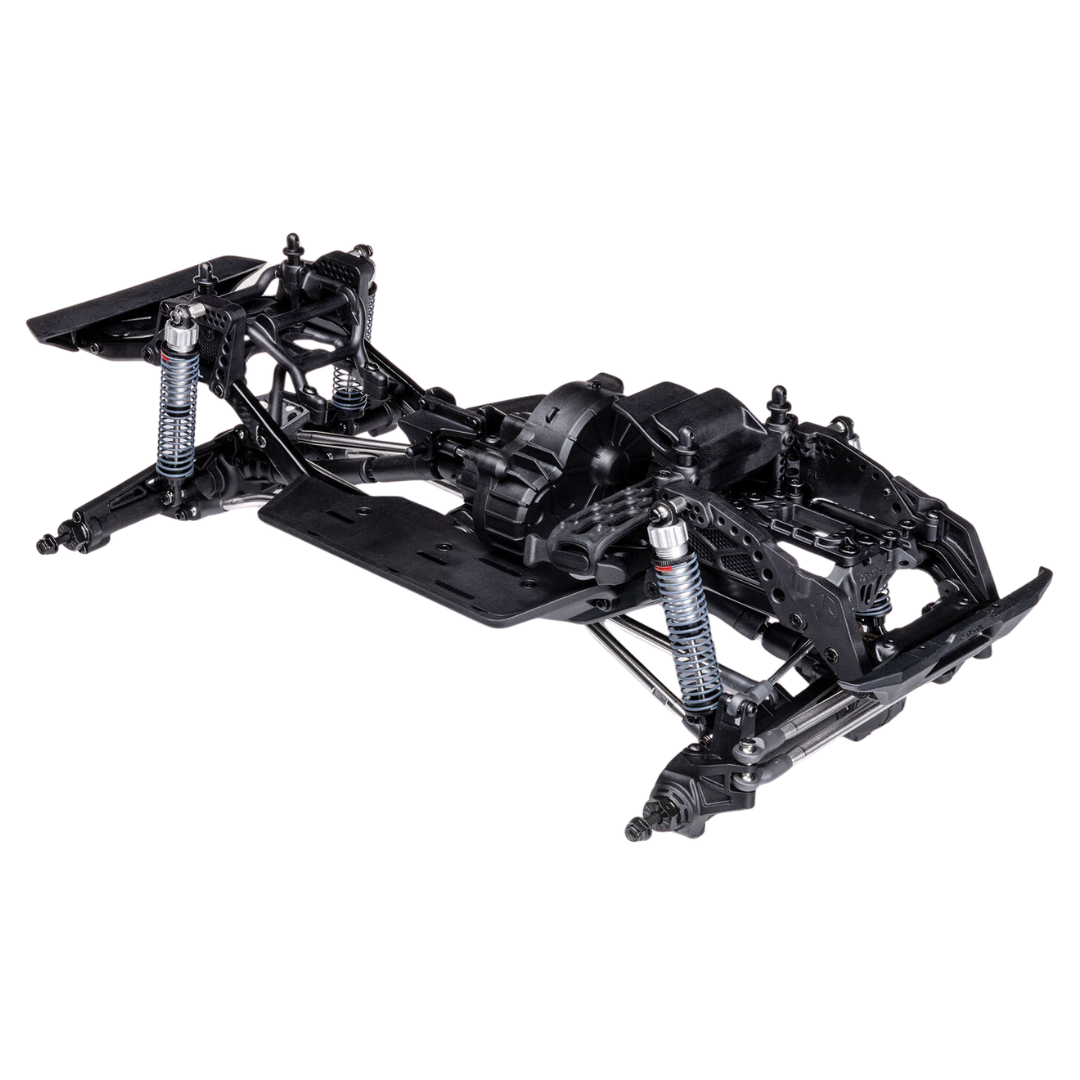

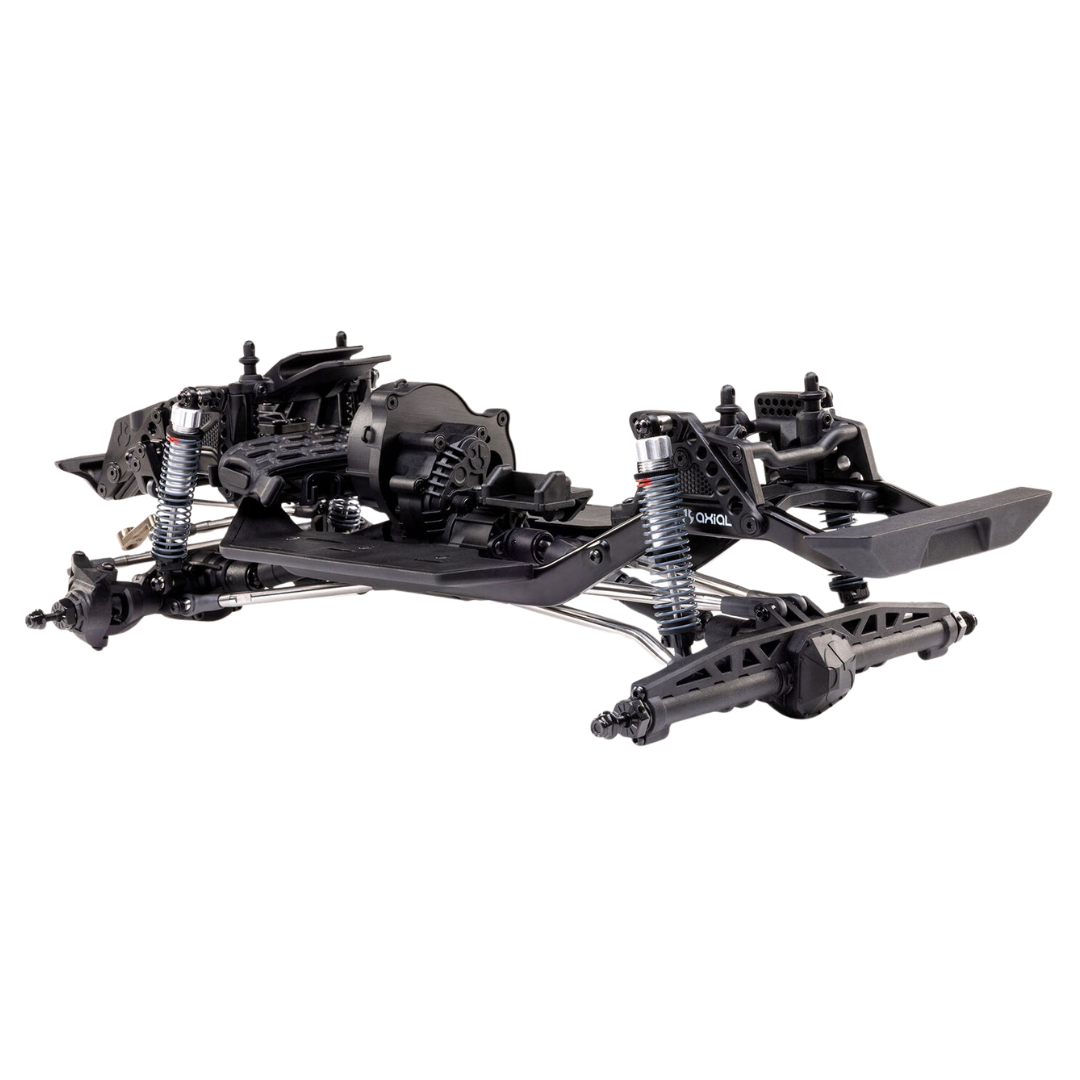

This builders kit gives crawler enthusiasts a strong foundation for a personalised off-road rig. The steel C-channel chassis, LCXU transmission, AR45 straight axles, 6mm stainless steel links, oil-filled coil-over shocks and modular battery trays make it suitable for trail driving, technical crawling and custom scale builds.

Features

• Builders Kit Format: Supplied as an unassembled kit so the body, wheels, tyres and electronics can be selected separately
• SCX10 III Platform: Proven 1/10 scale crawler chassis designed for trail and rock crawling builds
• Steel C-Channel Chassis: One-piece rigid steel chassis helps reduce flex and improves suspension consistency
• Performance Shock Towers: Multiple shock mounting positions allow suspension tuning for ride height, body choice and terrain
• Adjustable Metal Panhard Mount: Durable panhard mount supports straight axle and portal axle setup options
• LCXU Transmission: Includes optional DIG conversion support for improved turning and control when fitted with the required servo
• Standard AR45 Straight Axles: Realistic straight axle layout with the option to convert to portal axles with suitable parts
• 6mm Stainless Steel Links: High-clearance links and upgraded rod ends improve strength and reduce flex under load
• All-Metal Gears: Durable drivetrain gears with full ball bearings for smooth, efficient operation
• Oil-Filled Coil-Over Shocks: Tunable shocks allow spring preload and oil viscosity tuning to suit terrain and vehicle weight
• Boat-Side Sliders: Smooth slider design helps the chassis move across rocks and obstacles more easily
• Three Modular Battery Trays: Supports shorty, standard and longer battery pack layouts for flexible weight placement
• Universal Body Mounting: Eleven universal body mounts are included to help fit a wide range of 312 mm wheelbase bodies

Specifications

• Brand: Axial
• Model: SCX10 III V2 Builders Kit
• SKU: AXI-2755
• Product Type: RC rock crawler builders kit
• Completion Level: Kit
• Scale: 1/10
• Drive Type: 4WD
• Vehicle Type: Rock crawler
• Power Type: Electric
• Chassis: One-piece steel C-channel
• Transmission: LCXU transmission with optional DIG conversion kit included
• Axles: AR45 straight axles
• Differential: Locked
• Suspension: Multi-link solid axle
• Links: 6mm stainless steel high-clearance links
• Shock Type: Oil-filled coil-over spring shocks
• Gear Pitch: 32-pitch
• Pinion Gear: 14T
• Spur Gear: 56T
• Wheelbase: 312 mm, 12.3 inches
• Length: 422 mm, 16.6 inches
• Wheel Hex Size: 12 mm
• Battery Compatibility: 2S and 3S LiPo, required separately
• Connector Type: EC3 or IC3, depending on selected electronics
• Approximate Assembly Time: 10 to 15 hours
• Body: Sold separately
• Wheels And Tyres: Sold separately
• Electronics: Sold separately

Includes

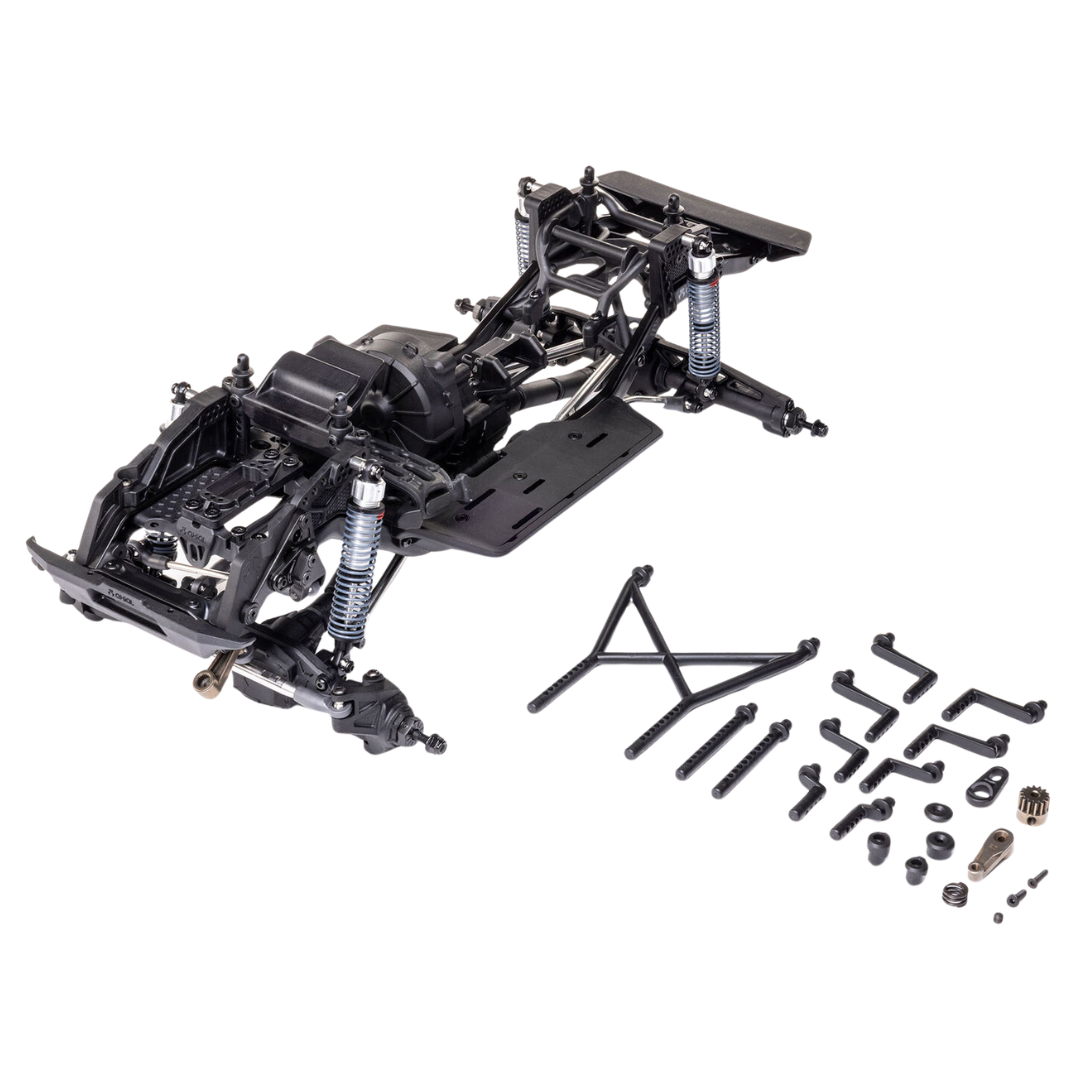

• 1 x Axial SCX10 III Builder’s Kit 4x4 rock crawler
• 1 x LCXU transmission with optional DIG conversion kit
• 1 x AR45 straight axle set
• 1 x 6mm stainless steel link set
• 1 x Oil-filled coil-over shock set
• 3 x Modular battery trays
• 11 x Universal body mounts
• 1 x Product manual

FAQ

Is the Axial AXI-2755 ready to run? No. The Axial AXI-2755 is a builders kit and requires assembly plus electronics, battery, charger, wheels, tyres, body and paint to complete.

What electronics are required? The Axial SCX10 III Builders Kit requires an ESC, motor, steering servo, transmitter, receiver, suitable 2S or 3S LiPo battery and compatible charger.

Does this kit include wheels, tyres or a body? No. Wheels, tyres and body are sold separately so builders can choose the look and performance setup they prefer.

Does the LCXU transmission include DIG? The LCXU transmission includes optional DIG conversion support, but a separate DIG servo is required if the DIG function will be used.

Important Notes

• This is an unassembled builders kit and requires assembly, setup and tuning.
• Requires ESC, motor, steering servo, transmitter, receiver, battery and charger.
• Requires wheels, tyres, body and paint.
• DIG operation requires a separate DIG servo and suitable radio setup.
• Battery tray and body clearance should be checked when selecting a body and battery pack.
• Portal axle conversion requires suitable optional parts and setup changes.
• Use threadlock where appropriate for metal-to-metal screws, avoiding contact with plastic parts.
• RC tools, paint, electronics, battery, charger, wheels, tyres and body are not included unless shown separately.
