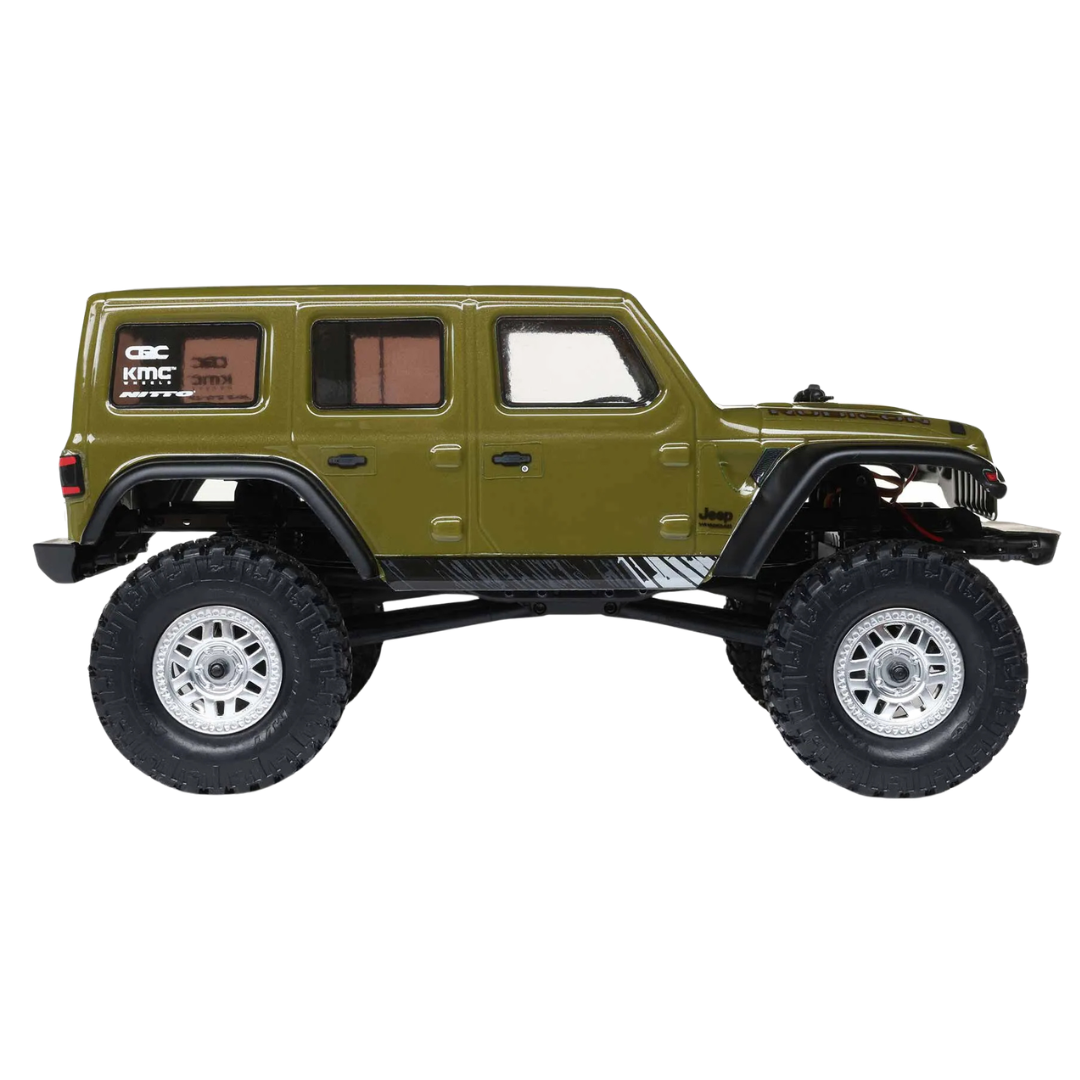

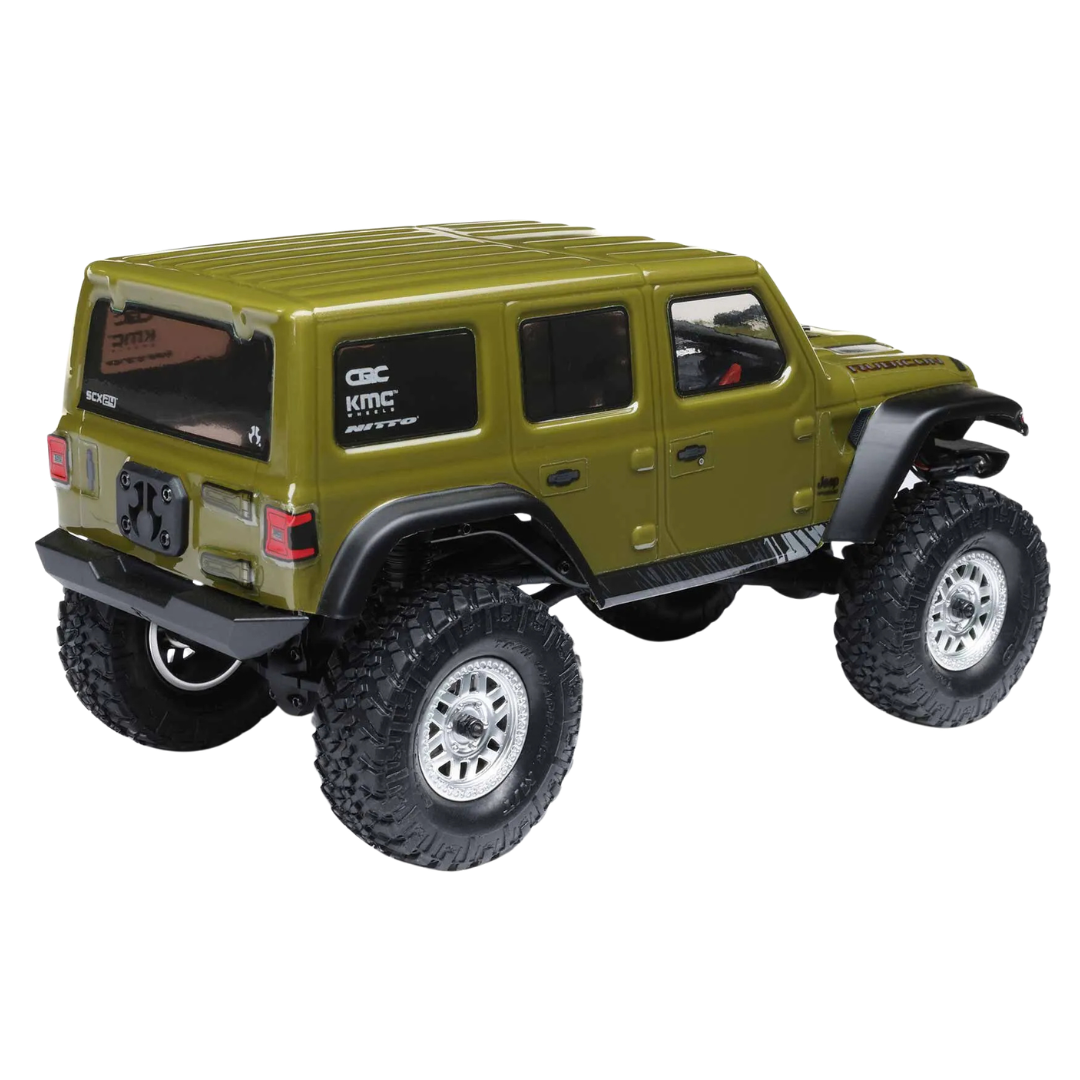

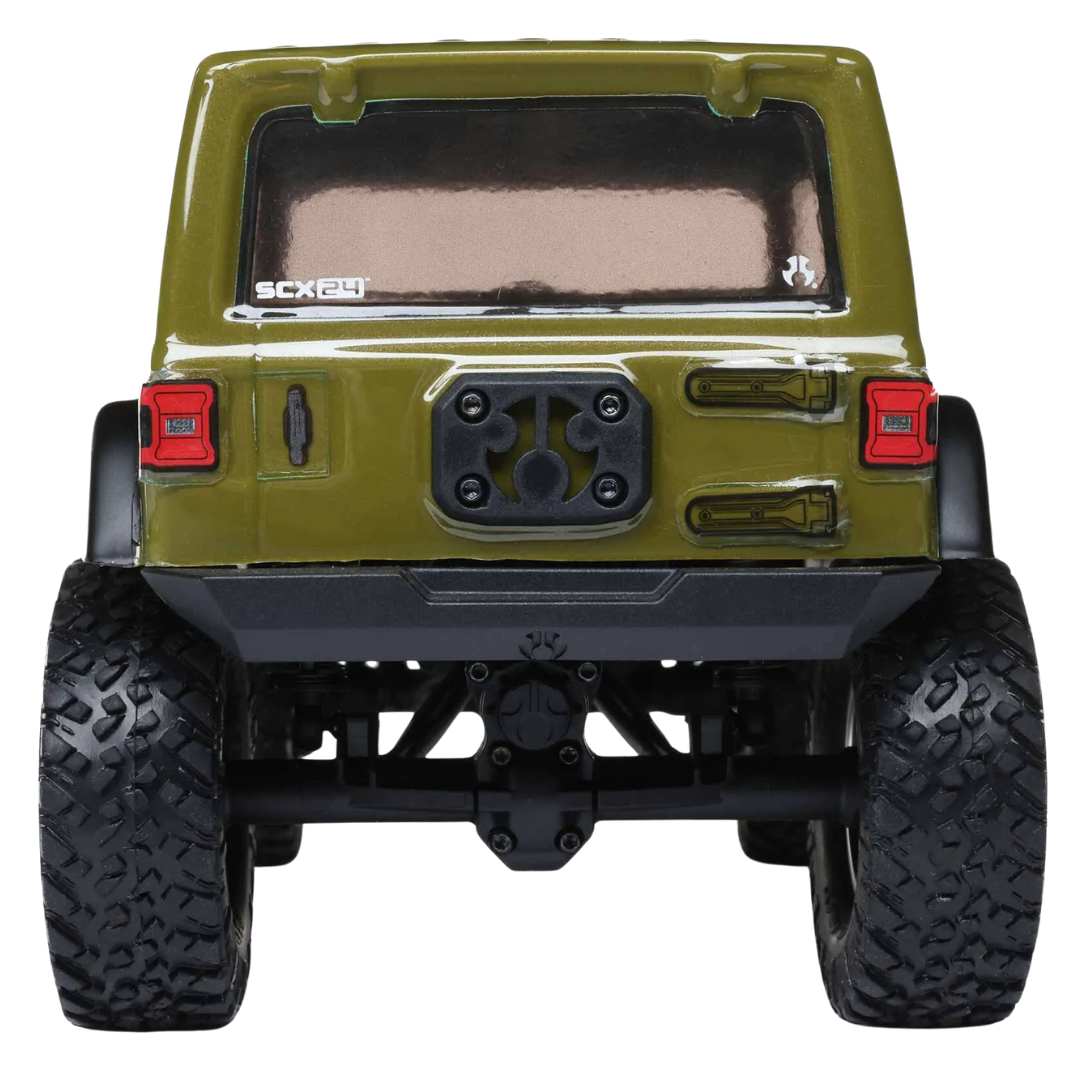

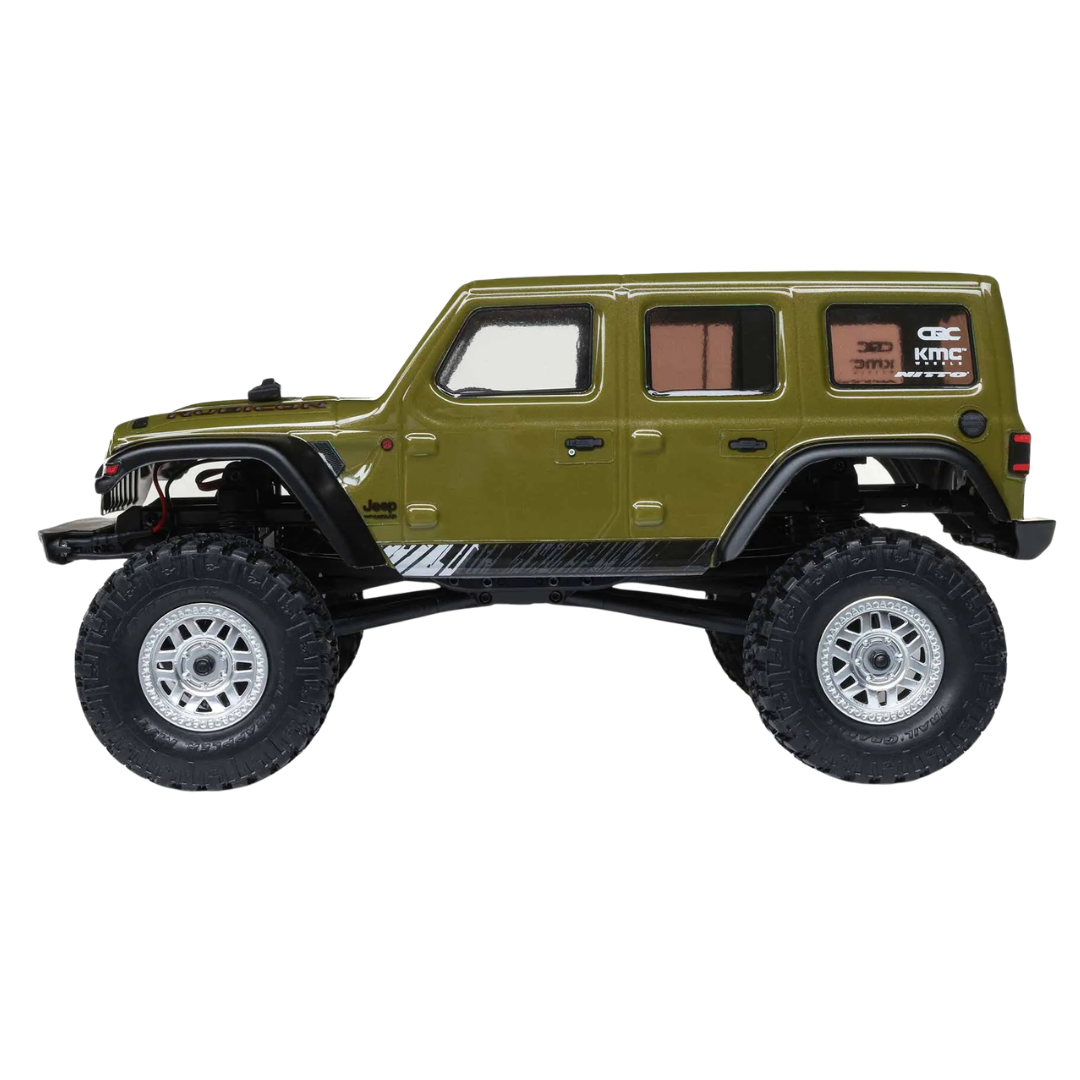

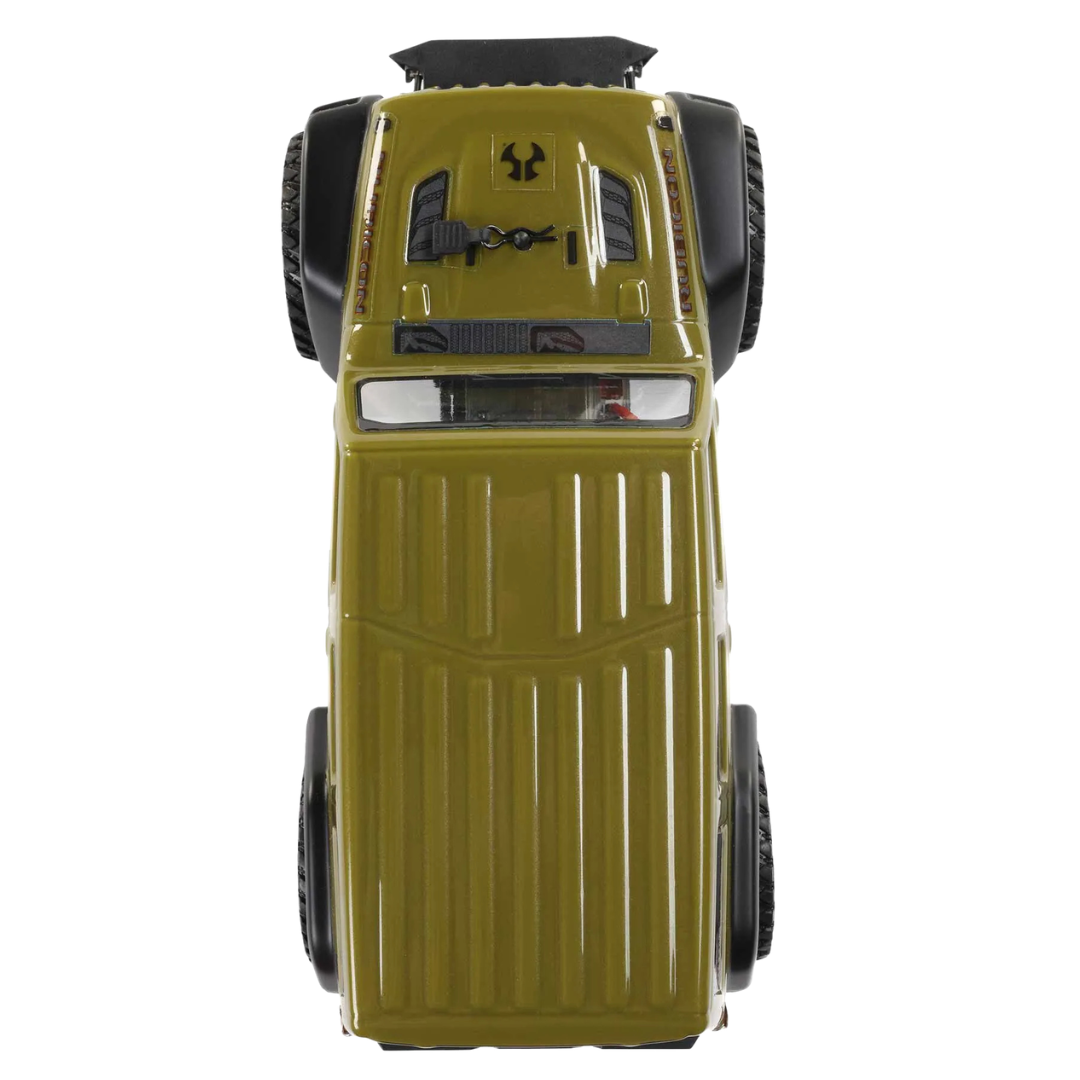

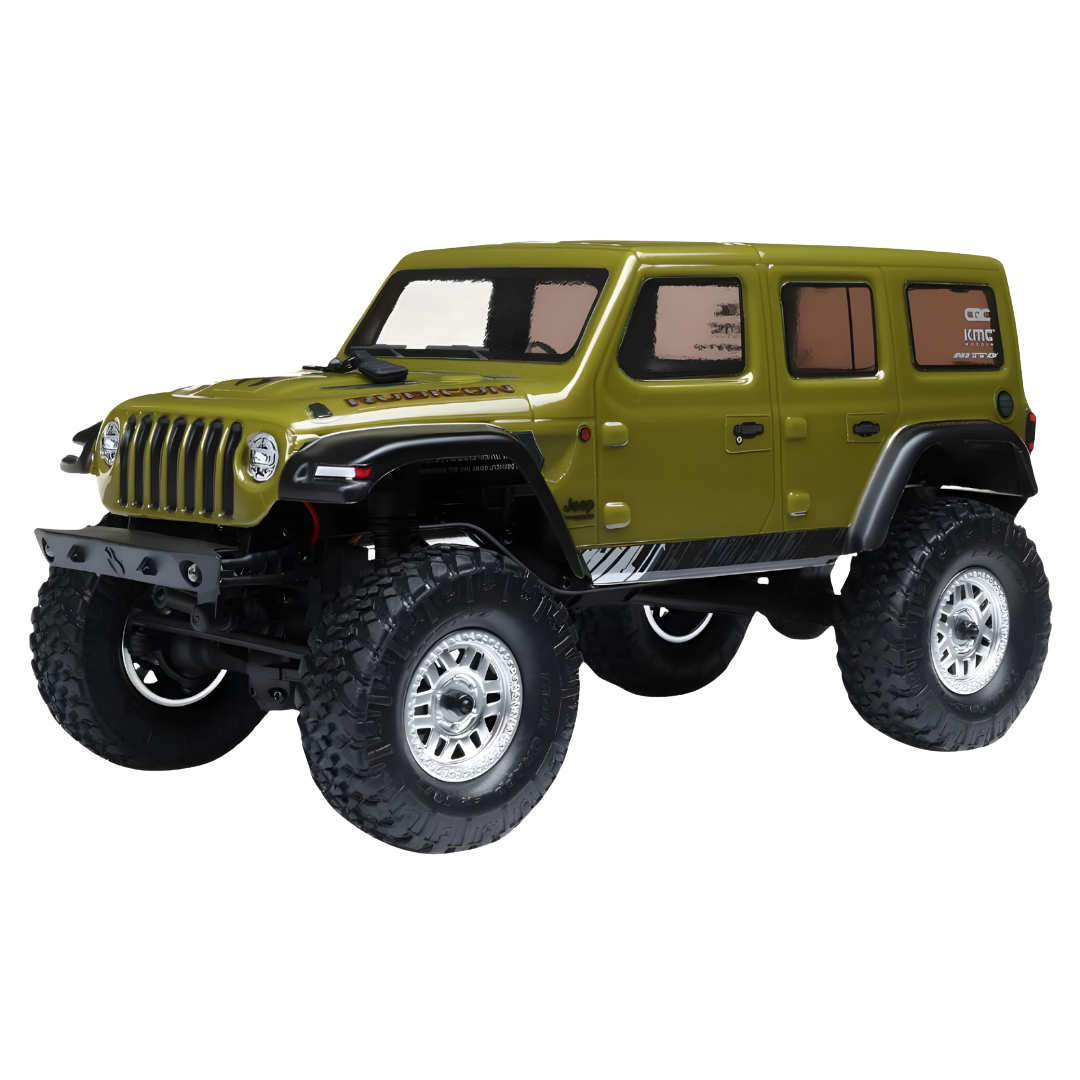

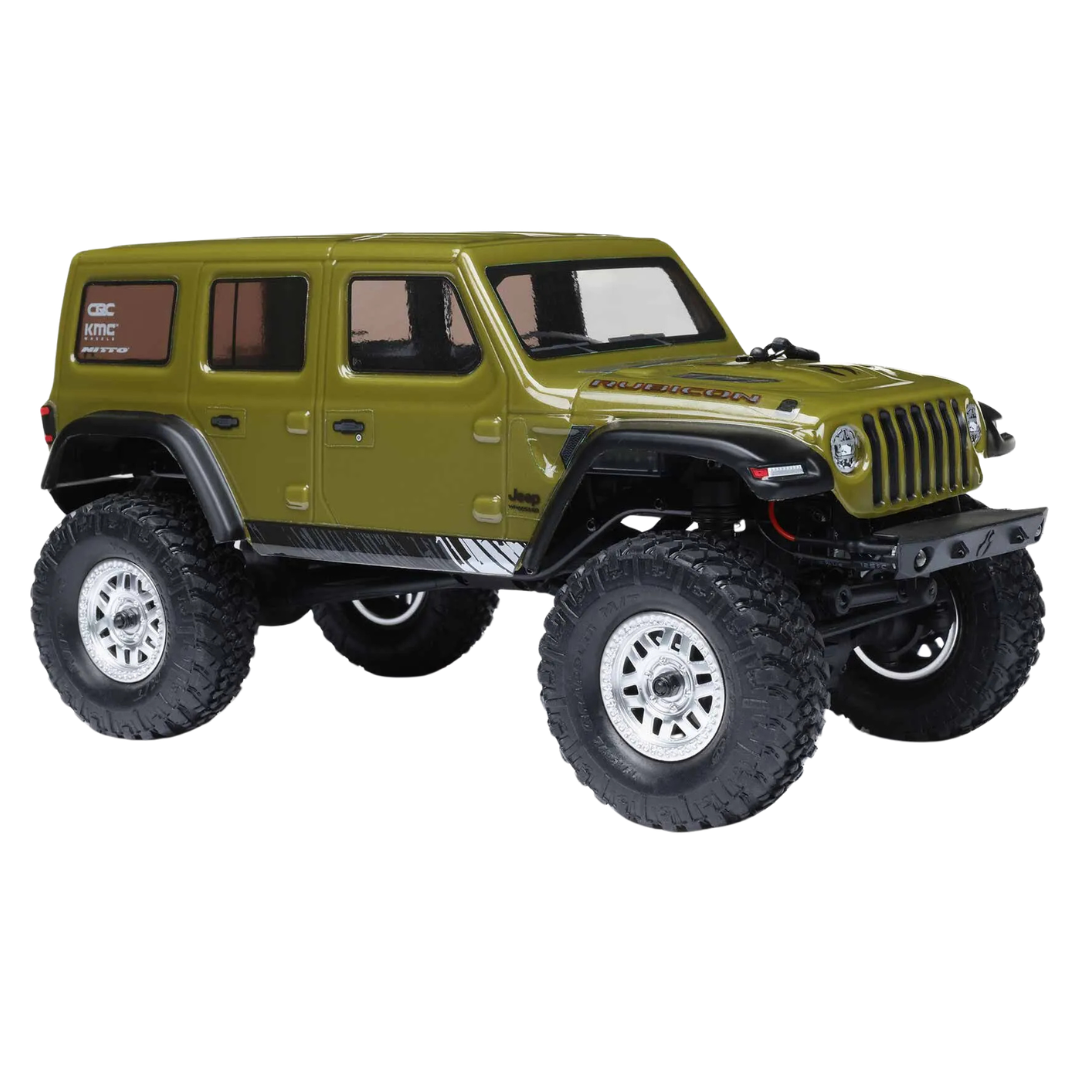

Axial SCX24 Jeep Wrangler JLU 1/24 4WD RC Rock Crawler RTR Green AXI00002V3T4

The Axial SCX24 Jeep Wrangler JLU is one of the most popular micro RC rock crawlers, combining realistic Jeep styling with proven SCX24 trail performance in a compact 1/24 scale platform. Finished in green, the AXI00002V3T4 features a detailed Jeep Wrangler JLU polycarbonate body, full-time 4WD, worm-gear axles, oil-filled shocks and licensed KMC wheels with Nitto Trail Grappler M/T tyres.

Designed for both indoor and outdoor crawling, the SCX24 is small enough for desktop obstacle courses yet capable enough for rocks, dirt and backyard trails. The V3 specification adds plush oil-filled shocks and reliable Spektrum electronics while retaining the rugged steel C-channel chassis, 3-link front and 4-link rear suspension and low-geared brushed drivetrain that have made the SCX24 platform a favourite with beginners and experienced crawler enthusiasts alike.

Features

• Genuine Axial SCX24 Ready-to-Run rock crawler
• Detailed Jeep Wrangler JLU polycarbonate body in green
• Compact 1/24 scale for indoor and outdoor crawling
• Full-time 4WD drivetrain
• Front and rear worm-drive axles for increased clearance and strong drag braking
• Oil-filled coil-over shocks provide smooth, controlled suspension movement
• Stamped steel C-channel chassis rails for strength and realistic construction
• 3-link front and 4-link rear suspension
• Licensed KMC Machete wheels
• Licensed Nitto Trail Grappler M/T tyres
• 030-size 88T brushed motor for controlled low-speed crawling
• Spektrum SLT2 2.4GHz radio system
• Spektrum 10A brushed ESC / SLT receiver combination
• Axial AS-1 micro steering servo

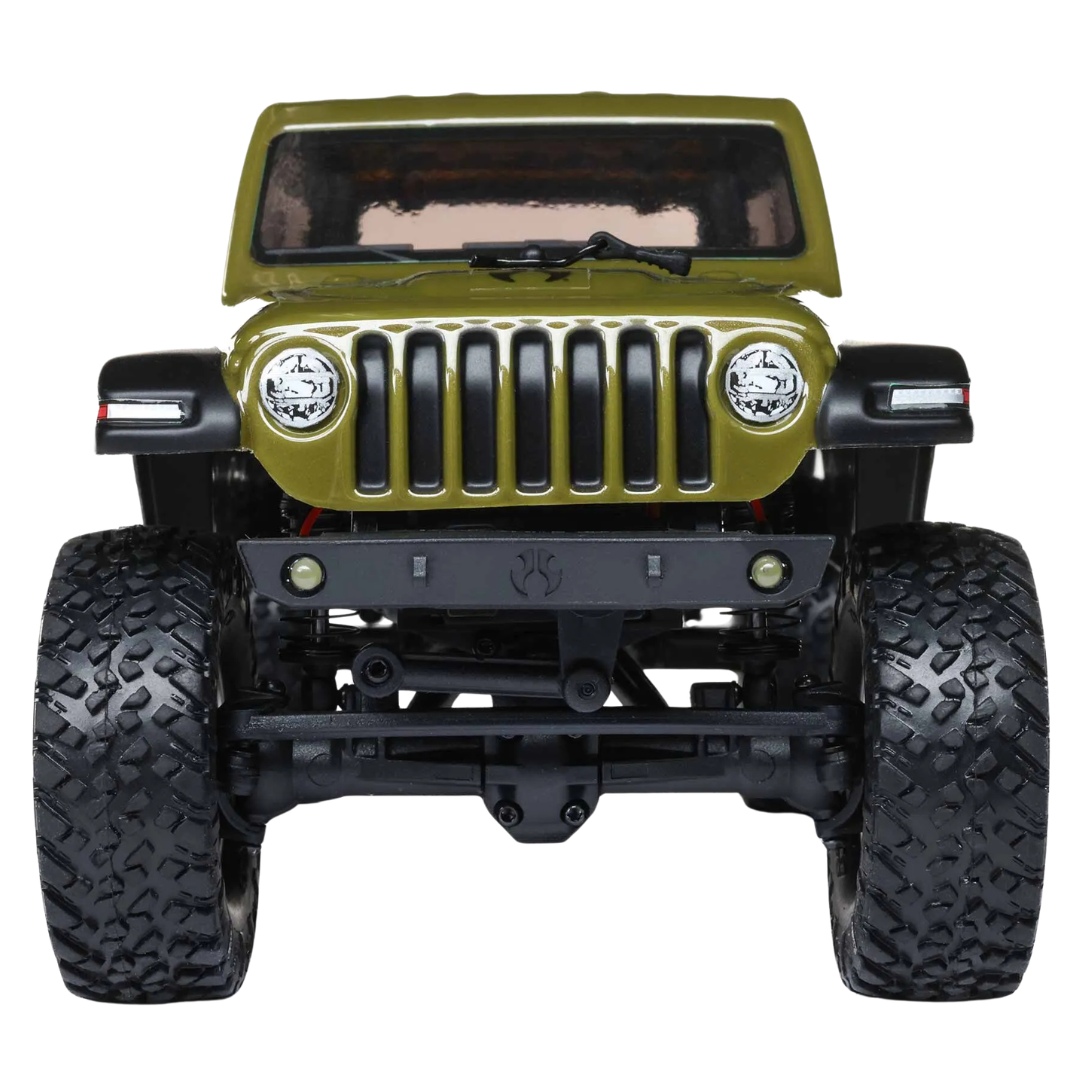

• Two LED lights integrated into the front bumper
• Tilt-up body design provides quick battery access
• Spektrum 350mAh 2S LiPo battery included
• USB LiPo charger included
• Four AA transmitter batteries included
• Fully assembled and Ready-to-Run

Specifications

• Brand: Axial
• Model: SCX24 Jeep Wrangler JLU
• Manufacturer Part Number: AXI00002V3T4
• Colour: Green
• Scale: 1/24
• Vehicle Type: RC Rock Crawler
• Completion Level: Ready-to-Run (RTR)
• Power Type: Electric
• Drivetrain: Full-Time 4WD
• Drive Type: Forward / Brake / Reverse
• Steering: 2-Wheel Steering
• Chassis: Stamped Steel C-Channel Rails
• Suspension: 3-Link Front / 4-Link Rear, Solid Axles
• Differentials: 16T / 4T Worm Gear
• Motor: Dynamite 88T 030-Size Brushed
• Motor Type: Brushed
• ESC / Receiver: Spektrum 10A Brushed ESC / SLT Receiver Combo
• Transmitter: Spektrum SLT2 2.4GHz
• Steering Servo: Axial AS-1 Micro Servo
• Battery: Spektrum 350mAh 2S LiPo
• Battery Connector: PH 2.0 High-Current Ultra Micro
• Charger: Spektrum USB LiPo Charger
• Tyres: Nitto Trail Grappler M/T
• Wheels: KMC Machete
• Shock Type: Coil-Over Oil-Filled
• Bearings: Full Ball Bearings
• Pinion Gear: 10T
• Spur Gear: 55T
• Length: 198mm / 7.8"
• Width: 99mm / 3.9"
• Height: 104mm / 4.1"
• Wheelbase: 132mm / 5.2"
• Ground Clearance: 25.5mm / 1.0"
• Lighting: 2 × Front LED Lights

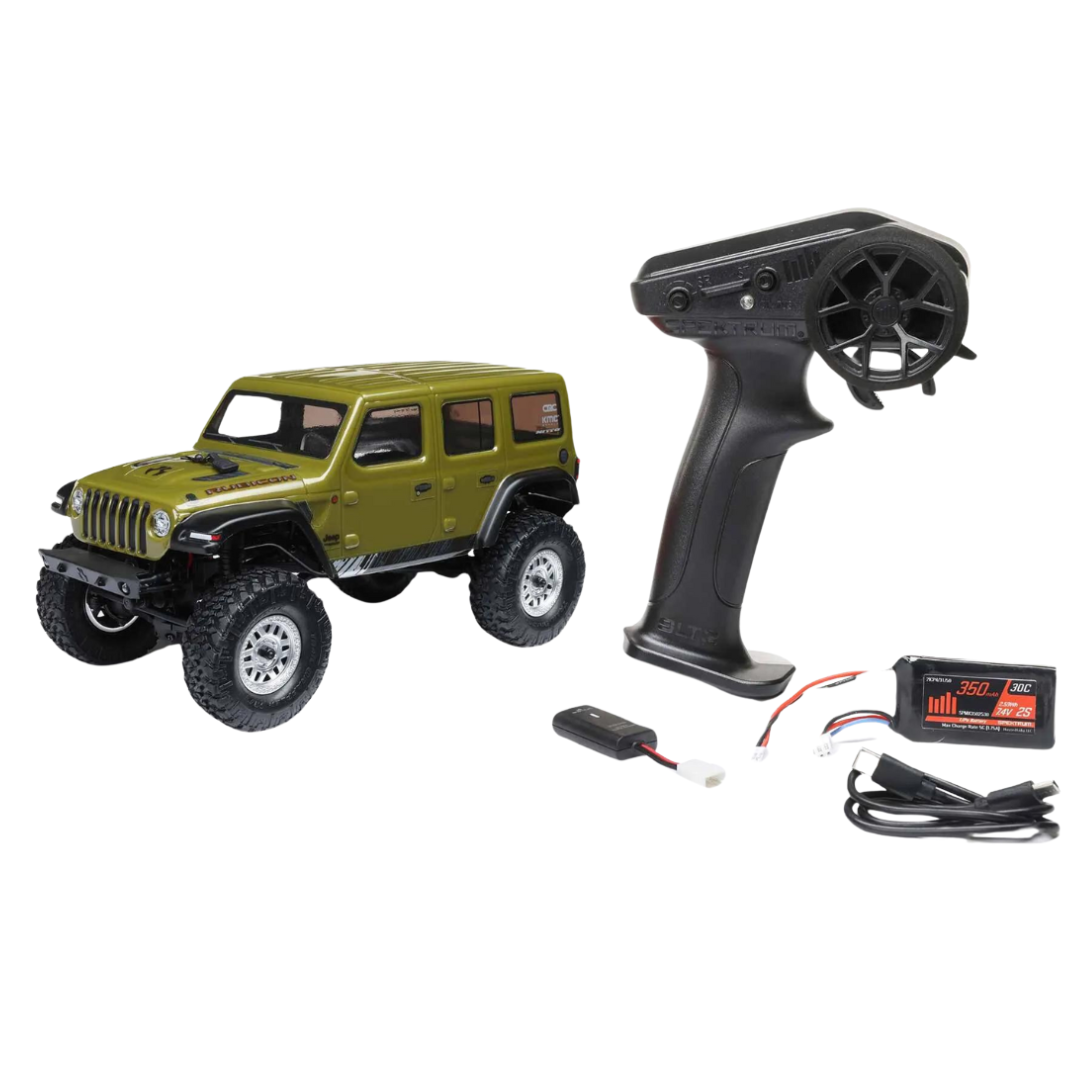

Includes

• 1 × Axial SCX24 Jeep Wrangler JLU 1/24 4WD RTR – Green
• 1 × Spektrum SLT2 2.4GHz Transmitter
• 1 × Spektrum 10A Brushed ESC / SLT Receiver Combo – Installed
• 1 × Dynamite 88T Brushed Motor – Installed
• 1 × Axial AS-1 Micro Steering Servo – Installed
• 1 × Spektrum 350mAh 2S LiPo Battery
• 1 × Spektrum USB LiPo Charger
• 4 × AA Transmitter Batteries
• 1 × SCX24 Jeep Wrangler JLU Product Manual

Needed to Complete

• 1 × Suitable USB power adapter for the supplied charger

FAQ

Is the Axial SCX24 Jeep Wrangler JLU fully Ready-to-Run? Yes. The vehicle is supplied fully assembled with the transmitter, 350mAh LiPo battery, USB charger and four AA transmitter batteries. You only need a suitable USB power adapter for the charger.

Can it be driven indoors? Yes. Its compact 1/24 scale makes the SCX24 ideal for desks, tabletops, indoor obstacle courses and other small crawling areas. It is equally at home on appropriately scaled outdoor rocks, dirt and trail obstacles.

What is different about this V3 version? This updated version adds oil-filled shocks, Spektrum electronics and revised body colour options while retaining the core SCX24 drivetrain and chassis layout. Axial highlights the oil-filled shocks as a major improvement for smoother suspension control.

Why are worm gears used in the axles? The front and rear axles use metal worm gears to help increase ground clearance and provide strong resistance to unwanted wheel movement on steep climbs or descents.

Are the wheels and tyres licensed? Yes. The SCX24 Jeep JLU uses licensed KMC Machete wheels and Nitto Trail Grappler M/T tyres for a more authentic scale appearance.

Does it have working lights? Yes. Two LED lights are integrated into the front bumper to illuminate the trail during low-light crawling.

What battery does it use? The included battery is a Spektrum 350mAh 2S LiPo pack using a PH 2.0 high-current ultra-micro connector.

Are the oil-filled shocks worth having? They provide real damping rather than allowing the suspension to rebound freely, which can improve stability and smoothness on technical terrain. SCX24 owners generally report that well-set-up oil shocks can improve control, although spring rate, oil weight and ride height all affect the final result.

Can the SCX24 be upgraded? Yes. The SCX24 platform has extensive aftermarket support for wheels, tyres, shocks, servos, motors, links, chassis parts and drivetrain upgrades, making it an excellent base for custom builds.

Important Notes

• This listing is for the green AXI00002V3T4 version.
• A USB power adapter is required for the supplied charger.
• Use only a suitable 2S LiPo-compatible charger with the included battery.
• Never leave LiPo batteries unattended while charging.
• Follow correct LiPo charging, handling and storage procedures.
• Although designed for outdoor crawling, always check the manual before use around water, mud, sand or heavy dust.
• Oil-filled shocks may require occasional inspection for leakage and correct fluid level.
• Aftermarket shock length and mounting changes can alter ride height, centre of gravity and crawling performance.
• Inspect steering links, wheel hardware and drivetrain components regularly.
• Allow the motor and electronics to cool between runs if operated continuously under heavy load.
