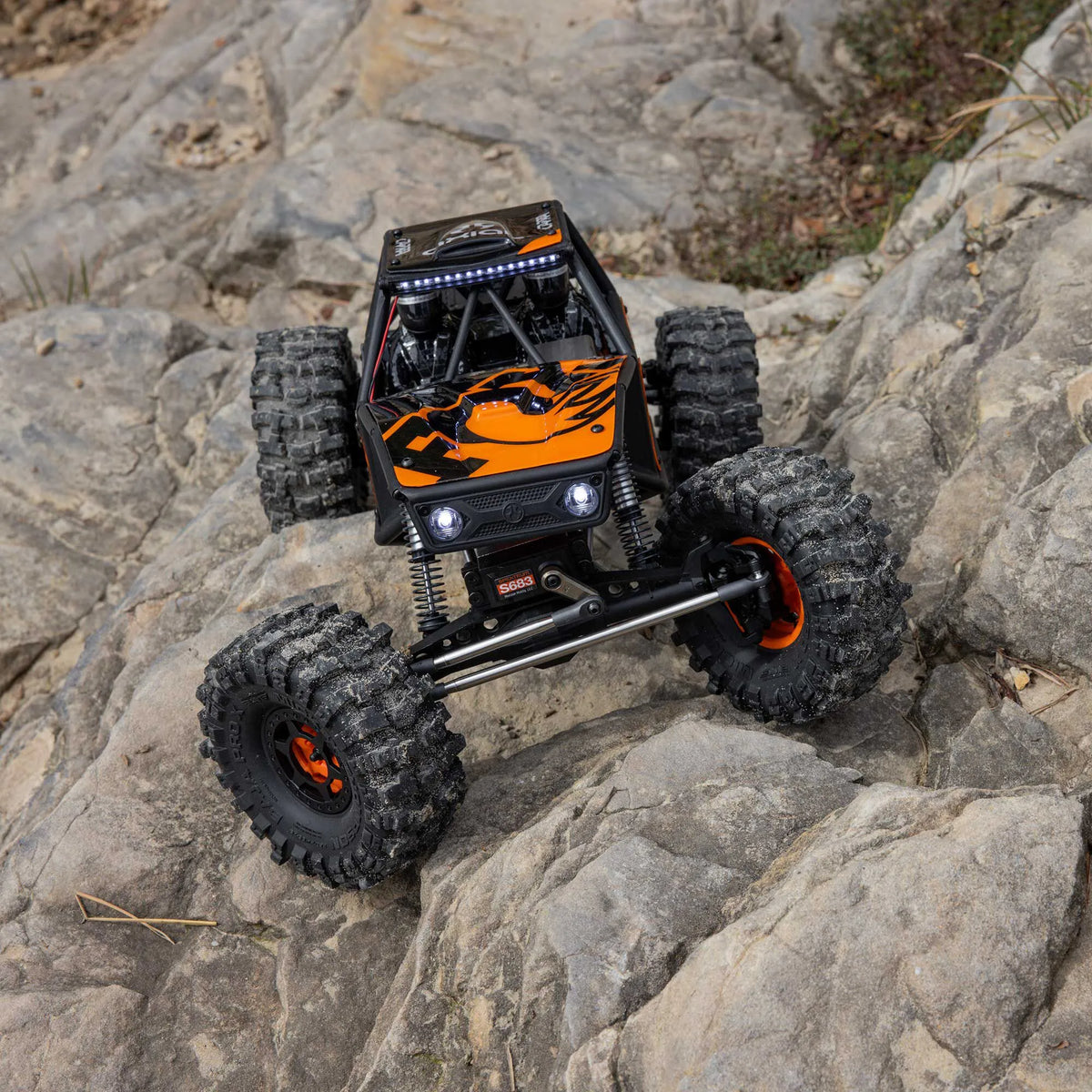

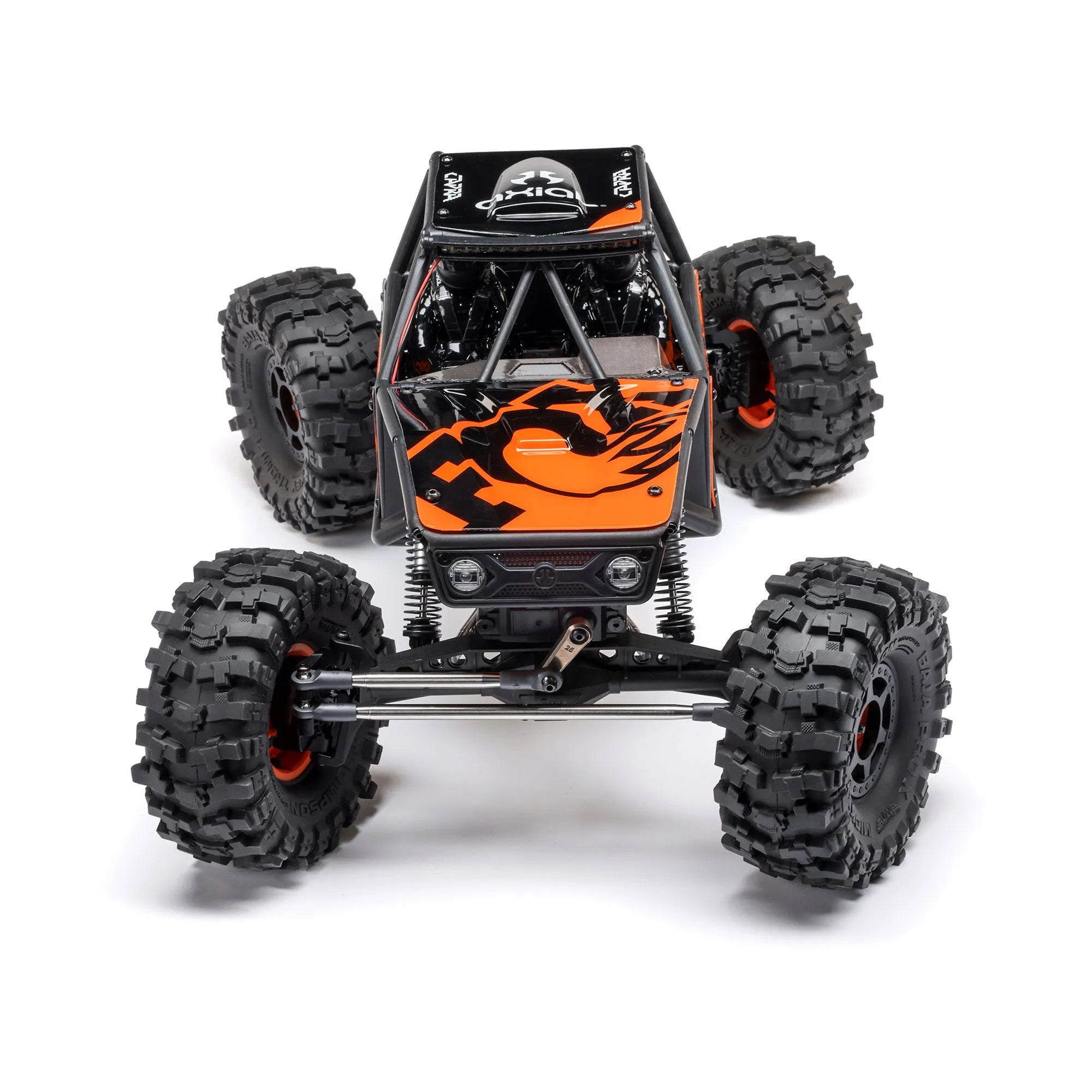

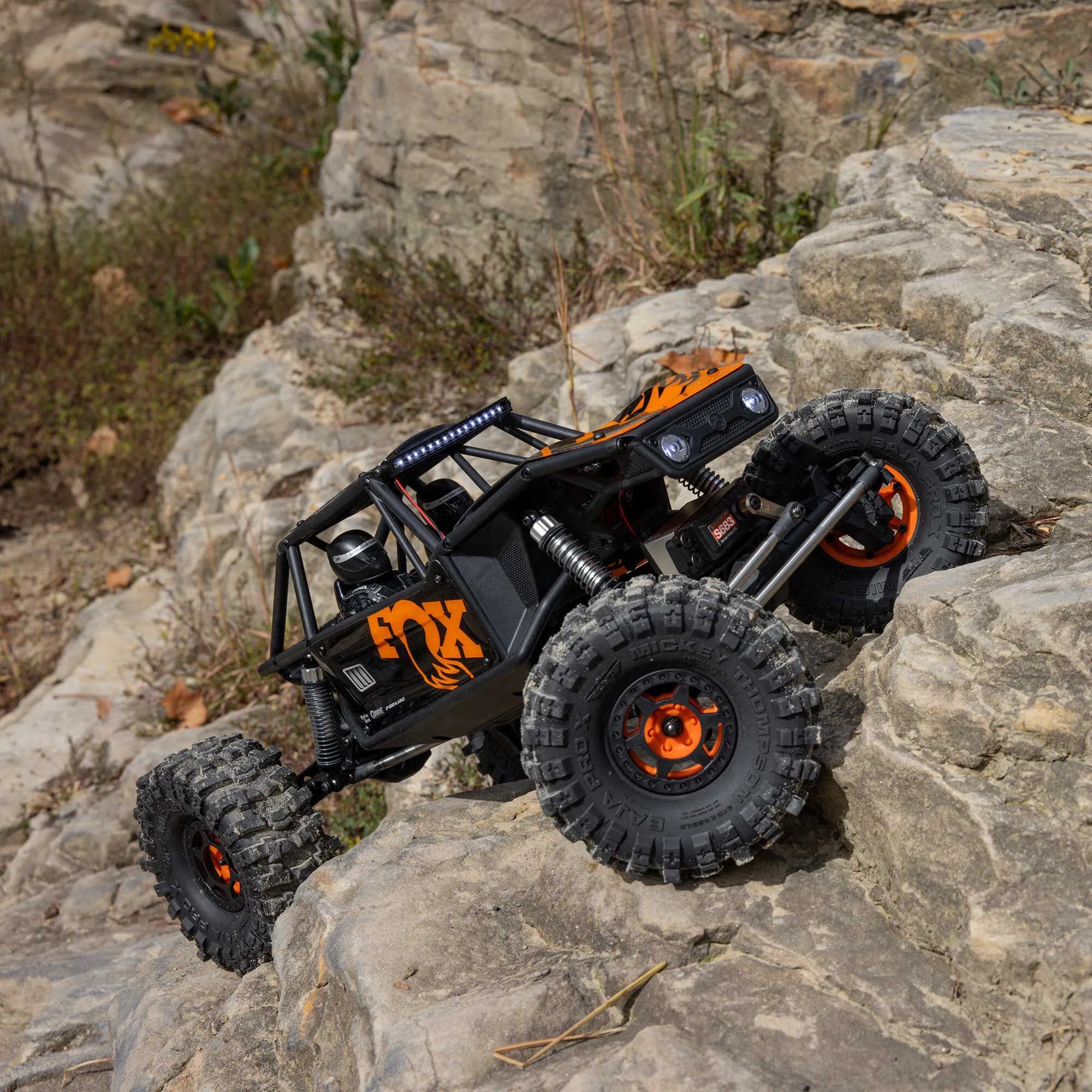

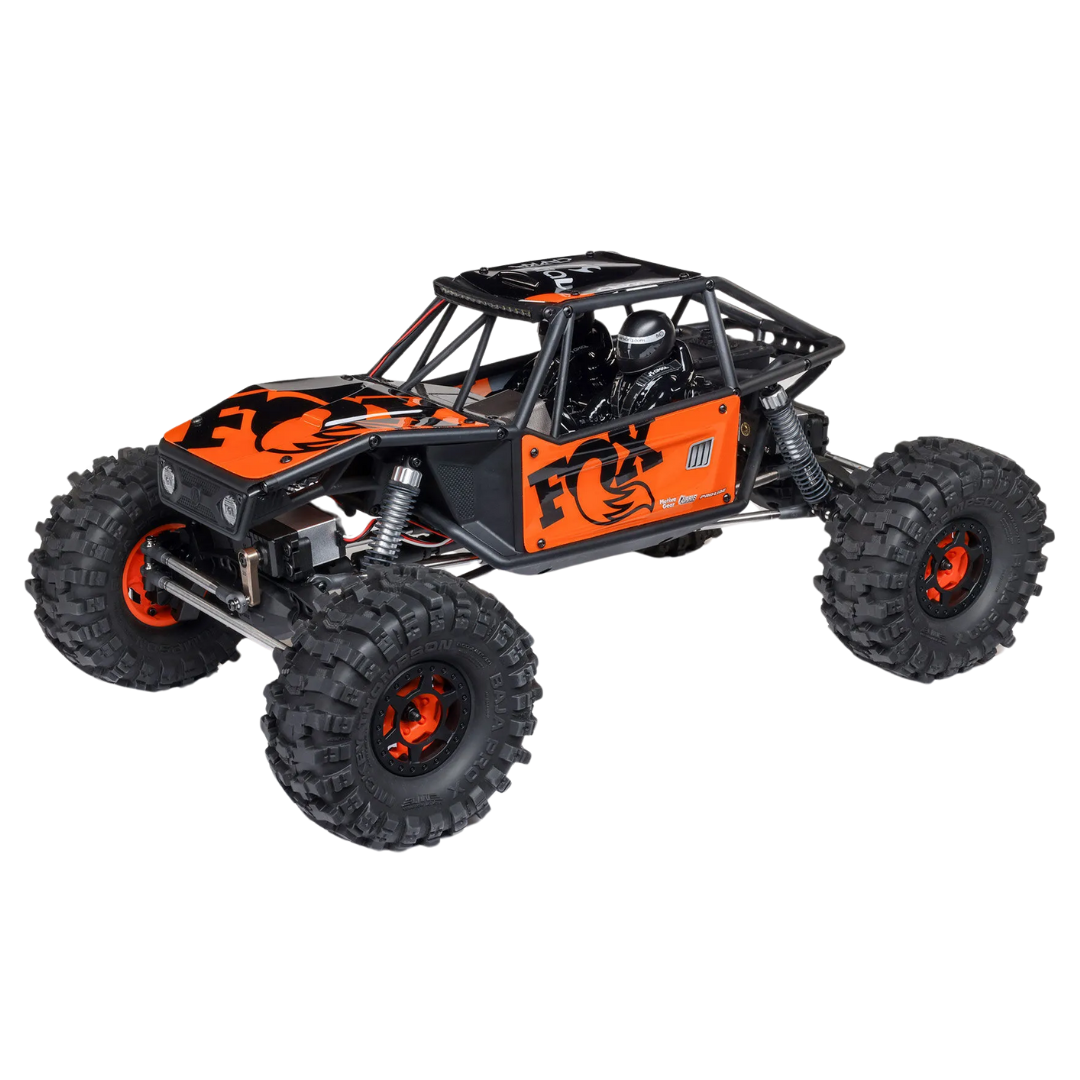

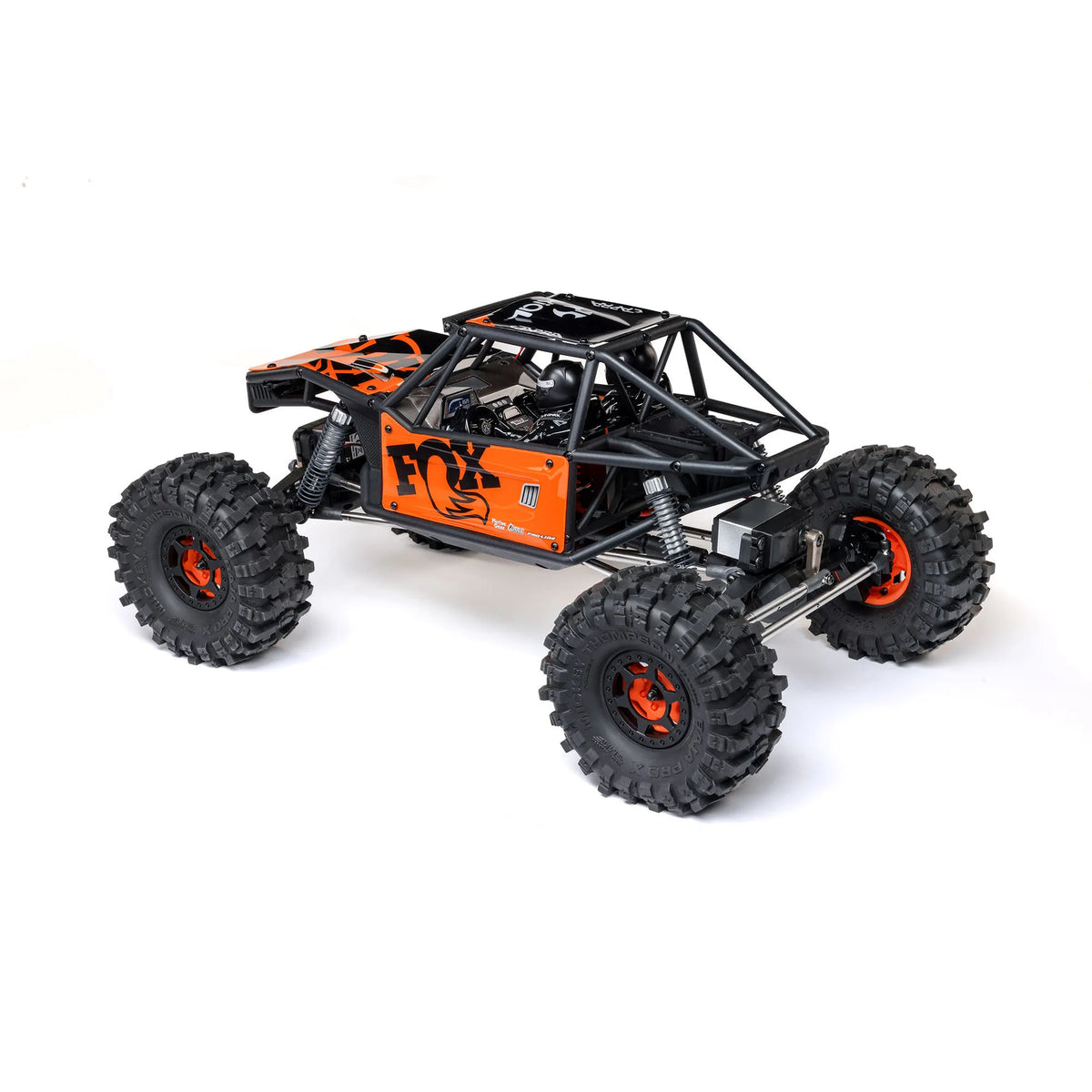

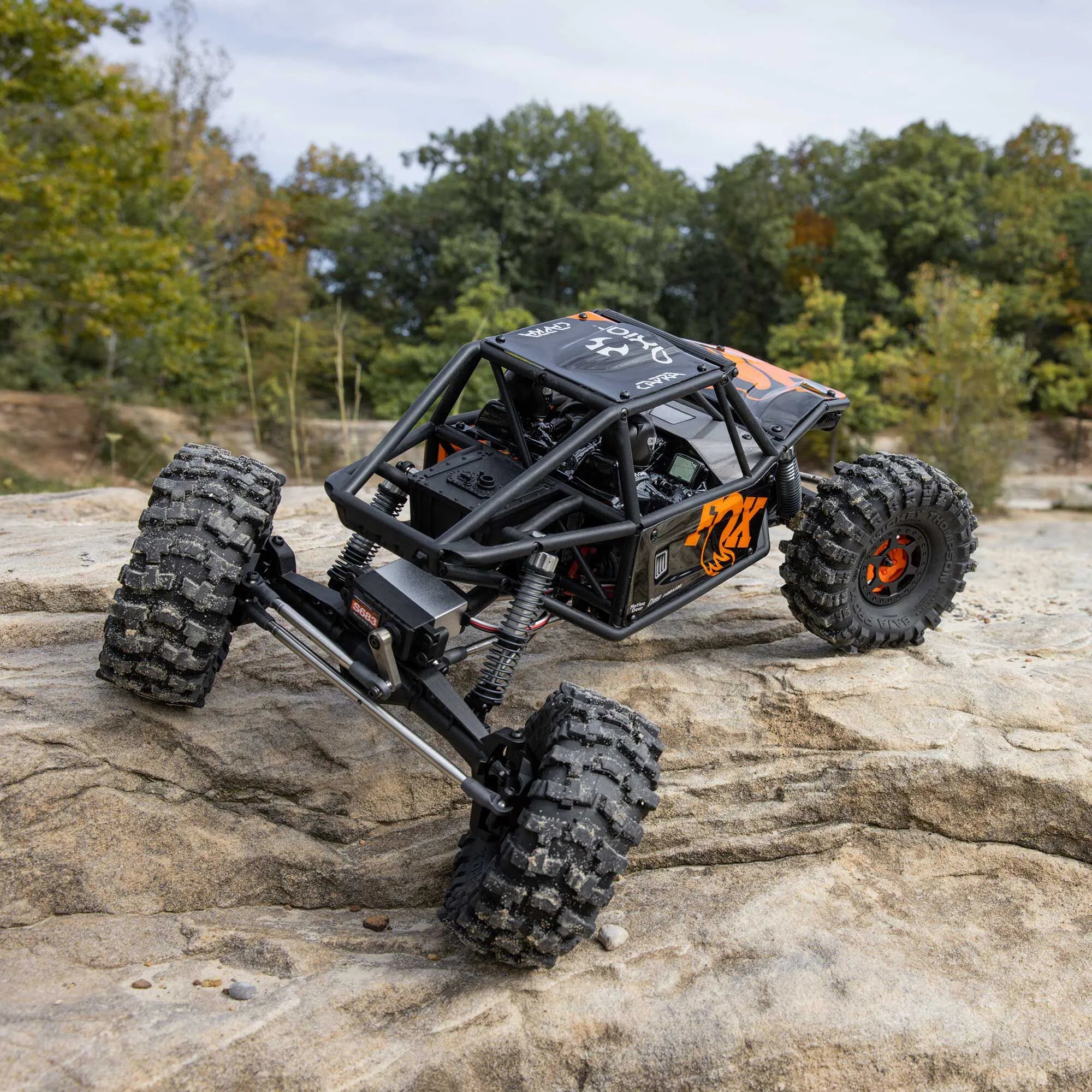

Axial UTB10 Capra 1.9 4WS 1/10 4X4 Unlimited Trail Buggy RTR Orange AXI-1543T1

The Axial UTB10 Capra 1.9 4WS is a serious 1/10 scale RC rock crawler engineered for technical trails, steep climbs and challenging obstacles. Finished in orange, AXI-1543T1 combines true four-wheel steering, Currie F9 portal axles, revised low-ratio transmission gearing and premium Pro-Line wheels and tyres to deliver outstanding manoeuvrability and crawling capability straight from the box.

The updated transmission features substantially lower gearing for improved climbing control, while front and rear steering axles let the Capra manoeuvre through tight lines that conventional front-steer crawlers can struggle to negotiate. Stainless steel suspension links, aluminium oil-filled shocks and metal axle universals provide a durable foundation for demanding crawling.

Factory-installed Spektrum electronics include dual S683 waterproof metal-gear steering servos, a Firma 40A waterproof brushed ESC, SR515 DSMR 5-channel receiver and DX3 transmitter. Simply add your choice of compatible 2S or 3S LiPo battery and charger.

Features

• True 4-Wheel Steering: Front and rear steering axles provide exceptional manoeuvrability on technical obstacles
• Adjustable Rear Steering Control: DX3 transmitter allows rear steering to be positioned straight or at 50% and 100% steering positions
• Revised Low-Ratio Transmission: Lower gearing improves climbing power and precise low-speed crawling control
• Currie F9 Portal Axles: Officially licensed portal axle housings increase ground clearance at the differential
• Metal Axle Universals: Front and rear axles use metal universals for smooth and durable drivetrain operation
• Pro-Line Mickey Thompson Baja Pro X Tyres: Licensed soft-compound crawler tyres provide aggressive traction
• Dual-Stage Foam Inserts: Soft outer foam improves grip while firmer inner foam provides sidewall support
• Pro-Line Holcomb 1.9 Wheels: OE crawler wheels complement the Capra's competition-inspired trail buggy design

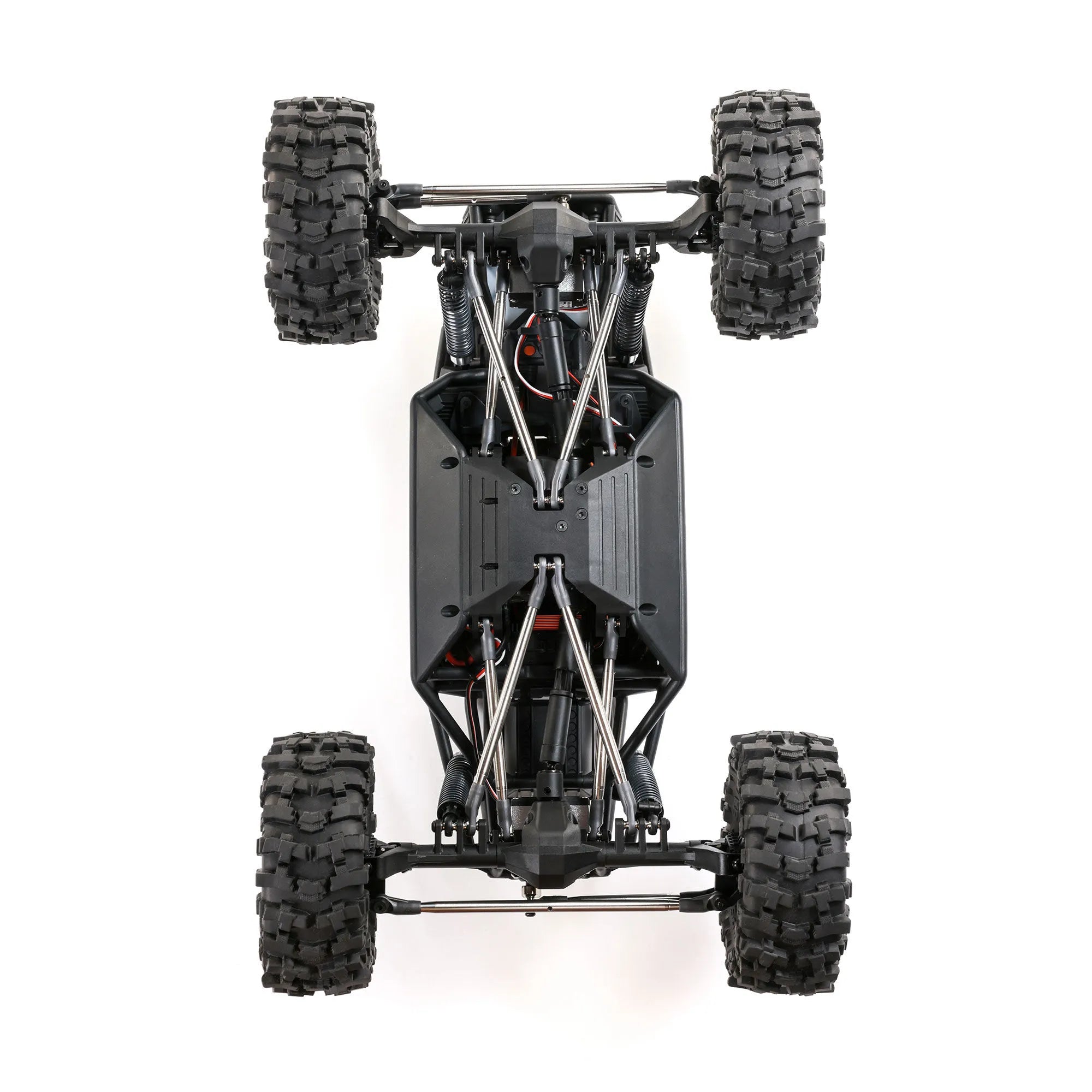

• 4-Link Suspension: Smooth solid-axle suspension provides excellent articulation over uneven terrain
• Stainless Steel Links: Durable suspension links and pivot balls are designed for demanding crawling use
• Aluminium Oil-Filled Shocks: Coil-over shocks provide controlled suspension damping
• Axial 540 Brushed Motor: Delivers controllable torque for technical crawling and trail use
• Dual Spektrum S683 Servos: Waterproof metal-gear servos control the front and rear steering systems
• Spektrum Firma 40A ESC: Waterproof brushed speed controller supports compatible 2S and 3S LiPo power
• Spektrum SR515 Receiver: DSMR 5-channel receiver provides the channels required for the advanced steering system
• Spektrum DX3 Radio: 2.4GHz transmitter provides convenient control of the Capra's 4WS system
• Injection-Moulded Tube Chassis: Rugged composite cage creates the distinctive Capra Unlimited Trail Buggy appearance
• Ready-to-Run: Vehicle and radio electronics arrive assembled and installed

Specifications

• Brand: Axial
• Model: UTB10 Capra 1.9 4WS Unlimited Trail Buggy
• Manufacturer Part Number: AXI-1543T1
• Colour: Orange
• Scale: 1/10
• Vehicle Type: Rock Crawler / Trail Buggy
• Completion Level: Ready-to-Run (RTR)
• Power Type: Electric
• Drivetrain: 4WD
• Drive Type: Forward / Brake / Reverse
• Steering: 4-Wheel Steering (4WS)
• Chassis: Injection-Moulded Tubular
• Suspension: 4-Link Solid Axle
• Axles: Licensed Currie F9 Portal Axles
• Differentials: Locked
• Motor: Axial 540 Brushed
• Motor Type: Brushed
• ESC: Spektrum Firma 40A Brushed Waterproof
• Receiver: Spektrum SR515 DSMR 5-Channel
• Transmitter: Spektrum DX3 2.4GHz
• Steering Servos: 2 × Spektrum S683 25T Waterproof Metal Gear
• Battery: Sold Separately
• LiPo Compatibility: 2S / 3S
• Battery Connector: IC3 / EC3 Compatible
• Charger: Sold Separately
• Tyres: Pro-Line OE Mickey Thompson Baja Pro X
• Tyre Compound: Soft
• Wheels: Pro-Line OE Holcomb 1.9
• Wheel Diameter: 1.9"
• Wheel Width: 25.4mm / 1.0"
• Tyre Inserts: Dual-Stage Open-Cell Foam
• Shock Type: Aluminium Oil-Filled Coil-Over
• Pinion Gear: 14T
• Gear Pitch: 32P
• Internal Gear Ratio: 6.31:1
• Final Drive Ratio: 45.37:1
• Wheelbase: 323mm / 12.7"
• Front Track: 225.3mm / 8.87"
• Rear Track: 225.3mm / 8.87"
• Ground Clearance: 84.65mm / 3.33"
• Length: 442mm / 17.4"
• Width: 272mm / 10.7"
• Height: 229mm / 9.0"
• Weight: Approximately 2.04kg / 4.5lb

Includes

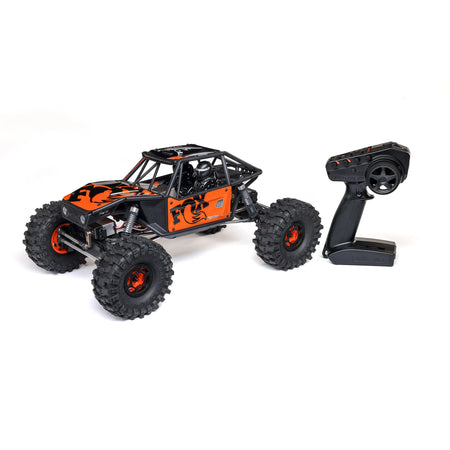

• 1 × Axial UTB10 Capra 1.9 4WS 4X4 Unlimited Trail Buggy RTR – Orange
• 1 × Axial 540 Brushed Motor – Installed
• 2 × Spektrum S683 25T Waterproof Metal-Gear Steering Servos – Installed
• 1 × Spektrum Firma 40A Brushed Waterproof ESC – Installed
• 1 × Spektrum SR515 DSMR 5-Channel Receiver – Installed

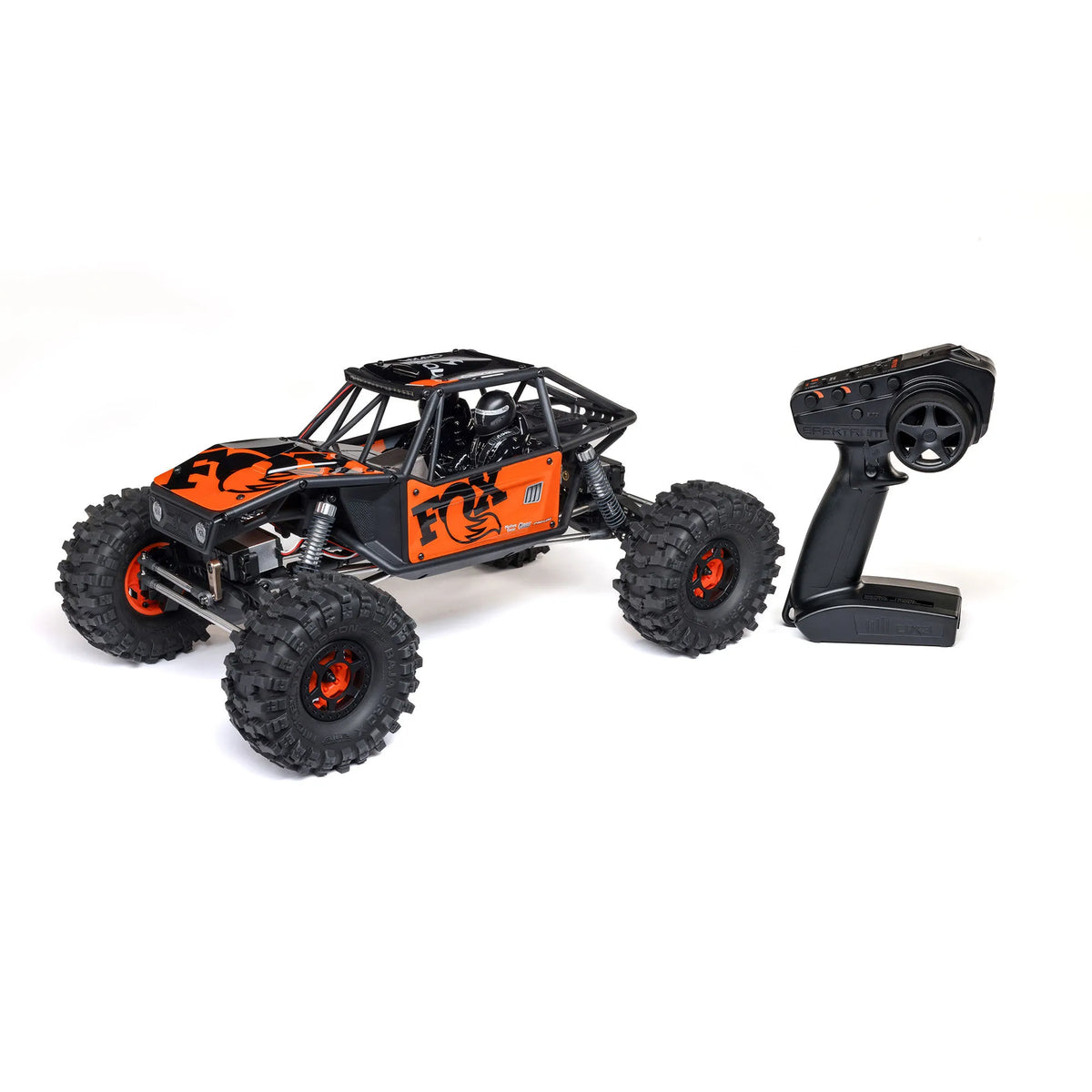

• 1 × Spektrum DX3 2.4GHz Transmitter
• 4 × AA Alkaline Transmitter Batteries
• 1 × Instruction Manual

Required to Complete

• 1 × Compatible 2S or 3S LiPo Battery with IC3 / EC3 Connection
• 1 × Compatible LiPo Battery Charger

FAQ

What is the advantage of four-wheel steering? Four-wheel steering gives the Capra significantly more manoeuvrability than a conventional front-steer crawler. Rear steering can help tighten the turning radius, reposition the rear axle around obstacles and line up the tyres more precisely on technical crawling sections.

Can I control how much the rear wheels steer? Yes. The supplied Spektrum DX3 provides dedicated rear-steering control. The rear axle can be positioned straight or steered through 50% and 100% positions to the left or right, giving the driver considerably more control when negotiating difficult lines.

Does the Capra have portal axles? Yes. It uses officially licensed Currie F9 portal axles. Portal gearing places the axle housing higher relative to the wheel centres, providing additional clearance underneath the differentials.

What is different about the transmission on this UTB10 Capra? This version receives revised lower transmission gearing specifically aimed at crawling performance. The final drive ratio is 45.37:1, giving the vehicle increased mechanical reduction for controlled climbing and technical low-speed driving.

Can I run a 3S LiPo battery? Yes. Axial specifies compatibility with both 2S and 3S LiPo batteries. A suitable battery with an IC3 or compatible EC3 connection and an appropriate LiPo charger are required separately.

Does a battery come with AXI-1543T1? No. The Capra is supplied RTR with its radio and electronics installed, but the drive battery and charger are sold separately.

What tyres are fitted from the factory? Axial equips the UTB10 with licensed Pro-Line OE Mickey Thompson Baja Pro X soft-compound crawler tyres. Dual-stage foam inserts combine a softer outer section for traction with firmer inner support for stability.

Are both steering servos metal gear? Yes. Two Spektrum S683 25T waterproof metal-gear steering servos are installed, with one controlling each steering axle.

Is the Capra suitable for general high-speed bashing? The UTB10 Capra is primarily engineered as a technical rock crawler and trail buggy. Its low gearing, portal axles and four-wheel steering prioritise climbing ability, manoeuvrability and low-speed control rather than outright speed.

My steering binds at maximum lock. What should I check? Community discussions around the UTB10 highlight steering endpoints as an important setup consideration. Excessive servo travel can force the steering universals or linkage against their mechanical limits. Check for physical binding and confirm steering setup before repeatedly operating the servos at full lock.

Important Notes

• This listing is for the orange AXI-1543T1 version
• Drive battery and charger are not included
• Compatible with 2S and 3S LiPo batteries
• Use a suitable IC3 / EC3-compatible battery and correctly configured LiPo charger
• Follow correct LiPo charging, storage and handling procedures
• Never leave LiPo batteries unattended while charging
• Check front and rear steering for free movement before operation
• Avoid setting steering travel beyond the mechanical limits of the links, knuckles and axle universals
• Inspect suspension links, steering hardware and wheel nuts regularly during demanding crawling use
• Clean and inspect the portal axles and drivetrain after use in dirt, mud or abrasive terrain
