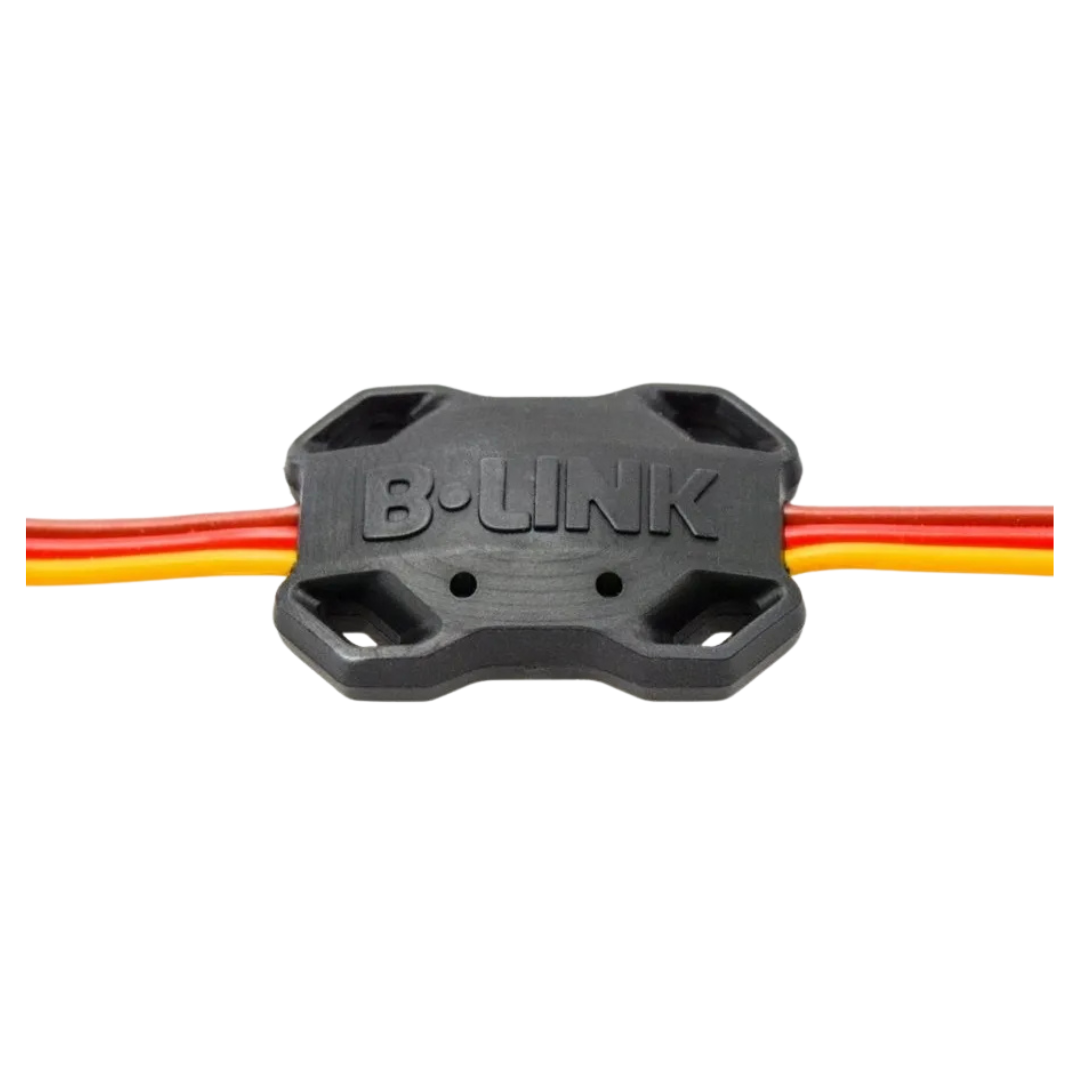

Castle Creations B-Link Bluetooth Adapter 010-0135-00

Castle Link™ ESC tuning is an essential component for customising vehicle performance for many Castle Creations’ customers. While the controllers are plug and play, optimising a Castle ESC through the Castle Link Programming Suite unlocks the full range of capabilities that set Castle apart from the competition. Users enjoy the ability to adjust many variables to enhance their experience including throttle, braking curve, drag brake, reverse type and more. The Castle B•LINK™ Bluetooth™ Adapter enables users to wirelessly program settings on current Castle Creations ESCs, many older models and the BEC 2.0/BEC Pro on Apple iOS devices. A complete listing of compatible ESCs and accessories can be found here. The free Castle Link app for iOS is available on the Apple App Store for use with iPhones and iPads, and once downloaded, it does not require a data connection and can be used anywhere, including remote areas. For Android users, a version of the app will be released at a future date, and the B-LINK adapter will be compatible.

Features

• Wireless Bluetooth communication allows you to interface with most Castle Link compatible ESCs and accessories to change parameters and update firmware

• Compact and lightweight at 30.48mm x 20.55mm x 6.55mm and 6.62g, it can be installed in the vehicle or airframe without significantly increasing model weight

• Convenient waterproof design allows you to quickly adjust settings in the field without disconnecting or disassembling the model. It can stay installed in the model or be easily swapped between models

• Free app download is readily available in the Apple App Store. Once downloaded it does not require a data connection so it can be used in the most remote of areas and won’t use data

• Easy to use application can be used with multiple BLink Bluetooth Adapters or can store model information and allow you to use one adapter on multiple models

• Passcode protected with (userselectable) 4digit code to prevent unwanted tampering with your settings

• Syncinformation between multiple iOS devices by creating a free account (requires internet connection to sync database)

Specs

• Input Voltage: Minimum4.5V/ Maximum13V

• Max Continuous Current: 10A

• Maximum Burst Current: 20A

• Dimensions (with wires): 184.15mm x 20.55mm x 0.27"mm

• Dimensions (w/o wires): 30.48mm x 20.55mm x 0.27"mm

• Weight: 6.62gm / 0.015lbs

• Needed for Operation: Castle Link App found at Apple App Store and compatible
• ESC and/or Accessory
