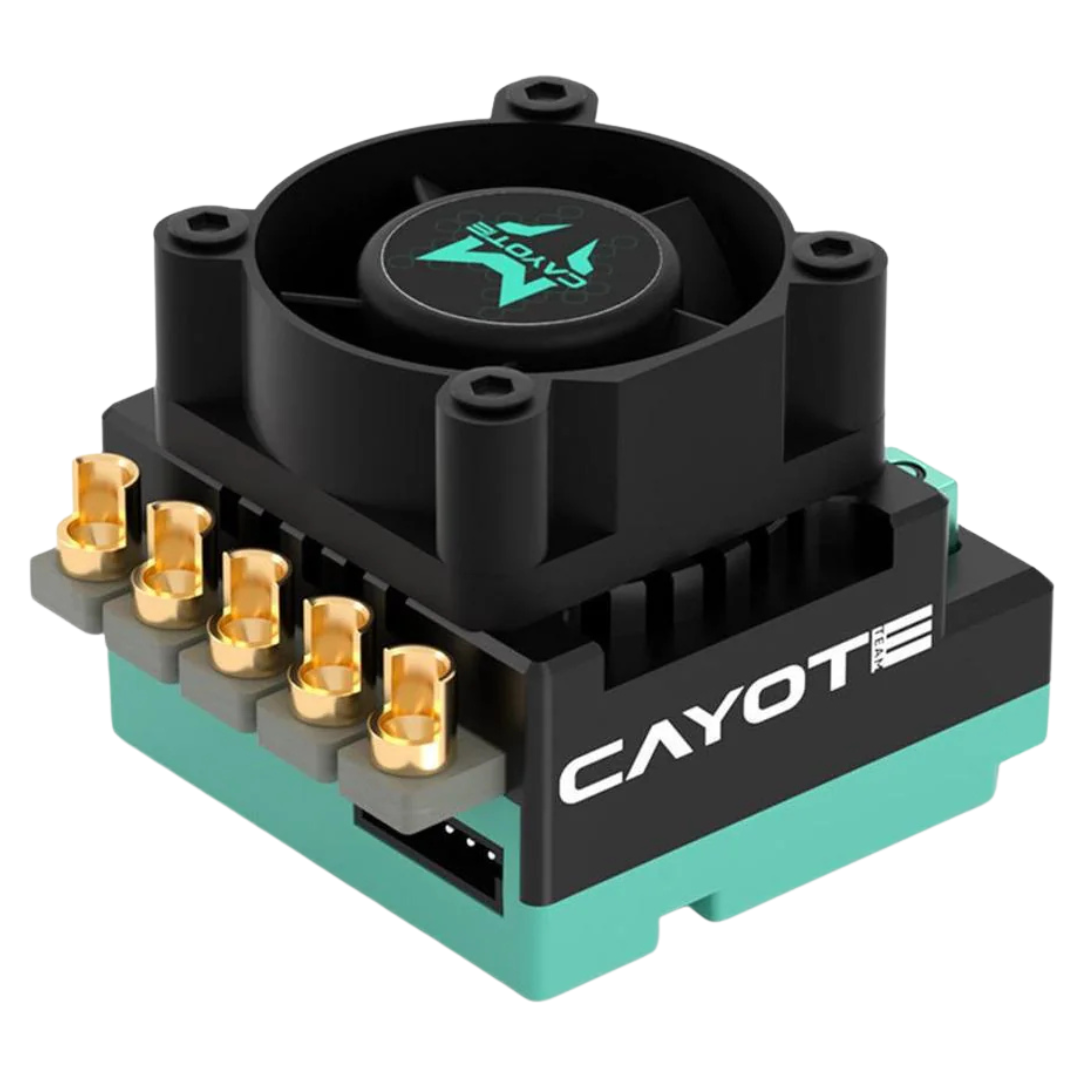

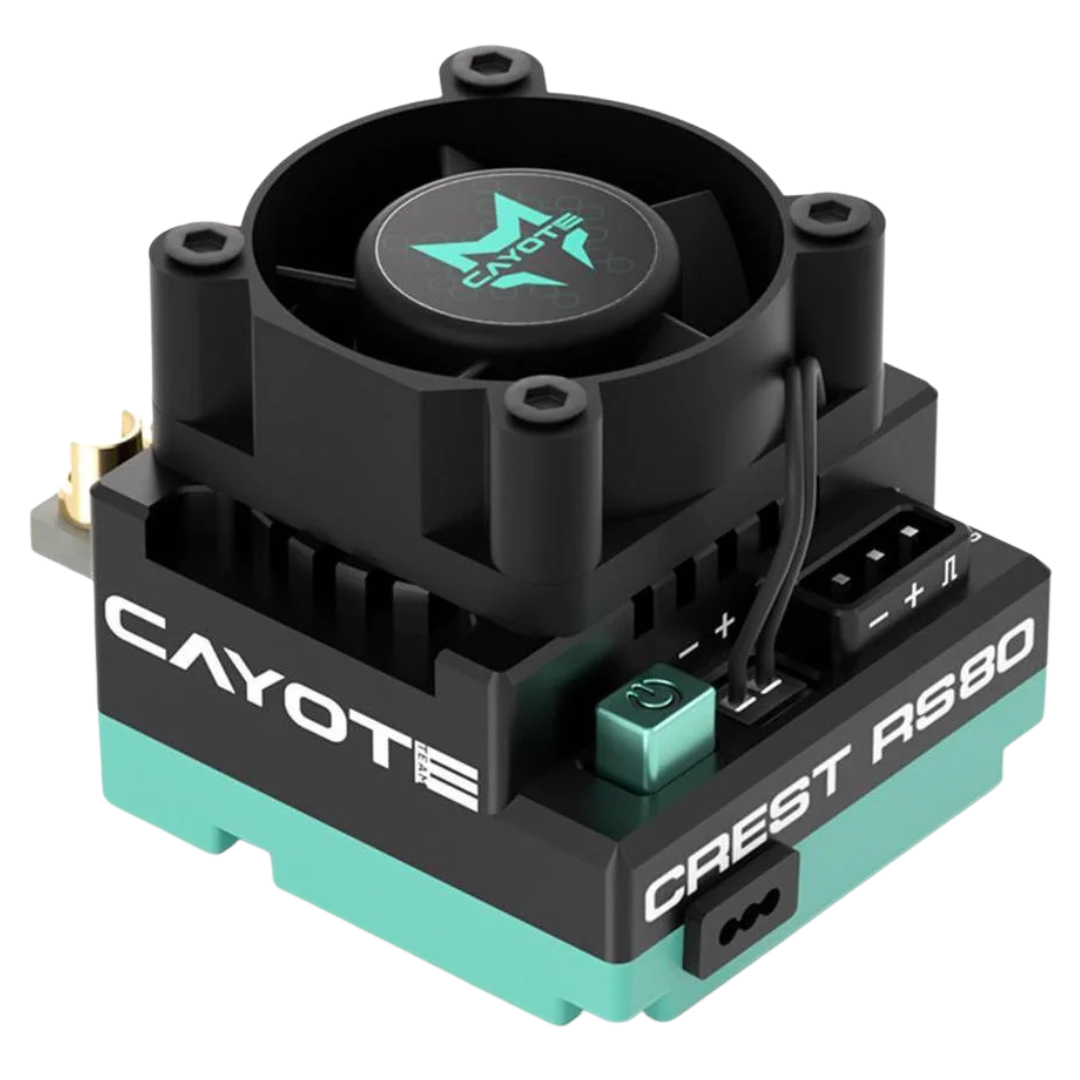

Cayote CREST RS80 1/10 Sensored Brushless ESC CA-CYEA11003

The Cayote CREST RS80 is a 1/10 scale 80A sensored brushless ESC for RC touring cars, buggies, drift cars and stock racing setups needing smooth throttle control, 2S LiPo power support and reliable race-focused tuning.

This competition ESC supports sensored and sensorless brushless motors, includes reverse polarity protection, and uses an adjustable 6.0V / 7.4V BEC to suit compatible receiver and servo setups.

Features

• 80A continuous current and 400A peak current suit compatible 1/10 scale electric RC racing setups
• Supports sensored and sensorless brushless motors for flexible installation options
• Designed for 1/10 touring car, buggy, drift and stock class racing applications
• 2S LiPo input suits common 1/10 race battery setups
• Reverse polarity protection helps reduce the risk of ESC damage from incorrect battery connection
• Built-in capacitor module helps keep the wiring layout cleaner and more compact
• Adjustable 6.0V / 7.4V BEC output supports compatible receiver and servo combinations
• Real-time data monitoring is supported through the Cayote app with compatible programming accessories
• Adjustable RPM limiting allows race-focused speed control tuning in supported classes
• High-efficiency heat dissipation helps maintain consistent ESC performance during demanding use
• Programmable with the Cayote Xlink Multifunction LCD Program Box or BTune Bluetooth module, sold separately

Specifications

• Brand: Cayote
• Model: CREST RS80
• SKU / Part Number: CA-CYEA11003
• Alternate Part Number: CYEA11003
• Product Type: Electronic speed controller
• Scale: 1/10
• Motor Type: Brushless sensored / sensorless
• Input Voltage: 2S LiPo / 7.4V
• Continuous Current: 80A
• Peak Current: 400A
• BEC Voltage: 6.0V / 7.4V switchable
• BEC Continuous Current: 4A
• BEC Peak Current: 5A
• Motor Limit: 540 / 3650 size brushless motors over 10.5T
• Motor Connector: Solder
• Battery Connector: Solder
• Programming: Cayote Xlink Multifunction LCD Program Box or Cayote BTune Bluetooth module, sold separately
• Suggested Applications: 1/10 touring car, buggy, drift and stock class racing

Includes

• 1 x Cayote CREST RS80 1/10 stock 80A sensored brushless competition ESC
• 1 x Instruction manual

FAQ

Does the Cayote CREST RS80 work with sensored motors? Yes. The Cayote CREST RS80 supports sensored brushless motors and can also be used with compatible sensorless brushless motors.

What battery does the CREST RS80 use? The Cayote CREST RS80 is designed for 2S LiPo battery use.

Does this ESC include a battery connector? No. The CREST RS80 uses solder connection points, so a suitable battery connector must be soldered before use.

What programmer is required for tuning? The CREST RS80 can be programmed with the Cayote Xlink Multifunction LCD Program Box or Cayote BTune Bluetooth module, sold separately.

Important Notes

• Use only with a compatible 2S LiPo battery, brushless motor and 1/10 scale RC setup.
• Battery connector, motor connectors, program box and Bluetooth module are not listed as included.
• Incorrect gearing, motor choice, ESC settings or wiring may overheat or damage the ESC or motor.
• Check ESC and motor temperatures after setup changes and after running a full battery pack.
• Confirm your race class rules before use, especially when using RPM limiting or stock class settings.
• LiPo batteries must be charged, stored and handled using correct LiPo safety procedures.
