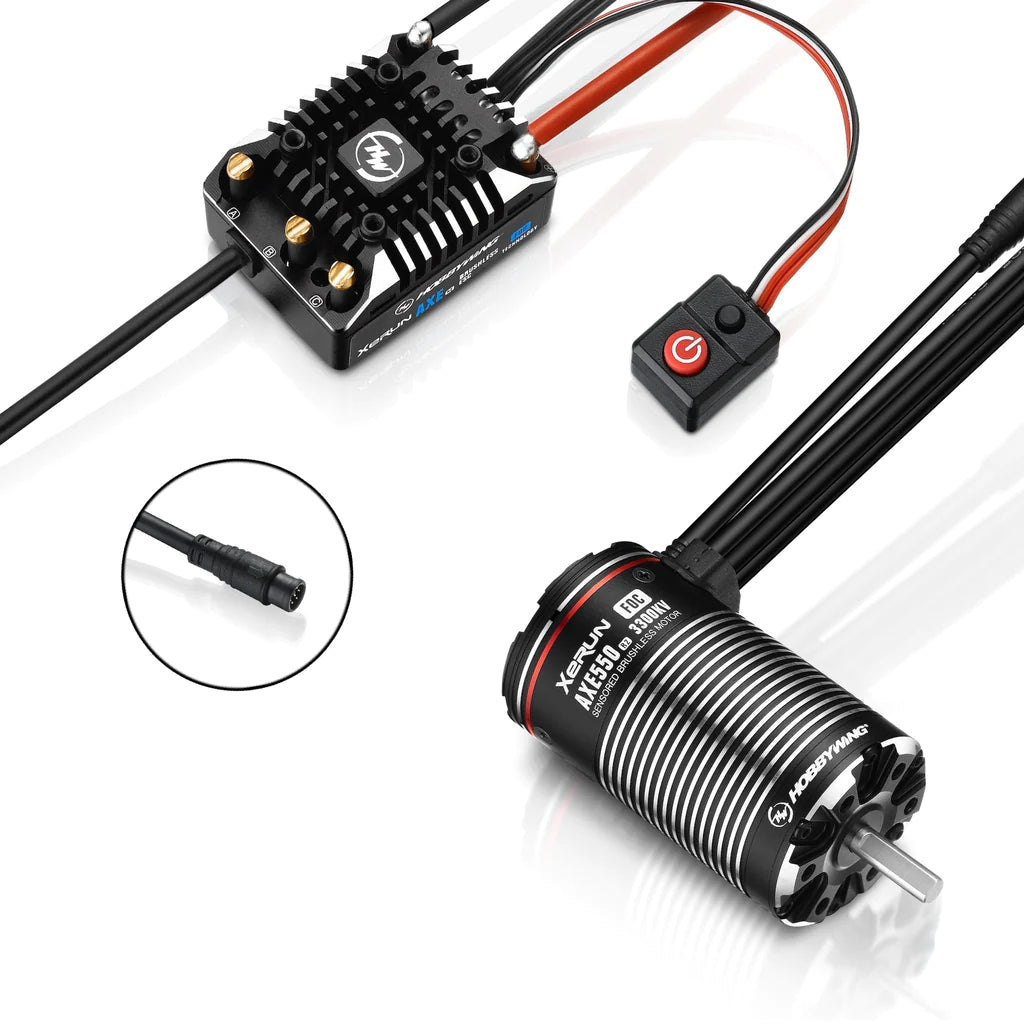

Hobbywing XeRun AXE 550 R2 3300Kv FOC Brushless Motor & 80A ESC 38020314

Only 1 left
SKU: HW38020314
Regular price $398.00
Regular price Sale $429.00 Sale price $398.00

Need some help? call us! ph: 07 3265 4547

FOC (Field-oriented Control) for Super Linearity & High Torque & Extreme Silence
New sensor technology has changed the feel, performance, and overall tune-ability of the new Axe ESC and Motor in ways some have never experienced. Field-oriented Control is the name of this new tech, and is something all new to the scale trail, rock racing, and RC world in-general. This new style of sensor allows extremely accurate control and sensing of the motor while maintaining extreme performance and reliability. The motor and ESC are able to match the RPM of the motor to your throttle position under all driving conditions. This greatly improves down hill driving giving this system the ability to drive down hill under complete control. FOC technology also makes the whole system extremely silent, the motor doesn't create the annoying PWM noise when it is running.

Intelligent Torque Output & Speed Closed-loop Control for Easy Control

  • Not just a new ESC and motor, the new FOC sensors, combined with Intelligent Torque output and closed loop speed control mean the ESC and motor will maintain the motor’s Torque level and
  • RPM as the vehicles conditions change. Uphill, down hill, under load, you name it, your Axe system will do what you’re telling it to do.

Battery Reverse Polarity Protection

  • Hobbywing's AXE FOC Crawler system has been designed with a very unique feature protecting your ESC from damage caused by Battery Reverse Polarity, so no matter how many times you reverse the battery connections the AXE ESC and the paired motor are safe from damage.

Applicable to All Weather & Track Conditions

  • The IP-67 waterproof has been taken to a new level with the AXE System. Completely sealed ESC design with robust heatsink case design ensure the ESC is ready for anything you throw at it. The motor as well, is sealed, and combines a completely new sensor harness. No messy extra steps to make your system water proof.

Dual Running Mode

  • AXE FOC Crawler system supports dual running mode, not only classic "Forward and Reverse (rock crawler)" mode, but also "Forward/Reverse with brake (normal)" mode, to satisfy your application.

Professional Drag Brake Adjustments & Super Parking Capacity

  • Drag brake rate, and drag brake tuning allows scalers to adjust not only the hill/hold/drag brake, but how quickly the brake applies. This allows high speed driving with out sudden jerks or stops when releasing the throttle. The drag brake itself is super charged, and able to be run at extremely high levels. Compared to a standard crawling brushless setup, the drag brake in the Axe System can be rated at 200% in comparison.

Built-in Bluetooth for Connecting the Mobile APP Directly

  • Built in Bluetooth connectivity means exactly that. The ESC has Blue Tooth built right in! Nothing extra is needed to access the ESC’s complete on board programming but your smart phone device and the Free Hobbywing App from your App Store. That’s right folks, the Bluetooth feature is BUILT INTO the ESC. No extra devices, wires or connections required!

Easy Obtain AXE Running Status with Real-time Data Recording Function

  • Connect the HW Link cellphone APP to the ESC and open the real-time data recording function, to check the throttle, voltage, current, temperature, RPM and other data in real-time. Easy obtain running status of ESC and motor. Note: Due to transmission distance of bluetooth, the effective distance is about 3m!

Super Internal BEC

  • The built-in switch mode BEC with a maximum output of 13A and voltage adjustable between 6V and 7.4V allows the use of various standard servos, high voltage servos and other peripherals.

Built-in High-precision Magnetic Encoder

  • A high precision magnetic encoder is used in the motor to ensure precision and consistent information is provided to the ESC. This allows the ESC to have more information from the motor than standard “hall” type sensors and provides improved performance and efficiency.

Advanced and Secure Electronic Switch

  • The dust, dirt, and waterproof switch housing ensures a long reliable life for your ESC, will not suffer from the problems most standard on/off switches encounter.

Multiple Programmable Items

  • With enough settings to keep your vehicle running “just right”, there are also timing/boost settings, just in case it’s not fast enough, this feature allows you to unleash some extra top speed from your Axe System. Sometimes the trails are long and winding, so more wheel speed is welcome!
