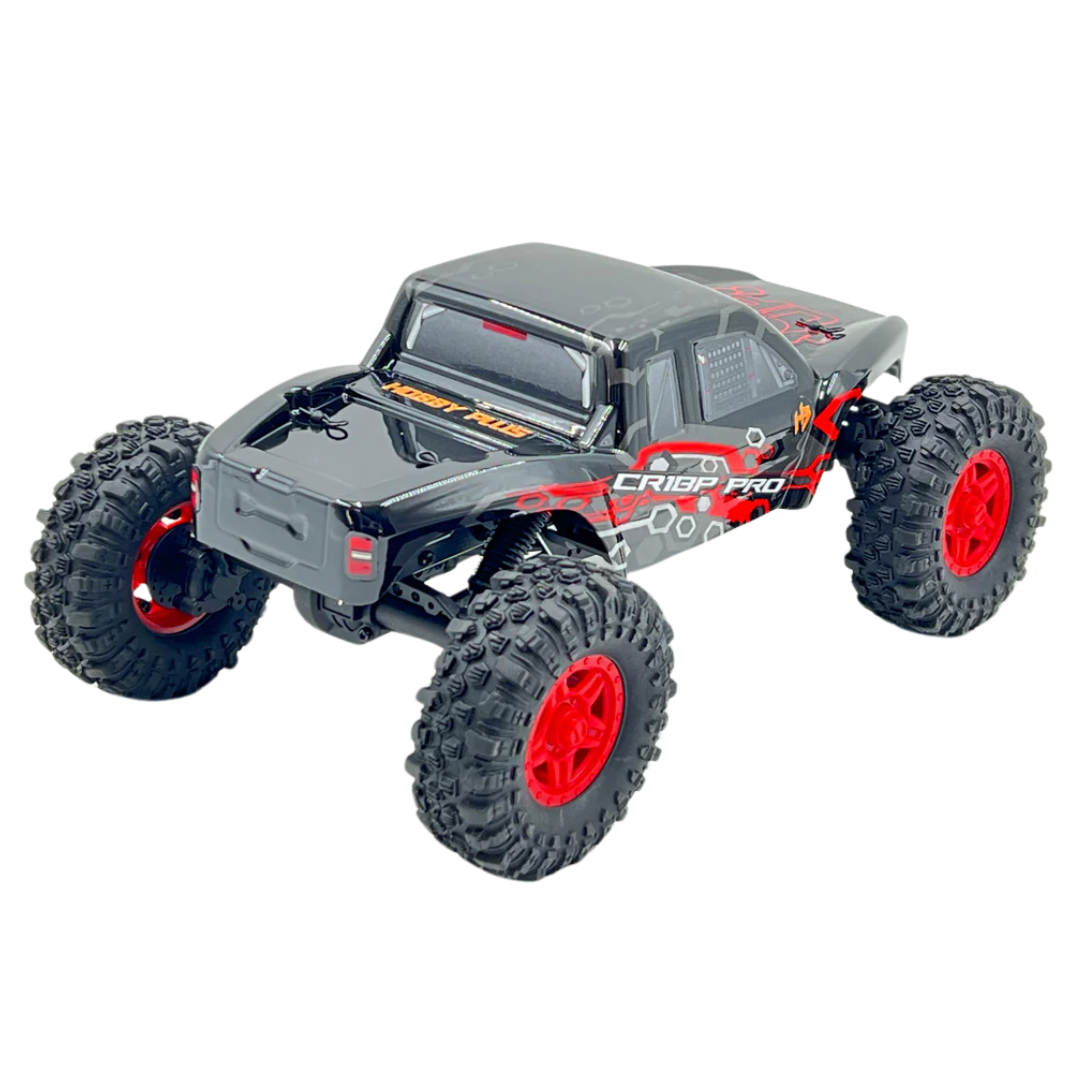

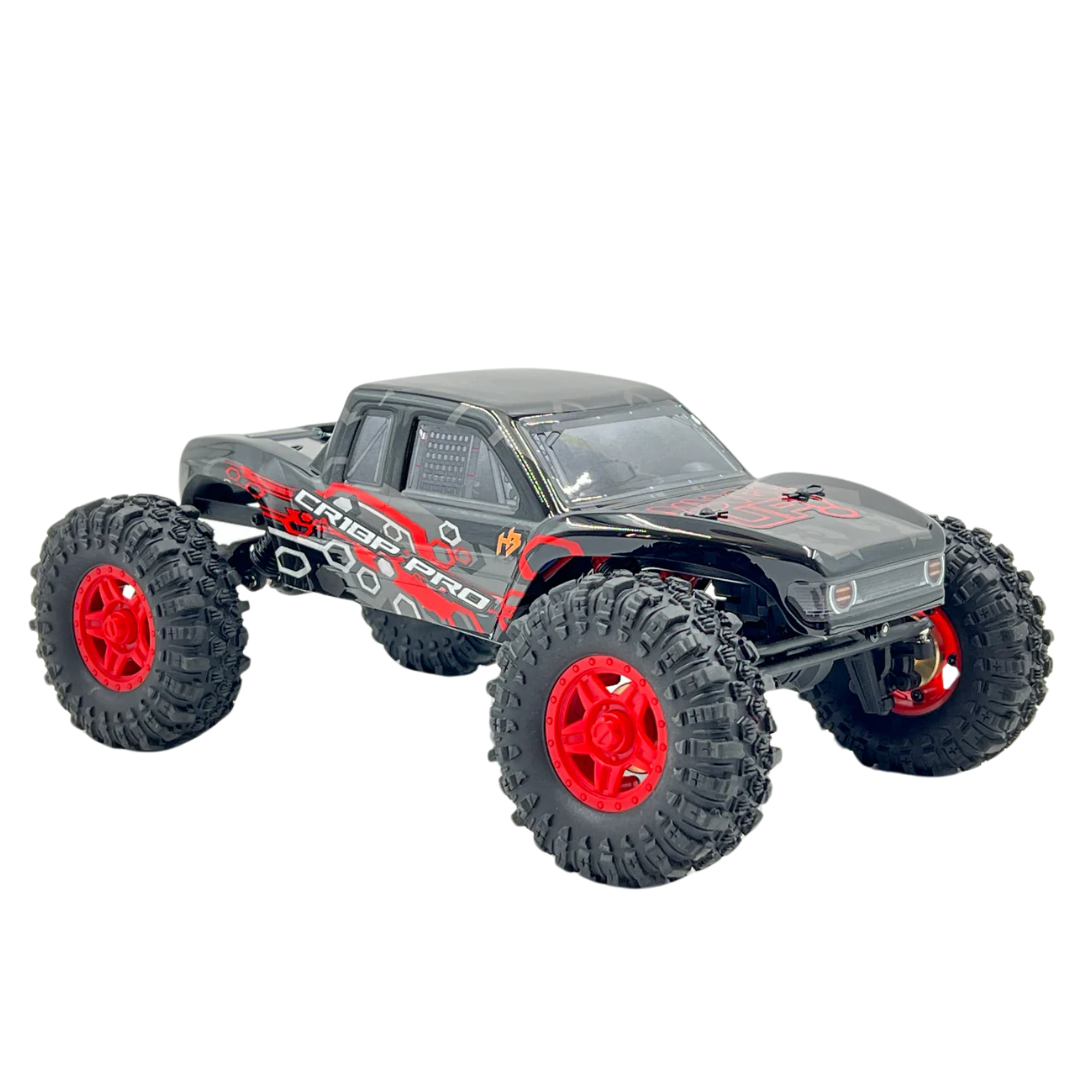

HobbyPlus CR18P Pro Juice Up RC Crawler 1/18 4WD RTR Red HBP1810360-JURD CR-18P

HobbyPlus HBP1810360-JURD CR18P Pro Juice Up Edition is a 1/18 brushless 4WD RC crawler supplied ready to run in red. Developed from the CR18P Pro platform, it combines a Hobbywing 3500KV outrunner system, portal axles, front overdrive and optional rear underdrive gearing, brass weight components, 68mm competition-style tyres and a low-centre-of-gravity chassis for technical crawling in a compact package.

Features

• Hobbywing Brushless Power: 1621SL 3500KV 12-pole outrunner motor paired with a waterproof QuickRun WP Mini brushless ESC
• 2S–3S Capable Electronics: Hobbywing motor and ESC support compatible 2S and 3S LiPo power
• 3S Battery Included: Supplied with an 11.1V 360mAh LiPo battery and matching USB charger
• Single-Speed EVO Transmission: Simplified gearbox eliminates the additional weight and hardware of a two-speed shifting system
• Full-Lock 4WD: All-metal drivetrain gearing delivers permanent four-wheel drive for technical crawling
• Overdrive Front Axle: Front axle gearing turns the front wheels faster to support climbing and turning performance
• Optional 27% Rear Underdrive: Included rear pinion and ring gear provide an additional drivetrain tuning option
• HD Portal Axle Outdrives: Revised portal components use larger 1.5mm drive pins for increased drivetrain strength
• HD Driveshafts: Reinforced plastic driveshaft design supports the upgraded brushless drivetrain
• Brass Front Wheel Hexes: Included oversized brass front hexes add useful weight low and forward on the chassis
• Front and Rear Brass Wheel Weights: Included wheel weights allow additional low-mounted mass to be added for crawling setup
• 56/44 Weight Distribution: Factory configuration places approximately 56% of the vehicle weight at the front and 44% at the rear
• Deep Star Beadlock Wheels: 1.2-inch plastic beadlock wheels mechanically retain the tyres and accept the included brass rings
• 68mm Super-Soft Tyres: Competition-spec soft rubber tyres provide a large footprint for technical crawling
• 5° Performance Chassis: Angled chassis layout is designed around a low-centre-of-gravity crawling setup
• Servo-On-Axle Steering: SOA configuration positions the steering servo directly on the front axle
• 55mm Oil-Filled Shocks: Adjustable coilover shocks provide suspension tuning for different crawling terrain
• Lightweight LCG Body: Compact pinched body provides clearance around the tyres while keeping body mass low

Specifications

• Brand: HobbyPlus
• Series: CR18P Pro
• Edition: Juice Up
• Product Type: RC Rock Crawler
• Scale: 1/18
• Colour: Red
• Build Type: Ready-To-Run
• Drive Type: 4WD
• Drivetrain: Full-Lock 4WD with Metal Gearing
• Power System: Brushless
• Motor: Hobbywing 1621SL Brushless Outrunner
• Motor KV: 3500KV
• Motor Poles: 12
• Motor Voltage Compatibility: 2S–3S LiPo
• ESC: Hobbywing QuickRun WP Mini Brushless
• ESC Battery Compatibility: 2S–3S LiPo
• ESC Water Resistance: IP67 Manufacturer Rating
• Transmission: Single-Speed EVO
• Front Axle: Overdrive Portal Axle
• Rear Axle: Standard with Optional 27% Underdrive Gearing Included
• Front / Rear Weight Distribution: Approx. 56% / 44%
• Steering Configuration: Servo On Axle
• Shocks: 55mm Adjustable Oil-Filled Coilovers
• Wheels: 1.2in Deep Star Beadlock
• Tyre Diameter: 68mm
• Tyre Compound: Competition-Spec Super Soft
• Radio System: 2.4GHz 4-Channel
• Battery: 11.1V 360mAh 3S LiPo
• Charger: 3S USB LiPo Charger
• Length: Approx. 229mm
• Width: Approx. 141mm
• Height: Approx. 98mm
• Wheelbase: Approx. 161mm
• Weight: Approx. 474g
• Manufacturer Part Number: HBP1810360-JURD
• GTIN: 8101005149694

Includes

• 1 x HobbyPlus CR18P Pro Juice Up Edition 1/18 Brushless 4WD Crawler Red
• 1 x Hobbywing 1621SL 3500KV Brushless Outrunner Motor Installed
• 1 x Hobbywing QuickRun WP Mini Brushless ESC Installed
• 1 x Steering Servo Installed
• 1 x 2.4GHz 4-Channel Radio System
• 1 x 11.1V 360mAh 3S LiPo Battery
• 1 x 3S USB LiPo Charger
• 1 x Set of Front Brass Wheel Hexes
• 1 x Set of Front and Rear Brass Wheel Weights
• 1 x Optional 27% Rear Underdrive Pinion and Ring Gear Set
• 1 x Instruction Manual

Required To Complete

• 4 x Transmitter Batteries
• Suitable USB Power Source for the Included Charger

FAQ

Is the CR18P Pro Juice Up Edition brushed or brushless? The Juice Up Edition is brushless. It uses a Hobbywing 1621SL 3500KV 12-pole outrunner motor with a Hobbywing QuickRun WP Mini brushless ESC.

Does HBP1810360-JURD include a battery and charger? Yes. The RTR package includes an 11.1V 360mAh 3S LiPo battery and a 3S USB LiPo charger.

Can the Hobbywing system run on 2S as well as 3S? Yes. Published specifications identify the Hobbywing motor and ESC as compatible with 2S and 3S LiPo power. The RTR package is supplied with a 3S 360mAh LiPo battery.

Does the CR18P Pro Juice Up have front overdrive and rear underdrive? The crawler uses front overdrive gearing, while an optional 27% rear underdrive pinion and ring gear set is included for drivers who want to alter the front-to-rear wheel-speed relationship further.

Why does the Juice Up Edition use overdrive and underdrive gearing? Running the front wheels faster relative to the rear can help the front tyres pull the crawler through climbs and turns. The included rear underdrive gearing provides an additional drivetrain tuning option for technical crawling.

Are the brass parts already included? Yes. The Juice Up package includes oversized brass wheel hexes for the front axle and brass wheel weights for the front and rear.

Are the wheels beadlock? Yes. The CR18P Pro Juice Up uses 1.2-inch Deep Star plastic beadlock wheels, allowing the tyres to be mechanically retained rather than permanently glued to the wheels.

How large are the tyres? Published specifications list the competition-spec super-soft tyres at approximately 68mm diameter.

Is the ESC waterproof? The Hobbywing QuickRun WP Mini brushless ESC is published with an IP67 waterproof rating. Other vehicle components may have different levels of water resistance, so the complete crawler should not be assumed to have the same IP67 rating.

Important Notes

• The included rear 27% underdrive gear set is an optional tuning component rather than a statement that the crawler necessarily arrives with that gearing installed
• Published current chassis specifications are approximately 229mm long, 141mm wide, 98mm high, 161mm wheelbase and 474g
• Transmitter batteries are required separately
• Follow appropriate LiPo charging, storage and handling procedures
