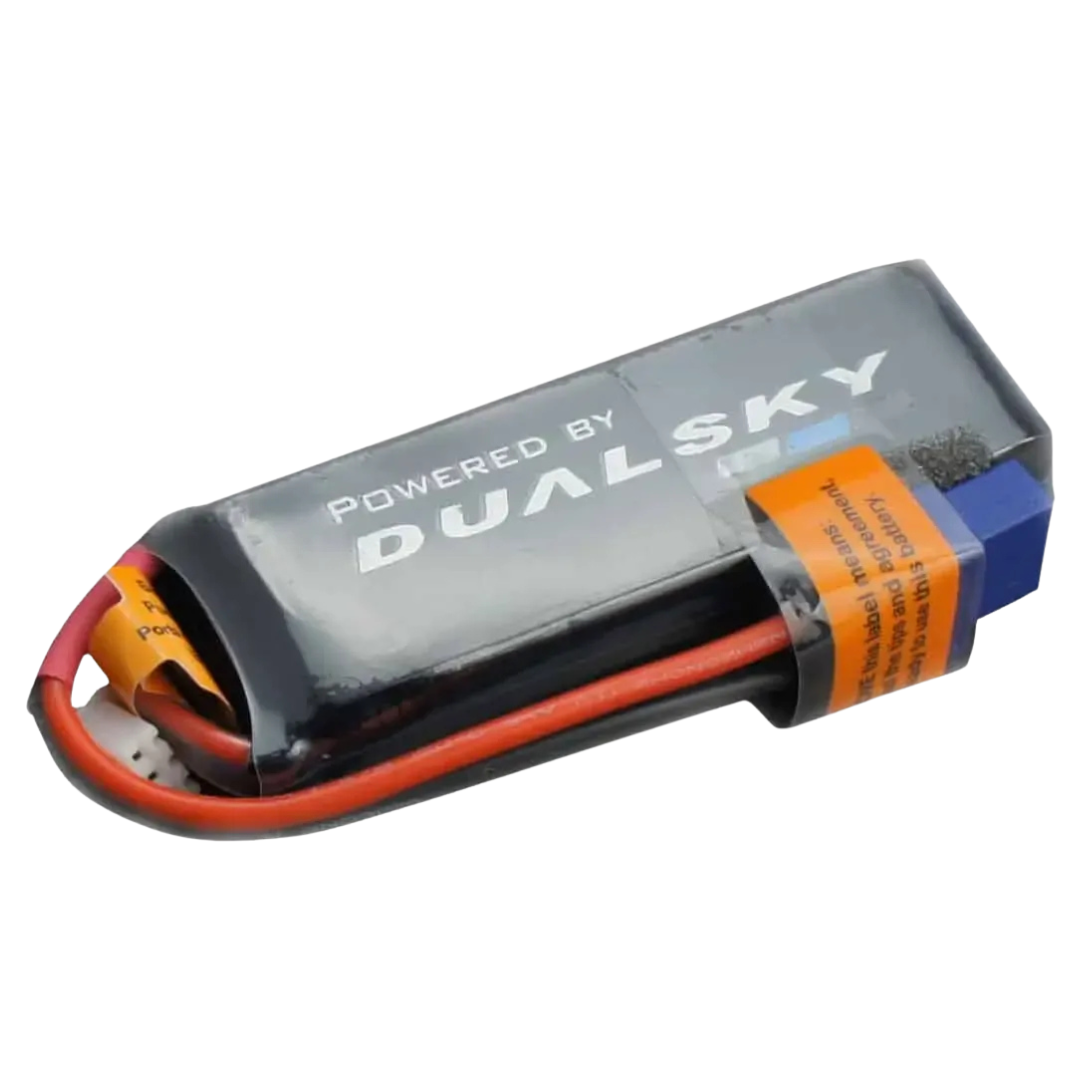

Dualsky HED 900mAh 2S 7.4V 45C LiPo Battery XT60 DSB31797

The Dualsky DSB31797 HED LiPo Battery is a compact 2S 7.4V battery with XT60 connector, designed for compatible park flyers and lightweight RC models needing a small, high-output battery pack.

Features

• Compact 2S LiPo Pack: 7.4V 2S1P battery format suits compatible RC park flyers and lightweight aircraft
• HED Series Construction: Dualsky HED series batteries are designed for high-performance discharge and durable use
• XT60 Connector: Pre-fitted XT60 connector suits models and ESCs using the same plug type
• 16AWG Wiring: Supplied with 16AWG wiring for the listed current rating
• 5C Charge Capability: Listed with 5C maximum charge rating when used with a suitable LiPo balance charger
• Lightweight Pack: 56g weight helps keep smaller aircraft and park flyers light
• Park Flyer Suitable: Listed as suited for park flyer applications

Specifications

• Brand: Dualsky
• Part Number: DSB31797
• Barcode: 6941047117976
• Product Type: LiPo battery pack
• Series: HED
• Capacity: 900mAh as listed in detailed specifications
• Advertised Title Capacity: 1000mAh
• Voltage: 7.4V nominal
• Energy: 6.7Wh
• Cell Count: 2S1P
• Connector Type: XT60
• Wiring: 16AWG
• Maximum Charge Rate: 5C
• Maximum Charge Current: 4.5A
• Maximum Continuous Discharge: 45C as listed in detailed specifications
• Advertised Title Discharge Rating: 50C
• Maximum Continuous Current: 41A
• Maximum Cruise Power: 95W
• Recommended Aerobatic Model Weight: Up to 0.5kg
• Recommended Extreme 3D Model Weight: Up to 0.3kg
• Suited For: Park flyers
• Dimensions: 73 x 24 x 14mm
• Weight: 56g

Includes

• 1 x Dualsky DSB31797 HED 2S 7.4V LiPo battery with XT60 connector

FAQ

Is the Dualsky DSB31797 a 900mAh or 1000mAh battery? The product title is commonly listed as 1000mAh, but the detailed specifications list 900mAh and 6.7Wh. OZRC recommends using the detailed specification data when checking model compatibility.

Is the Dualsky DSB31797 a 45C or 50C battery? The product title is commonly listed as 50C, while the detailed specifications list 45C maximum continuous discharge and 41A maximum continuous current.

What connector does this battery use? The Dualsky DSB31797 is supplied with an XT60 connector.

What models is this battery suited for? The Dualsky DSB31797 is listed as suited for park flyers and compatible lightweight RC models that can use a 2S 7.4V LiPo with XT60 connector.

Does this battery include a charger? No. This listing is for the battery only. A compatible LiPo balance charger is required separately.

Important Notes

• There is a supplier data mismatch: the product title states 1000mAh and 50C, while the detailed specifications state 900mAh and 45C continuous discharge.
• Use only with RC models designed for 2S 7.4V LiPo batteries.
• Requires a compatible LiPo balance charger, sold separately.
• Check battery bay size, connector type, ESC rating, model centre of gravity, and current requirements before installation.
• Always charge, store, and transport LiPo batteries safely using appropriate LiPo safety practices and a LiPo charging bag.
• Do not over-discharge, overcharge, puncture, crush, short circuit, or leave LiPo batteries unattended while charging.
