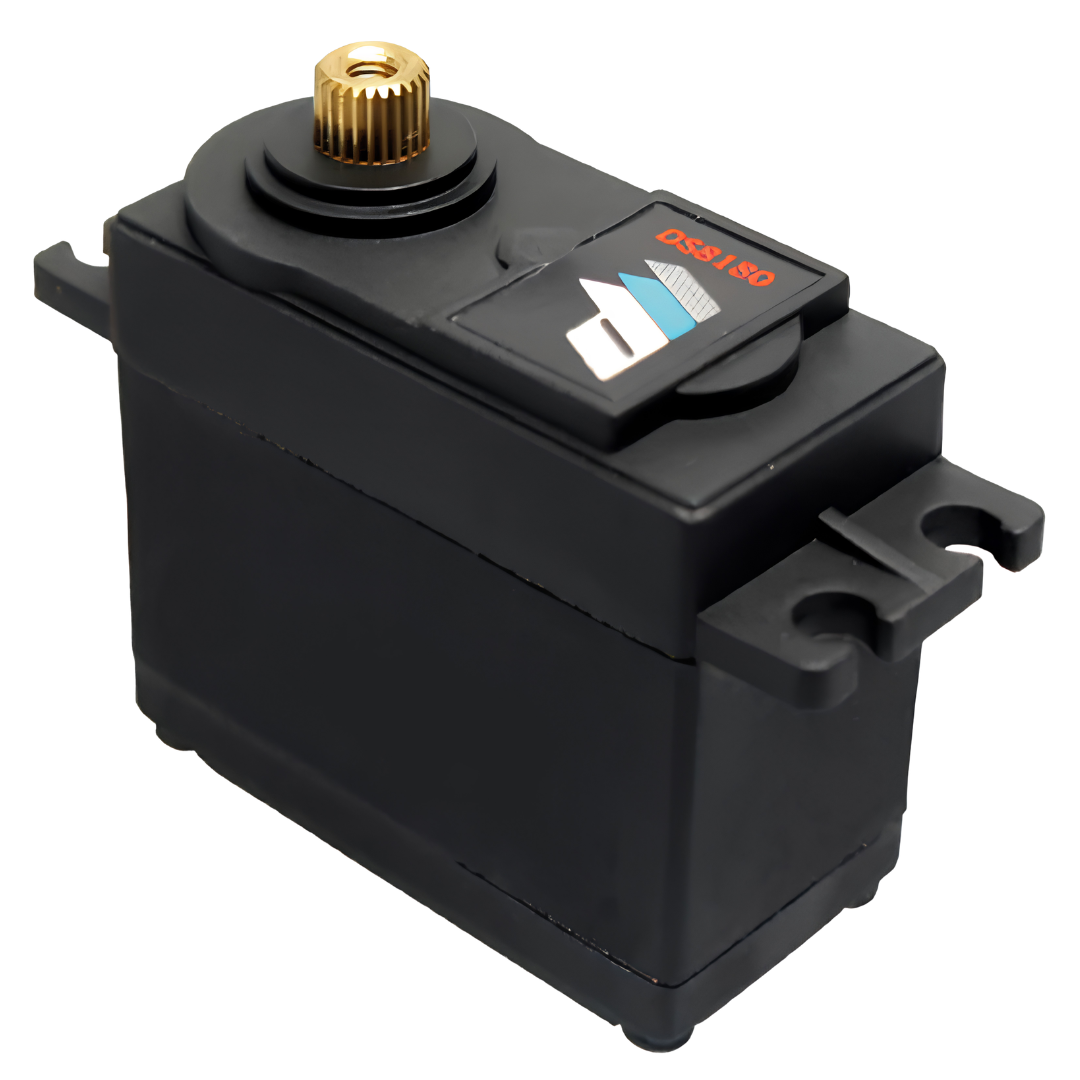

Dualsky DS8180 Digital HV Metal Gear Servo 10kg 7.4V DS8180

The Dualsky DS8180 is a standard-size digital high-voltage metal gear servo designed for compatible RC aircraft, cars, boats, and hobby models needing precise control, strong 10kg.cm torque at 7.4V, and durable dual ball bearing support.

Features

• Digital HV Servo: High-voltage digital servo designed for responsive control in compatible RC applications
• 10kg.cm Torque At 7.4V: Provides strong steering or control surface authority for suitable models
• Metal Gear Construction: Metal gears improve durability compared with plastic-geared servos in higher-load applications
• Dual Ball Bearings: Dual BB support helps improve output shaft smoothness and reduce wear
• Standard-Size Format: 40.8 x 20.1 x 38mm case size suits many standard servo mounting locations
• 30cm JR Lead: Pre-fitted 30cm JR-style servo lead provides useful wiring reach for aircraft and hobby installs
• 56g Weight: Practical standard-size servo weight for many RC models requiring a stronger digital servo
• Multi-Voltage Performance: Retailer data lists 9kg.cm at 6.0V, 10kg.cm at 7.4V, and 11kg.cm at 8.4V

Specifications

• Brand: Dualsky
• Model: DS8180
• Part Number: DS8180
• Barcode: 6941047115828
• Product Type: Digital HV servo
• Servo Class: 10kg digital metal gear servo
• Motor Type: Digital coreless motor
• Gear Type: Metal gear
• Bearing: Dual ball bearing
• Torque: 10kg.cm at 7.4V
• Listed Torque Range: 9kg.cm at 6.0V, 10kg.cm at 7.4V, 11kg.cm at 8.4V
• Listed Speed Range: 0.14sec/60° at 6.0V, 0.12sec/60° at 7.4V, 0.11sec/60° at 8.4V
• Weight: 56g
• Dimensions: 40.8 x 20.1 x 38mm
• Wiring: 30cm JR-style lead
• Application: Compatible RC aircraft, cars, boats, and hobby models requiring a standard-size digital HV servo
• Shipping Weight: 0.4000kg
• Shipping Width: 0.080m
• Shipping Height: 0.060m
• Shipping Length: 0.100m
• Shipping Cubic: 0.000480000m3

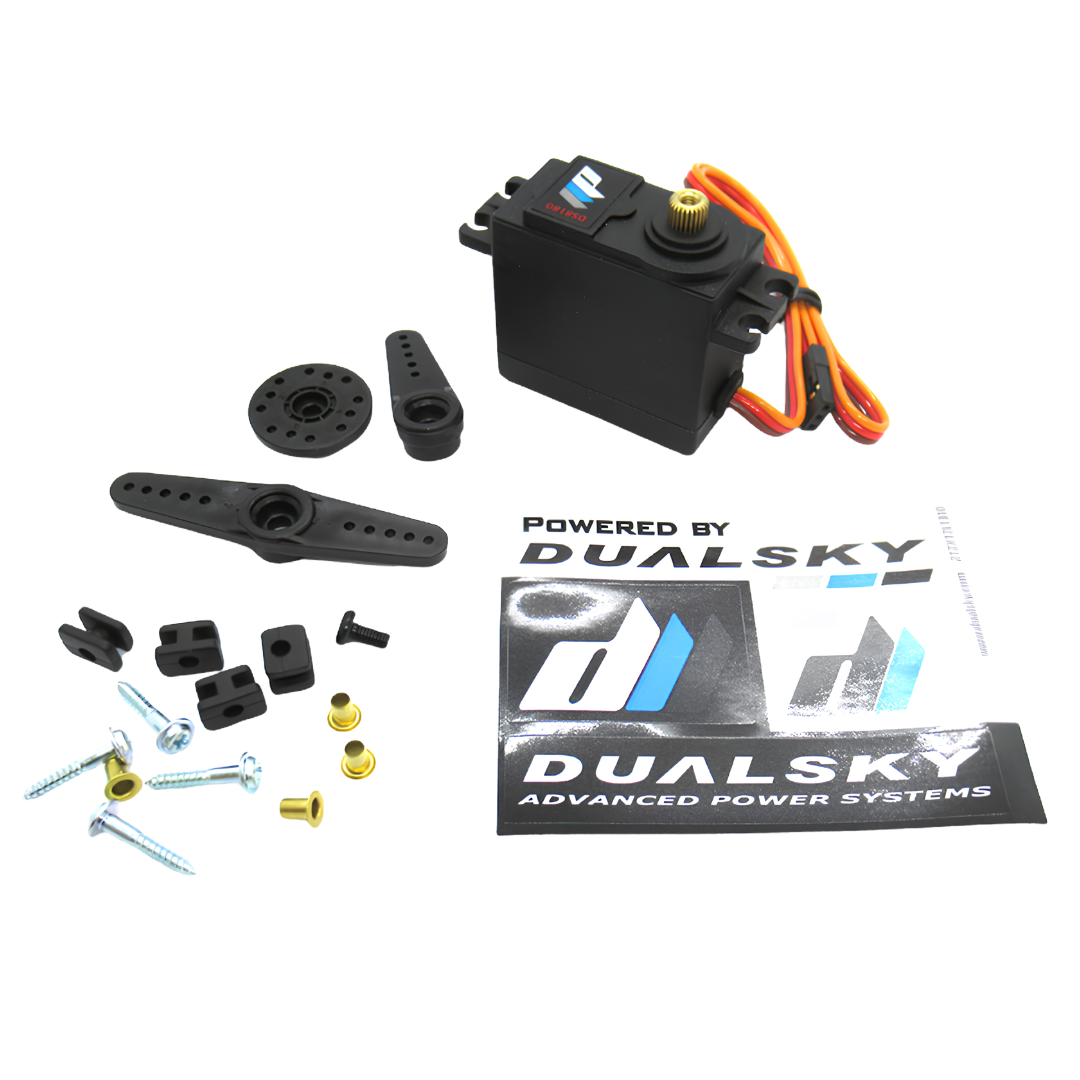

Includes

• 1 x Dualsky DS8180 digital HV metal gear servo

FAQ

What torque does the Dualsky DS8180 servo produce? The Dualsky DS8180 is listed at 10kg.cm torque at 7.4V, with retailer data also listing 9kg.cm at 6.0V and 11kg.cm at 8.4V.

Is the Dualsky DS8180 a metal gear servo? Yes. The Dualsky DS8180 is listed as a digital metal gear servo.

What size is the Dualsky DS8180? The Dualsky DS8180 measures 40.8 x 20.1 x 38mm and is a standard-size servo.

What connector lead does the DS8180 use? The Dualsky DS8180 is listed with a 30cm JR-style servo lead.

Will this servo work in my RC model? OZRC recommends checking servo size, voltage, connector style, torque requirement, travel direction, and current draw compatibility before installation.

Important Notes

• Confirm your receiver, BEC, ESC, or power system can safely supply the voltage and current required by this HV servo.
• Check servo dimensions, spline compatibility, mounting layout, and linkage geometry before installation.
• This listing is for the servo only. Servo horns, screws, extension leads, receiver, battery, and model are not included unless supplied in the original manufacturer pack.
• Avoid stalling the servo under load, as this can increase current draw and may damage the servo, receiver, or power system.
