FMS FCX18 II Ford F-100 RC Crawler 1/18 4WD RTR Cerulean FMS118L01BDCRL
Couldn't load pickup availability

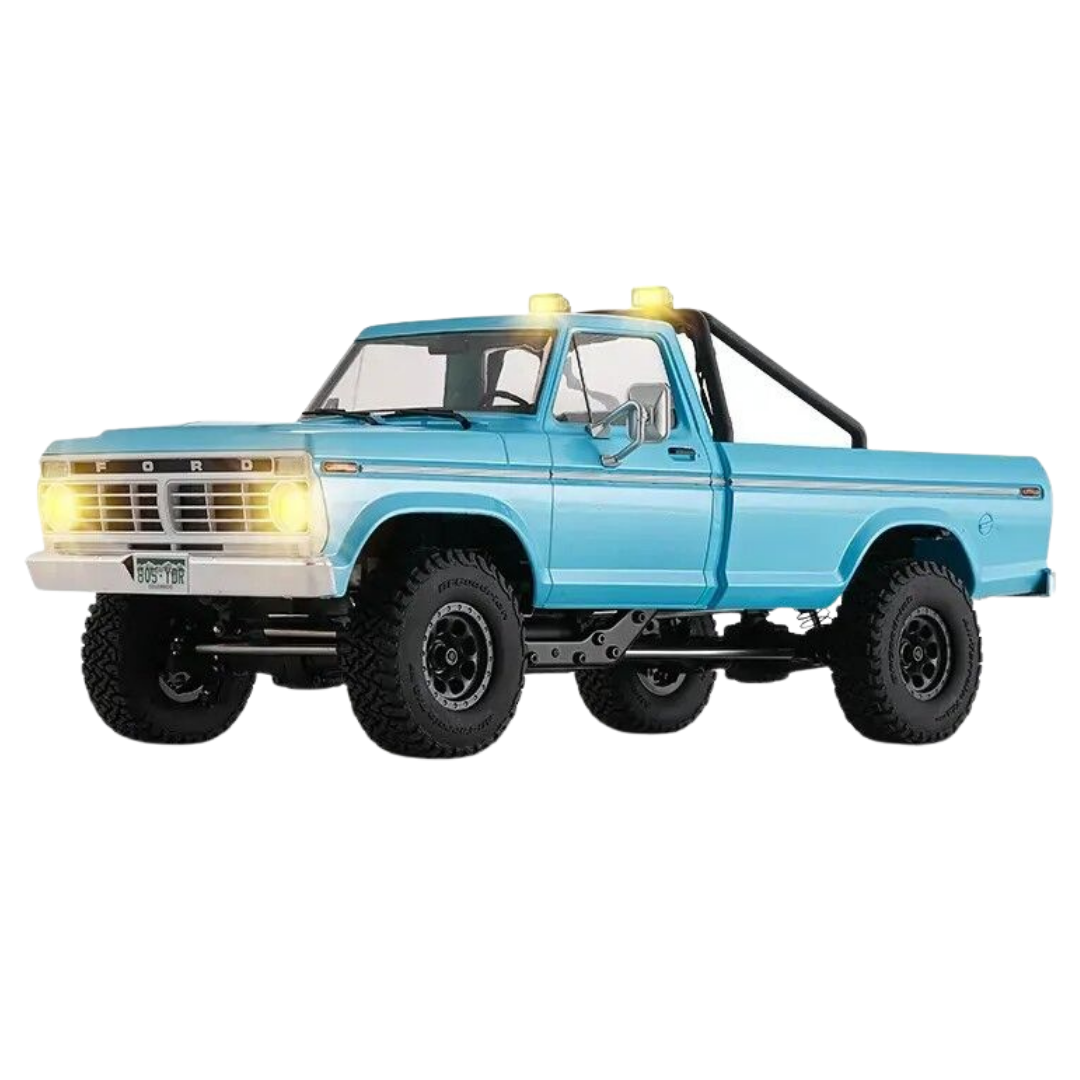

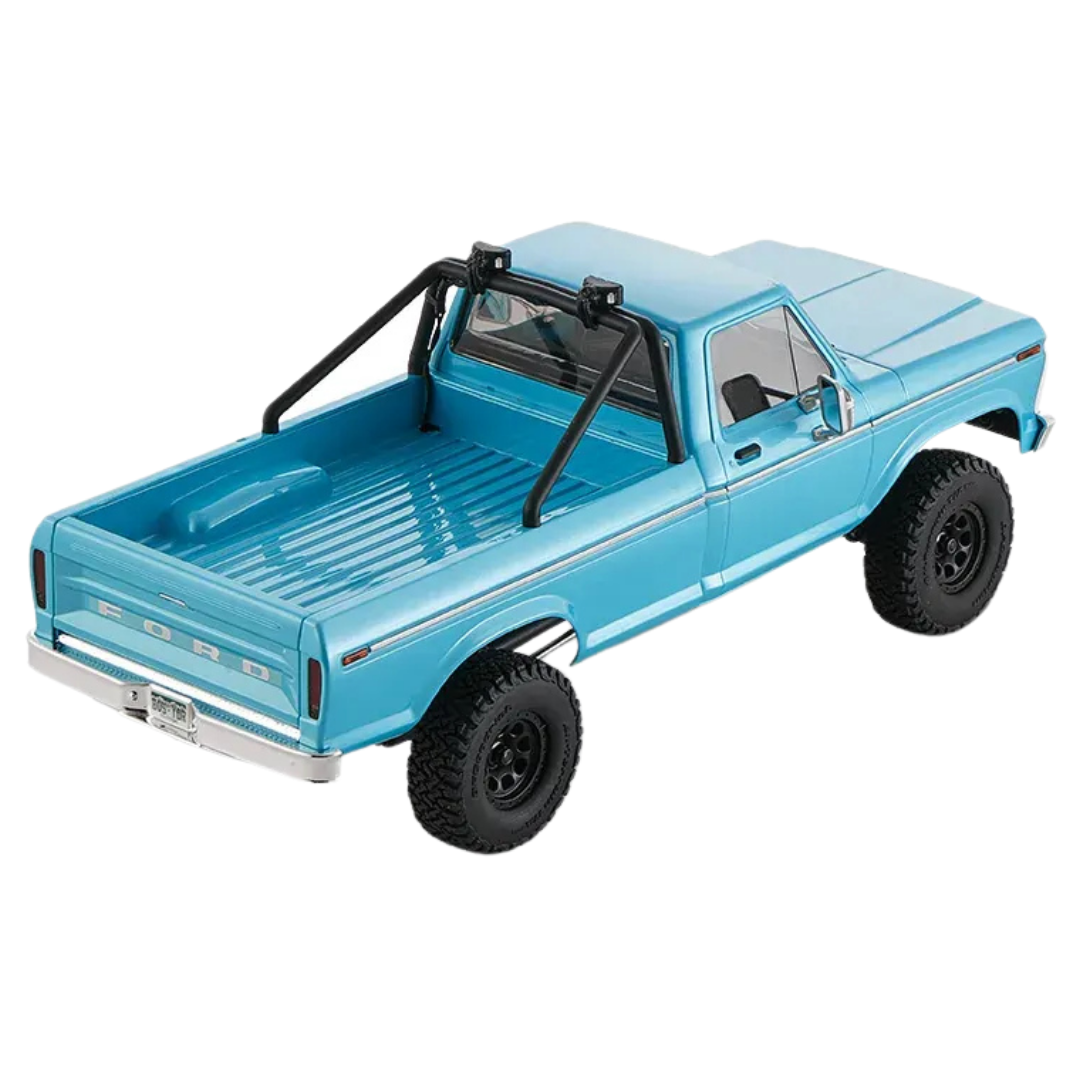

The FMS FCX18 II Ford F-100 is a 1/18 scale 4WD RTR RC crawler in Cerulean, combining an officially licensed hard-shell Ford body with a low-centre-of-gravity chassis two-speed transmission and magnetic quick-release body system for detailed scale trail driving and technical crawling
Features
- Officially licensed Ford F-100 hard-shell body
- Officially licensed BFGoodrich KO3 tyres
- All-new FCX18 II low-centre-of-gravity chassis
- Full-time 4WD drivetrain

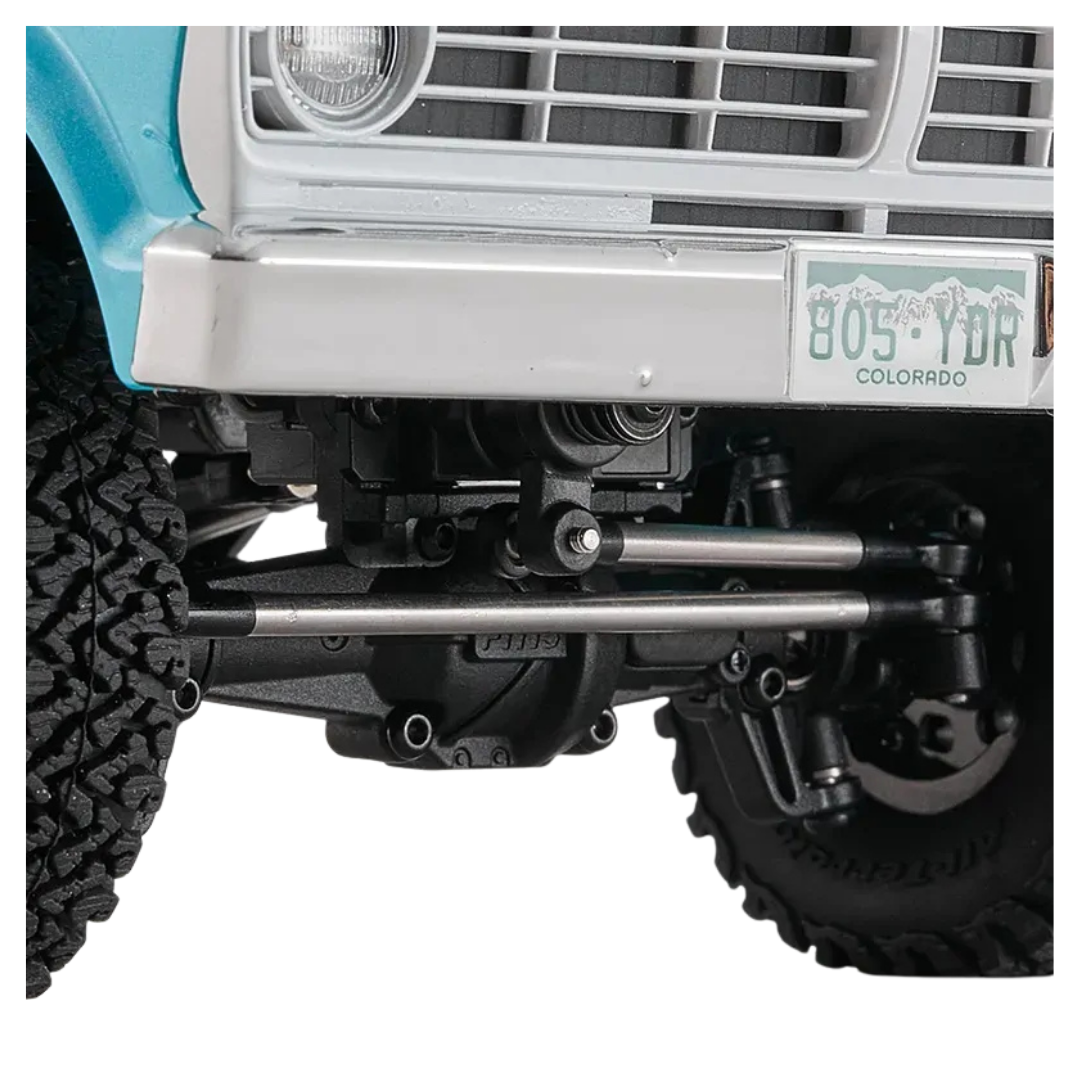

- Solid front and rear axles
- Two-speed transmission selectable from the transmitter
- Reverse transmission layout contributes to the low-centre-of-gravity chassis design
- 180-size brushed motor
- FMS-R3D-BS receiver and brushed ESC 2-in-1 unit
- Metal chassis rails gears bearings steering links and shock components
- Four-link suspension system
- Oil-filled metal shocks with multiple mounting positions

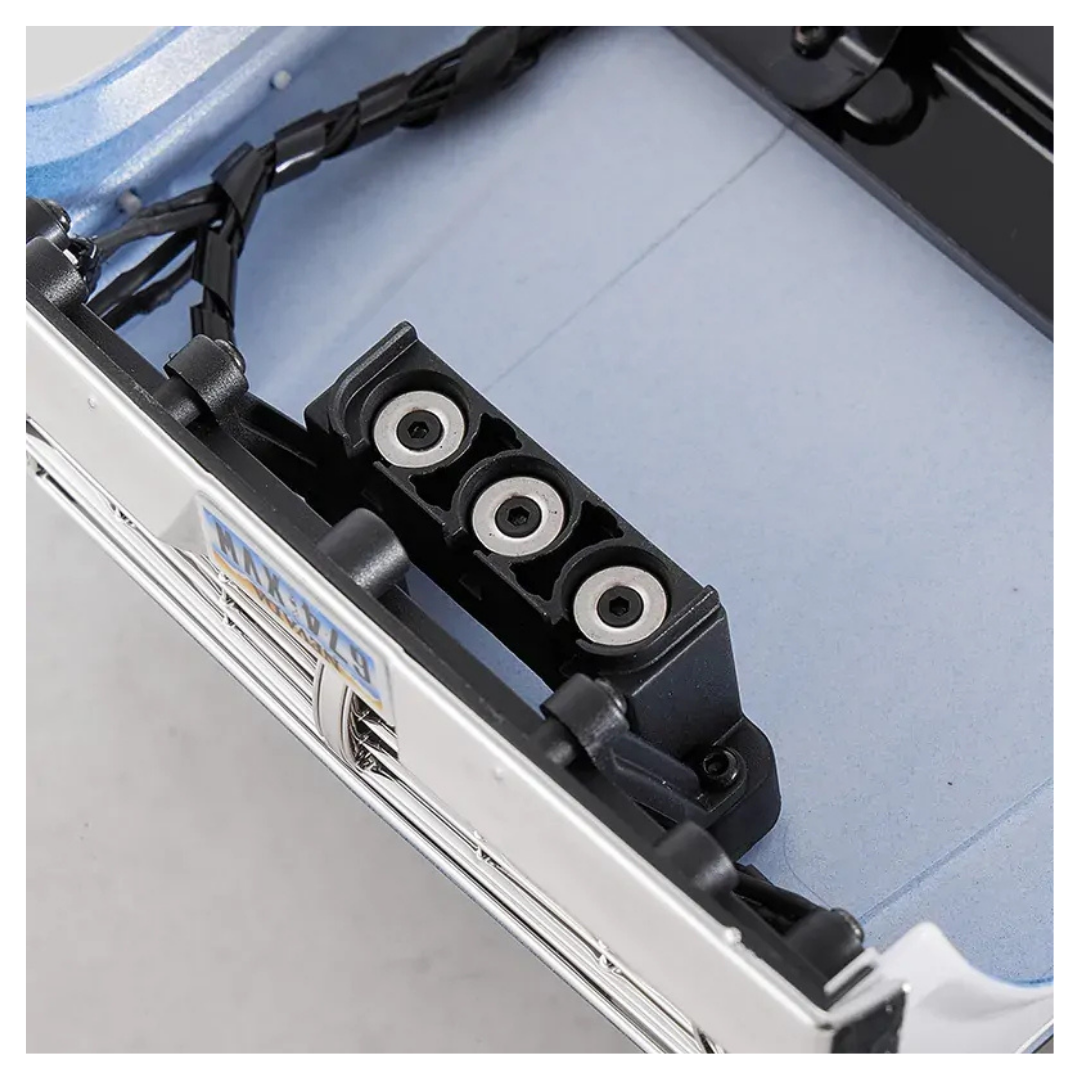

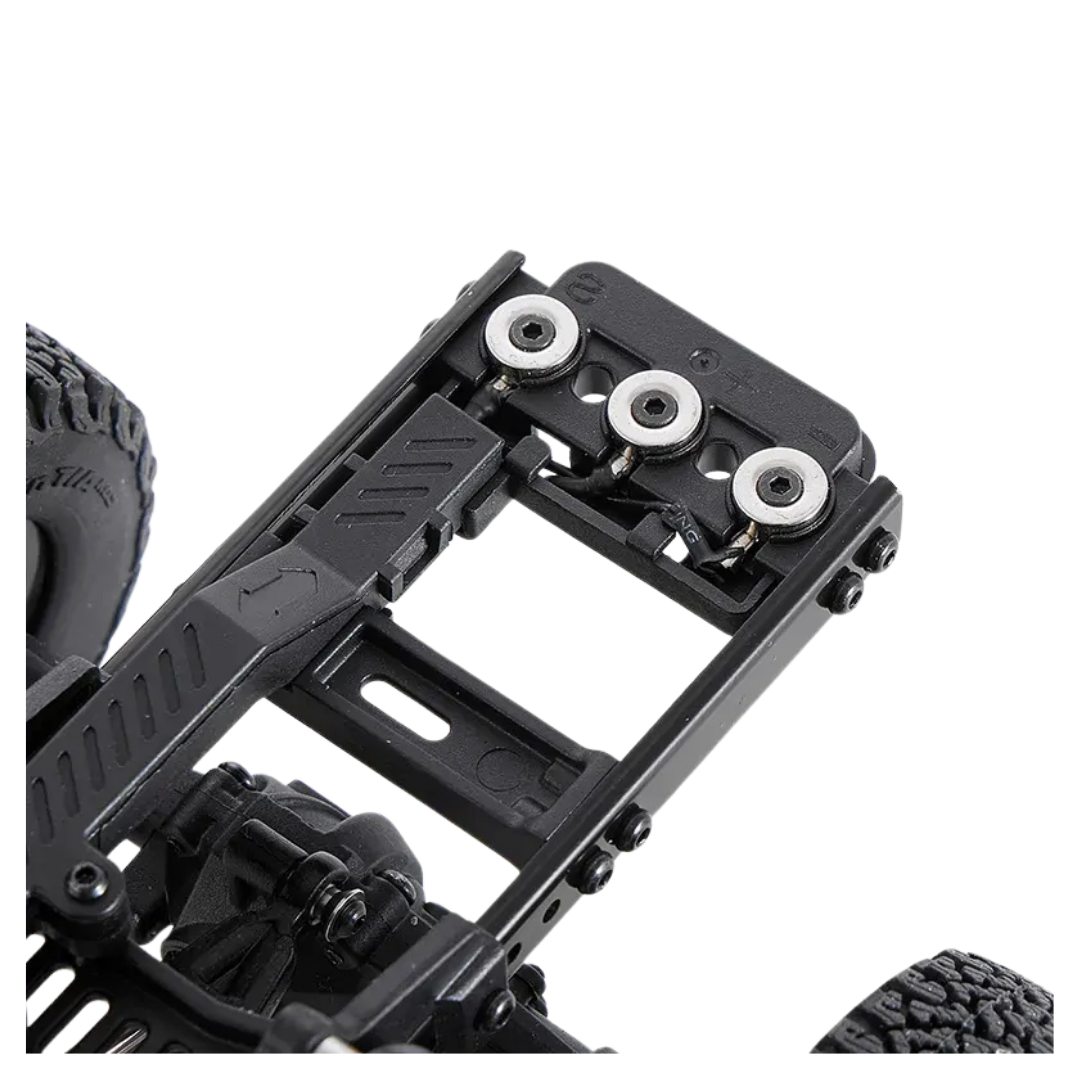

- Magnetic quick-release body system for fast chassis access
- Integrated magnetic electrical contacts automatically connect the body lighting
- Detailed moulded interior with steering wheel mirrors and scale detailing

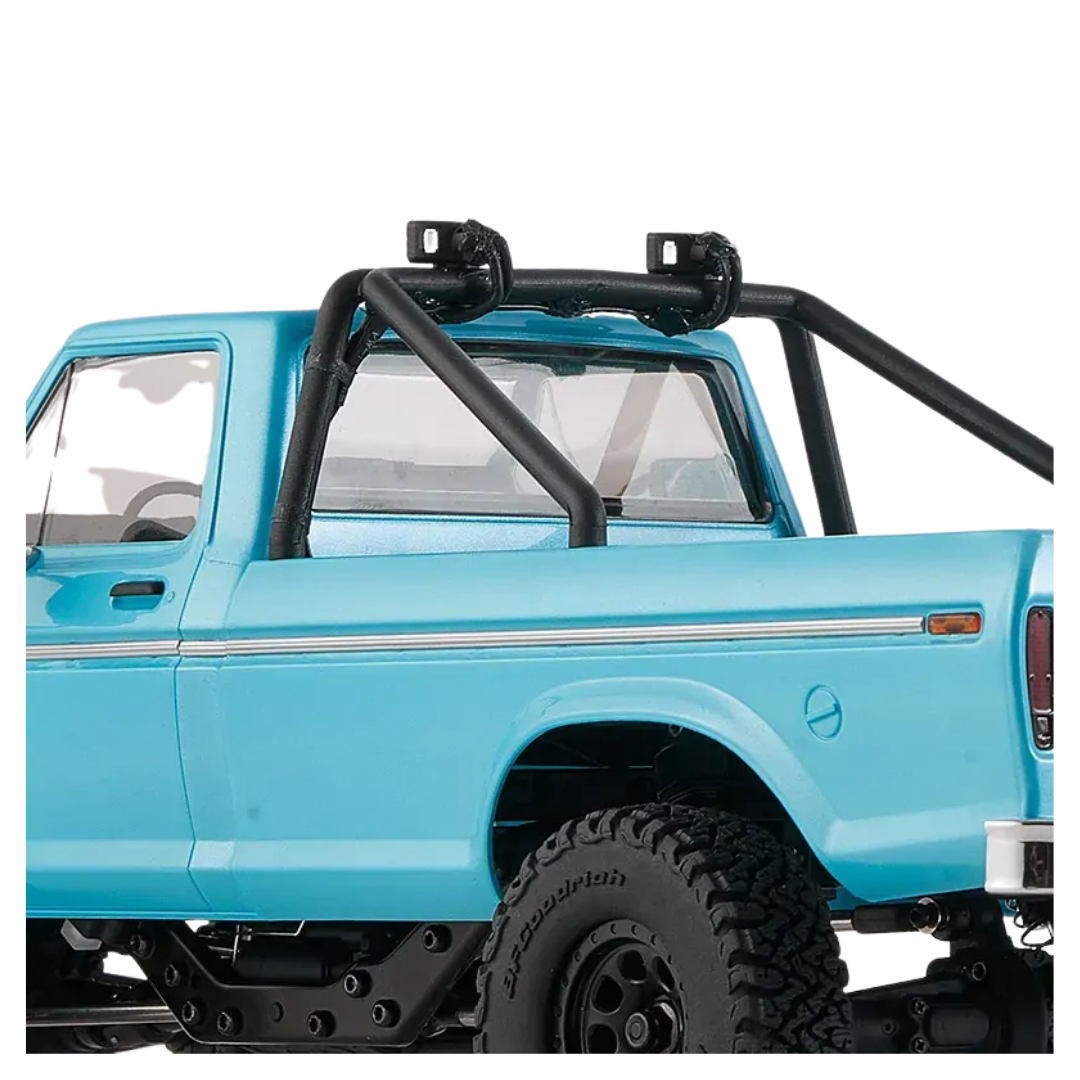

- Controllable headlights taillights turn signals and roof spotlights
- Multiple lighting modes controlled through the radio system
- Extensive FCX18 II upgrade parts available separately
Specifications
- Brand: FMS
- Model: FCX18 II Ford F-100
- Product Type: RC Rock Crawler
- Scale: 1/18
- Completion Level: RTR
- Drive: Full-Time 4WD
- Axle Type: Solid Axles
- Chassis: FCX18 II Low Centre of Gravity
- Length: 330mm
- Width: 145mm
- Height: 147mm
- Wheelbase: 199mm
- Ground Clearance: 31mm
- Tyre Size: 58 x 19mm
- Tyres: Licensed BFGoodrich KO3
- Approach Angle: 59°
- Departure Angle: 53°
- Transmission: 2-Speed
- High Gear Ratio: 17.7:1
- Low Gear Ratio: 94.2:1
- Motor: 180 Brushed
- Receiver and ESC: FMS-R3D-BS 2-in-1
- Radio System: FS-MG44 2.4GHz Transmitter
- Radio Range: Approximately 80m
- Battery: 2S 7.4V 900mAh LiPo
- Approximate Run Time: 40 to 60 Minutes
- Body Type: Hard Shell with Moulded Interior
- Colour: Cerulean
- Manufacturer Part Number: FMS118L01BDCRL
Includes
- 1 x FMS FCX18 II Ford F-100 1/18 4WD RTR Crawler Cerulean
- 1 x FS-MG44 2.4GHz Transmitter
- 1 x Installed FMS-R3D-BS Receiver and ESC 2-in-1 Unit
- 1 x Installed 180 Brushed Motor
- 1 x 2S 7.4V 900mAh LiPo Battery
- 1 x USB Battery Charger
- 1 x Decal Sheet
- 1 x Product Manual
Required To Complete
- 4 x AAA Batteries for the Transmitter
FAQ
Is the FMS FCX18 II Ford F-100 ready to run? Yes, the Cerulean FCX18 II F-100 is supplied RTR with the radio system 900mAh LiPo battery and USB charger and only four AAA transmitter batteries are required separately
Does the FCX18 II Ford F-100 have portal axles? No, the standard FCX18 II Ford F-100 uses solid axles while compatible portal axle assemblies are available separately as upgrades
How does the magnetic quick-release body work? Eleven magnets secure the body while integrated electrical contacts automatically connect the LED lighting system when the shell is fitted
Does the FCX18 II Ford F-100 have a two-speed transmission? Yes, low gear provides a 94.2:1 ratio for controlled crawling while high gear uses a 17.7:1 ratio for faster trail driving
Important Notes
- Four AAA batteries for the transmitter are required separately
- The standard vehicle uses solid axles rather than portal axles
- Portal axle assemblies and other FCX18 II upgrades are available separately
