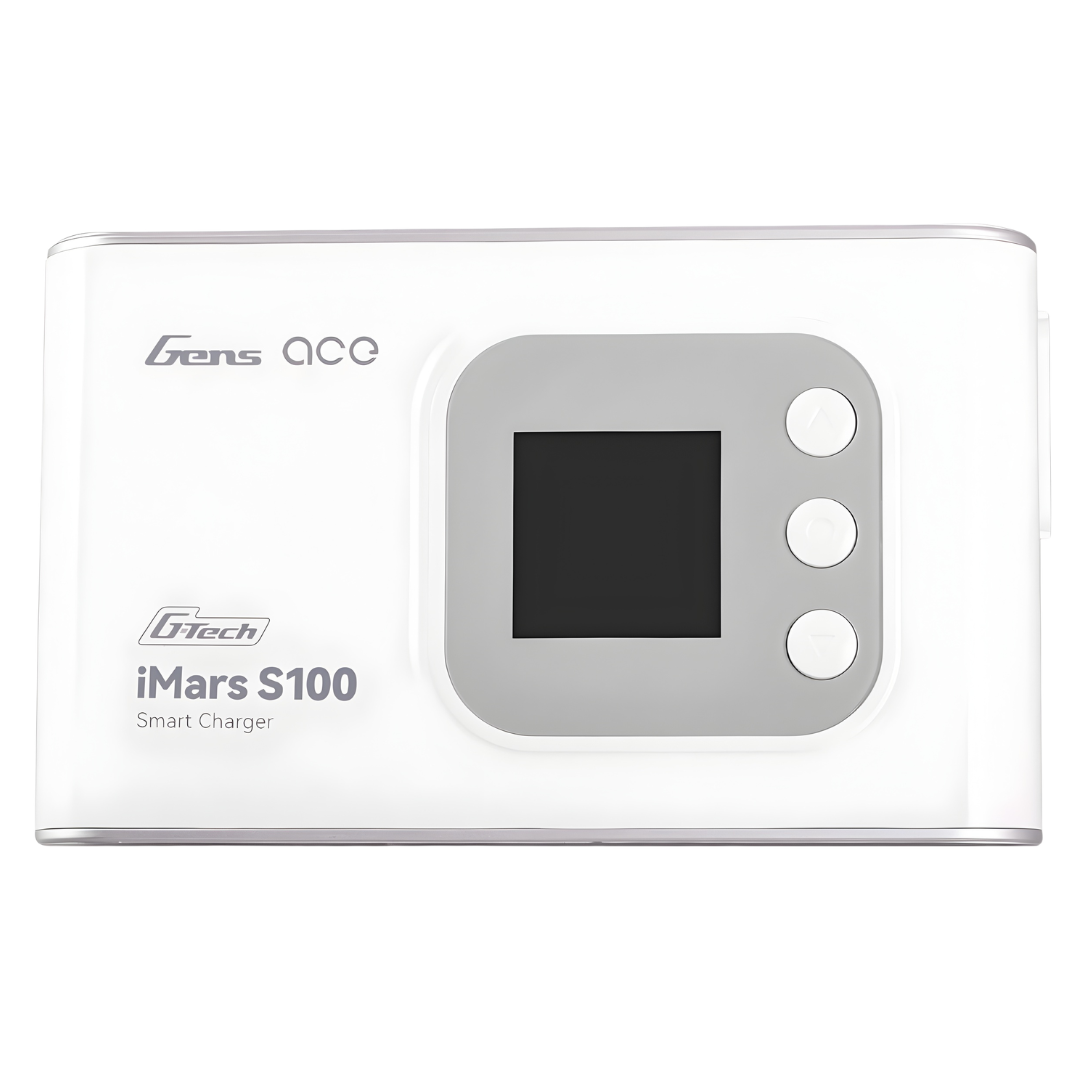

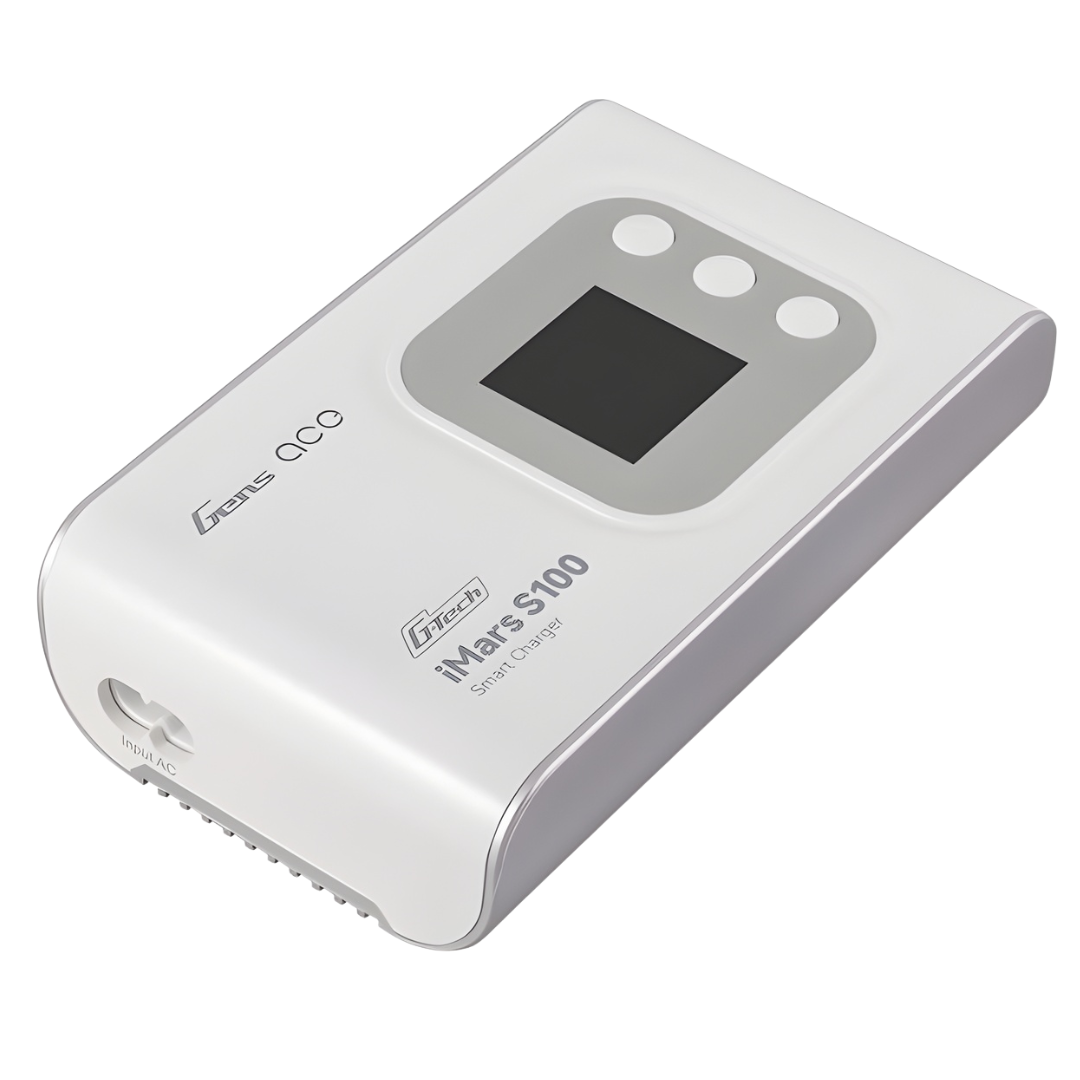

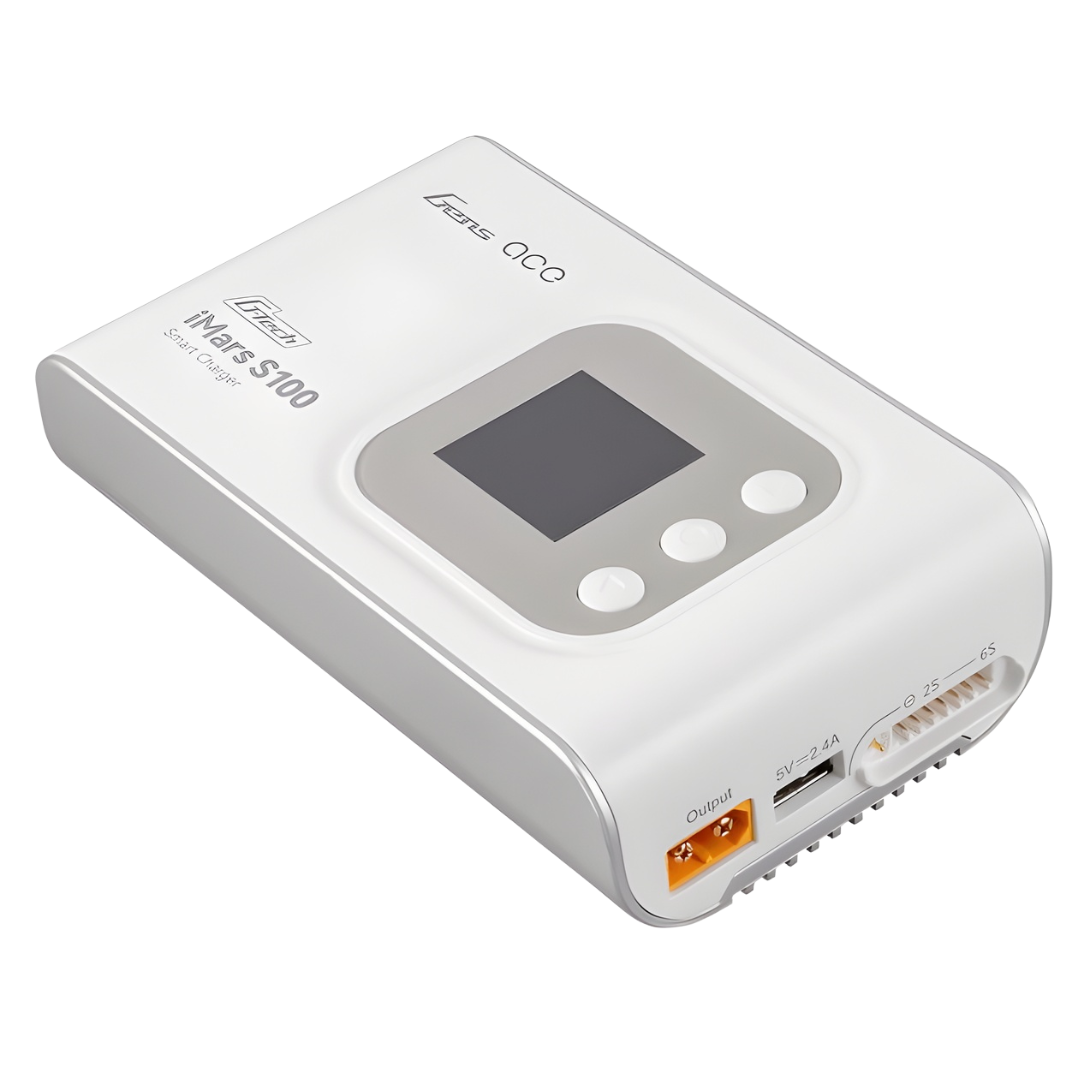

Gens Ace iMars S100 G-Tech 100W AC Smart Charger White GEAS100-AW

The Gens Ace iMars S100 G-Tech 100W AC Smart Balance Charger White GEAS100-AW is a compact, single-channel RC battery charger designed for convenient charging at home, in the workshop or at the track. Featuring 100W maximum charging power, up to 10A charging current and universal 100–240V AC input, it supports 2S–6S LiPo, Li-ion, LiHV and LiFe batteries as well as 4–18-cell NiMH packs. Gens Ace G-Tech smart battery recognition simplifies charging setup for compatible smart batteries, while conventional batteries can be charged using manually selected settings. With a clear display, physical control buttons, balance charging, discharge and storage functions, the iMars S100 offers versatile battery management in a compact white housing.

Features

• 100W AC Charging Power: Delivers up to 100W of charging power for compatible rechargeable RC batteries
• Up to 10A Charge Current: Adjustable charging current for batteries within the charger's supported operating limits
• G-Tech Smart Battery Recognition: Automatically identifies supported Gens Ace G-Tech batteries to simplify charging setup
• Conventional Battery Compatibility: Supports non-smart RC batteries with manual battery type and charging parameter selection
• Universal AC Power Input: Operates from 100–240V AC mains power without requiring a separate external DC power supply
• 2S–6S Lithium Battery Support: Compatible with LiPo, Li-ion, LiHV and LiFe battery chemistries
• 4–18-Cell NiMH Support: Provides charging functionality for compatible nickel-metal hydride battery packs
• Balance Charging: Monitors and balances individual cells in compatible lithium battery packs
• Multiple Battery Management Functions: Supports charging, discharging, storage and balancing modes
• XT60 Output Connector: Common RC battery charging connection with adapter options for other popular connector types
• Mechanical Control Buttons: Physical keys provide straightforward menu navigation and charging setup
• Clear Status Display: Displays charging information and operating settings
• Single-Channel Design: Charges one compatible battery pack at a time
• Compact White Housing: Convenient size for RC workbenches, pit bags and hobby charging stations
• G-Tech Ecosystem Integration: Designed for convenient use with compatible Gens Ace G-Tech smart batteries

Specifications

• Brand: Gens Ace
• Product Range: iMars S100 G-Tech
• Product Type: AC Smart Balance Battery Charger
• Colour: White
• Manufacturer / Supplier SKU: GEAS100-AW
• Barcode / UPC: 889551121309
• Charging Channels: 1
• AC Input Voltage: 100–240V AC
• AC Input Frequency: 50–60Hz
• Maximum AC Input Current: 1.5A
• Maximum Charging Power: 100W
• Maximum Charging Current: 10A
• Maximum Output Voltage: 27V
• Maximum Discharge Power: 5W
• Maximum Discharge Current: 0.4A
• Supported Lithium Chemistries: LiPo, Li-ion, LiHV and LiFe
• Supported Lithium Cell Count: 2S–6S
• Supported NiMH Cell Count: 4–18 Cells
• Charging Functions: Charge, Discharge, Storage and Balance
• G-Tech Smart Battery Compatibility: Yes
• Non-Smart Battery Compatibility: Yes
• AC Power Connection: Mains Input
• Battery Output Connector: XT60
• Control Interface: Physical Buttons and Display
• Length: 139.8mm
• Width: 83mm
• Height: 40mm
• Weight: Approximately 260–310g Depending on Published Regional Specification

Compatibility

The Gens Ace iMars S100 supports compatible 2S–6S LiPo, Li-ion, LiHV and LiFe battery packs, plus 4–18-cell NiMH batteries. It is designed for Gens Ace G-Tech smart batteries but also supports conventional non-smart batteries when the correct charging settings and connections are used.

Battery compatibility depends on chemistry, cell count, charging current, connector type and the manufacturer's charging instructions. An appropriate charging lead or adapter may be required for batteries without an XT60 connector.

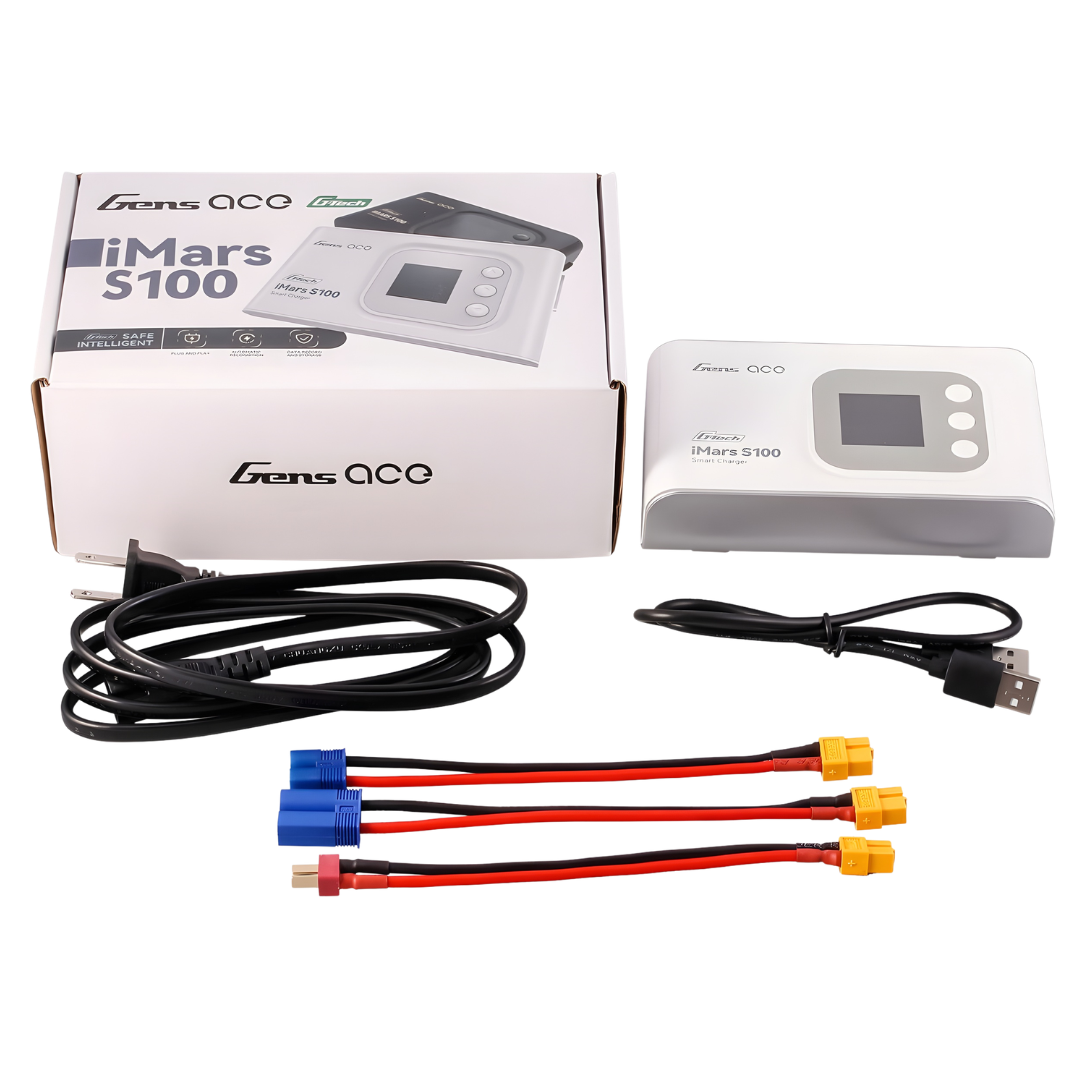

Includes

• 1 x Gens Ace iMars S100 G-Tech 100W AC Smart Balance Charger - White
• 1 x AC Power Cable

Required To Complete

• Compatible Rechargeable RC Battery
• Suitable Battery Charging Adapter or Lead, If Required
• Appropriate AC Mains Power Outlet

FAQ

What batteries can the Gens Ace iMars S100 charge? The charger supports compatible 2S–6S LiPo, Li-ion, LiHV and LiFe batteries, plus 4–18-cell NiMH battery packs. The correct battery chemistry, cell count and charging parameters must be selected.

Does the iMars S100 work with non-G-Tech batteries? Yes. It can charge compatible conventional batteries. G-Tech smart batteries provide automatic recognition, while non-smart batteries require the appropriate settings to be selected manually.

What is the maximum charging power? The charger provides up to 100W of charging power and up to 10A charging current. The actual current available depends on battery voltage and the charger's power limits.

Does the charger need an external DC power supply? No. The iMars S100 supports direct 100–240V AC mains input and is supplied with an AC power cable according to the product information.

Can the iMars S100 charge a 6S LiPo battery? Yes. It supports compatible 6S lithium battery packs. However, the full 10A charge current will not be available at higher battery voltages because the charger is limited to 100W output.

Can it charge a 1S LiPo battery? No. The manufacturer's specified lithium battery range begins at 2S.

Does the iMars S100 support balance charging? Yes. It supports balance charging for compatible 2S–6S lithium battery packs. Use the correct charging and balance connections for the battery.

Does it have a storage mode for LiPo batteries? Yes. The charger provides storage functionality to help bring supported lithium battery packs towards an appropriate storage voltage.

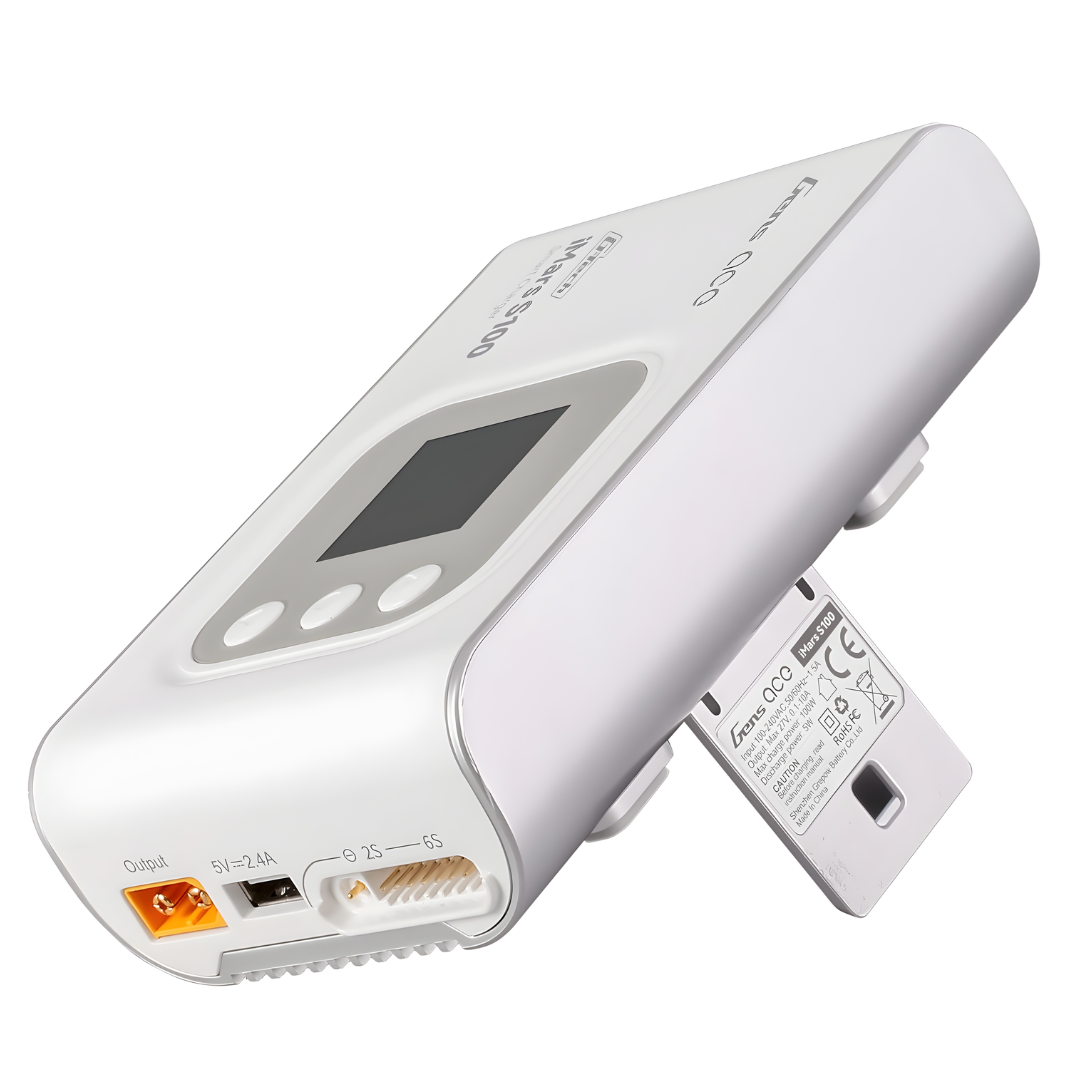

What connector does the charger use? The charging output uses an XT60 connector. Batteries with other connectors may require a compatible charging adapter.

Can I charge two batteries at once? No. The iMars S100 is a single-channel charger designed to charge one compatible battery pack at a time.

What is the difference between G-Tech and standard battery charging? Compatible G-Tech batteries communicate battery information to simplify charger setup. Conventional batteries do not provide the same smart recognition and require manual confirmation of charging settings.

Is the iMars S100 suitable for RC cars and aircraft? Yes. It supports a range of compatible batteries used in RC cars, trucks, helicopters, drones and aircraft, provided their charging requirements fall within the charger's specifications.

Important Notes

• This listing is for the white Gens Ace iMars S100 charger, SKU GEAS100-AW
• One AC power cable is confirmed in the supplied package information
• Additional connector adapters and a USB cable are listed for some regional versions; verify the actual GEAS100-AW package before advertising them as included
• The charger has one charging channel and is intended for one battery pack at a time
• Maximum charging power is 100W; maximum charging current is 10A, subject to battery voltage and power limits
• Use only supported battery chemistries and cell counts
• Conventional batteries require correct manual charging settings
• Always connect battery power and balance leads according to the manufacturer's instructions
• Confirm the supplied AC power cable has the correct plug for your region
• Never leave batteries unattended while charging
• Do not charge damaged, swollen, punctured or excessively hot batteries
• Use suitable LiPo charging safety precautions and a fire-resistant charging location
