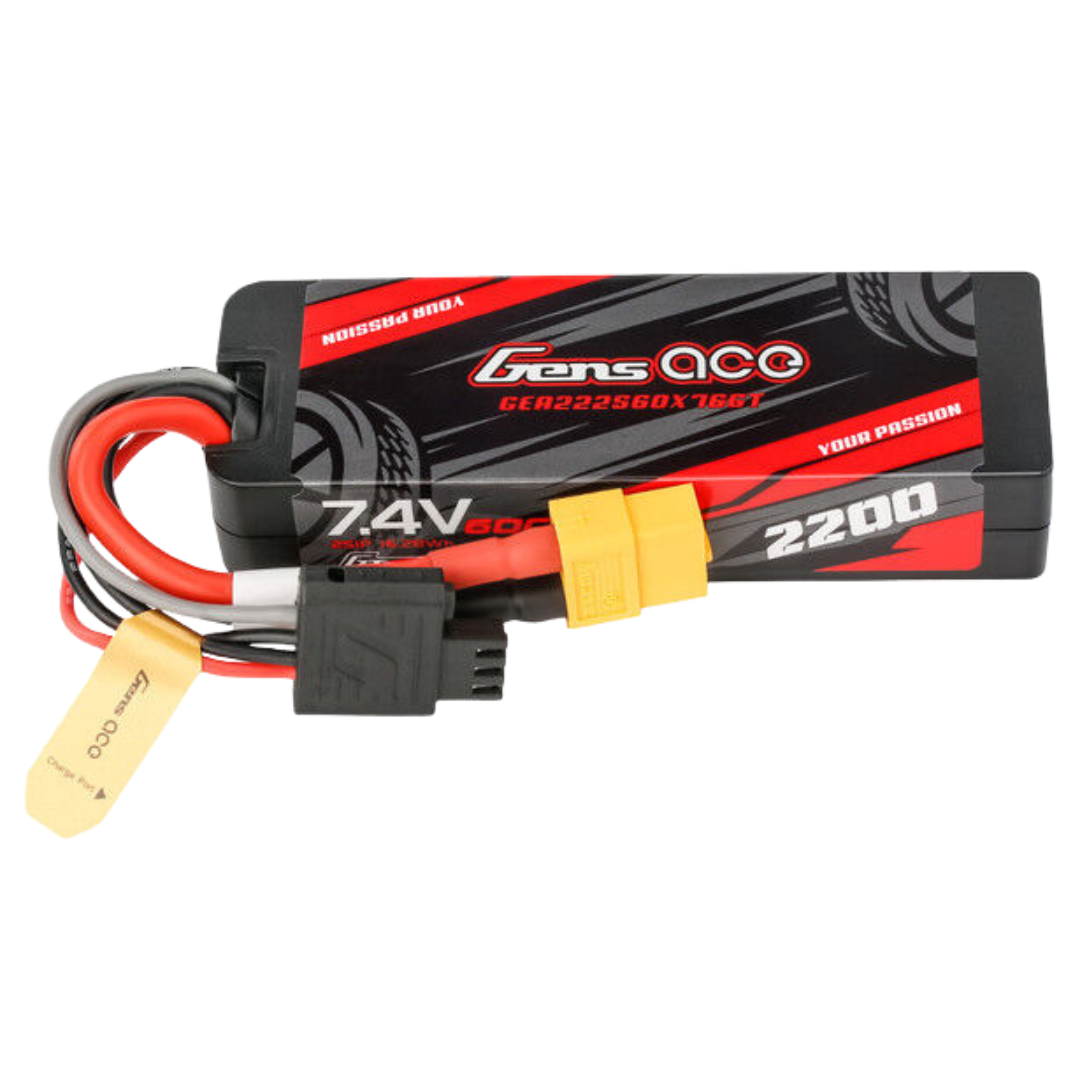

Gens ace 2200mAh 2S 60C G-Tech Hardcase LiPo XT60 GEA222S60X76GT
Couldn't load pickup availability
The Gens ace 2200mAh 2S 60C G-Tech LiPo Battery is a compact 7.4V hard-case pack with an XT60 connector, designed for compatible RC vehicles requiring a lightweight 2S battery with strong current delivery and G-Tech charging support.
Features
- 2200mAh Capacity: Provides a practical balance of runtime and compact battery size for compatible RC applications
- 2S LiPo Power: Two-cell 2S1P configuration provides a nominal voltage of 7.4V
- 60C Discharge Rating: Designed to provide consistent current delivery for compatible RC power systems
- Hard Case Construction: Protective outer case helps shield the LiPo cells during normal RC vehicle use
- XT60 Power Connector: Factory-fitted XT60 discharge plug provides a secure connection to compatible ESCs and wiring
- G-Tech 3P Balance Connector: Supports balance charging and G-Tech functionality with compatible charging equipment
- Compact Dimensions: Measures approximately 92.8 x 31.8 x 17.6mm for vehicles with limited battery space
- 12AWG Power Leads: Heavy-gauge discharge wiring supports the battery's intended RC power delivery
Specifications
- Brand: Gens ace
- Range: G-Tech
- Product Type: RC LiPo Battery
- Battery Chemistry: Lithium Polymer
- Minimum Capacity: 2200mAh
- Voltage: 7.4V
- Cell Count: 2S / 2 Cell
- Cell Configuration: 2S1P
- Discharge Rating: 60C
- Case Type: Hard Case
- Discharge Connector: XT60
- Balance Connector: G-Tech 3P
- Discharge Wire Gauge: 12AWG
- Discharge Wire Length: Approximately 80mm
- Balance Wire Length: Approximately 65mm
- Dimensions: 92.8 x 31.8 x 17.6mm
- Weight: Approximately 107g
- Manufacturer Part Number: GA-B-60C-2200-2S1P-HardCase-76-GT
- SKU: GEA222S60X76GT
- Barcode / UPC: 889551120531
Includes
- 1 x Gens ace 2200mAh 7.4V 2S 60C G-Tech Hardcase LiPo Battery with XT60 Plug
FAQ
What connector does GEA222S60X76GT use? GEA222S60X76GT uses an XT60 discharge connector and a separate G-Tech 3P balance connector.
What is the G-Tech 3P connector used for? The G-Tech 3P connection provides balance charging and supports automatic battery recognition when the pack is used with compatible Gens ace G-Tech charging equipment.
Will this battery fit my RC vehicle? The vehicle must support a 7.4V 2S LiPo battery, an XT60 power connection and a battery measuring approximately 92.8 x 31.8 x 17.6mm. OZRC recommends checking voltage, connector type and battery compartment dimensions before ordering.
Important Notes
- Check that the RC vehicle and ESC support a 7.4V 2S LiPo battery before use
- Check the 92.8 x 31.8 x 17.6mm battery dimensions and XT60 connector against the vehicle before ordering
- The manufacturer specifications confirm an XT60 discharge connector; an unrelated Deans connector reference appearing elsewhere in the manufacturer application text does not match the product-specific connector specification
- Use a LiPo-compatible balance charger suitable for 2S battery packs
- Charger is not included
- Always follow the battery and charger manufacturer's LiPo charging, storage and handling instructions
