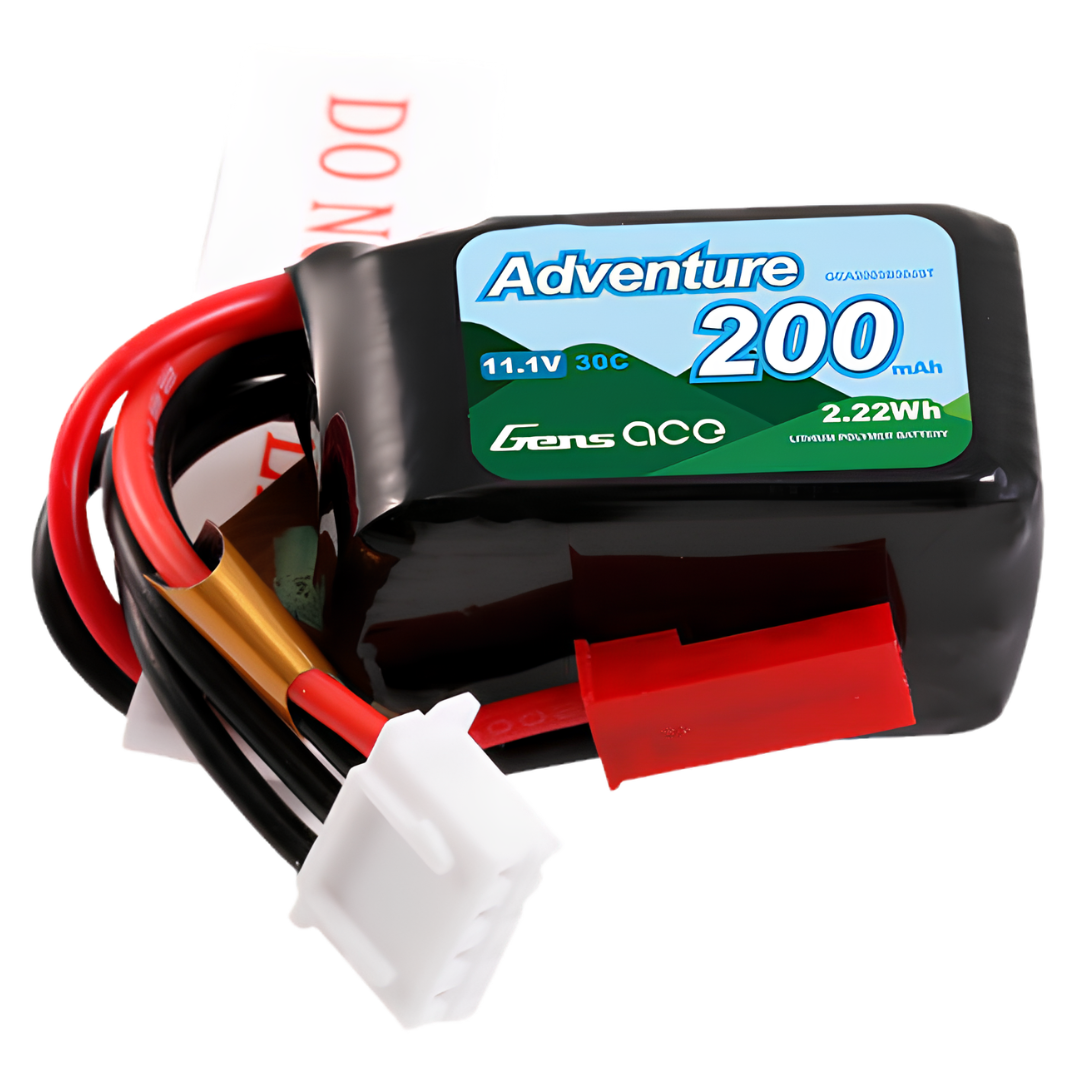

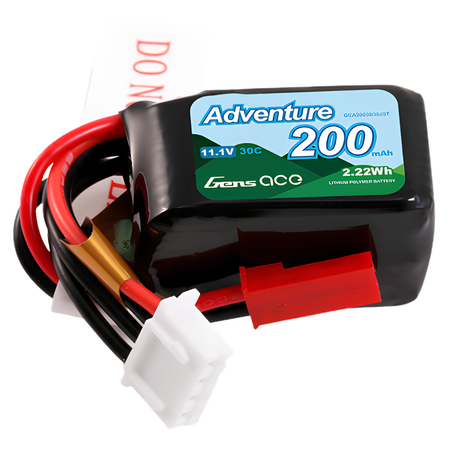

Gens ace Adventure 200mAh 3S 30C 11.1V LiPo Battery JST GEA2003S30JST
Couldn't load pickup availability
The Gens ace Adventure 200mAh 3S 30C LiPo Battery is a compact 11.1V power pack with a JST discharge connector, designed for compatible UMX aircraft, helicopters and other small RC models requiring a lightweight 3S battery.
Features
- 200mAh Capacity: Compact battery capacity suited to lightweight RC aircraft and other small models
- 3S LiPo Power: Three-cell configuration provides a nominal voltage of 11.1V
- 30C Discharge Rating: Provides current delivery suited to compatible small-scale RC power systems
- JST Power Connector: Factory-fitted JST discharge plug connects directly to compatible model electronics
- JST-XHR-4P Balance Connector: Separate balance connection supports correct 3S balance charging
- Compact Dimensions: Measures approximately 30.8 x 17.49 x 17.82mm for space-limited installations
- Lightweight Design: Approximately 17g weight helps minimise additional mass in small aircraft
- UMX and Small Aircraft Use: Gens ace specifically positions this battery for UMX aeroplanes and other small RC aircraft
Specifications
- Brand: Gens ace
- Range: Adventure
- Product Type: RC LiPo Battery
- Battery Chemistry: Lithium Polymer
- Minimum Capacity: 200mAh
- Voltage: 11.1V
- Cell Count: 3S / 3 Cell
- Cell Configuration: 3S1P
- Discharge Rating: 30C
- Discharge Connector: JST
- Balance Connector: JST-XHR-4P
- Discharge Wire Gauge: 22AWG
- Discharge Wire Length: Approximately 45mm
- Balance Wire Length: Approximately 30mm
- Dimensions: 30.8 x 17.49 x 17.82mm
- Weight: Approximately 17g
- Manufacturer Part Number: GA-B-30C-200-3S1P-JST
- SKU: GEA2003S30JST
- Barcode / UPC: 889551120609
Includes
- 1 x Gens ace Adventure 200mAh 11.1V 3S 30C LiPo Battery with JST Connector
FAQ
Is GEA2003S30JST suitable for UMX aircraft? Yes. Gens ace specifically describes this battery for UMX aeroplanes and other small aircraft. OZRC recommends checking that the exact model supports an 11.1V 3S battery, JST power connector and the 30.8 x 17.49 x 17.82mm pack dimensions before ordering.
What connectors are fitted to GEA2003S30JST? The main discharge connection is a JST plug, while the separate 3S balance connection is a JST-XHR-4P plug.
What charger is required for this battery? A LiPo balance charger capable of charging 3S 11.1V battery packs is required, with a suitable connection for the JST-XHR-4P balance plug.
Important Notes
- Check that the RC model supports an 11.1V 3S LiPo battery before use
- Check the 30.8 x 17.49 x 17.82mm dimensions and JST discharge connector against the model before ordering
- Use a LiPo-compatible balance charger suitable for 3S battery packs
- Charger is not included
- Do not charge or use a LiPo battery that is swollen, punctured or otherwise damaged
- Always follow the battery and charger manufacturer's LiPo charging, storage and handling instructions
