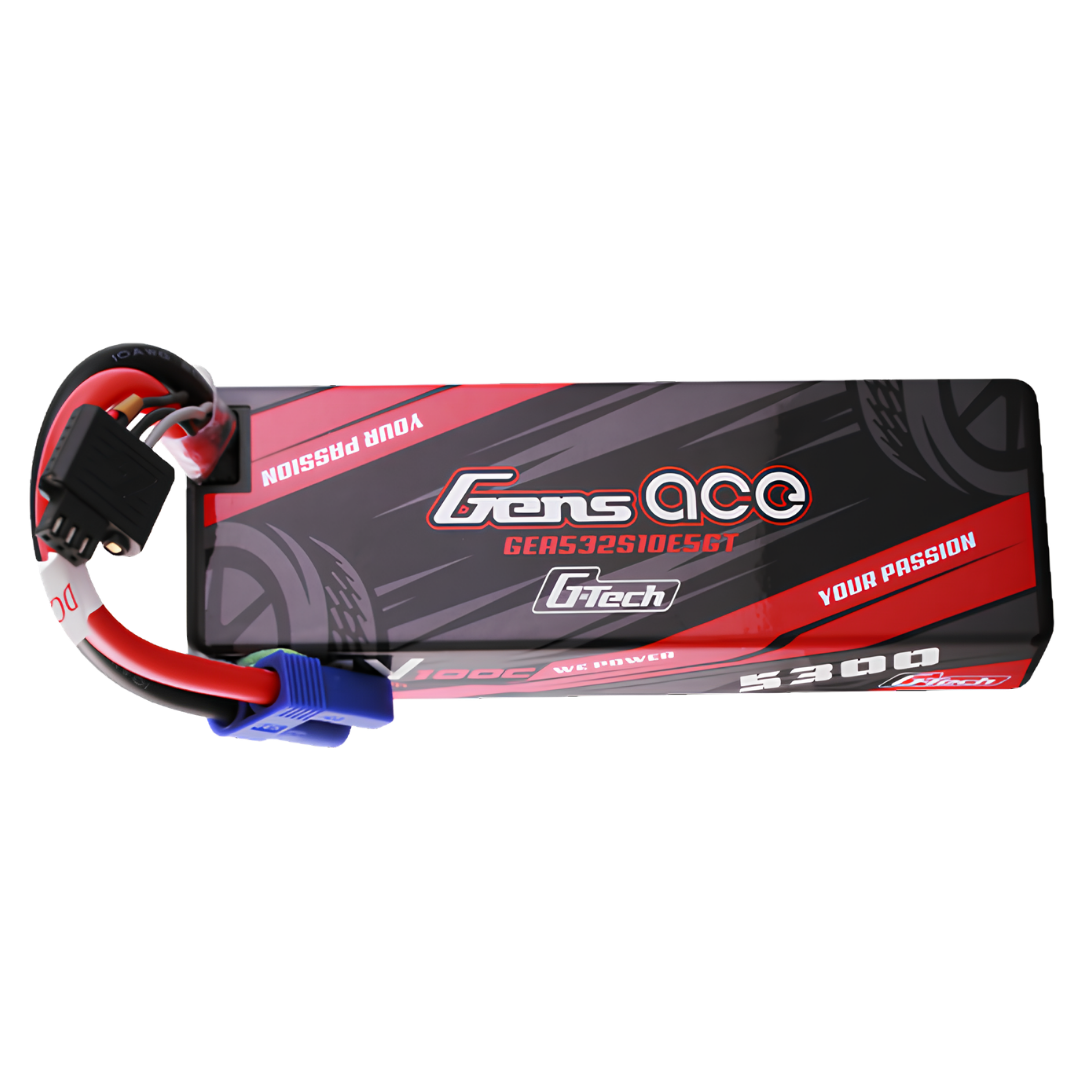

Gens Ace G-Tech 2S 5300mAh 100C Hardcase LiPo EC5 GEA532S10E5GT
Couldn't load pickup availability
The Gens Ace G-Tech 5300mAh 2S LiPo is a 7.4V 100C hardcase battery designed for demanding RC vehicle applications, combining high discharge capability, a protective hardcase and G-Tech smart identification with an EC5 power connector
Features
- Integrated G-Tech chip allows automatic battery identification with compatible G-Tech Eco Smart chargers
- Can also be charged using a compatible conventional LiPo balance charger
- 5300mAh capacity provides useful runtime for demanding RC applications
- 100C continuous discharge rating supports high-current vehicle setups
- Hardcase construction provides additional physical protection for the LiPo cells
- Up to 5C charging capability when used with suitable charging equipment and conditions
- EC5 main power connector
- G-Tech 3-pin balance and communication connector
- Compact 138 mm hardcase format suits compatible RC battery compartments
- Suitable for applications including the Losi Promoto-MX where battery dimensions and connector requirements match
Specifications
- Brand: Gens Ace
- Series: G-Tech
- Product Type: Hardcase LiPo Battery
- Manufacturer Part Number: GA-B-100C-5300-2S1P-EC5-HardCase-112-GT
- SKU: GEA532S10E5GT
- Barcode: 889551119467
- Battery Chemistry: LiPo
- Configuration: 2S1P
- Cell Count: 2S
- Nominal Voltage: 7.4V
- Capacity: 5300mAh
- Energy: 39.22Wh
- Continuous Discharge Rate: 100C
- Maximum Charge Rate: 5C
- Main Connector: EC5
- Balance Connector: G-Tech 3P
- Length: 138 mm
- Width: 46 mm
- Height: 24 mm
- Weight: Approximately 288 g
Includes
- 1 x Gens Ace G-Tech 5300mAh 2S 7.4V 100C Hardcase LiPo Battery with EC5 connector
FAQ
Do I need a G-Tech charger to charge this battery? No, Gens Ace states that the battery can be charged with a compatible conventional LiPo balance charger, while a G-Tech Eco Smart charger can automatically identify supported battery information through the G-Tech system
What power connector does GEA532S10E5GT use? The verified specification for GEA532S10E5GT lists an EC5 discharge connector and a G-Tech 3-pin balance connector
How large is the battery? The GEA532S10E5GT hardcase measures approximately 138 x 46 x 24 mm and weighs around 288 g
Will this battery fit the Losi Promoto-MX? Multiple RC retailers list this 5300mAh G-Tech EC5 pack for the Losi Promoto-MX, but OZRC recommends confirming the battery compartment dimensions and connector configuration before ordering
Important Notes
- Use only a charger designed for LiPo batteries
- Balance charge the battery and follow Gens Ace LiPo safety instructions
- Confirm your RC vehicle is approved for 2S 7.4V LiPo operation before use
- Confirm the 138 x 46 x 24 mm dimensions and EC5 connector suit your vehicle before installation
- Do not leave a LiPo battery unattended while charging
- Allow the battery to cool before recharging after high-current use
- Store the battery at an appropriate LiPo storage voltage when not in regular use
