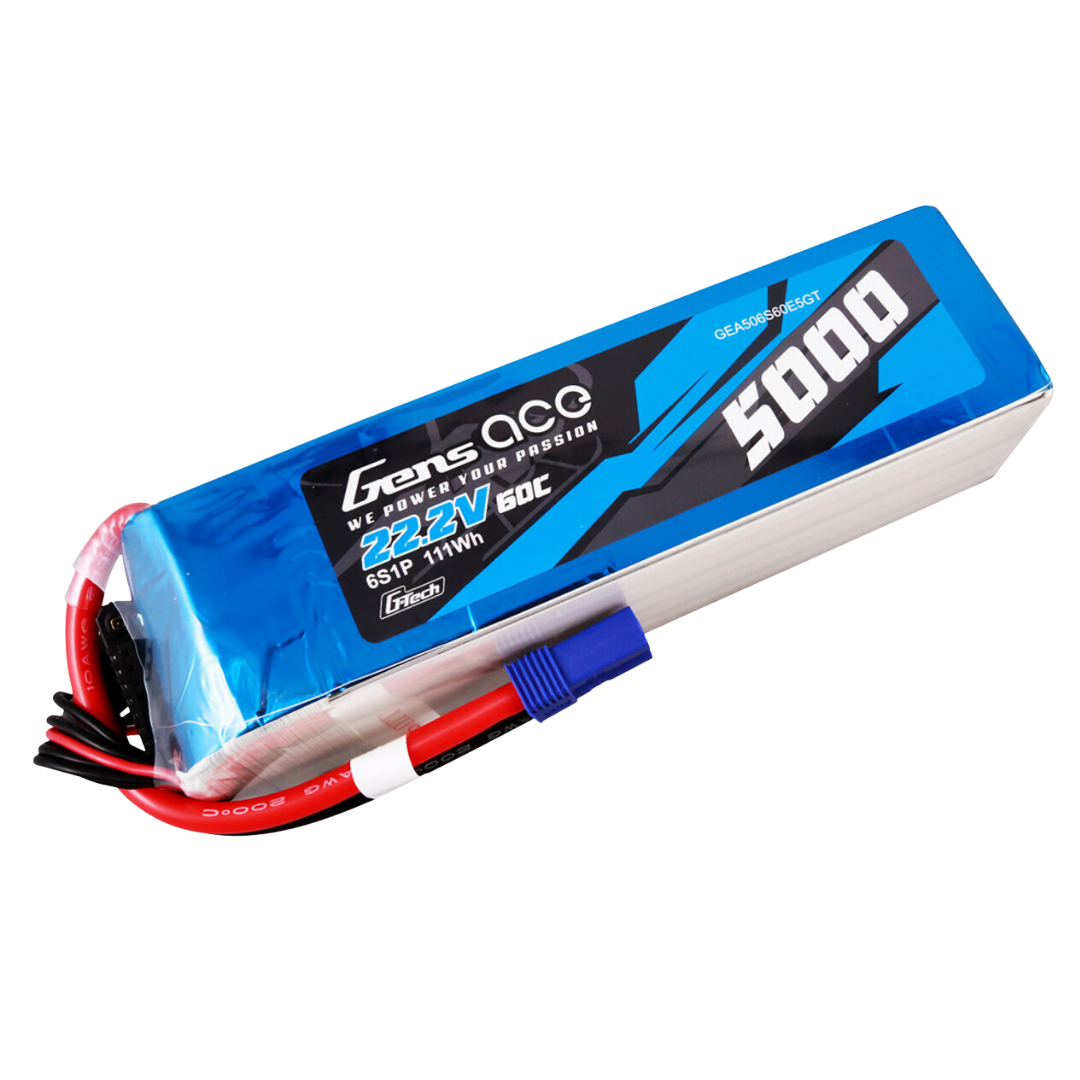

Gens Ace G-Tech 6S 5000mAh 22.2V 60C Soft Pack LiPo EC5 GEA506S60E5GT

Gens Ace GEA506S60E5GT is a 6S 5000mAh 22.2V soft pack LiPo battery with a 60C continuous discharge rating, EC5 power connector and G-Tech Smart balance connector. Designed for compatible high-power RC aircraft and helicopters, the G-Tech ID system allows supported chargers to identify battery information and configure charging parameters automatically while retaining compatibility with conventional LiPo charging equipment when correctly configured.

Features

• 6S LiPo Power: 22.2V nominal voltage and 5000mAh capacity for compatible high-power RC applications
• 60C Continuous Discharge: High-output pack with a manufacturer-listed 120C peak discharge rating
• G-Tech Smart Charging: Integrated ID technology stores battery information for automatic recognition by compatible G-Tech chargers
• Automatic Charge Setup: Compatible G-Tech charging equipment can detect battery information and configure appropriate charging parameters
• Universal Charging Flexibility: Can also be used with suitable conventional LiPo chargers when battery parameters are entered manually
• G-Tech Balance Connector: Smart balance connector incorporates the G-Tech identification system while providing cell-balancing functionality
• EC5 Power Connector: Factory-fitted EC5 connector suits compatible high-current RC power systems
• 6S1P Configuration: Six LiPo cells connected in series for 22.2V nominal output
• Soft Pack Construction: Compact battery format suited to models with an appropriately sized and protected battery compartment
• Aircraft and Helicopter Applications: Documented applications include compatible Mikado, Align, Gaui, Hirobo and FMS models

Specifications

• Brand: Gens Ace
• Series: G-Tech
• Product Type: LiPo Battery
• Battery Chemistry: Lithium Polymer
• Construction: Soft Pack
• Cell Configuration: 6S1P
• Cell Count: 6S
• Nominal Voltage: 22.2V
• Capacity: 5000mAh
• Energy: 111Wh
• Continuous Discharge Rating: 60C
• Peak Discharge Rating: 120C
• Maximum Charge Rate: 5C / 25A
• Main Connector: EC5
• Balance Connector: G-Tech Smart Connector
• Length: 165mm
• Width: 47mm
• Height: 45mm
• Weight: 755g
• ROAR Approved: No
• Manufacturer Part Number: GA-B-60C-5000-6S1P-EC5-GT
• Supplier SKU: GEA506S60E5GT
• UPC: 889551117333

Includes

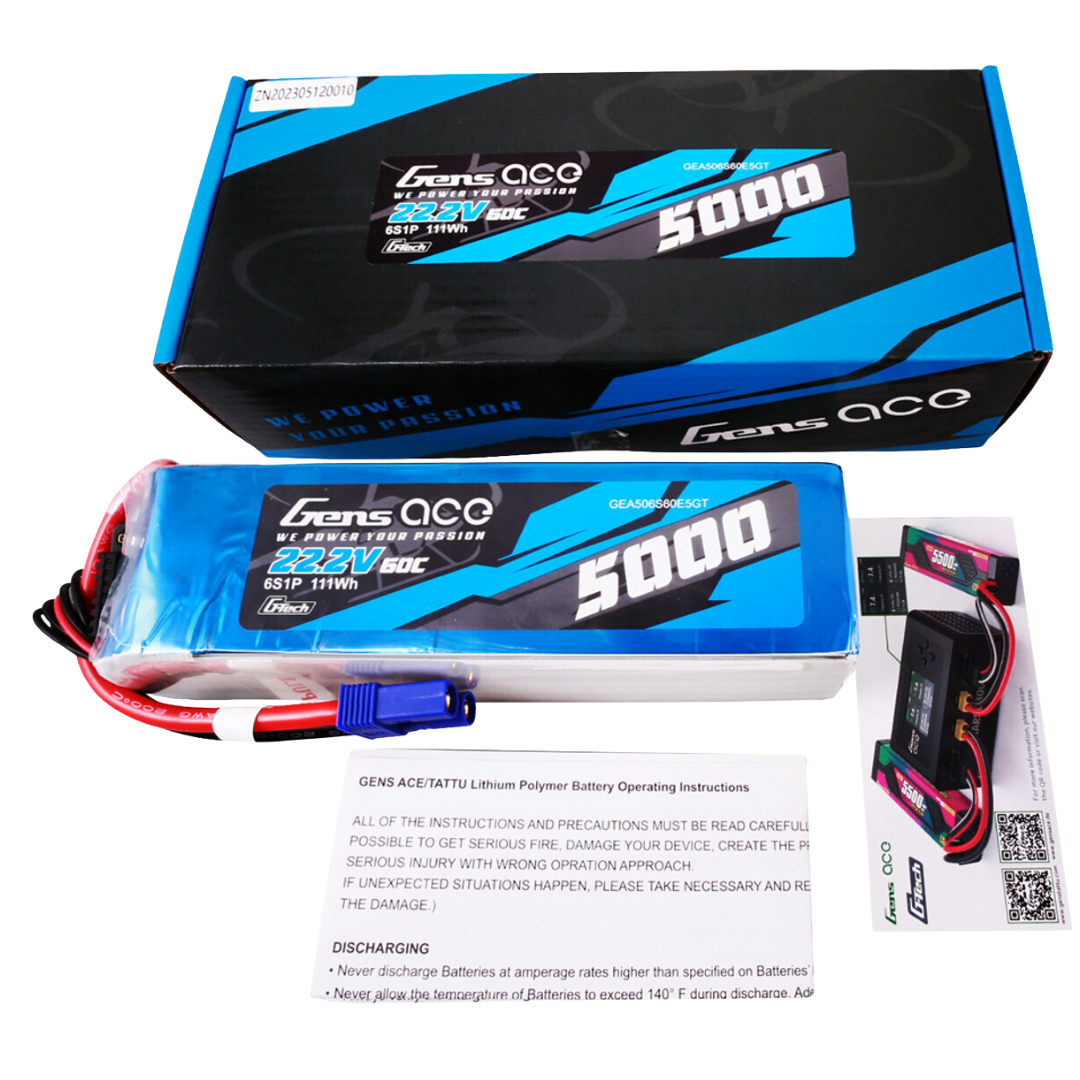

• 1 x Gens Ace G-Tech 6S 5000mAh 22.2V 60C Soft Pack LiPo Battery
• 1 x Factory-Fitted EC5 Main Connector
• 1 x G-Tech Smart Balance Connector

FAQ

What is the G-Tech connector on GEA506S60E5GT? The G-Tech balance connector incorporates an ID chip that stores battery information including chemistry, specifications and charging parameters. A compatible G-Tech charger can read this information to simplify charger setup.

Do I need a G-Tech charger to charge this battery? No. G-Tech provides automatic identification and charging setup when used with supported G-Tech chargers, but Gens Ace states that G-Tech batteries can also be charged using suitable conventional LiPo chargers with the charging parameters configured manually.

What main power connector does this battery use? GEA506S60E5GT is factory fitted with an EC5 main power connector.

What is the maximum charge rate? Published specifications for GEA506S60E5GT list a maximum charge rate of 5C, equivalent to 25A for a 5000mAh battery. The charger, leads and charging setup must also support the selected charging current.

What is the discharge rating of this battery? The pack is rated at 60C continuous discharge with a published peak rating of 120C.

How large is the Gens Ace GEA506S60E5GT? The battery measures approximately 165mm long, 47mm wide and 45mm high and weighs approximately 755g. Check the model's battery compartment dimensions, weight limits and connector requirements before purchase.

What RC models can use GEA506S60E5GT? Gens Ace documents applications including the Mikado Logo 500, Align T-Rex 550 and 600, Gaui X5, Outrage 550, Hirobo SDX and FMS Votec 322. Compatibility still depends on battery dimensions, weight, voltage, connector and the electrical requirements of the individual model.

Is this a hardcase battery? No. GEA506S60E5GT is a soft pack LiPo battery and should be installed where the battery is properly supported and protected from impact or abrasion.

Important Notes

• Use only with RC systems designed to operate from a 6S 22.2V LiPo battery
• Confirm battery compartment dimensions, allowable battery weight and EC5 connector compatibility before purchase
• Use a suitable LiPo balance charger and select the correct 6S LiPo charging settings when automatic G-Tech identification is not available
• Never charge a damaged, swollen or punctured LiPo battery
• Charge and store LiPo batteries using appropriate LiPo safety procedures and supervision
