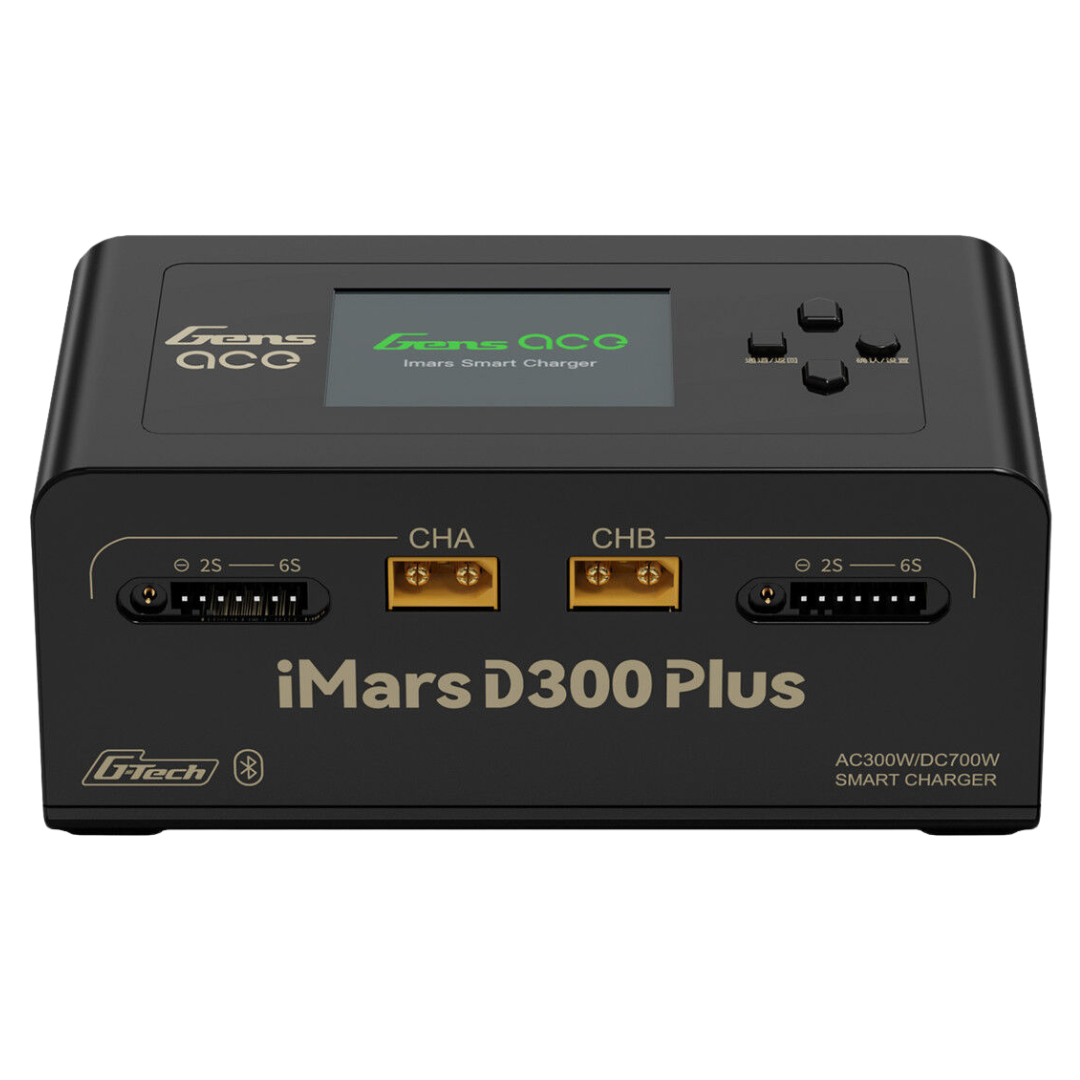

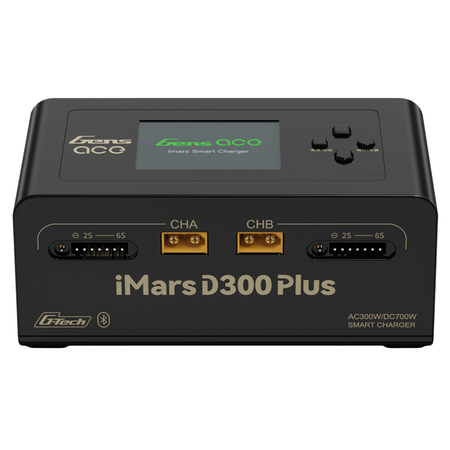

Gens ace iMars D300 Plus G-Tech AC/DC Charger Black GEA300WPLUS-UB

The Gens ace iMars D300 Plus is a dual-channel AC/DC smart RC battery charger with Bluetooth app control, automatic G-Tech battery recognition and up to 16A charging per channel, designed for convenient bench or field charging of compatible lithium and NiMH battery packs.

Features

• Dual-Channel Charging: Two independent charging channels allow two compatible battery packs to be managed at the same time
• AC/DC Power: Operates from 100–240V AC mains power or a suitable 7–30V DC power source
• High-Power Charging: Provides up to 300W charging power on AC input and up to 350W per channel on DC input
• Up to 16A Per Channel: Adjustable charging current from 0.1A to 16A on each channel
• Bluetooth App Control: Connects to the Gens ace App for remote charger control, real-time monitoring and access to historical charging records
• G-Tech Smart Recognition: Automatically detects compatible G-Tech battery information and charging parameters for simplified plug-and-play operation
• Non-G-Tech Battery Support: Conventional compatible batteries can also be charged using manual setup
• Seven Operating Functions: Supports charge, discharge, storage, balance, 2-in-1 fast charge, external discharge and digital power modes
• Eight-Level Protection System: Includes overheating, current limiting, over-voltage, wire break, reverse polarity, short circuit, cell-count mismatch and abnormal-voltage protection
• 2.4-Inch IPS Display: Clear colour screen provides charging status and operating information directly on the charger
• Cell Balancing: Supports balance charging for compatible 1–6S lithium battery packs
• USB Output: Provides a 5V / 2.4A USB output for compatible USB-powered devices
• Compact Design: Measures 145 x 76 x 62mm and weighs approximately 530g for convenient workshop or field transport

Specifications

• Brand: Gens ace
• Model: iMars D300 Plus
• Product Type: Dual-Channel Smart AC/DC Battery Charger
• Colour: Black
• Input Voltage: 100–240V AC / 7–30V DC
• Output Voltage: 1–30V DC
• Maximum DC Input Current: 34A
• Maximum AC Charging Power: 300W
• Maximum DC Charging Power: 350W x 2 / 700W Total
• Charge Current: 0.1–16A x 2
• Discharge Current: 0.1–3A x 2
• Discharge Power: 15W x 2
• LiPo Cell Count: 1–6S
• LiHV Cell Count: 1–6S
• LiFe Cell Count: 1–6S
• NiMH Cell Count: 1–16S
• Cell Balancing: 1–6S
• Display: 2.4-Inch IPS LCD
• USB Output: 5V / 2.4A
• Connectivity: Bluetooth
• Smart Battery System: G-Tech
• Dimensions: 145 x 76 x 62mm
• Weight: Approximately 530g
• Manufacturer Part Number: GEA300WPLUS-UB
• SKU: GEA300WPLUS-UB
• Barcode / UPC: 889551123587

Includes

• 1 x Gens ace iMars D300 Plus G-Tech Smart Dual AC/DC Charger Black
• 1 x AC Power Cable
• 1 x USB Cable
• 2 x XT60 to T-Style Charge Leads
• 2 x XT60 to EC5 Charge Leads
• 2 x XT60 to EC3 Charge Leads
• 1 x Product Manual

FAQ

Can the iMars D300 Plus charge non-G-Tech batteries? Yes. The D300 Plus supports compatible non-G-Tech batteries, but their battery type and charging parameters must be entered manually rather than being detected automatically.

What does G-Tech battery recognition do? When a compatible G-Tech battery is connected, the D300 Plus can automatically identify battery information and charging parameters, reducing the amount of manual setup required.

Can the iMars D300 Plus be controlled from a phone? Yes. Bluetooth connectivity allows the D300 Plus to work with the Gens ace App for remote control, live charging information and historical charging records.

How much charging power does the D300 Plus provide? Gens ace specifies up to 300W charging power when operating from AC input and up to 350W per channel, or 700W combined, when operating from a suitable DC power source. Available charging power also depends on the input power supply and connected battery.

Important Notes

• Always select the correct battery chemistry, cell count, charge current and terminal voltage before charging a non-G-Tech battery
• Compatible lithium batteries require the appropriate balance connection when balance charging
• Maximum DC output requires a suitable 7–30V DC power source capable of providing the required input current and power
• Gens ace specifies AC charging power as 300W total; the 350W x 2 specification applies to DC operation
• Battery packs are not included
• Always follow the battery and charger manufacturer's charging, storage and safety instructions
