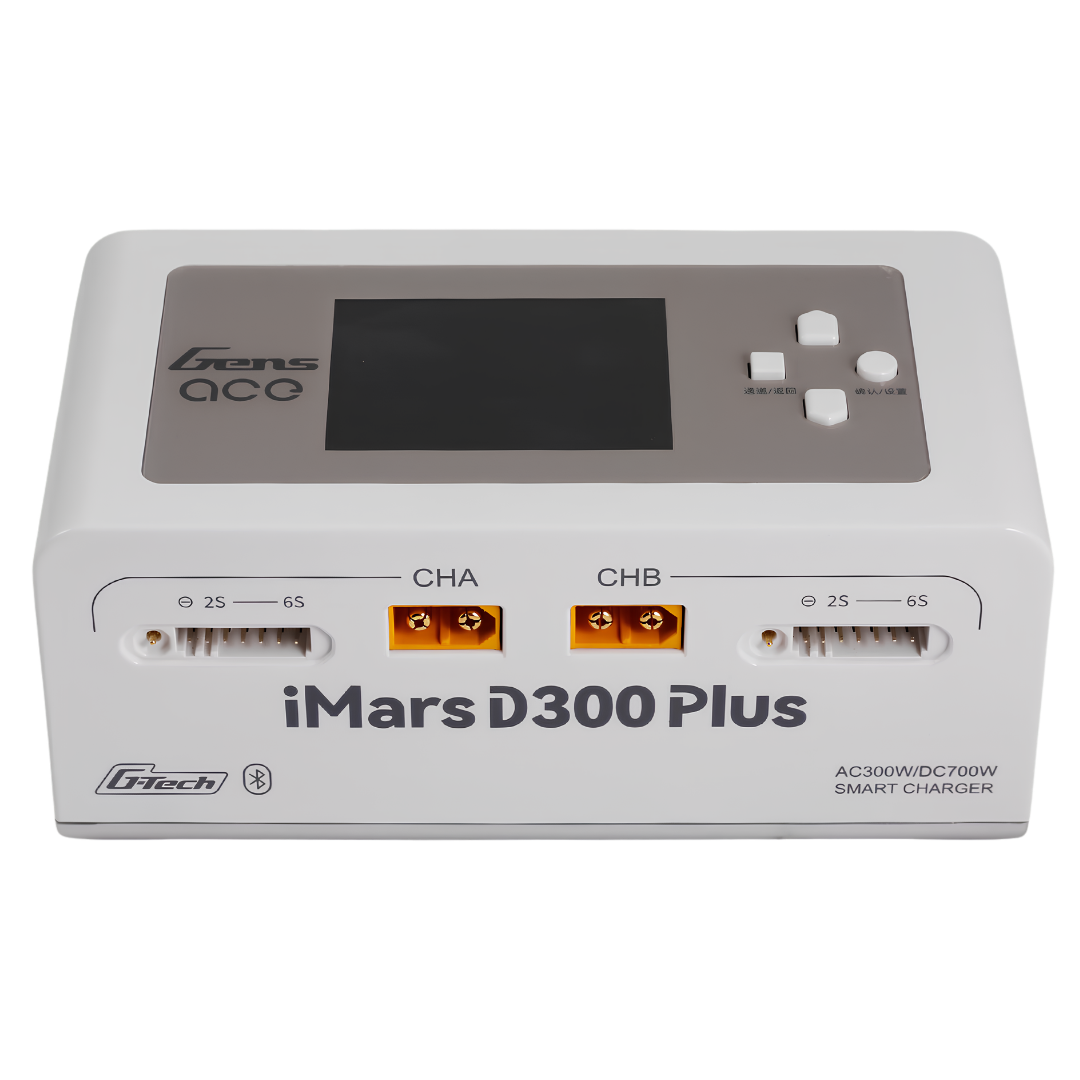

Gens ace iMars D300 Plus G-Tech Dual AC/DC Charger White GEA300WPLUS-UW

The Gens ace iMars D300 Plus is a white dual-channel AC/DC smart RC battery charger with Bluetooth app control, automatic G-Tech battery recognition and up to 16A charging per channel, designed for convenient charging, balancing, storage and battery management at home or in the field.

Features

• Dual-Channel Charging: Two independent channels allow two compatible battery packs to be charged or managed at the same time
• AC/DC Operation: Runs from 100–240V AC mains power or a suitable 7–30V DC power source
• High-Power Output: Provides up to 300W total charging power on AC input and up to 350W per channel on DC input
• Up to 16A Per Channel: Adjustable charging current from 0.1A to 16A on each channel
• Bluetooth App Control: Connects to the Gens ace App for remote operation, real-time monitoring and access to historical charging records
• G-Tech Smart Recognition: Automatically identifies compatible G-Tech battery type and parameters to simplify charger setup
• Non-G-Tech Battery Support: Conventional compatible batteries can also be charged using manual battery settings
• Seven Operating Functions: Supports charge, discharge, storage, balance, 2-in-1 fast charge, external discharge and digital power modes
• Eight-Level Protection: Includes overheating, current limiting, over-voltage, wire break, reverse polarity, short circuit, cell-count mismatch and abnormal-voltage protection
• 2.4-Inch IPS Display: Colour display provides clear access to charging settings, battery information and operating status
• 1–6S Lithium Support: Compatible with LiPo, LiHV and LiFe battery packs from 1S to 6S
• NiMH Support: Compatible with 1–16S NiMH battery packs
• USB Output: Integrated 5V / 2.4A USB output provides power for compatible USB devices
• Compact Design: Measures 145 x 76 x 62mm and weighs approximately 530g for convenient workshop or field use

Specifications

• Brand: Gens ace
• Model: iMars D300 Plus
• Product Type: Dual-Channel Smart AC/DC Battery Charger
• Colour: White
• Input Voltage: 100–240V AC / 7–30V DC
• Output Voltage: 1–30V DC
• Maximum DC Input Current: 34A
• Maximum AC Charging Power: 300W
• Maximum DC Charging Power: 350W x 2 / 700W Total
• Charge Current: 0.1–16A x 2
• Discharge Current: 0.1–3A x 2
• Discharge Power: 15W x 2
• LiPo Cell Count: 1–6S
• LiHV Cell Count: 1–6S
• LiFe Cell Count: 1–6S
• NiMH Cell Count: 1–16S
• Cell Balancing: 1–6S
• Display: 2.4-Inch IPS LCD
• USB Output: 5V / 2.4A
• Connectivity: Bluetooth
• Smart Battery System: G-Tech
• Dimensions: 145 x 76 x 62mm
• Weight: Approximately 530g
• Manufacturer Part Number: GEA300WPLUS-UW
• SKU: GEA300WPLUS-UW
• Barcode / UPC: 889551123570

Includes

• 1 x Gens ace iMars D300 Plus G-Tech Smart Dual AC/DC Charger White
• 1 x AC Power Cable
• 1 x USB Cable
• 2 x XT60 to T-Style Charge Leads
• 2 x XT60 to EC5 Charge Leads
• 2 x XT60 to EC3 Charge Leads
• 1 x Product Manual

FAQ

Can the Gens ace iMars D300 Plus charge non-G-Tech batteries? Yes. Compatible non-G-Tech batteries can be charged with the D300 Plus, but the battery chemistry, cell count and charging parameters must be entered manually.

What does G-Tech automatic recognition do? Compatible G-Tech batteries can be automatically identified by the D300 Plus, allowing the charger to detect battery information and charging parameters with less manual setup.

Can the iMars D300 Plus be controlled from a phone? Yes. Bluetooth connectivity allows the charger to connect to the Gens ace App for remote control, real-time charging information and access to historical records.

Does the D300 Plus provide 350W per channel when plugged into AC power? No. Gens ace specifies up to 300W total charging power on AC input. Up to 350W per channel, or 700W combined, is available when using a suitable DC power source capable of supplying the required input power.

Important Notes

• Always select the correct battery chemistry, cell count, charge current and terminal voltage when charging non-G-Tech batteries
• Compatible lithium batteries require the appropriate balance connection when balance charging
• Maximum 350W x 2 DC charging performance requires a suitable 7–30V DC power source capable of supplying the necessary current
• AC operation provides up to 300W total charging power
• Batteries are not included
• Always follow the battery and charger manufacturer's charging, storage and safety instructions
