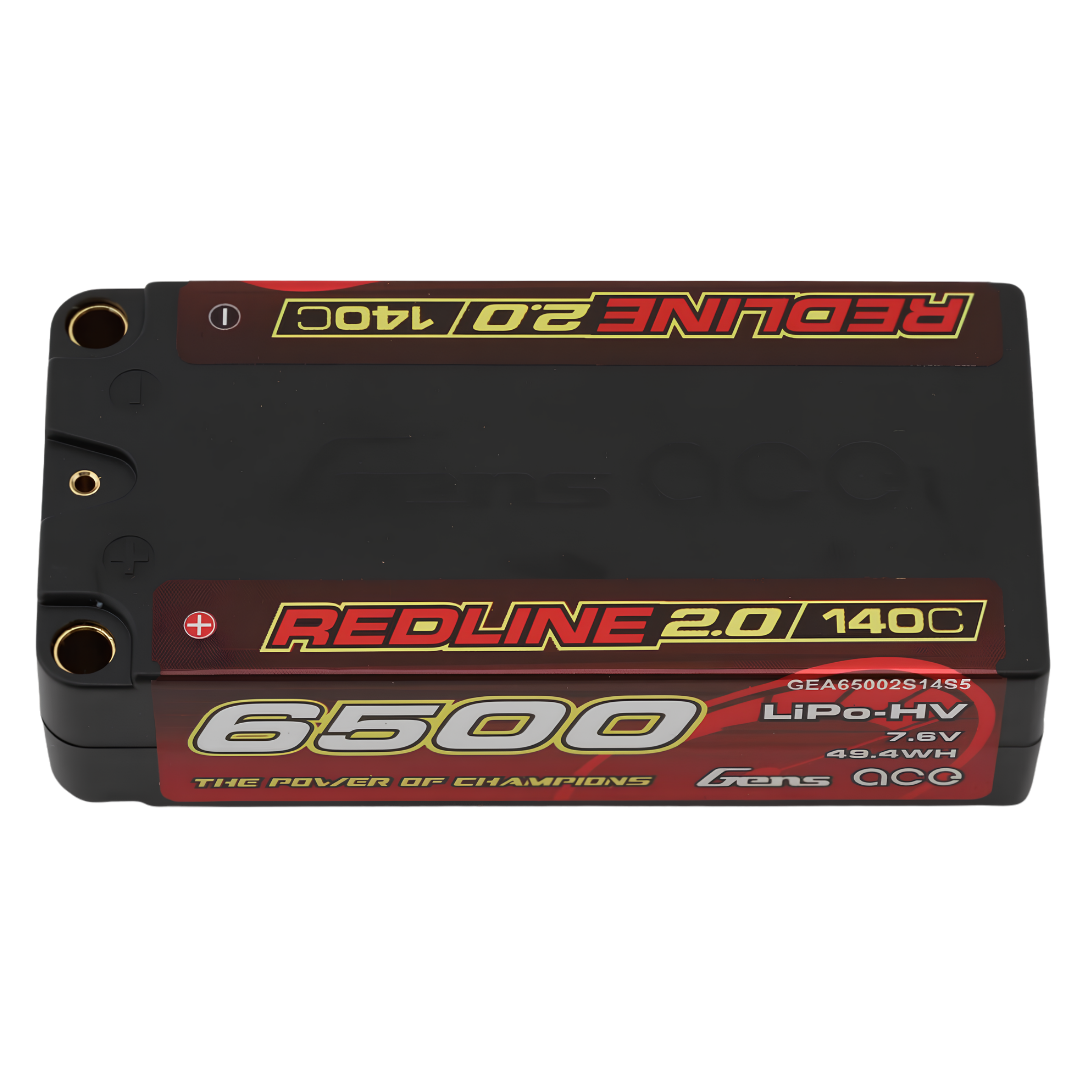

Gens Ace Redline 2.0 2S 6500mAh 7.6V 140C Shorty LiHV GEA65002S14S5

The Gens Ace GEA65002S14S5 Redline 2.0 is a 2S 6500mAh 7.6V LiHV hardcase shorty battery designed for high-performance 1/10 RC racing applications. Its compact 96mm shorty case, 140C continuous discharge rating and direct 5mm bullet connections provide a high-capacity power solution for compatible competition chassis.

Features

• LiHV Cell Chemistry: 7.6V nominal 2S high-voltage lithium polymer configuration
• 6500mAh Capacity: High-capacity shorty configuration balances runtime and compact packaging
• 140C Continuous Rating: Designed for high-current competition RC applications
• Hardcase Construction: Rigid outer case provides physical protection for the battery cells
• Shorty Form Factor: Compact 96mm length suits compatible shorty battery trays and racing chassis
• 5mm Bullet Connections: Standard direct bullet terminals provide a low-resistance connection to suitable battery leads
• 2mm Balance Connection: Separate balance connection supports cell monitoring and balanced charging
• Matched Cell Production: Gens Ace specifies cell matching based on capacity, voltage, resistance and discharge characteristics
• Automatic Stacking Technology: Manufacturing process supports the high-capacity cell configuration used in the pack

Specifications

• Brand: Gens Ace
• Series: Redline 2.0
• Product Type: RC LiHV Battery
• Battery Chemistry: Lithium Polymer High Voltage LiHV
• Cell Configuration: 2S1P
• Cell Count: 2
• Nominal Voltage: 7.6V
• Capacity: 6500mAh / 6.5Ah
• Nominal Energy: 49.4Wh
• Continuous Discharge Rating: 140C
• Case Type: Hardcase Shorty
• Main Connections: 5mm Bullet
• Balance Connection: 2mm Bullet
• Length: 96mm
• Width: 47mm
• Height: 25mm
• Weight: 229g
• Manufacturer Part Number: GA-R-140C-6500-2S1P-HC63-HV
• SKU: GEA65002S14S5
• UPC: 889551121545

Includes

• 1 x Gens Ace Redline 2.0 2S 6500mAh 7.6V 140C Shorty LiHV Hardcase Battery GEA65002S14S5

FAQ

Is GEA65002S14S5 a standard LiPo or LiHV battery? GEA65002S14S5 is a LiHV battery with a 7.6V nominal voltage. A charger with the correct LiHV charging mode should be used when charging the pack to its LiHV maximum voltage.

Is this the shorty version of the Gens Ace Redline 2.0 6500mAh battery? Yes. GEA65002S14S5 measures approximately 96 x 47 x 25mm. Gens Ace also offers a different 6500mAh Redline 2.0 pack with a substantially longer 139mm case, so the part number and dimensions should be checked before ordering.

What connectors does the Gens Ace GEA65002S14S5 use? The battery uses direct 5mm bullet connections for the main power connection and a 2mm bullet balance connection. Suitable charging and vehicle leads are required separately.

Is a T-plug or XT60 connector fitted to the battery? No. The battery itself uses 5mm bullet terminals rather than a permanently attached T-plug or XT60 lead. A suitable battery lead must be selected for the vehicle or ESC.

What does the 140C rating mean? Gens Ace publishes 140C as the maximum continuous discharge rating for this pack. C ratings are manufacturer specifications and should not be treated as a guarantee that every RC installation can safely draw the mathematically calculated current continuously.

What are the dimensions of the battery? The shorty pack measures approximately 96mm long, 47mm wide and 25mm high. OZRC recommends measuring the vehicle battery compartment and checking hold-down and connector clearance before ordering.

How much does the GEA65002S14S5 weigh? The exact shorty product listing specifies approximately 229g.

Can this battery be used in any 2S RC car? No. The vehicle must accommodate the 96 x 47 x 25mm shorty case and support the battery's LiHV voltage and connector arrangement. ESC, motor, class rules and battery mounting requirements should also be checked.

Important Notes

• This is a 7.6V nominal LiHV battery; use a compatible balance charger and the correct charging mode
• 5mm bullet battery/ESC lead and suitable charging lead may be required separately
• Confirm battery dimensions, connector requirements and vehicle voltage compatibility before use
• Do not confuse GEA65002S14S5 with the longer 139mm Gens Ace Redline 2.0 6500mAh pack
• Do not charge or use a battery that is swollen, punctured, damaged or otherwise compromised
• Follow appropriate LiHV/LiPo charging, storage and handling procedures
