HiLantronics Micron1T Kit A RC 2 Stroke Engine Kill Switch Failsafe Baja 5B 112-118

The HiLantronics Micron1T Kit A is a programmable RC engine kill switch for 2-stroke gas engines, providing automatic engine shutdown if the receiver battery runs low, the radio signal glitches or connection or power is lost.

Features

• Programmable engine safety: Automatically kills the engine following a low receiver battery condition, radio glitch, loss of radio connection or power loss
• Radio compatibility: Selectable operation for most 2, 3 and 4+ channel radio systems
• Remote engine shutdown: Allows the engine to be stopped from the transmitter channel switch when configured with a 3 or 4+ channel radio
• Adjustable low-voltage cutoff: Selectable 3V, 4V, 5V or 6V cutoff settings
• Adjustable glitch sensitivity: Allows the kill-switch response to radio signal disturbances to be configured
• Mechanical relay switching: Provides electrical isolation when interrupting the ignition spark to stop the engine
• External status LED: Provides a visible indication of radio signal and engine kill-switch status
• Australian made: Designed and manufactured in Australia

Specifications

• Brand: HiLantronics
• Model: Micron1T Kit A
• Manufacturer Part Number: 112-118
• Product Type: Programmable 2-stroke RC engine kill switch
• Compatible Radio Systems: Most 2, 3 and 4+ channel systems
• Receiver Operating Voltage: 3.0–9.0V DC
• Low-Voltage Cutoff Settings: 3V, 4V, 5V or 6V
• Maximum Relay Voltage: 125V AC or 60V DC
• Maximum DC Relay Contact Current: 1A
• Relay Coil Resistance: 91 ohm
• LED Flashing: No radio signal
• LED Solid Red: Engine on or ready to start
• LED Off: Engine kill active

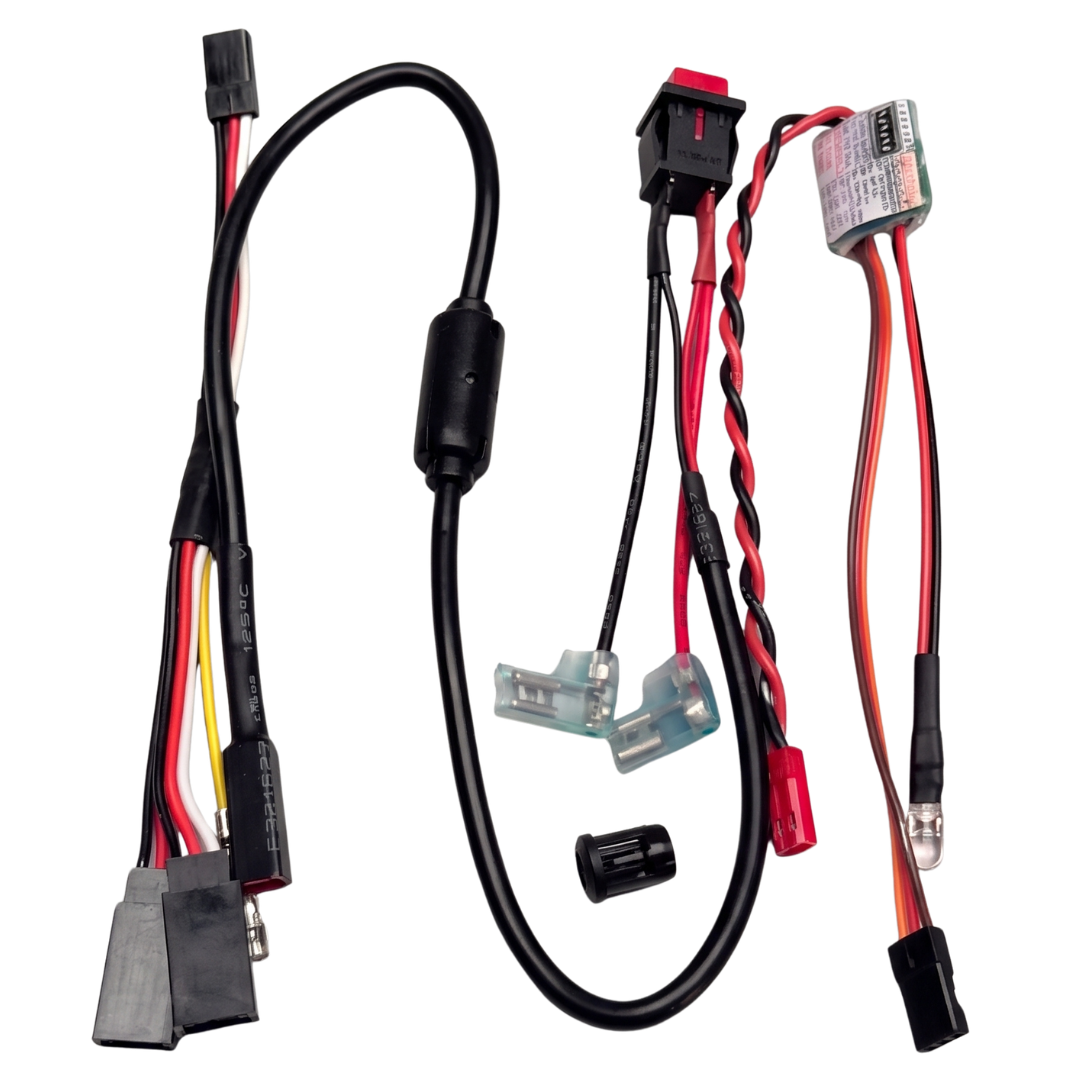

Includes

• 1 x HiLantronics Micron1T Kit A engine kill-switch unit
• 1 x Futaba Y-lead
• 1 x super-bright red LED indicator

FAQ

Will the HiLantronics Micron1T work with a 2-channel radio? Yes. The Micron1T supports most 2, 3 and 4+ channel radio systems. Transmitter channel-switch engine shutdown is specifically available when used with a suitable 3 or 4+ channel setup.

What will cause the Micron1T to automatically stop the engine? The Micron1T can automatically kill the engine following a low receiver battery condition, radio glitch, loss of radio connection or power loss.

Can the low-battery cutoff voltage be adjusted? Yes. The Micron1T provides selectable low-voltage cutoff settings of 3V, 4V, 5V or 6V so the protection can be configured for the receiver power system.

What does the red LED indicate? A flashing LED indicates no radio signal, a solid red LED indicates the engine is on or ready to start, and an unlit LED indicates the engine kill function is active.

Important Notes

• Designed for 2-stroke gas engine ignition systems; this product is not described as a nitro-engine kill switch
• Correct radio configuration and low-voltage cutoff selection are required for the intended installation
