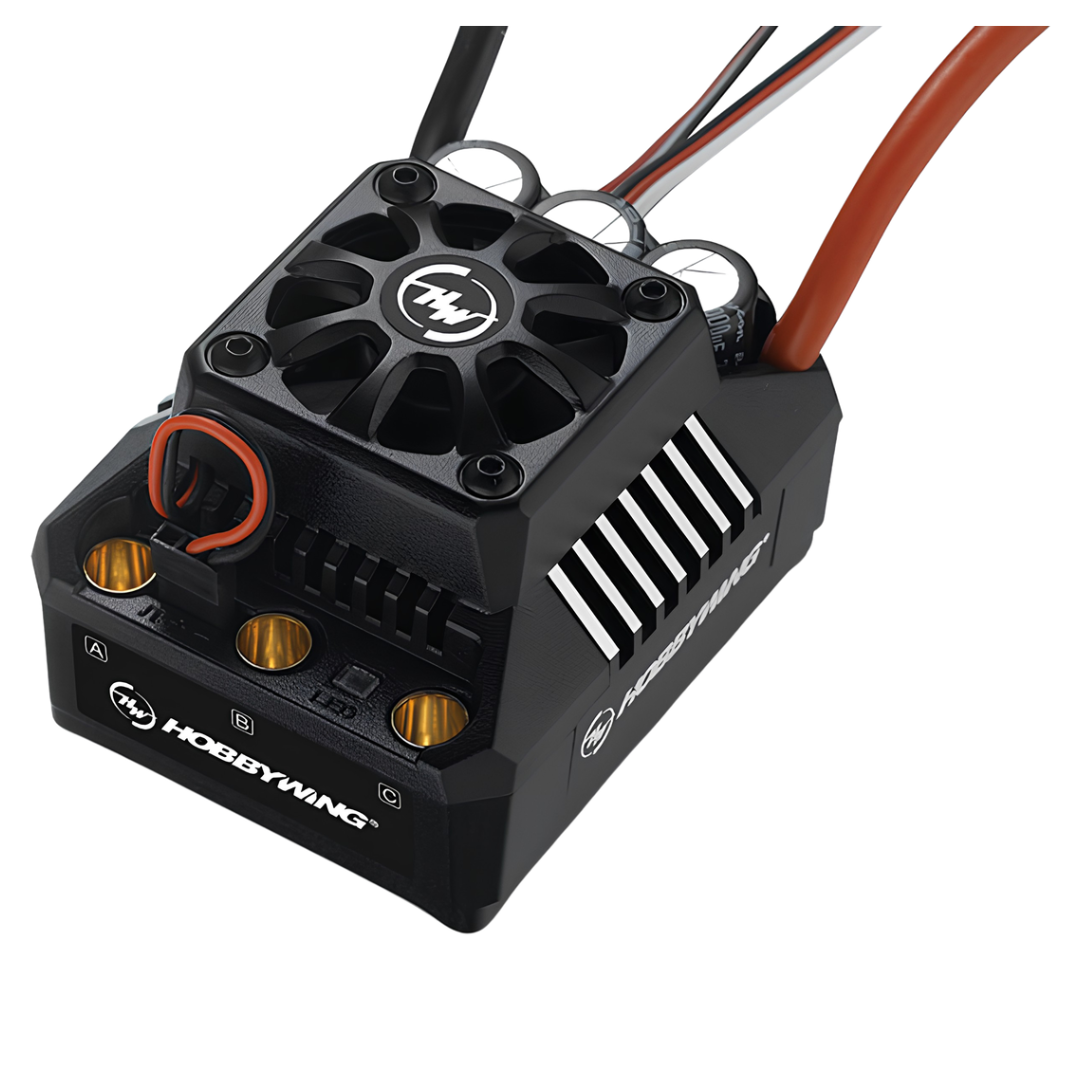

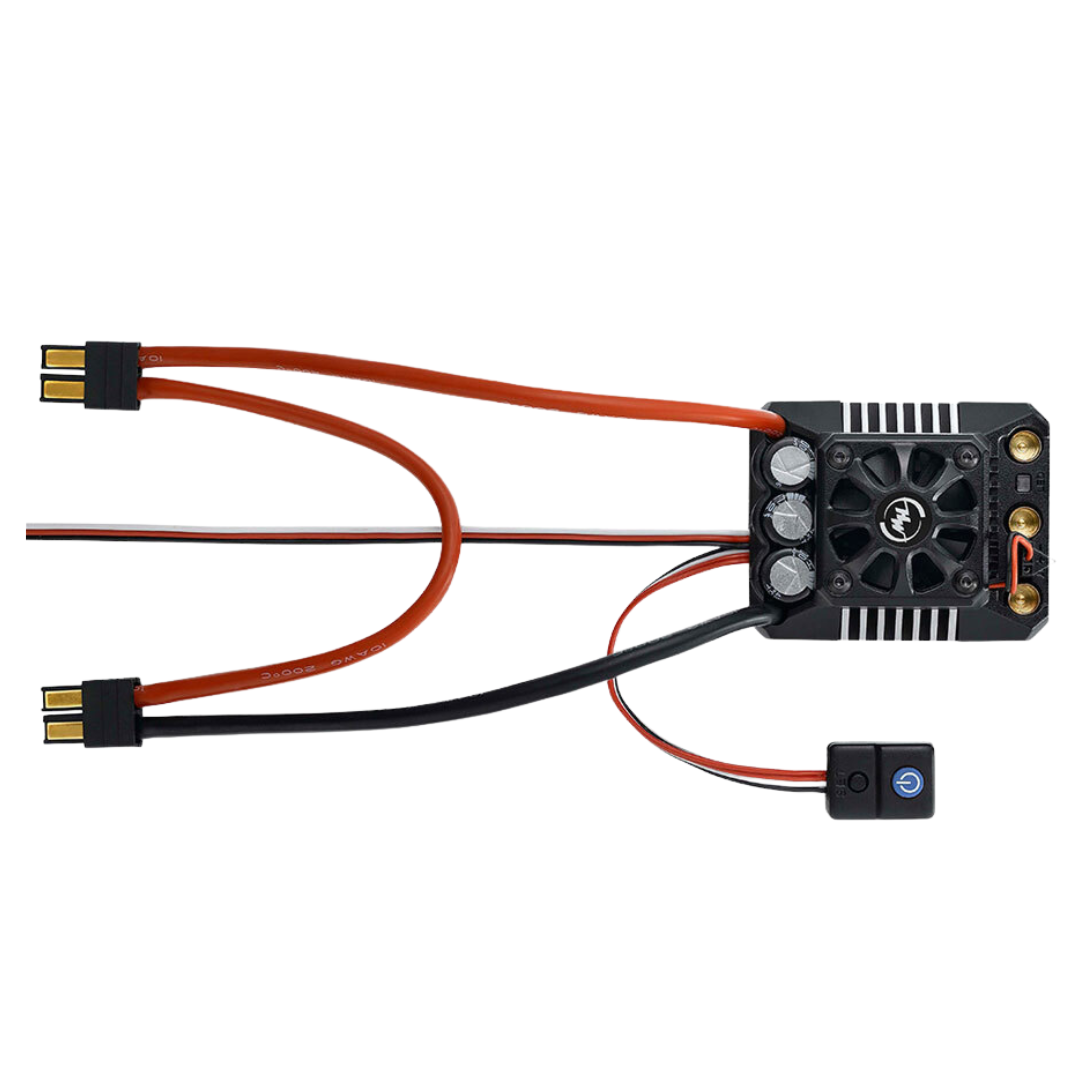

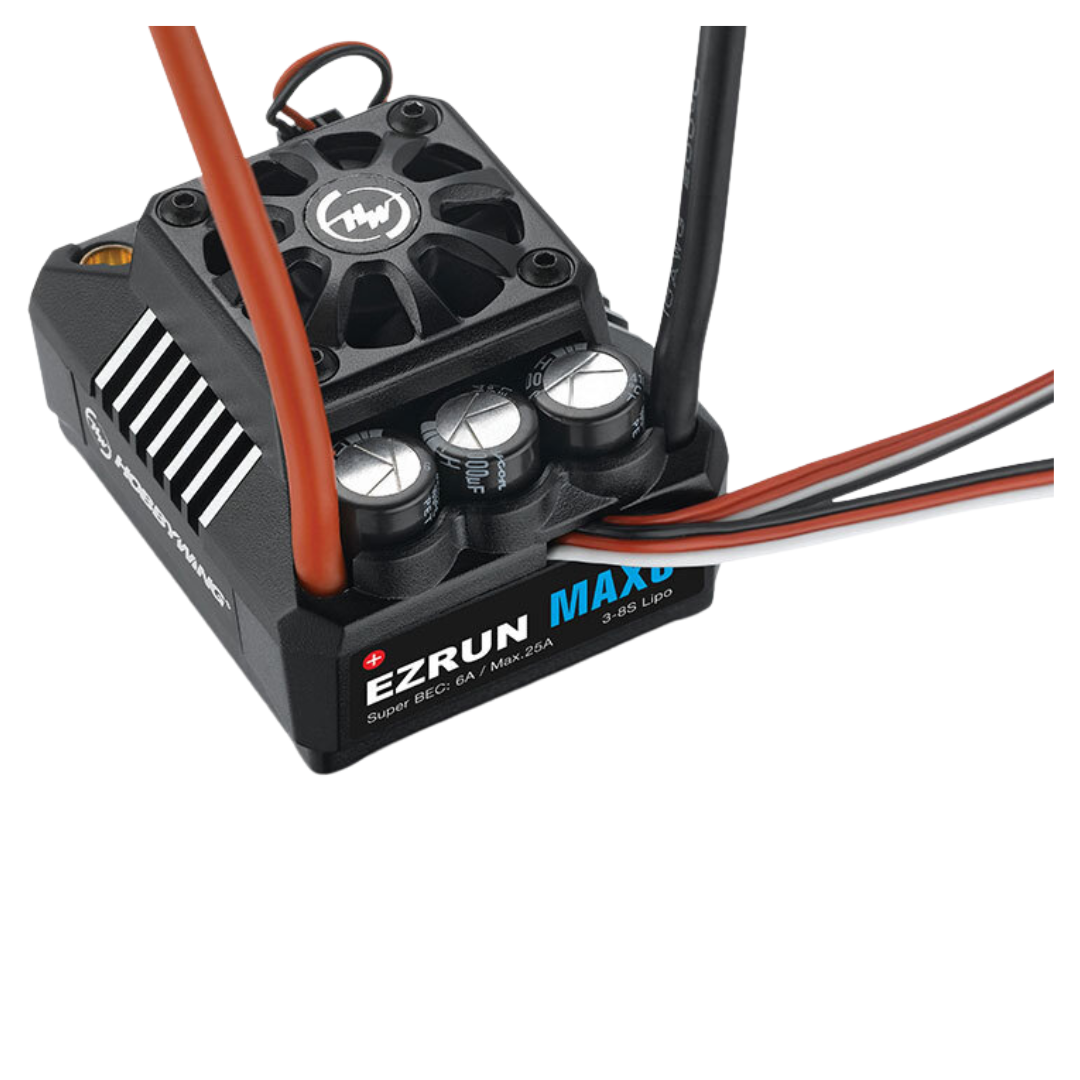

Hobbywing EZRun MAX6 ESC 1/6 1/7 160A 8S Sensorless 30105000

The Hobbywing EZRun MAX6 is a 160A sensorless brushless ESC for 1/6 and 1/7 scale RC cars and trucks, suited to high-power 3S to 8S builds needing durable control, strong acceleration and flexible tuning.

This MAX6 ESC is designed for large-scale and heavy RC vehicles such as monster trucks, buggies, touring cars and aggressive high-power conversions. The waterproof and dust-proof design, internal anti-spark system, adjustable ESC parameters and high-voltage BEC make it a practical choice for demanding RC bashing and speed setups.

Features

• 160A High Output: Built for demanding 1/6 and 1/7 scale RC vehicles using high-power brushless systems
• Sensorless Brushless Operation: Designed for compatible sensorless brushless motors and supported sensorless-mode setups
• 3S To 8S LiPo Support: Wide input range suits large-scale builds using suitable LiPo battery combinations
• Strong Acceleration: Delivers stable output for hard launches, wheelies, high-speed runs and heavy vehicle loads
• Adjustable ESC Parameters: Allows throttle and driving settings to be tuned to suit the vehicle and driver preference

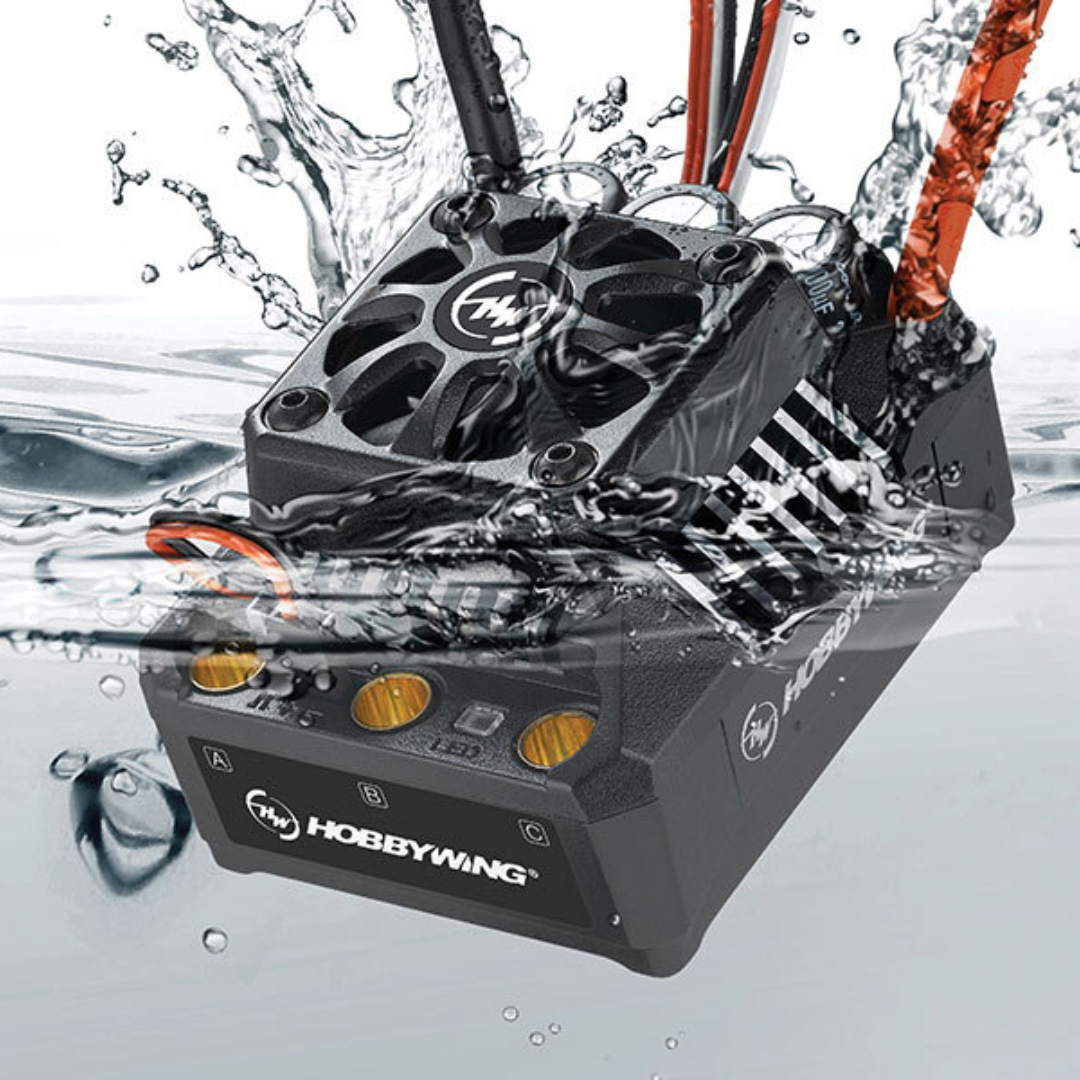

• Waterproof And Dust-Proof Design: Suitable for normal wet, dusty and mixed-surface RC conditions when installed correctly
• High-Voltage BEC: Switchable 6V or 7.4V BEC output helps power compatible standard and high-voltage servos
• Internal Anti-Spark System: Helps reduce connector spark when connecting higher-voltage battery packs
• Electronic Switch: Waterproof, dust-proof and shock-resistant switch design supports reliable operation
• Multiple Protection Functions: Built-in protection helps reduce risk from overload, misuse and demanding operating conditions
• Firmware Upgrade Support: Compatible Hobbywing programming accessories can be used for setup and firmware updates

Specifications

• Brand: Hobbywing
• Model: EzRun MAX6
• SKU: HW30105000
• Manufacturer Part Number: 30105000
• Product Type: Brushless electronic speed controller
• ESC Type: Sensorless brushless
• Scale Suitability: 1/6 and 1/7 scale RC vehicles, plus selected heavy 1/8 builds where suitable
• Vehicle Suitability: Touring car, buggy, truggy, truck and monster truck applications
• Continuous Current: 160A
• Peak Current: 1050A
• Input Voltage: 3S to 8S LiPo or 9 to 24 cell NiMH
• BEC Output: Switch-mode 6V or 7.4V, 6A specification listed
• Maximum BEC Output: Up to 25A manufacturer feature claim
• Motor Limit: 6S LiPo up to 1500Kv with 5892 size motor, retailer listed
• Motor Limit: 8S LiPo up to 1200Kv with 5892 size motor, retailer listed
• Input Wires: 10AWG red and black wires, 200 mm each
• Output Wires: 10AWG black motor wires, 200 mm each
• Input Connectors: Not included
• Motor Connectors: 6.5mm female gold connectors
• Cooling Fan: Included
• Programming: SET button, LED program box, LCD program box and WiFi module support, depending on accessory used
• Program Port: Fan and program port
• Size: 70 x 56 x 46.5 mm
• Weight: 240 g

Includes

• 1 x Hobbywing EzRun MAX6 160A sensorless brushless ESC
• 1 x Cooling fan, installed
• 1 x Pre-wired motor lead set with 6.5mm connectors

FAQ

Is this the sensorless MAX6 or the MAX6 G2? This listing is for the Hobbywing EZRun MAX6 sensorless 160A ESC, not the newer MAX6 G2 200A sensored ESC.

What vehicles does the Hobbywing MAX6 suit? The Hobbywing MAX6 is designed for 1/6 and 1/7 scale RC vehicles and can also suit selected heavy 1/8 scale builds when the motor, gearing and battery setup are within the ESC limits.

Does this ESC include battery connectors? No. The Hobbywing MAX6 includes motor wires with 6.5mm connectors, but battery input connectors are not included.

Can this ESC be programmed? Yes. The Hobbywing MAX6 supports programming through compatible Hobbywing LED program box, LCD program box or WiFi module accessories, sold separately.

Important Notes

• Battery input connectors are not included and must be fitted by a competent user using suitable high-current connectors.
• This is a sensorless ESC. For sensored MAX6 operation, choose the compatible MAX6 G2 sensored version instead.
• Use only with compatible motors and battery setups within the ESC, motor Kv and vehicle limits.
• Check gearing, motor Kv, vehicle weight, tyre size and running temperature to avoid overheating.
• Waterproof and dust-proof protection is for normal RC use; do not fully submerge the ESC for extended periods.
• Programming card, WiFi module, motor, battery, charger, battery connectors, receiver, servo, tools and vehicle are not included unless shown separately.
