Hobbywing EzRun Max6 4985SL 1650Kv Brushless 160A Motor and ESC Combo 38010801
Awesome! You will be notified as soon as this item is available.
There was an error signing up for restock notifications. Please try again.
Notify me when this product is available
Regular price
$430.00
Couldn't load pickup availability
Need some help? call us! ph: 07 3265 4547

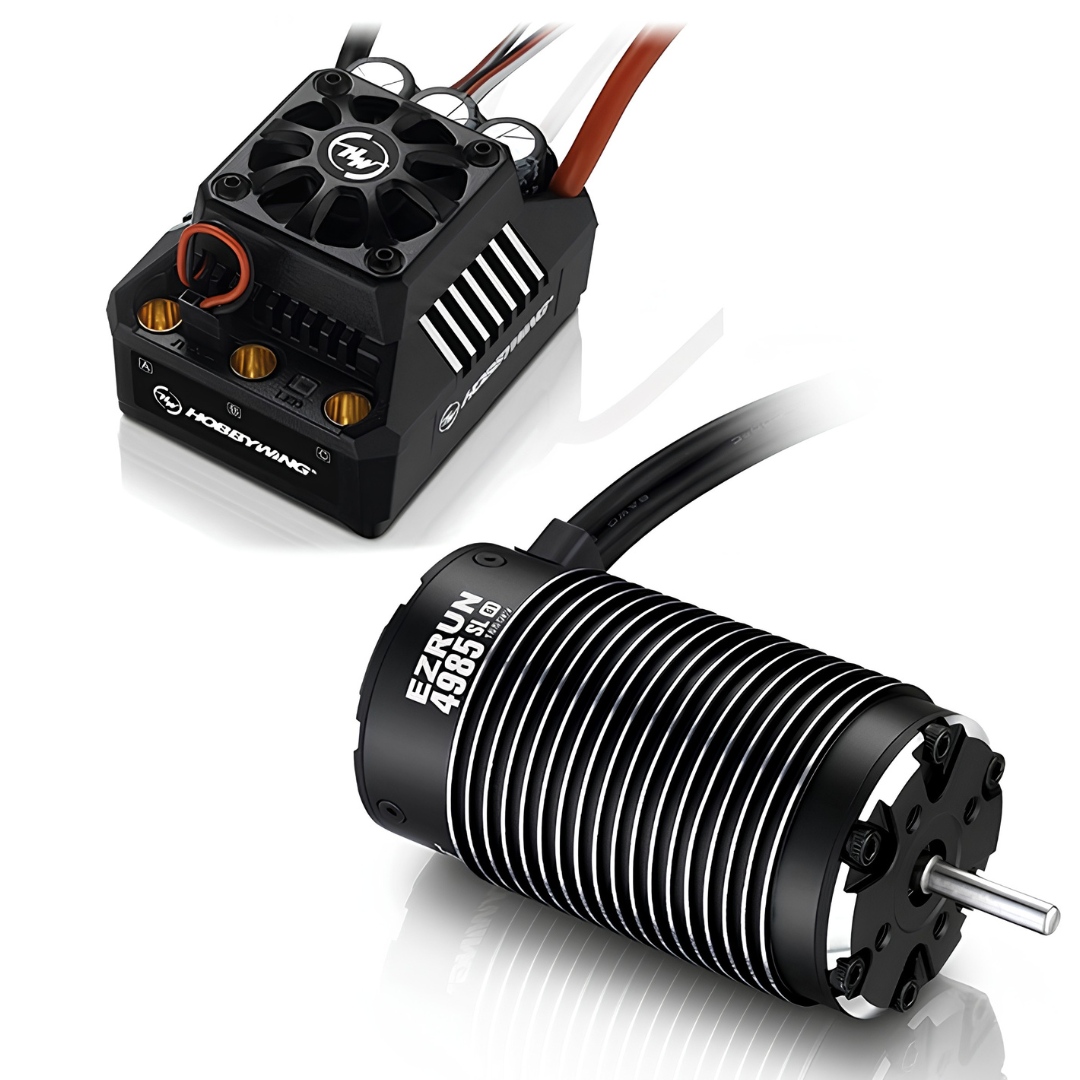

The Hobbywing EZRun MAX6 V3 Sensorless Brushless ESC & Motor Combo includes the 4985SL 1/7 scale, 1650kV motor and is a great option for high-end, aggressively powered 3S - 6S builds.
Motor
- Model: 4985SL-1650KV
- Pole: 4
- KV (No-load): 1650KV
- Resistance: 0.0053 Ω
- Current (No-load): 5.4 A
- Max. Output Power: 5700 W
- Current at the point of M.O.P: 160 A
- Motor Diameter: 49mm
- Motor Length: 86.5mm
- Shaft Diameter: 5.0mm
- Shaft Length: 21.5mm
- LiPo Cells: 3-6
- Weight: 587g (20.71oz)
- Applications: 1/6th & 1/7th RC Vehicles
ESC
- Continuous Current: 160A
- Peak Current:
- Peak Current:
- Peak Current: 1,050A
- Motor Type: Sensorless Brushless Motor
- Applications: 1/6th Touring Car, Buggy, Truggy and Truck
- Motor Limit: With 6S LiPo/18S NiMH: KV ≤1500 (5892 size motor); With 8S LiPo/24S NiMH: KV ≤1200 (5892 size motor)
- LiPo/NiMH Cells: 9-24S NiMH, 3-8S LiPo
- BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
- Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
- Connectors: Input End: None, Output End: Female 6.5mm Gold Connectors (pre-soldered onto the PCB of the speed controller)
- Size (LxWxH): 70x56x46.5mm
- Weight: 240g
- Programming Port: FAN /PRG Port
