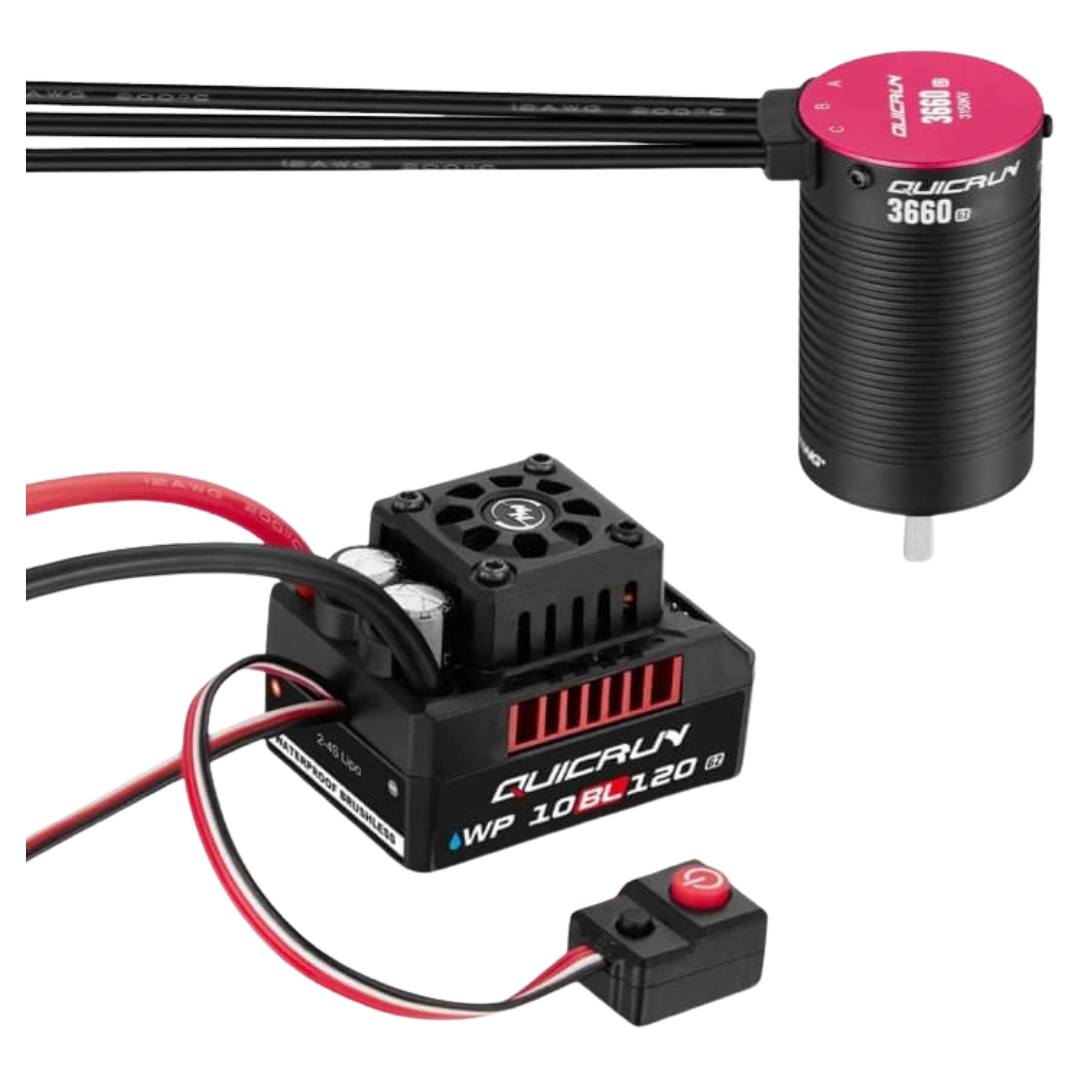

Hobbywing QuicRun WP 10BL120 G2 3660SL 3150KV Brushless Combo HW38030210
Couldn't load pickup availability
The Hobbywing QuicRun WP 10BL120 G2 and 3660SL G2 3150KV combo is a sensorless brushless power system for 1/10 RC trucks and monster trucks, combining a waterproof 120A ESC with a 4-pole 3150KV motor for strong 2S to 3S performance and simple installation
Features
- Complete sensorless brushless ESC and motor combo
- QuicRun WP 10BL120 G2 120A electronic speed controller
- QuicRun 3660SL G2 3150KV sensorless brushless motor
- Designed for 1/10 RC trucks and monster trucks
- IP67-rated ESC protection against water and dust under normal use
- Intelligent freewheeling technology improves driving efficiency and helps reduce ESC operating temperature
- Switch-mode BEC with selectable 6V or 7.4V output
- BEC rated at 5A continuous with up to 10A maximum output
- Multiple protection functions including low-voltage cutoff ESC thermal protection throttle signal loss protection current protection and capacitor thermal protection
- Separate ESC programming port allows compatible programming equipment to be connected without removing the throttle lead from the receiver
- ESC fitted with XT60 battery connector and 4mm motor connectors
- 4-pole motor design for strong torque and acceleration
- Detachable motor construction supports routine cleaning and maintenance
ESC Specifications
- Model: QuicRun WP 10BL120 G2
- Product Number: 3010720
- Motor Type: Brushless
- Operating Mode: Sensorless
- Continuous Current: 120A
- Peak Current: 760A
- Input Voltage: 2S to 4S LiPo
- BEC Output: 6V or 7.4V Selectable
- BEC Current: 5A Continuous Up to 10A Maximum
- Waterproof Rating: IP67 Under Normal Use
- Battery Connector: XT60
- Motor Connectors: 4mm Gold Female
- Cooling Fan: 25 x 25 x 10mm
- Dimensions: 52.8 x 39.8 x 38.2mm
- Weight: Approximately 119g Including Wires and Connectors
Motor Specifications
- Model: QuicRun 3660SL G2
- Motor Type: Sensorless Brushless
- KV Rating: 3150KV
- LiPo Compatibility: 2S to 3S
- Pole Count: 4
- No-Load Current: 5.4A
- Diameter: 36mm
- Length: 60mm
- Shaft Diameter: 5mm
- Shaft Length: 18.5mm
- Motor Connectors: 4mm Male
- Front Bearing: D16 x D5 x T5mm
- Rear Bearing: D13 x D5 x T4mm
- Weight: Approximately 273g
- Application: 1/10 Truck and Monster Truck
Includes
- 1 x Hobbywing QuicRun WP 10BL120 G2 Brushless ESC
- 1 x Hobbywing QuicRun 3660SL G2 3150KV Brushless Motor
FAQ
Is the Hobbywing 10BL120 G2 and 3660SL 3150KV combo sensored? No, the QuicRun WP 10BL120 G2 operates as a sensorless ESC and the included 3660SL G2 3150KV motor is a sensorless brushless motor
Can this combo run on 4S LiPo? The ESC supports up to 4S LiPo but the included 3660SL G2 3150KV motor is rated for 2S to 3S LiPo so this specific combo should be operated within the motor's 2S to 3S rating
What pinion bore does the 3660SL G2 motor require? The motor has a 5mm output shaft so a compatible pinion with a 5mm bore is required
Can the BEC run a high-voltage steering servo? Yes, the ESC provides selectable 6V or 7.4V BEC output rated at 5A continuous with up to 10A maximum output for compatible servos
Important Notes
- The included 3150KV motor is rated for 2S to 3S LiPo even though the ESC itself supports up to 4S
- Hobbywing describes the IP67 protection as water-resistant splash-resistant and dust-resistant under normal use and advises against prolonged immersion
- Use a correctly sized 5mm-bore pinion and appropriate gearing for the vehicle tyre size weight and intended battery voltage
- Do not operate the motor at full throttle without a pinion or load installed
- Do not allow the motor case temperature to reach 100°C
