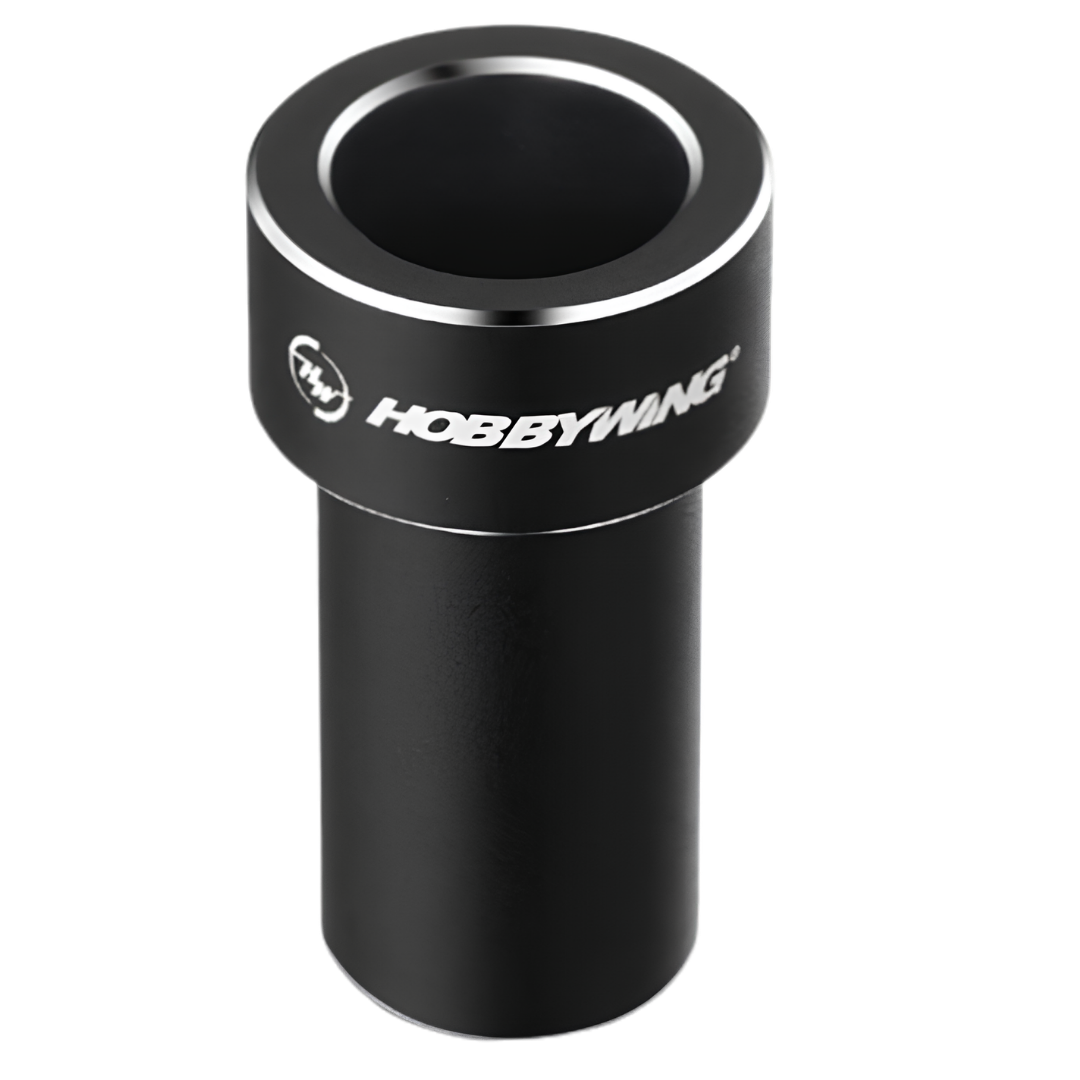

Hobbywing Rotor Replacement Tool V10 Justock 540 Motor HW30800006
Couldn't load pickup availability
The Hobbywing Rotor Replacement Tool is a dedicated maintenance aid for compatible V10 and Justock 540-size brushless motors, helping guide the rotor shaft into the rear motor bearing during reassembly while reducing the difficulty caused by strong rotor magnet forces
Features
- Designed to simplify brushless motor rotor installation during maintenance and rebuilding
- Guides the rotor shaft towards the rear motor bearing during reassembly
- Suitable for compatible Hobbywing V10 and Justock motors
- Supports rotors with a maximum diameter of approximately 13mm
- Simple sleeve-style design for convenient pit and workshop servicing
- Useful when changing rotors or rebuilding compatible 540-size brushless motors
Specifications
- Brand: Hobbywing
- Product Type: Rotor Replacement Tool
- Application: Brushless Motor Rotor Installation
- Compatible Motor Series: V10 and Justock
- Motor Size: Compatible 540-Size Motors
- Maximum Rotor Diameter: Approximately 13mm
- Outside Diameter: Approximately 14.5mm
- Inside Diameter: Approximately 13.2mm
- Length: Approximately 35mm
- Barcode: 6938994415750
- Manufacturer Part Number: HW30800006
Includes
- 1 x Hobbywing Rotor Replacement Tool
FAQ
What does the Hobbywing rotor replacement tool do? The tool helps guide the motor rotor into position so the rotor shaft can enter the rear bearing more easily during motor reassembly
Which motors is HW30800006 designed for? Retailer documentation identifies HW30800006 for Hobbywing V10 and Justock motors and other compatible 540-size applications using rotors up to approximately 13mm diameter
Why is a rotor installation tool useful? Strong rotor magnets can pull the rotor towards the stator during installation which can make accurate alignment with the rear bearing difficult and this tool helps keep the rotor guided during that process
Can this tool be used with every 540 brushless motor? No, rotor dimensions and internal motor construction vary so compatibility should be confirmed before use even when the motor is described as 540 size
Important Notes
- Confirm rotor diameter and motor compatibility before use
- Do not force the rotor or tool into the motor housing
- Use care around strong rotor magnets during motor servicing
