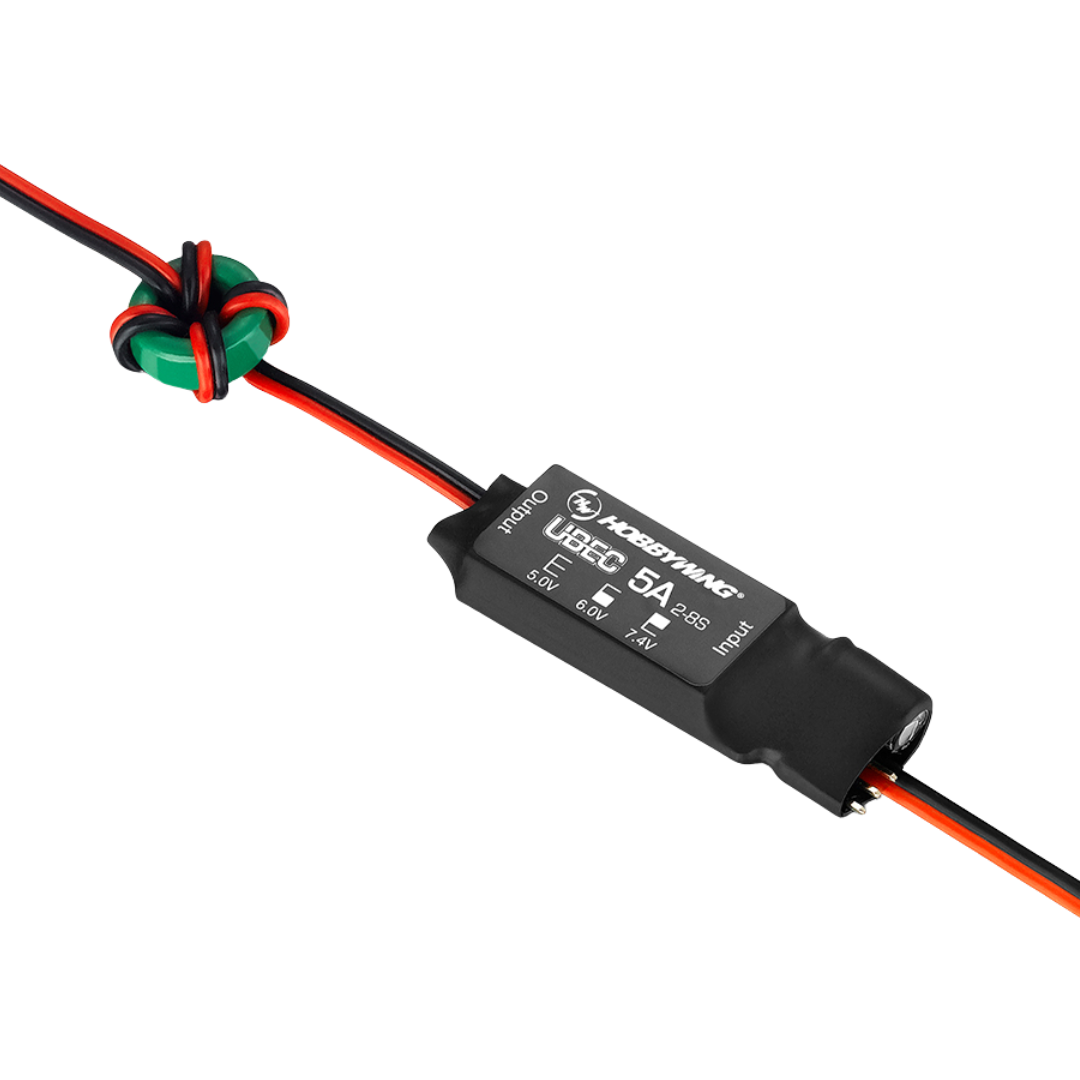

Hobbywing UBEC 5A Adjustable Output 2-8S Lipo Compatible HW30607000

The Hobbywing UBEC 5A provides stable and efficient power for RC electronics using a high-performance DC-DC regulator chip. With selectable output voltages of 5.0V, 6.0V, or 7.4V, it supports a wide range of servos and electronic components. Featuring advanced protections, it ensures safe operation under varying conditions.

Features

• High efficiency DC-DC regulator with over 90% conversion rate
• Adjustable output voltage: 5.0V, 6.0V, or 7.4V
• Delivers continuous 5A and peaks up to 15A
• Compatible with 2–8S LiPo battery input
• Built-in overcurrent, short-circuit, and overheat protection

Specifications

• Model: UBEC 5A
• Input Voltage: 2–8S LiPo
• Output Voltage: 5.0 / 6.0 / 7.4 V (adjustable)
• Output Current: 5A continuous, 15A peak
• Dimensions: 50 × 17 × 10 mm
• Weight: 21 g

Includes

• 1x Hobbywing UBEC 5A unit
